Pixapro Li-ion580IIIM User manual

PIXAPRO设计文件图注
展开尺寸(mm)成品尺寸(mm)
尺寸公差
材质
工艺说明
备注/色值
设计师 校对
项目类型 彩盒 贴纸 说明书 内托 胶盒 吸塑
白盒 其他:
彩卡
项目名称 PIXAPRO_Li-ion580III M 说明书
产品料号 705-V85030-00 版本 A
±2mm
80x195mm
骑马钉
陈正丰 杨入人
105g

Pioneering Li-ion Camera Flash
Made in China
essentialphoto.co.uk
UNIT 5 Sterling Park
Pedmore Road
Brireley Hill
West Midlands
DY5 1TB
Tel: [phone]
E-mail: [email protected]
PIXAPRO Ltd.
705-V85030-00

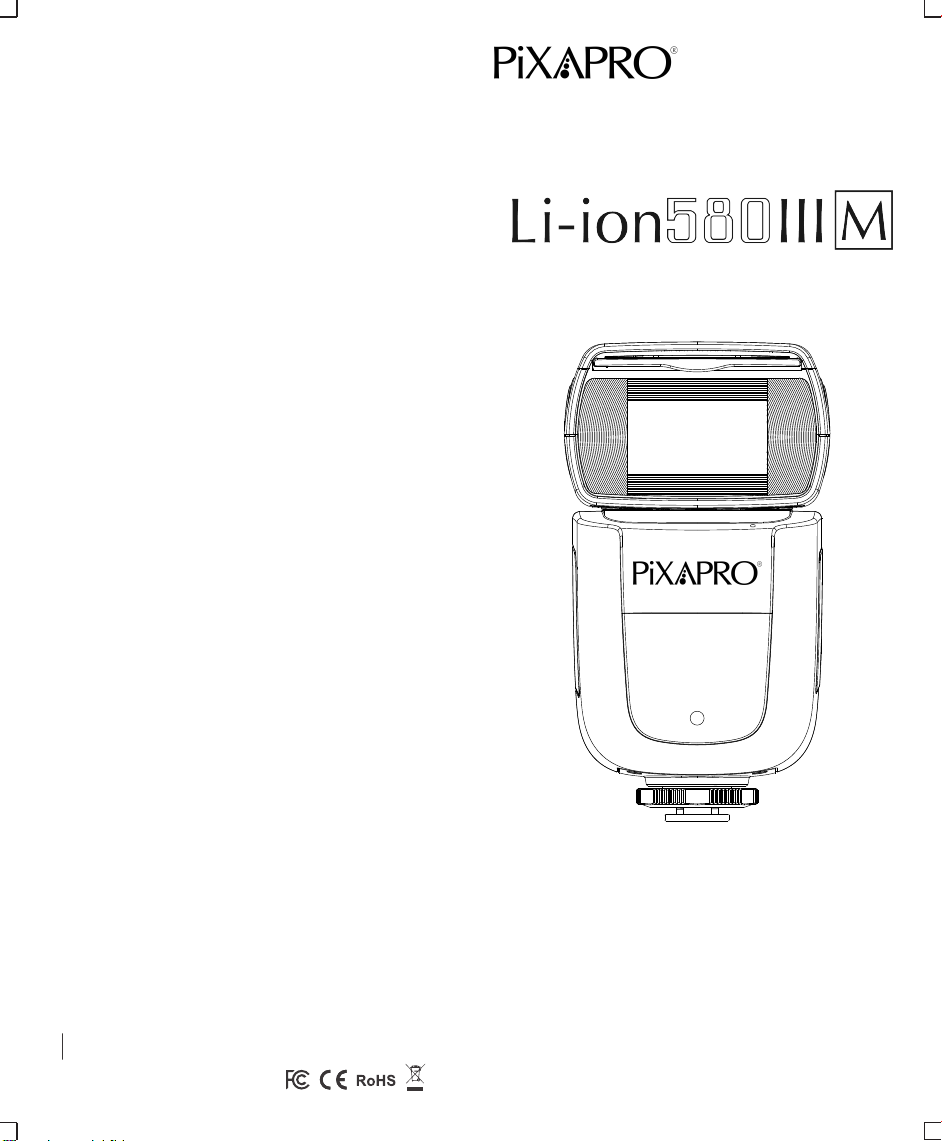

INSTRUCTION MANUAL
Before using this product:
Please read this user manual carefully in order to ensure your safety
and the proper operation of this product. Keep for future reference.

Always keep this product dry. Do not use in rain or in damp
conditions.
Do not disassemble. Should repairs become necessary, this
product must be sent to an authorized maintenance center.
Keep out of reach of children.
Stop using this product if it breaks open due to extrusion, falling
or strong hit. Otherwise, electric shock may occur if you touch
the electronic parts inside it.
Do not fire the flash directly into the eyes (especially those of
babies) within short distances. Otherwise visual impairment
may occur.
Do not use the flash unit in the presence of flammable gases,
chemicals and other similar materials. In certain circumstance,
these materials may be sensitive to the strong light emitting
from this flash unit and fire or electromagnetic interference may
result.
Do not leave or store the flash unit if the ambient temperature
reads over 50℃. Otherwise the electronic parts may be
damaged.
Turn off the flash unit immediately in the event of malfunction.
Thank you for purchasing this product.
This Li-ion580III M camera flash adopts PIXAPRO wireless
ONE System and 2.4GHz ratio transmission, which is
compatible with HyBRID360 TTL, GIO1, ST-III, ST-III+, ST-IV
etc. Fit all DSLR camera brands e.g. Canon, Nikon, Sony, etc.
This camera flash features:
• GN60 (m ISO 100, @200mm). Adjust from 1/1 to 1/128 in
1/3rd stops
• Professional 2600mAh lithium battery offers 450 flashes and 1.5s
recycle
• Built-in 2.4GHz wireless transmission to support transmitting and
receiving
• High speed sync, wireless remote control, multi flash and manual
focus assist
•Stable consistency and color temperature with good even lighting
• User-friendly LCD display & control panel
Warning
Foreword
-01 - - 02 -

01
02
05
07
08
08
15
16
18
18
Foreword
Warning
Name of Parts
Body
Control Panel
LCD Panel
What’s in the Box
Separately Sold Accessories
Battery
Attaching to a Camera
Using the Flash
Power Management
Flash Output
ZOOM: Setting the Flash Coverage
M Mode: Manual Mode
Multi Mode: Stroboscopic Flash
S1 Mode
S2 Mode
Hi-Speed Sync Triggering
Custom Function----Focus Assist Beam
Buzz Function
Wireless Flash Shooting: Radio (2.4G) Transmission
Sync Triggering
Custom Function----Sleep Function
C.Fn Setting Custom Functions
Protection Function
Advanced Application
Technical Data
Maintenance
Contents
Conventions used in this Manual
• This manual is based on the assumption that both the camera and
camera flash’s power switches are powered on.
• Reference page numbers are indicated by “p.**”.
• The following alert symbols are used in this manual:
The Caution symbol gives supplemental information.
The Note symbol indicates a warning to prevent shooting
problem.
-03 - - 04 -

01. Catchlight Panel
02. Built-In Wide Panel
(Retracted)
03. Flash Head
04. Optic Control Sensor
05. Focus Assist Beam
●Body
●Control Panel
●LCD Panel

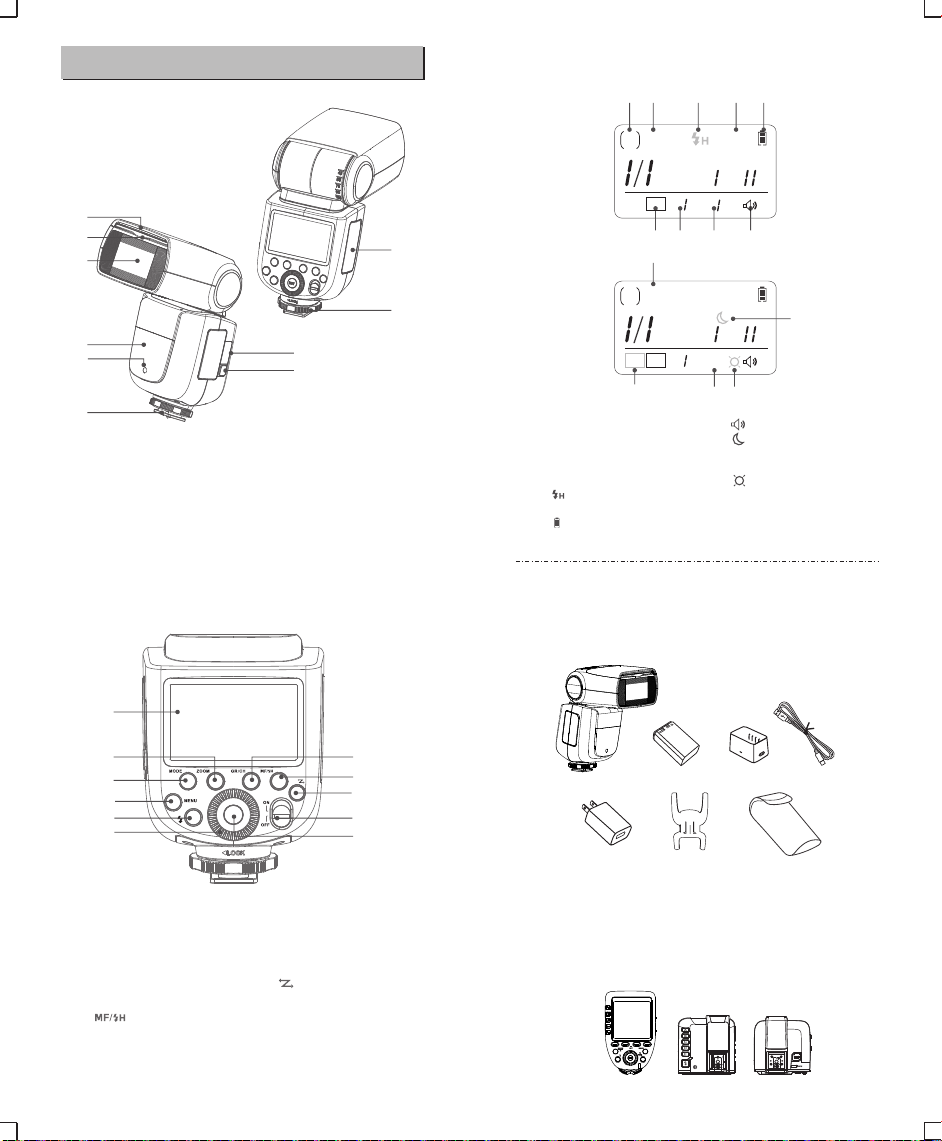

Name of Parts
07
08
04
03
01
06
02
10
05
09
SET
11
12
13 14
15
16
17
18
19
20 21
06. Battery Release Button
07. Sync Cord Jack
08. Hotshoe
09. Lock Ring
10. Battery Compartment
11. Display
12. MODE Flash Mode Selection
13. ZOOM Zoom Setting
14. GR/CH Group/
Channel Setting (long press)
15. Focus Assist Beam/
High-speed Sync (long press)
16. MENU Flash Menu
17. Test Button/Flash
Ready Indicator
18. Wireless Setting Button
19. ON/OFF Power Switch
20. Select Dial
21. SET Set Button
19. <M>Manual Flash Mode
20. <S1>S1 Slave Flash Triggering
21. <S2>S2 Slave Flash Triggering
22. <Multi>Multi/Stroboscopic
Flash Mode
23. < > High Speed Sync
Triggering
24. < > Battery Level Indication
25. < > Sound Beep Indication
26. < > Sleep Status
27. TX Transmitter Mode
28. RX Receiver Mode
29. < > Focus Assist Beam
Indicator
30. Channel
31. Group
32. Zoom focal length
4. Battery Charger Cable 5. Mini Stand 6. Protection Case
7. Instruction Manual
1. Flash Unit 2. Li-ion Battery Pack 3. Battery Charger
1 2 34
67 5
●Separately Sold Accessories
The product can be used in combination with the following
accessories sold separately, so as to achieve best photography
effects: ST-III，ST-III+ and ST-IV TTL wireless flash trigger,
Mini softbox, White & Silver Reflector, Honeycomb, Color gels,
Snoot, etc.
●What's in the Box
-05 - - 06 -
09
08
01 05
07
06
02
03
04
10
11
12
13 14
Mmm
A
28 0-
24
Hz
RX CH 2S
Multi mm
A
28 0-
24
Hz
RX CH 2S2
TX
Z
Z

•Features
1. This flash unit uses Li-ion polymer battery which has long
runtime. The available charge-and-discharge times are 500.
2. It is reliably safe. The inner circuit is against overcharge,
overdischarge, overcurrent, and short circuit.
3. Take only 2.5 hours to fully charge the battery by using the
standard battery charger.
•Cautions
1. Do not short circuit.
2. Do not expose to rain or immerse into water. This battery is not
water proof.
3. Keep out of reach of children.
4. No over 24 hours’ continuous charging.
5. Store in dry, cool, ventilated places.
6. Do not put aside or into fire.
7. Dead batteries should be disposed according to local regulations.
8. If the battery had ceased using for over 3 months, please make a
full recharge.
9. If do not use it for a long time, please charge the battery to
approx. 60% before placing it.
10. It is recommended to use a brand-new battery after charging
and discharging over 500 times or being used over 3 years.

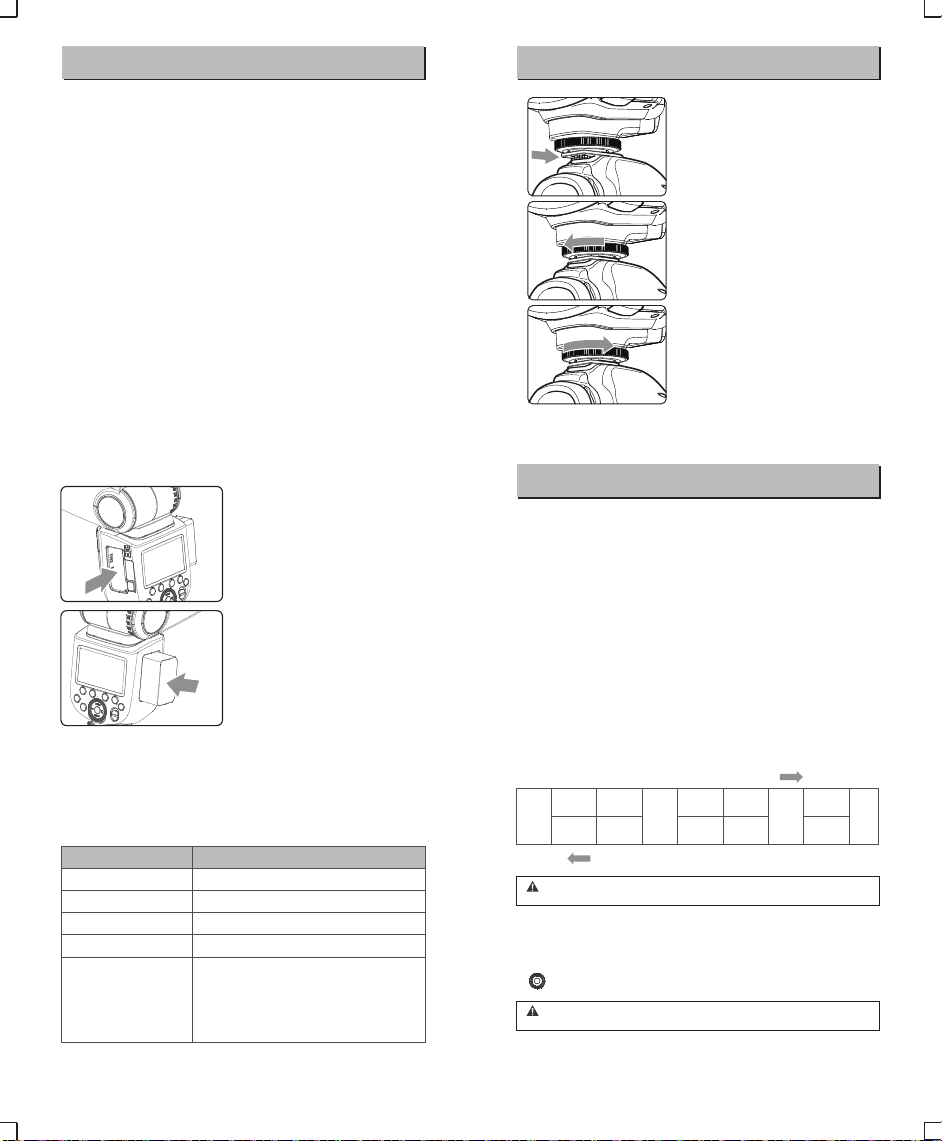

•Loading and Unloading the Battery
Battery
To unload the battery, hold
1down the battery remove
button and push the battery
downwardly to take it out.
According to the triangle sign
2on the battery pack, insert it
into the compartment until a
white knob locks the battery
with a click sound.
•Battery Level Indication
Make sure the battery pack is securely loaded in the flash. Check
the battery level indication on the LCD panel to see the remaining
battery level.
Battery Level Indication
3 grids
2 grids
1 grid
Blank grid
Blinking
Attaching to a Camera
Attach the Camera Flash.
1● Rotate the hotshoe fixing
buckle to the left and insert
the camera flash into the
camera's hotshoe.
Secure the Camera Flash.
2● Rotate the hotshoe fixing
buckle to the right until it
locks up.
Detach the Camera Flash.
3● Press the button and
rotate the hotshoe fixing
buckle to the left until it is
loosened.
Using the Flash
The battery level is going to be used out
immediately. And the flash will auto power off
in 1 minute.
Note: Please recharge the battery as soon as
possible (within 10 days). Then, the battery can be
used or be placed for long period.
Meaning
Full
Middle
Low
Lower battery, please recharge it.
1. Power Management
Use ON/OFF Power Switch to power the flash unit on or off. Turn
off if it will not be used for an extended period of time. This flash
unit has Sleep Function and will enter into sleep status when there
is no operation for a long time. For Sleep Function setting, see the
following instruction.
2. Flash Output
● Flash output can be varied from 1/128th power to 1/1 full power
in 1/3 stop increments. To obtain a correct flash exposure, use
a hand-held flash meter to determine the required flash output.
● Adjust the power output by rotating Select Dial . The following
table makes it easier to see how the stop changes in terms off/
stop when you increase or decrease the flash output:
Figures displayed when reducing flash output level
1/1
1/1-0.3 1/1-0.7
1/2
1/2-0.3 1/2-0.7
1/4
...
OF
1/2+0.7 1/2+0.3 1/4+0.7 1/4+0.3 ...
Figures displayed when increasing flash output level
When “OF” is shown on the LCD display, it means no flash output and
flash firing is turned off.
3. ZOOM: Setting the Flash Coverage
The flash coverage can be set to match the lens focal length from
20 mm to 200 mm. Press <ZOOM> button and rotate Select Dial
< > to change the flash coverage.
When setting the flash coverage, make sure it covers the lens focal length
so that the picture will not have a dark periphery.
-07 - - 08 -

4. M Mode: Manual Mode
Press MODE Selection Button <MODE> to enter M mode. In this
mode, you can set the flash unit onto your camera hot shoe or
your trigger hot shoe for firing. Before shooting, adjust the flash
power output. When the camera’s shutter is pressed, the flash
will fire synchronously. Slave triggering mode is not available in M
mode.
5. Multi Mode: Stroboscopic Flash
Press Mode Selection Button <MODE> to enter Multi mode
(Stroboscopic flash). With stroboscopic flash, a rapid series of
flashes is fired. It can be used to capture multiple images of a
moving subject in a single photograph. You can set the firing
frequency (number of flashes per sec. expressed as Hz), the
number of flashes, and the flash output. For setting procedures,
see the following:
Press the Mode Selection
1Button <MODE> so that “Multi”
is displayed.
Press Set Button <SET> to
2select the item to be set. The
item blinks.
Rotate Select Dial < > to set a
3desired number.
Calculating the Shutter Speed
During stroboscopic flash, the shutter remains open until the firing
stops. Use the provided formula to calculate the shutter speed
required to capture the full sequence of flashes:
Number of flashes / Firing frequency = Shutter speed
For example, if the number of flashes is 10 and the firing frequency
is 5 Hz, the shutter speed should be at least 2 sec.
Note:
● Stroboscopic flash is most effective with a highly reflective
subject against a dark background.
● Using a tripod and a remote switch is recommended.
● A flash output of 1/1 or 1/2 cannot be set for stroboscopic flash.
● Stroboscopic flash can be used with “buLb”.
1/4
1/8
1/16
1/32
1/64
1/128
1
7
14
30
60
90
100
2
6
14
30
60
90
100
3
5
12
30
60
90
100
4
4
10
20
50
80
100
5
4
8
20
50
80
100
6-7
3
6
20
40
70
90
8-9
3
5
10
30
60
80
Flash output Hz
10
2
4
8
20
50
70
11
2
4
8
20
40
70
12-14
2
4
8
20
40
60
15-19
2
4
8
18
35
50
20-50
2
4
8
16
30
40
60-199
2
4
8
12
20
40
1/4
1/8
1/16
1/32
1/64
1/128
Hz
Maximum Stroboscopic Flashes：
Flash output
To avoid overheating and deteriorating the flash head during stroboscopic
flash, do not use stroboscopic flash more than 10 times in succession.
6. S1 Mode: S1 Slave Triggering Mode
● Press the <MENU> button for 2
seconds to enter the custom menu
and press <SET > Button to
choose OS. Then, turn the Select
Dial to choose OFF/S1/S2.
● In S1 mode, the flash unit
can function as a slave flash for
creating multiple lighting effects. It
is respectively applicable to
manual flash environment.
● In S1 mode, the flash unit will fire
synchronously when the master
flash fires, the same effect as
7. S2 Mode: S2 Slave Triggering Mode
● Press the <MENU> button for 2
seconds to enter the custom
menu and press <SET> Button to
choose OS. Then, turn the Select
Dial to choose OFF/S1/S2.
● In S2 mode, the flash unit
can function as a slave flash for
creating multiple lighting effects.
It is applicable when using a TTL
master flash.
● In S2 mode, the flash unit will
ignore a single “preflash” from
the master flash and will only fire
in response to the second, actual
flash from the master.
-09 - - 10 -
Multi mm
A
28 0-
24
Hz
RX CH 2
S
0S-S
S
0S-S
2
2

8. Hi-Speed Sync Triggering
• To enter < > mode, long press
< > button and hold for 2
seconds.
• To exit < > mode, press Mode
Selection Button or long press
< > button and hold for 2
seconds again.
• In < > hi-speed sync triggering
mode, you can use a hi-speed
sync trigger to have your flash unit
synchronized with all shutter
speeds of cameras (max. 1/8000
second, up to your camera). This
is convenient when you want to
use aperture priority for fill-flash
portraits.
Note: *Hi-speed sync triggering mode is effective only when the flash unit is
used together with the following flash triggers. (TTL wireless flash trigger ST-
III, ST-III+, ST-IV)
*Hi-speed sync triggering mode is not available when Li-ion580III M is
mounted onto the camera.
To avoid overheating or deteriorating the flash head during high speed
sync flash, the over-temperature protection function will be activated
automatically after 10 continuous high-speed flashes and the ecycle time
becomes 10 seconds longer.
9. Custom Function--Focus Assist Lamp
•Under poorly-lit or low-contrast
conditions, you can press < >
button to turn on the focus
assist beam in order to make it
easier to autofocus.
● The beam will automatically put
out certain seconds after the last
pop is fired. The time between the
last fire and the auto shutdown of
focus assist beam is called
No-Flash Time. The time is user
adjustable and set to 10 seconds
by default.
● Press < MENU > button to enter
Custom Function.
Then press “SET” button to enter
“FC” mode. The LCD panel
displays “FC” (Auto shutdown of
focus assist lamp) and “No-Flash
Time”. Rotate Select Dial < > to
set a desired time for the flash.
Press < > button to return.
No-Flash Time
10 seconds
20 seconds
30 seconds
Meaning
10 seconds after the last fire, focus assist
lamp will automatically get out.
20 seconds after the last fire, focus assist
lamp will automatically get out.
30 seconds after the last fire, focus assist
lamp will automatically get out.
10. Buzz Function
● To turn the buzz function on or
off, press the <MENU> button to
enter Custom Function.
● Then press “SET” button
to enter “bp” mode. The LCD
displays“ON”means buzz is turned
on while “OF” means buzz is
turned off.
● When the buzzer is turned on,
< > is shown on the LCD
display.
11. Wireless Flash Shooting: Radio (2.4G)
Transmission
•Li-ion580III M has 2.4GHz radio transmission (Master/Slave)
•Wireless mode setting: Press the < > wireless setting button
to set TX or RX mode.
•Channel setting: Long press <GR/CH> button and hold for 2
seconds until the figure besides the CH is blinking. Turn the
Select Dial to choose the channel from 1~32.
•Group setting: Short press <GR/CH> button to select group. In
TX or RX mode, groups can be selected from A/B/C/D/E.
•ID Setting: Press the <MENU> button to enter the menu. Then,
press SET button to choose ID and turn the select dial to select
ID from OF, 01 to 99.
• As Li-ion580III M adopts PIXAPRO wireless ONE System, it is
compatible
with ST-IV, ST-III+, ST-III, STORM II 600, Li-ion580II series, Li-
ion580III series, GIO1 series, Li-ion350II, Hybrid360TTL,
CITI1200Pro, CITI400Pro, CITI100Pro, PIKA200, CITI600Pro
series, PIKA200Pro, CITI300Pro, etc.
12. Sync Triggering
The Sync Cord Jack is a Φ2.5mm plug. Insert a trigger plug
here and the flash will be fired synchronously with the camera
shutter.
Transmission distance is
about 100 meters
• See the picture below:
TX
RX
-11 - - 12 -
Mmm
28
24
Mmm
28
24
fc-20

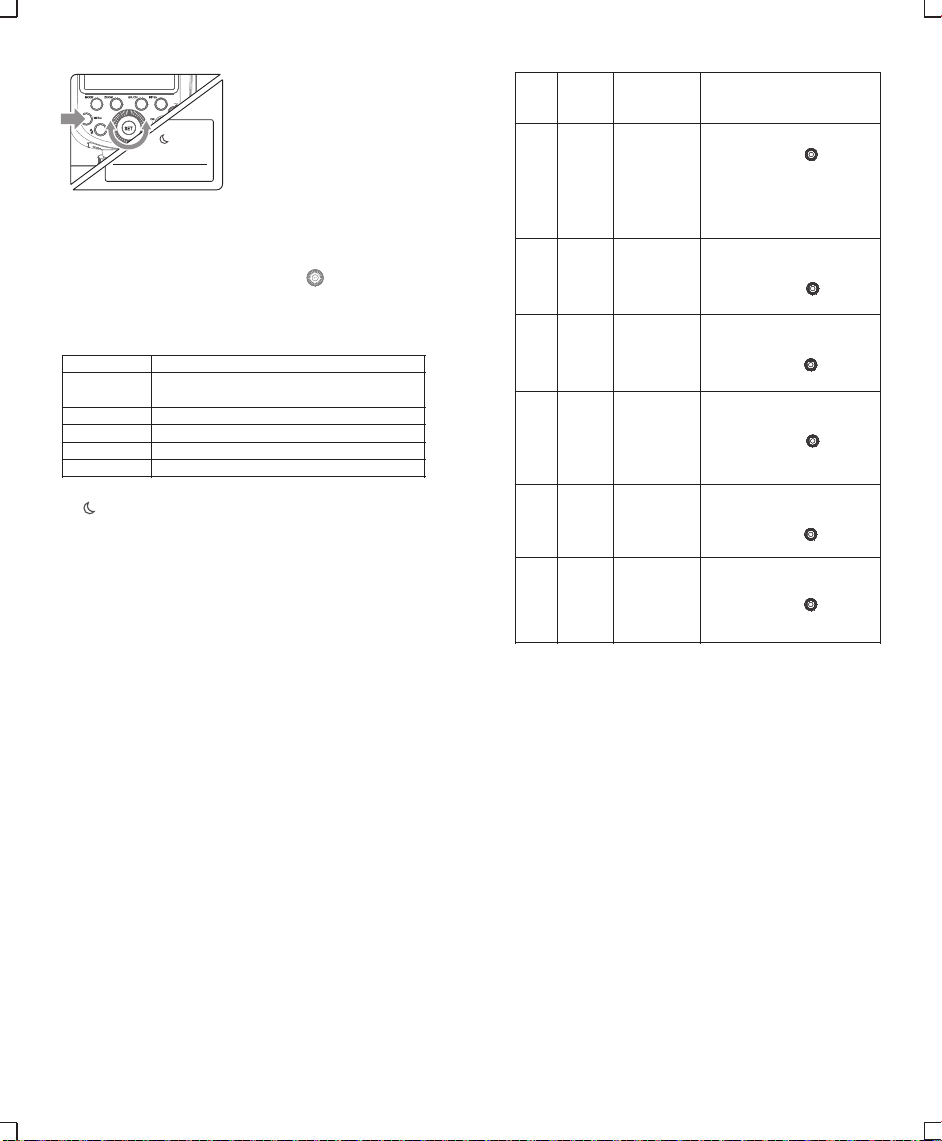

13. Custom Function - Sleep Function
• This product is equipped with
Sleep Function to avoid battery
drain when the flash unit is idle.
• Press the <MENU> button to
enter the sleep Function Mode.
Press SET button to enter "SL"
adjustment.
The LCD panel displays “SL”
(Sleep) and “Sleeping Time”. Idle
time before entering Sleep Mode is
10 minutes by default. Rotate
Select Dial < > to set a desired
time for the flash or to turn off
Sleep Function.
Press <MENU> button to return.
Idle Time
OF
3
10
30
60
Meaning
Sleep Function is turned off. The flash unit will not
automatically enter sleep mode.
Idle time before entering Sleep Mode is set to 3 minutes.
Idle time before entering Sleep Mode is set to 10 minutes.
Idle time before entering Sleep Mode is set to 30 minutes.
Idle time before entering Sleep Mode is set to 60 minutes.
• When the flash enters sleep mode, the LCD panel displays
a “ ” icon.
• To wake up the flash unit, press any button on the flash unit, or
press the camera release button, or press the trigger TEST
button.
Note:
The idle time before entering Sleep Mode is recommended to set
short. This can ensure a longer battery life.
14. Custom Function - Sleep Function
Custom
Function
Signs
SL
FC
BP
BL
OS
Sleeping
Time
Setting
Settable Time:
<3> 3 minutes
<10> 10 minutes
<30> 30 minutes
<60> 60 minutes
<OF> OFF
Function Settings &
Description
Operation
Auto Power
OFF Time
Setting of
Auto Focus
Assist
Buzz
Setting
Backlight
Setting
Optic
Slave
Mode
<10>10 seconds
<20>20 seconds
<30>30 seconds
<ON> On
<OF> Off
Backlight can be
set as follows:
<ON>: Always
lighting
<12>: Off in 12 sec.
<OF>: Off
<OF> Off
<S1> S1 mode
<S2> S2 mode
1. Press <MENU> button to enter Custom
Functions.
2. Turn the Select Dial < > to adjust
sleeping time.
3. Press <MENU> buttonto return.
*Press any button can wake up the flash.
* The idle time before entering Sleep Mode
is recommended to set short. This can
ensure a longer battery life.
1. Press <MENU> button to enter Custom
Functions.
2. Press <SET> button to enter FC states.
3. Turn the Select Dial < > to adjust.
4. Press <MENU> button to return.
1. Press <MENU> button to enter Custom
Functions.
2. Press <SET> button to enter bp states.
3. Turn the Select Dial < > to adjust.
4. Press <MENU> button to return.
1. Press <MENU> button to enter Custom
Functions.
2. Press <SET> button to enter bL states.
3. Turn the Select Dial < > to adjust.
4. Press <MENU> button to return.
1. Press <MENU> button to enter Custom
Functions.
2. Press <SET> button to enter OS states.
3. Turn the Select Dial < > to adjust.
4. Press <MENU> button to return.
•Display all functions: press and hold down MENU and MODE
button, then, turn the flash on to check the display.
•Software version checking: press and hold down SET button,
then, turn the flash on to check the number of version.
-13 - - 14 -
Z
SL-60
Z
ID ID
Setting
<OF> Off
<01-99> 01-99
1. Press <MENU> button to enter Custom
Functions.
2. Press <SET> button to enter id states.
3. Turn the Select Dial < > to adjust.
4. Press <MENU> button to return.

Protection Function
1. Over-Temperature Protection
● To avoid overheating and deteriorating the flash head, do not fire
more than 30 continuous flashes in fast succession at 1/1 full
power. After 30 continuous flashes, allow a rest time of at least 10
minutes.
● If you fire more than 30 continuous flashes and then fire more
flashes in short intervals, the inner over-temperature protection
function may be activated and make the recycling time over 10
seconds. If this occurs, allow a rest time of about 10 minutes, and
the flash unit will then return to normal.
● When the over-temperature protection is started, is shown on
the LCD display.
Number of flashes that will activate over-temperature
protection:
2. Other Protections
The system provides real-time protection to secure the device and
your safety. The following lists prompts for your reference:
Number of flashes that will activate over-temperature
protection in high-speed sync triggering mode:
Meaning
A failure occurs on the recycling system so that the
flash cannot fire.
Please restart the flash unit. If the problem still exists,
please send this product to a maintenance center.
The system gets excessive heat. Please allow a rest
time of 10 minutes.
The voltage on two outlets of the flash tube is too high.
Please send this product to a maintenance center.
There are some errors occurred during the upgrading
process. Please using the correct firmware upgrade
method.
Prompts on LCD Panel
E1
E2
E3
E9
35
50
100
200
300
500
1000
2000
1/1
1/2
1/4
1/8
1/16
1/32
1/64
1/128
30
30
34
40
50
50
60
60
20 - 200
Power
Output Level
Number
of Flashes ZOOM
(mm)
● If the wall or ceiling is too far away, the bounced flash might
be too weak and result in underexposure.
● The wall or ceiling should be a plain, white color for high
reflectance. If the bounce surface is not white, a color cast
may appear in the picture.
Advanced Application
● Bounce Flash
By pointing the flash head toward a wall or ceiling, the flash will
bounce off the surface before illuminating the subject. This can
soften shadows behind the subject for a more natural-looking shot.
This is called bounce flash. To set the bounce direction, hold the
flash head and turn it to a satisfying angle.
330°
-7-120°
●Creating a Catchlight
With the catchlight panel, you can create a catchlight in the
subject’s eyes to add life to the facial expression.
Point the flash head upward
1by 90°.
Pull out the wide panel.
2The catchlight panel will
come out at the same time.
Push the wide panel back in.
3● Push in only the wide panel.
● Follow the same procedures
as for bounce flash.
• Point the flash head straight ahead and then upward by 90°.
The catchlight will not appear if you swing the flash head left
or right.
• For best catchlight effect, stay 1.5m/4.9ft away from the
subject.
-15 - - 16 -
1/1
1/2
1/4
1/8
1/16
1/32
1/64
1/128
20 - 200
Power
Output Level
Number
of Flashes ZOOM
(mm)

●Using the Wide Panel
Pull out the built-in wide panel to enlarge the flash lighting range,
so as to get more softened and natural lighting effect.
Pull out the wide panel and place
it over the flash head as shown.
The flash coverage will then be
extended to 14 mm.
● The catchlight panel will come
out at the same time. Push
the catchlight panel back in.
1. Disturbed by the 2.4GHz signal in outer environment (e.g.
wireless base station, 2.4GHz wifi router, Bluetooth, etc.)
→To adjust the channel CH setting on the flash trigger (add 10
+
channels) and use the channel which is not disturbed. Or turn off
the other 2.4GHz equipment in working.
2. Please make sure that whether the flash has finished its
recycle or caught up with the continuous shooting speed or
not(the flash ready indicator is lighten) and the flash is not
under the state of over-heat protection or other abnormal
situation.
→Please downgrade the flash power output.
3. Whether the distance between the flash trigger and the flash
is too close or not
→Please turn on the “close distance wireless mode” on the flash
trigger (＜0.5m):
ST-III+ & ST-III series: press the test button and hold on, then
turning it on until the flash ready indicator blinks for 2 times.
ST-IV series: Set the C.Fn-DIST to 0-30m.
4. Whether the flash trigger and the receiver end equipment are
in the low battery states or not
→Please replace the battery(the flash trigger is recommended to
use 1.5V disposable alkaline battery).
Reasons & Solutions for Flash Not Triggering
Technical Data
Li-ion580III M
76Ws
20 to 200mm
• Manual zoom
• Swinging/tilting flash head (bounce flash): 0 to 330°
horizontally and -7° to 120° vertically
1/300 to 1/20000 seconds
Transmitter, Receiver, Off
100m
32 (1~32)
Model
Power (1/1 output)
Flash Coverage
Flash Duration
• Wireless Flash
Wireless flash function
Controllable
Receiver groups
Transmission range
(approx.)
Channels
ID 01~99
7.2V/2600mAh Li-ion battery
Approx 1.5 seconds. Green LED indicator will light up
when the flash is ready.
Approx. 450
Power off automatically after approx. 3, 10, 30 or
60 mintutes of idle operation.
Hotshoe, 2.5mm sync line
199x71.5x60 mm
390g
500g
2413.0MHz-2465.0 MHz
5dbm
• Power Supply
Power source
Recycle time
Full power flashes
Power saving
• Sync Triggering Mode
• Dimensions
W x H x D
Weight without battery
Weight with battery
2.4GHz Frequency Range
Max. Transmitting Power
A,B,C,D
A, B, C, D, E (E group can be controlled by ONE
System flash triggers)
Transmitter groups
Guide No.(1/1 output,
200mm)
GN≈60 (m ISO100)
• Shut down the device immediately should abnormal operation be detected.
• Avoid sudden impacts and the product should be dedusted regularly.
• It is normal for the flash tube to be warm when in use. Avoid continuous flashes
if unnecessary.
• Maintenance of the flash must be performed by our authorized maintenance
department which can provide original accessories.
• This product, except consumables e.g. flash tube, is supported with a one-year
warranty.
• Unauthorized service will void the warranty.
• If the product had failures or was wetted, do not use it until it is repaired by
professionals.
• Changes made to the specifications or designs may not be reflected in this
manual.
Maintenance
-17 - - 18 -

This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure
requirement.
The device can be used in portable exposure condition without
restriction.
FCC Statement
-19 - - 20 -
