Pknight ATD 1024Epro User manual

User Manual
ATD 1024Epro
Pknight
®
Artnet-dmx 1024Epro Page 1

Pknight®ATD 1024Epro Introduction
Pknight
®
Artnet-dmx 1024Epro Page 2
Introduction:
Congratulations and thank you
for purchasing the Pknight ATD 1024Epro (Artnet-dmx
1024Epro).It is a solid-state 2 universe RDM compatible
DMX node designed for the highest level of portability,
simplicity, and practicality.It is the perfect solution for
converting from a multitude of Ethernet-based artnet to
physical DMX and vice versa.
Safety
Do not expose the ATD 1024Epro to rain or moisture,
doing this will void the warranty
This unit is intended for indoor use only
Customer Support:
Pknight Products,LLC
provides a toll free customer support,to provide set
up help and to answer any question should you
encounter problems during your set up or initial
operation.You may also visit us on the web at www.
Pknight.com for any comments or suggestions.
E-mail: [email protected]
We will contact you within 24 hours

Pknight®ATD 1024Epro Introduction
Pknight
®
Artnet-dmx 1024Epro Page 3
Features:
2 Universes can be customized as input mode(DMX to
Ethernet node) or output mode(Ethernet to DMX node)
respectively.
Easy to setup through a Node Management Application
for windows which is contained by a USB ash disk or
any web browser for mac.
HTP/LTP Merging support: DMX sources can be
merged
Static or Dynamic IP conguration (auto IP and DHCP)
Supports Broadcast or Unicast (Input mode)
two 3Pin DMX XLR female connectors
Supports RDM over Art-Net (controller)
Warranty
A. 1 months upon date of purchase, if there is function
problem, we should offer the same item subjuect to
goods and packing maintain perfect.
B. 3 Years upon date of purchase, we will guarantee to
keep the goods in repair. (not including ttings)
C. Guarantee service is subject to normally using.
C.All of damage by man-made (tear open the housing,
tear off the sticker, unnormally using), or losing this
manual, we will not guarantee.
Note: Keep this manual for gurantee to keep in repair.

Pknight®ATD 1024Epro Introduction
Pknight
®
Artnet-dmx 1024Epro Page 4
Basic Setup
Right out of the box, the ATD 1024Epro is factory
congured to be a DMX OUTPUT device, listening to the
first Art-Net Universe (0-255). It is also set as a DHCP
node, so you can plug it into your existing router, and it's
good to go.
Pknight provides a free application (available for Windows)
called Artnet-Dmx Configurator, which will find
the ATD 1024Epro on your network and display its IP
address.
The ATD 1024Epro can be configured and controlled
through a web browser, running on a computer system,
located on the same Local Area Network. Any modern
web browser, such as Chrome, Firefox, Internet Explorer,
Safari or Opera, running under any operating system,
including Mac OS X ,Windows 7/8, or Linux can be used.
It is recommended to use applications(Artnet-Dmx
Congurator) to set it up,With this feature, users need
to spend an average of only 30 seconds to complete the
setup of the device, save a lot of time and effort.

Pknight®ATD 1024Epro Indicators
Pknight
®
Artnet-dmx 1024Epro Page 5
7dmx 2 port
in input mode,we need 3-Pin XLR Male to
Male Adapter(not included)
6dmx 1 port
1
4
2
3
5
Front Panel
Rear Panel

Pknight®ATD 1024Epro Indicators
Pknight
®
Artnet-dmx 1024Epro Page 6
1Ethernet Port
2Power In( 9VDC )

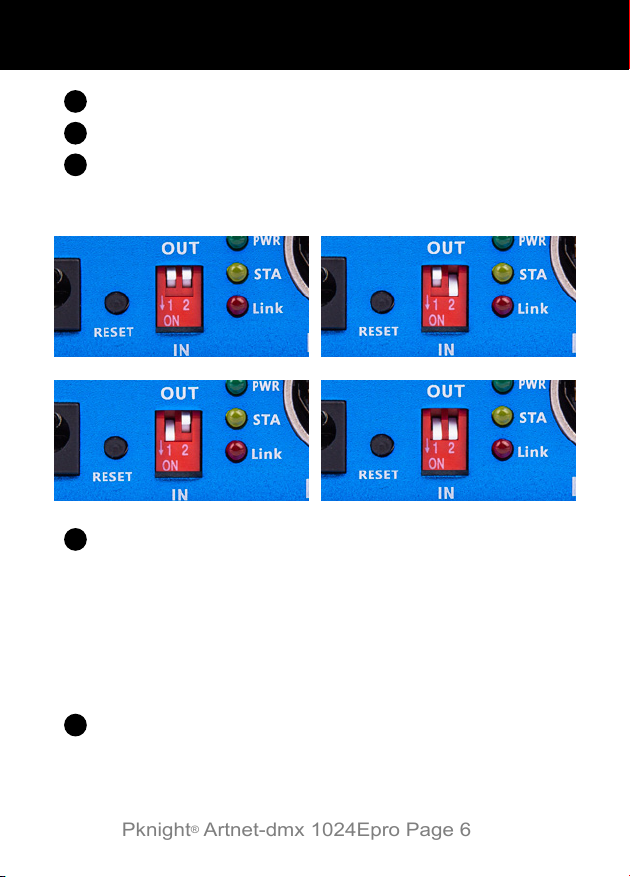

32p dial The Code Switch
There are 4 modes as follows
5reset button
Press and hold the button for 5 seconds to
restore the factory set
4LED Indicators
PWR:power on,turn green
STA:connections and activities,blinks
slowly,Signal detected,turn yellow.
Link:connect to pc or router,turn red;
Signal detected,blinks fast.
dmx1&2:output
dmx1&2:input
dmx1:output dmx2:input
dmx1:input dmx2:output

Pknight®ATD 1024Epro Setting
Introduction:
Artnet-Dmx Configurator is a free Windows
application that is used to manage compatible
DMX over Ethernet nodes.
The application(in the USB ash disk ) will help you
find your unit's IP address and then you can set it
up easily.
Please follow these steps:
1.Ensure that your ATD 1024Epro is hooked up
physically by an Ethernet cable
2.And connected to the same physical network (or
router) as the computer on which you will run
Artnet-Dmx Configurator.

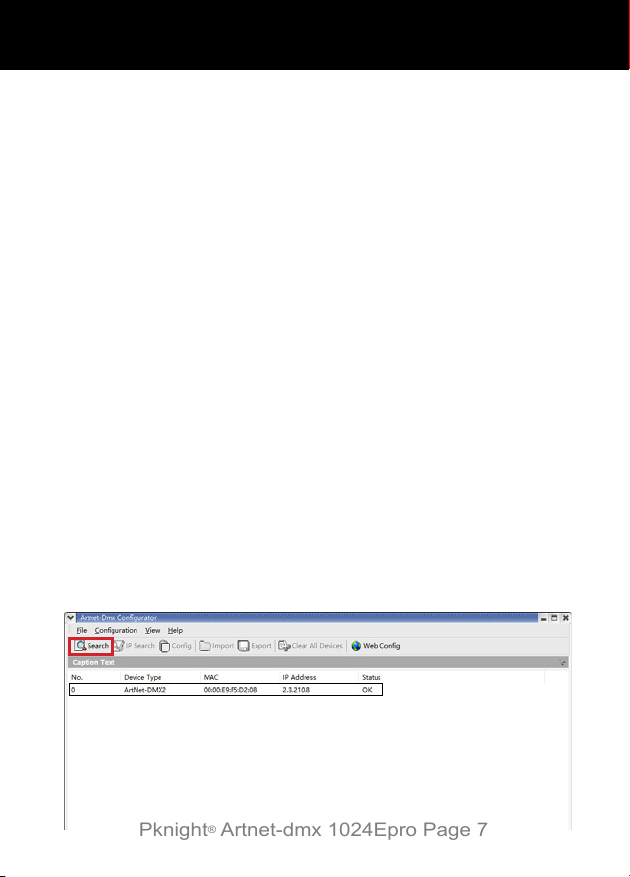

3.Copy the application file in the usb ash disk to
the computer and open it,Then Press the Search
button, and wait till the application finds all
supported node devices on your network.A view
will appear similar to the following figure.
Pknight
®
Artnet-dmx 1024Epro Page 7

Pknight®ATD 1024Epro Setting
Pknight
®
Artnet-dmx 1024Epro Page 8

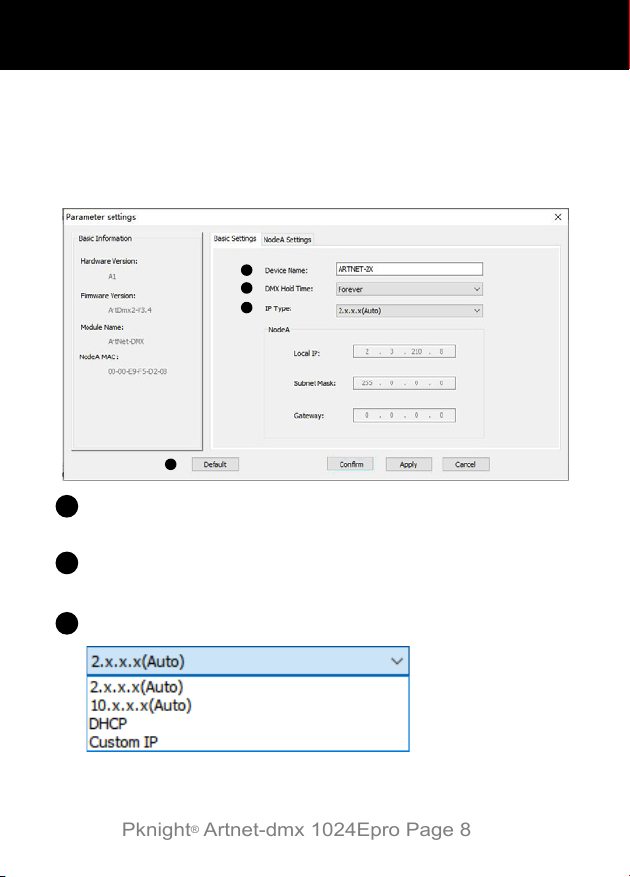

4.Once found, Double click ArtNet DMX2 and A
view will appear similar to the following figure.
Basic Setting page
1
2
3
4
1Device Name
is used to identify the ATD 1024Epro on
the network. Any meaningful name can be used.
2Dmx Hold time
is used to set the time to hold the dmx
when your dmx program stop running.
3IP Type:
The four type are as follows

Pknight®ATD 1024Epro Setting
Pknight
®
Artnet-dmx 1024Epro Page 9
NodeA Settings
1
2
3
4
5
6
2.x.x.x(Auto):a static IP starting with 2.Each ATD 1024Epro
has the specic ip(by Factory Default)
10.x.x.x(Auto):a static IP starting with 10.Each ATD 1024Epro
has the specic ip
DHCP:the router on your network is expected to automatically
provide the IP address to the ATD 1024Epro.
Custom IP:You can manually enter the ip address which you
want
4Default:
Click it,the device will restore the factory settings.

Pknight®ATD 1024Epro Setting
Pknight
®
Artnet-dmx 1024Epro Page 10
1DMX 1 UNIVERSE
is the dmx1 port of the corresponding
controller panel,
DMX 2 UNIVERSE
is the dmx2 port of
the corresponding controller panel
4OFF :by default
HTP :
Highest Takes Precedence. Channels are compared
one to one and the highest value is set on the output
LTP :
Latest Takes Precedence. The latest source is used as
the output.
Backup:
Only one source at a time,the latest source Takes
Precedence,and the rest will be backup.multiple sources will
cause a conflict and the output might have unexpected
data,so it is strongly recommended
2Output:
Artnet to DMX Output
Input:
DMX Input to Artnet
Read-only and can not be modified. We can
only go by setting the dial Switch on the panel
3
dmx port 1 listening to the first Art-Net Universe 0
dmx port 2 listening to the first Art-Net Universe 1
(Factory Default Set). Here you can customize

Pknight®ATD 1024Epro Setting
Pknight
®
Artnet-dmx 1024Epro Page 11
5Frame Rate
at which ATD 1024Epro will output the Data
from DMX port (35 Frames per second is default). It also can
be customized from 0-40
6Unicast
is only available when port is set to Input. Any
valid IP address can be used to Unicast DMX.Send DMX to a
single IP address rather than broadcast.
Using the IP address one can access the built-in web-
interface inside the ATD 1024Epro via any modern
web-browser. The webinterface allows the settings of
the unit to be changed.

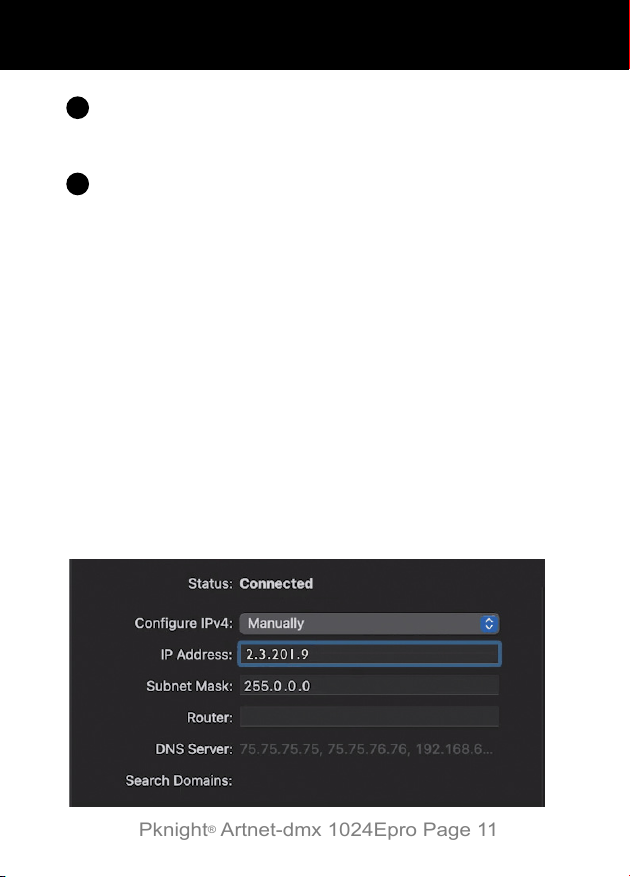

1.If the default ip of ATD 1024Epro is 2.3.201.8,we
can Manually enter ip 2.48.18.115 and subnet mask
255.0.0.0 for our computer.
ensure any ip starting with 2 and the remaining three
numbers are between 0 and 255, and the ip is not the
same as the ATD 1024Epro, It's good to go!
Web Conguration

Pknight®ATD 1024Epro Setting
2.use the IP address to access
the web-interface via your web
browser.The default password is
empty, click submit directly
3.Refer to the operation of the above application (Artnet-Dmx
Congurator) for setting
Pknight
®
