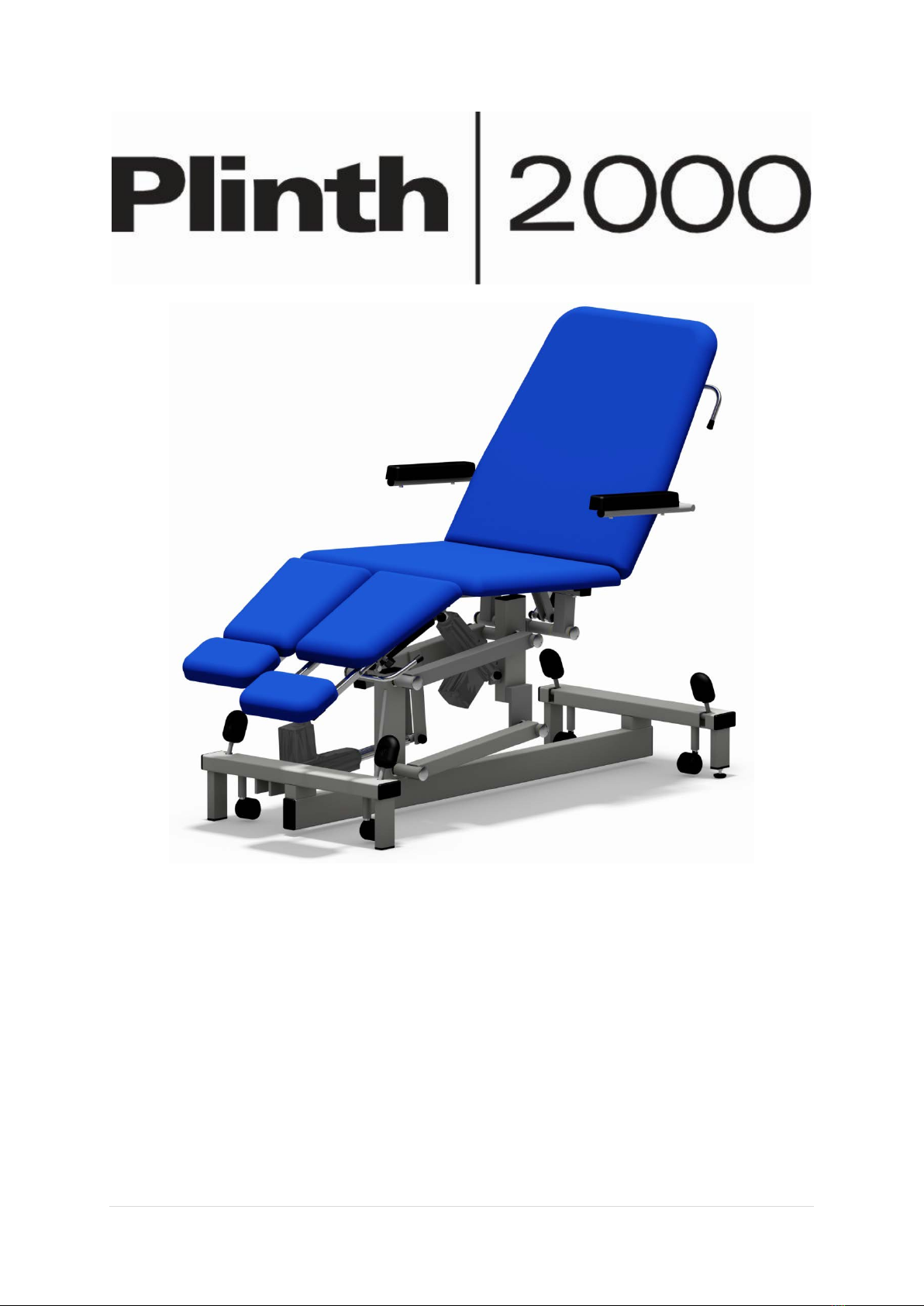

Plinth 2000 503CDT User manual

Podiatry Chair
Model: 503CDT
SERVICE MANUAL

Podiatry Chair Service Manual
2 | Page
Contents
1. Introduction 3
General Warnings 3
2. Cleaning and Decontamination 4
3. Maintenance 5
General Maintenance 5

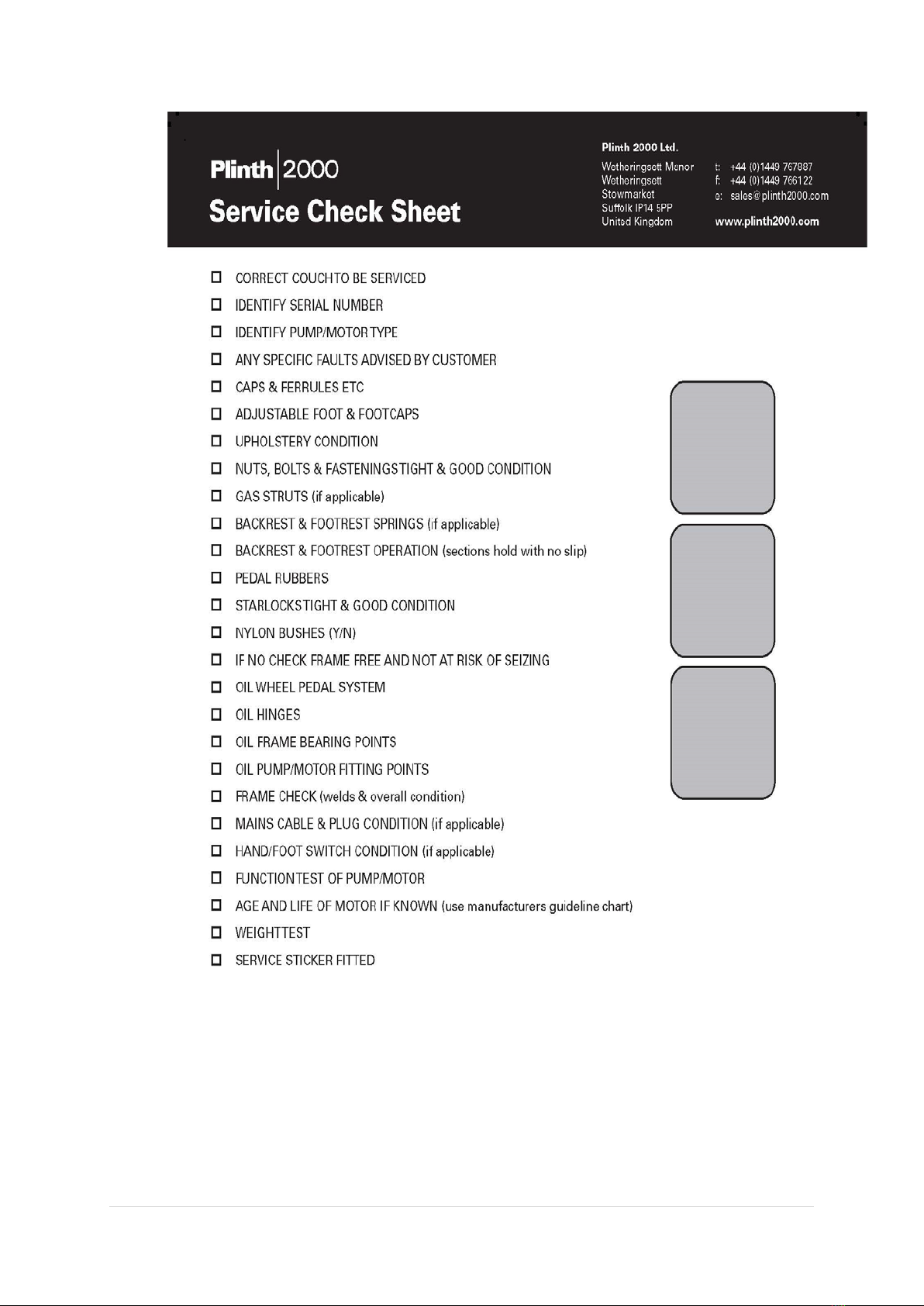

Service Checklist 6
4. Troubleshooting 7
5. Parts Lists and Diagrams 8

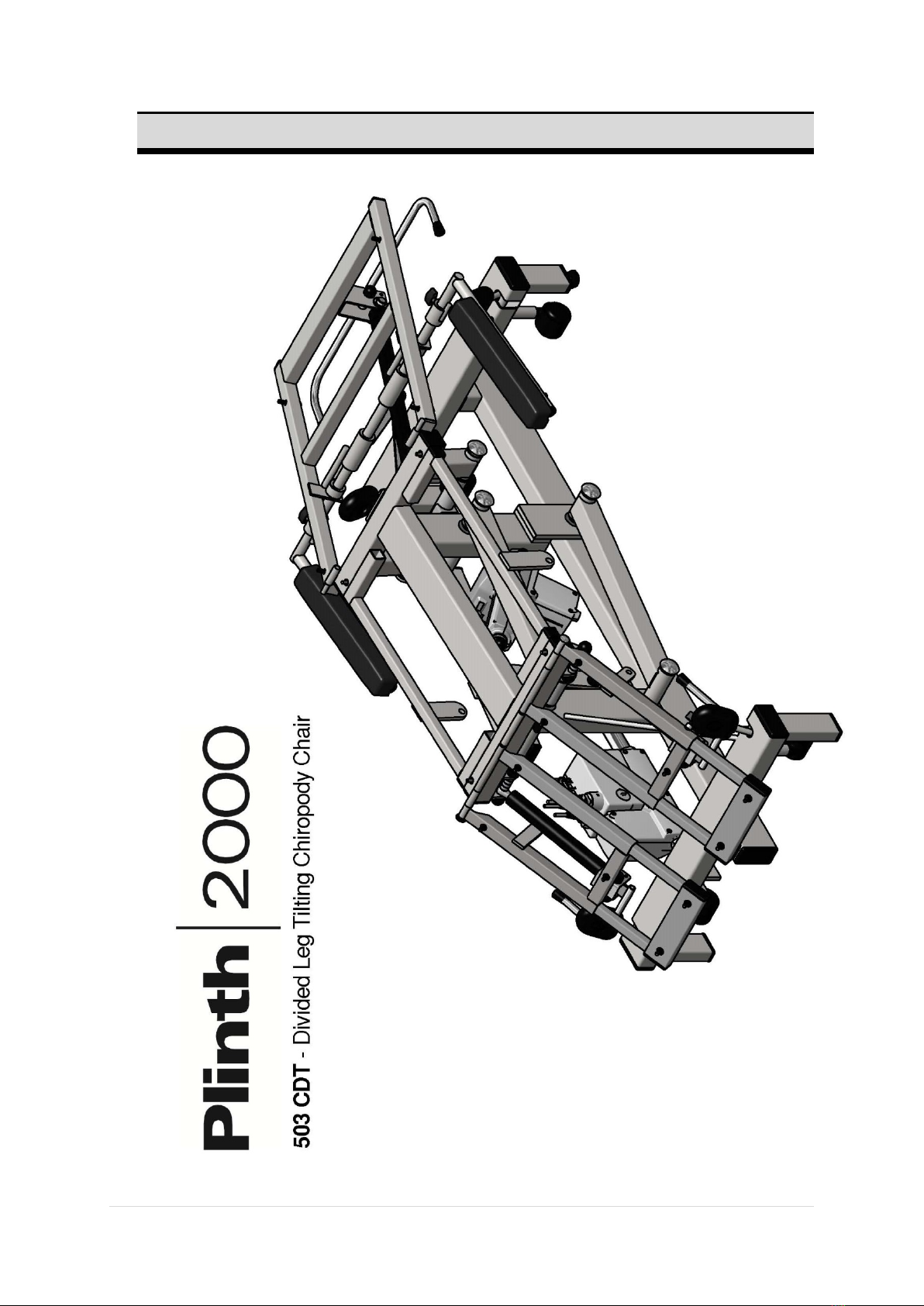

Exploded Diagram 9
Base Drawing 10

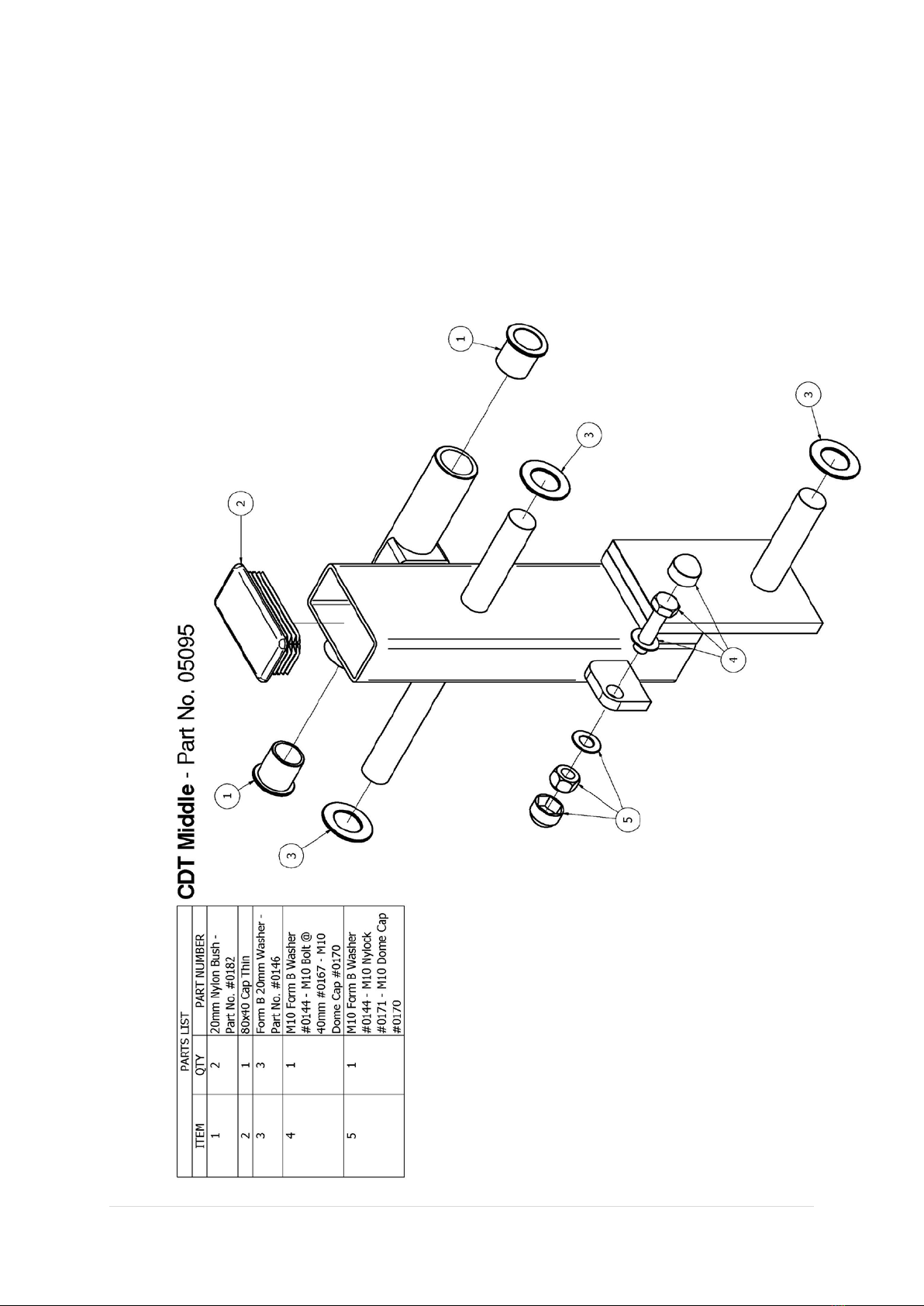

Middle Drawing 11
Top Drawing 12
Lift Lever Drawing 13

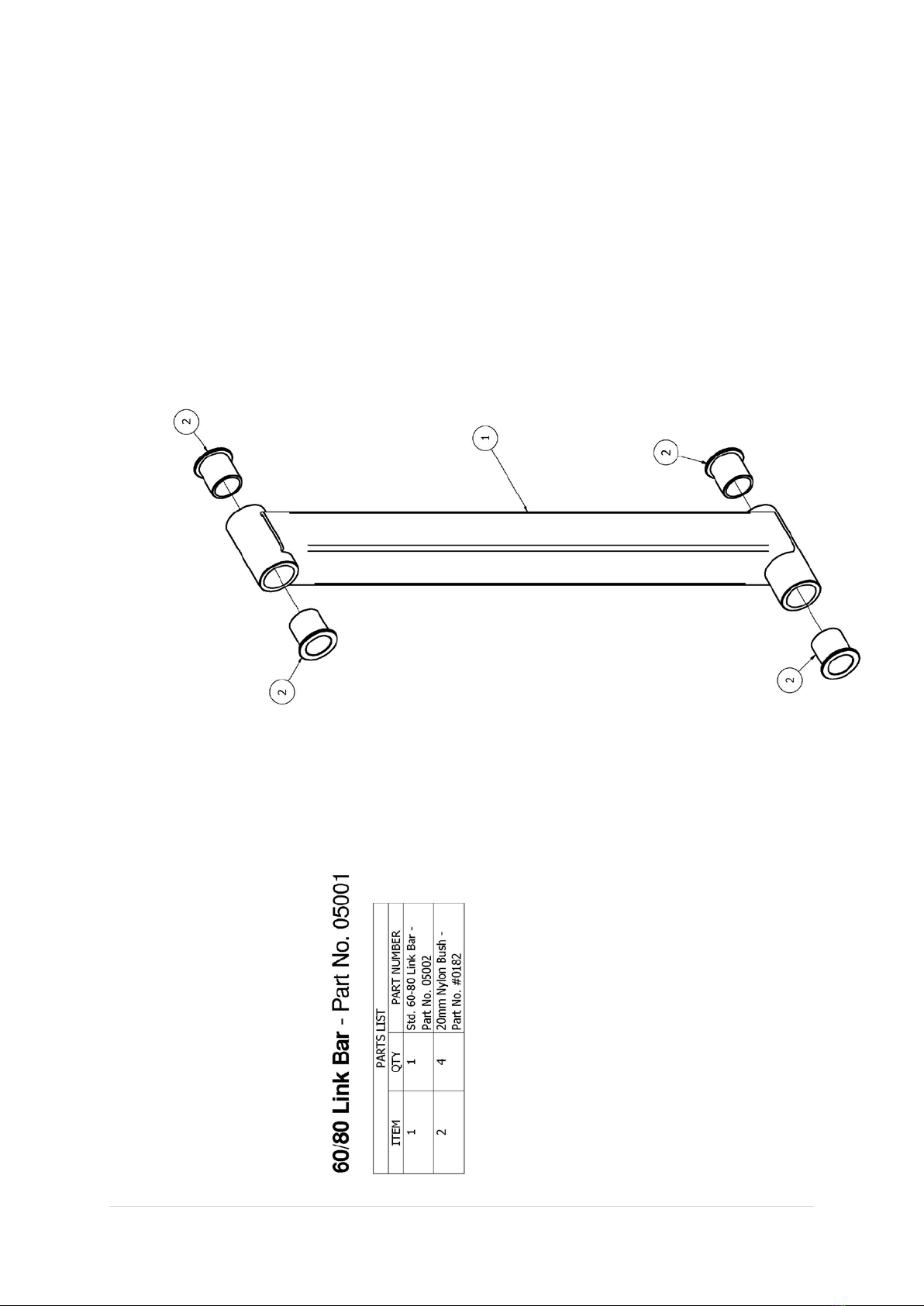

Link Lever Drawing 14
Back-Rest Drawing 15

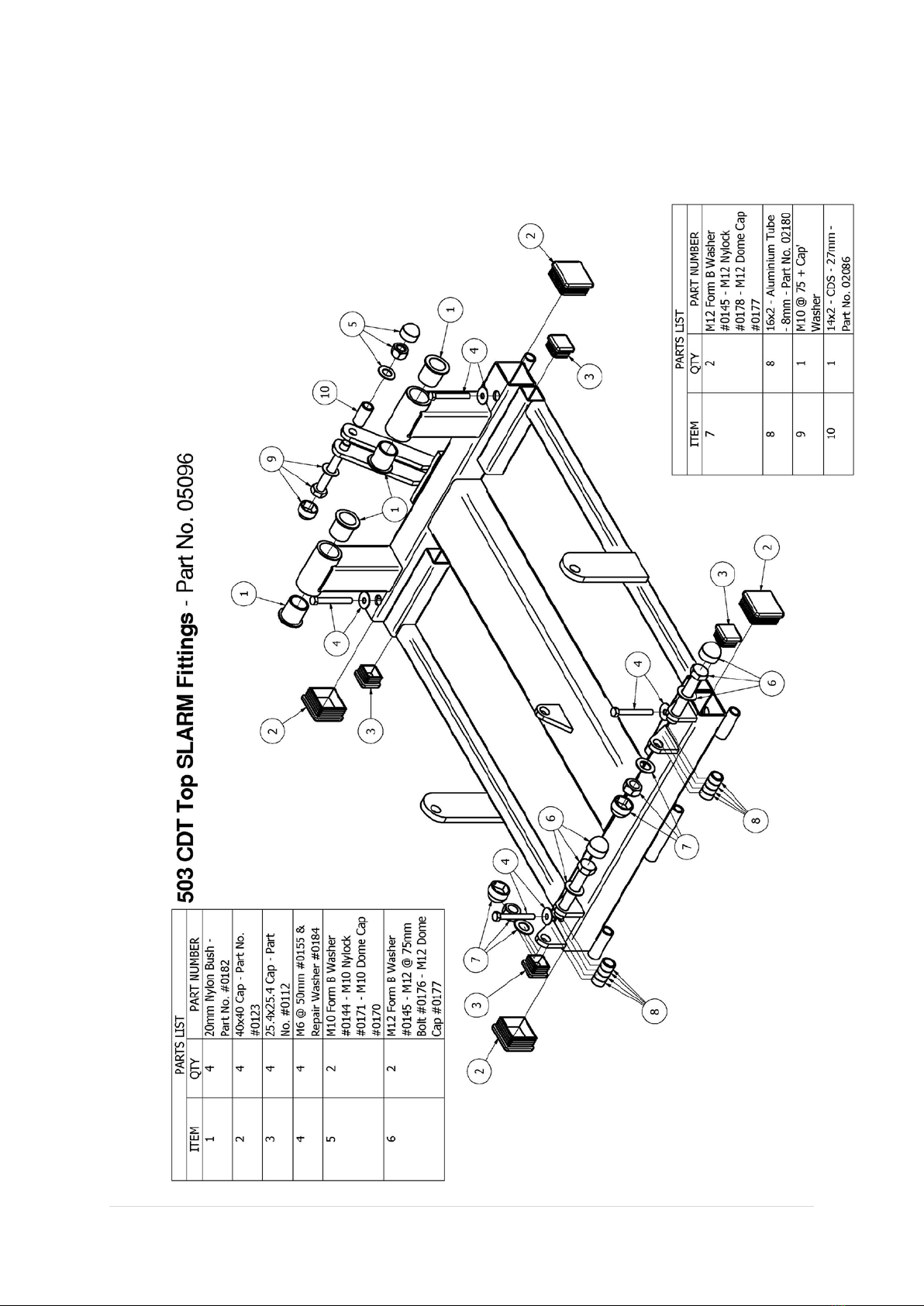

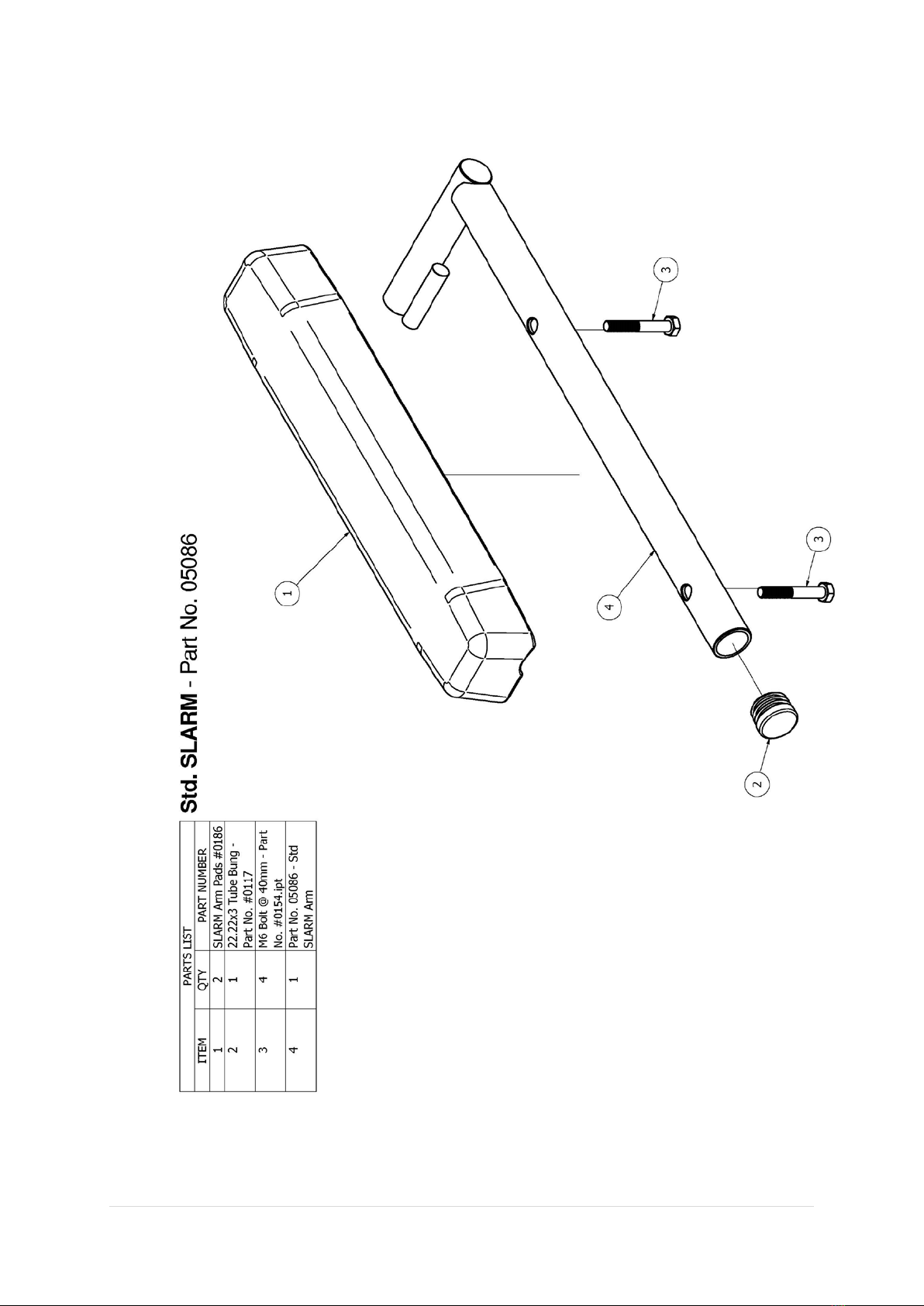

SLARM Drawing 16

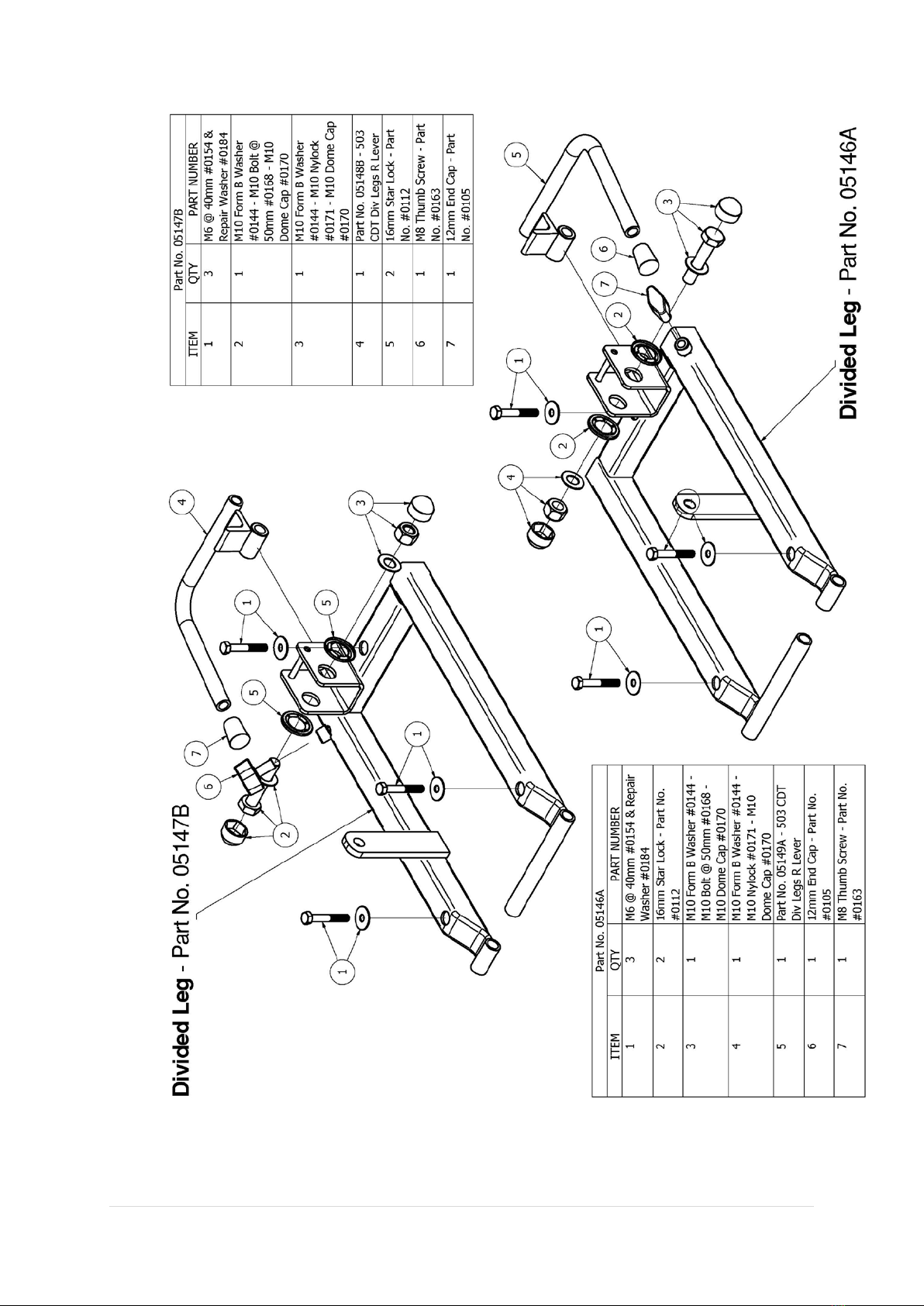

Divided Leg Drawing 17

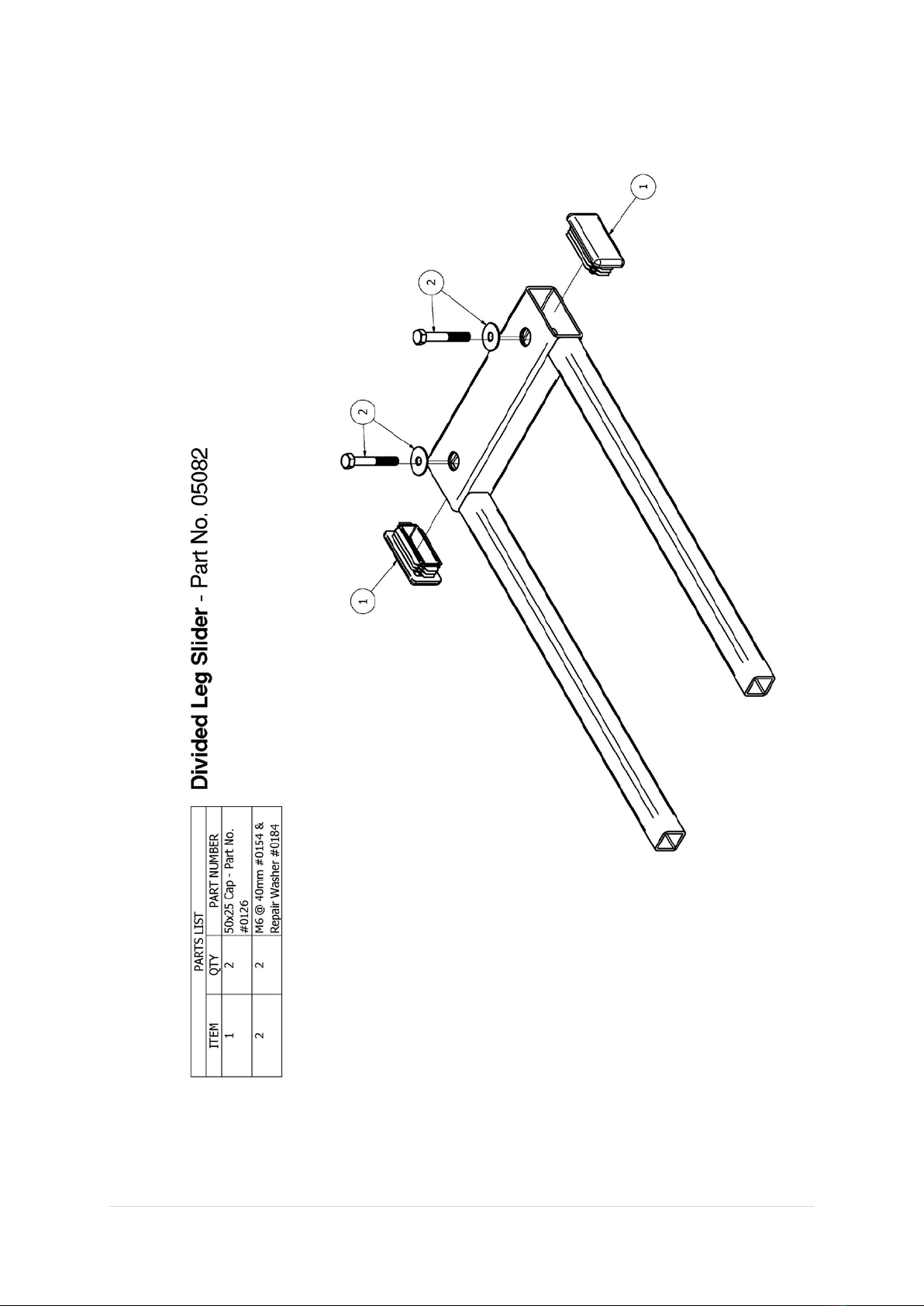

Slider Drawing 18
6. Guarantee 19
7. Technical Specification 20
8. Revisions to Manual 21
Plinth 2000 Ltd is an ISO Audited company to ISO9001:2008
Our products are CE marked in conformity with the EC Directive MDD 93/42/EEC

Podiatry Chair Service Manual
3 | Page
1. Introduction
Thank you for purchasing a product from Plinth 2000 Ltd. We use the highest quality
components and manufacturing techniques to ensure that our products are simple
to use and will last a long time. It is recommended that all users read and retain this
User Manual for reference.
Throughout this manual notice is made of a Warning and Caution system to highlight
to the user practices, procedures or conditions that should either not be allowed to
happen or happen with caution.
Warnings are in a box with bold type and identify potential hazards, procedures or
conditions which could result in death, injury or serious damage.
Cautions are in a box with plain type and identify conditions or procedures where if
caution is not taken it may result in damage or failure of equipment.
General Warnings
WARNING
Maximum Load (SWL) is 250kg distributed evenly.
Do not use flammable gasses in proximity to an electrically operated chair.
Do not concentrate weight on either side or either end of the chair.
Use only accessories approved for use with this chair.
Disconnect power supply before moving chair.
Children must be adequately supervised in the presence of the chair.
Do not allow children to play with the chair at any time.

Podiatry Chair Service Manual
4 | Page
2. Cleaning and Decontamination
WARNING
If contamination is suspected then decontaminate the chair before use.
Torn or damaged upholstery should be replaced immediately.
CAUTION
Do not use Alkalis or other organic solvents for routine cleaning.
Always cover the vinyl with paper towelling or couch covers if it can come into
contact with bare skin.
Cleaning
Always wear suitable protective clothing before carrying out this procedure.
Disconnect the mains supply to the chair and move it to a suitable cleaning area and
lock the castors.
Step 1. Using warm water and soap on a damp cloth, carefully wipe the chair over
from top to bottom. Take great care around electrical components.
Step 2. Wipe the chair carefully from top to bottom using a clean damp cloth and
soap free water.
Step 3. Carefully dry the chair from top to bottom with clean lint free paper towels.
Decontamination
To decontaminate the chair repeat the above steps but using a dilute solution of
Hypochlorite and warm water (10,000ppm) instead of warm water and soap. At the
end of the procedure discard all cleaning materials in a safe manner and wash hands
thoroughly.

Podiatry Chair Service Manual
5 | Page
3. Maintenance
Plinth 2000 Ltd products are designed to be maintenance free. However keeping
your Plinth products clean and regularly checked will assist in prolonging their
working life. The following is a guide of simple checks that the user can carry out on
a six monthly basis. We would also recommend an annual service visit by a Plinth
2000 trained engineer.
WARNING
Disconnect chair from electrical supply before commencing any of the following
checks.
Examine the chair for any signs of damage. Pay particular attention to all nuts, bolts
and fasteners to check they are present and tight but not over tight.
Upholstery bolts should all be checked (each section has between 2 and 6 No. M6
bolts), they should all be present and tight.
Check gas struts (if fitted) and ensure that they operate through the full range of
movement and lock fully.
Check hinge pins are lubricated and not rusty.
Check main chair nylon pivot bearings are lubricated sufficiently.
Examine mains and switch cables for any damage, cuts, kinks, abrasions etc. These
must be replaced if necessary.
Check mains lead, switch cables and slave motor leads are all correctly and securely
attached.
Check correct plug fuse is fitted (5A).
WARNING
Any electrical checks or work other than the visual inspection above must be
performed by a qualified electrician.
Do not connect BLUE or BROWN wires to the earth terminal of a plug.

Podiatry Chair Service Manual
6 | Page

Podiatry Chair Service Manual
7 | Page
4. Troubleshooting
In the unlikely event of the chair failing to operate and having carried out the normal
practical fault finding steps below then please contact our Customer Service Team
on [phone] or email [email protected]. Please have the
serial number to hand before making contact so we can help you more efficiently.
Fault
Possible Cause
Remedy
Chair is unstable
Uneven floor
Adjustable foot
Move chair to flat floor
Check presence, condition
and adjustment of foot
All motors will not work
Power disconnected
Fuse Blown
Hand/ Footswitch
disconnected
Connect power supply
Replace fuse in plug
Check the switch is fully
connected to the motor
One motor will not
work but others
working (motorised
back or leg option)
Lead from height
motor/control box not
connected to slave motor
Fault with switch
Fault with control box
Fault with motor
Check and connect all leads
Replace switch
Replace control box
Replace motor
Motor sinks
Switch permanently
operated
Motor fault
Unplug and re-connect
switch
Replace motor
Backrest or leg rest will
not work (manual
versions)
Gas spring incorrectly
adjusted (not being
triggered)
Gas spring faulty
Rotate gas spring until the
pin is just in contact with the
lever (2-3mm play required)
Replace gas spring
Backrest or leg rest
sinks under load
(manual versions)
Gas spring incorrectly
adjusted (permanently
triggered)
Rotate gas spring until the
pin is just in contact with the
lever (2-3mm play required)
Armrests slip or are
loose
Locking thumbwheels not
correctly tightened
Thumbwheels damaged from
over tightening
Correctly tighten locking
thumbwheels
Replace thumbwheels

Podiatry Chair Service Manual
8 | Page
5. Parts lists and diagrams

Podiatry Chair Service Manual
9 | Page

Podiatry Chair Service Manual
10 | Page

Podiatry Chair Service Manual
11 | Page

Podiatry Chair Service Manual
12 | Page

Podiatry Chair Service Manual
13 | Page

Podiatry Chair Service Manual
14 | Page

Podiatry Chair Service Manual
15 | Page

Podiatry Chair Service Manual
16 | Page

Podiatry Chair Service Manual
17 | Page

Podiatry Chair Service Manual
18 | Page

Podiatry Chair Service Manual
19 | Page
6. Guarantee and Service (UK only)
Plinth 2000 Ltd offer a 5 year parts guarantee on all Premium Range products
delivered from January 2013 and a lifetime frame guarantee. The only exclusion to
this guarantee is for negligent damage or damage to upholstery coverings. This
guarantee does not require registration of the product as we can trace it from its
serial number, however in the event of the serial number being removed, missing or
unreadable then this may void the guarantee. These terms do not affect your
statutory rights.
In addition to the above Plinth 2000 Ltd can offer both extended warranties and
service contracts. For further information about either of these please contact:
Customer Service
Plinth 2000 Ltd
Wetheringsett Manor
Wetheringsett
Stowmarket
Suffolk
IP14 5PP
Tel: [phone]
Mail: customerserv[email protected]
In the event of returning a product or part to us then please follow the instructions
for cleaning under section 5 before enclosing it in suitable packaging and returning it
to the above address. In addition please ensure there is a statement confirming that
it has been decontaminated and what the fault is along with relevant contact details.
Worldwide
Please contact the distributor you purchased the chair from for service and support
in your country. If you are unable to do so then please contact us in the UK and we
will refer you to our local representative.

Podiatry Chair Service Manual
20 | Page
7. Technical Specifications
UIEC 601-1 Electrical Safety Classification
All models are double insulated Type B equipment and marked as such.
Double Insulated Type B Equipment
503CDT
Head Length (cm)
81
Seat Length (cm)
50
Foot Length (cm)
44
Width (cm)
63
Overall Length (cm)
177
Height Range (cm)
53-100
Max Working Load
250kg
Control
Hand switch
Motor(s)
Linak LA31 x 2
Control Box
Linak CB09
Current
1.5A
Power
360W
Mains Plug Fuse
5.0A x 1
Internal Fuse
1.5A x 1
System Voltage
24v
IP Rating
IPX4
Motor(s)
Linak LA31 x 2
Control Box
Linak CB09
Current
2.7A
Power
360W
Mains Plug Fuse
5.0A x 1
Internal Fuse
3.0A x 1
System Voltage
24v
IP Rating
IPX4
