Plura PHB-3G Series User manual

Re-imagine Beyond Technology [e-mail]
Operating Instructions
PHB-3G
"HIGH BRIGHTNESS QC & ENGINEERING" 3G Series
PHB-207-3G
PHB-209-3G
PHB-207DRK-3G
PHB-209DRK-3G
PHB-207-3G

Re-imagine Beyond Technology [e-mail]
Table of Contents
PRECAUTION ---------------------------------------------------------------------------------------------------------- 5
1. OVERVIEW -------------------------------------------------------------------------------------------------------- 8
2. ADVANCED FEATURES ----------------------------------------------------------------------------------------- 8
3. FUNCTIONAL EXPLANATION OF EACH PART--------------------------------------------------------------- 9
1. FRONT PANEL ------------------------------------------------------------------------------------------------------ 9
PHB-207 & PHB-209-3G ------------------------------------------------------------------------------------- 9
Front Keys Arrangements -----------------------------------------------------------------------------------10
Front Keys Operations ---------------------------------------------------------------------------------------10
Front Panel Operations ------------------------------------------------------------------------------------- 11
Speaker Out -------------------------------------------------------------------------------------------------- 11
2. REAR PANEL ------------------------------------------------------------------------------------------------------ 11
Connection Details ------------------------------------------------------------------------------------------- 11
DC Battery IN ------------------------------------------------------------------------------------------------- 11
RJ-45 – GPI, Control LAN (Ember+-OPTIONAL) -------------------------------------------------------- 12
Interface description ---------------------------------------------------------------------------------------- 12
4. MENU OVERVIEW------------------------------------------------------------------------------------------------ 13
1. TO SHOW AND REMOVE THE MENU ------------------------------------------------------------------------------- 13
2. TO GO TO THE NEXT LEVEL---------------------------------------------------------------------------------------- 13
3. TO GO BACK TO THE PREVIOUS LEVEL ---------------------------------------------------------------------------- 13
4. TYPICAL MENU OPERATION--------------------------------------------------------------------------------------- 13
5. BASIC OPERATION ---------------------------------------------------------------------------------------------- 13
1. TURNING ON THE MONITOR--------------------------------------------------------------------------------------- 13
2. VOLUME ADJUSTMENT -------------------------------------------------------------------------------------------- 14
6. ON SCREEN MENUS SELECTION AND ADJUSTMENT ----------------------------------------------------- 14
1. HOW TO ADJUST THE OSD SCREEN------------------------------------------------------------------------------- 14
7. SELECT VIDEO INPUT ------------------------------------------------------------------------------------------- 15
1. HOW TO SELECT VIDEO SOURCE BY OSD------------------------------------------------------------------------ 15
8. VIDEO MENU OPTIONS ----------------------------------------------------------------------------------------- 15
1. ADJUST ----------------------------------------------------------------------------------------------------------- 15
2. COLOR TEMPERATURE CONTROL --------------------------------------------------------------------------------- 15
Operating Instructions
PHB-3G SERIES
2

Re-imagine Beyond Technology [e-mail]
3. SCAN -------------------------------------------------------------------------------------------------------------- 16
5. ASPECT RATIO ---------------------------------------------------------------------------------------------------- 16
6. ZOOM ------------------------------------------------------------------------------------------------------------- 16
7. MONO/BLUE ONLY ----------------------------------------------------------------------------------------------- 17
8. PC MENU (PC MODE ONLY) --------------------------------------------------------------------------------------- 17
9. FLIP MODE -------------------------------------------------------------------------------------------------------- 17
10. NR (NOISE REDUCTION) ----------------------------------------------------------------------------------------- 17
11. DUAL LINK MODE (SDI ONLY) ----------------------------------------------------------------------------------- 18
9. AUDIO MENU OPTIONS ---------------------------------------------------------------------------------------- 18
1. SDI 1/ SDI 2 AUDIO GROUP -------------------------------------------------------------------------------------- 18
2. SDI 1/ SDI 2 AUDIO OUTPUT CHANNEL -------------------------------------------------------------------------- 18
3. LEVEL METER ----------------------------------------------------------------------------------------------------- 18
4. LEVEL METER TYPE ---------------------------------------------------------------------------------------------- 18
5. LEVEL METER POSITION ------------------------------------------------------------------------------------------ 18
6. LEVEL METER SCALE --------------------------------------------------------------------------------------------- 19
7. AUDIO MODE------------------------------------------------------------------------------------------------------ 19
8. VOLUME ----------------------------------------------------------------------------------------------------------- 19
10. MARKER MENU OPTIONS-------------------------------------------------------------------------------------- 20
1. MARKER & USER MARKER ----------------------------------------------------------------------------------------- 20
2. SAFETY AREA ------------------------------------------------------------------------------------------------------ 20
3. CENTER MAKER ---------------------------------------------------------------------------------------------------- 20
4. MARKER WIDTH ---------------------------------------------------------------------------------------------------- 20
5. MARKER COLOR --------------------------------------------------------------------------------------------------- 20
6. PRESET1 & PRESET2 ----------------------------------------------------------------------------------------------- 21
11 . GPI MENU OPTIONS -------------------------------------------------------------------------------------------- 21
1. GPI CONTROL & GPI#--------------------------------------------------------------------------------------------- 21
12. SETUP MENU OPTIONS ----------------------------------------------------------------------------------------- 22
1. FACTORY DEFAULT------------------------------------------------------------------------------------------------- 22
2. FUNCTION 1 ~2 ------------------------------------------------------------------------------------------------------ 22
3. ON SCREEN DISPLAY------------------------------------------------------------------------------------------------ 23
OSD Option --------------------------------------------------------------------------------------------------- 23
Time code ----------------------------------------------------------------------------------------------------- 23
Under Monitor Display (color: Tally R/G mode action) ------------------------------------------------- 23
SDI Signal State ---------------------------------------------------------------------------------------------- 23
4. ADVANCED --------------------------------------------------------------------------------------------------------- 23
Operating Instructions
PHB-3G SERIES
3

Re-imagine Beyond Technology [e-mail]
Information --------------------------------------------------------------------------------------------------- 24
Control -------------------------------------------------------------------------------------------------------- 24
Screen Control ----------------------------------------------------------------------------------------------- 24
Config LAN / Ember+(Optional) --------------------------------------------------------------------------- 24
Protocol Setting -----------------------------------------------------------------------------------------------24
Set ID ---------------------------------------------------------------------------------------------------------- 24
Fan Control --------------------------------------------------------------------------------------------------- 24
5. CAPTION FOR NORTH AMERICAN MARKET ----------------------------------------------------------------------- 25
6. OUTPUT RANGE--------------------------------------------------------------------------------------------------- 25
7. VIDEO RANGE----------------------------------------------------------------------------------------------------- 26
8. WAVEFORM ------------------------------------------------------------------------------------------------------- 26
13. PIP (PICTURE IN PICTURE) ------------------------------------------------------------------------------------ 27
14. PIP ON/OFF------------------------------------------------------------------------------------------------------- 27
15. INPUT SOURCE ----------------------------------------------------------------------------------------------------- 27
16. ASPECT RATIO ----------------------------------------------------------------------------------------------------- 27
17. OSD TREE -------------------------------------------------------------------------------------------------------- 30
1. VIDEO -------------------------------------------------------------------------------------------------------------- 31
2. AUDIO -------------------------------------------------------------------------------------------------------------- 32
3. MARKER------------------------------------------------------------------------------------------------------------ 33
4. GPI----------------------------------------------------------------------------------------------------------------- 34
5. SETUP -------------------------------------------------------------------------------------------------------------- 35
6. PIP ----------------------------------------------------------------------------------------------------------------- 36
Operating Instructions
PHB-3G SERIES
4

Re-imagine Beyond Technology [e-mail]
•PRECAUTION
Before operating this unit, please read this manual carefully.

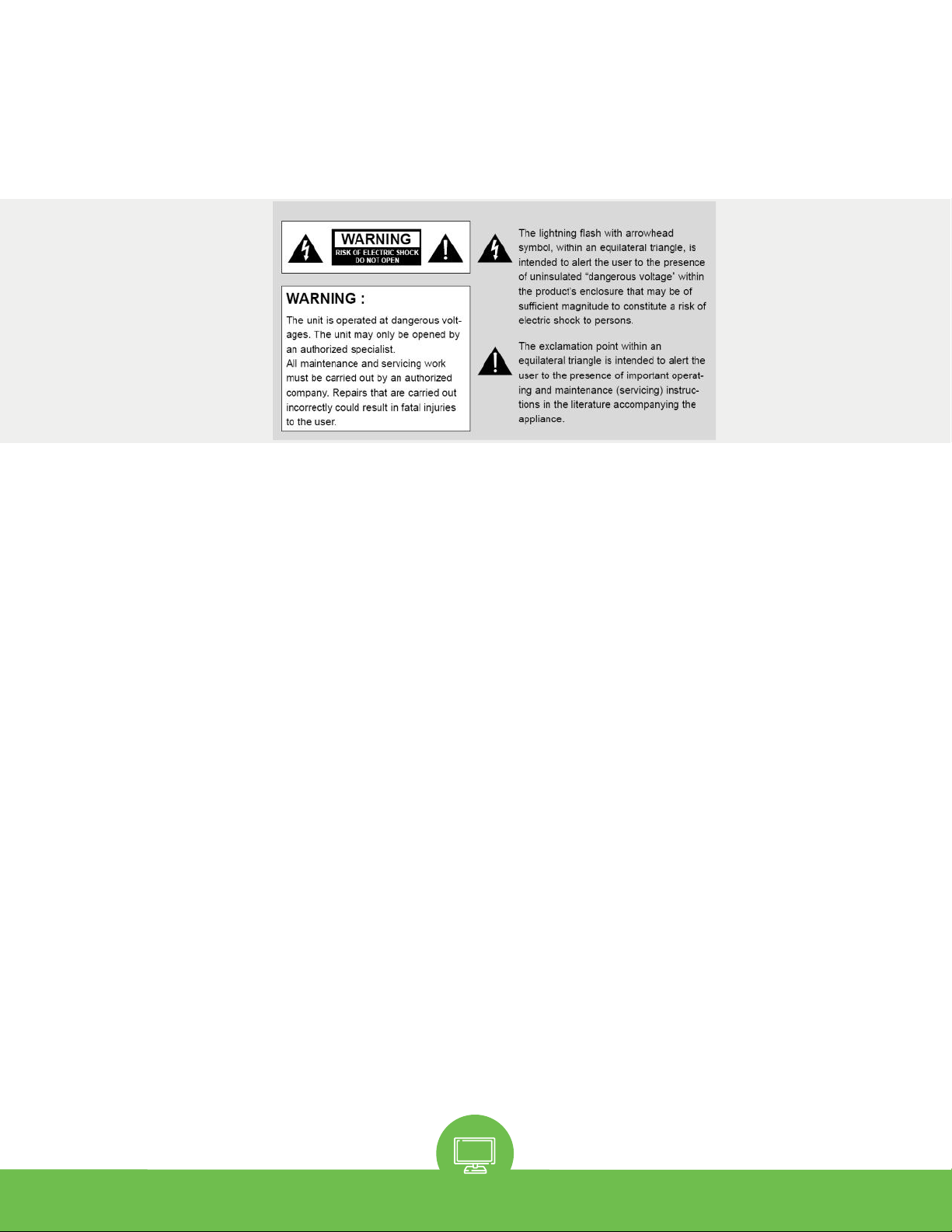

WARNING:
To reduce the risk of any electric shock, please do not remove the back cover. No user serviceable parts inside. Refer any service matters to
qualified service personnel. To prevent fire or shock hazard, do not expose the rear of the set to rain or moisture. Do not rub, clean or hit the
Active Matrix LCD with object that may scratch, mark, or damage the Active Matrix LCD permanently.
CAUTION:
Unauthorized tampering with the inside of the monitor invalidates the warranty.
The manufacturer shall not warrant for any damage caused by improper maintenance and/or repair or work by third parties.
Important safeguards for you and your new product:
Your product has been manufactured and tested with your safety in mind. However, improper use can result in potential electrical shock or
fire hazards. Please read and observe the following safety points when installing and using your new product and save them for future
reference.
1. Read Instructions
2. Follow Instructions
All operating and use instructions should be followed.
3. Retain Instructions
The safety and operating instructions should be retained for future reference.
4. Notice Warnings
All warnings on the product and in the operating instructions should be adhered to.
5. Cleaning
Disconnect the unit from the mains before cleaning the unit. Do not use abrasive cleaners. Use a damp
cloth ONLY for cleaning.
6. Water and Moisture
Operating Instructions
PHB-3G SERIES
5

Re-imagine Beyond Technology [e-mail]
Do not use this product near water surface.
7. Transporting Product
This product should be moved with care. Quick stops, excessive force and uneven surfaces may cause the
product damages.
8. Accessories
Do not use accessories not recommended by PLURA Inc. as they may cause hazards.
9. Ventilation
Do not block any of the ventilation openings.
Install in accordance with the manufacturer’s instructions.
10. Power Sources
This product should be operated only from the type of power source indicated on the marking label. If you
are not sure of the type of power supply, consult your power supply company.
11. Power Lead Polarization
This product is equipped with a three-wire grounding-type cord. This is a safety feature. Do not use any
other type power cord.
12. Power Cord Protection
Power-supply cords should be dressed so that they are not likely to be pulled or pinched by items placed
upon or against them.
13. Lightning
For added protection for this product during a lightning storm, or when it is left unattended and unused
for long periods of time, unplug it from the wall outlet. This will prevent possible damage to the product
due to lightning and power-line surges.
14. Grounding the product
This product must be grounded properly to comply with the safety regulations in the country of use. If you
are unsure of these regulations, please consult a qualified electrician.
15. Servicing
Do not attempt to service this product by yourself as opening or removing covers may expose you to
dangerous voltages or other hazards. Refer all servicing to qualified service personnel.
16. Damage Service Required
Isolate this product from the mains and refer to qualified service personnel under the following conditions:
A. If the power-supply cord or plug is damaged.
B. If the front LCD front has been damaged.
C. If the product does not operate correctly by following the operating instructions. Use only the user
control buttons any improper adjustment of other controls may result in damage and will often require
extensive work by a qualified technician to restore the product to its normal operation.
D. If the product has been dropped.
Operating Instructions
PHB-3G SERIES
6

Re-imagine Beyond Technology [e-mail]
E. If the product exhibits a distinct change in performance.
17. Safety Check
Upon completion of any service or repairs to this product, ask the service technician to perform safety
checks to determine that the product is in proper operating condition and the warranty seal is provided.
18. Mounting
The product should be mounted on a wall as recommended in the instructions.
19. Power
This set operates on an AC supply; the voltage is as indicated on the label on the Manual. This appliance
must be earthed at all times through the chassis as well as through the power lead.
Operating Instructions
PHB-3G SERIES
7

Re-imagine Beyond Technology [e-mail]
1. OVERVIEW
2. Advanced FEATURES
PHB-3G Series consists of high brightness, high quality portable LCD panels, specifically designed for outdoor
applications. When you need to shoot in direct sunlight, PHB-3G series is the best tool, Up to 1300 cd/m2 of
brightness without using any hood or sun-visor. PHB-3G series designed for every possible broadcast mobile &
outdoor environment ensuring accurate color reproduction in accordance with SMPTE, EBU, REC 709
Broadcast Standards.
The standard calibration feature enables gamma, color temperature and white luminance level adjustments to
meet all Broadcast standards. The PHB-3G is compatible with Plura (ICAC) calibration tool and provides 10 bit
look up table (LUT)(1024 steps of grayscale).
•3Gb/s-1080/60p
•2 x Auto-detect HD-SDI, SDI with active loops (3 Gb/s / 1.485Gb/s / 270Mb/s)
•Dual HD SDI YPbPr 4:2:2 – Dual HD SDI YPbPr/RGB 4:4:4 & 2K
•RGB, YUV, Y/C, Composite, UXGA, DVI & HDMI (DHCP)
•Complies with EBU-3320 TECH, SMPTE-C and ITU-R BT.709 Standards
•(ICAC) - Plura Intelligent Connection for Alignment & Calibration
•Closed Caption (608/708) – North American Market
•Teletext 801 & Subtitle OP-47 – Australia & NZ Market
•Cutting edge De-interlacing and Scaling Technology
•Fast Response Time for high motion video
•RGB 10 Bit Digital Signal Processing
•178° Viewing Angle Display
•Internal Monitor Display (IMD)
•Underscan / Overscan / Normal / Zoom
•Pixel to Pixel Mode, Tally, DC Operation
•Display LTC & DVITC time code with line select
•Internal Pattern Generator and Wall Control System
•Built In Stereo Speaker, 16 CH Audio Metering Display
•Analog & Embedded Audio Input, Digital Audio Decoding
•Color Temperature – User, VAR, Adjustable (11000K TO 3200K)
•Various and User defined Markers Display, Safe Area in HD & SD
•Picture and Picture (PaP), Picture in Picture (PIP) display / Blend
•Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System)
•Display Advanced Waveform & Vector Scope simultaneously with line select
•Programmable 3 User Front Pushbutton Controls, GPI & RS232 Remote Control
•OPTIONS: Ember+, Battery Mount: PBM-AB (Anton Bauer), PBM-VM (V-Mount), Hard
Carry Case, Rack mount & Soft Carry case
Operating Instructions
PHB-3G SERIES
8

Re-imagine Beyond Technology [e-mail]
3. Functional explanation of each part
1. Front Panel
PHB-207-3G & PHB-209-3G
Front View
PHB-207-3G
Front View
PHB-207-3
G
Operating Instructions
PHB-3G SERIES
9

Re-imagine Beyond Technology [e-mail]
Front Keys Arrangements
Front Keys Operations
Key Name Operation
Stand By
Power on/off Button. This button is operated after being pressed about 3 seconds.
SEL/INPUT
activates OSD menu of input source selecting. changes input source.
executes functions (by OSD help commands) in main OSD menu.
Down
Decreases Audio volume of speaker.
Decreases values of user menu in main OSD menu.
executes function (by OSD help commands) in main OSD
menu.
UP
increases Audio volume of speaker.
increases values of user menu in main OSD menu.
executes function (by OSD help commands) in main OSD menu.
Menu
activates main OSD menu.
navigates higher menu in main OSD
menu. Stops auto frequency
searching. exits OSD menu.
Audio
activates Audio Lever Meter
WF/Vector
activates Waveform & Vector Scope (SDI only) SETUP Menu Waveform format selection
Blue Only
Mono color/BuLe only selection
H/V-DeLay
activates ‘H & V’ blanking display ‘H DeLay’ -> ‘V DeLay -> ‘HV DeLay’ -> off
Function 1
executes functions of user selected
Function 2
undefiend, aspect, Mono/Blue only, Audio channel, Safety area marker, time code, analog
caption, Audio mute, Still image, Zoom, flip, Gamma select, PIP func & input, Sub win
Marker
Draw Marker on Screen ( off -> 16:9 -> 4:3 … -> 2.35:1 )
Scan
executes Scan function ( over-Scan -> Zero-Scan -> under Scan-> Pixel to Pixel)
SDI1
Select SDI 1 source
SDI 2
Select SDI 2 source
Analog
Select anaLoG source directly
(‘composite1’ - ‘composite2’ -‘composite3’ - ‘S-video’ - ’G.B.r’ - ‘y.Pb.Pr’ - ’Pc’ - ‘HDMI’ - ‘DVi’
Adjust
adjust Video Menu(Brightness -> contrast -> color -> Sharpness->Phase
& tint) turn right = ‘Up’ button turn
Left = ‘Down’ button
Operating Instructions
PHB-3G SERIES
10
