Pluto 2000 HEX User manual

图纸编码
RD-SS9361-SM-01(SS-I)
版本号
A
SS9361XHE 英文说明书(CCS3.0)
编辑日期
2021/1/20
制作
刘丽萍
审核
白丹
批准
余泽松
物料编码
1320109371
备注
以A4 样本打印
F

MODEL: SS9361XHE
PLUTO 2000 HEX
USER MANUAL
PLUTO 2000 HEX
SS9361

1
1 PRODUCT
1.1 TECHNICAL SPECIFICATIONS
Type
SS9361XHE
LED colors
7PCS 60W RGBALC LED
X
Angle
Beam Angle：8°- 36°, Field Angle:13°- 45°
Power
328W
Control Protocol
DMX512，RDM，Artnet，W-DMX（Optional）
Voltage Range
AC100~240V,50/60Hz
Input Current
110V/3A,220V/1.5A
Protection
IP20
Operation Temperature
0℃~45℃
Dimensions
293X249X375mm
Weight
9.3kg

2
1.2 Safety Notes
IMPORTANT
．．．．．．．．．
This product must be installed by a qualified professional.
In order to maintain this condition and to ensure a safe operation, it is absolutely necessary
for the user to follow the safety instructions and warning notes
The manufacturer will not accept liability for any resulting damages caused by the
non-observance of this manual or any unauthorized modification to the device.
CAUTION!
．．．．．．．．
Make sure that the available voltage is not higher than stated on the rear panel.
Do not touch the power cables if your hands are wet.
The earth wire must always be connected to the ground. Therefore it is essential to connect
the yellow/green conductor to earth.
Make sure that the power-cord is never crimped or damaged by sharp edges. Check the
device and the power-cord from time to time. The electric connection, repairs and servicing
must be carried out by a qualified employee.
Always disconnect power input cable to completely remove power from unit when not in use
or before cleaning or servicing the fixture.
Do not switch the fixture on and off in short intervals as this would reduce the lamp’s life.
Do not touch the device’s housing bare hands during its operation (housing becomes hot)!
The surface of the product’s casing can reach up to 70°C (158°F) during operation. Avoid
contact by persons and materials. Do not install the product in a location where there is a risk
of accidental contact. Allow the product to cool for at least 10 minutes before handling.
For replacement use lamps and fuses of same type and rating only.
Please protect the fixture and avoid destroy during transport and installation. If there is any
damage to the coating, the shell may be corroded.
When hanging lamps and lanterns, it is necessary to verify that facilities and hooks can bear
at least 10 times the weight of lamps and lanterns.
Fix the safety rope at the correct holes only. Only operate the fixture after having checked
that the housing is firmly closed and all screws are tightly fastened.
The maximum ambient temperature 45°C must never be exceeded. Do not operate the
product if the ambient temperature (Ta) exceeds 45°C (115°F).
During the initial start-up some smoke or smell may arise. This is a normal process and does
not necessarily mean that the device is defective.
E
．
lectrical
．．．．．．．．．
W
．
arning
．．．．．．
The light source contained in this luminaire shall only be replaced by the manufacturer or his
service agent or a similar qualified person
For replacement use lamps and fuses of same type and rating only.
The lens has to be replaced when it is obviously damaged, so that its function is impaired, e.
g. due to cracks or deep scratches!

3
Keep the product well away from flammable materials
Keep all combustible materials (e.g. fabric, wood, paper) at least 500 mm (20 in.) away from
the product.
Ensure that there is free and unobstructed airflow around the product. Provide a minimum
clearance of 150 mm (6 in.) around fans and air vents.
Do not illuminate surfaces within 3 m (10 ft.) of the product.
Do not install a fuse that has a higher rating than the one originally installed in the product.
Do not bypass fuses.
Do not stick filters, masks or other materials onto optical components.
If the fixture seems to be abnormally hot, shows signs of melting or emits smoke, disconnect
the fixture from power immediately and allow it to cool. Do not touch the fixture without
heatproof safety gloves. Keep the fixture well away from combustible and flammable
materials.
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
RETINA INJURY RISK - MAY INDUCE BLINDNESS!
Do not point the front of the fixture towards the sun or other strong light sources. The
front lens focuses and concentrates light just like a magnifying glass. Strong light can
cause internal damage to the fixture, melting components or starting an internal fire
within seconds.
To avoid problems from strong light sources:
Do not expose the front of a fixture to sunlight or any other strong light source. Avoid pointing
other high-powered beam lights directly at the fixture.
Do not focus a light beam from one lighting fixture directly towards another.
For outdoor applications during daylight, make sure that the front face of any fixture is
shielded or points away from the sun, even when not in use.
Do not expose the product to heat (from other lighting fixtures for example).

4
2 INSTALLATION
2.1 MOUNTING

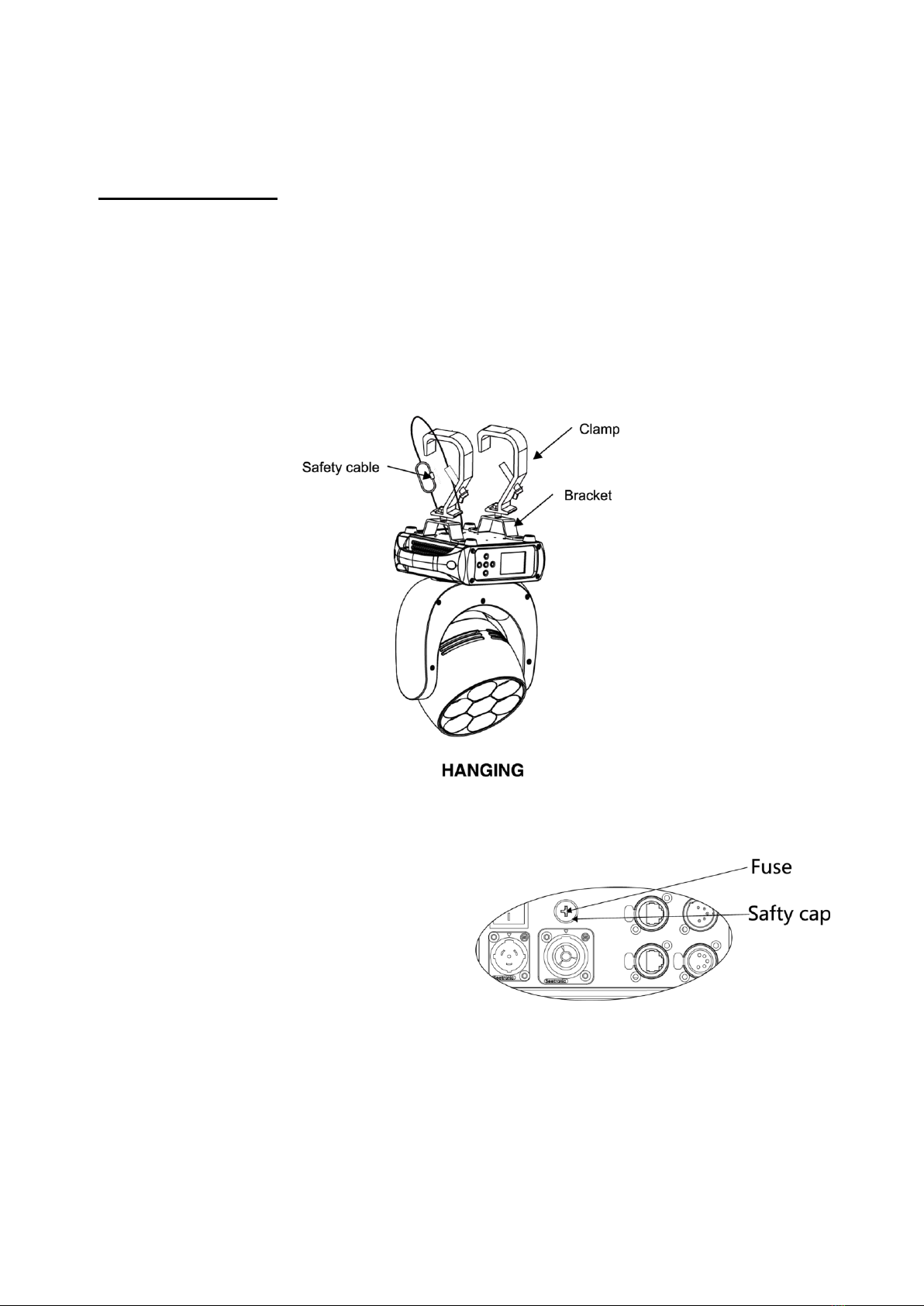

Truss installation
Keep all combustible materials (e.g. fabric, wood, paper) at least 500 mm (20 in.) away from
the product.
For overhead use, always install a safety cable that can hold at least 10 times the weight of
the fixture.
For overhead installation, the fixture must be always secured with a safety wire that can bear
at least 10 times the weight of the fixture；
Secure the fixture with a safety cable through the rear safety eye and truss as shown..
Ensure that the structure (truss) to which you are attaching the fixture is secure
2.2 Fuse replacement
Remove the safety cap by a screwdriver.
Fetch the old fuse from safety cap.
Install a new fuse.
Install the safety cap.

5
2.3 POWER CONNECTIONS
POWER Linking: 3 units@110V；6 units@220V.
This product has an auto-ranging power supply that can work with an input voltage range of
100–240 VAC, 50/60 Hz. AC Plug
Connection
Wire (U.S.
Wire(Europe)
Screw Color
AC Live
Black
Brown
Yellow/Brass
AC Neutral
White
Blue
Silver
AC Ground
Green/Yellow
Green/Yellow
Green
2.4 Data network requirements
Connect the DMX512 controller to the units in series. A DMX 512 data link is required in
order to control the fixture via DMX. The fixture has 3/5-pin XLR connectors for DMX data
input and output.
Each unit has 13 DMX channels so the DMX Addresses should increase by increments of 1，
(Nx1)+1，(Nx2)+1，(Nx3)+1...
Any DMX address in the range from 001 to 512 may be used.
Connect the DMX-output of the first fixture in the DMX chain with the DMX-input of the next
fixture. Always connect one output with the input of the next fixture until all fixtures are
connected.
Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a
120 Ω resistor between Signal (–) and Signal (+) into a 3/5-pin XLR-plug and plug it in the
DMX-output of the last fixture.

6
3 FUNCTIONS AND SETTINGS
3.1 DISPLAY OPERATION

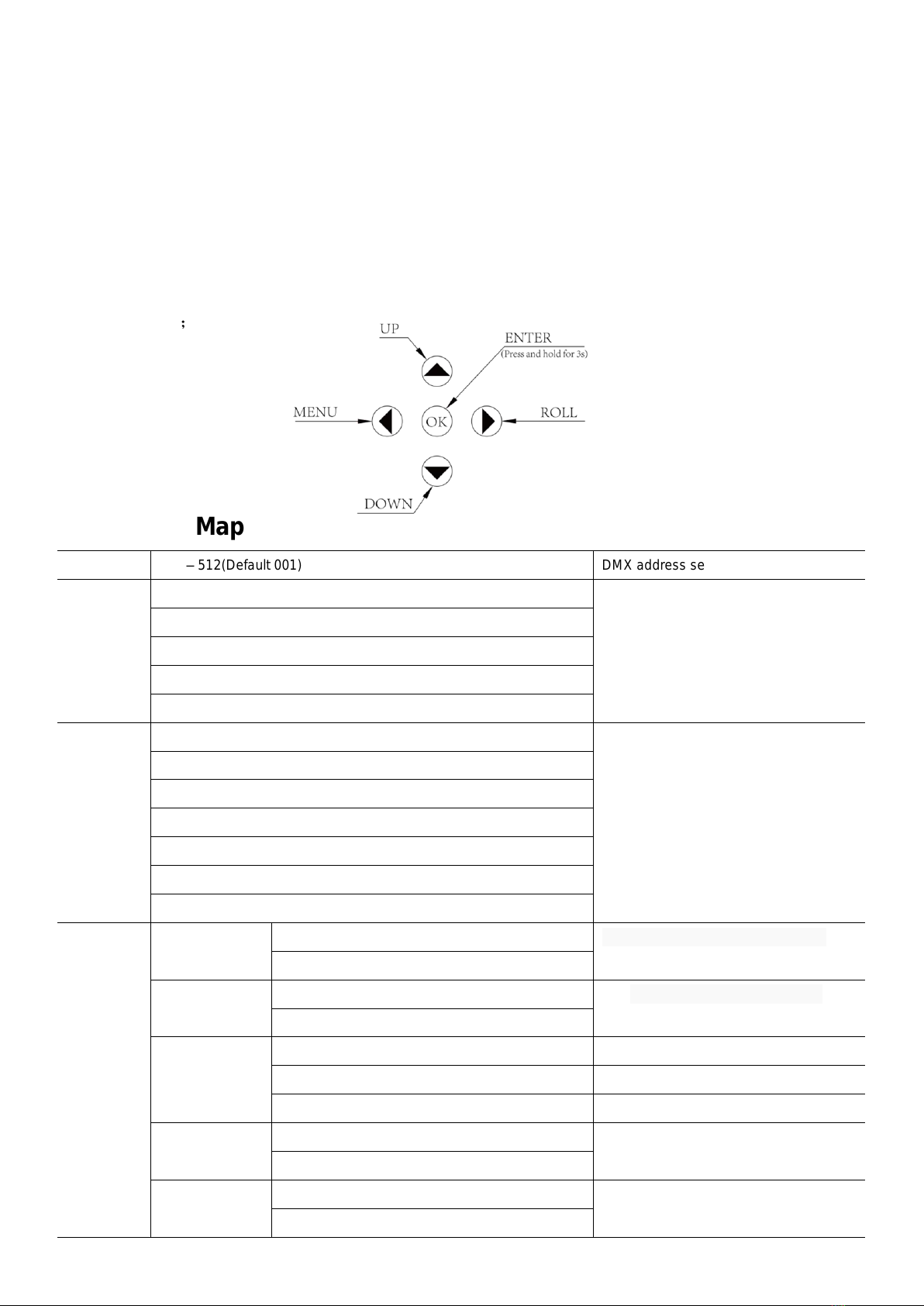

MENU：Used to access the menu or to return a previous menu option;
ENTER：Used to select and store the current menu or confirm the current function value or
option within a menu;
UP：Navigates downwards through the menu list and increases the numeric value when in a
function;
DOWN：Navigates upwards through the menu list and decreases the numeric value when in
a function；
3.2 Menu Map
ADDRESS
001 –512(Default 001)
DMX address setting
PERSON
HSIC
Use the menu to select desired channel
mode
PERSON1
PERSON2 (Default)
PIXEL
CMY
RUNMODE
DMX512 (Default)
Select Signal
Default: DMX512
CUSTOM1-2 Set up get into EDIT MENU
edit
ARTNET
ARTNET TO DMX
sACN
AUTO
CUSTOM1
CUSTOM2
OPTION
PAN INVERT
OFF (Default)
PAN moving direction selection
ON
TILT INVERT
OFF (Default)
TILT moving direction selection
ON
PERFORM
STUDIO
Fan mode low speed
POWER
Fast rotation of fan，all power
LIVE (Default)
Automatic rotation of fan
BLACKOUT
OFF (Default)
Select OFF blackout without delay
Select ON Blackout delay 3s
ON
DIMMER
DIM4 (Default)
Dimming curves OFF (fast) to DIM4 (slow)；
OFF

7
LED PWM
1200Hz (Default)
Sets the PWM frequency
2400Hz
4000Hz
6000Hz
25000Hz
DMX ERROR
SAVE (Default)
Hold after loss of DMX signal
BLACK
Blackout after loss of DMX signal
DISPLAY TIME
On
Display backlight always on
30s (Default)
Turns off display backlight after 30s/1min
/2min of inactivity
1min
2min
DISPLAY LOCK
OFF
Locks display (passcode is <UP>,
<DOWN>,<UP>, <DOWN>, <ENTER>)
ON (Default)
LOAD PARA
NO
Not upload data
YES
Upload data
SETTING
RECOVERY
****
Restore default factory settings.
CLEAN EDIT1
****
Clean customer self-editing scene 1
CLEAN EDIT2
****
Clean customer self-editing scene 2
WDMX HIDE
NO
Hide wireless mode WDMX reset and
signal hide and the default is wired mode
only
YES
NETWORK
Net SWITCH
2.XXX.XXX.XXX
Net switch 2.XXX.XXX.XXX
10.XXX.XXX.XXX
Net switch 10.XXX.XXX.XXX
UNIVERS
0-255
Packet group Settings
IP MODE
DEFAUL IP
Default IP
CUSTOM IP
Customer's IP
CUSTOM IP
XX.XX.XX.XX
Customer's IP setting
PT ENCODER
OFF
XY Encoder switch.
OFF is close; ON is open.
ON
WDMX RESET
NO
Do not clear the receiver's message.
YES
Clear the receiver's message
SIGNAL
ONLY XLRDMX
ONLY XLR is wire only
XLRDMX FIRST
XLR FIRST is wire first
ONLY WDMX
ONLY WDMX is wireless only
WDMX FIRST
WDMX FIRS is wireless first
WDMX TO XLRDMX
WDMX TO DMX is wireless to wired
EDIT
EDIT 1-2
STEP 1-30
PAN
0-255
Edit the custom programs1-30
Select play 【EDIT 1】in RUNMOEDE
CUSTOM 1; Select play 【EDIT 2】in
RUNMOEDE CUSTOM 2
TITL
0-255
RED
0-255
GREEN
0-255
BLUE
0-255

8
AMBER
0-255
LIME
0-255
CYAN
0-255
DIMMER
0-255
STROBE
0-255
ZOOM
0-255
TIME
0-255
USE
YES/NO
Select YES to run the steps user need.
MANUAL
Auto Test
Auto Test channel
CHANNEL
PAN
0-255
Manual control channel
TITL
0-255
RED
0-255
GREEN
0-255
BLUE
0-255
AMBER
0-255
LIME
0-255
CYAN
0-255
DIMMER
0-255
STROBE
0-255
ZOOM
0-255
DEBUG HIDE
NO
Factory testing mode. All stepper motors
are not controlled by signal, It only works
again after the reset.
YES
RESET
ALL RESET
Select Yes/No to carry out all reset
PT RESET
Select Yes/No to carry out P/T reset
OTHER
Zoom/ Focus/ Prism reset
SERVICE
****
PAN
±127
Pan position fine adjustment
TILT
±127
Tilt position fine adjustment
INFO
FIXTURE HOURS
Hours of fixture use
LED USE HOURS
LED use time
TEMPERATURE
LED temperature
VERSION
Software versions
NETWORK
Check network parameter
RDM
UID
0x388Axxxxxxxx
Check fixture's ID
LABEL
Check fixture's LABEL
SYSTEM
ERROR
MEMORY IC
Memory IC
ANGLESENSOR
Angle Sensor
PAN SENSOR
Pan Sensor
PAN ENCODER
Pan Encoder
PAN DRIVEIC
Pan Drive IC
TILT SENSOR
Tilt Sensor

9
TILT ENCODER
Tilt Encoder
TILT DRIVEIC
Tilt Drive IC
TEMPERATURE
Temperature
CCT
1800K
Preset color temperatures
2200K
2700K
3000K
3200K
4000K
4500K
5000K
5600K
6000K
6500K
7000K
8000K
10000K
PRESET
COLOR
COLOR 1
Preset color （See Annex I for details）
COLOR 2
......
COLOR 48
All passwords of this product are <UP>, <DOWN>,<UP>, <DOWN>, <ENTER>)

10
4 USING A DMX512 CONTROLLER
4.1 DMX CONTROL
HSIC（13CH）
Value
Function
CH.1
0-255
PAN
CH.2
0-255
PAN FINE
CH.3
0-255
TITL
CH.4
0-255
TITL FINE
CH.5
0-255
PT SPEED
CH.6
0-255
INTENSIYT
CH.7
0-255
HUE
CH.8
0-255
HUE FINE
CH.9
0-255
SATURATION
CH.10
CCT
0-9
NO FUNCTION
10
1800K
25
2200K
40
2700K
55
3000K
70
3200K
85
4000K
100
4500K
115
5000K
130
5600K
145
6000K
160
6500K
175
7000K
190
8000K
205
10000K
255
10000K
CH.11
STROBE
0-9
NO FUNCTION
10-99
STROBE FROM （SLOD TO FAST ，0-25Hz）
100-109
NO FUNCTION
110-179
LIGHTNING STROBE
180-189
NO FUNCTION
190-255
RANDOM SROBE
CH.12
0-255
ZOOM
CH.13
CONTROL（EXECUTE AFTER 3 SECONDS）
000-010
NO FUNCTION
011-020
PAN/TILT BLACK ACTIVATED
021-030
PAN/TILT BLACK DEACTIVATED
031-060
RESERVED
061-070
LIVE
071-080
STUDIO
081-090
POWER

11
091-100
RESERVED
101-110
DIMMER OFF
111-120
DIMMER DIM4
121-150
RESERVED
151-160
1200Hz
161-170
2400Hz
171-180
4000Hz
181-190
6000Hz
191-200
25000Hz
201-210
ALL RESET
211-220
ZOOM RESET
221-255
RESERVED
PERSON1
（18CH）
PERSON2
（27CH）
Value
Function
CH.1
CH.1
0-255
PAN
--
CH.2
0-255
PAN FINE
CH.2
CH.3
0-255
TITL
--
CH.4
0-255
TITL FINE
--
CH.5
0-255
PT SPEED
CH.3
CH.6
0-255
RED
--
CH.7
0-255
RED FINE
CH.4
CH.8
0-255
GREEN
--
CH.9
0-255
GREEN FINE
CH.5
CH.10
0-255
BLUE
--
CH.11
0-255
BLUE FINE
CH.7
CH.12
0-255
AMBER
--
CH.13
0-255
AMBER FINE
CH.8
CH.14
0-255
LIME
CH.15
0-255
LIME FINE
CH.9
CH.16
0-255
CYAN
CH.17
0-255
CYAN FINE
CH.10
CH.18
0-255
DIMMER
CH.19
0-255
DIMMER FINE
CH.11
CH.20
PRESET COLOR
0-10
NO FUNCTION
11-255
PRESET COLOR（See Annex I for details）
CH.12
CH.21
CCT
0-9
NO FUNCTION
10
1800K
25
2200K
40
2700K
55
3000K
70
3200K
85
4000K
100
4500K

12
115
5000K
130
5600K
145
6000K
160
6500K
175
7000K
190
8000K
205
10000K
255
10000K
CH.13
CH.22
Static LED
0-11
NO FUNCTION
12-29
RED centra
30-47
GREEN centra
48-65
BLUE centra
66-83
AMBER centra
84-101
LIME centra
102-119
CYAN centra
120-137
RED ring
138-155
GREEN ring
156-173
BLUE ring
174-191
AMBER ring
192-209
LIME ring
210-227
CYAN ring
228-245
centra RGBALC
246-255
ring RGBALC
CH.14
CH.23
Color macro
0-10
NO FUNCTION
11-17
RED 100% / GREEN UP / BLUE 0%
18-24
RED DOWN / GREEN 100% / BLUE 0%
25-31
RED 0% / GREEN 100% / BLUE UP
32-38
RED 0% / GREEN DOWN / BLUE 100%
39-45
RED UP / GREEN 0% / BLUE 100%
46-52
RED 100% /GREEN 0%/BLUE DOWN
53-59
RED 100%/GREEN UP/BLUE UP
60-66
RED DOWN/GREEN DOWN/BLUE 100%
67-79
ALL LED AT FULL OUTPUT
80-88
Centra RGBALC FULL OUTPUT —> RING R-G-B-A-L-C-R circulation
89-97
Centra R FULL OUTPUT —> RING G-B-A-L-C-G circulation
98-106
Centra G FULL OUTPUT —> RING R-B-A-L-C-R circulation
107-105
Centra B FULL OUTPUT —> RING R-G-A-L-C-R circulation
116-124
Centra A FULL OUTPUT —> RING R-G-B-L-C-R circulation
125-133
Centra L FULL OUTPUT —> RING R-G-B-A-C-R circulation
134-142
Centra C FULL OUTPUT —> RING R-G-B-A-L-R circulation
143-151
Centra R-G-B-A-L-C-R circulation—> RING RGBALC FULL OUTPUT
152-160
Centra G-B-A-L-C-G circulation—> RING R FULL OUTPUT
161-169
Centra R-B-A-L-C-R circulation—> RING G FULL OUTPUT
170-178
Centra R-G-A-L-C-R circulation—> RING B FULL OUTPUT

13
179-187
Centra R-G-B-L-C-R circulation—> RING A FULL OUTPUT
188-196
Centra R-G-B-A-C-R circulation—> RING L FULL OUTPUT
197-205
Centra R-G-B-A-L-R circulation—> RING C FULL OUTPUT
206-214
Centra R-G-B-R circulation—> RING B-R-G-B circulation
215-223
Centra R-G-B-A-R circulation—> RING B-R-A-G-B circulation
224-232
Centra R-G-B-A-L-R circulation—> RING L-R-A-G-B-L circulation
233-241
Centra R-G-B-A-L-C-R circulation—> RING C-R-A-G-B-L-C circulation
242-255
ALL LED AT FULL OUTPUT
CH.15
CH.24
0-255
AUTO SPEED（Slow to Fast）
CH.16
CH.25
STROBE
0-9
NO FUNCTION
10-99
STROBE FROM （SLOD TO FAST ，0-25Hz）
100-109
NO FUNCTION
110-179
LIGHTNING STROBE
180-189
NO FUNCTION
190-255
RANDOM SROBE
CH.17
CH.26
0-255
ZOOM
CH.18
CH.27
CONTROL（EXECUTE AFTER 3 SECONDS）
000-010
NO FUNCTION
011-020
PAN/TILT BLACK ACTIVATED
021-030
PAN/TILT BLACK DEACTIVATED
031-060
RESERVED
061-070
LIVE
071-080
STUDIO
081-090
POWER
091-100
RESERVED
101-110
DIMMER OFF
111-120
DIMMER DIM4
121-150
RESERVED
151-160
1200Hz
161-170
2400Hz
171-180
4000Hz
181-190
6000Hz
191-200
25000Hz
201-210
ALL RESET
211-220
ZOOM RESET
221-255
RESERVED
CMY
（17CH）
Value
Function
CH.1
0-255
PAN
CH.2
0-255
PAN FINE
CH.3
0-255
TITL
CH.4
0-255
TITL FINE
CH.5
0-255
PT SPEED

14
CH.6
0-255
CYAN
CH.7
0-255
MAGENT
CH.8
0-255
YELLOW
CH.9
0-255
DIMMER
CH.10
PRESET COLOR
0-10
NO FUNCTION
11-255
PRESET COLOR（See Annex I for details）
CH.11
CCT
0-9
NO FUNCTION
10
1800K
25
2200K
40
2700K
55
3000K
70
3200K
85
4000K
100
4500K
115
5000K
130
5600K
145
6000K
160
6500K
175
7000K
190
8000K
205
10000K
255
10000K
CH.12
Static LED
0-11
NO FUNCTION
12-29
RED centra
30-47
GREEN centra
48-65
BLUE centra
66-83
AMBER centra
84-101
LIME centra
102-119
CYAN centra
120-137
RED ring
138-155
GREEN ring
156-173
BLUE ring
174-191
AMBER ring
192-209
LIME ring
210-227
CYAN ring
228-245
centra RGBALC
246-255
ring RGBALC

15
CH.13
Color macro
0-10
NO FUNCTION
11-17
RED 100% / GREEN UP / BLUE 0%
18-24
RED DOWN / GREEN 100% / BLUE 0%
25-31
RED 0% / GREEN 100% / BLUE UP
32-38
RED 0% / GREEN DOWN / BLUE 100%
39-45
RED UP / GREEN 0% / BLUE 100%
46-52
RED 100% /GREEN 0%/BLUE DOWN
53-59
RED 100%/GREEN UP/BLUE UP
60-66
RED DOWN/GREEN DOWN/BLUE 100%
67-79
ALL LED AT FULL OUTPUT
80-88
Centra RGBALC FULL OUTPUT —> RING R-G-B-A-L-C-R circulation
89-97
Centra R FULL OUTPUT —> RING G-B-A-L-C-G circulation
98-106
Centra G FULL OUTPUT —> RING R-B-A-L-C-R circulation
107-105
Centra B FULL OUTPUT —> RING R-G-A-L-C-R circulation
116-124
Centra A FULL OUTPUT —> RING R-G-B-L-C-R circulation
125-133
Centra L FULL OUTPUT —> RING R-G-B-A-C-R circulation
134-142
Centra C FULL OUTPUT —> RING R-G-B-A-L-R circulation
143-151
Centra R-G-B-A-L-C-R circulation—> RING RGBALC FULL OUTPUT
152-160
Centra G-B-A-L-C-G circulation—> RING R FULL OUTPUT
161-169
Centra R-B-A-L-C-R circulation—> RING G FULL OUTPUT
170-178
Centra R-G-A-L-C-R circulation—> RING B FULL OUTPUT
179-187
Centra R-G-B-L-C-R circulation—> RING A FULL OUTPUT
188-196
Centra R-G-B-A-C-R circulation—> RING L FULL OUTPUT
197-205
Centra R-G-B-A-L-R circulation—> RING C FULL OUTPUT
206-214
Centra R-G-B-R circulation—> RING B-R-G-B circulation
215-223
Centra R-G-B-A-R circulation—> RING B-R-A-G-B circulation
224-232
Centra R-G-B-A-L-R circulation—> RING L-R-A-G-B-L circulation
233-241
Centra R-G-B-A-L-C-R circulation—> RING C-R-A-G-B-L-C circulation
242-255
ALL LED AT FULL OUTPUT
CH.14
0-255
AUTO SPEED（Slow to Fast）
CH.15
STROBE
0-9
NO FUNCTION
10-99
STROBE FROM （SLOD TO FAST ，0-25Hz）
100-109
NO FUNCTION
110-179
LIGHTNING STROBE
180-189
NO FUNCTION
190-255
RANDOM SROBE
CH.16
0-255
ZOOM
CH.17
CONTROL（EXECUTE AFTER 3 SECONDS）

16
000-010
NO FUNCTION
011-020
PAN/TILT BLACK ACTIVATED
021-030
PAN/TILT BLACK DEACTIVATED
031-060
RESERVED
061-070
LIVE
071-080
STUDIO
081-090
POWER
091-100
RESERVED
101-110
DIMMER OFF
111-120
DIMMER DIM4
121-150
RESERVED
151-160
1200Hz
161-170
2400Hz
171-180
4000Hz
181-190
6000Hz
191-200
25000Hz
201-210
ALL RESET
211-220
ZOOM RESET
221-255
RESERVED
PIXEL
（21CH）
Value
Function
CH.1
0-255
PAN
CH.2
0-255
PAN FINE
CH.3
0-255
TILT
CH.4
0-255
TILT FINE
CH.5
0-255
PT SPEED
CH.6
0-255
DIMMER
CH.7
STROBE
0-9
NO FUNCTION
10-59
STROBE FROM SLOD TO FAST (0-25Hz)
60-109
NO FUNCTION
110-159
THUNDER STROBE FROM SLOD TO FAST
160-209
NO FUNCTION
210-255
RANDOM SROBE
CH.8
0-255
ZOOM
CH.9
CONTROL（EXECUTE AFTER 3 SECONDS）
000-010
NO FUNCTION
011-020
PAN/TILT BLACK ACTIVATED
021-030
PAN/TILT BLACK DEACTIVATED
031-060
RESERVED
061-070
LIVE
071-080
STUDIO
081-090
POWER

17
091-100
RESERVED
101-110
DIMMER OFF
111-120
DIMMER DIM4
121-150
RESERVED
151-160
1200Hz
161-170
2400Hz
171-180
4000Hz
181-190
6000Hz
191-200
25000Hz
201-210
ALL RESET
211-220
ZOOM RESET
221-255
RESERVED
CH.10
0-255
RED centra
CH.11
0-255
GREEN centra
CH.12
0-255
BLUE centra
CH.13
0-255
AMBER centra
CH.14
0-255
LIME centra
CH.15
0-255
CYAN centra
CH.16
0-255
RED ring
CH.17
0-255
GREEN ring
CH.18
0-255
BLUE ring
CH.19
0-255
AMBER ring
CH.20
0-255
LIME ring
CH.21
0-255
CYAN ring

18
Annex 1
PRESET COLOR
Value
Color Names
x
y
0-10
NO FUNCTION
COLOR 1
11-15
L176
Loving Amber
0.407
0.321
COLOR 2
16-20
R40
Light Salmon
0.499
0.321
COLOR 3
21-25
L24
Scarlet
0.561
0.296
COLOR 4
26-30
L164
Flame Red
0.659
0.302
COLOR 5
31-35
L747
Easy White
0.389
0.344
COLOR 6
36-40
R303
Warm Peach
0.448
0.353
COLOR 7
41-45
L08
Dark Salmon
0.498
0.347
COLOR 8
46-50
L25
Sunset Red
0.566
0.359
COLOR 9
51-55
L04
Medium Bastard Amber
0.37
0.335
COLOR 10
56-60
L237
CID(To Tungsten)
0.43
0.365
COLOR 11
61-65
R321
Soft Golden Amber
0.477
0.406
COLOR 12
66-70
L652
Urban Sodium
0.535
0.399
COLOR 13
71-75
L212
LCT Yellow(Y1)
0.34
0.363
COLOR 14
76-80
L765
LEE Yellow
0.389
0.412
COLOR 15
81-85
L513
Ice And A Slice
0.38
0.447
COLOR 16
86-90
L100
Spring Yellow
0.41
0.502
COLOR 17
91-95
L244
LEE Plus Green
0.324
0.388
COLOR 18
96-100
R4430
CalColor 30 Green
0.318
0.44
COLOR 19
101-105
L122
Fern Green
0.234
0.543
COLOR 20
106-110
L90
Dark Yellow Green
0.184
0.641
COLOR 21
111-115
L243
LEE Fluorescent3600K
0.286
0.37
COLOR 22
116-120
R92
Tuiquoise
0.235
0.36
COLOR 23
121-125
R94
Kelly Green
0.185
0.459
COLOR 24
126-130
L327
Forest Green
0.162
0.496
COLOR 25
131-135
L191
Cosmetic Aqua Blue
0.3
0.318
COLOR 26
136-140
L728
Steel Green
0.256
0.302
COLOR 27
141-145
L117
Steel Blue
0.223
0.278
COLOR 28
146-150
L354
Special Steel Blue
0.173
0.265
COLOR 29
151-155
L53
Paler Lavender
0.284
0.284
COLOR 30
156-160
L501
New Colour Blue
0.246
0.249
COLOR 31
161-165
L174
Dark Steel Blue
0.204
0.205
COLOR 32
166-170
L165
Daylight Blue
0.159
0.158
COLOR 33
171-175
L136
Pale Lavender
0.288
0.254
COLOR 34
176-180
L194
Surprise Pink
0.24
0.183
COLOR 35
181-185
L142
Pale Violet
0.209
0.148
COLOR 36
186-190
L700
Perfect Lavender
0.177
0.07
COLOR 37
191-195
L35
Light Pink
0.335
0.289
COLOR 38
196-200
L794
Pretty'n Pink
0.335
0.251
COLOR 39
201-205
L328
Follies Pink
0.335
0.18
COLOR 40
206-210
L795
Magical Magenta
0.327
0.138
COLOR 41
211-215
L154
Pale Rose
0.35
0.318
COLOR 42
216-220
L127
Smokey Pink
0.397
0.265
COLOR 43
221-225
L192
Flesh Pink
0.41
0.237
COLOR 44
226-230
L332
Special Rose Pink
0.465
0.193
COLOR 45
231-235
L790
Moroccan Pink
0.378
0.324
COLOR 46
236-240
L157
Pink
0.457
0.272
COLOR 47
241-245
R332
Cherry Rose
0.489
0.295
COLOR 48
246-250
L128
Cool LED Bright Pink
0.57
0.263
251-255
NO FUNCTION
