Pluto 800 profile wash User manual

图纸编码

RD-SS9281-SM-01(SS-I)

版本号

SS9281SC/ SS9281SC HC 英文说明书

编辑日期

2021/1/27

制作

刘丽萍

审核

白丹

批准

余泽松

物料编码

1320109271

备注

以A4 样板打印

更改菜单和通道

MODEL: SS9281SC/SS9281SC HC

PLUTO 800 PROFILE WASH

USER MANUAL

PLUTO 800 PROFILE WASH

SS9281

1 PRODUCT

1.1 TECHNICAL SPECIFICATIONS

Type

SS9281SC/ SS9281SC HC

LED colors

800W Cool White LED

Angle

4.5°~ 45°

Power

880W

Control Protocol

DMX512，RDM，Artnet，sACN，W-DMX（Optional）

Voltage Range

AC100~240V,50/60Hz

Input Current

110V/8A,220V/4A

Protection

IP20

Operation Temperature

0℃~45℃

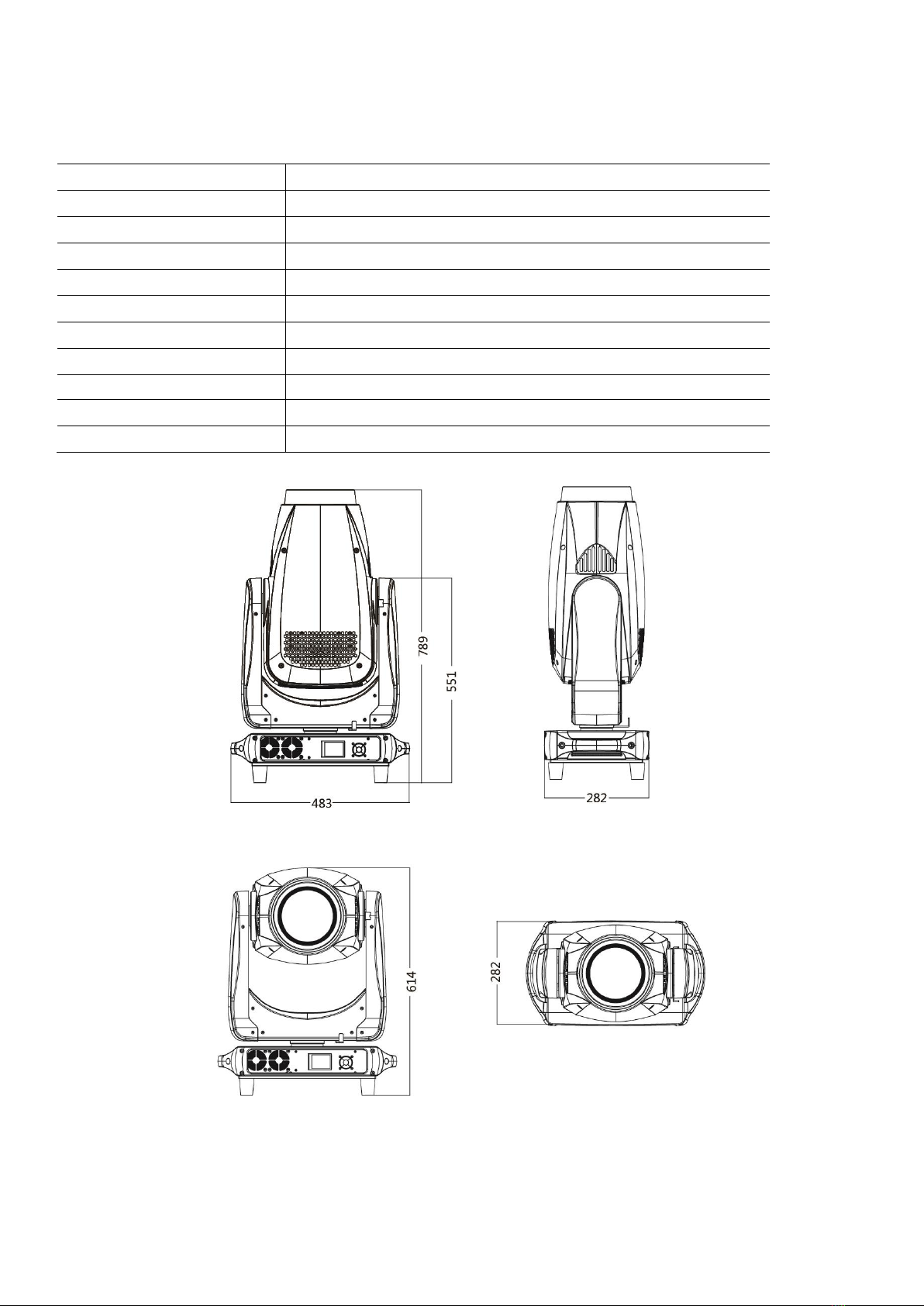

Dimensions

483X282X789mm

Weight

35kg

1.2 Safety Notes

IMPORTANT

．．．．．．．．．

This product must be installed by a qualified professional.

In order to maintain this condition and to ensure a safe operation, it is absolutely necessary

for the user to follow the safety instructions and warning notes

The manufacturer will not accept liability for any resulting damages caused by the

non-observance of this manual or any unauthorized modification to the device.

CAUTION!

．．．．．．．．

Make sure that the available voltage is not higher than stated on the rear panel.

Do not touch the power cables if your hands are wet.

The earth wire must always be connected to the ground. Therefore it is essential to connect

the yellow/green conductor to earth.

Make sure that the power-cord is never crimped or damaged by sharp edges. Check the

device and the power-cord from time to time. The electric connection, repairs and servicing

must be carried out by a qualified employee.

Always disconnect power input cable to completely remove power from unit when not in use

or before cleaning or servicing the fixture.

Do not switch the fixture on and off in short intervals as this would reduce the lamp’s life.

Do not touch the device’s housing bare hands during its operation (housing becomes hot)!

The surface of the product’s casing can reach up to 70°C (158°F) during operation. Avoid

contact by persons and materials. Do not install the product in a location where there is a risk

of accidental contact. Allow the product to cool for at least 10 minutes before handling.

For replacement use lamps and fuses of same type and rating only.

Please protect the fixture and avoid destroy during transport and installation. If there is any

damage to the coating, the shell may be corroded.

When hanging lamps and lanterns, it is necessary to verify that facilities and hooks can bear

at least 10 times the weight of lamps and lanterns.

Fix the safety rope at the correct holes only. Only operate the fixture after having checked

that the housing is firmly closed and all screws are tightly fastened.

The maximum ambient temperature 45°C must never be exceeded. Do not operate the

product if the ambient temperature (Ta) exceeds 45°C (115°F).

During the initial start-up some smoke or smell may arise. This is a normal process and does

not necessarily mean that the device is defective.

．

lectrical

．．．．．．．．．

．

arning

．．．．．．

The light source contained in this luminaire shall only be replaced by the manufacturer or his

service agent or a similar qualified person

For replacement use lamps and fuses of same type and rating only.

The lens has to be replaced when it is obviously damaged, so that its function is impaired, e.

g. due to cracks or deep scratches!

Keep the product well away from flammable materials

．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．

Keep all combustible materials (e.g. fabric, wood, paper) at least 500 mm (20 in.) away from

the product.

Ensure that there is free and unobstructed airflow around the product. Provide a minimum

clearance of 150 mm (6 in.) around fans and air vents.

Do not illuminate surfaces within 3 m (10 ft.) of the product.

Do not install a fuse that has a higher rating than the one originally installed in the product.

Do not bypass fuses.

Do not stick filters, masks or other materials onto optical components.

If the fixture seems to be abnormally hot, shows signs of melting or emits smoke, disconnect

the fixture from power immediately and allow it to cool. Do not touch the fixture without

heatproof safety gloves. Keep the fixture well away from combustible and flammable

materials.

NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!

RETINA INJURY RISK - MAY INDUCE BLINDNESS!

Do not point the front of the fixture towards the sun or other strong light sources. The

front lens focuses and concentrates light just like a magnifying glass. Strong light can

cause internal damage to the fixture, melting components or starting an internal fire

within seconds.

To avoid problems from strong light sources:

．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．

Do not expose the front of a fixture to sunlight or any other strong light source. Avoid pointing

other high-powered beam lights directly at the fixture.

Do not focus a light beam from one lighting fixture directly towards another.

For outdoor applications during daylight, make sure that the front face of any fixture is

shielded or points away from the sun, even when not in use.

Do not expose the product to heat (from other lighting fixtures for example).

2 INSTALLATION

2.1 MOUNTING

Truss installation

．．．．．．．．．．．．．．．．．

Keep all combustible materials (e.g. fabric, wood, paper) at least 500 mm (20 in.) away from

the product.

For overhead use, always install a safety cable that can hold at least 10 times the weight of

the fixture.

For overhead installation, the fixture must be always secured with a safety wire that can bear

at least 10 times the weight of the fixture；

Secure the fixture with a safety cable through the rear safety eye and truss as shown..

Ensure that the structure (truss) to which you are attaching the fixture is secure

2.2 Fuse replacement

Remove the safety cap by a screwdriver.

Fetch the old fuse from safety cap.

Install a new fuse.

Install the safety cap.

2.3 POWER CONNECTIONS

This product has an auto-ranging power supply that can work with an input voltage range of

100–240 VAC, 50/60 Hz.

2.4 Data network requirements

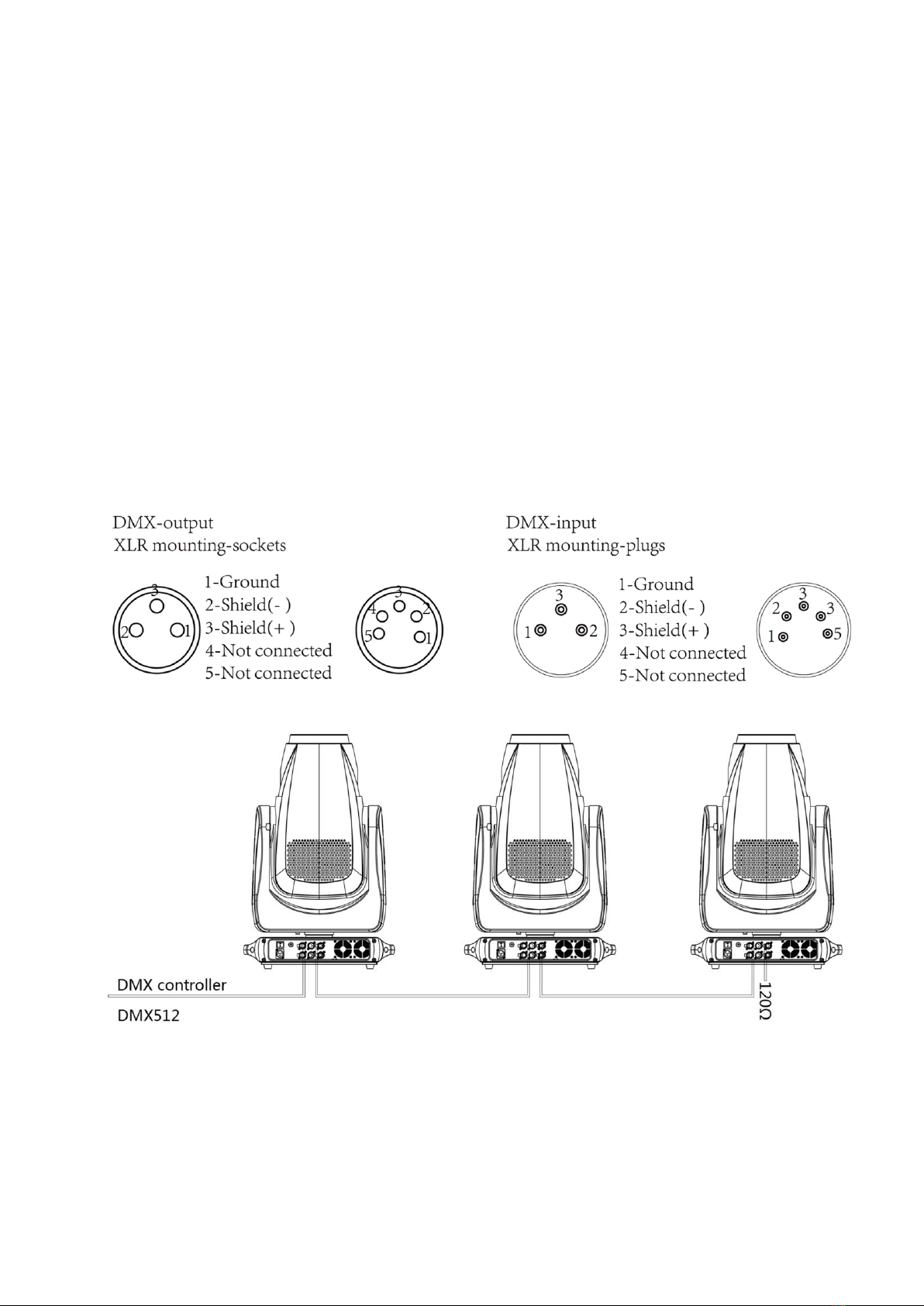

Connect the DMX512 controller to the units in series. A DMX 512 data link is required in

order to control the fixture via DMX. The fixture has 3/5-pin XLR connectors for DMX data

input and output.

Each unit has 13 DMX channels so the DMX Addresses should increase by increments of 1，

(Nx1)+1，(Nx2)+1，(Nx3)+1...

Any DMX address in the range from 001 to 512 may be used.

Connect the DMX-output of the first fixture in the DMX chain with the DMX-input of the next

fixture. Always connect one output with the input of the next fixture until all fixtures are

connected.

Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a

120 Ω resistor between Signal (–) and Signal (+) into a 3/5-pin XLR-plug and plug it in the

DMX-output of the last fixture.

3 FUNCTIONS AND SETTINGS

3.1 DISPLAY OPERATION

MENU：Used to access the menu or to return a previous menu option;

ENTER：Used to select and store the current menu or confirm the current function value or

option within a menu;

UP：Navigates downwards through the menu list and increases the numeric value when in a

function;

DOWN：Navigates upwards through the menu list and decreases the numeric value when in

a function；

3.2 Menu Map

ADDRESS

001 –512(Default 001)

DMX address setting

PERSON

BASIC

Use the menu to select desired channel

mode

STANDARD (Default)

EXTEND

RUNMODE

DMX512 (Default)

Select Signal

Default: DMX512

CUSTOM1-2 Set up get into EDIT MENU

edit

ARTNET

ARTNET TO DMX

sACN

AUTO

CUSTOM1

CUSTOM2

OPTION

PAN INVERT

OFF (Default)

PAN moving direction selection

TILT INVERT

OFF (Default)

TILT moving direction selection

PERFORM

STUDIO

Fan mode low speed

POWER

Fast rotation of fan，all power

LIVE (Default)

Automatic rotation of fan

BLACKOUT

OFF (Default)

Select OFF blackout without delay

Select ON Blackout delay 3s

DIMMER

DIM4 (Default)

Dimming curves DIM1 (fast) to DIM4 (slow)；

DIM3

DIM2

DIM1

OFF

LED PWM

1200Hz (Default)

Sets the PWM frequency

2400Hz

4000Hz

6000Hz

25000Hz

DMX ERROR

SAVE (Default)

Hold after loss of DMX signal

BLACK

Blackout after loss of DMX signal

DISPLAY TIME

Display backlight always on

30s

Turns off display backlight after 30s/1min

/2min of inactivity

1min (Default)

2min

DISPLAY LOCK

OFF

Locks display (passcode is <UP>,

<DOWN>,<UP>, <DOWN>, <ENTER>)

ON (Default)

LOAD PARA

Not upload data

YES

Upload data

SETTING

RECOVERY

****

Restore default factory settings.

CLEAN EDIT1

****

Clean customer self-editing scene 1

CLEAN EDIT2

****

Clean customer self-editing scene 2

WDMX HIDE

Hide wireless mode WDMX reset and

signal hide and the default is wired mode

only

YES

NETWORK

Net SWITCH

OFF

Net switch off IP mode

Net switch on IP mode

UNIVERS

0-255

Packet group Settings

IP MODE

DEFAUL IP

Default IP

CUSTOM IP

Customer's IP

CUSTOM IP

XX.XX.XX.XX

Customer's IP setting

PT ENCODER

OFF

XY Encoder switch.

OFF is close; ON is open.

WDMX RESET

Do not clear the receiver's message.

YES

Clear the receiver's message

SIGNAL

ONLY XLRDMX

ONLY XLR is wire only

XLRDMX FIRST

XLR FIRST is wire first

ONLY WDMX

ONLY WDMX is wireless only

WDMX FIRST

WDMX FIRS is wireless first

WDMX TO XLRDMX

WDMX TO DMX is wireless to wired

EDIT

EDIT 1-2

STEP 1-30

PAN

0-255

Edit the custom programs1-30

Select play 【EDIT 1】in RUNMOEDE

TILT

0-255

PT SPEED

0-255

CUSTOM 1; Select play 【EDIT 2】in

RUNMOEDE CUSTOM 2

CMY C

0-255

CMY M

0-255

CMY Y

0-255

CTO

0-255

COLOR 1

0-255

COLOR 2

0-255

FROST 1

0-255

FROST 2

0-255

ZOOM

0-255

FOCUS

0-255

IRIS

0-255

FRAMING1.L

0-255

FRAMING1.R

0-255

FRAMING2.L

0-255

FRAMING2.R

0-255

FRAMING3.L

0-255

FRAMING3.R

0-255

FRAMING4.L

0-255

FRAMING4.R

0-255

FRAMING ROT

0-255

DIMMER

0-255

STROBE

0-255

TIME

0-255

USE

YES/NO

Select YES to run the steps user need.

MANUAL

AUTO TEST

CHANNEL

PAN

0-255

Manual control channel

TILT

0-255

PT SPEED

0-255

CMY C

0-255

CMY M

0-255

CMY Y

0-255

CTO

0-255

COLOR 1

0-255

COLOR 2

0-255

FROST 1

0-255

FROST 2

0-255

ZOOM

0-255

FOCUS

0-255

IRIS

0-255

FRAMING1.L

0-255

FRAMING1.R

0-255

FRAMING2.L

0-255

FRAMING2.R

0-255

FRAMING3.L

0-255

FRAMING3.R

0-255

FRAMING4.L

0-255

FRAMING4.R

0-255

FRAMING ROT

0-255

DIMMER

0-255

STROBE

0-255

DEBUG HIDE

Factory testing mode. All stepper motors

are not controlled by signal, It only works

again after the reset.

YES

RESET

ALL RESET

Select Yes/No to carry out all reset

PT RESET

Select Yes/No to carry out P/T reset

COLOR SYSTEM

COLOR/CMYK reset

OTHER

Zoom/ Focus reset

INFO

FIXTURE HOURS

Hours of fixture use

LED USE HOURS

LED use time

TEMPERATURE

LED temperature

VERSION

Software versions

NETWORK

Check network parameter

RDM

UID

0x388Axxxxxxxx

Check fixture's ID

LABEL

PLUTO 800 PROFILE WASH

Check fixture's LABEL

SYSTEM

ERROR

MEMORY IC

Memory IC

ANGLESENSOR

Angle Sensor

PAN SENSOR

Pan Sensor

PAN ENCODER

Pan Encoder

PAN DRIVEIC

Pan Drive IC

TILT SENSOR

Tilt Sensor

TILT ENCODER

Tilt Encoder

TILT DRIVEIC

Tilt Drive IC

TEMPERATURE

Temperature

CMY_C RESET

CMY C Reset

CMY_M RESET

CMY M Reset

CMY_Y RESET

CMY Y Reset

CTO RESET

CTO Reset

COLOR 1 RESET

Color Reset

COLOR 2 RESET

Fixed Gobo Reset

FROST 1 RESET

Gobo Reset

FROST 2 RESET

Rotate Gobo Reset

ZOOM RESET

Zoom Reset

FOCUS RESET

Focus Reset

FRAMING RESET

Framing Reset

SERVICE

****

PAN

±127

Pan position fine adjustment

TILT

±127

Tilt position fine adjustment

COLOR 1

±127

Fixed Gobo position fine adjustment

COLOR 2

±127

Rotate Gobo position fine adjustment

CMY-C

±127

CMY-C position fine adjustment

CMY-M

±127

CMY-M position fine adjustment

CMY-Y

±127

CMY-Y position fine adjustment

CTO

±127

CTO position fine adjustment

FOCUS

±127

Zoom position fine adjustment

ZOOM

±127

Focus position fine adjustment

IRIS

±127

Iris position fine adjustment

FRAMING1.L

±127
