PMC PK-25 User manual

PK-25 Proportioner
Electrical Drawings
Ref. # 203327
Revision 1.1
FOR PROFESSIONAL USE ONLY
Not approved for use in European explosive atmosphere locations
1 Komo Dr.
Lakewood, NJ 08701
Phone: [phone]
URL: http://www.polymacusa.com

TABLE OF CONTENTS
Error! Reference source not found. Rev Error! Reference source not found.
i
TABLE OF CONTENTS
WARRANTY .......................................................................................................................................1
SAFETY AND HANDLING .....................................................................................................................3
220 VAC-1/3 PHASE CONSOLE COVER.................................................................................................5
Component Identification............................................................................................................................... 5
220 VAC-3 PHASE CONSOLE BOTTOM.................................................................................................7
Component Identification............................................................................................................................... 7
Schematics...................................................................................................................................................... 9

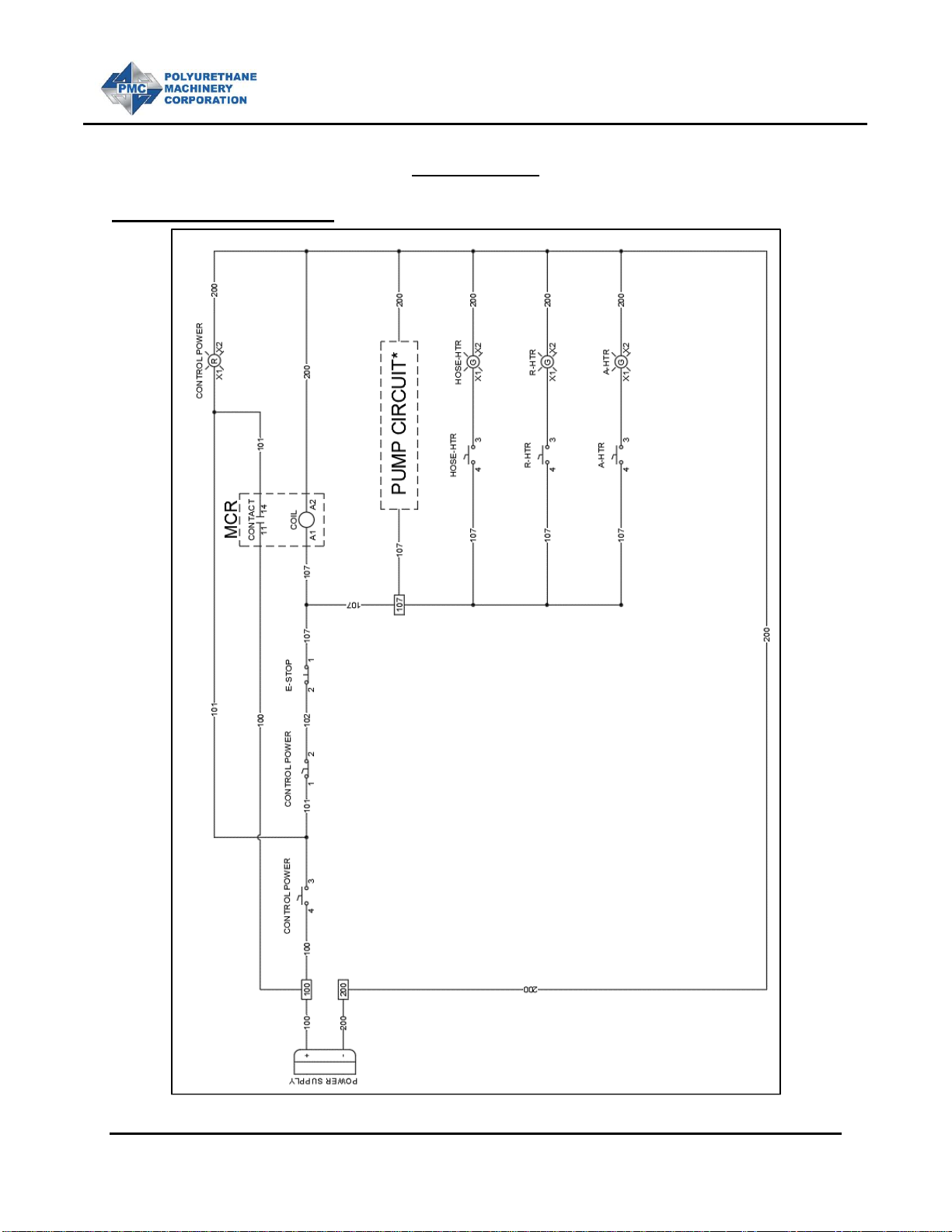

24 VDC Power Circuit ......................................................................................................................................9
Schematics.................................................................................................................................................... 11

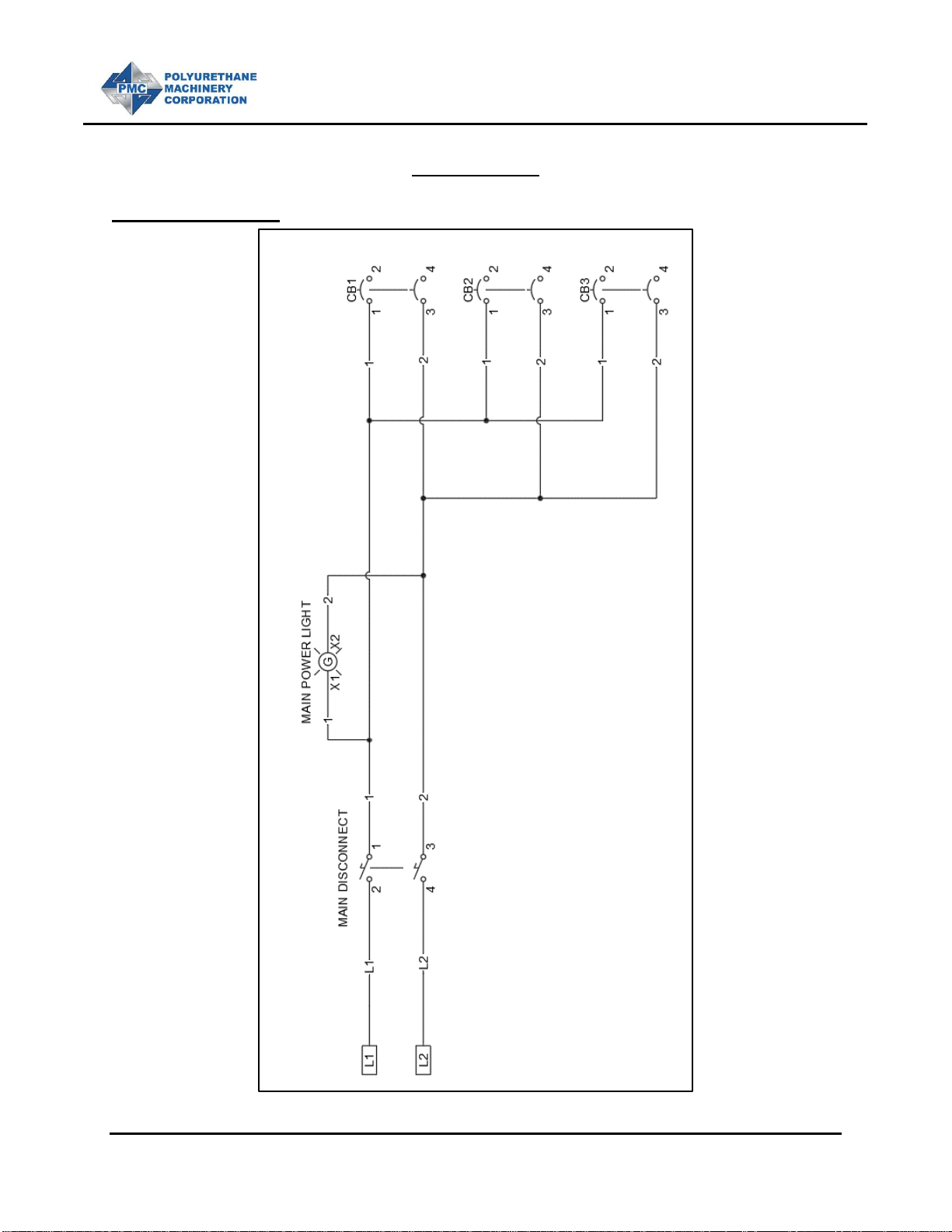

Incoming Power.............................................................................................................................................11

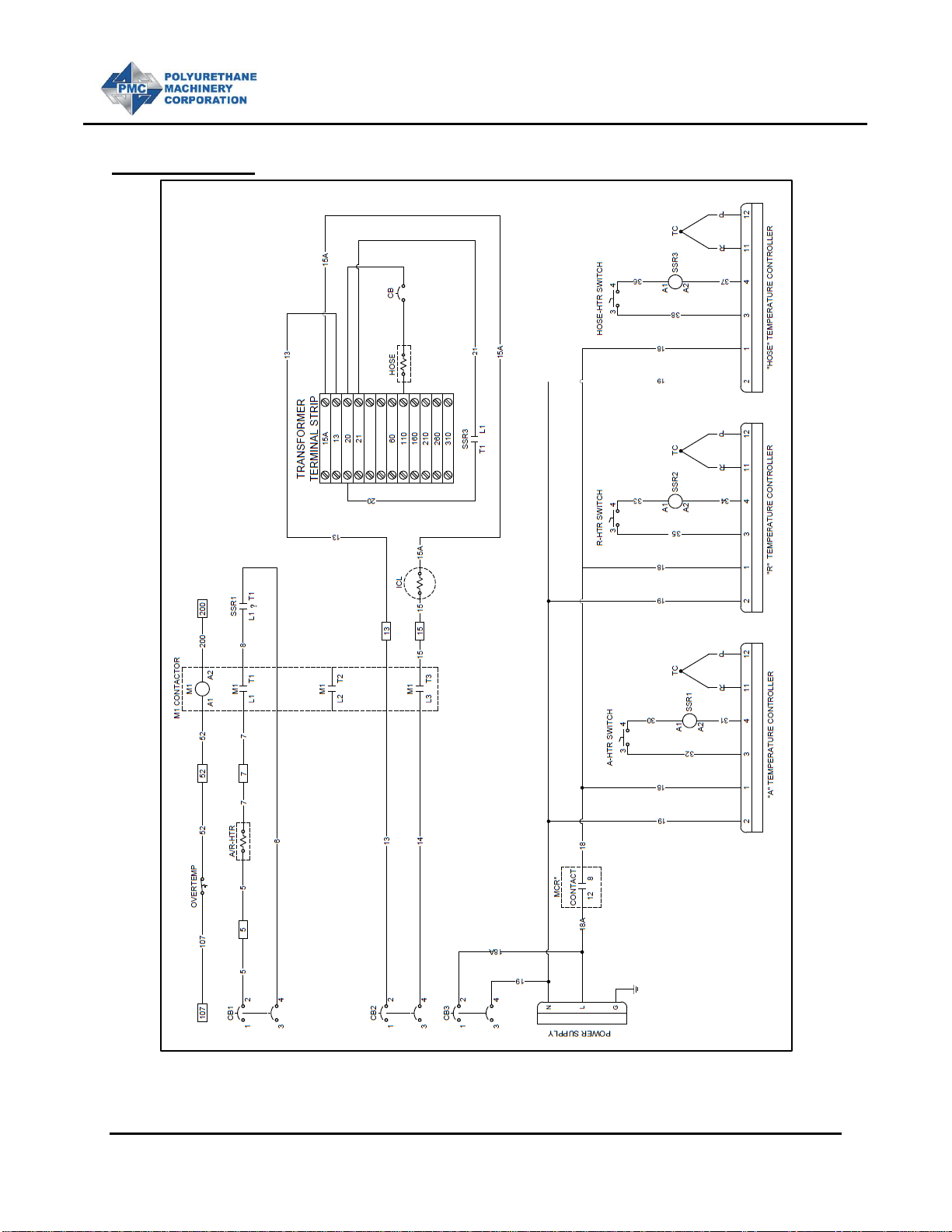

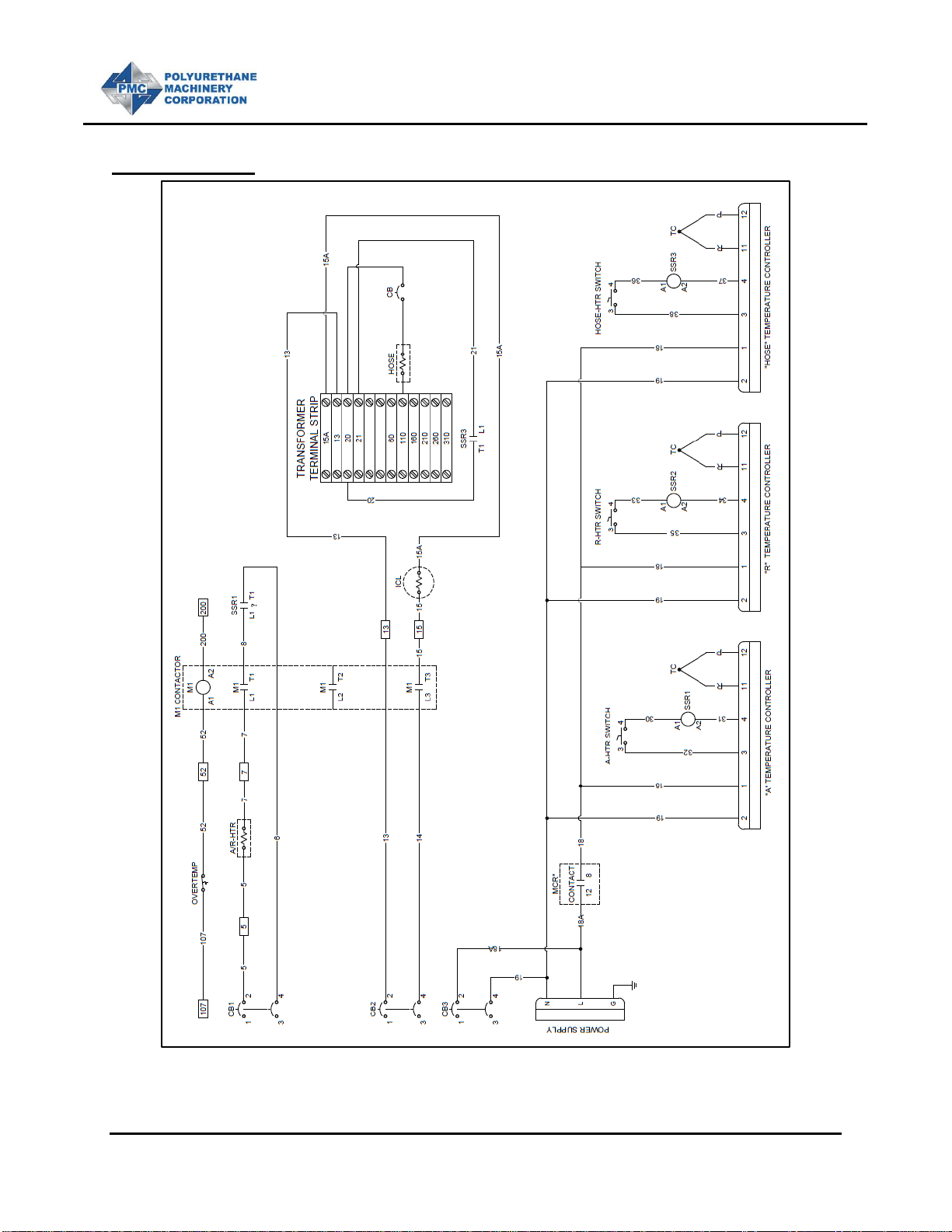

Heater Circuit ................................................................................................................................................12
220 VAC-1 PHASE CONSOLE BOTTOM...............................................................................................13
Component Identification............................................................................................................................. 13
Schematics.................................................................................................................................................... 15
Incoming Power.............................................................................................................................................15
Heater Circuit ................................................................................................................................................16

WARRANTY
Error! Reference source not found. Rev Error! Reference source not found.
1
WARRANTY
Polyurethane Machinery Corporation (hereinafter “PMC”) provides this LIMITED WARRANTY
(hereinafter “Warranty”) to the original purchaser (hereinafter “Customer”) covering this
equipment and the original PMC manufactured accessories delivered with the equipment
(hereinafter “Product”) against defects in material or workmanship of the Product (hereinafter
“Defect” or “Defective”) for a period of one (1) year from the date of first purchase as shown on
the original PMC invoice (hereinafter “Warranty Period”).
If during the Warranty Period under normal use, the Product is suspected by Customer to be
Defective in material or workmanship, it is Customer’s responsibility to contact PMC and return
the Product to PMC as directed by PMC, freight prepaid. If PMC determines that the Product is
Defective and that such Defect is covered by this Warranty, PMC will credit Customer for the
reasonable freight charges incurred by Customer in returning the Defective Product to PMC, and
PMC (or its authorized agent) will, at PMC’s option, repair or replace the Product, subject to the
following:
Original Invoice: The original invoice must be kept as proof of the date of first sale and the Product
serial number. The Warranty does not cover any Product if the Original Invoice appears to have
been modified or altered, or when the serial number on the Product appears to have been altered
or defaced.
Product Maintenance: It is the Customer’s responsibility to maintain the Product properly. See
your maintenance schedule and owner’s manual for details. The Warranty does not cover an
improperly maintained Product.
Non-PMC Components and Accessories: Non-PMC manufactured components and accessories
that are used in the operation of the Product are not covered by this Warranty. Such components
and accessories shall be subject to the warranty offered to the Customer, if any, by the original
manufacturer of such component or accessory.
Other Warranty Exclusions: The Warranty does not cover any Product that PMC determines has
been damaged or fails to operate properly due to misuse, negligence, abuse, carelessness,
neglect, or accident. By way of example only, this includes:
•Normal wear and tear.
•Improper or unauthorized installation, repair, alteration, adjustment or modification of the
Product.
•Use of heating devices, pumping equipment, dispensers, or other parts or accessories
with the Product that have not been approved or manufactured by PMC.
•Failure to follow the operating instructions and recommendations provided by PMC.
•Cosmetic damage.
•Fire, flood, “acts of God,” or other contingencies beyond the control of PMC.

WARRANTY
Error! Reference source not found. Rev Error! Reference source not found.
2
THE WARRANTY DESCRIBED HEREIN IS THE EXCLUSIVE REMEDY FOR THE CUSTOMER
AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS, IMPLIED, STATUTORY OR
OTHERWISE, AND THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE AND ALLOTHER WARRANTIES ARE HEREBY DISCLAIMED. TO
THE FULLEST EXTENT PERMITTED BY LAW, PMC SHALL NOT BE RESPONSIBLE,
WHETHER BASED IN CONTRACT, TORT (INCLUDING, WITHOUT LIMITATION,
NEGLIGENCE), WARRANTY OR ANY OTHER LEGAL OR EQUITABLE GROUNDS, FOR ANY
CONSEQUENTIAL, INDIRECT, INCIDENTAL, LOST PROFITS, SPECIAL, PUNITIVE OR
EXEMPLARY DAMAGES, WHETHER TO PERSON OR PROPERTY, ARISING FROM OR
RELATING TO THE PRODUCT, EVEN IF PMC HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH LOSSES OR DAMAGES.
Non-Warranty Service by PMC: If PMC determines that the suspected Defect of the Product is
not covered by this Warranty, disposition of the Product will be made pursuant to the terms and
conditions of PMC’s written estimate on a time and materials basis.
Continuing Warranty for Products Repaired or Replaced under Warranty: Following the repair or
replacement of a Product covered by this Warranty, such Product will continue to be subject to
the original Warranty for the remainder of original Warranty Period or for three (3) months from
the repair or replacement date, whichever is longer.
No Rights Implied: Nothing in the sale, lease or rental of any Product by PMC shall be construed
to grant any right, interest or license in or under any patent, trademark, copyright, trade secret or
other proprietary right or material owned by anyone; nor does PMC encourage the infringement
of same.
Exclusive Warranty: This writing is the final, complete, and exclusive expression of the Warranty
covering the Product. Any statements made by PMC, its employees or agents that differ from the
terms of this Warranty shall have no effect. It is expressly understood that Customer’s acceptance
of this Warranty, by performance or otherwise, is upon and subject solely to the terms and
conditions hereof, and any additional or different terms and conditions proposed or expressed by
Customer or anyone, whether in writing or otherwise, are null and void unless specifically agreed
to in writing by an Officer of PMC.

SAFETY AND HANDLING
Error! Reference source not found. Rev Error! Reference source not found.
3
SAFETY AND HANDLING
This chapter contains important information on the safety, handling, and use of your PK Series
Proportioner.
Before installing the PK Series Proportioner and start-up,
carefully read all the technical and safety documentation
included in this manual. Pay special attention to the information
in order to know and understand the operation and the
conditions of use of the PK Series Proportioner. All of the
information is aimed at improving user safety and avoiding
possible breakdowns from the incorrect use of the PK Series
Proportioner.
WARNING! Presents information to alert of a situation that
might cause serious injuries if the instructions are not
followed.
CAUTION! Presents information that indicates how to avoid damage to
the equipment or how to avoid a situation that could cause minor
injuries.
NOTE! Is relevant information of a procedure being carried out.
Careful study of this manual will enable the operator to know the characteristics of the PK Series
Proportioner and the operating procedures. By following the instructions and recommendations
contained herein, you will reduce the potential risk of accidents in the installation, use or
maintenance of the PK Series Proportioner; you will provide a better opportunity for incident-free
operation for a longer time, greater output and the possibility of detecting and resolving problems
quickly and simply.
Keep this Operations Manual for future consultation of useful information at all times. If you lose
this manual, ask for a new copy from your PMC Distributor or go online and visit our web site at
http://www.polymacusa.com/.
The PK Series Proportioner has been designed and built for the application of polyurea chemical
systems, polyurethane foam chemical systems, and some two-component epoxy systems.

SAFETY AND HANDLING
Error! Reference source not found. Rev Error! Reference source not found.
4
WARNING! The design and configuration of the PK Series
Proportioner does not allow its use in potentially explosive
atmospheres, or the pressure and temperature limits
described in the technical specifications of this manual to be
exceeded.
Always use liquids and solvents that are compatible with the unit. If in doubt, consult your PMC
Distributor.
When working with the PK Series Proportioner, it is recommended that the operator wear suitable
clothing and elements of personal protection, including, without limitation, gloves, protective
goggles, safety footwear, and face masks. Use breathing equipment when working with the PK
Series Proportioner in enclosed spaces or in areas with insufficient ventilation. The introduction
and follow-up of safety measures must not be limited to those described in this manual. Before
starting up the PK Series Proportioner, a comprehensive analysis must be made of the risks
derived from the products to be dispensed, the type of application, and the working environment.
To prevent possible injury caused by incorrect handling of the raw
materials and solvents used in the process, carefully read the Safety
Data Sheet (SDS) provided by your supplier.
Deal with the waste caused according to current regulations.
To avoid damage caused by the impact of pressurized fluids, do not
open any connection or perform maintenance work on components
subject to pressure until the pressure has been completely eliminated.
Use suitable protection when operating, maintaining or being present
in the area where the equipment is functioning. This includes, but is not
limited to, the use of protective goggles, gloves, shoes and safety
clothing and breathing equipment.
The equipment includes components that reach high temperatures and
can cause burns. Hot parts of the equipment must not be handled or
touched until they have cooled completely.
To prevent serious injury through crushing or amputation, do not work
with the equipment without the safety guards installed on the moving
parts. Make sure that all the safety guards are correctly reinstalled at
the end of the repair or maintenance work of the equipment.

220 VAC-1/3 PHASE CONSOLE COVER
Error! Reference source not found. Rev Error! Reference source not found.
5
220 VAC-1/3 PHASE CONSOLE COVER

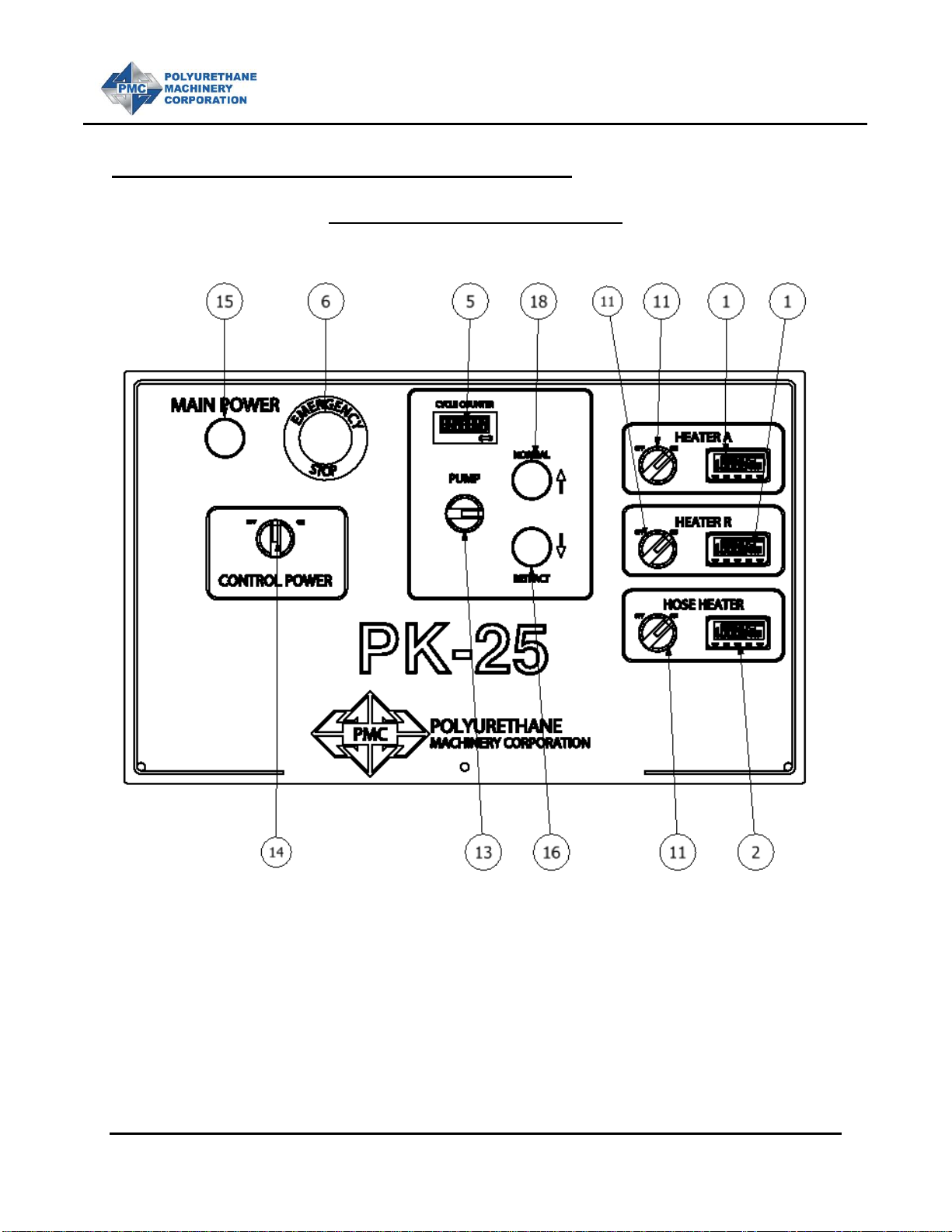

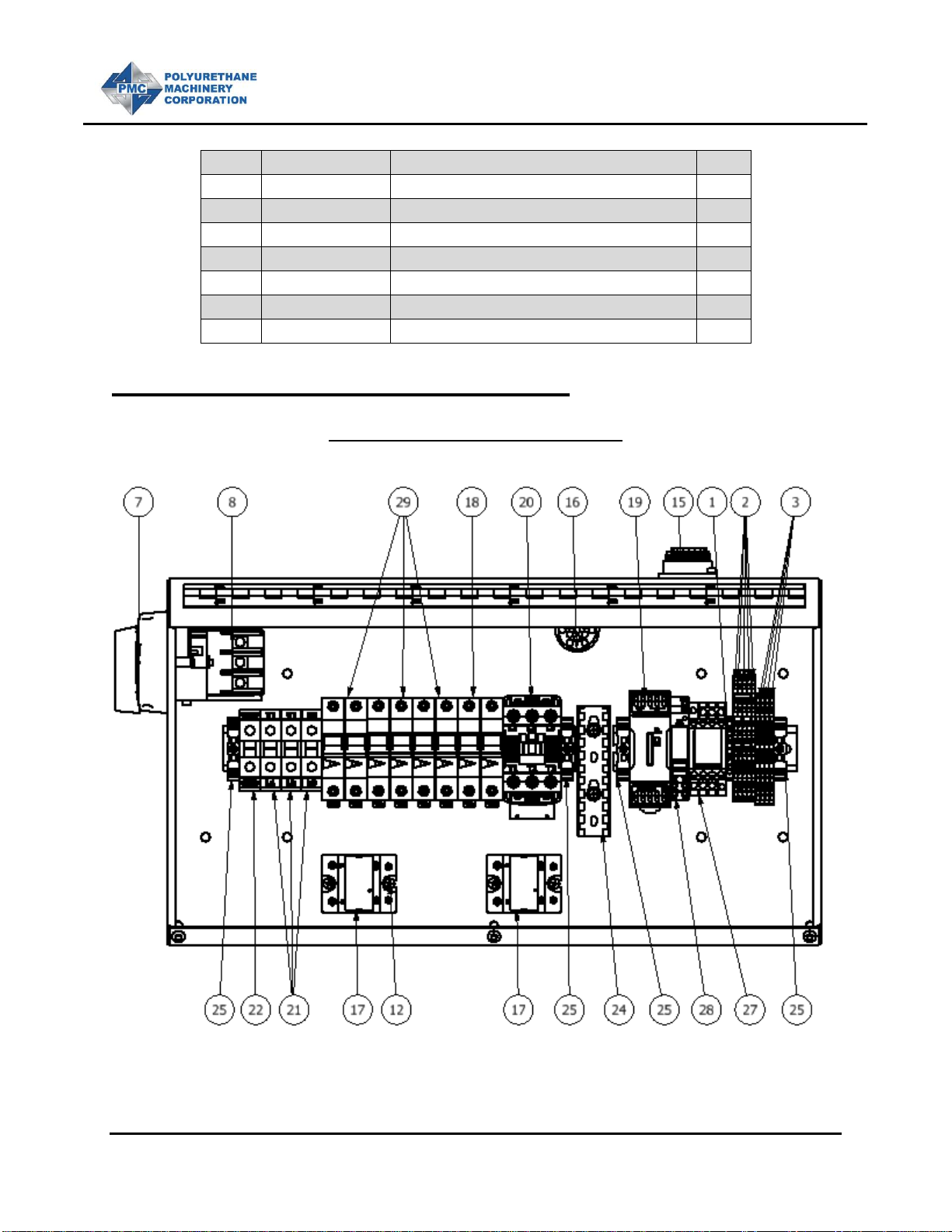

Component Identification

220 VAC-1/3 PHASE CONSOLE COVER
Error! Reference source not found. Rev Error! Reference source not found.
6
ITEM
PART NUMBER
DESCRIPTION
QTY
1
201154
TEMP CONT, HTR, OMRON
2
2
201155
TEMP CONT, HOSE, OMRON
1
3
201215
LAMP, LED RED, 24VAC/DC
4
4
201216
LIGHT UNIT, WHITE, 24VDC
1
5
201217
CYCLE COUNTER
1
6
201218
E-STOP PUSH-TWIST
1
7
201219
CONTACT BLOCK, NON-LIGHTED SPST-NC
1
8
201220
CONTACT BLOCK, NC, PUSH IN
1
9
201221
CONTACT BLOCK, NO, PUSH IN
9
10
201222
LAMP HOLDER, PUSH-IN
5
11
201223
22mm SWITCH, 2 POS RED, MANUAL
3
12
201224
MOUNTING COLLAR, 22mm
5
13
201225
22mm SWITCH, 3 POS WHITE, MANUAL
1
14
201226
22mm SWITCH, 3 POS RED, RST L/R
1

220 VAC-3 PHASE CONSOLE BOTTOM
Error! Reference source not found. Rev Error! Reference source not found.
7
15
201228
LIGHT UNIT, GREEN, 240VAC
1
16
201229
LIGHT UNIT, ORANGE, 24VDC
2
17
202864
WASHER, FLAT, SAE, #8, ZP
8
18
202869
CONSOLE, 12 X 20 X 9.15
1
19
203129
NUT, K-LOCK, #10-32, ZP
2
20
201898
SHCS, #6-32 X 0.625, 18-8 SS
1
21
201063
WASHER, LOCK, #6, 18-8 SS
1
22
201064
NUT, HEX, #6-32, 18-8 SS
1
220 VAC-3 PHASE CONSOLE BOTTOM

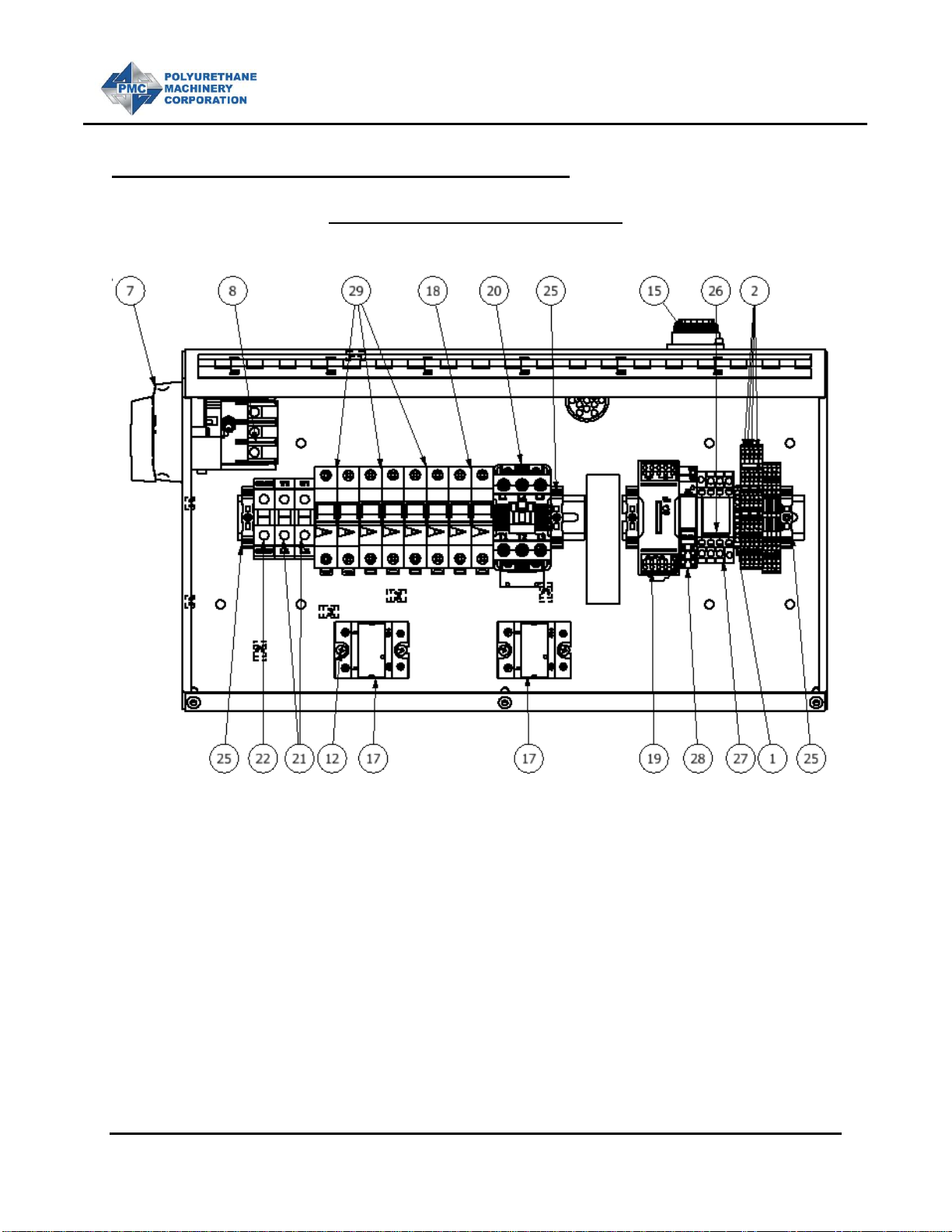

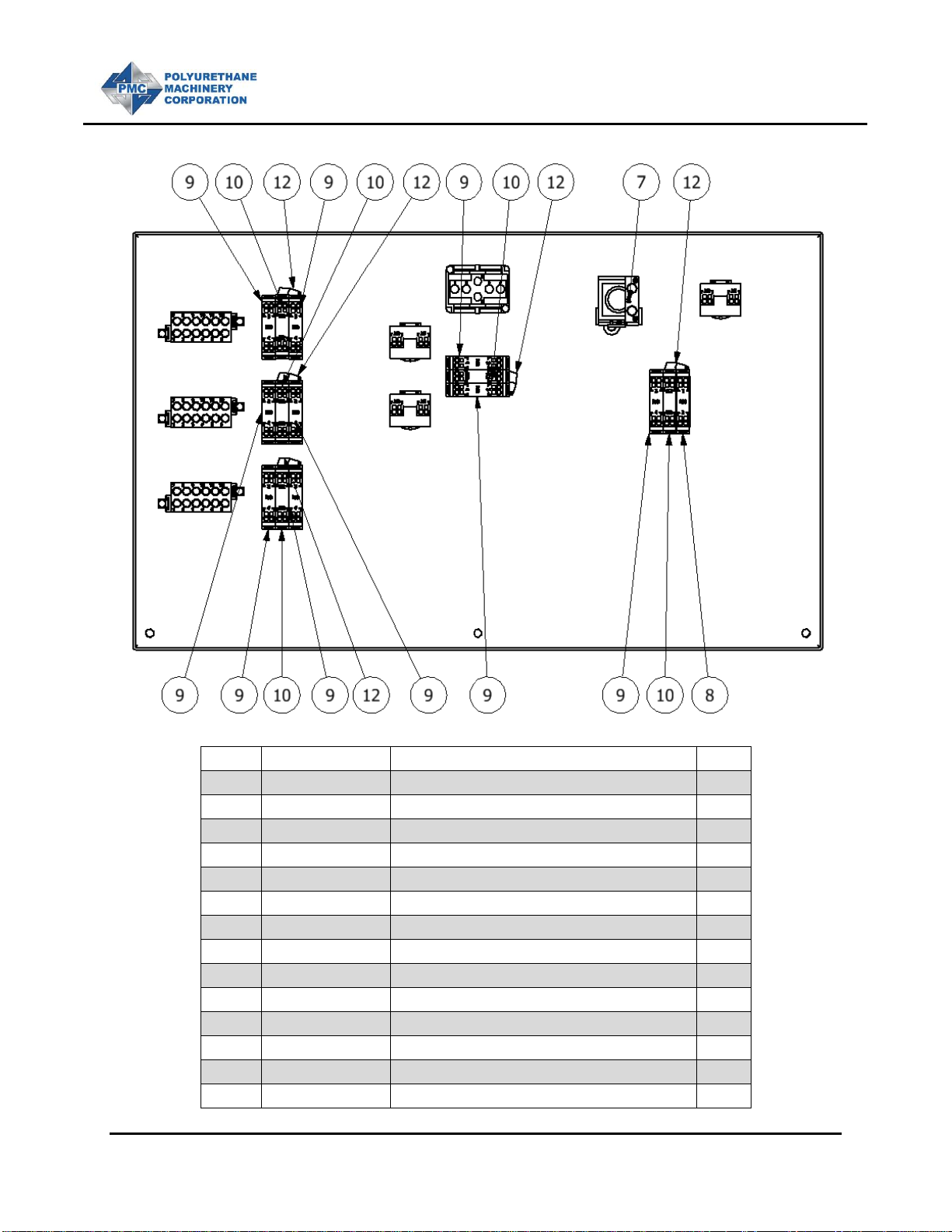

Component Identification

220 VAC-3 PHASE CONSOLE BOTTOM
Error! Reference source not found. Rev Error! Reference source not found.
8
ITEM
PART NUMBER
DESCRIPTION
QTY
1
201045
TERMINAL BLOCK GROUND, PTC
1
2
201046
TERMINAL BLOCK 3 TIER, PTC
5
3
201047
TERMINAL BLOCK 2 TIER, PTC
4
4
201263
JUMPER, 2 POSITION
4
5
201264
JUMPER, 4 POSITION
1
6
201266
MARKER, STRIP, 3.5mm WIDTH
48
7
201303
DOOR MOUNTING KIT, ROTARY DISCONNECT
1
8
201304
DISCONNECT, ROTARY, 80A, 3 POLE
1
9
201895
STRAIN RELIEF, W/NUT, 0.590-1.00 ID
1
10
202861
MARKER, TERMINAL BLOCK, 12mm
1
11
202862
MARKER, TERMINAL BLOCK, 16mm
8
12
202863
PHCS, #8-32 x 0.375, ZP
4
13
202864
WASHER, FLAT, SAE, #8, ZP
8
14
202869
CONSOLE, 12 X 20 X 9.15
1
15
202911
CABLE ASSY, 24 SUPPLY
1
16
203067
CABLE MEMBRANE, 38mm, 13 x 5.2mm
1
17
EL-34
RELAY, 50A, 480V
2
18
EL-114
CIRCUIT BREAKER, 3A, 2 POLE, TYP
1
19
EL-122
POWER SUPPLY, 24VDC
1
20
EL-125-CARLOS
CONTACTOR, 40A, 24V, w/ SURGE
1
21
EL-143
TERMINAL BLOCK; 16MM
3
22
EL-146
TERMINAL BLOCK; 16MM, GRND
1
23
EL-147
DIN RAIL, 35 X 7.5mm
16.375 in
24
EL-149
WIRE DUCT, 1.0 X 2.25, GREY
4.000 in
25
EL-152
END STOP, 35mm
4
26
EL-154
LATCHING RELAY; 24V
1
27
EL-155
RELAY SOCKET
1
28
EL-174
SS Relay, 24VDC
1
29
EL-188
CIRCUIT BREAKER, 32A, 2 POLE
3
30
203130
PHCS, #8-32 x 0.250, ZP
7
31
203131
HHCS, #10-32 x 0.375, GND
1
32
201898
SHCS, #6-32 X 0.625, 18-8 SS
1
33
201063
WASHER, LOCK, #6, 18-8 SS
1
34
201064
NUT, HEX, #6-32, 18-8 SS
1

220 VAC-3 PHASE CONSOLE BOTTOM
Error! Reference source not found. Rev Error! Reference source not found.
9
Schematics
24 VDC Power Circuit

220 VAC-3 PHASE CONSOLE BOTTOM
Error! Reference source not found. Rev Error! Reference source not found.
10
Pump Circuit

220 VAC-3 PHASE CONSOLE BOTTOM
Error! Reference source not found. Rev Error! Reference source not found.
11
Schematics
Incoming Power
12
MAIN DISCONNECT
34 56
L1 L2 L3
21
CB1
3 4
21
CB2
3 4
21
CB3
3 4
L1 L2 L3
1 2
X2X1
MAIN POWER LIGHT
R
12
3
1 2 3 1
2 3

220 VAC-3 PHASE CONSOLE BOTTOM
Error! Reference source not found. Rev Error! Reference source not found.
12
Heater Circuit

220 VAC-1 PHASE CONSOLE BOTTOM
Error! Reference source not found. Rev Error! Reference source not found.
13
220 VAC-1 PHASE CONSOLE BOTTOM
Component Identification

220 VAC-1 PHASE CONSOLE BOTTOM
Error! Reference source not found. Rev Error! Reference source not found.
14
ITEM
PART NUMBER
DESCRIPTION
QTY
1
201045
TERMINAL BLOCK GROUND, PTC
1
2
201046
TERMINAL BLOCK 3 TIER, PTC
5
3
201047
TERMINAL BLOCK 2 TIER, PTC
4
4
201263
JUMPER, 2 POSITION
4
5
201264
JUMPER, 4 POSITION
1
6
201266
MARKER, STRIP, 3.5mm WIDTH
48
7
201303
DOOR MOUNTING KIT, ROTARY DISCONNECT
1
8
201304
DISCONNECT, ROTARY, 80A, 3 POLE
1
9
201895
STRAIN RELIEF, W/NUT, 0.590-1.00 ID
1
10
202861
MARKER, TERMINAL BLOCK, 12mm
1
11
202862
MARKER, TERMINAL BLOCK, 16mm
8
12
202863
PHCS, #8-32 x 0.375, ZP
4
13
202864
WASHER, FLAT, SAE, #8, ZP
8
14
202869
CONSOLE, 12 X 20 X 9.15
1
15
202911
CABLE ASSY, 24 SUPPLY
1
16
203067
CABLE MEMBRANE, 38mm, 13 x 5.2mm
1
17
EL-34
RELAY, 50A, 480V
2
18
EL-114
CIRCUIT BREAKER, 3A, 2 POLE, TYP
1
19
EL-122
POWER SUPPLY, 24VDC
1
20
EL-125-CARLOS
CONTACTOR, 40A, 24V, w/ SURGE
1
21
EL-143
TERMINAL BLOCK; 16MM
3
22
EL-146
TERMINAL BLOCK; 16MM, GRND
1
23
EL-147
DIN RAIL, 35 X 7.5mm
16.375 in
24
EL-149
WIRE DUCT, 1.0 X 2.25, GREY
4.000 in
25
EL-152
END STOP, 35mm
4
26
EL-154
LATCHING RELAY; 24V
1
27
EL-155
RELAY SOCKET
1
28
EL-174
SS Relay, 24VDC
1
29
EL-188
CIRCUIT BREAKER, 32A, 2 POLE
3
30
203130
PHCS, #8-32 x 0.250, ZP
7
31
203129
NUT, K-LOCK, #10-32, ZP
2
32
201898
SHCS, #6-32 X 0.625, 18-8 SS
1
33
201063
WASHER, LOCK, #6, 18-8 SS
1
34
201064
NUT, HEX, #6-32, 18-8 SS
1

220 VAC-1 PHASE CONSOLE BOTTOM
Error! Reference source not found. Rev Error! Reference source not found.
15
Schematics
Incoming Power

220 VAC-1 PHASE CONSOLE BOTTOM
Error! Reference source not found. Rev Error! Reference source not found.
16
Heater Circuit
