Preface

This manual contains the operating instructions and service requirements for the PneuWalker™ . The

manual is designed for clinical sta use. The clinicians will instruct their patients and clients in the proper

use of the system and its accessories. Each operator must read the operator manual in full before using

the product for the rst time. Please read the manual carefully, noting the Safety Requirements, before

using the PneuWalker™ .

Liability Notice

Failure to follow the conditions set forth below shall absolve Pneumex, Inc. from any responsibility for

the safety, reliability, and performance of this equipment.

Each independent user must be instructed in the proper use of the system and its accessories.

The installation and assembly of the unit must comply with the applicable local or state requirements.

The equipment must be used in accordance with the instructions for use. It is suggested that operators

of the PneuWalker™ receive approved training from Pneumex, Inc. or their designee before operating

the equipment. Please call Pneumex at 800-447-5792 to nd out more about our training and

certication programs..

Description

The PneuWalker™ Unweighting System supports a person's body weight during use. The pneumatic

system lifts, or “unweights” the user, reducing the amount of strain on a patient’s body. As the user

becomes stronger and can tolerate additional stress on the body, the weight can be adjusted to make

the body do more work. The system can be used with most types of exercise equipment, including, but

not limited to: treadmills, vibration units, steppers, bicycles, mini-trampolines, and balance boards. The

PneuWalker™ can assist with balance issues, getting patients in and out of wheelchairs or beds, and

increases mobilization opportunities.

The PneuWalker™ components include a frame with analog controls, two lift arms, a contained air

system, three vests , and installation instructions.

When to use the PneuWalker™

The PneuWalker™ is a pneumatic unweighting system. It has a self contained airbox that is plugged

in overnight to provide lifting power all day. It is used in conjunction with the included Pneu-Vest™ to

perform low-impact kinetic exercises in an upright, functional position. Activities that require

assistance with balance and mobility may all be performed safely while unweighted. If a patient

loses their balance or starts to fall, the PneuWalker™ system will support the patient’s entire body

weight. The PneuWalker™ has an unweighting capacity of 0 to 300 lbs and can be used for full or

partial weight bearing activities and is safe to use with a patient up to 400 lbs.

Indications for use

Contraindications

− Respiratory conditions which are exacerbated by pressure on the rib cage

− Spinal fractures

− Tumors on the spine.

These contraindications can sometimes be compensated for by taking o more weight through

the hips utilizing the Ischial Tuberosity Strap

Abilities Backs Gait

- Amputee - Acute Orthopedic

- Arthritic - Chronic - Ankles

- Bells Palsy - Disks - Hips

- Cerebral Palsy - Kyphosis - Knees

- Hemiplegic - Pre and post surgery - Pre and Post surgery

- Multiple Sclerosis - Sciatica Balance

- Parkinson's - Scoliosis Bariatric

- Seniors - Spondylolisthesis Cardiovascular

- Spinal Cord injuries Respiratory Cervical

- Vasculatory - Emphysema Neurological

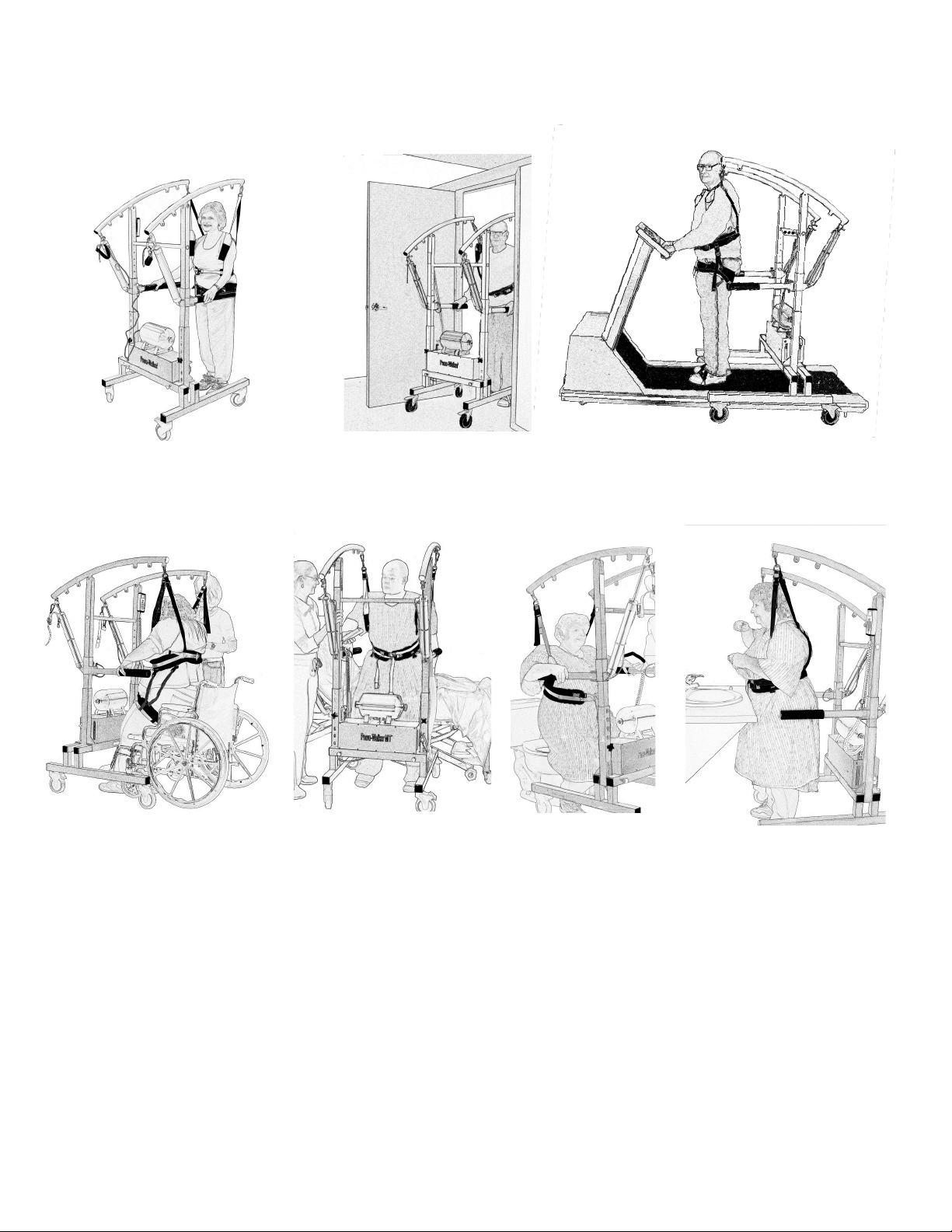

Extraordinary Versatility

Help to resume normal functionsTo commode In and out of BedLifts from Wheelchair

Safely Lifts

Width adjustable to t through doorways or over treadmills

Walk Safely

Actual Product may vary

PneuWalker™

Benets

• Eliminate fear of falling

• Safety for patient and clinician

• Freedom for therapists

• Start Rehab earlier

• Assists in getting out of bed, lifting from a wheelchair and increasing mobility

• Use over ground or over a treadmill

Features

• User friendly, analog control allows for unweighting from 0-300 lbs. See Page 19

• Width adjustable to go through doorways, around wheelchairs or over treadmills See Page 17

• Unweights unilaterally to address hemiplegic conditions See Page 21

• Onboard pneumatic compressor with battery that will run all day (with overnight charge) See

Page 14

• Height adjustable handlebars swing out of the way for easy access and patient transfer See Page

16

• Patented X-Heart PneuVest design with variations to t a range of conditions. See Page 22

• Castors lock securely for balance or treadmill training

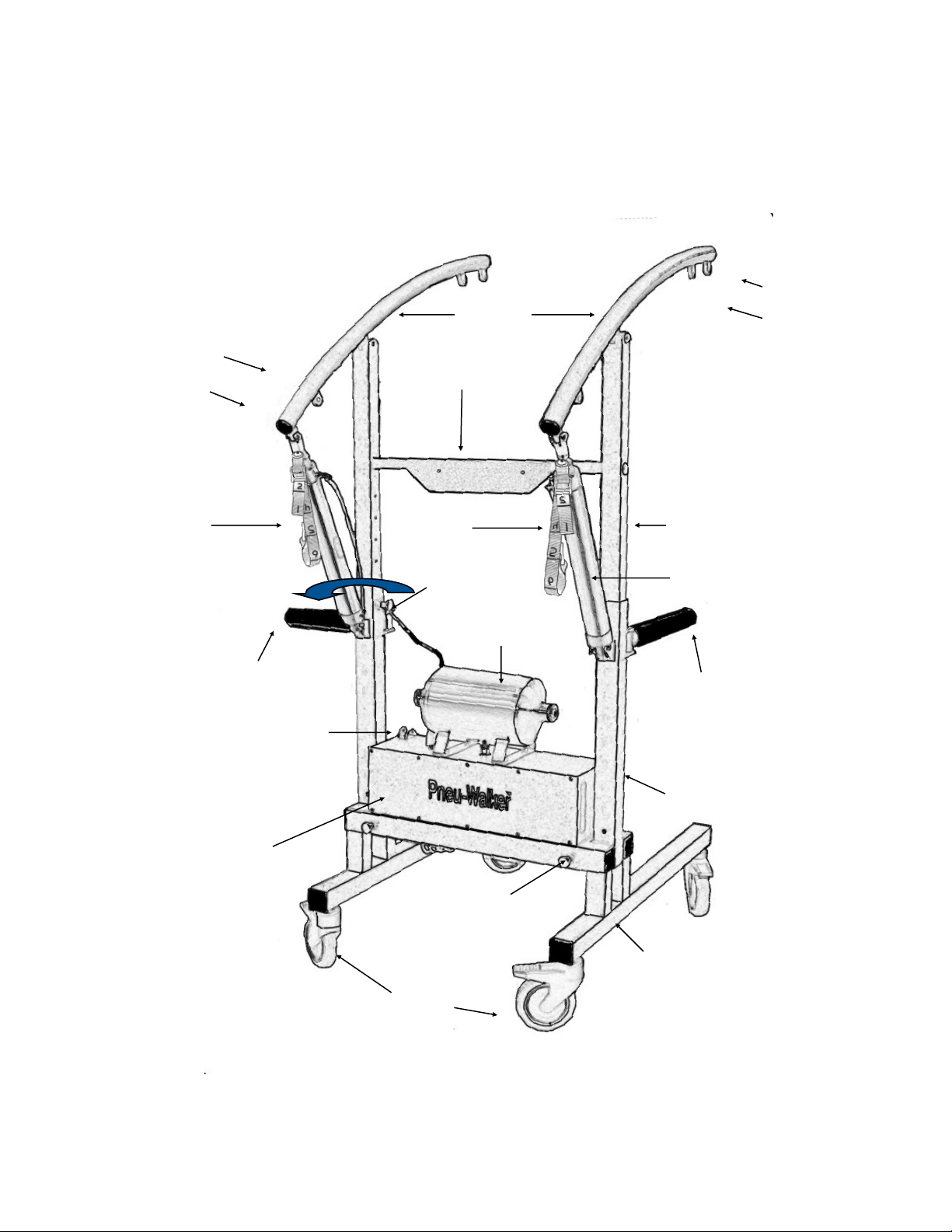

Components of the PneuWalker™

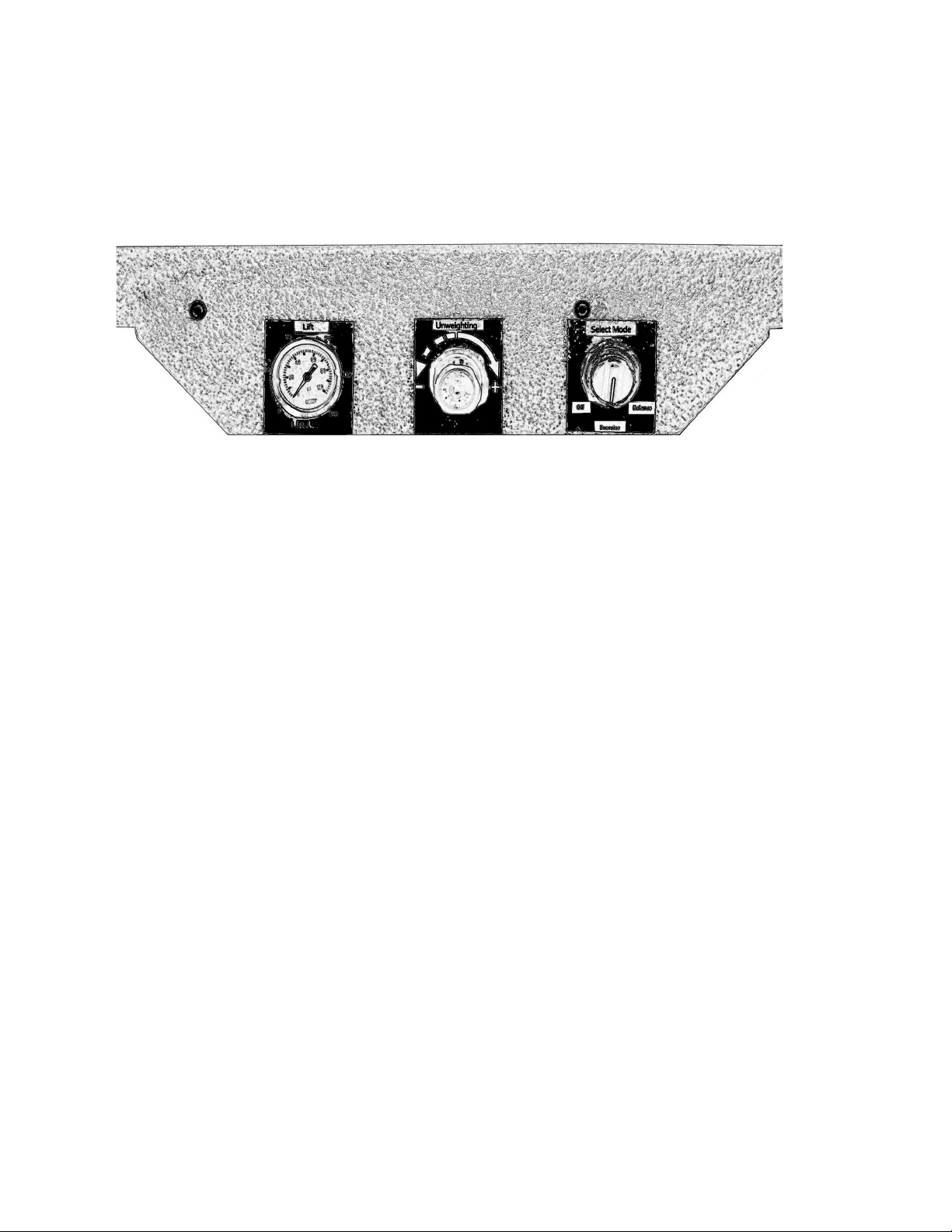

Control panel

Contained air system

Locking Wheels

Handlebar

Upright

Width Adjustment

Cylinder

Handlebar in swing position

Air Box

O-On switch

Safety strap

Patient Ports

1- Maximum Height/

Intermediate Lift

2- Intermediate Height/

Maximum Lift

A

B

Handlebar Height

Adjustment

Power Plug outlet

Wheel Base

1

2

Lift Arm

Cylinder Ports

B- Intermediate Height/

Maximum Lift

A- Maximum Height/

Intermediate Lift

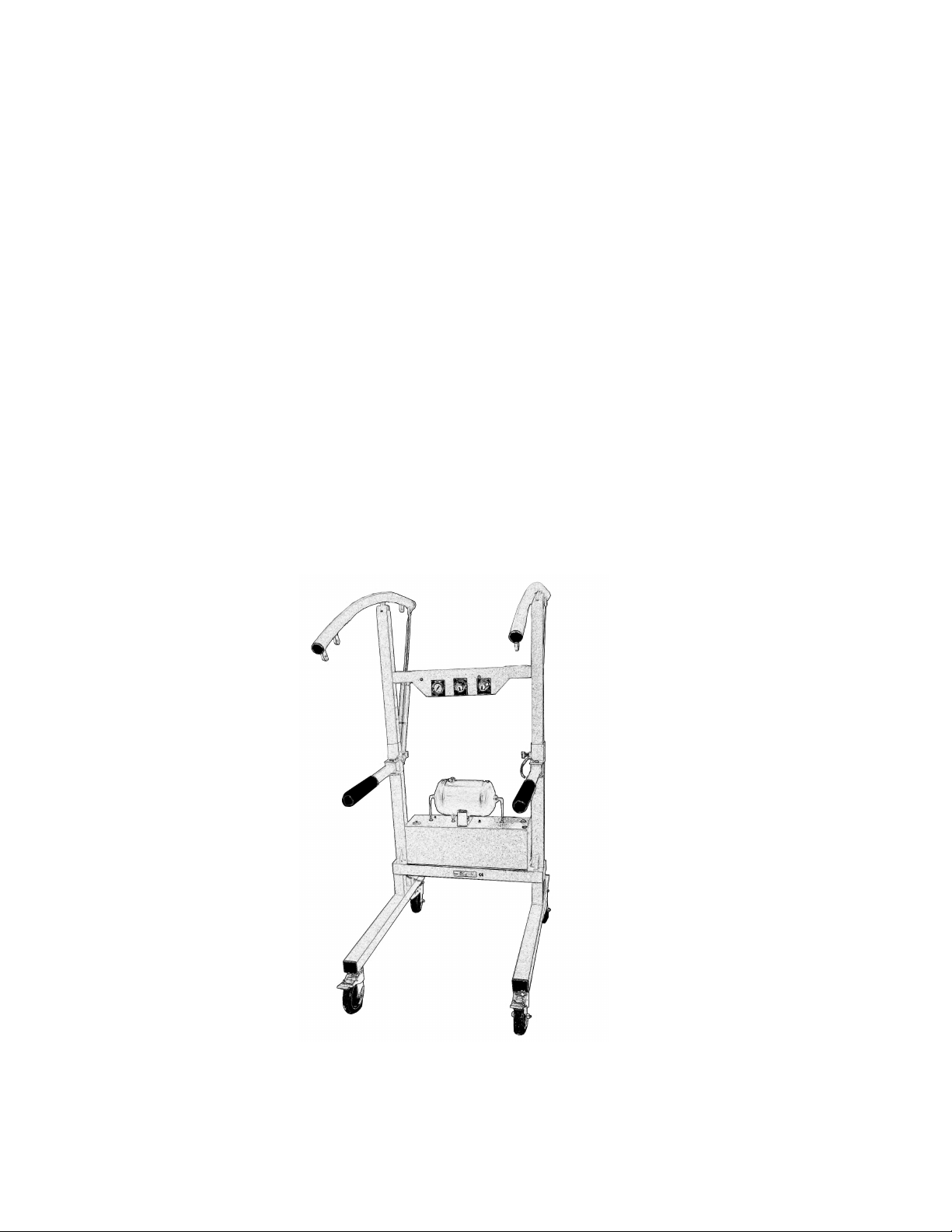

Front

Control panel

Contained air system

Locking Wheels

Handlebar

Upright

Back

Cylinder

Handlebar

Air Box

O-On switch

Lift Arm

Cylinder Ports

Patient Ports

Drain and Air Valve

PneuWalker™ Specications

Patient can weigh up to 400 lbs.

Height

61”

(154.94cm)

Outside Dim

26” to 42”

(66.04 to 106.68 cm)

Inside Dim

22” to 38.5”

(55.9 to 97.8 cm)

Depth

34”

(86.36 cm)

Height on Lift Arms Width Width

Outside Inside

Min Max Min Max Min Max

45 in 80 in 26.5 in 42.5 in 22 in 38.5 in

114.3 cm 203.2 cm 67.3 cm 108 cm 55.9 cm 97.8 cm

Lifting Range Handle Bars Clearance

Max 2 in Adj Floor up

300 lb 20-29 in 30-40 in 12 in

136.36 kgs 50.8-73.7 cm 76.2-101.6 cm 30.48 cm

Unpacking

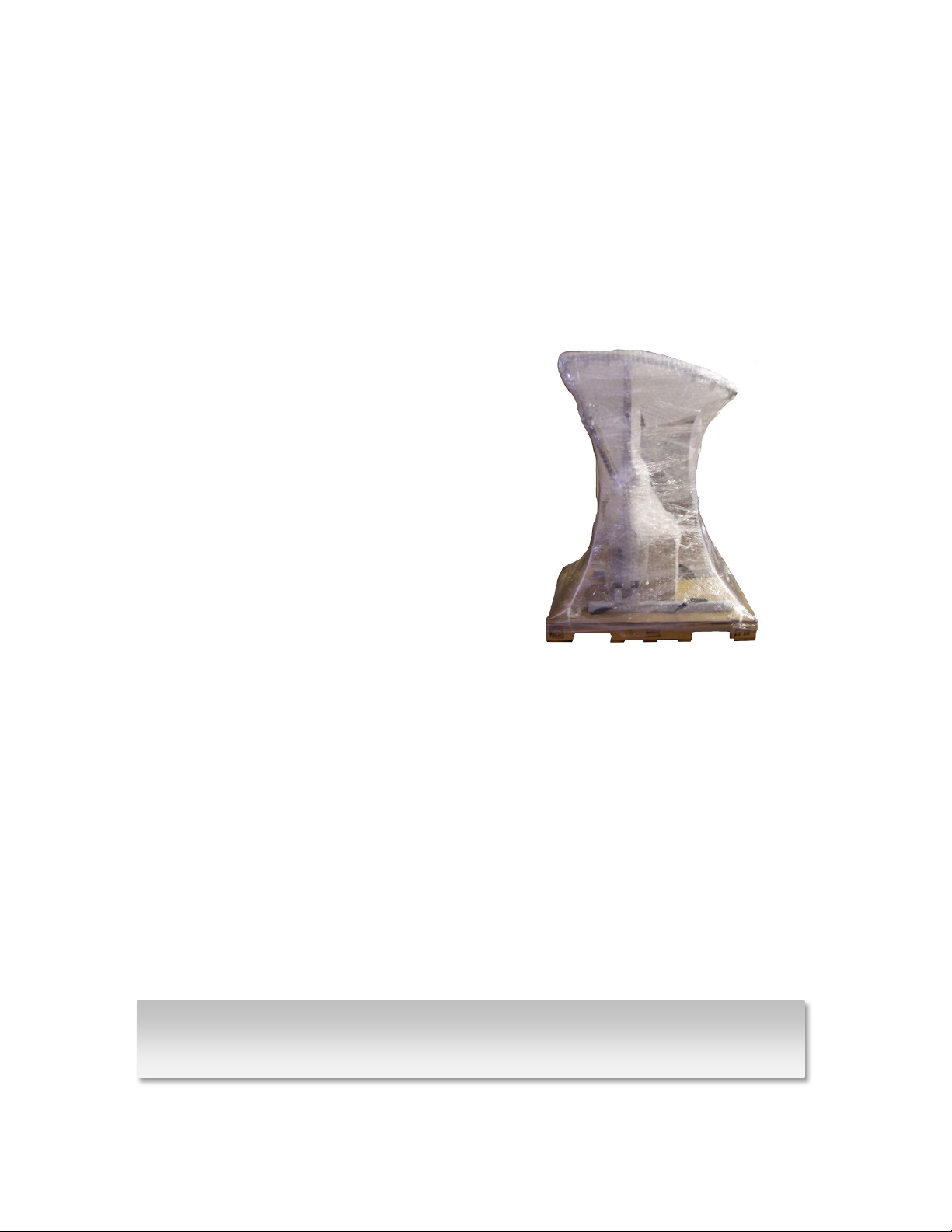

Your PneuWalker™ comes assembled, bubble wrapped and on a pallet. To begin:

Carefully cut the wrapping down the front of the PneuWalker™ (you should see a box packed on

the pallet in the front). Do not cut down the back to avoid danger of cutting hoses and handlebars.

Next cut down the side to further loosen the wrapping. Remove wrapping. Remove the box in

front. This box contains:

Three PneuVest color coded for size

1-Small Red

1-Medium Blue

1-Large Yellow

Four Locking Wheels

2-Front

2-Back

One Product Catalog

One Battery Charger

One set of chain extenders

One PneuGait sample pack

1-Double ankle Cu

1– PneuGait foot strap with buckle

1-Gait Assist band

One Education Manual with instructions for operation , treatment protocols , a

comprehension test and warranty. (For PneuWalker™ units sold outside the USA one step-down

transformer)

Remove the wheels, Education Manual and battery charger. You will need them to complete assem-

bly.

The Contained Air System must be charged before use. You must plug

in the charger each night. Failure may result in a dead battery.

Remove the straps holding the PneuWalker™ to the pallet.

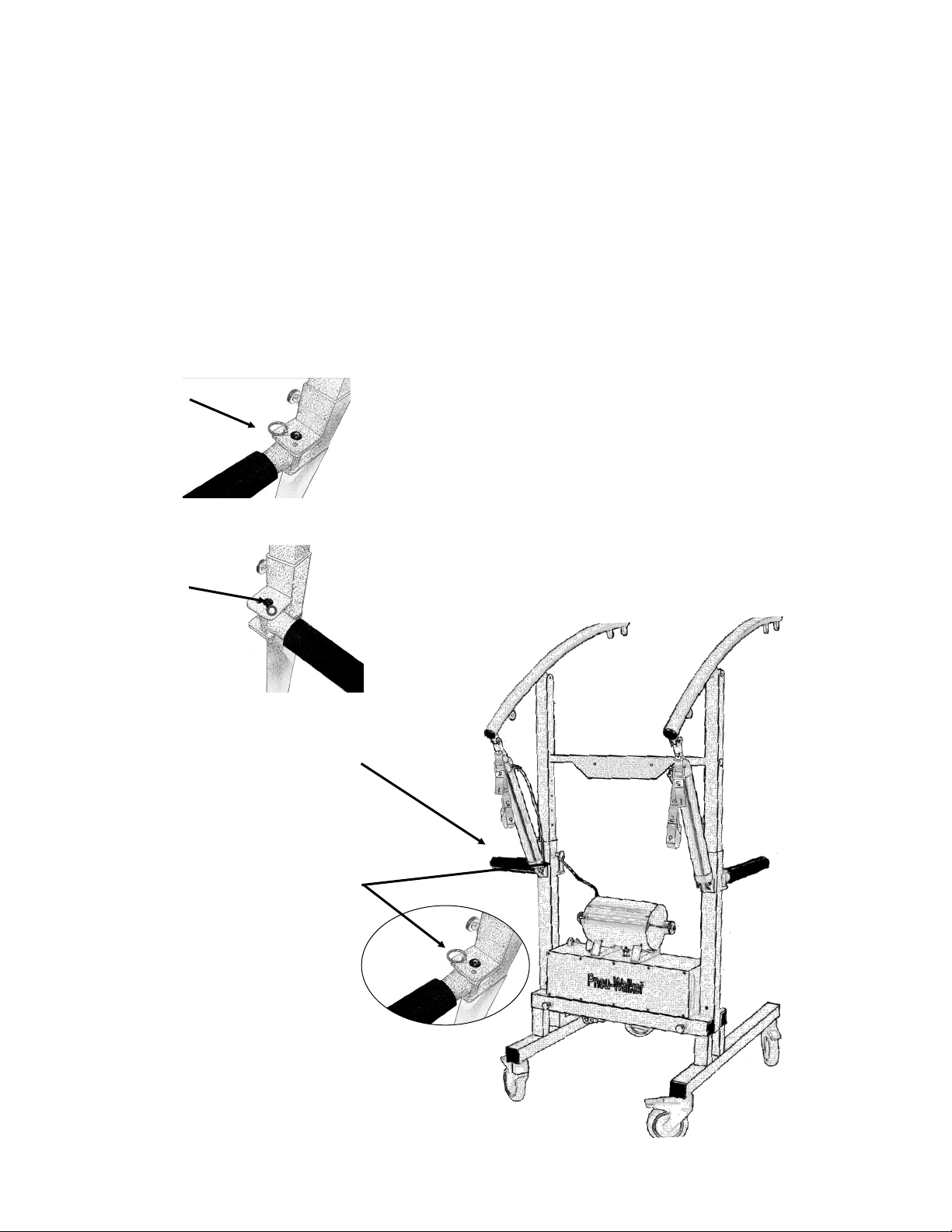

Put the handlebars in the forward position to assist moving the PneuWalker™ o the pallet.

Locate the pin on the top of the handlebar where it connects

to the frame upright, pull out the pin and rotate the handle-

bar to the forward position, replace pin to hold handlebar.

Repeat on the other side.

Push or walk the unit to the edge of the pallet using the handlebars.

Attach wheels

1. Lay PneuWalker™ unit gently on it’s side

2. Locate wheels in packing. There are two marked front

wheels and two marked back wheels

3. Lock wheels

Wheels must be in locked position before screwing into

threaded holes on bottom of unit. Push down on black tab until wheel movement is locked.

Locked

Unlocked

Pull out pin.

Beginning with the front wheels, Insert into hole, screw in a clockwise direction until wheel is ush

with bottom wheel base. Repeat with back wheels

For improved operation FRONT WHEELS ONLY set the front wheels with the black tab under the

base footing and lock the wheels by pushing the tab down. See below

Turn unit upright and unlock wheel by lifting up on black tab (by hand or with foot).

Position the cylinder

For most common uses the cylinders on the PneuWalker™ should be in the A port (all the way to the

end of the Lift arm) See Components Front page 8

To change the cylinder position:

Locate the ring pin on the top end of the cylinder. Pull the pin

out securing the lift arm with your body and move the cylin-

der to the desired position. Replace pin. For normal use make

sure both cylinders are at the same position. See Page 21

for protocols using dierent cylinder congurations.

The Contained Air System must be charged before use. You must plug

in the charger each night. Failure may result in a dead battery.

Contained Air System

Before rst Use

Before you use the PneuWalker™ for the rst time you must charge the Airbox. Screw the charger

plug into the Airbox and the cord into

a 110 outlet. Let charge overnight.

This will assure that there will be su-

cient battery power to operate the

PneuWalker™ all day.

When you plug in the charger the

light will show orange (Not charged) when the Airbox is fully charged the light will show green.

Remove the plug from the Airbox .

Once the PneuWalker™ has been charged overnight it is ready to use.

Turn on the PneuWalker™ using the On/O button on the top of the air

box.

At the end of a days use, turn the Airbox o and plug the charger in

overnight.

Charger

Charger plug in

CAUTION-When removing the plug

from the Airbox, remember to loosen

by turning to the left before pulling the

plug. Failing to do so will damage the

battery charger.

The Contained Air System must be charged before use. You must plug

in the charger each night. Failure may result in a dead battery.

Air Box Drain

When you plug in the charger, it is recommended that you drain the air system. Put a

container under the valve to catch any water. The drain valve is located underneath the

Airbox. There are two valves:

• Valve A drains the main tank. This should be done once a

week. Pull down on the key ring to drain.

• Valve B is the air tting that directs air to the cylinders.

The air tank must be drained weekly.

Failure to do so may result in damage to Airbox systems.

A

B

Operating the PneuWalker™

Handlebars

The handlebars are height adjustable and can swing outward to accommodate a person getting in and

out of a wheelchair, bed , or for Physical Therapy access.

To adjust the handlebar, pull out the pin, swing the handlebar

to the desired position. If you need to maintain the

handlebars in the selected position, reinsert the pin to hold.

Pull out pin

To raise or lower the handlebar, pull out

metal knob and lift the handlebar

sleeve up or down as desired. Replace

knob pin to hold new position. The

handlebar height may be adjusted in

2” increments, from 30 to 40”. Make

sure both handlebars are at the same

height position .

Handlebar in outward

position.

Reinsert pin to

Adjust Width

The width of the PneuWalker™ can be easily adjusted . Wider dimensions allow for use over treadmills

and narrower for easy passage through interior doorways.

On the front of the PneuWalker™ towards the bottom are two gold pin knobs. These knobs pull out to

adjust the width.

The wheel base can then be pulled outward and widened in 2 inch

increments. Twist the pin knob to hold desired position. Make sure

you use the same positions on each side to maintain proper bal-

ance of the PneuWalker™.

There are 5 adjustment possibilities, 2” apart.

Position # 1: 26.5 “ narrowest

Position # 2 30.5 “

Position # 3 34.5”

Position #4 38.5”

Position # 5 42.5” widest

Pull both pins out and turn 1/2

revolution to unlock position.

Lock wheels on one side.

Standing inside the unit, pull up

on the handlebar holding it

close to the upright and slide

away from locked side to

desired width. Replace pin

knob to hold new position.

Widen the PneuWalker™ for use over treadmills.

Narrow to allow for easy passage through doorways.

Width Adjust Pin

Adjust the Height

.

New developments in the construction of our PneuWalker™ allow for a greater range of

heights to be accommodated. You therefore should not have to adjust the height of your

PneuWalker™.

The lift arm options provide the ability to adjust height and weight capabilities of the Pneu-

Walker™

Make sure you use the same lift arm positions on each side and check the strap adjustment

on the PneuVest to maintain proper balance.

To maximize weight lifting capacity : Attach the patient to Port 2

To maximize height capacity, attach the patient to Port 1

The exception is The lift arm options provide adjustment to the height capabilities of the

PneuWalker™ See Page21

Height Range 6’ 6” to 3’ 6”

Control Panel

Before putting a patient in the PneuWalker™ ™ you should familiarize yourself with the Control

Panel located between the uprights.

When to use Exercise or Balance Mode

Exercise Mode

Exercise mode lets the user perform vertical movements with consistent unweighting . For exam-

ple: when you are retraining the sit to stand motion, or working on stepping up and down steps.

Balance Mode

Balance mode lets the user perform exercises involving less vertical movement without fear of fall-

ing. The system supports the entire body weight during loss of balance, allowing a fall of no more

than three to six inches.

OFF

OFF mode releases the air from the system quickly. This mode can be used to re-weight a person

quickly if desired.

Pressure gauge Regulator knob Mode selector

Indicates the number of

pounds (white numbers)

or kilograms (orange

numbers) the system is

unweighting

Gradually increases (+) or

decreases (-) the amount

of unweighting lift

Provides choices of

Exercise, Balance, or O

Safety Straps

The PneuWalker™ comes with a safety feature that will limit the distance a patient will fall if

they lose their balance. The nylon safety straps can be adjusted to limit the distance a patient

can drop from 1” to 6”.

360 Degree Attachment

The 360 degree option allows your patients to

walk sideways and backwards as well as turn and

change directions. The unit will be attached to

the patient ports via push-button quick release

pins and the vest will attach to the spreader bar.

For video instructions on the installation and use

of the 360 Degree Attachment, please go to the following link:

https://youtu.be/-AocwbDLGQA

Pneumex PneuWalker PneuVest Ultima User manual

Popular Mobility Aid manuals by other brands
