KSS SEATING SYSTEM
CHILD/JUNIOR SIZES: 10R, 12R, 14R, 16R
ADULT SIZES: 16T, 18T, 20T
STORM JR. TRANSPORT READY OPTION (TRRO) 12R, 14R, 16R
1
Assembly, Installation, and Operating Instructions
NOTE: The KSS seating system is defined as a
seating system which includes the following:
CHILD/ STORM Jr.
JUNIOR ADULT (TRRO)
10R, 12R, 16T,18T 12R, 14R
FEATURES 14R, 16R 20T 16R
Curved Back Standard Standard Standard
Ulti-Mate Base Standard Standard Standard
Neck Support Standard Standard Standard
Lateral Supports:
Fixed Standard Standard Standard
Swingaway Optional Optional Optional
Growth Bracket: Standard N/A Standard
900Angle Standard Standard Standard
Adj. Angle Optional Optional N/A
Lap Belt Standard Standard Standard
Twist Release
Cane Clamp Standard Standard Standard
Quick Release
Rail Clamp Standard Standard Standard
Abductor Optional Optional Optional
Shoulder Support Optional Optional Optional
ATTACHING/ADJUSTING THE
FIXED GROWTH BRACKET
NOTE:ThisprocedureonlyappliestheChild/JuniorSizes.
All other procedures are applicable to both the Child/
Junior and Adult Sizes.
Attaching the Growth Bracket
NOTE:Additionalmountinghooksandmountingscrews
are supplied for the Ulti-Mate Seat and Curved Back.
Thisadditionalhardwareistaking theplaceofthegrowth
bracket.
1. Removethecurvedback,Ulti-MateBase,andgrowth
bracket from their respective packages.
2. Unzip center panel of the back cover, exposing the
six (6) T-nutted mounting holes.
NOTE: Make sure the growth bracket is positioned cor-
rectly.Theflatportionofthegrowthbracketprovidesdepth
adjustment for the Ulti-Mate Base. The angled portion of
the growth bracket provides height adjustment for the
Curved Back. See FIGURE 1.
3. Install four (4) of the mounting screws through the
holes in the growth bracket and into the back shell.
Securely tighten.
SPECIAL NOTES
WHEELCHAIRTIE-DOWNRESTRAINTSANDSEATRE-
STRAINTS Invacare recommends that wheelchair
users NOT be transported in vehicles of any kind
while in wheelchairs. As of this date, the Depart-
ment of Transportation has not approvedany tie-
down systems for transportation of a user while in
a wheelchair, in a moving vehicle of any type.
It is Invacare’s position that users of wheelchairs
should be transferred into appropriate seating in
vehicles for transportation and use be made of
the restraints made available by the auto
industry. Invacare cannot and does not recom-
mend any wheelchair transportation systems.
AS REGARDS RESTRAINTS - SEAT POSITIONING
STRAPS-ITISTHEOBLIGATIONOFTHEDMEDEALER,
THERAPISTSANDOTHERHEALTHCAREPROFESSION-
ALSTO DETERMINEIF ASEAT POSITIONINGSTRAPIS
REQUIREDTOENSURETHESAFEOPERATIONOFTHIS
EQUIPMENTBYTHEUSER.SERIOUSINJURYCANOC-
CURINTHEEVENTOFAFALLFROMAWHEELCHAIR.
SAFETY SUMMARY
WARNING
DO NOT install this equipment without first read-
ingandunderstandingthisinstructionsheet.Ifyou
are unable to understand the WARNINGS, CAU-
TIONSandINSTRUCTIONS,contactahealth-care
professional , dealer or technical personnel be-
fore attempting to install this equipment - other-
wise, injury or damage may occur.
Ensure that the seat is fixed to the wheelchair. A
loose seat may lead to potentially dangerous
situations with positioning devices.

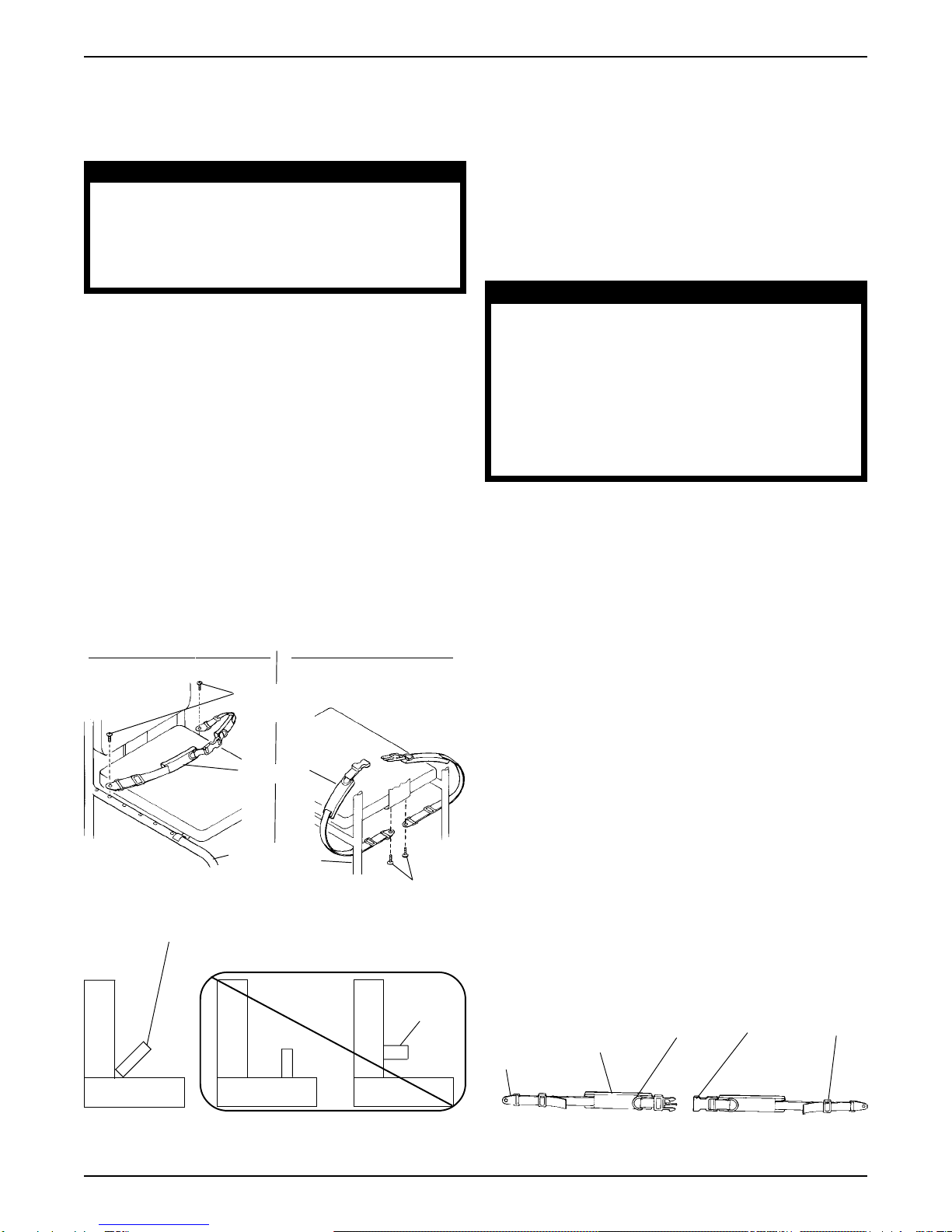

It is strongly recommended that the lap belt be
strapped across the hip area with an angle of
45o to the seating surface. Angles less than 45o
make it easier for the user to slip under the belt if
it is improperly tightened.

2
NOTE: On the back, the standard attachment points are
the top and bottom sets of holes. Refer to the ATTACH-
MENT POINTS chartin this instructionsheet for optional
attachment points.
4. Install four (4) of the mounting screws through the
holesin the growthbracketand into the undersideof
the Ulti-Mate Base. Securely tighten.

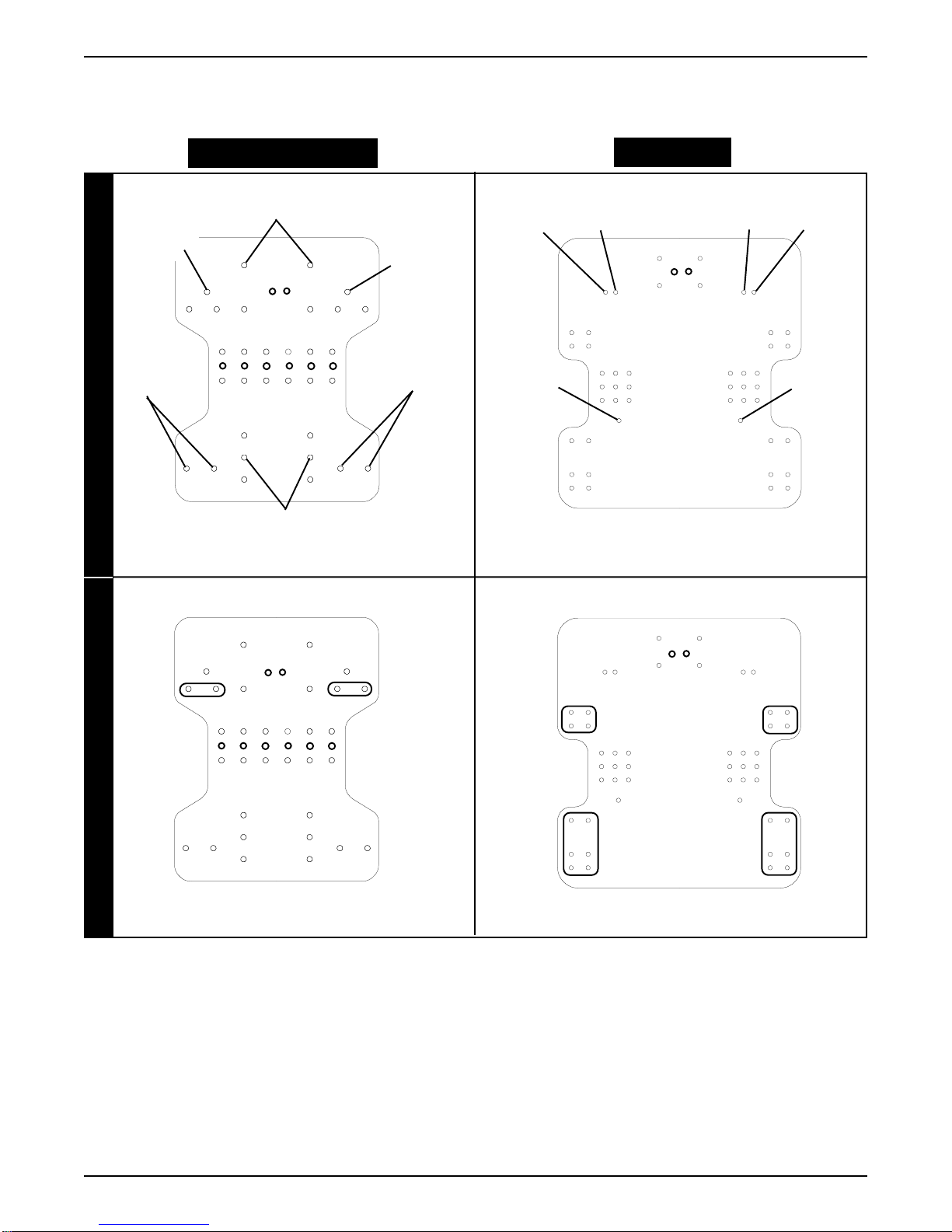

NOTE: On the seat, the standard attachment points are
the front and back sets of holes. Refer to the ATTACH-
MENT POINTS chart inthisinstruction sheet foroptional
attachment points.
5. If adjustment is required, refer to ADJUSTING THE
GROWTH BRACKET in this instruction sheet. Oth-
erwise,continueonwithATTACHING/ADJUSTING
THELATERALSUPPORTSinthisinstructionsheet.
ADJUSTING THE ULTI-MATE BASE
DEPTH.
1. Remove the four (4) mounting screws that secure
the growth bracket to the Ulti-Mate Base.
2. Adjust the seat forward or back until the desired
mounting position is obtained.
3. Reinstall the four (4) mounting screws through the
growth bracket and into the seat. Securely tighten.
Refer to the ATTACHMENT POINTS
chart in this
instruction sheet for standard and optional attach-
ment points.

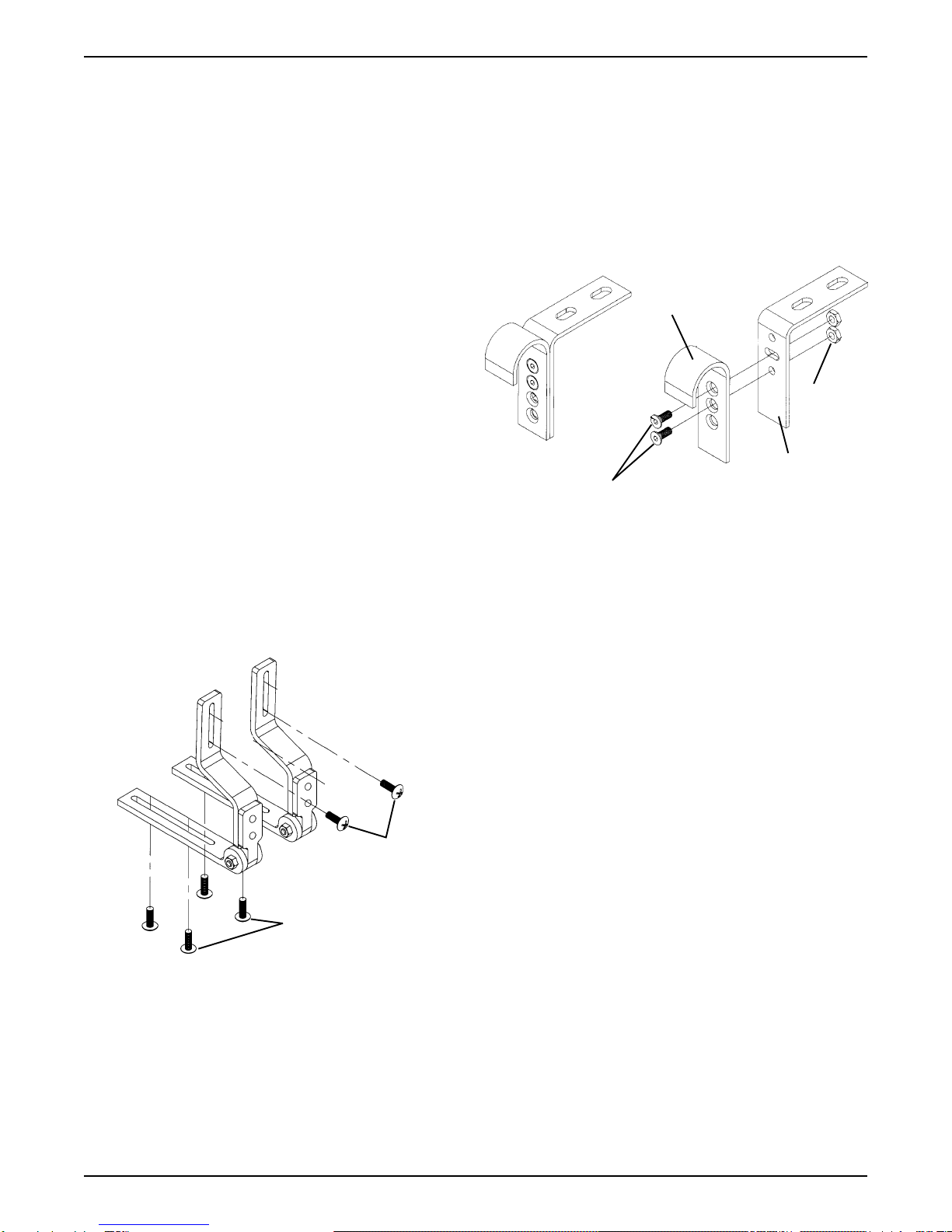

ATTACHING / ADJUSTING THE
ADJUSTABLE ANGLE GROWTH
BRACKET (FIGURE 2)
ATTACHING THE ADJUSTABLE ANGLE
GROWTH BRACKET
NOTE: The growth bracket attaches to the child/junior
sized curved back ONLY.
1. Remove the adjustable angle growth bracket and
attaching hardware from the packaging.
2. Unzip the center panel of the back cover, exposing
the six (6) T-nutted mounting holes.
NOTE: Make sure that the growth bracket is positioned
correctly. The flat portion of the adjustable angle bracket
growth bracket provides depth adjustment for the Ulti-
mate base. The angled portion of the adjustable angle
bracket height adjustment for the curved back
(FIGURE 1).
3. Install four (4) of the mounting screws through the
slots in the adjustable angle growth bracket and into
theundersideoftheUlti-matebase.Securelytighten.
NOTE: On the Ulti-mate base, the standard attachment
points are the front and rear four (4) holes. Refer to the
ATTACHMENT POINTS
in this instruction sheet for
optional attachment points.
4. Install two (2) of the mounting screws through the
slots on the adjustable angle growth bracket and
into the back shell. Securely tighten.
NOTE: On the curved back, the standard attachment
points are the MIDDLE set of holes. Refer to the
ATTACHMENT POINTS
in this instruction sheet for
optional attachment points.
5. If adjustment is required, refer to ADJUSTING THE
GROWTH BRACKET in this instruction sheet.
ADJUSTING THE GROWTH BRACKET
ADJUSTING THE BACK HEIGHT.
1. If necessary, unzip center panel of the back cover.
Adjusting the Growth Bracket (FIGURE 1)
NOTE:Thegrowthbracketprovidesup toa 3-inchdepth
adjustment and up to a 3-inch height adjustment.
ADJUSTING THE BACK HEIGHT.
1. If necessary, unzip center panel of the back cover.
2. Remove the four (4) mounting screws that secure
the growth bracket to the back.
3. Adjust the back up or down until the desired mount-
ing position is obtained.
4. Reinstall the four (4) mounting screws through the
growth bracket and into the back shell. Securely
tighten. Refer to the ATTACHMENT POINTS
chart
in this instruction sheet for standard and optional
attachment points.
5. If all attachments and adjustments are complete, zip
center panel of back cover closed.
Bottom Set
Growth Bracket
Adjustment
Holes
Ulti-Mate
Base
Six (6) T-nutted
Mounting Holes
Center Panel
Curved
Back
Mounting
Screws

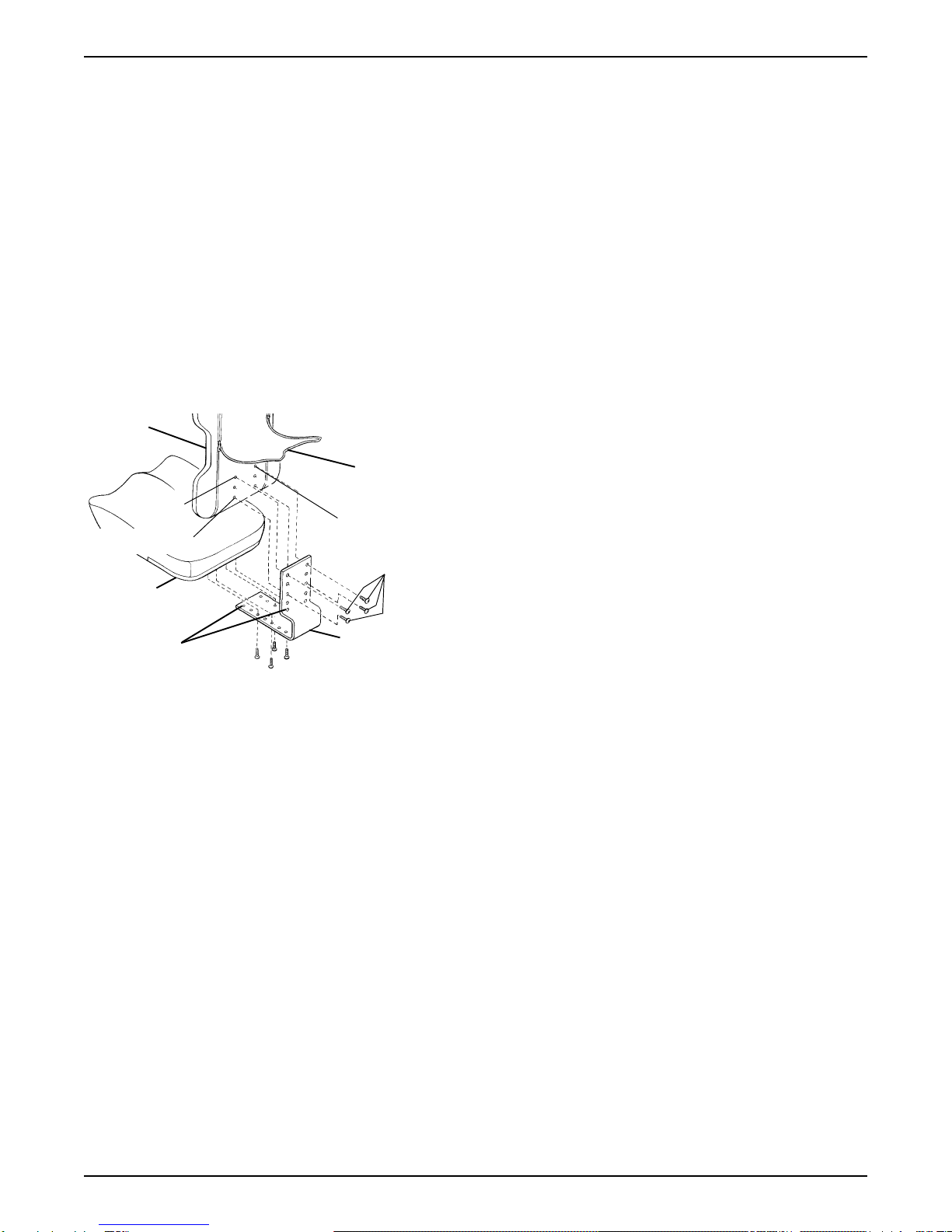

FIGURE 1 -FIGURE 1 -
FIGURE 1 -FIGURE 1 -
FIGURE 1 - AA
AA
ATTTT
TTTT
TTAA
AA
ACHING/ADJUSTINGCHING/ADJUSTING
CHING/ADJUSTINGCHING/ADJUSTING
CHING/ADJUSTING THE FIXEDTHE FIXED
THE FIXEDTHE FIXED
THE FIXED
GRGR
GRGR
GROO
OO
OWTH BRAWTH BRA
WTH BRAWTH BRA
WTH BRACKETCKET
CKETCKET
CKET-CHILD/JUNIOR SIZES-CHILD/JUNIOR SIZES
-CHILD/JUNIOR SIZES-CHILD/JUNIOR SIZES
-CHILD/JUNIOR SIZES
NOTE: Your Growth Bracket may have SLOTS in-
stead of Adjustment Holes.
Top Set

3
2. Loosen the two (2) mounting screws that secure the
growth bracket to the back.
3. Adjust the back up or down until the desired mount-
ing position is obtained.
4. Securely tighten the two (2) mounting screws.
5. Ifmoreadjustmentisneeded,theadjustmentscrews
can be completely removed, and the bracket set to
a NEW T-nutted hole location. Refer to the
ATTACHMENT POINTS
in this instruction sheet for
optional attachment points.
6. Zip center panel of back cover closed.
ADJUSTING THE ULTI-MATE BASE DEPTH.
1. If necessary, unzip center panel of the back cover.
2. Loosen thefour(4) mounting screwsthatsecure the
growth bracket to the Ulti-Mate Base.
3. Adjust the seat forward or back until the desired
mounting position is obtained.
4. Securely tighten the two (2) mounting screws.
5. Ifmoreadjustmentisneeded,theadjustmentscrews
can be completely removed, and the bracket set to
a NEW T-nutted hole location. Refer to the
ATTACHMENT POINTS
in this instruction sheet for
optional attachment points.
6. Zip center panel of back cover closed.
Bottom Mounting
Screws
Top Mounting
Screws
FIGURE 2 -FIGURE 2 -
FIGURE 2 -FIGURE 2 -
FIGURE 2 - AA
AA
ATTTT
TTTT
TTAA
AA
ACHING /CHING /
CHING /CHING /
CHING / ADJUSTINGADJUSTING
ADJUSTINGADJUSTING
ADJUSTING THETHE
THETHE
THE
ADJUSTADJUST
ADJUSTADJUST
ADJUSTABLEABLE
ABLEABLE
ABLE ANGLE GRANGLE GR
ANGLE GRANGLE GR
ANGLE GROO
OO
OWTH BRAWTH BRA
WTH BRAWTH BRA
WTH BRACKETCKET
CKETCKET
CKET

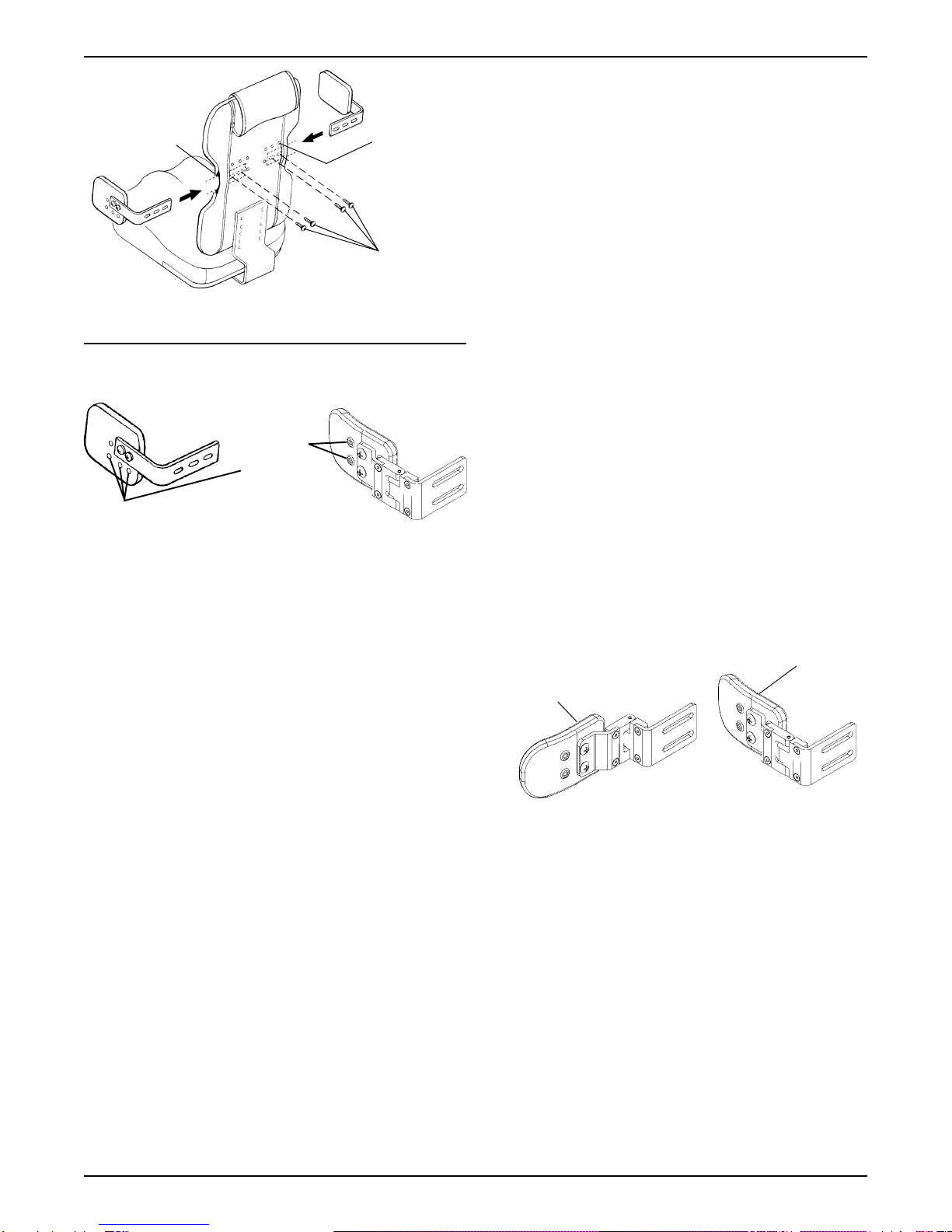

ATTACHING/ADJUSTING THE
LATERAL SUPPORTS (FIGURE 4)
Attaching
1. Removelateralsupportandmountinghardwarefrom
packaging.
2. Feed lateral support bracket through the slots pro-
vided in the back cover.
3. Attachlateralsupportbrackettobackshellasshown
in FIGURE 2 with the two (2) mounting screws pro-
vided. Repeat for opposite side.
4. If adjustment is required, refer to ADJUSTING THE
LATERAL SUPPORTS in this instruction sheet. If
so equipped continue with USING THE SWING-
AWAYLATERALSUPPORTS.
Adjusting
NOTE: Lateral supports provide adjustment up to 2-
inchesforheight;2-inchesforwidth,and1-inchfordepth.
STANDARD ADJUSTMENTS.
NOTE: There are additional mounting holes located on
the back shell to provide width and height adjustment for
amorecomfortablefit.Onlythechild/juniorsize is shown
for clarity. Refer to the ATTACHMENT POINTS chart in
this instruction sheet for standard and optional attach-
ment points.
1. Remove the two (2) attaching screws and nuts on
the adjustable angle back hooks.
2. Recline the back to the desired angle.
3. Align one (1) round hole and one (1) slotted hole on
the back L-bracket with two (2) of the holes on the
hook portion.
4. Reinstall the two (2) screws and nuts and securely
tighten.
FIGURE 3 -FIGURE 3 -
FIGURE 3 -FIGURE 3 -
FIGURE 3 - ADJUSTINGADJUSTING
ADJUSTINGADJUSTING
ADJUSTING THETHE
THETHE
THE ANGLE OFANGLE OF
ANGLE OFANGLE OF
ANGLE OF THE BTHE B
THE BTHE B
THE BAA
AA
ACKCK
CKCK
CK
Attaching Screws
Nuts
L-Bracket
Hook Portion
ADJUSTING THE ANGLE OF THE BACK
(FIGURE 3)
NOTE: The adjustable angle growth bracket is infinitely
angle adjustable. The back-to-seat angle is set by the
location of the mounting points for the back in relation to
the base and by changing the hole positions of the ad-
justable angle back hooks.

4
Slot
Optional
Adjustment
Holes
FIGURE 4 -FIGURE 4 -
FIGURE 4 -FIGURE 4 -
FIGURE 4 - AA
AA
ATTTT
TTTT
TTAA
AA
ACHING/ADJUSTINGCHING/ADJUSTING
CHING/ADJUSTINGCHING/ADJUSTING
CHING/ADJUSTING
THE LATHE LA
THE LATHE LA
THE LATERAL SUPPORTERAL SUPPOR
TERAL SUPPORTERAL SUPPOR
TERAL SUPPORTSTS
TSTS
TS
Standard
Adjustment
T-nutted
Mounting
Holes
Mounting
Screws
FIXED LAFIXED LA
FIXED LAFIXED LA
FIXED LATERALTERAL
TERALTERAL
TERAL
SUPPORSUPPOR
SUPPORSUPPOR
SUPPORTT
TT
TSWINGASWINGA
SWINGASWINGA
SWINGAWW
WW
WAA
AA
AY LAY LA
Y LAY LA
Y LATERALTERAL
TERALTERAL
TERAL
SUPPORSUPPOR
SUPPORSUPPOR
SUPPORTT
TT
T
Locked
Position
Unlocked
Position
FIGURE 5 - USINGFIGURE 5 - USING
FIGURE 5 - USINGFIGURE 5 - USING
FIGURE 5 - USING THE SWINGATHE SWINGA
THE SWINGATHE SWINGA
THE SWINGAWW
WW
WAA
AA
AYY
YY
Y
LALA
LALA
LATERAL SUPPORTERAL SUPPOR
TERAL SUPPORTERAL SUPPOR
TERAL SUPPORTSTS
TSTS
TS
1. If necessary, unzip the center panel of back cover.
2. For minimal width adjustment, loosen the mounting
screws and slide support bracket in or out and re-
tighten mounting screws.
3. For further width and/or height adjustment, remove
the two (2) mounting screws.
4. Place the lateral support in the desired mounting
position.
5. Reinsert the two (2) mounting screws. Securely
tighten.
6. If all attachments and adjustments are complete, zip
center panel of back cover closed.
OPTIONAL ADJUSTMENT (FIGURE 4).
1. Fixed lateral supports have height and depth ad-
justment holes on the outside of the padded portion
of the lateral support. Follow STEPS 3-5 in STAN-
DARDADJUSTMENTSinthissectionoftheinstruc-
tion sheet. Repeat for opposite lateral support.
SWINGAWAY LATERAL SUPPORTS
Bracket Adjustment
1. Unzip center panel of back cover.
2. For width adjustment, loosen the mounting screws
and slide the support bracket in or out and retighten
the mounting screws.
3. For height adjustment on adult sizes, remove the
two (2) mounting screws.
4. Raise or lower the lateral support and align the slots
withthe back holesin the desiredmounting positions.
5. Reinsert the two (2) mounting screws and securely
retighten.
6. Zip center panel of back cover closed.
Pad Adjustment
1. Unzip the hideaway cover and pull the cover par-
tially off the pad to expose the mounting screws.
2. Remove the two (2) pad mounting screws.
3. Reposition the pad depth to the desired position.
4. Reinsert the two (2) mounting screws and securely
tighten.
5. Zip the hideaway cover over the pad.
USING THE SWINGAWAY
LATERAL SUPPORTS (FIGURE 5)
NOTE: The swingaway lateral supports were designed
for ease in removing the individual from the KSS seating
system.
1. Liftuponthelateralsupportandpushoutward,away
from the wheelchair.
2. To lock lateral support in place, pull back inward until
lateral support snaps in place.
NOTE: Your Growth Bracket may have SLOTS in-
stead of Adjustment Holes.
ATTACHING/ADJUSTING THE
MOUNTING HOOKS (FIGURE 6)
Attaching the Mounting Hooks
CHILD/JUNIOR SIZES.
1. Remove four (4) mounting hooks from packaging.
2. Slide one (1) hook through the slot provided in the
backcover.Attachtothe uppercorner,oneitherside
of the back, with two (2) of the mounting screws pro-
vided. Repeat for opposite side.
3. Attach one (1) mounting hook to the front corner, on
either side of the seat, with two (2) of the mounting
screws provided. Repeat for opposite side.

5
FIGURE 6 -FIGURE 6 -
FIGURE 6 -FIGURE 6 -
FIGURE 6 - AA
AA
ATTTT
TTTT
TTAA
AA
ACHING/ADJUSTINGCHING/ADJUSTING
CHING/ADJUSTINGCHING/ADJUSTING
CHING/ADJUSTING THETHE
THETHE
THE
MOUNTING HOOKSMOUNTING HOOKS
MOUNTING HOOKSMOUNTING HOOKS
MOUNTING HOOKS
* Mounting
Screws
* Mounting
Hook
Mounting
Screws
Slot
Mounting Hooks
* These items are only
needed on the adult size.
* Mounting
Hooks
TRANSPORT READY OPTION (TRRO)
Mounting
Screws
Mounting
Screws
Mounting
Screws
Twist Release
Clamp Seat Mounting
Hooks
Seat
Mounting
Hooks
ADULT SIZES.
1. Removeeight(8)mountinghooksfromthepackaging.
2. Slide one (1) hook through the slot provided in the
backcover. Attachtotheuppercorner,oneitherside
of the back, with two (2) of the mounting screws pro-
vided. Repeat for opposite side.
3. Slide one (1) hook through the slot provided in the
back cover. Attach to the lower corner, on either side
of the back, with two (2) of the mounting screws pro-
vided. Repeat for procedure for opposite side.
4. Attach one (1) mounting hook to the front corner, on
either side of the seat, with two (2) of the mounting
screws provided. Repeat for opposite side.
5. Attach one (1) mounting hook to the back corner, on
either side of the seat, with two (2) of the mounting
screws provided. Repeat for opposite side.
Adjusting the Mounting Hooks
NOTE: Refer to the ATTACHMENT POINTS chart in
this instruction sheet for adjustment locations.
1. If necessary, unzip the back cover.
2. CHILD/JUNIOR AND ADULT SIZES - For minimal
width adjustment, loosen the mounting screws and
adjust the hooks in or out and retighten the mount-
ing screws.
3. ADULTSIZEONLY-Iffurtheradjustmentisneeded:
a. Remove the mounting screws that secure the
mounting hooks to the back/seat.
b. Adjust the mounting hooks to desired mounting
position.
c. Reinsertthemountingscrews. Securelytighten.
4. TRANSPORTOPTION-Forseatadjustment,loosen
the mounting screws and adjust the hooks back and
forth.
NOTE:Someconfigurationsforseatdepthchangesmay
require REVERSING seat mounting hooks.
For back adjustment, loosen the mounting screws
and adjust the hooks side-to-side. Retighten the
mounting screws.
WARNING
Ensuretheseatingsystemmountingbracketsare
correctly positioned and clamps are securely
engaged. Failure to do so may result in serious
bodily injury.
5. If all attachments and adjustments are complete, zip
the back cover closed.
n NOTE: For 12 and 14-inch seat depth ALL four
(4) mounting holes will be used.
n NOTE: For 16-inch seat depth the FRONT two
(2) mounting holes will be used.
Mounting
Screws Quick Release
Clamps
Twist Release
Clamp Mounting
Screws
Quick Release Clamps
n See NOTES
Four (4) Mounting
Hooks

6

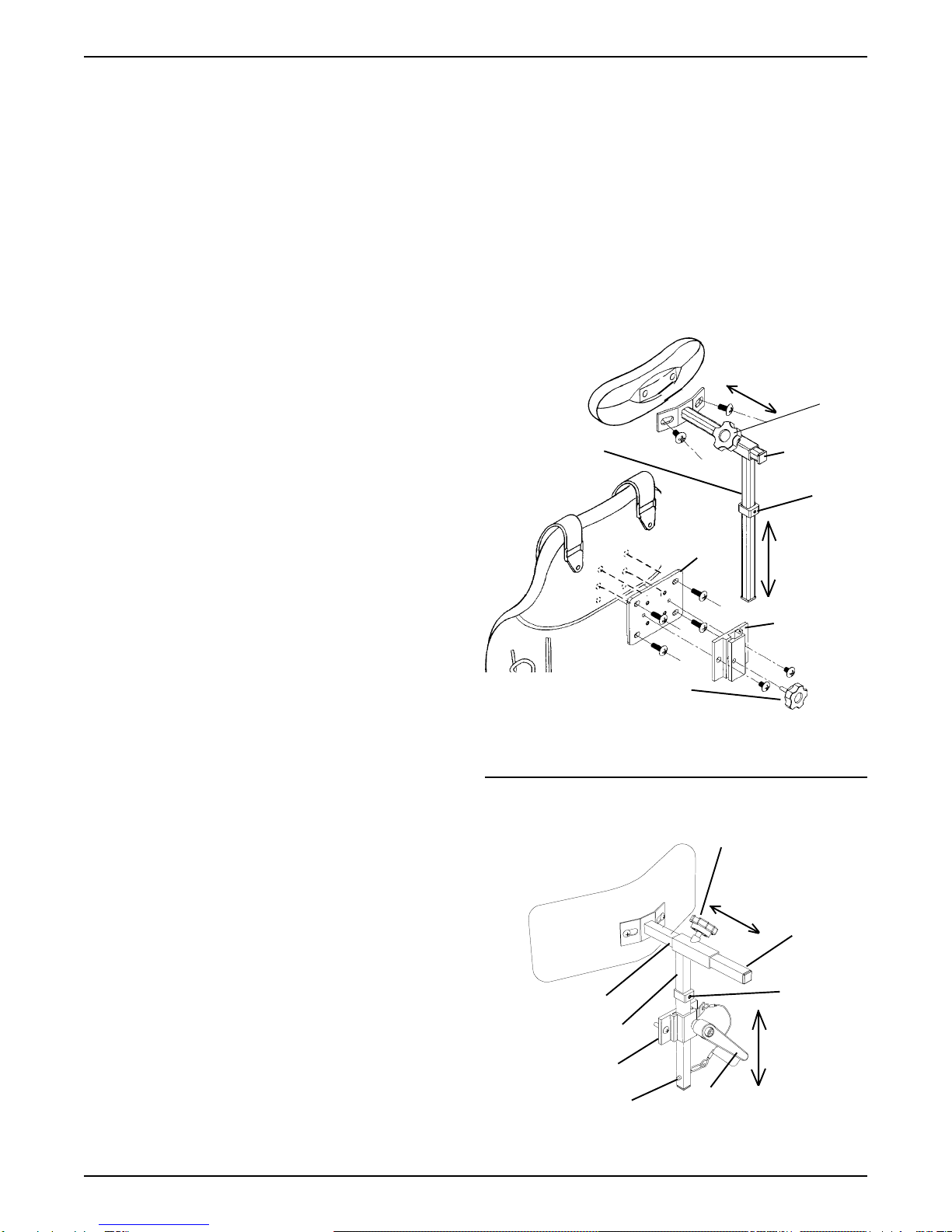

FIGURE 7 -FIGURE 7 -
FIGURE 7 -FIGURE 7 -
FIGURE 7 - ADJUSTINGADJUSTING
ADJUSTINGADJUSTING
ADJUSTING THE NECK SUPPORTHE NECK SUPPOR
THE NECK SUPPORTHE NECK SUPPOR
THE NECK SUPPORTT
TT
T
NOTE: Only the curved back is shown for clarity. The
neck support on the Ulti-mate Air Back adjusts in the
same manner.
Neck Support
Bracket
Thumbscrew Knob
Thumb-
screw
Knob
Height
Adjustment
Stop
Vertical Post
NOTE:IfaNEWnecksupportisusedonaNEWCurved
Back than the support bracket can be used WITHOUT
the adapter plate.
2. Secure neck adapter plate to the back shell with the
four (4) long mounting screws provided.
3. Attachnecksupportbrackettotheadapterplateusing
the two (2) short mounting screws provided.
4. Insert horizontal post into vertical post and secure
with thumbscrew.
5. If adjustment is required, refer to ADJUSTING
THE NECK SUPPORT in this instruction sheet.
ATTACHING/ADJUSTING THE
NECK SUPPORT (FIGURE 7)
Attaching the Neck Support
CURVED BACK.
1. Remove neck support bracket from packaging.
2. Unzip back cover on both sides of center panel.
3. Lift center panel.
NOTE: If a NEW neck support is used on an EXISTING
Curved Back than the adapter plate and support bracket
MUST be used.
NOTE:IfaNEWnecksupportisusedonaNEWCurved
Back than the support bracket can be used WITHOUT
the adapter plate.
4. Perform Steps 4a. and 4b. or 4c.:
a. Secure neck adapter plate to the back shell
with the four (4) mounting screws provided (If
applicable).
b. Then secure the neck support bracket to the
neck adapter plate using the two (2) mounting
screws provided.
c. Secure the vertical neck post to the back shell
using the two (2) mounting screws provided.
5. Close center panel with the vertical neck post ex-
posed through the slot provided in upholstery.
6. Zip the back cover closed.
7. Insert horizontal post into vertical post and secure
with thumbscrew knob.
8. Insert vertical post into neck support bracket.
9. Secure with a thumbscrew knob or adjustable lever.
10. Insert detent pin into through both walls of vertical
post (Transport Ready Option [TRRO]).
11. If adjustment is required, refer to ADJUSTING THE
NECK SUPPORT in this instruction sheet.
ULTI-MATE AIR BACK.
NOTE: The standard attachment points are where the
eyelets are located in the upholstery.
1. If there are no eyelets, pierce a hole pattern in the
fabric, that resembles the pattern found on the neck
support bracket. Ensure the pattern is aligned with
the T-nutted holes found on the back shell.
NOTE: The cover may need to be removed to get a
more precise location of the T-nutted holes before pierc-
ing the hole pattern in the fabric.
NOTE: There is an extra set of T-nutted holes found on the
backshellforoptionalheightadjustment.Tomaketheseholes
accessible, pierce a hole in the fabric aligned with the T-nut-
ted hole in the back shell. Repeat for opposite hole.
NOTE: If a NEW neck support is used on an EXISTING
Curved Back than the adapter plate and support bracket
MUST be used.
Neck
Adapter
Plate
Depth
Adjustment
Horizontal
Post
Height
Adjustment
Thumbscrew Knob
Neck Support
Bracket
Height
Adjustment
Stop
Vertical Post
NOTE: Neck Adapter Plate NOT shown.
Horizontal Post
Adjustment Lever
Detent Pin
Height
Adjustment
Depth
Adjustment
NOTE: Ensure that the retaining screw is located
in the end of the horizontal post.
Retaining
Screw

7
FIGURE 8 -FIGURE 8 -
FIGURE 8 -FIGURE 8 -
FIGURE 8 - AA
AA
ATTTT
TTTT
TTAA
AA
ACHING/ADJUSTINGCHING/ADJUSTING
CHING/ADJUSTINGCHING/ADJUSTING
CHING/ADJUSTING THETHE
THETHE
THE
HEIGHT/REVERSINGHEIGHT/REVERSING
HEIGHT/REVERSINGHEIGHT/REVERSING
HEIGHT/REVERSING THE CUSHION/THE CUSHION/
THE CUSHION/THE CUSHION/
THE CUSHION/
USINGUSING
USINGUSING
USING THE FLIP DOTHE FLIP DO
THE FLIP DOTHE FLIP DO
THE FLIP DOWNWN
WNWN
WN ABDUCTABDUCT
ABDUCTABDUCT
ABDUCTOROR
OROR
OR

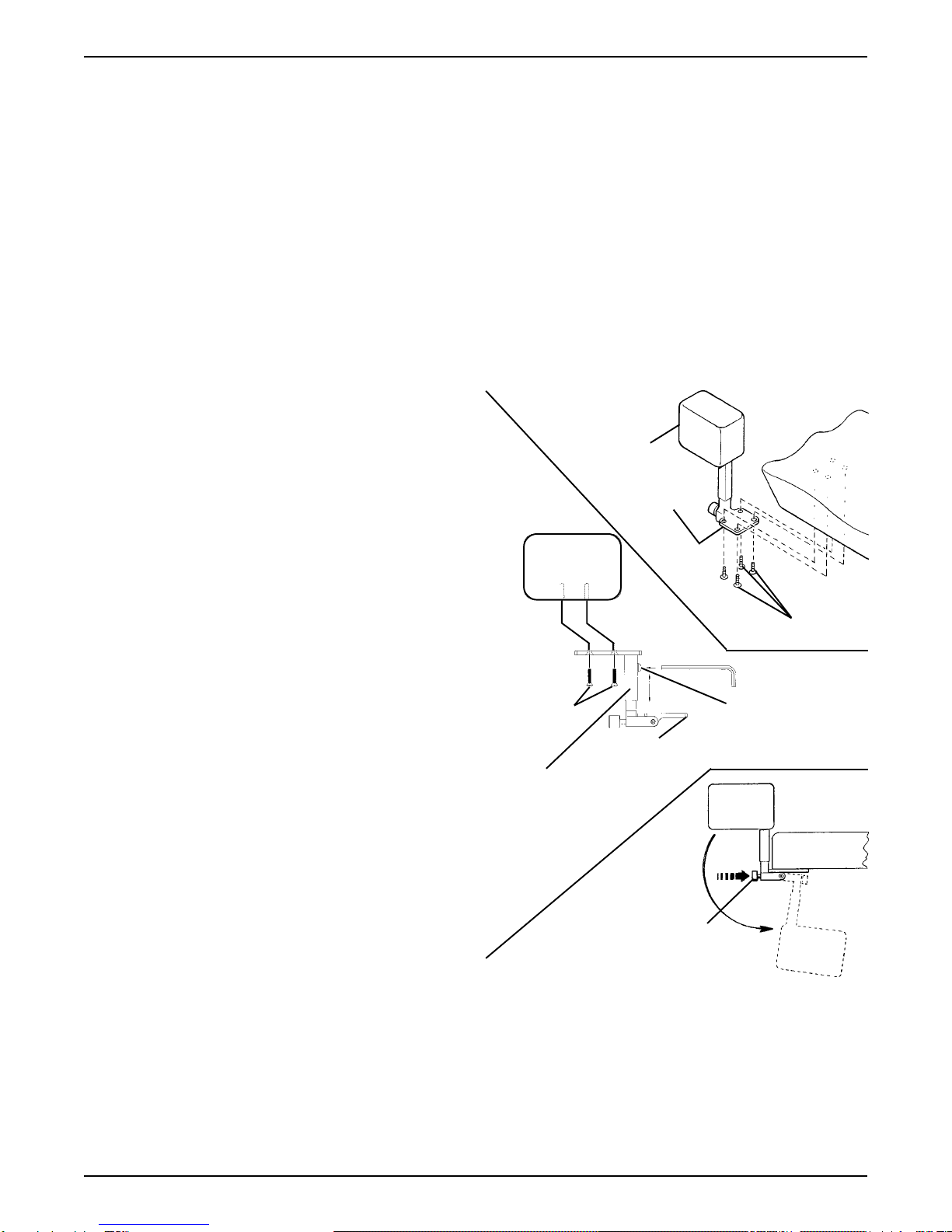

ATTACHING/ADJUSTING THE
HEIGHT/REVERSING THE
PAD/USING THE FLIP DOWN
ABDUCTOR (FIGURE 8)
Attaching the Flip Down Abductor (FIGURE
8-DETAIL "A")
NOTE: Refer to the ATTACHMENT POINTS chart in
this instruction sheet for attachment location.
1. Remove the flip down abductor and attaching hard-
ware from packaging.
2. Attach the flip down abductor bracket to the underside
of the seat with the four (4) mounting screws provided.
3. To remove the flip down abductor reverse STEP 2.
Adjusting the Height of the Flip Down
Abductor (FIGURE 8-DETAIL "B")
1. To unlock and flip down abductor, press release but-
ton (FIGURE 8-DETAIL "C").
2. Using a socket key, loosen the adjustment screw on
the vertical portion of the mounting bracket.
3. Adjust the flip down abductor to the desired height.
4. Securely tighten the adjustment screw and then
check pad height.
5. Repeat Steps 1 through 4 until proper height is
obtained.
DETDET
DETDET
DETAIL "A"AIL "A"
AIL "A"AIL "A"
AIL "A"
Seat
Mounting
Screws
Flip-Down
Abductor
Release
Button Unlocked
Position
Locked
Position
DETDET
DETDET
DETAIL "C"AIL "C"
AIL "C"AIL "C"
AIL "C"
Flip-Down
Abductor
Bracket
DETDET
DETDET
DETAIL "B"AIL "B"
AIL "B"AIL "B"
AIL "B"
Flip-Down
Abductor
Mounting
Screws
Telescoping
Tube Assembly
Flip-Down
Abductor
Bracket
Adjusting Screw
Using the Flip-Down Abductor
(FIGURE 8-DETAIL "C")
1. To unlock and flip down press release button.
2. To lock in place pull up on abductor until an au-
dible click is heard.
Reversing the Cushion of the Flip
Down Abductor (FIGURE 8-DETAIL "B")
1. To unlock and flip down abductor, press release
button (FIGURE 8-DETAIL "C").
2. Using a socket key, remove the adjustment
screw and washer on the vertical portion of the
mounting bracket.
3. Completely remove the top tube from the tele-
scoping tube assembly.
4. Rotate top portion 180o.
5. Reinstall top tube portion.
6. Follow STEPS 4-5 in ADJUSTING THE FLIP
DOWN ABDUCTOR.
ADJUSTING THE NECK SUPPORT
Curved Back and Ulti-Mate Air Back
1. HeightAdjustment -Loosenthethumbscrewknob
or adjustment lever on the neck support bracket.
Loosen the height adjustment stop setscrew. Adjust
the neck support to the desired height and retighten
the thumbscrew knob or adjustment lever. Slide
height adjustment stop to the top of the support
bracket and retighten setscrew.
Insert detent pin into through both walls of ver-
tical post (Transport Ready Option [TRRO]).
NOTE: The height adjustment stop allows the neck sup-
port to be removed for transfers, then reinstalled back to
the exact height set by the location of the height adjust-
ment stop.
2. Depth Adjustment - Loosen the thumbscrew knob
on the horizontal post, adjust the neck support to the
desired depth and retighten the thumbscrew knob.
NOTE: On the Ulti-Mate Air Back further adjustment can
be obtained by utilizing the extra set of T-nutted holes in
the back shell. Refer to ATTACHING THE NECK SUP-
PORT in this instruction sheet.

8
ATTACHING/USING THE LAP
BELT (FIGURES 9 AND 10)
Attaching the Lap Belt
WARNING
It is strongly recommended that the lap belt
be strapped across the hip area with an
angle of 45o to the seating surface. Angles
less than 45o make it easier for the user to slip
under the belt if it is improperly tightened.
1. The lap belt can be anchored in one (1) of the
two (2) possible locations:
a. In one (1) of the T-nutted holes located on
the underside of the seat.
b. In one (1) of the holes in the side frame of
the wheelchair.
NOTE: DO NOT reposition the lap belt mounting
location from the factory installation on the TRANS-
PORT READY OPTION (TRRO).
NOTE: The most desirable location for the mount-
ing screws will be determined by the size of the
client involved and the angle achieved by trying the
various attachment points with the client seated
comfortably in the wheelchair.
SEASEA
SEASEA
SEATT
TT
TATTATT
ATTATT
ATTAA
AA
ACHMENTCHMENT
CHMENTCHMENT
CHMENT
FRAMEFRAME
FRAMEFRAME
FRAME ATTATT
ATTATT
ATTAA
AA
ACHMENTCHMENT
CHMENTCHMENT
CHMENT
FIGURE 9 -FIGURE 9 -
FIGURE 9 -FIGURE 9 -
FIGURE 9 - AA
AA
ATTTT
TTTT
TTAA
AA
ACHINGCHING
CHINGCHING
CHING THE LAP BELTHE LAP BEL
THE LAP BELTHE LAP BEL
THE LAP BELTT
TT
T
Seat
B
a
c
k
Seat
B
a
c
k
Seat
45
o
Lap
Belt
B
a
c
k
Mounting Screws
Lap Belt
Mounting
Screws
Wheelchair
Frame
Lap Belt (Acceptable lap belt angle is 45o)
2. Determinethemostsuitableattachmentpoint. Put
the padded side of the belt toward the seating
surface.
3. Align the hole located at the anchor end of the
belt with the chosen attachment point and insert
one (1) of the mounting screws provided. HAND
TIGHTEN ONLY. Repeat for opposite side.
Using the Lap Belt
WARNING
Ensure that the seat is fixed to the wheelchair.
A loose seat may lead to potentially dan-
gerous situations with positioning devices.
It is strongly recommended that the lap belt
be strapped across the hip area with an
angle of 45o to the seating surface. Angles
less than 45o make it easier for the user to slip
under the belt if it is improperly tightened.
NOTE: Stabilize from the ground up. A stable base
(seat) and footrest are the first steps to a stable
pelvis. Also, the user should be lightly clothed for
the initial adjustment.
NOTE: A belt angle of 45
o
will usually provide the
best stability and positioning. The belt will apply its
pressure directly to the hips, usually allowing more
force to be applied without discomfort.
1. Adjust the slide, located at each end of the belt,
to fit the client with proper tension.
2. The plastic D-rings, located at the front of the belt,
can be pulled or released to conveniently tighten
the belt to provide extra tension if needed or
loosen the belt to allow for bulky clothing, etc.
NOTE: When all final adjustments have been made
and the client is comfortable with the fit of the lap
belt, any excess lengths of material can be cut off,
keeping in mind the potential future growth of the
client. The cut end can be melted slightly to pre-
vent fraying.
NOTE: Only the Child/Junior lap belt is shown for clarity.
D-Rings
Padded
Portion Slider
Buckle
FIGURE 10 - USINGFIGURE 10 - USING
FIGURE 10 - USINGFIGURE 10 - USING
FIGURE 10 - USING THE LAP BELTHE LAP BEL
THE LAP BELTHE LAP BEL
THE LAP BELTT
TT
T
Anchor
End

9
POSITIONING/ADJUSTING THE KSS
SEATING SYSTEM IN THE
WHEELCHAIR
With the individual positioned in the KSS seating sys-
tem:
1. Check that the width and height of the system is
fitted properly to the individual using the system. If
adjustment is needed, refer to ADJUSTING THE
GROWTH BRACKET in this instruction sheet.
2. Check to make sure the neck support is properly
positioned, with the correct height and depth, for the
individual using the system. If adjustment is needed,
refer to ADJUSTING THE NECK SUPPORT in this
instruction sheet.
3. Check to make sure the lateral supports are prop-
erly positioned, with the correct width and height, for
the individual using the system. If adjustment is
needed,refertoADJUSTINGTHELATERALSUP-
PORTS in this instruction sheet.
4. Check to make sure the flip-down abductor is se-
curely tightened.
5. Checktomakesurethelapbeltissecurelyfastened.
Is the lap belt uncomfortably compressing the abdo-
men when properly tightened? You can mount the
anchor points further forward to increase the belt
angle. If adjustment is necessary, refer to ATTACH-
ING/USINGTHELAPBELTinthisinstructionsheet.
SECURING THE KSS SEATING SYSTEM
TO THE WHEELCHAIR FRAME
The following recommendations are made for the safe
installation and use of mounting hardware on seating
systems: SAFETY SUMMARY
Ensure that the seat and back of the seating sys-
tem are fixed to the wheelchair. A loose seat or
back may lead to potentially dangerous situa-
tions with positioning devices.
Ensure that ALL hardware is tight at ALL times.
INSTALLATION WARNING
DO NOT install twist, quick, and fixed release
clamps in any other locations than specified in
this instruction sheet - otherwise, the seating sys-
tem will not be secured properly to the wheel-
chair and bodily injury may occur.
GENERAL WARNING
HARDWARE REFERENCE CHART
NOTE: This chart is a general guideline for recom-
mended mounting hardware.
Hardware Clamps
BACK Twist Release Twist Release
(SEE FIGURE 11) Fixed Release
(SEE FIGURE 13)
SEAT Quick Release Quick Release
(SEE FIGURE 12) Fixed Release
(SEE FIGURE 14)
PROCEDURE 1 - INSTALLING
CLAMPS ON SEATING SYSTEMS
WITH A GROWTH BRACKET
Twist Release Clamps For Back (FIGURE 11)
NOTE: Refer to INSTALLATION WARNING in the
SAFETY SUMMARY before proceeding.
1. Make sure that the back mounting hooks are flush
against the back canes.
2. Loosen the socket screw that opens the twist re-
lease clamp.
NOTE: There is a right and left twist release clamp.
Make sure when installing that the socket screw
adjustment is on the outside of the wheelchair
frame.
NOTE: FOR TRANSPORT READY OPTION (TRRO) -
There is a right and left twist release clamp. Make sure
when installing that the socket screw adjustment is on
the INSIDE of the wheelchair frame.
3. Install the open end of the twist release clamp below
the back mounting hook so that the locking mecha-
nism rests on top of the back mounting hook.
4. Loosely tighten the socket screw.
5. Repeat STEPS 1- 4 for the other side.
6. Make sure both twist release clamps are flush
against the back mounting hooks and that the lock-
ing mechanism rests on top of the back mounting
hooks.
7. Torque socket screw to 75 - inch pounds.
With With Out
Growth Bracket Growth Bracket

10
FIGURE 11-FIGURE 11-
FIGURE 11-FIGURE 11-
FIGURE 11- TWIST RELEASE CLAMPS FOR BTWIST RELEASE CLAMPS FOR B
TWIST RELEASE CLAMPS FOR BTWIST RELEASE CLAMPS FOR B
TWIST RELEASE CLAMPS FOR BAA
AA
ACKCK
CKCK
CK
Twist Release
Cane Clamp
Inside
Back Cane
Seat Rail
Back Mounting
Hook
Socket Screw
Locking Mechanism
FIGURE 12- QUICK RELEASE CLAMPS FOR SEAFIGURE 12- QUICK RELEASE CLAMPS FOR SEA
FIGURE 12- QUICK RELEASE CLAMPS FOR SEAFIGURE 12- QUICK RELEASE CLAMPS FOR SEA
FIGURE 12- QUICK RELEASE CLAMPS FOR SEATT
TT
T
Lock Washer Internal
Mounting
Screw
Quick Release
Rail Clamp
Mounting Hook
Back Cane
Fixed
Portion Release
Portion
Insert
DETDET
DETDET
DETAILAIL
AILAIL
AIL ““
““
“A”A”
A”A”
A”
8. Oncetwistreleasemountingclampsaresecured,do
one (1) of following:
A. Refer to QUICK RELEASE CLAMPS FOR
SEATinPROCEDURE1ofthisinstructionsheet.
B. Refer to USING CLAMPS in this instruction
sheet.
Quick Release Clamps For Seat
(FIGURE 12)
NOTE: Refer to INSTALLATION WARNING in the
SAFETY SUMMARY before proceeding.
NOTE: The quick release clamps are designed to fit
either 1-inch rail tubing or, with insert provided, 7/8-inch
rail tubing.
1. Remove the sleeve, lock washer, and internal
threaded mounting screw from the quick release
clamp(DETAIL “A”).
2. Place the quick release clamp on the seat rail.
3. If quick release clamp is not tightly fitted around seat
rail tubing, install insert provided as shown in DE-
TAIL“A”.
4. Install the quick release clamp onto the seat rail so
thatthe fixed portion is flushagainstand rests on top
of the mounting hook and the release portion is be-
tween the front riggings and the mounting hook.
5. Reinstallthesleeve,lock washer,andinternalmount-
ingscrewintothequickreleaserailclampandtorque
to 75 - inch pounds.
6. Repeat STEPS 1- 5 for other side.
7. Once quick release mounting clamps are secured,
do one (1) of following:
A. Refer to TWIST RELEASE CLAMPS FOR
BACK in PROCEDURE 1 of this instruction
sheet.
B. Refer to USING CLAMPS in this instruction
sheet.
PROCEDURE 2 - INSTALLING
CLAMPS ON SEATING SYSTEMS
WITHOUT A GROWTH BRACKET
Twist Release Clamps For Back
(FIGURE 11)
NOTE: Refer to INSTALLATION WARNING in the
SAFETY SUMMARY before proceeding.
1. Make sure that the back mounting hooks are flush
against the back canes.
2. Loosen the socket screw that opens the twist re-
lease clamp.
NOTE:Thereisarightandlefttwistreleaseclamp.Make
sure when installing that the socket screw adjustment is
on the outside of the wheelchair frame.
3. Install the open end of the twist release clamp below
the back mounting hook so that the locking mecha-
nism rests on top of the mounting hook.
4. Loosely tighten the socket screw.
5. Repeat STEPS 1- 4 for the other side.
6. Makesurebothtwistreleaseclampsareflushagainst
thebackmountinghooksandthatthelockingmecha-
nism rests on top of the back mounting hooks.
Sleeve
NOTE:ForTRANSPORTREADYOPTION (TRRO)
Twist Release Cane Clamp is REVERSED.

11
7. Torque socket screw to 75 - inch pounds.
8. Once twist release mounting clamps are secured,
do one (1) of following:
A. Refer to FIXED RELEASE CLAMPS FOR
BACK in PROCEDURE 2 of this instruction
sheet.
B. Refer to USING CLAMPS in this instruction
sheet.
Fixed Release Clamps For Back (FIGURE 13)
NOTE: Refer to INSTALLATION WARNING in the
SAFETY SUMMARY before proceeding.
NOTE: The fixed release rail/cane clamps are designed
to fit either 1-inch rail tubing or, with insert provided, 7/8-
inch rail tubing.
1. Remove the mounting screw, lock washer, and
internal threaded mounting screw from the fixed
release clamps (DETAIL “B”).
2. Place the fixed release clamp on the back cane.
3. If fixed release clamp is not tightly fitted around back
cane tubing, install insert provided as shown in DE-
TAIL“A”.
4. Install the fixed release clamp onto the back rail so
thatthe fixed portion is flushagainstand rests on top
of the mounting hook and is located between the
seat rail and the bottom of the mounting hook.
5. Reinstall the mounting screw, lock washer, and
internal mounting screw into the fixed release rail/
cane clamp and torque to 75 - inch pounds.
6. Repeat STEPS 1 - 5 for other side.
7. Once fixed release mounting clamps are secured,
do one (1) of following:
A. Refer to QUICK RELEASE CLAMPS FOR
SEATinPROCEDURE2ofthisinstructionsheet.
B. RefertoUSINGCLAMPSinthisinstructionsheet.
FIGURE 13- FIXED RELEASE CLAMPS FOR BFIGURE 13- FIXED RELEASE CLAMPS FOR B
FIGURE 13- FIXED RELEASE CLAMPS FOR BFIGURE 13- FIXED RELEASE CLAMPS FOR B
FIGURE 13- FIXED RELEASE CLAMPS FOR BAA
AA
ACKCK
CKCK
CK
DETDET
DETDET
DETAILAIL
AILAIL
AIL “B”“B”
“B”“B”
“B”
Lock
Washer
Sleeve
Mounting
Hook
Internal Mounting
Screw
Twist Release
Clamp
Fixed Release
Clamp
Mounting
Hooks
Seat Rail
Back Cane
Fixed
Portion
Inside of Back Cane
Quick Release Clamps For Seat
(FIGURE 14)
NOTE: Refer to INSTALLATION WARNING in the
SAFETY SUMMARY before proceeding.
NOTE: The quick release and fixed release clamps are
designed to fit either 1-inch rail tubing or, with insert pro-
vided, 7/8-inch rail tubing.
1. Removethesleeve,lockwasher,andinternalthreaded
mounting screw from the quick release clamp (DE-
TAIL “C”).
2. Place the quick release clamp on the seat rail.
3. If quick release clamp is not tightly fitted around seat
rail tubing, install insert provided as shown in DE-
TAIL “C”.
4. Install the quick release clamp onto the seat rail so
thatthe fixed portion is flushagainstand rests on top
of the mounting hook and the release portion is be-
tween the front riggings and the mounting hook.
5. Reinstallthesleeve,lock washer,andinternalmount-
ing screw into the quick release clamp and torque to
75 - inch pounds.
6. Repeat STEPS 1- 5 for other side.
7. Once quick release mounting clamps are secured,
do one (1) of following:
A. Refer to FIXED RELEASE CLAMPS FOR
SEAT in PROCEDURE 2 of this instruction
sheet.
B. Refer to USING CLAMPS in this instruction
sheet.
FIGURE 13- FIXED RELEASE CLAMPS FOR BFIGURE 13- FIXED RELEASE CLAMPS FOR B
FIGURE 13- FIXED RELEASE CLAMPS FOR BFIGURE 13- FIXED RELEASE CLAMPS FOR B
FIGURE 13- FIXED RELEASE CLAMPS FOR BAA
AA
ACKCK
CKCK
CK

12
USING CLAMPS
Twist Release (FIGURE 15)
1. To unlock the cane clamp, twist away from the
back cane.
2. To lock the cane clamp, twist in toward the back.
Twist Release
Cane Clamp
Back
Mounting
Hook
Unlock
Back Cane
TT
TT
T
OPOP
OPOP
OP VIEWVIEW
VIEWVIEW
VIEW
FIGURE 15 - USING CLAMPS -FIGURE 15 - USING CLAMPS -
FIGURE 15 - USING CLAMPS -FIGURE 15 - USING CLAMPS -
FIGURE 15 - USING CLAMPS - TWIST RELEASETWIST RELEASE
TWIST RELEASETWIST RELEASE
TWIST RELEASE
Fixed Release
Clamp
Fixed
Portion
Quick Release
Clamp
Fixed
Portion Release
Portion
Mounting
Hooks
FIGURE 14 - QUICK RELEASEFIGURE 14 - QUICK RELEASE
FIGURE 14 - QUICK RELEASEFIGURE 14 - QUICK RELEASE
FIGURE 14 - QUICK RELEASE AND FIXEDAND FIXED
AND FIXEDAND FIXED
AND FIXED
RELEASE CLAMPS FOR SEARELEASE CLAMPS FOR SEA
RELEASE CLAMPS FOR SEARELEASE CLAMPS FOR SEA
RELEASE CLAMPS FOR SEATT
TT
T
Lock Washer
Sleeve
Internal Mounting Screw
Insert
Fixed Release Clamps For Seat
(FIGURE 14)
NOTE: Refer to INSTALLATION WARNING in the
SAFETY SUMMARY before proceeding.
NOTE: The quick release and fixed release clamps are
designed to fit either 1-inch rail tubing or, with insert pro-
vided, 7/8-inch rail tubing.
1. Remove the sleeve, lock washer, and internal
threaded mounting screw from the fixed release
clamp (DETAIL “C”).
2. Place the fixed release clamp on the seat rail.
3. If fixed release clamp is not tightly fitted around seat rail
tubing,installinsertprovidedasshowninDETAIL“C”.
4. Install the fixed release clamp onto the back rail so
that the fixed portion is flush against and rests on top
of the mounting hook and is located between the
seat rail and the bottom of the mounting hook.
5. Reinstallthesleeve,lockwasher,andinternalmount-
ing screw into the fixed release clamp and torque to
75 - inch pounds.
6. Repeat STEPS 1-5 for other side.
7. Once fixed release mounting clamps are secured,
do one (1) of following:
A. Refer to QUICK RELEASE CLAMPS FOR
SEAT in PROCEDURE 2 of this instruction
sheet.
B. RefertoUSINGCLAMPSinthisinstructionsheet.
DETDET
DETDET
DETAILAIL
AILAIL
AIL “C”“C”
“C”“C”
“C”
FIGURE 16 - USING CLAMPS - QUICK RELEASEFIGURE 16 - USING CLAMPS - QUICK RELEASE
FIGURE 16 - USING CLAMPS - QUICK RELEASEFIGURE 16 - USING CLAMPS - QUICK RELEASE
FIGURE 16 - USING CLAMPS - QUICK RELEASE
Wheelchair
Frame Mounting
Hook
TO UNLOCK APPLY
PRESSURE HERE
Quick Release
Rail Clamp
TO LOCK APPLY
PRESSURE HERE
Quick Release (FIGURE 16)
1. Tounlock,pushdownonthereleasetabofthequick
release rail clamps.
2. To lock, push down on the thumb-like feature of the
quick release rail clamps.
Back Cane
NOTE:ForTRANSPORT READY OPTION (TRRO)
Twist Release Cane Clamp is REVERSED.
NOTE:ForTRANSPORTREADYOPTION(TRRO)use
ONLY Quick Release Clamps on Seat Rails.

13
ATTACHMENT POINTS FOR CURVED BACK
CHILD/JUNIOR SIZECHILD/JUNIOR SIZE
CHILD/JUNIOR SIZECHILD/JUNIOR SIZE
CHILD/JUNIOR SIZE ADULADUL
ADULADUL
ADULT SIZET SIZE
T SIZET SIZE
T SIZE
LL
LL
L
AA
AA
A
TT
TT
T
EE
EE
E
RR
RR
R
AA
AA
A
LL
LL
L
SS
SS
S
UU
UU
U
PP
PP
P
PP
PP
P
OO
OO
O
RR
RR
R
TT
TT
T
NN
NN
N
EE
EE
E
CC
CC
C
KK
KK
K
SS
SS
S
UU
UU
U
PP
PP
P
PP
PP
P
OO
OO
O
RR
RR
R
TT
TT
T
GG
GG
G
RR
RR
R
OO
OO
O
WW
WW
WTT
TT
T
HH
HH
H
BB
BB
B
RR
RR
R
AA
AA
A
CC
CC
C
KK
KK
K
EE
EE
E
TT
TT
T
The Adult Size does not require
a Growth Bracket. Extra mounting
hooks and mounting screws will be
supplied for the Curved Back and
Ulti-Mate Base
Two (2) Mounting screws on each side.
Any combination.
Top of Back
Bottom of Back
Top of Back
Bottom of Back
Top of Back
Bottom of Back
Top of Back
Bottom of Back
Top of Back
Bottom of Back

14
ATTACHMENT POINTS FOR CURVED BACK
(Continued)
CHILD/JUNIOR SIZECHILD/JUNIOR SIZE
CHILD/JUNIOR SIZECHILD/JUNIOR SIZE
CHILD/JUNIOR SIZE ADULADUL
ADULADUL
ADULT SIZET SIZE
T SIZET SIZE
T SIZE
Optional Optional
SS
SS
S
HH
HH
H
OO
OO
O
UU
UU
U
LL
LL
L
DD
DD
D
EE
EE
E
RR
RR
R
SS
SS
S
UU
UU
U
PP
PP
P
PP
PP
P
RR
RR
R
OO
OO
O
TT
TT
T
MM
MM
M
OO
OO
O
UU
UU
U
NN
NN
N
TT
TT
T
II
II
I
NN
NN
N
GG
GG
G
HH
HH
H
OO
OO
O
OO
OO
O
KK
KK
K
SS
SS
S
Standard location is the two (2) holes not
used by the growth bracket
Bottom of Back
Optional Optional
Top of Back
Standard
Standard Standard
OptionalStandard StandardOptional
Top of Back
Top of Back
Bottom of Back
Top of Back
Bottom of Back

15
ATTACHMENT POINTS FOR ULTI-MATE BASE
CHILD/JUNIOR SIZECHILD/JUNIOR SIZE
CHILD/JUNIOR SIZECHILD/JUNIOR SIZE
CHILD/JUNIOR SIZE ADULADUL
ADULADUL
ADULT SIZET SIZE
T SIZET SIZE
T SIZE
The Adult Size does not require
a Growth Bracket. Extra mounting
hooks and mounting screws will be
supplied for the Ulti-Mate Base
Two (2) Mounting screws on each side.
Any combination.
Front of Seat
Rear of Seat
GG
GG
G
RR
RR
R
OO
OO
O
WW
WW
W
TT
TT
T
HH
HH
H
BB
BB
B
RR
RR
R
AA
AA
A
CC
CC
C
KK
KK
K
EE
EE
E
TT
TT
T
Lap Belt
(Optional)
Rear of Seat
Front of Seat
Standard location is the two (2) holes
not used by the growth bracket)
Rear of Seat
Front of Seat
Use either of the holes not being
use by the mounting hooks.
LL
LL
L
AA
AA
A
PP
PP
P
BB
BB
B
EE
EE
E
LL
LL
L
TT
TT
T
Rear of Seat
Front of Seat
Rear of Seat
Front of Seat
AA
AA
A
BB
BB
B
DD
DD
D
UU
UU
U
CC
CC
C
TT
TT
T
OO
OO
O
RR
RR
R

16
ATTACHMENT POINTS FOR ULTI-MATE BASE
(Continued)
CHILD/JUNIOR SIZECHILD/JUNIOR SIZE
CHILD/JUNIOR SIZECHILD/JUNIOR SIZE
CHILD/JUNIOR SIZE ADULADUL
ADULADUL
ADULT SIZET SIZE
T SIZET SIZE
T SIZE
Front of Seat
MM
MM
M
OO
OO
O
UU
UU
U
NN
NN
N
TT
TT
T
II
II
I
NN
NN
N
GG
GG
G
HH
HH
H
OO
OO
O
OO
OO
O
KK
KK
K
SS
SS
SRear of Seat
Front of Seat
Rear of Seat

17
KSS SYSTEM FEATURES
FRONT VIEW BACK VIEW
FRONT VIEW BACK VIEW
Shoulder
Support
Growth Bracket
Lateral
Support
Shoulder
Support
Lateral
Support
Neck
Support
Lap Belt
(Transport Ready
Option [TRRO]
NOT shown.)
Abductor
Mounting
Hook
Lateral
Support
Lap Belt
Mounting
Hook
Neck
Support
CHILD/JUNIOR SIZE
Ulti-mate Base
Curved
Back
Mounting
Hook
Curved
Back
Mounting
Hook Ulti-mate
Base
Shoulder
Support
Lateral
Support
Neck
Support
Lap Belt (Transport
Ready Option [TRRO]
NOT shown.)
ADULT SIZE
Mounting
Hook
Curved
Back
Lateral
Support
Ulti-mate
Base
Mounting
Hook Abductor
Curved
Back
Ulti-mate Base
Lateral
Support Mounting
Hooks
Neck
Support
Shoulder
Support
Lap Belt
Mounting
Hooks

18
WASHING INSTRUCTIONS - COVERS
Outer Cover
1. Can be machine washed and dried.
2. DO NOT use bleach.
3. We DO NOT recommend machine washing or dry-
ing for colored NEOPRENE child cushion covers.
NOTE: We recommend cleaning the cover on a regular
basis.
Inner Cover (If applicable)
1. Hand wash with a damp cloth.
2. We DO NOT recommend machine washing or dry-
ing.
Neoprene Cover
1. Hand Wash in luke warm water (80OF) in mild deter-
gent.
2. Drip dry in sun.
3. No bleach or toluene.
4. NOT recommended for machine drying.

19

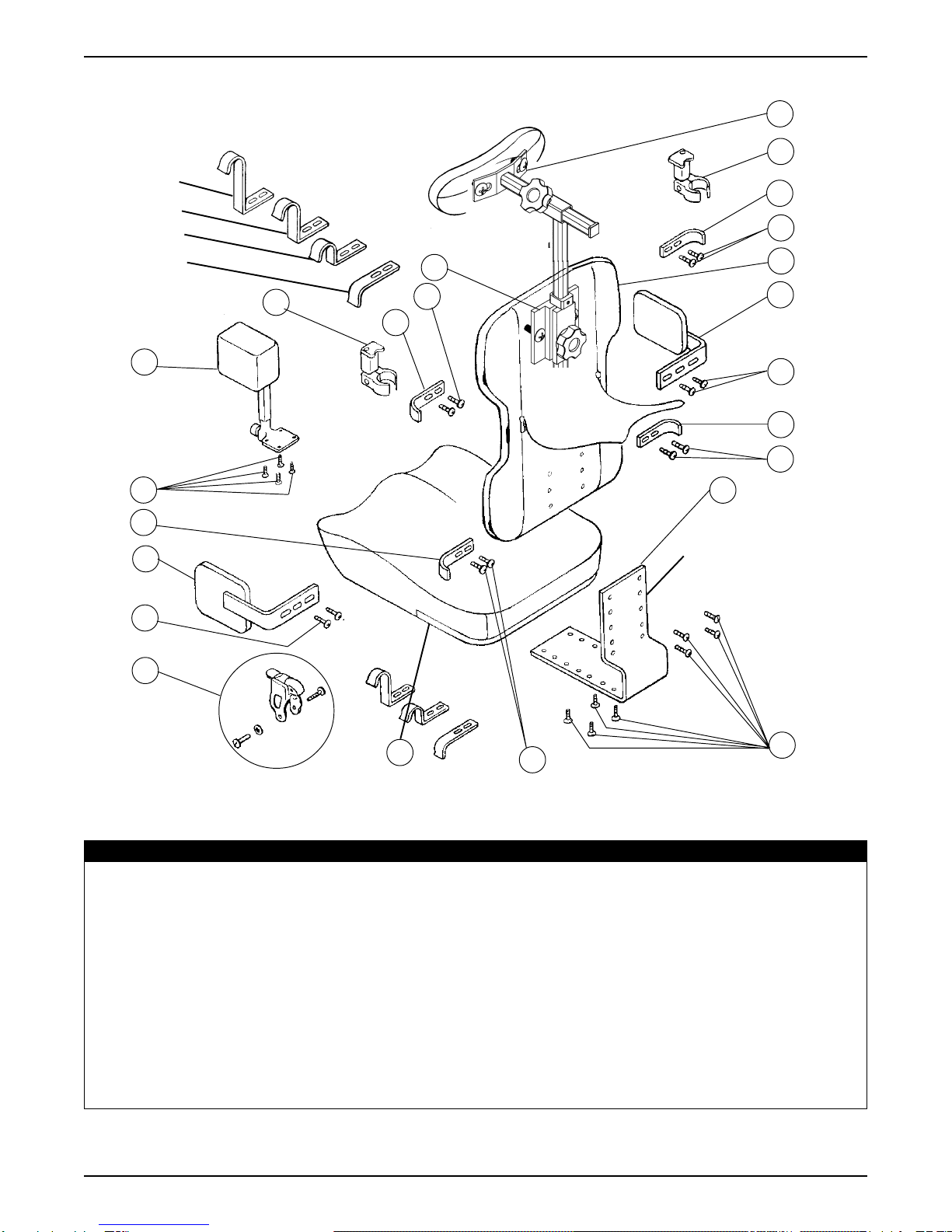

PARTS LIST QUANTITY
ITEM DESCRIPTION CHILD/JUNIOR ADULT
1 CURVED BACK 1 1
2 SEAT 1 1
3 NECK SUPPORT ASSEMBLY 1 1
4 NECK SUPPORT BRACKET 1 1
5 LATERAL SUPPORT 2 2
6 GROWTH BRACKET 1 N/A
7 LAP BELT* 1 1
8 ABDUCTOR 1 1
9 TWIST RELEASE CANE CLAMP ASSEMBLY 2 2
10 QUICK RELEASE RAIL CLAMP ASSEMBLY 2 4
11 MOUNTING HOOKS** 4 8
12 MOUNTING SCREWS INCL INCL
1212
1212
12
33
33
3
99
99
9
1111
1111
11
1212
1212
12
55
55
5
1212
1212
12
1212
1212
12
1111
1111
11
66
66
6
1212
1212
12
1010
1010
10
55
55
5
88
88
8
1212
1212
12
1111
1111
11
1212
1212
12
1212
1212
12
11
11
1
22
22
2
44
44
4
99
99
9
Mounting Hooks available:
3-Inch Drop
2-Inch Drop
1-Inch Drop
Flush Mount
1111
1111
11
* Lap belt not shown
** Mounting hooks available for the seat are: flush mount, 1-inch drop, 2-inch drop, and 3-inch drop
Mounting hooks available for the back are: flush mount, 1-inch recess, 2-inch recess, and 3-inch recess
PARTS LIST - CHILD/JUNIOR AND ADULT ONLY
(NOT FOR TRANSPORT READY OPTION [TRRO])
NOTE: Your Growth
Bracket may have
SLOTS instead of
Adjustment Holes.

INVINV
INVINV
INVAA
AA
ACC
CC
CARE CORPORAARE CORPORA
ARE CORPORAARE CORPORA
ARE CORPORATIONTION
TIONTION
TION lONE INVONE INV
ONE INVONE INV
ONE INVAA
AA
ACC
CC
CAREARE
AREARE
ARE WW
WW
WAA
AA
AYY
YY
Y lPP
PP
P
.O.O
.O.O
.O..
..
.
BoBo
BoBo
Box 4028x 4028
x 4028x 4028
x 4028 lElyrElyr
ElyrElyr
Elyr ia,ia,
ia,ia,
ia, Ohio 44036-2125Ohio 44036-2125
Ohio 44036-2125Ohio 44036-2125
Ohio 44036-2125 l
Phone [phone]Phone [phone]
Phone [phone]Phone [phone]
Phone [phone]
INVACARE CANADA l5970 Chedworth Way lMississauga, Ontario Canada L5R 3T9 l
Phone [phone], Fax [phone]
Form No. 96-306 Part No. 1068446 Rev. C (1) - 7/99 Printed in U.S.A.
LIMITED WARRANTY
PLEASE NOTE: THE WARRANTY BELOW HAS BEEN DRAFTED TO COMPLY WITH FEDERAL LAW APPLI-
CABLE TO PRODUCTS MANUFACTURED AFTER JULY 4, 1975.
This warranty is extended only to the original purchaser/user of our products.
This warranty gives you specific legal rights and you may also have other legal rights which vary
from state to state.
Invacare warrants its product to be free from defects in materials and workmanship for the period
of two (2) years of use by original purchaser. All covers are warranted for 90 days only. If within
such warranty period any such product shall be proven to be defective, such product shall be
repaired or replaced, at Invacare's option. This warranty does not include any labor or shipping
charges incurred in replacement part installation or repair of any such product. Invacare's sole
obligation and your exclusive remedy under this warranty shall be limited to such repair and/or
replacement.
For warranty service, please contact the dealer from whom you purchased your Invacare prod-
uct.Intheeventyou do not receive satisfactorywarrantyservice,pleasewrite directly to Invacare
at the address on the next page. Provide dealer's name, address, model number, date of pur-
chase, indicate nature of the defect and, if the product is serialized, indicate the serial number.
Invacare Corporation will issue a return authorization. The defective unit or parts must be returned
for warranty inspection using the serial number, when applicable, as identification within thirty (30)
days of return authorization date. DO NOT return products to our factory without our prior consent.
C.O.D. shipments will be refused; please prepay shipping charges.
LIMITATIONS AND EXCLUSIONS: THE WARRANTY SHALL NOT APPLY TO PROBLEMS ARISING FROM
NORMAL WEAR OR FAILURE TO ADHERE TO THE ENCLOSED INSTRUCTIONS. IN ADDITION, THE FORE-
GOING WARRANTY SHALL NOT APPLY TO SERIAL NUMBERED PRODUCTS IF THE SERIAL NUMBER HAS
BEEN REMOVED OR DEFACED; PRODUCTS SUBJECTED TO NEGLIGENCE, ACCIDENT, IMPROPER
OPERATION, MAINTENANCEORSTORAGE;ORPRODUCTSMODIFIEDWITHOUT INVACARE'S EXPRESS
WRITTEN CONSENT INCLUDING, BUT NOT LIMITED TO: MODIFICATION THROUGH THE USE OF UNAU-
THORIZED PARTS OR ATTACHMENTS: PRODUCTS DAMAGED BY REASON OF REPAIRS MADE TO ANY
COMPONENT WITHOUT THE SPECIFIC CONSENT OF INVACARE; PRODUCTS DAMAGED BY CIRCUM-
STANCES BEYOND INVACARE'S CONTROL; PRODUCTS REPAIRED BY ANYONE OTHER THAN AN AU-
THORIZED INVACARE DEALER, SUCH EVALUATION SHALL BE SOLELY DETERMINED BY INVACARE.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES, IF ANY,
INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PUR-
POSE.
IT SHALL NOT EXTEND BEYOND THE DURATION OF THE EXPRESSED WARRANTY PROVIDED HEREIN
AND THE REMEDY FOR VIOLATIONS OF ANY IMPLIED WARRANTY SHALL BE LIMITED TO REPAIR OR
REPLACEMENTOFTHEDEFECTIVE PRODUCT PURSUANTTOTHETERMS CONTAINEDHEREIN.INVACARE
SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER.
THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH STATE/PROVINCIAL LAWS AND REQUIRE-
MENTS.
