Invacare TDX Spree Instruction Manual

Yes, you can. ™
Formula™CG Tilt (CGT) Powered Seating
TDX® SC2-CG w/ TDX® SC &
TDX® SPREE-CG w/ TDX® SPREE
Parts Catalog Issued: Apr 24, 2012

The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 08-077. If you have any questions regarding this catalog, please contact one
of our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
HARDWARE MEASUREMENTS
Examples: = Special Comments
= General information pertaining to that specific page
= No Longer Available
NOTE:
NLA
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
A,B,C etc.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
© 2012 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can., the Blue Medallion Design, SureStep, TDX are registered trademarks and MK6i, SPJ,
MPJ, are trademarks of Invacare Corporation.
Otto Bock is a registered trademark of Otto Bock Orthopaedische Industrie GMBH & Co.. Tash is a registered trademark of Tash International Inc.. Therafin is
a registered trademark of
W/R/ Medical Electronics Co.. Bussman is a registered trademark of Cooper Industries. MIDI is a registered trademark of Littelfuse Inc.. Dynamic is a
registered trademark of Dynamic Controls Limited.
Parts Catalog Usage Guide
1
Form No. 08-077
To order call toll free 1-800-333-6900, or www.invacare.com

A: READ THIS FIRST (THIS CATALOG IS DIFFERENT!) ...................................................... 6
Accessories - Back Cane Push Handle Attachments, Conventional Seating .......................... 165
Accessories - Back Pack with Mounting Straps - TDX SPREE ................................................ 184
Accessories - Compact Vent Assembly ................................................................................... 185
Accessories - Headrest Supports - Stealth CP175/CP275/CP180/CP280 .............................. 169
Accessories - Headrest Supports - Tarsys ............................................................................... 167
Accessories - Lateral Supports, Stealth, Contoura Seating TWB-CPR/TWB-CPRL ................ 178
Accessories - Lateral Supports, Stealth, TWB-RPR/TWB-RPRL - TDX SC ............................ 174
Accessories - Lateral Supports, Tarsys, Contoura Seating CSLM/CSLL ................................. 175
Accessories - Lateral Supports, Tarsys, TCSLM/TCSLL - TDX SC ......................................... 171
Accessories - Seat and Chest Positioning Strap Mounting Hardware ..................................... 180
Accessories - Seat and Chest Positioning Straps without Mounting Hardware ....................... 182
Actuator Motor - Tilt and Mounting Hardware .......................................................................... 24
Arms - Mtg. Front/Rear Arm Socket Asbly. & Hdwr., (12"-16" W x 12"-15" D) - TDX SPREE 85
Arms - Mtg. Front/Rear Arm Socket Asbly. & Hdwr., (12"-16" W x 16"-18" D) TDX SPREE &
(16"-20" W x 16"-20" D) TDX SC
87
Arms - w/o Mtg. Hdwr., Adj. Hgt. - (12"-16" Wide) - TDX SPREE ............................................ 89
Arms - w/o Mtg. Hdwr., Adj. Hgt. (16-20" W) - TDX SC ........................................................... 93
Arms - w/o Mtg. Hdwr., Fixed Hgt. (16-20" W) - TDX SC ......................................................... 91
Backs - ABS Curved Assembly - TDX SC ................................................................................ 44
Backs - Contoura without Mounting Hardware - TDX SC - Before 5/15/09 .............................. 31
Backs - Conventional without Mounting Hardware (12"-15" Wide) - TDX SPREE ................... 38
TABLE of CONTENTS
Description
Page
Number
2
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-077

Backs - Conventional without Mounting Hardware (16"-20" Wide) TDX SC & (16" Wide) TDX
SPREE
41
Backs - Curve Contoura without Mounting Hardware - After 5/14/09 ...................................... 34
Backs - Metal Curved Assembly - TDX SC .............................................................................. 50
Backs - Mounting Hardware - Contoura Tilt - TDX SC - Before 5/15/09 .................................. 57
Backs - Mounting Hardware - Curve Contoura - TDX SC - After 5/14/09 ................................ 59
Backs - Mounting Hardware, ABS Curved (16"-20" Wide) - TDX SC ...................................... 64
Backs - Mounting Hardware, Conventional (12"-15" Wide) - TDX SPREE .............................. 61
Backs - Mounting Hardware, Conventional (16"-20" Wide) TDX SC & (16" Wide) TDX SPREE 62
Backs - Mounting Hardware, Metal Curved (16"-20" Wide) - TDX SC ..................................... 66
Canes - Back - Solid Straight w/o Push Handle and Mtg. Hdwr., Conv. Tilt (16"-20" Wide) TDX
SC & (16" Wide) TDX SPREE
73
Canes - Back - Spreader Bar/Push Handle Asbly. (12"-15" Wide) Conv. Back - TDX SPREE 69
Canes - Back - Spreader Bar/Push Handle Asbly. (12"-16" Wide) BPO Option - TDX SPREE 67
Canes - Back (16"-20" Wide) (Contoura Back, ABS & Metal Curved Back and Tilt w/ BPO
Option) - TDX SC
71
Canes - Back Mounting Hardware (12"-15" Wide) Conv. Back - TDX SPREE ........................ 75
Canes - Back Mounting Hardware (12"-16" Wide) BPO Option - TDX SPREE ....................... 77
Canes - Back Mounting Hardware (16"-20" Wide) (Contoura Back, ABS & Metal Curved Back
and Tilt w/ BPO Option) - TDX SC
79
Cushions - Seat - Contoura Seating - TDXSC ......................................................................... 28
Electronics - Dual Legs Integrated Actuator Module (DLIAM) MK6i For ELRPW Front Riggings
- TDX SC
162
Electronics - MK6i ~PLEASE READ THIS ............................................................................... 164
Frame - Seat & Seat Pan w/ Hdwr. (12"-16" Wide) .................................................................. 14
Frame - Seat & Seat Pan w/ Hdwr. (16"-20" Wide) Conv., (16", 18", 20" Wide) Contoura ...... 16
TABLE of CONTENTS
Description
Page
Number
3
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-077

Frame - Seat Mounting Hardware - TDX SPREE .................................................................... 18
Frame Finishes - Touch-Up Paints & Upholstery Options ........................................................ 7
Front Riggings - Adjustable Angle Footplates - AT5543 .......................................................... 120
Front Riggings - Calf Pads and Attaching Hardware ................................................................ 114
Front Riggings - Center Mount Rigging (CTMT-F with CTMTFB One PC Flip-Up Footboard)
After 12/30/09
145
Front Riggings - Center Mount Rigging (CTMT-F with CTMTFB One PC Flip-Up Footboard)
Before 12/31/09
143
Front Riggings - Center Mount Rigging (CTMT-F) - Before 12/10/08 ...................................... 128
Front Riggings - Center Mount Rigging (CTMT-FJ with CTMTFB One PC Flip-Up Footboard)
After 12/30/09
140
Front Riggings - Center Mount Rigging (CTMT-FJ with CTMTFB One PC Flip-Up Footboard)
Before 12/31/09
138
Front Riggings - Center Mount Rigging (CTMT-FJ) - Before 12/10/08 .................................... 126
Front Riggings - Center Mount Rigging (CTMT-J/CTMT-FJ/CTMT/CTMT-F/CTMT-L/CTMT-FL)
(After 12/09/08)
130
Front Riggings - Center Mount Rigging Mtg Hdwr. (12"-16" Wide) - TDX SPREE .................. 149
Front Riggings - Center Mount Rigging Mtg Hdwr. (16"-20" Wide) - TDX SC .......................... 151
Front Riggings - Footrest and Legrest Accessories ................................................................. 123
Front Riggings - Footrest Support Assemblies (Sector Style) .................................................. 103
Front Riggings - Footrest Supports, (Hemi) - PH93M2 ............................................................ 107
Front Riggings - Footrest Supports, (Hemi) - PHW93 .............................................................. 105
Front Riggings - Front Rigging Hanger Hdwr., Pin & Sector Style (12"-20" Wide) ................... 101
Front Riggings - Legrest Supports, Articulating (Hemi) - PHAL4A ........................................... 111
Front Riggings - Legrest Supports, AT5544 ............................................................................. 109
Front Riggings - Pivot/Slide Tube and 1650, 1350 Aluminum Footplates ................................ 118
TABLE of CONTENTS
Description
Page
Number
4
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-077

Front Riggings - Pivot/Slide Tube and 1651 Composite Footplates ......................................... 116
Front Riggings - Power Articulating Legrest - ELRPW/ELRPW22 - TDX SC ........................... 159
Front Riggings - Power Elevating Legrest - Articulating (MPCTMT/MPCTMT-L) (Before
01/01/09) - TDX SC
154
Front Riggings - Power Elevating Legrest (MPCTMT/MPCTMT-L) (After 12/31/08) - TDX SC 156
Front Riggings - Reference Chart - 70ST TAPER .................................................................... 100
Front Riggings - Reference Chart - 90 SWING ........................................................................ 97
Front Riggings - Reference Chart - AT5544, 70NHD, PHW93 ................................................ 95
Front Riggings - Reference Chart - PH93M2 ........................................................................... 98
Front Riggings - Reference Chart - PHAL4A ........................................................................... 99
Label Locations For TRBKTS Options ..................................................................................... 10
Mercury Free Switches and Hardware - TDX SC ..................................................................... 26
Packaging & Literature ............................................................................................................. 8
Seat Height Adjustment Slide Tubes and Mounting Hardware - TDX SC ................................ 12
Spreader Bar Assembly - Conventional (16"-20" Wide) TDX SC & (16" Wide) TDX SPREE .. 81
Spreader Bar Assembly - Double (16"-20" Wide) TDX SC & (14"-16") TDX SPREE w/ BPO
Option
83
Tilt Interface Hardware (Includes Seat Frame Mtg. Hdwr., Prop Rod and Tilt Interface Plate
Hdwr.) TDX SC
20
Tilt Links & Mounting Hardware ............................................................................................... 22
TRBKTS Option Clarification Reference .................................................................................. 11
Warranty Replacement Parts ................................................................................................... 188
TABLE of CONTENTS
Description
Page
Number
5
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-077

A: READ THIS FIRST (THIS CATALOG IS DIFFERENT!)
6
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-077

Frame Finishes and Touch-Up Paint
Color Number Part Number Bottle Size Frame Finish
Wet Black.6 oz.103145024P
Sunny Yellow.6 oz.
1074167
30P See Note(s) B Silver MetallicN/AN/A60P Electric Red.6 oz.104632161P Electric Blue.6 oz.104632062P
Black Prism.6 oz.
1133371
115P See Note(s) A
Bubblegum Pink.6 oz.
1133375
119P See Note(s) B Grape Madness.6 oz.1133376120P Grasshopper Green
.6 oz.1133383127P See Note(s) A
A - Frame finish offered on TDX SC models only
B - Frame finish offered on TDX SPREE models only
NOTE:
Frame Finishes, Touch-Up Paints and Upholstery Options
7
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-077

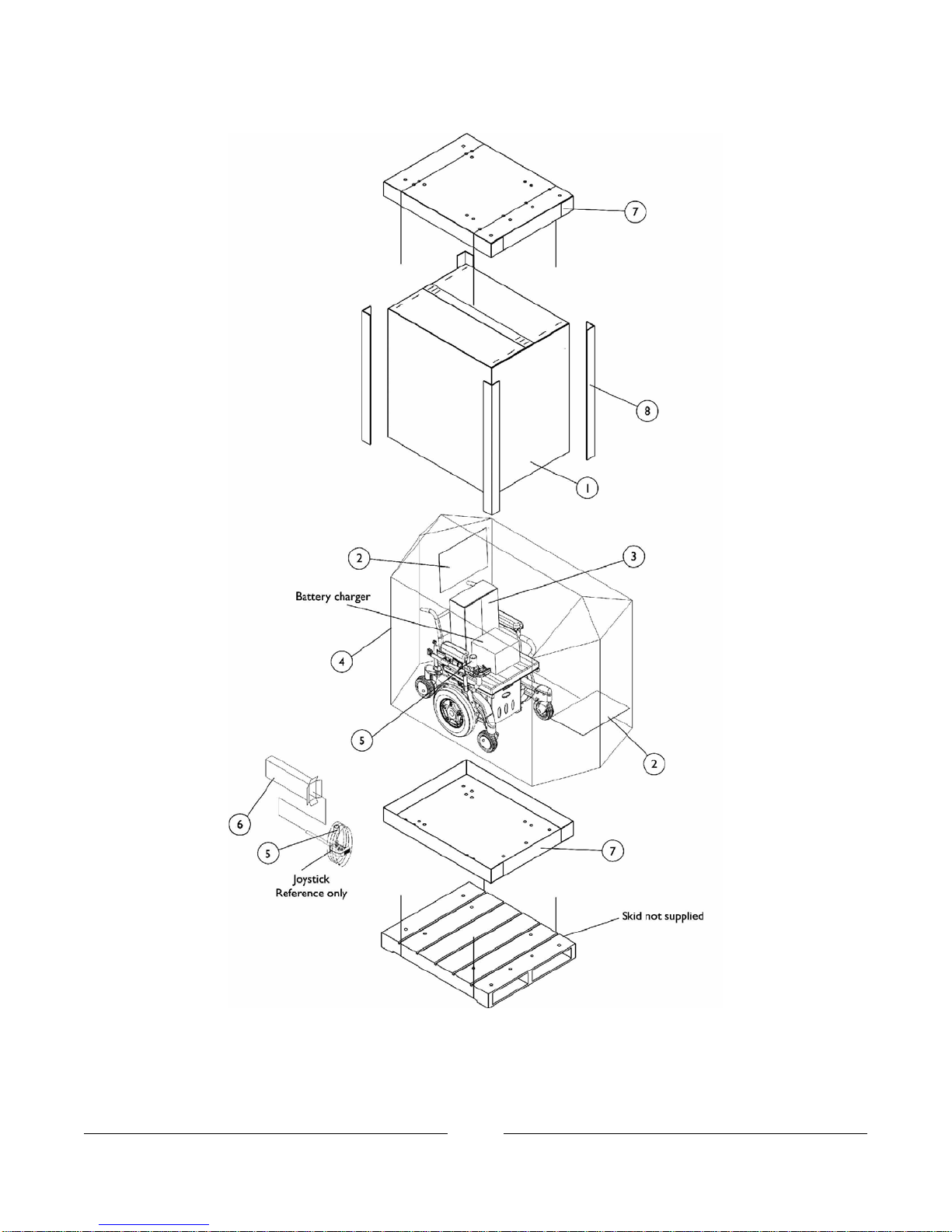

Packaging and Literature
8
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-077

Packaging and Literature
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1030364 Carton, Cover 1 11 A 1031682 Carton, Cover 1 11 B 1036028 Carton, Cover 1 11 C 40131X161 Insert, Plain Pad 1 22 40131X011 Carton, Front Riggings 1 13 1015592 Bag, Poly (72" L x 35" W x 19" D) 1 14 1043198-NLA NLA - Tube, Paper 1 15 1012001 Carton, Joystick 1 16 1030362 Carton, Tray 1 27 D 1036027 Carton, Tray 1 27 E 1115174 Carton, Corner Reinforcement 1 48 D 1129589 Carton, Corner Reinforcement 1 48 B 1129590 Carton, Corner Reinforcement 1 48 E 00077X031-NLA NLA - Warranty Card 1 1
1143155 Owner's Manual, Formula CG Seating 1 1F 1140099 Harness, Drive Lockout Mercury Free Ball Switch
(MK6i) 1 1G
A - 12"-20" wide systems with base
B - 16"-20" wide systems medium/tall seat-to-floor heights with base
C - 16"-20" wide systems with base and Compact Vent
D - 12"-20" wide systems with base
E - 16"-20" wide systems with base and Compact Vent
F - Not Shown
G - For Massachusetts providers only.
When adju
sting or replacing parts, please refer to your Owner's Manual for assistance.
NOTE:
9
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-077

Label Locations For TRBKTS Options
10
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-077

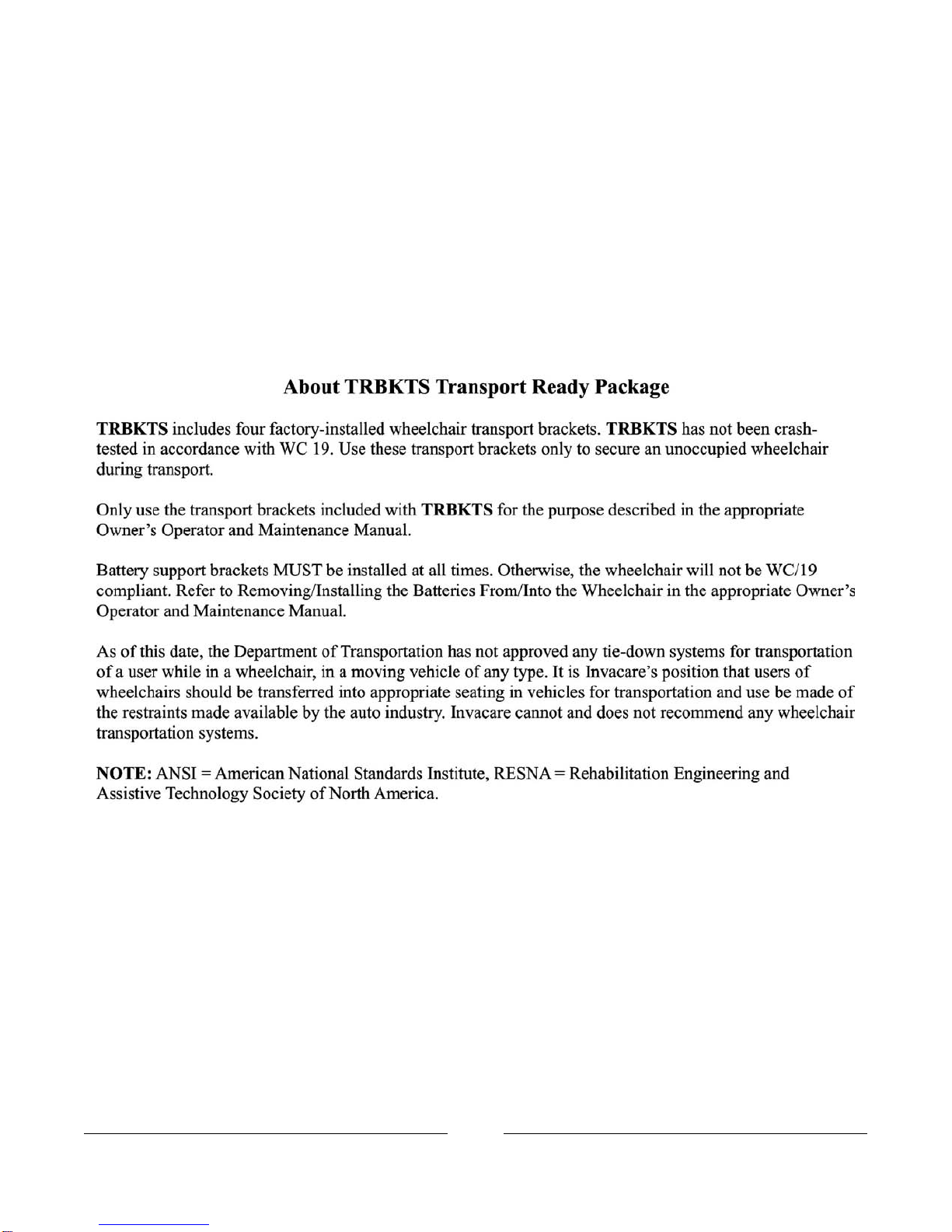

TRBKTS Option Clarification Reference
TRBKTS Option is an On-Chair option only.
11
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-077

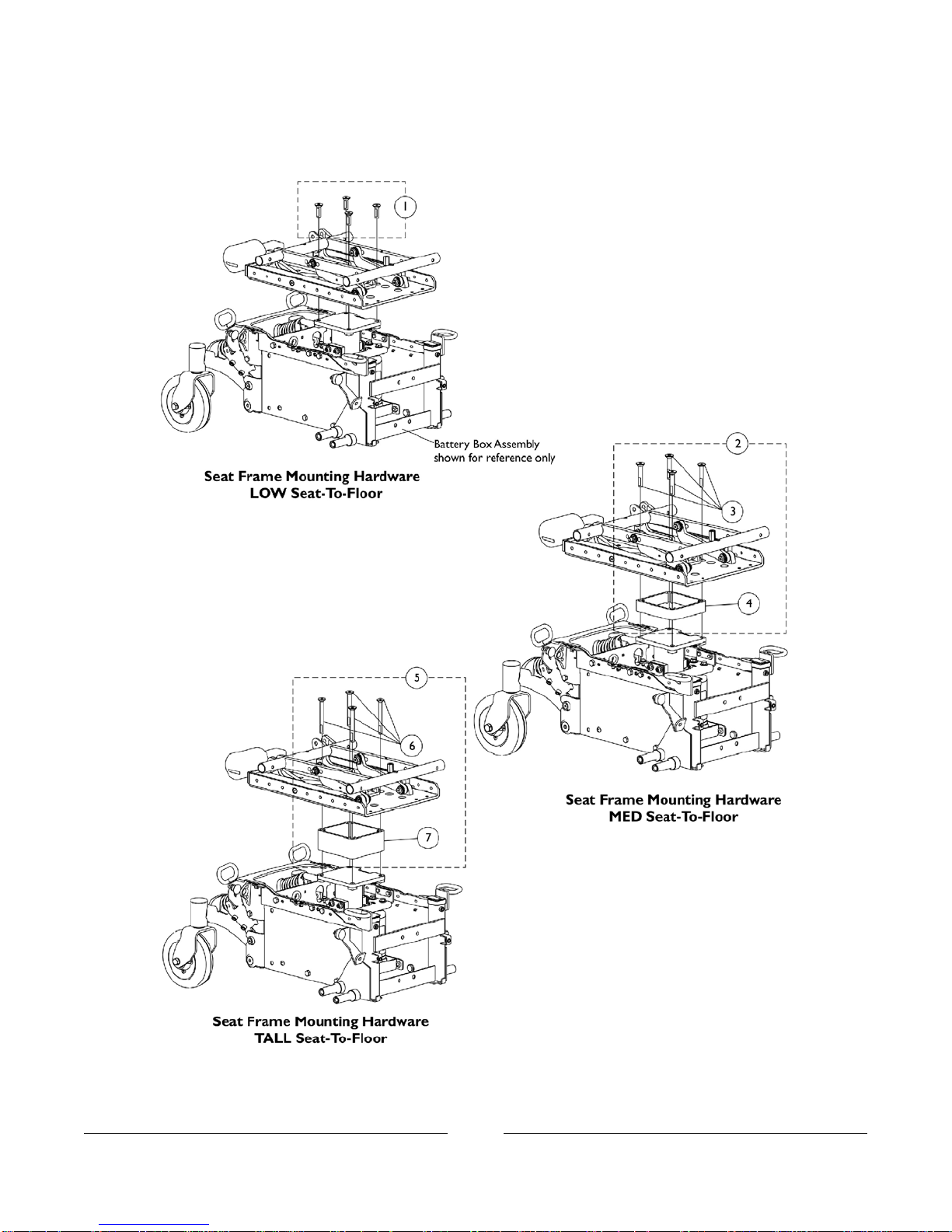

Seat Height Adjustment Slide Tubes and Mounting
Hardware
TDX SC
LOW Seat-To-Floor = 17-3/4", MED Seat-To-Floor = 18-1/2", TALL Seat-To-Floor = 19-1/4"
12
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-077

Seat Height Adjustment Slide Tubes and Mounting
Hardware
TDX SC
LOW Seat-To-Floor = 17-3/4", MED Seat-To-Floor = 18-1/2", TALL Seat-To-Floor = 19-1/4"
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1150900 Tube, Slide, Seat Height Adjustment, Rear - CGT 1 21 1147977 Tube, Slide, Seat Height Adjustment, Front - CGT 1 22 1149556 Tube, Rear Upright, Black - Right 1 13 1149557 Tube, Rear Upright, Black - Left 1 13 1154114 Kit, Seat Height Adjustment Slide Tube Mounting
Hardware 1 14 A
Screw, Socket Head w/ Patch (5/16-18 x 1-1/2") 1 45 Screw, Hex Head w/ Patch (5/16-18 x 1-1/4") 1 46 Washer, Steel (5/16 x 3/4 x 1/16") 1 47 A - Includes items 5-7
NOTE:
13
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-077

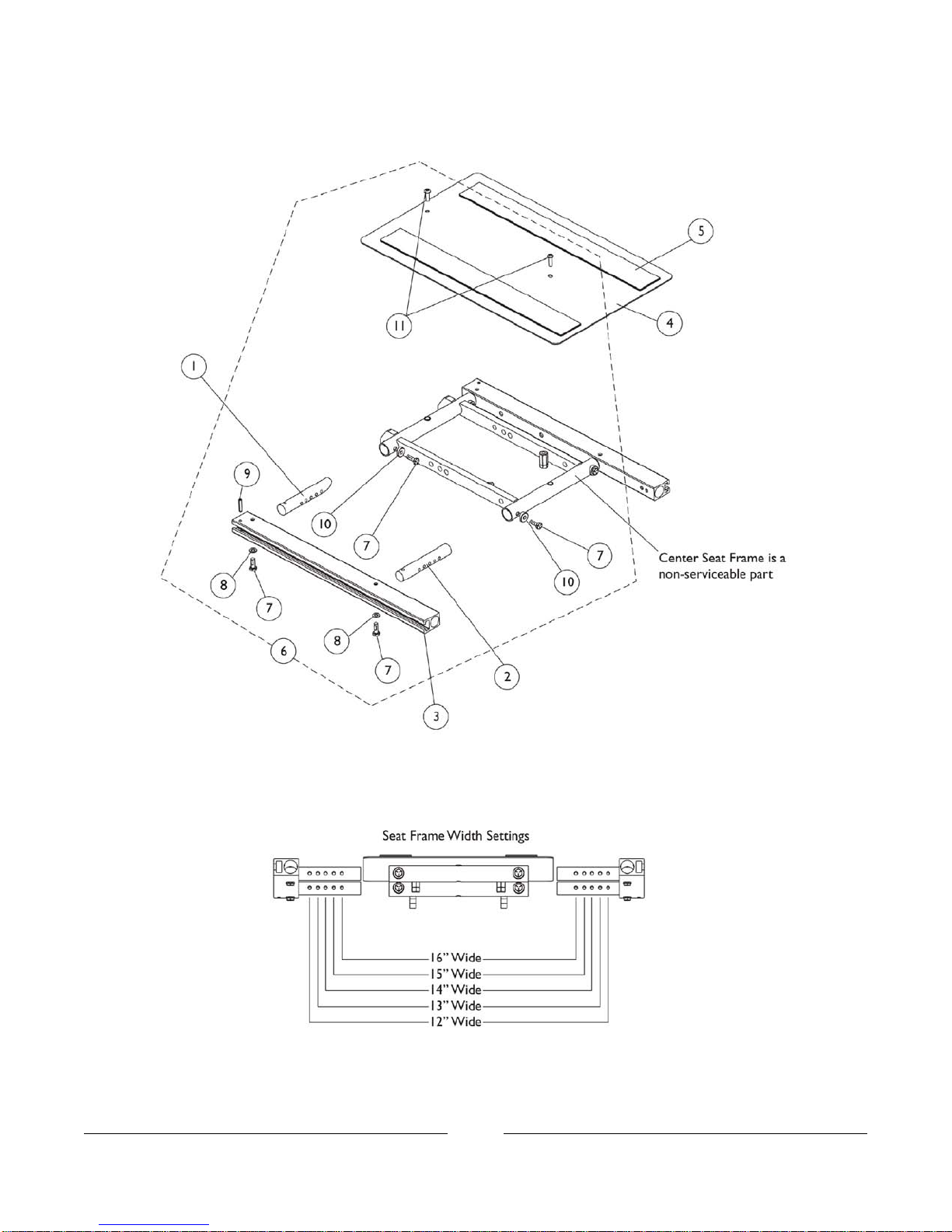

Seat Frame and Seat Pan w/ Hardware
(12"-16" Wide)
14
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-077

Seat Frame and Seat Pan w/ Hardware
(12"-16" Wide)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1156163 Crossbar, Seat Frame, Black (12" - 16" W) 1 21 1142955 Crossbar, Seat Frame, Black (12" - 16" W) 1 22 1142951 Rail, Seat Frame (For 12 - 19" D Conventional) 1 23 1142961 Pan, Seat, with Hook and Loop Fasteners (12 - 16"
W x 12 - 18" D) 1 14 A
1043082 Hook Fastener with Adhesive Back (2" W x 18" L) 1 25 1044580 Loop Fastener with Adhesive Back (2" W x 18" L) 1 25 1144581 Kit, Seat Frame Assembly Hardware (12"-24" Wide) 1 16 B Screw, Hex Head w/ Patch (1/4-20 x 3/4") 1 87 Washer (1/4 x 1/2 x 1/16") 1 48 Pin, Roll (3/16 x 1") 1 29 Spacer, Coved (1/4 x 11/16 x 1/2") 1 410 Screw, Socket Button (1/4-20 x 3/4") 1 211
A - Includes item 5
B - Includes items 7-11
NOTE:
15
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-077

Seat Frame, Seat Pan and Hardware
(16"-20" W x 16"-20" Deep) Conv., (16", 18", 20" Wide x 16"-20" Deep)
Contoura
16
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-077

Seat Frame, Seat Pan and Hardware
(16"-20" W x 16"-20" Deep) Conv., (16", 18", 20" Wide x 16"-20" Deep)
Contoura
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1122475 Crossbar, Seat Frame (16" - 20" W) 1 41 1142951 Rail, Seat Frame (For 12 - 19" D Conventional) 1 22 1142952 Rail, Seat Frame (For 19 - 22" D Conventional) 1 22 1142953 Rail, Seat Frame (For 16 - 19" D Contoura) 1 22 D 1142954 Rail, Seat Frame (For 19 - 22" D Contoura) 1 22 D 1143748 Pan, Seat, with Hook and Loop Fasteners (16 - 20"
W x 16 - 19" D) 1 13
1143789 Pan, Seat, with Hook and Loop Fasteners (16 - 20"
W x 19 - 22" D) 1 13
1043082 Hook Fastener with Adhesive Back (2" W x 18" L) 1 24 A 1044580 Loop Fastener with Adhesive Back (2" W x 18" L) 1 24 A 1043084 Hook Fastener with Adhesive back (2" W x 22" L) 1 24 B 1044584 Loop Fastener with Adhesive back (2" W x 22" L) 1 24 B 1144581 Kit, Seat Frame Assembly Hardware (12"-24" Wide) 1 15 C Screw, Hex Head w/ Patch (1/4-20 x 3/4") 1 86 Washer (1/4 x 1/2 x 1/16") 1 47 Pin, Roll (3/16 x 1") 1 28 Spacer, Coved (1/4 x 11/16 x 1/2") 1 49 Screw, Socket Button (1/4-20 x 3/4") 1 210
A - For 16-19" deep seat pans
B - For 19-22" deep seat pans. TDX SC systems only extend 20" deep only
C - Includes items 6-10
D - When a Contoura Seating System and Power Elevating Legrest (MPCTMT/MPCTMT-L) are ordered "together", the
shorter length 15" or 18" long Conventional Seat Rails must be ordered instead. This will prevent the legrest from being
positioned to far forward.
NOTE:
17
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-077

Seat Frame Mounting Hardware
TDX SPREE
LOW Seat-To-Floor = 16-3/4", MED Seat-To-Floor = 17-3/4", TALL Seat-To-Floor = 18-3/4"
18
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-077

Seat Frame Mounting Hardware
TDX SPREE
LOW Seat-To-Floor = 16-3/4", MED Seat-To-Floor = 17-3/4", TALL Seat-To-Floor = 18-3/4"
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1152751 Package, Screw, Socket Flat Head with Patch
(3/8-16 x 1-1/4") 4 11
1152752-NLA NLA - Screw, Socket Flat Head with Patch (3/8-16 x
1-1/4") 1 41
1154213 Kit, Seat Frame Mounting Hardware (Med
Seat-To-Floor) 1 12 A
Screw, Socket Flat Head with Patch (3/8-16 x
1-1/4") 1 43
Bracket, 1" Seat-To-Floor 1 14 1154214 Kit, Seat Frame Mounting Hardware (Tall
Seat-To-Floor) 1 15 B
Screw, Socket Flat Head with Patch (3/8-16 x
3-1/4") 1 46
Bracket, 2" Seat-To-Floor 1 17 1154215 Screw, Socket Flat Head with Patch (3/8-16 x
1-1/4") 1 43
1154216 Screw, Socket Flat Head with Patch (3/8-16 x
3-1/4") 1 46
A - Includes items 3 and 4
B - Includes items 6 and 7
NOTE:
19
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-077
