Pneumex Pneumex VibroTrac User manual

Key Benefits
 Increase in resting metabolic rate
 Improved bone density
 Improved balance
 Improve muscle strength and performance
 Increase flexibility and range of motion
 Enhance critical blood flow
Instructions
Actual product may vary
Pneumex, Inc. 800.447.5792 [email protected]
Genuine Pneumex Equipment
PneuVibe™ Table
VibroTrac

2
Distributed by Pneumex, Inc.
Pneumex, PneuGait Foot Strap, PneuMAP, PneuBack Chair,
PneuWeight, PneuWalker and PneuVest are trademarks of
Pneumex, Inc.
Copyright 2003 Pneumex
All rights reserved
Visit our web site at
www.Pneumex.com
Pneumex, Inc.
2605 North Boyer Ave.
Sandpoint, ID 83864
Phone 208‐265‐4105
Fax 208‐265‐9651
E‐mail [email protected]
Rev 018
Revised July 17, 2018

3
Contents
Preface ...................................................................... 4
Liability Notice .......................................................... 4
Description And Indications for Use ......................... 5
Maintenance And Troubleshooting ......................... 6
Safety Requirements............................................. 7
Specifications.............................................................7
Components ............................................................. 8
Operating Instructions .............................................. 9
VibroTrac Table Assembly ................................... 9
Use ................................................................... 10
Control Panel .....................................................11
Pelvic Belt.......................................................... 12
Vest ................................................................... 12
Traction Bar Settings......................................................13
Patient Set Up......................................................... 14
Bibliography.............................................................15
Your Warranty ............................................................... 16

4
Preface
This manual contains the operating instructions and service requirements
for the VibroTrac™ . The manual is designed for clinical use. It is expected
that the clinicians will instruct their patients and clients in the proper use of
the system and its accessories. Please read the manual carefully, noting
the Safety Requirements, before using the VibroTrac™ system.
Liability Notice
Failure to follow the conditions set forth below shall absolve Pneumex, Inc.
from any responsibility for the safety, reliability, and performance of this
equipment. It is suggested each operator read the operator manual in full
before using the product for the first time. Each independent user must be
instructed in the proper use of the system and its accessories. The elec‐
trical wiring within the system's settings, must comply with the applicable
local or provincial requirements. The equipment must be used in accord‐
ance with the instructions for use.
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. The limits are
designed to provide reasonable protection against harmful interference in
a typical medical installation. This equipment generates, uses and can
radiate radio frequency energy, and, if not installed and used in accord‐
ance with the manufacturer’s instructions may cause harmful interference
to other devices in the vicinity. However, there is no guarantee that inter‐
ference will not occur in a particular installation. If this equipment causes
interference with other devices, which may be determined by turning the
equipment offand on, the user is encouraged to try and correct the inter‐
ference by one or more of the following measures:
Reorient or relocate the device receiving the interference. Increase the
separation between the equipment. Connect the equipment into an outlet
on a circuit different from that to which the other devices are connected.
 Consult the manufacturer or field service technician for
help.

5
Description and Indications for Use
The VibroTrac™ is a multi‐function physical therapy table intended for
medical purposes that consists of a motorized table which can be
equipped to provide patients with powered distraction, and muscle relaxa‐
tion therapy.
With the VibroTrac™ , traction is created as the tension straps attached to
the Pelvic Belt and/ or the Pneu‐Vest pull against the controlled resistance
of the traction unit. Traction force is regulated between 0 and 200 pounds
and can be applied in several different forms using the Pelvic Belt and/ or
the PneuVest .
The VibroTrac™ has a vibrating top on which the patient rests. This
vibration massage effectively prepares the patient for traction.
The point of traction on any area is at the discretion of the clinician, and
based on a thorough the diagnosis and progress of the patient as a result
of treatment with the VibroTrac™ .
Caution: Federal Law restricts this device to sale by or on the order of a
medical practitioner.
Patients who have pre‐existing conditions spinal frac‐
tures, bone spurs, spondylosis, spinal stenosis, spinal
tumors or are pregnant should check with their physi‐
cian before any vibration therapy.

6
Problem Possible Cause Solution
System will not
start
Not plugged in Make sure unit is plugged in
Fuse Call Pneumex for location of
fuse box 800‐447‐5792
Not turned on Make sure unit is turned on
System vibrates
erratically
Not on level surface Make sure unit is on level
surface.
Not on firm surface We recommend a cement or
ground floor
Traction Bars do
not operate
Not plugged in Make sure unit is plugged in
Not turned on Make sure unit is turned on
Air not working Check compressor and air
fittings
Maintenance and Troubleshooting
Cleaning
Use a soft cloth rinsed in warm water to clean the exterior surfaces.
Disinfection
Use procedures established for your facility.
Schedule Service
No scheduled service is required. For service, call Pneumex: USA &
Canada: 800‐447‐5792 International: 208‐265‐4105

7
Weight 400 lbs
Shipping Wt. 450 lbs
Maximum capacity 450 lbs
Table Height 23 to 40”
Equip Dims 76 x 28”
Electrical 110 Volt
Hz 10 to 60 Hz
Amplitude 1 ‐2 mm preset
Pneumex VibroTrac
Safety Requirements
 Read this manual in full before using the VibroTrac™ Sys‐
tem.
 Do not start the VibroTrac™ System until it is set up on a
level surface and all components are plugged in.
 To avoid potential safety problems, use parts and accesso‐
ries that meet specifications given in this manual.
 Before each use, inspect all electrical plugs and make sure
unit is level. Do not use if the integrity of these items is
questionable.
Specifications
Patients who have pre‐existing conditions spinal fractures,
bone spurs, spondylosis, spinal stenosis, spinal tumors or
are pregnant should check with their physician before any
vibration therapy.

8
Components
Head Traction Bar
Tension Straps Pelvic Belt Table Vest
Rear Traction Bar
Vibration Unit
Mobile Table

9
Operating Instructions
Unpack the VibroTrac™ unit. Retain all packing material until you
are certain you have all the components.
Table Assembly
Your VibroTrac™ Table will come almost completely assembled.
You will have to attach the traction bars and connect the cylinders.
Second pull out the cylin‐
der arm and attach to the
traction bar using the
bolt and washers provid‐
ed.
If problems occur, refer to the trouble‐
shooting guide in this manual. If
problems persist, call Pneumex, Inc.
800‐447‐5792.
First attach the traction bar to the
VibroTrac Table using the bolt and wash‐
ers provided.

10

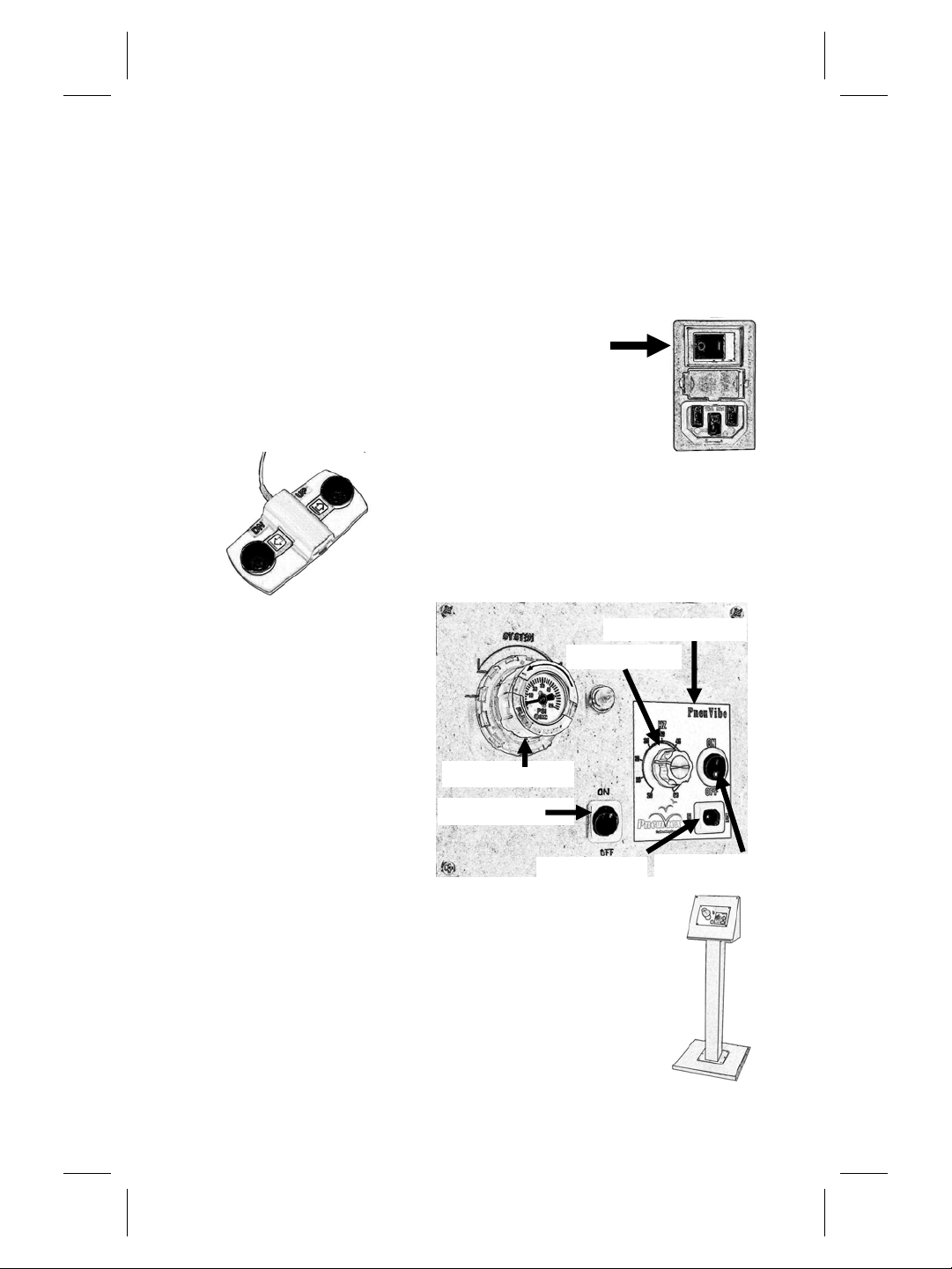

Use
Plug the Hi‐Lo table control in wall outlet. Connect the air hose to
compressor and plug the control panel in wall outlet. On the under
side of the control panel where the power cord is plugged in is an
On / Offswitch.
To operate the Hi‐Lo part of the VibroTrac Table
use foot pedals to raise or lower table to desired
height.
Turning on the Regulator
will engage the intermittent
traction. You can set the
intensity with the Traction
Regulator. Refer to your
treatment protocols for
correct settings.
Turning the Vibe Power on will engage the vibration
unit. Set vibration intensity with Frequency knob to 20
‐60 Hz. Use paddle switch to select vibration amplitude
of Hi or Low.
Traction Regulator
Vibe Frequency
Vibe Power ON/ OFF
Vibe Amplitude
Traction On/Off
Vibration Control
ON/OFF
Switch
TURN UNIT OFF WHEN NOT IN USE
Control Panel
Turn the switch on

11
Accessories
The following items are included in the accessory pack with the ta‐
ble. These accessories can be ordered individually from Pneumex
by calling:
(800) 447‐5792
Item ID Item Description
AC‐Comp Compressor PPT (USA)
FT‐PBL Pelvic Belt Large
FT‐PBM Pelvic Belt Medium
FT‐PBS Pelvic Belt Small
PV‐TABS Vest Table Abilities Small
PV‐TABM Vest Table Abilities Medium
PV‐TABL Vest Table Abilities Large
RP‐VMP Pad Mobilization 3.5" Vibe
SG‐WV 2‐6” Wedge
RP‐CVB70 Velcro Belt 70 in 06
2089P Ball 55cm ‐22" Stability Vibe
RP‐VAT Vibe Ankle Tie

12

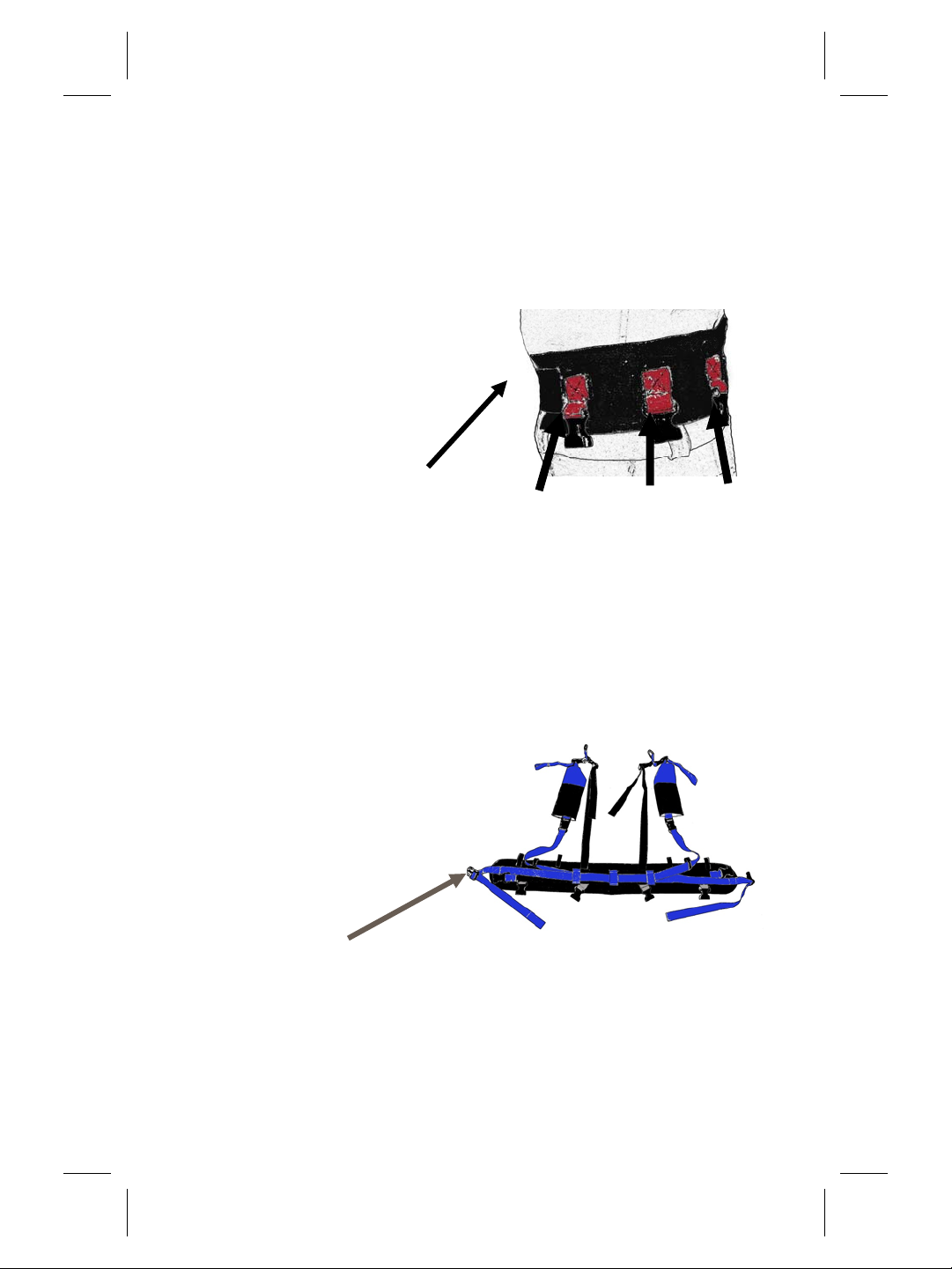

Pelvic Belt
The pelvic Belt is designed to allow the traction bars to apply ten‐
sion to specific areas of the body.
By attaching the Tension Strap to
either the posterior, neutral or an‐
terior position we can create spe‐
cific quadrant tension.
The pelvic belt has a quick
release front buckle that may be used at any time to release
tension if it feels excessive.
Pneumex Vest
The vest is designed to allow the bars to apply tension to the up‐
per body.
By attaching the shoulder strap
S hooks to the head traction bar
we can create specific tension.
The Vest has quick release
front buckle that the patient may terminate treatment at any
time to release tension if it feels excessive.
Anterior Neutral Posterior

13
Traction Bar settings
Patient set up
Put appropriate size Pelvic Belt and Table AbilitiesVest on patient.
Have the patient lie on the VibroTrac Table face up. The table may
be lowered to allow the patient easy access to the table. Raise the
table to a comfortable height for the clinician.
It is recommended that a roll be placed under the neck to keep the
spine in proper alignment.
Low
High
Neutral
Low
High
General set up and use guidelines are included in this Operator’s
Manual. The individualized treatment plans are at the discretion
of the clinician, and based on a thorough diagnosis and progress
of the patient.

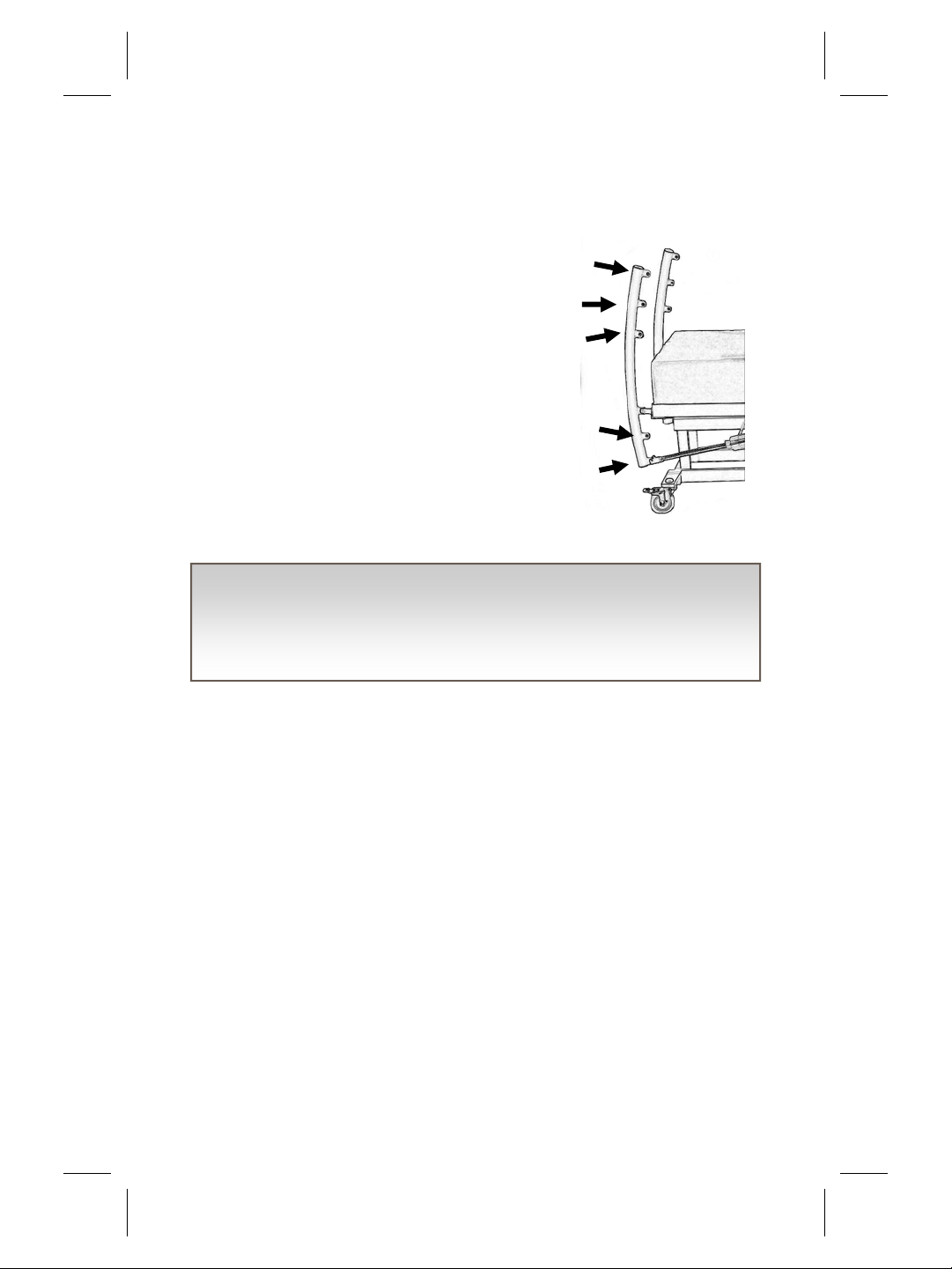

The traction bars at the head and
foot of the VibroTrac Table allow
for variations on the application of
tension.

14

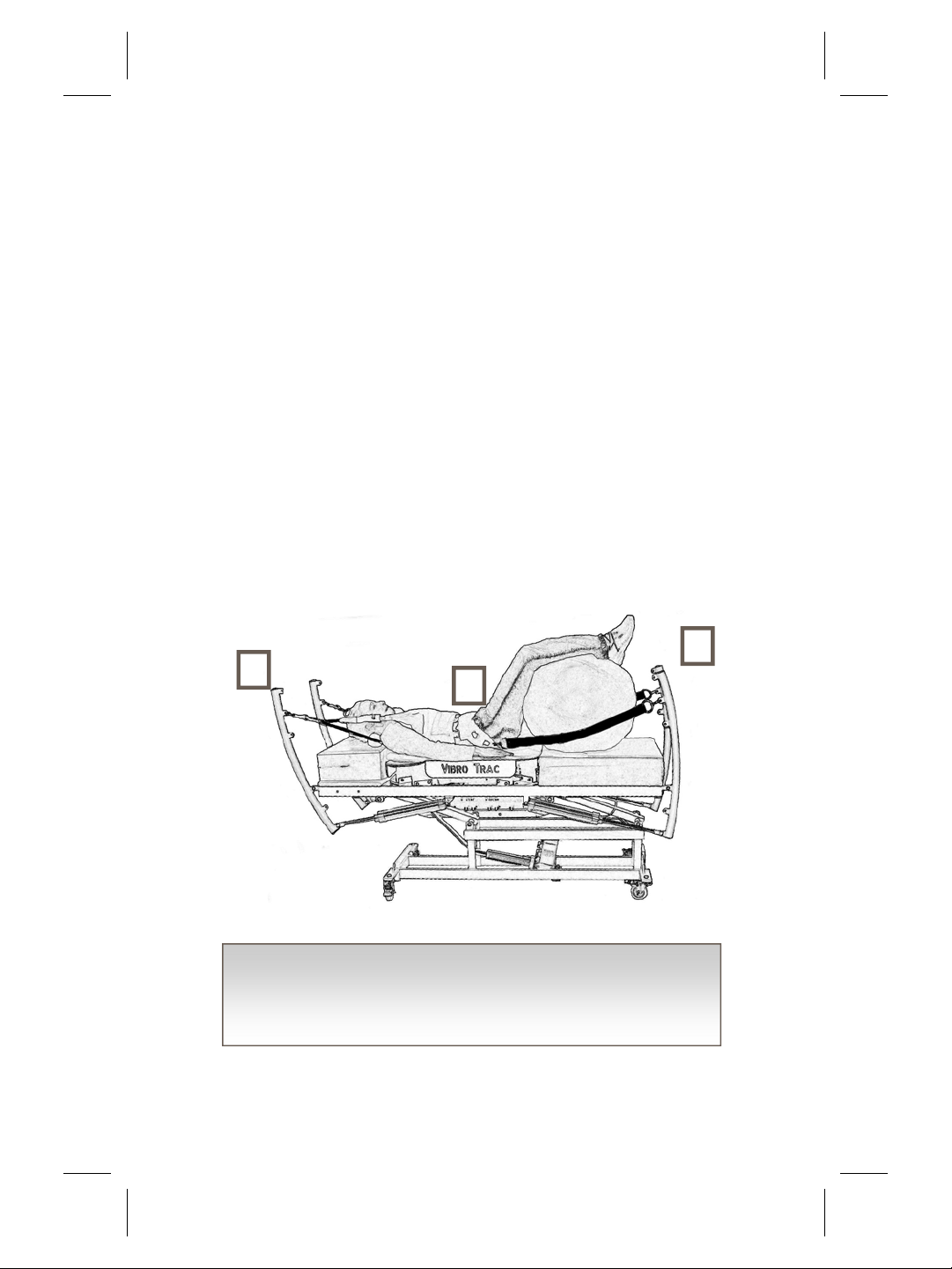

1. Attach the Tension straps to the Pelvic Belt in either the Poste‐
rior, Neutral or Anterior position see Pelvic Belt.
2. Attach the Tension Straps to the Traction Bar at the foot of the
table in highest, neutral or lowest setting.
3. Attach shoulder straps on vest to Traction Bar at the head of the
table in highest, neutral or lowest setting.
4. Turn on the vibration unit starting at 20 Hz.
5. Turn on traction unit and start at approximately 10‐20 lbs.
MAKE sure the patient feels no pain or discomfort. Allow patient to
relax under vibration about 2‐3 minutes before mobilization begins.
The total traction time is 12 min. The intermittent interval will be 45
sec on 15 sec off.
We recommend, for proper spine alignment, you place a
55 cm exercise ball under the patients legs to form a 90°
angle before beginning treatment.
1 2
3

15
Bibliography
Effects of whole‐body vibration in patients with multiple
sclerosis: a pilot study.
Schuhfried O, Mittermaier C, Jovanovic T, Pieber K, Paternostro‐
Sluga T. Department of Physical Medicine and Rehabilitation, Med‐
ical University of Vienna, Austria. oth‐
[email protected]
Adaptive Responses of Human Skeletal Muscles to Vibration
Exposure
C. Bosco 1y2y3,R. Colli 5, E. Introini, M. Cardinale 4, M. Iacovelli' ,
J.Tihanyi 3, S.P. von Duvillard 7, A. Viru 8
The role of Vibratory Massage on Treating Delayed Onset Mus‐
cle Soreness
(2004). Floris Jan Gerko Pietzsch, University of Brighton, Chelsea
School, East Bourne, East Sussex.
Treatment of Chronic Lower Back Pain with Lumbar Extension
and Whole‐Body Vibration Exercise A Randomized Controlled
Trial
Jo¨rnRittweger,MD, *KarstenJust,MD,†KatjaKautzsch,MsPsych,
‡PeterReeg,MD,§andDieterFelsenberg,PhD
EMC Compliance and Warning Statement
 IEC 60601‐1‐2: 2007 andEN 60601‐1‐2: 2007
This equipment has been tested and found to comply with the
limits of the standard for medical devices, IEC 60601‐1‐2.

16
Your Warranty
If a product purchased from Pneumex does not operate properly,
Pneumex will repair or replace it at no charge, for up to one year
from the date shipped. In the course of repair or replacement,
Pneumex may send you written recommendations on how to
prevent a problem from occurring again. Pneumex reserves the
right to withdraw this warranty if recommendations are not
followed. The customer is responsible for freight charges both to
and from Pneumex in all cases.
This warranty does not apply to compressors which are covered by
the compressor manufacturers.
This warranty is exclusive and is in lieu of all other warranties
whether written, oral or implied, including the warranty of fitness
for any particular purpose. Pneumex liability is in all cases limited
to the replacement price of its product. Pneumex shall not be
liable for any other damages, whether indirect, consequential, or
incidental arising from the sale or use of its products.
Pneumex sales personnel may modify this warranty, but only by
signing a specific written description of any modifications.
Pneumex
2605 Boyer Ave
Sandpoint, ID 83864
[email protected]
www.pneumex.com
800‐447‐5792
Log on to www.pneumex.com to activate your warranty registration.
Your purchase includes a training that will help you get the most out of your
PneuVibro Trac Table. Our experts can answer your question and help you
on the way to utilizing your new equipment in the best possible way. Call
800‐447‐5792 today to schedule your in‐service.
