PNI SafeHome PT180LV
Smart relay / Releu inteligent
EN User manual ............................................. 2
RO Manual de utilizare ................................... 5
User manual 2
English
Technical specifications
• Rated voltage: 7-32V or 5V (by micro USB)
• Rated current: max. 10A
• Frequency AC: 50-60Hz
• USB power adapter: output >1A
Product description
Note: Before installing the relay, disconnect the general power supply.
Tuya Smart APP
Download the Tuya Smart app by accessing Google Play or the App Store or
scan the QR codes below:
Android iOS
3User manual
English

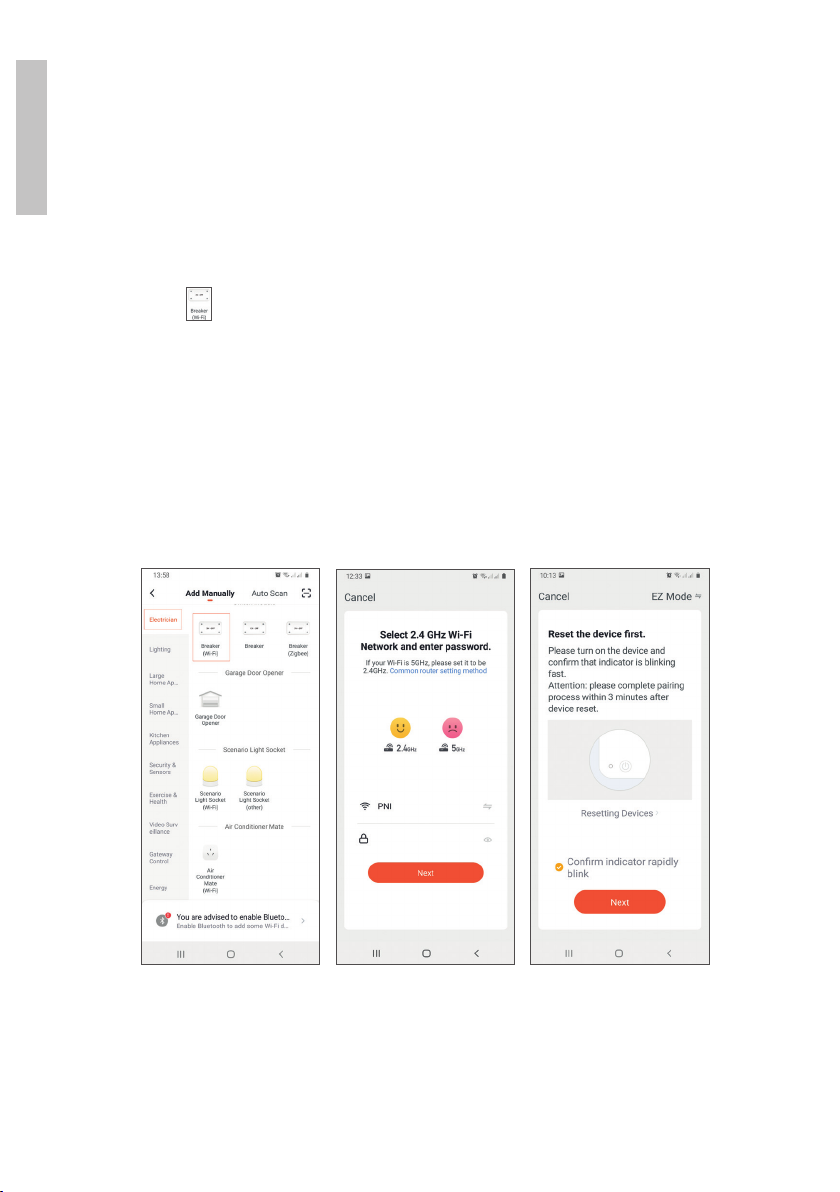

Add device in Tuya Smart APP
1. Open the application, create an account and log in.
2. Add your device by clicking the +icon in the upper right corner of the
screen or by clicking the Add device button (this button only appears
when you do not have any devices added to the application).
3. Select the Electrician option on the left side of the screen.
4. From the list of devices on the right side of the screen, select Breaker
(Wi-Fi).
5. Select the WiFi network you want to connect to and add the password.
6. In the next interface, in the upper right corner, select the EZ Mode
option.
7. Reset the relay by long pressing the pairing button. The device is now in
pairing mode.
8. Check the Confirm indicator rapidly blinks option and click Next.
9. The application will scan nearby devices. After identifying your device,
you will receive the Added successfully confirmation.
10. To finish, click the Done button.
User manual 4
English
Device control in the application
The Tuya Smart application allows remote control of the relay.
Options:
• On/O
• Timer
• Countdown
Safety warnings
• Make sure that the total power of the connected electrical devices does
not exceed the maximum power supported by the relay (2200W for
230V).
• The installation of the relay must be done only by specialized electricians
respecting the local norms.
• Take all safety precautions when installing the relay.
• Protect the relay from moisture and excessive heat. Risk of short circuit.
• Install the relay away from sources of interference (eg microwave oven)
that could aect its operation.
• Do not attempt to repair the relay by yourself.
Manual de utilizare
Romana
5
Specificatii tehnice
• Tensiune nominala: 90-250V AC
• Curent nominal: max. 10A
• Frecventa AC: 50-60Hz
• Adaptor USB: iesire >1A
Descriere produs
Nota: Inainte de a instala releul, intrerupeti alimentarea generala de curent.
Aplicatia Tuya Smart
Descarcati aplicatia Tuya Smart accesand Google Play sau App Store sau
scanati codurile QR de mai jos:
Android iOS
Manual de utilizare
Romana
6
Adaugare dispozitiv in aplicatia Tuya Smart
1. Deschideti aplicatia, creati-va cont si autentificati-va.
2. Adaugati dispozitivul dvs. apasand pictograma +din coltul dreapta sus al
ecranului sau apasand butonul Add device (acest buton apare doar atunci
cand nu aveti nici un dispozitiv adaugat in aplicatie).
3. Selectati din partea stanga a ecranului optiunea Electrician.
4. Din lista de dispozitive din partea dreapta a ecranului, selectati Breaker
(Wi-Fi) .
5. Selectati reteaua WiFi la care doriti sa va conectati si adaugati parola.
6. In interfata urmatoare, din coltul dreapta sus, selectati optiunea EZ Mode.
7. Resetati releul apasand lung butonul de imperechere. Acum dispozitivul
se afla in modul de imperechere.
8. Bifati optiunea Confirm indicator rapidly blinks si faceti click pe Next.
9. Aplicatia va scana dispozitivele din apropiere. Dupa ce va identifica
dispozitivul dvs., veti primi confirmarea Added successfully.
10. Pentru a finaliza, faceti click pe butonul Done.
Manual de utilizare
Romana
7
Control dispozitiv din aplicatie
Aplicatia Tuya Smart permite controlul de la distanta al releului.
Optiuni:
• Pornire/Oprire (On/O)
• Programare orara (Timer)
• Cronometru (Countdown)
Atentionari de siguranta
• Asigurati-va ca puterea totala a dispozitivelor electrice conectate nu
depaseste puterea maxima suportata de releu (2200W pentru 230V).
• Instalarea releului trebuie facuta doar de electricieni specializati
respectand normele locale.
• Luati toate masurile de siguranta cand instalati releul.
• Feriti releul de umiditate si caldura excesiva. Risc de scurcircuit.
• Instalati releul la distanta de surse de interferente (de ex. cuptorul cu
microunde) care ar putea afecta modul de functionare al acestuia.
• Nu desfaceti si nu incercati sa reparati singur releul.
EN:
EU Simplified Declaration of Conformity
SC ONLINESHOP SRL declares that Smart relay PNI SafeHome PT180LV
complies with the Directive EMC 2014/30/EU and RED 2014/53/UE. The
full text of the EU declaration of conformity is available at the following
Internet address:
https://www.mypni.eu/products/7242/download/certifications
RO:
Declaratie UE de conformitate simplificata
SC ONLINESHOP SRL declara ca Releu inteligent PNI SafeHome
PT180LVeste in conformitate cu Directiva EMC 2014/30/EU si RED
2014/53/UE. Textul integral al declaratiei UE de conformitate este disponibil
la urmatoarea adresa de internet:
https://www.mypni.eu/products/7242/download/certifications
