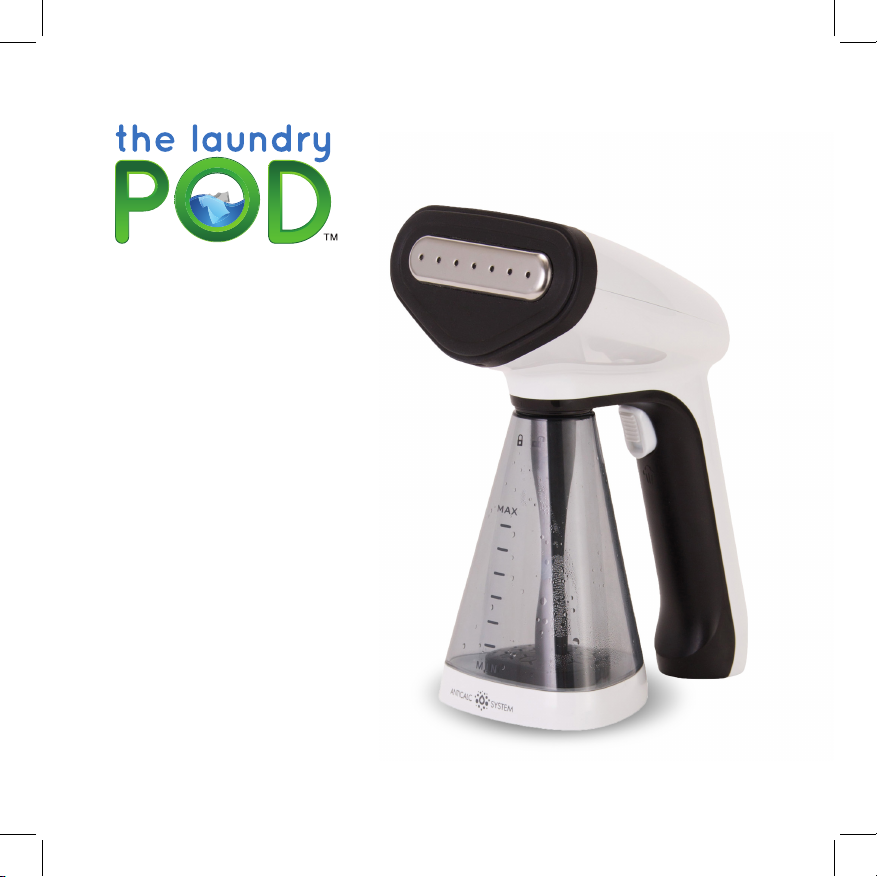

POD LPHS300BK User manual

Instruction Manual LPHS300BK
STEAMER
PORTABLE

Important Safeguards ............................................... 4-6
Parts & Features .............................................................7
Setting Up Your Portable Steamer...............................8
Using Your Portable Steamer .................................9-11
Maintenance ..........................................................12-13
Recipes ...................................................................14-25
Customer Support...................................................... 26
Warranty ...................................................................... 27
STEAMER
PORTABLE

4 ∙ important safeguards
• This appliance is not intended
for use by persons (including
children) with reduced physical,
sensory, or mental capabilities,
or lack of experience and knowl-
edge, unless they have been
given supervision or instruction
concerning use of the appliance
by a person responsible for their
safety. Children should be super-
vised to ensure that they do not
play with the appliance.
• If the supply cord is damaged, it
must be replaced by the man-
ufacturer, its service agent, by
qualified persons in order to
avoid a hazard.
• Care should be taken when using
the appliance due to the emis-
sion of steam.
• Always unplug the Portable
Steamer before attaching or de-
taching the Fabric Brush during
filling, cleaning, and descaling.
• Carefully read all instructions be-
fore operating the handheld Por-
table Steamer for the first time
and save for future reference.
• Any maintenance other than
cleaning should be performed at
an authorized service center.
• Remove and safely discard any
packaging material and promo-
tional labels before using the Por-
table Steamer for the first time.
PLEASE READ AND SAVE THIS
INSTRUCTION AND CARE MANUAL
When using electrical appliances, basic safety precautions should be followed,
including:
Important safeguards

important safeguards ∙ 5
• To eliminate a choking hazard
for young children, remove and
safely discard the protective cov-
er fitted to the power plug of this
Portable Steamer.
• Do not place the Portable
Steamer near the edge of a
bench or table during operation.
Ensure that the surface is level,
clean, and free of water and
other substances.
• Always ensure the Portable
Steamer is properly assembled
before use. Only use the attach-
ments or accessories provided
and specified in this book.
• Do not use outdoors or in bath-
rooms.
• Do not leave the Portable
Steamer unattended when con-
nected or in use.
• If the Portable Steamer is not
used for an extended period,
disconnect the Portable Steamer
from the power outlet.
• Allow the Portable Steamer to
cool completely before storing
the Portable Steamer.
• Always place the Portable Steam-
er on its base when storing. Do
not leave the Portable Steamer
unattended while connected.
• Do not store the Portable Steam-
er with water in the Water Tank.
Always empty the tank after use.
• Do not touch hot surfaces. High
temperatures are generated
during use, which could cause
burns. Always position your
hands at the neck of the Porta-
ble Steamer when holding it and
warn others (especially children)
of the possible dangers of burns
from steam, hot water, or hot
parts.
• Store the Portable Steamer out of
Important safeguards

6 ∙ important safeguards
reach of children.
• The Portable Steamer is not to
be used if it has been dropped, if
there are visible signs of dam-
age, or if it is leaking.
• The Portable Steamer is de-
signed for household use and to
be used with tap water. Do not
put perfume, vinegar, or other
chemicals in the tank.
• Do not touch the Steam Head
during use. When using the
Portable Steamer, make sure the
steamer head is facing away
from you and in an upright posi-
tion.
• Always test the Portable Steamer
on a small, discreet part of the
fabric to ensure the temperature
is not too high for the fabric.
• To prevent damage to the Porta-
ble Steamer, do not use alkaline
cleaning agents when cleaning;
use a soft cloth and mild deter-
gent.
• The Portable Steamer incorpo-
rates a thermal safety fuse to
protect the Portable Steamer
from overheating. The Portable
Steamer should not be left unat-
tended while it is connected to
the power outlet.
• Do not fill the Water Tank past
the MAX indicator line as this
may cause the water to leak.
• There may be leakage from
the Steam Head if the Portable
Steamer temperature is not
high enough to vaporize water
and create steam. Ensure that
the Portable Steamer is always
preheated for 2-3 minutes prior
to use.
• Never use the Portable Steamer
while clothes are on the body, or
direct the steam towards people
Important safeguards

important safeguards ∙ 7
or animals.
• Do not allow the cord to touch
hot surfaces.
• Keep the Portable Steamer clean.
Follow the cleaning instructions
provided in this book.
PLEASE READ AND SAVE THIS
INSTRUCTION AND CARE MANUAL
Important safeguards

8 ∙ important safeguards
Important safeguards
IMPORTANT SAFEGUARDS FOR ALL ELECTRICAL APPLIANCES:
Fully unwind the power cord before use.
• Do not let the power cord hang over the edge of a bench or table, touch
hot surfaces, or become knotted.
• To protect against electric shock, do not immerse the power cord, power
plug, or appliance in water or any other liquid, or allow moisture to come
into contact with the part.
• It is recommended to regularly inspect the appliance. To avoid a
hazard, do not use the appliance if power cord, power plug, or appliance
becomes damaged in any way. Return the entire applianceto the nearest
authorized service center for examination and repair.
• This appliance is for household use only. Do not use this appliance for
anything other than its intended use. Do not use in moving vehicles or
boats. Do not use outdoors.
• The installation of a residual current device (safety switch) is recommend-
ed to provide additional safety protection when using electrical appli-
ances. It is advisable that a safety switch with a rated residual operating
current not exceeding 30mA be installed in the electrical circuit supplying
the appliance. See your electrician for professional advice.
• Always turn the appliance to the ‘OFF’ position, switch off at the power
outlet, unplug at the power outlet, and remove the power cord from the
appliance. Allow all parts to cool.

important safeguards ∙ 9
Important safeguards
• Do not place this appliance on or near a heat source.
• Position the appliance at a minimum distance of 8 inches away from
walls, curtains, and other heat or steam sensitive materials, and provide
adequate space above and on all sides for air circulation.

10 ∙ parts & features
parts & Features
B
A Stainless Steel Panel
B Steam Head
C Upper Cover
D Decorative Cover
E Power Button
F Indicator Light
G Cord Guard
H Handle
I Steam Button
J Handle Cover
K Bottom Cover
L Water Inlet Cover
M Water Tank
N Bottle Connector
O Fabric Brush L
O
N
G

parts & features ∙ 11
parts & Features
K
M
J
H
I
C
B
AD
F
E

12 ∙ setting up your portable steamer
SETTING UP YOUR PORTABLE STEAMER
BEFORE FIRST USE:
• Remove any sticker or protective cover from the Steam Head.
• Unwind and straighten the cord before use.
• When operating the Portable Steamer for the first time, allow it to
steam for a few minutes. This will remove any impurities and odors that
may have been left by the manufacturing process.
• When operating the Portable Steamer for the first time, you may
want to try the steamer on an old piece of fabric before steaming your
Portable.
• Warning: to avoid an electrical circuit overload, it is recommended that
no other appliances are plugged into the same circuit as your Portable
Steamer when it is in use.
Note: when unpacking the Portable Steamer, check to see you have re-
ceived all the items listed in the parts list before discarding the
packaging.
GETTING STARTED:
1. Rotate and pull out the Water Tank, open the Water Inlet Cover, and fill
with tap water until it reaches the MAXIMUM level. Always ensure the
Water Tank is at least a third full. Do not exceed the MAXIMUM level
when filling the Water Tank.
2. Hold the appliance with your hand positioned safely at the neck of the
Portable Steamer. Use your other hand to attach the Fabric Brush onto
Setting up your portable steamer

setting up your portable steamer ∙ 13
the Steam Head. The Fabric Brush can be attached either way and will
lock into position with an audible ”click”.
3. Connect the appliance to a power outlet and switch “On”. Press the
Power Button, the red power Indicator Light will be flashing when the
appliance begins to heat. When the red light stops flashing and the
blue light turns on, then you can start using the appliance.
4. Press the Power Button again and the light will turn green. This is the
ECO mode.
5. Switch off the steamer by holding down the Power Button for more
than two seconds. When the appliance is off, the Indicator Light will
extinguish.
6. Once the water is filled to the MAXIMUM level and the appliance is
connected to the power outlet, allow the Portable Steamer to preheat
before use.
7. The Portable Steamer has an intelligent automatic power-off function.
When the user stops operating this product for more than eight
minutes, the product’s internal control circuit will cut off the power sup-
ply. This ensures safety and conserves energy.
8. The Portable Steamer has a Bottle Connector, it can be used to con-
nect a water bottle instead of the Water Tank, this is convenient to use
when traveling.
Setting up your portable steamer

14 ∙ using your portable steamer
HOW TO STEAM YOUR GARMENTS:
The Portable Steamer is easy to use and is perfect for removing wrin-
kles/creases from garments and curtains, as well as refreshing furnishing
fabrics. It can be used on most fabrics as long as the fabric is hanging, or
where the Portable Steamer can be in an upright position moving over the
fabric.
NOTE: The Portable Steamer is designed to be used in an upright position
on hanging fabrics. Refrain from using the steamer in or on garments in a
horizontal position.
1. Check that there is ventilation behind the fabric, otherwise moisture
may build up causing mildew.
2. Check that garment pockets are empty and turn-ups such as cuffs
and hems are down.
3. Hang the garment from a hanger and stretch the fabric slightly with
one hand, checking that there is nothing behind the fabric that can be
damaged by the steam.
NOTE: we recommend you do not steam over metal accessories. Use
caution and steam around the metal accessories.
1. Press and hold down the Steam Button. You will feel vibrations and
hear a subtle humming sound while steaming; this is normal. Steam
the garment facing away from you and in an upright position.
using your portable steamer

using your portable steamer ∙ 15
2. Gently press the Fabric Brush against the garment, moving your arm
in an up and down motion, targeting creases in the fabric.
3. Release the Steam Button to stop the steam.
NOTE: Ensure that the fabric is stretched whilst steaming for best results.
1. If using the Portable Steamer without the Fabric Brush, keep a distance
of at least 3 inches between the Steam Head and the garment.
TO STEAM CURTAINS:
1. Wash and dry curtains as directed, according to the fabric type.
2. Hang the curtains and steam them when they are hanging in place.
3. Lightly stretch the curtains with one hand, while steaming to help
remove creases.
TO STEAM UPHOLSTERY:
1. The Portable Steamer can be used to help freshen upholstery and slip
covers on furniture and cushions.
2. Keeping the Portable Steamer in an upright position, lightly steam
over the fabric of your furniture. Cushions should be removed and
held upright for steaming. Allow cushions to dry thoroughly before
replacing on the furniture.
NOTE: It is recommended that you use the Fabric Brush attachment when
steaming delicate fabrics such as silk.
using your portable steamer

16 ∙ using your portable steamer
WARNING: if the garment has metal accessories, be cautious and do not
hold the Portable Steamer directly over the metal as this may discolor
the metal.
NOTE: If the unit becomes noisy with a loud humming sound and no
steam is being generated, check the water level in the Water Tank. This
may indicate that the Portable Steamer is out of water and needs to be
refilled.
AFTER EACH USE:
• Press the Power Button, switch the power off at the power outlet,
and disconnect the power cord from the power outlet.
• Open the Water Tank inlet and (over a sink or bucket) invert the
Water Tank to empty the remaining water.
• Stand the Portable Steamer on its base and allow to cool.
using your portable steamer

maintenance ∙ 17
CARE AND CLEANING:
• Remove the Fabric Brush from its Steam Head and clean using a
damp cloth.
• Do not use harsh or abrasive cleaning agents or solvents.
• Do not put the Portable Steamer in water or any other liquid.
• Do not drop, throw, or try and bend the Steamer.
• Always empty the Water Tank after each use and rinse with clean
water.
• Wipe outer surfaces with a damp cloth.
• Avoid operating the appliance in humid or moist places.
• Do not store the appliance near a heat source or direct sunlight.
• Always ensure the steam outlet hole is clean, free from scaling, and
not blocked.
Maintenance

18 ∙ maintenance
STORAGE: Once the Portable Steamer has been disconnected from the
power outlet, allowed to cool, the water tank has been emptied of
water, and cleaned, wrap the cord safely around the Steamer to store
in an upright position.
DISPOSAL:
We recommend that you store the Portable Steamer on a flat surface. Do
not dispose of electrical appliances as unsorted municipal waste. Use
separate collection facilities. Contact your local government for informa-
tion regarding the collection systems available. If electrical appliances
are disposed of in landfills or dumps, hazardous substances can leak into
the groundwater and get into the food chain, damaging your health and
well-being.
Maintenance

troubleshooting ∙ 19
troubleshooting
PROBLEM SOLUTION
The Steamer does
not heat up
Check main plug is inserted correctly.
Check power supply. Check Power Button.
The Steamer does not
produce steam
Check the water level and the Water Tank
Inlet cover is properly covered. Press the
steam activation button harder. Hold the
Steamer in an upright position.
Water spills from
the Water Tank
Make sure water is not over the MAXIMUM
level. Make sure Water Tank inlet cover is
properly closed. Always use the steamer
in an upright position as per the operating
instructions.
The Steamer is producing
a loud humming or
pumping sound
Check water level; if there is no water
or it is low, refill the Water Tank.

troubleshooting
PROBLEM SOLUTION
The Steamer does not
seem to be removing
creases easily
Hold the Steamer in an upright position
and stretch the fabric downward to
ensure best results.
Unsure when to use
the Fabric Brush
Use when steaming delicate fabric, such
as silk to reduce the risk of water dripping
onto the garment while steaming.
Avoiding discoloring
of metal accessories on
the garment
Do not directly hover the Portable Steamer
over the metal accessories. Use caution
and steam around the metal accessories.
20 ∙ troubleshooting
