Polar Electro 7514-0050 User manual

DEAR USER
Thank you for purchasing this digital screwdriver.
This manual will help you use the many features of
your new digital screwdriver.
Before operating the screwdriver, please read this
manual completely, and keep it nearby for future
reference.
INSTRUCTION MANUAL
MODEL
7514-0050
7514-0200
7514-0400
PRODUCT TYPE
DIGITAL SCREWDRIVER
MAIN FEATURES
■Digital torque value readout.
■+/- 2.5% or 3% accuracy.
■CW and CCW operation.
■Peak and hold track mode selectable.
■Buzzer and LED indicator for the 9 pre-settable
target torques.
■Engineering units (cNm, in-lb, kg-cm)
selectable.
■50 data memories for recall and joint torque
auditing.
■Auto power off after about 5 minutes idle.
■Rechargeable batteries are compatible.

2

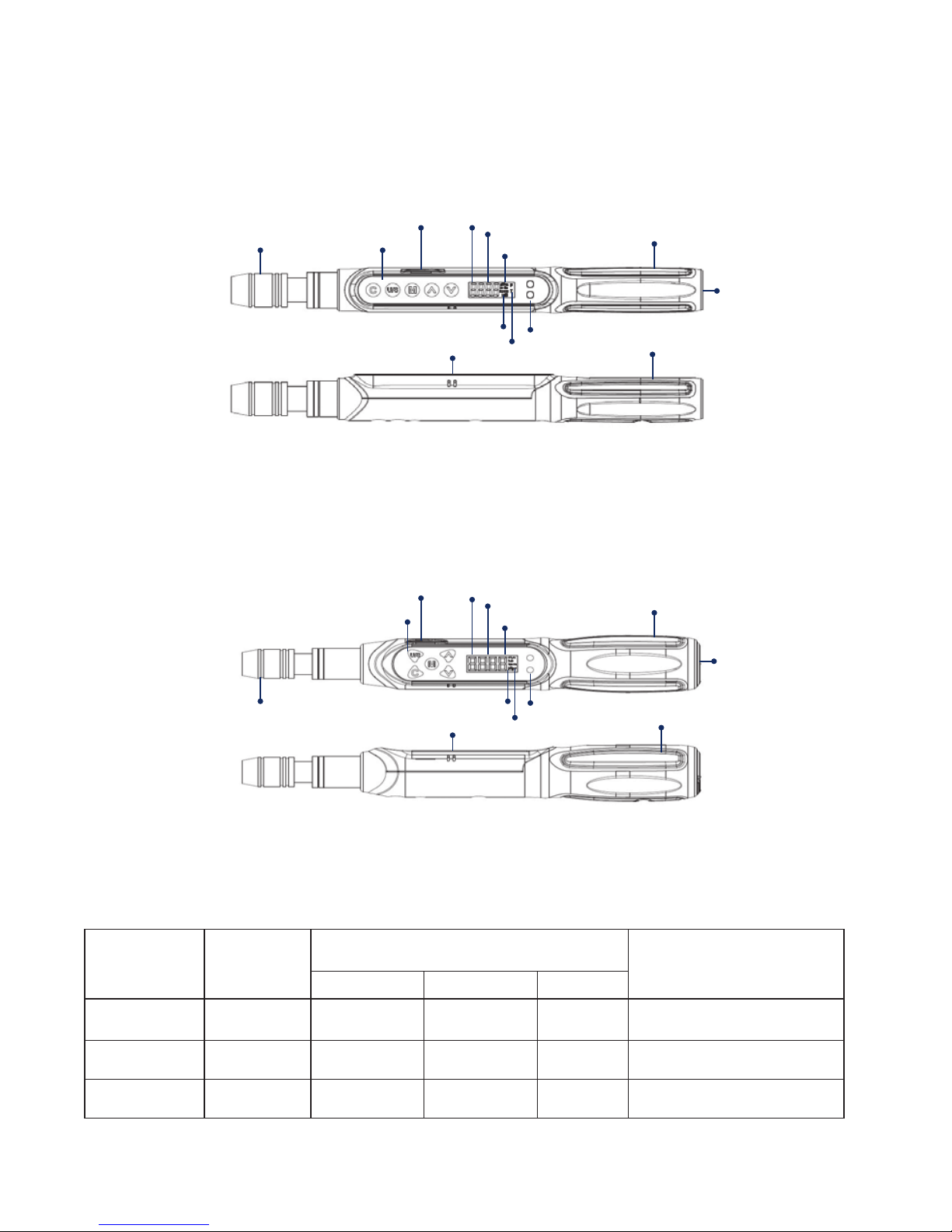

NAMES AND FUNCTIONS OF PARTS
SELECTION GUIDE
Communication
MODEL
MODEL
Torque value
Torque value
Units
Units
Peak / Track mode
Peak / Track mode
Memory number
Memory number
LED indicator
LED indicator
Buttons
Buttons
LCD readout
LCD readout
Anti-slip handle
Anti-slip handle
Calibration mark
Calibration mark
Buzzer
Buzzer
Battery cover
Battery cover
Communication port
Communication port
Autolock bit holder
Autolock bit holder
MODEL BIT END
FITTING (“)
MAX. OPERATION TORQUE TORQUE
ACCURACY
cNm in-lb kg-cm
7514-0050 1/4 50 42.2 5.1 ±3%- CW / ±4%-CCW
7514-0200 1/4 200 17.7 20.41 2.5%- CW / 3.5%-CCW
7514-0400 1/4 400 35.39 40.82 2.5%- CW / 3.5%-CCW
7514-0050
7514-0200
7514-0400
■No

3
SPECIFICATIONS
MODEL
NO.
RESOLUTION
cNm
MEASURED
TORQUE
cNm
LENGTH
mm
7514-0050 0.1 5~50 193
7514-0200 0.1 10~200 203
7514-0400 0.1 20~400 203
ALL MODELS
Accuracy *1
7514-0050: CW: ±3% CCW: ±4%
7514-0200: CW:±2.5% CCW: ±3.5%
7514-0400: CW:±2.5% CCW: ±3.5%
Data memory size 50
PC connectivity *2 No
Pre-setting no. 9 sets
Operation mode Peak hold / Track
Bright LED 2 LED (1 red + 1 green)
Unit selection cNm, in-lb, kg-cm
Head type Autolock bit holder
Button 5
Battery *3 AAA x 1
Operating temperature
-10°C ~ 60°C
Storage temperature -20°C ~ 70°C
Humidity Up to 90% non-condensing
Drop test 1 m
Vibration test *4 10 G
Life time *5 10.000 cycle
Environmental test *6 Pass
Electromagnetic
compatibility test *7 Pass
Note:
*1: The accuracy of the readout is guaran-
teed from 20% to 100% of maximum
range + /- 1 increment.
The torque accuracy is a typical value.
Calibration point is on the rubber grip.
For keeping the accuracy, calibrate the
screwdriver for a constant period time
(1 year).
*2: Use a special designed cable (accessory)
to upload record data to PC.
*3: One AAA batteries (Toshiba carbon-zinc
battery)
*4: Horizontal and vertical test.
*5: One cycle means twist the screwdriver
from 0 cNm to maximum range and
back to 0 cNm.
*6: Environmental test:
a. Dry heat
b. Cold
c. Damp heat
d. Change of temperature
e. Impact (shock)
f. Vibration
g. Drop
*7: Electromagnetic compatibility test:
a. Electrostatic discharge immunity (ESD)
b. Radiated susceptibility
c. Radiated emission

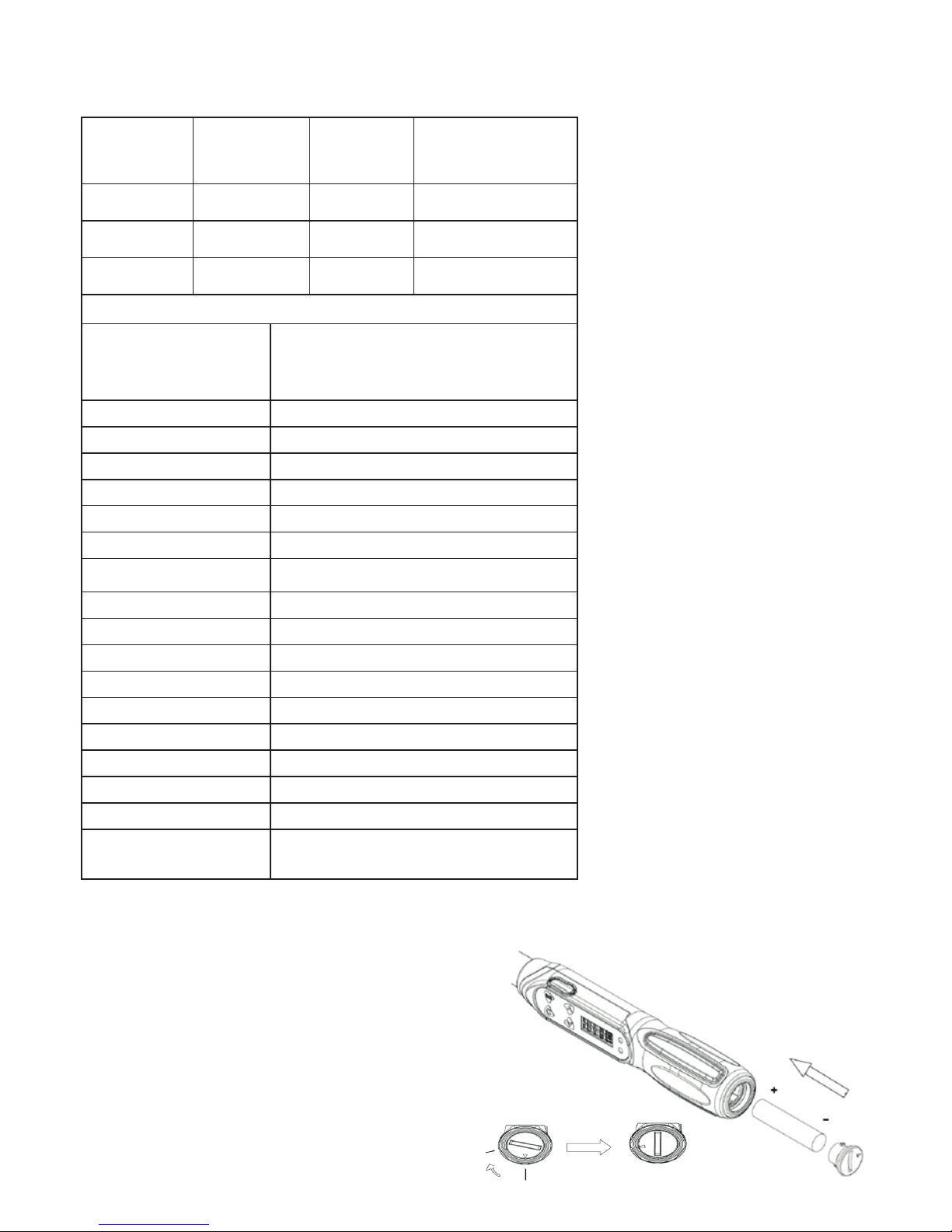

BEFORE USING THE SCREWDRIVER
Battery Installation
■Remove the battery cap.
■Insert one AAA battery matching the -/+
polarities of the battery to the battery compartment.
■Replace the battery cap and fasten it tightly
according to the following figures.

4
Cautions
During communication period (Send appears), the
auto power off function is disabled.
Resetting the screwdriver
Auto power off
If the screwdriver does not function normally,
loosen the battery cap then tighten it to re-start.
The screwdriver will auto power off after about 5
minutes idle for power saving. Press to power
on the screwdriver again.
MODEL 7514- 0050
MODEL 7514- 0200 / 7514- 0400

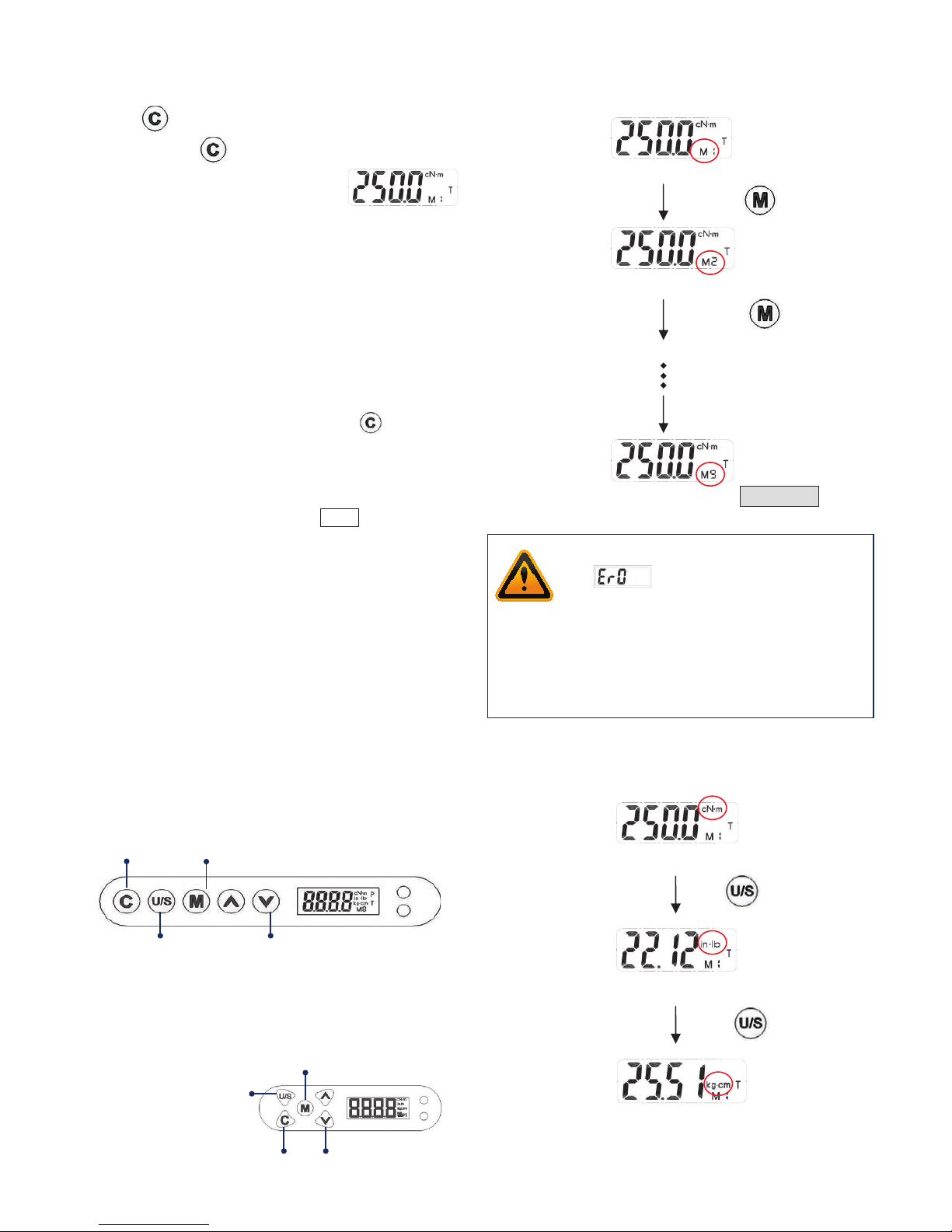

SETUP
Pre-setting no.
Pre-setting no.
Adjust torque value
Adjust torque value
Power on/clear
Power on/clear
Unit selection/setting
Unit selection/setting
Pre-setting: M1
Pre-setting unit: cNm
Unit selection: in-lb
Unit selection: kg-cm
Pre-setting: M2
Pre-setting: M3
Pre-setting: M9
PressPress
Press
Press
Press
1. Pre-setting no.
2. Unit selection
Note:
1. If appears, it means the screw-
driver is overloaded. Overload = 110% of
maximum torque. Please contact your local
dealer for recalibration.
2. The maximum capacity for “Pre-setting no.”
is 9 sets.
3. The “Pre-setting no.” is cyclic.
*Note 1, 2, 3
Attention
If an external force is applied to the screwdriver
during power-on period, an initial torque offset
will be recorded in the memory.
Power on and resetting the screwdriver
■Press to power on the digital screwdriver.
■Usually press to reset the digital screwdriver
before using it.

5
Pre-setting torque value
Increase torque value
Decrease torque value
Press
Press
3. Set target torque
Note:
The “Unit selection” is cyclic.
Track mode
Set peak / track mode
Set peak / track mode
Clear record
Peak hold mode
Set peak / track mode
Long press
Press
Press
Press
Press
for selection
4. Peak hold / track mode selection
Note:
1. Please skip this procedure and continue to
the next step.
*Note 1
*Note 1
TRACK MODE OPERATION
(((((((( )))))))) ((((((( )))))))
((…((… …))…)) ((…((… …)) …))
START
*Note 1
*Note 2
(System initial)
Setting target torque
Current torque value
Current torque value
Green LED
Reach 90% of target torque
Red LED
Approached target torque
Buzzer
Buzzer
Reach 90% of target torque
Reach target torque
Apply torque
Note:
1. 1. If appears, it means the screw-
driver is overloaded. Overload = 110% of
maximum torque. Please contact your local
dealer for recalibration.
2. When reaching the setting target torque,
the green and red LED will be on at the
same time.

6
(System indicate)
Setting target torque
Peak hold/track mode
Set peak/track mode
Record no.
Clear record
Peak hold/track mode
Communication
(Exit)
Yes
Record value
Auto change
Recording
Apply torque
Apply torque
Current max. value
(Peak hold)
Released
Flashing
Buzzer
Buzzer
Green LED
Reached 90% of target torque
Red LED
Approaching target torque
Reached 90% of target torque
Reached target torque
START

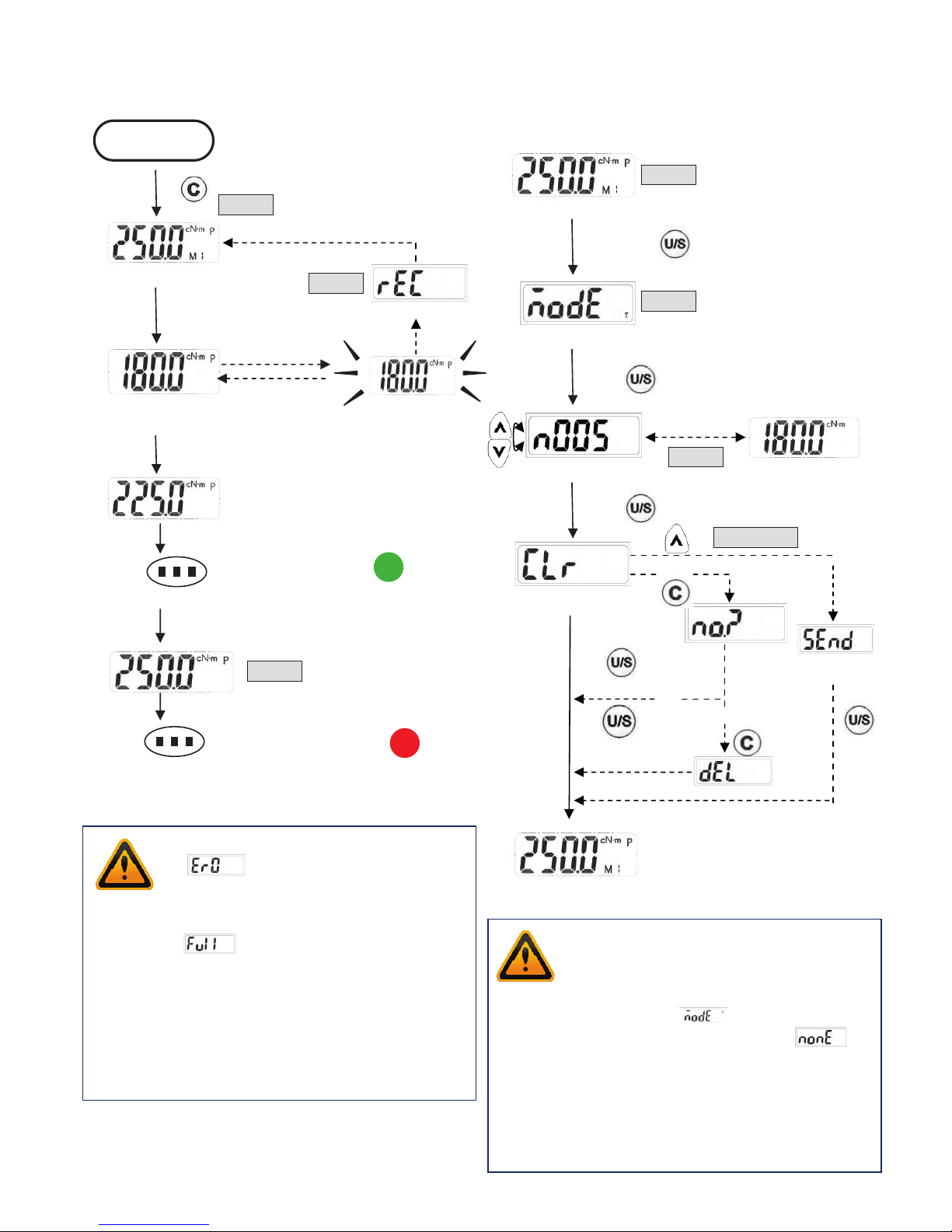

PEAK HOLD MODE OPERATION PEAK HOLD MODE RECORDED
VALUE REVIEW
(((((((( )))))))) ((((((( )))))))
((…((… …))…)) ((…((… …)) …))
*Note 1
*Note 1
*Note 2
*Note 3
*Note 4, 5, 6
*Note 2
*Note 3
Note:
1. If appears, it means the screw-
driver is overloaded. Overload = 110% of
maximum torque. Please contact your local
dealer for recalibration.
2. If appears, that means the screw-
driver’s memory is full and the next value
record can not be written in. Please refer to
the “Peak hold mode recorded value review”
section to clear the memory records.
3. When reaching the setting target torque,
the green and red LED will be on at the same
time.
Note:
1. The ”Peak hold” mode recorded value review
can also be operated from”Track”mode operation.
2. If you operate in the ”Peak hold” mode, the
display will show . Please go to next step.
3. If the record is empty, it will show .
4. This function is not supported on all models.
5. Communication mode is for uploading recorded
data to PC.
6. Communication mode is also for calibration of
the screwdriver.
Please contact your local dealer for information.
Long press
Press
Press
Press
(Give up)
Deleted
(Clear)
No

7
COMMUNICATION
Precaution:
1. Communication function is only supported
on some models. Check the model no. and
its specification before using communication
function.
2. Do not insert the plug of communication
cable into a screwdriver that does not
support communication function.
Connecting communication cable
Uploading record data
■Turn off power and then connect the accessory
cable between the COM port of the PC and
screwdriver.
■Make sure the connection between the PC and the
screwdriver is normal.
■Change the screwdriver operation mode to “Send”.
(Please refer to the “Peak hold mode recorded
value review” section).
■Use a PC to start the uploader program.
■In the uploader program, first select the correct
COM port no.
■Next, select the file path to save the uploaded data.
■Finally, press “upload” button to transmit the
torque records to the PC.
■The uploaded data is then shown on the column
and saved in the *.csv file.
Use Microsoft Excel to view *.csv file.
Cautions:
Refer to the uploader program user guide for
the detail operations.
MAINTENANCE AND STORAGE
BATTERY MAINTENANCE
■When the screwdriver is not going to be used for
an extended period of time, remove the battery.
■Keep a spare battery on hand when going on a
long trip or to cold areas.
■Sweat, oil and water can prevent a battery’s
terminal from making electrical contact.
To avoid this, wipe both terminals before loading a
battery.
■Dispose of batteries in a designated disposal
area. Do not throw batteries into fire.
Caution:
1. Over-torquing (110% of max. torque range)
could cause breakage or lose of accuracy.
2. Do not shake violently or drop screwdriver.
3. Do not use this screwdriver as a hammer.
4. Do not leave this screwdriver in any place
exposed to excessive heat, humidity, or
direct sunlight.
5. Do not use this apparatus in water (it is not
waterproof).
6. If the screwdriver gets wet, wipe it with a
dry towel as soon as possible. The salt in
seawater can be especially damaging.
7. Do not use organic solvents, such as
alcohol or paint thinner when cleaning
the screwdriver.
8. Keep this screwdriver away from magnets.
9. Do not expose this screwdriver to dust or
sand as this could cause serious damage.
10. Do not apply excessive force to the LCD
panel.
11. Apply torque slowly and grasp the center
of the handle. Do not apply load to the
end of the handle.
12. When checking the accuracy or calibration,
please use the bit head packed inside the
blow mold case.
Attention!
One-year periodic recalibration is necessary to maintain
accuracy. Please contact your local dealer for calibrations.

POLAR TOOLS A/S
SOLDALEN 9 . 7100 VEJLE . DENMARK . INFO@POLARTOOLS.COM . WWW.POLARTOOLS.COM
