Polar Refrigeration CL108-A User manual

Model:
CL108-A/CL109-A
Refrigerated Counter
with Marble Work top
Instruction manual
CL108-A_CL109-A_A5_v2_20180208.indb 1 2018/2/8 17:16

2
AU Telephone Helpline: 1300225960
Safety Tips
• Position on a flat, stable surface.
• A service agent/qualified technician should carry out
installation and any repairs if required. Do not remove any
components or service panels on this product.
• Consult Local and National Standards to comply with the
following:
- Health and Safety at Work Legislation
- Fire Precautions
- Wiring Regulations
- Building Regulations
• DO NOT use jet/pressure washers to clean the appliance.
• DO NOT use the appliance outside.
• DO NOT use this appliance to store medical supplies.
• DO NOT use electrical appliances inside the appliance (e.g.
heaters, ice cream makers etc.)
• DO NOT stand or support yourself on the base, drawers or
doors.
• DO NOT allow oil or fat to come into contact with the plastic
components or door seal. Clean immediately if contact occurs.
• Bottles that contain a high percentage of alcohol must be
sealed and placed vertically in the refrigerator.
• Always carry, store and handle the appliance in a vertical
position and move by holding the base of the appliance.
• Always switch off and disconnect the power supply to the unit
before cleaning.
• Keep all packaging away from children. Dispose of the packaging
in accordance with the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a POLAR
agent or a recommended qualified technician in order to avoid
a hazard.
• Polar recommend that this appliance is PAT tested on an
annual basis to ensure the product remains safe.
CL108-A_CL109-A_A5_v2_20180208.indb 2 2018/2/8 17:16

3
AUAU
Telephone Helpline: 1300225960
• This appliance is not attended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience or knowledge, unless they have been
given supervision or instruction concerning the use of the
appliance by a person responsible for their safety.
Caution Risk of Fire
• Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
Warning: Keep all ventilation openings clear of
obstruction. Unit should not be boxed in without
adequate ventilation.
• Warning: Do not use mechanical devices or other means
to accelerate the defrosting process, other than those
recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are the
type recommended by the manufacturer.
Product Description
CL108 - Polar Refrigerated Counter with Marble Work top - 2 doors 240Ltr
CL109 - Polar Refrigerated Counter with Marble Work top - 3 doors 368Ltr
Introduction
Please take a few moments to carefully read through this manual. Correct maintenance and operation of
this machine will provide the best possible performance from your POLAR product.
Pack Contents
The following is included:
• POLAR Refrigerator
• Shelf guides
• Shelves
CL108 x 2 / CL109 x 3
• Instruction manual
• Floor Guards
CL108 x 3 / CL109 x 4
POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are
supplied fully functional and free of damage.
Should you find any damage as a result of transit, please contact your POLAR dealer immediately.
CL108-A_CL109-A_A5_v2_20180208.indb 3 2018/2/8 17:16

4
AU Telephone Helpline: 1300225960
Installation
Note: If the unit has not been
stored or moved in an upright
position, let it stand upright for
approximately 12 hours before
operation. If in doubt allow to
stand.
1. Remove the appliance from the packaging.
Make sure that all protective plastic film and
coatings are thoroughly removed from all
surfaces.
2. Maintain a distance of 20cm (7 inches)
between the unit and walls or other objects for
ventilation. NEVER LOCATE NEXT TO OR
NEAR A HEAT SOURCE.
Note: Before using the appliance
for the first time, clean the
shelves and interior with soapy
water.
3. Level the appliance by adjusting the screw
feet.
Fitting the Shelves & Floor Guards
1. Place one set of shelf guides on either side of
the cabinet at the desired height.
2. Slide the shelf into place.
3. Repeat for the remaining shelves.
4. Place the floor guards on the floor of the
cabinet, ensuring the flat side is clear of the
floor.
Note: This is vital for
ensuring correct drainage of
condensation.
Operation
Storing Food
To get the best results from your POLAR appliance,
follow these instructions:
• Only store foodstuffs in the appliance when it
has reached the correct operating temperature.
• Do not place uncovered hot food or liquid
inside the appliance.
• Wrap or cover food where possible.
• Do not obstruct the fans inside the appliance.
• Avoid opening the doors for prolonged periods
of time.
Turn On
1. Close the door(s) of the appliance.
2. Ensure the power switch is set to [O] and turn
on at the socket.
3. Switch on the Power [I]. The current
temperature within the appliance is displayed.

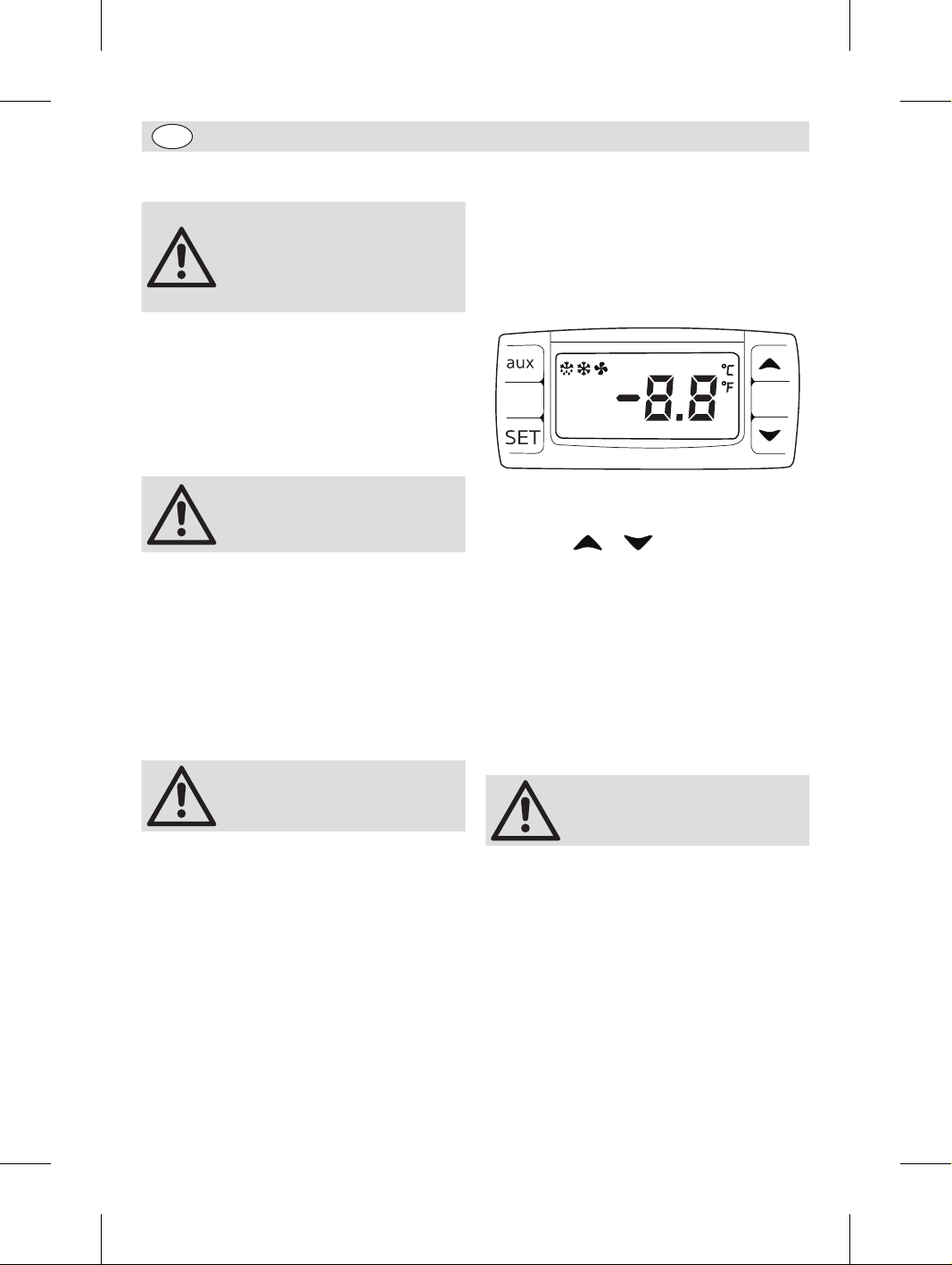

Control Panel
Set the Operating Temperature
1. Press the SET button. The display will flash.
2. Press the or buttons to display the
required temperature.
3. Press the SET button to store the temperature.
Manual Defrost
Press and hold the defrost button “aux” for 2
seconds to begin a manual defrost. The defrost
light illuminates.
Cleaning, Care &
Maintenance
Switch off and disconnect
from the power supply before
cleaning.
• Clean the interior of the appliance as often as
possible.
• Do not use abrasive cleaning agents. These
can leave harmful residues.
• Clean the door seal with warm soapy water.
• Always wipe dry after cleaning.
• Do not allow water used in cleaning to run
through the drain hole into the evaporation
pan.
• Take care when cleaning the rear of the
appliance. Sharp edges can cut.
• A POLAR agent or qualified technician must
carry out repairs if required.
CL108-A_CL109-A_A5_v2_20180208.indb 4 2018/2/8 17:16

5
AUAU
Telephone Helpline: 1300225960

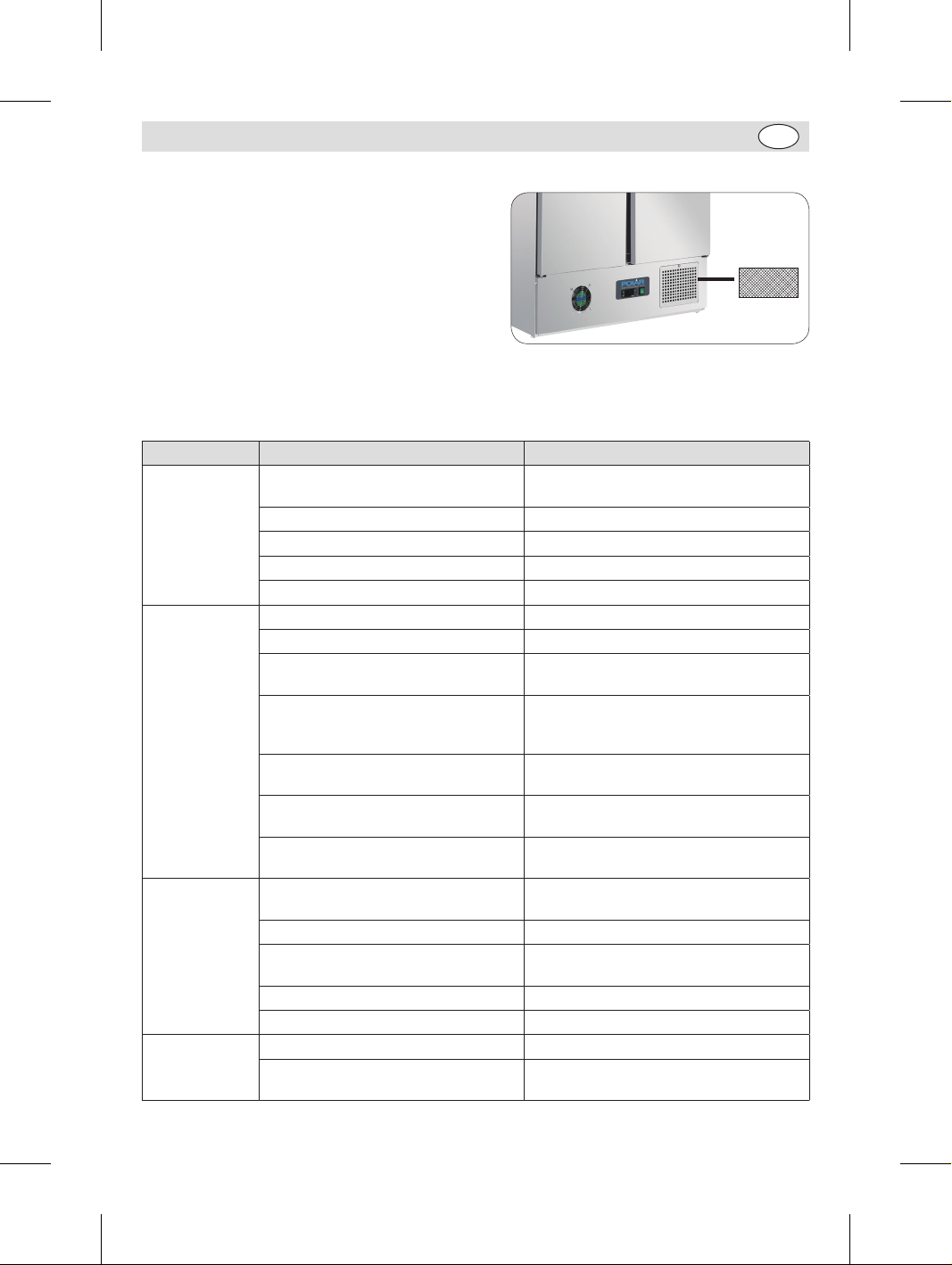

Cleaning the Condenser Filter
• The condenser is part of the refrigeration system.
The condenser filter requires monthly cleaning.
• Always disconnect power supply before carrying out
Routine Maintenance.
• Failure to clean the condenser filter will reduce the
performance and life of your Polar unit and may
invalidate your warranty
• These models have a removable filter which can be
cleaned with a vacuum cleaner.
Troubleshooting
If your POLAR appliance develops a fault, please check the following table before making a call to the
Helpline or your POLAR dealer.
Fault Probable Cause Solution
The appliance is
not working
The unit is not switched on Check the unit is plugged in correctly and
switched on
Plug and lead are damaged Call POLAR agent or qualified Technician
Fuse in the plug has blown Replace the fuse
Power supply Check power supply
Internal wiring fault Call POLAR agent or qualified Technician
The appliance
turns on, but the
temperature is
too high/low
Too much ice on the evaporator Defrost the appliance
Condenser blocked with dust Call POLAR agent or qualified Technician
Doors are not shut properly Check doors are shut and seals are not
damaged
Appliance is located near a heat source
or air flow to the condenser is being
interrupted
Move the refrigerator to a more suitable
location
Ambient temperature is too high Increase ventilation or move appliance to a
cooler position
Unsuitable foodstuffs are being stored in
the appliance
Remove any excessive hot foodstuffs or
blockages to the fan
Appliance is overloaded Reduce the amount of food stored in the
appliance
The appliance is
leaking water
The appliance is not properly levelled Adjust the screw feet to level the appliance
(if applicable)
The discharge outlet is blocked Clear the discharge outlet
Movement of water to the drain is
obstructed
Clear the floor of the appliance (if
applicable)
The water container is damaged Call POLAR agent or qualified Technician
The drip tray is overflowing Empty the drip tray (if applicable)
The appliance is
unusually loud
Loose nut/screw Check and tighten all nuts and screws
The appliance has not been installed in
a level or stable position
Check installation position and change if
necessary
CL108-A_CL109-A_A5_v2_20180208.indb 5 2018/2/8 17:16

6
AU Telephone Helpline: 1300225960
Technical Specifications
Model Voltage Power Current Temperature
Range Refrigerant Dimensions
H x W x D mm
Weight
(kg)
CL108-A 230V 50Hz 230W 1.5A 2°C to 8°C R134a 150g 870 x 903 x 700 97
CL109-A 230V 50Hz 230W 1.6A 2°C to 8°C R134a 250g 870 x 1365 x 700 145
Electrical Wiring
The plug is to be connected to a suitable mains socket.
This appliance is wired as follows:
• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E
The appliances must be earthed.
If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency
disconnection being required they must be readily accessible.

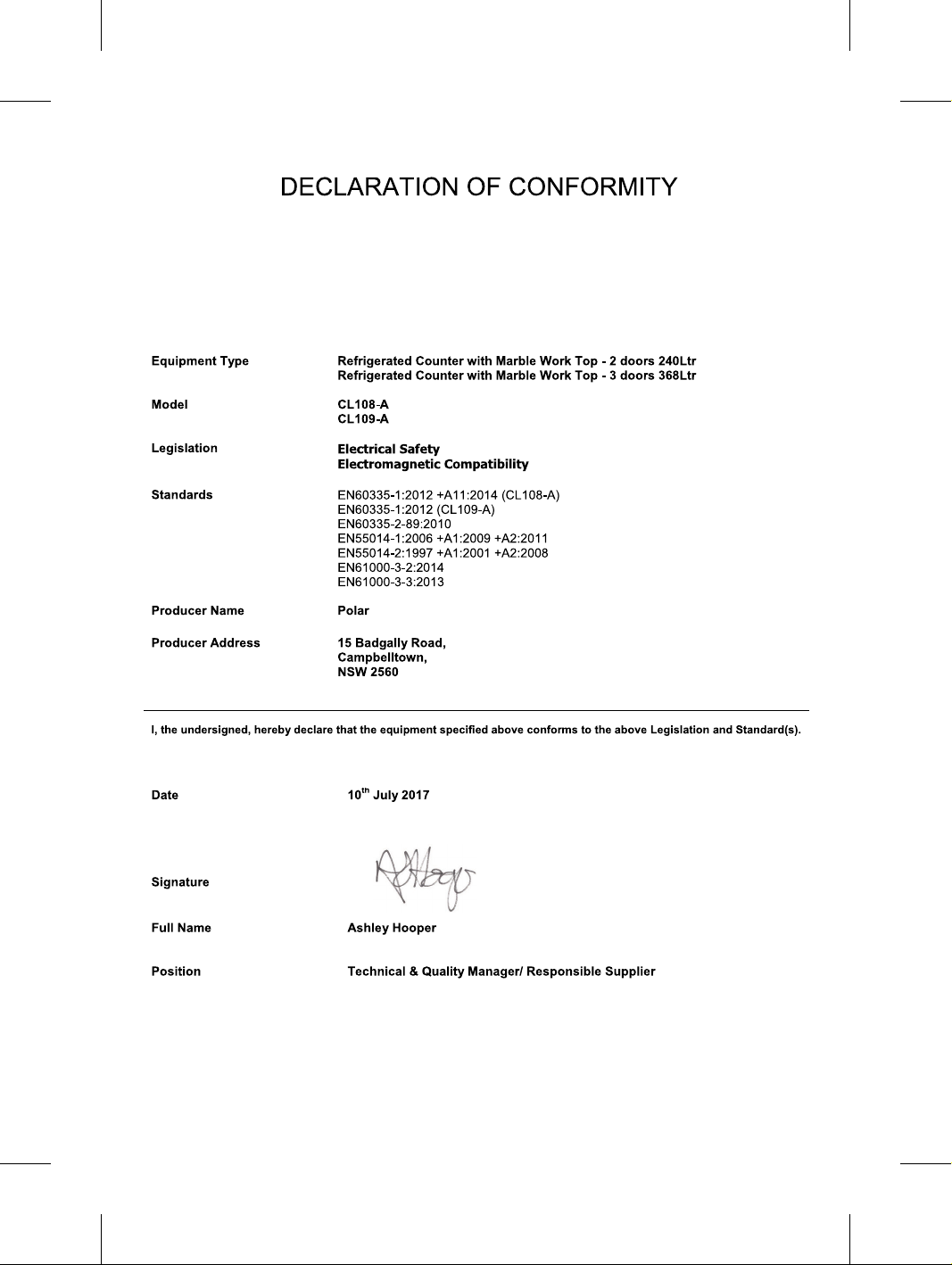

Compliance
The WEEE logo on this product or its documentation indicates that the product must
not be disposed of as household waste. To help prevent possible harm to human
health and/or the environment, the product must be disposed of in an approved and
environmentally safe recycling process. For further information on how to dispose of
this product correctly, contact the product supplier, or the local authority responsible for
waste disposal in your area.
POLAR parts have undergone strict product testing in order to comply with regulatory
standards and specifications set by international, independent, and federal authorities.
POLAR products have been approved to carry the following symbol:
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic,
mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR.
Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserve the right to
change specifications without notice.
