Polar Refrigeration CK640 User manual

Blast Chiller / Freezer
Instruction Manual
NL
Vriezer
Handleiding
IT
Congelatori
Manuale di istruzioni
FR
Congélateurs
Mode d’emploi
ES
Congeladores
Manual de instrucciones
DE
Tiefkühltische
Bedienungsanleitung
PT
Congeladores
Manual de instruções
Model . Modéle . Modell . Modello . Modelo . Malli
CK640

UK Telephone Helpline: 0845 146 2887 (United Kingdom)
Safety Tips
Position on a flat, stable surface.
A service agent/qualified technician should carry out installation and any repairs if required.
Do not remove any components or service panels on this product.
Consult Local and National Standards to comply with the following:
oHealth and Safety at Work Legislation
oBS EN Codes of Practice
oFire Precautions
oIEE Wiring Regulations
oBuilding Regulations
DO NOT use jet/pressure washers to clean the appliance.
DO NOT use the appliance outside.
DO NOT use this appliance to store medical supplies.
DO NOT use electrical appliances inside the appliance (e.g. heaters, ice-cream makers etc.).
DO NOT allow oil or fat to come into contact with the plastic components or door seal. Clean
immediately if contact occurs.
Always carry, store and handle the appliance in a vertical position and move by holding the base of the
appliance.
Always switch off and disconnect the power supply to the unit before cleaning.
Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of
local authorities.
The appliance is not to be used by children or persons with reduced physical, sensory or mental
capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction
If the power cord is damaged, it must be replaced by a POLAR agent or a recommended qualified
technician in order to avoid a hazard.
Product Description

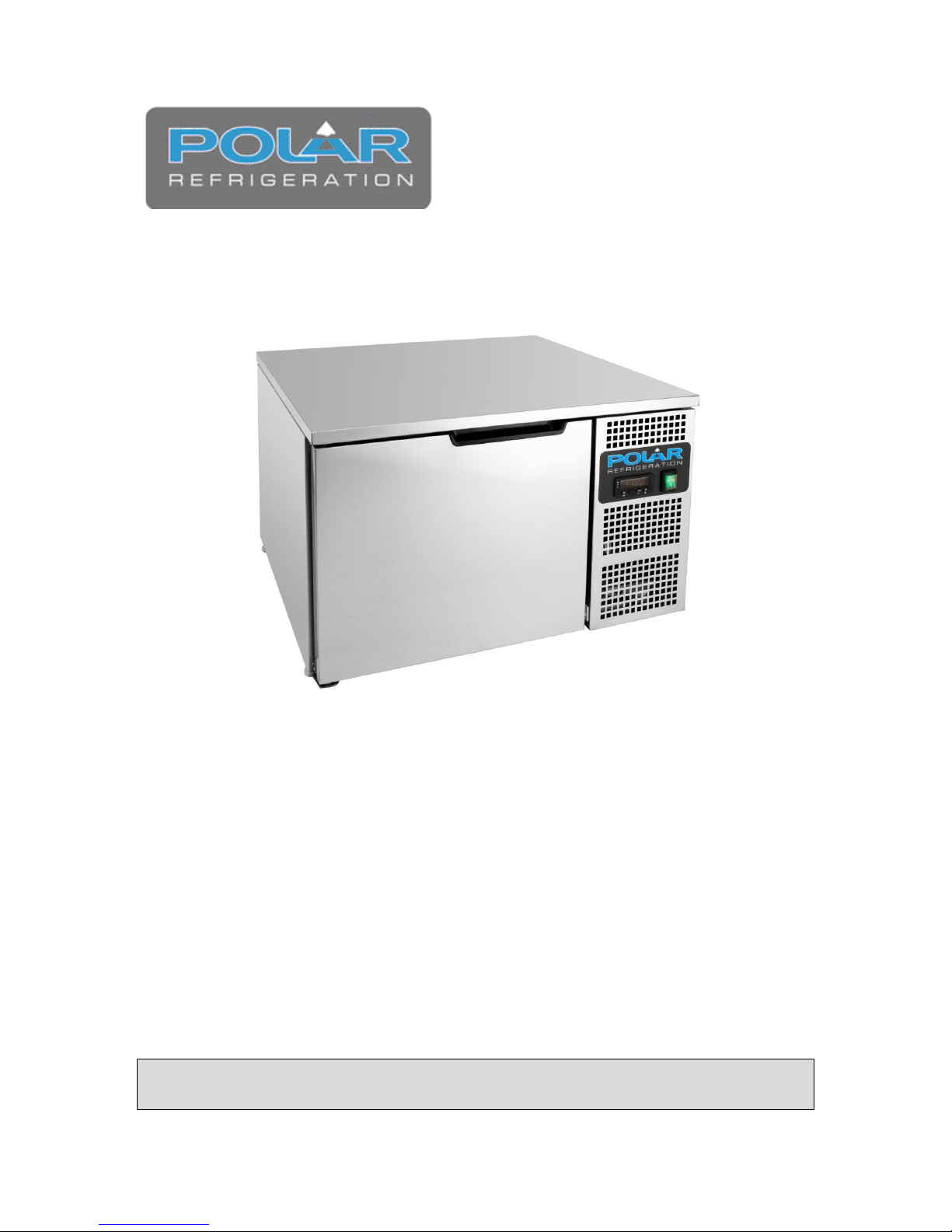

CK640 - POLAR Blast Chiller /Freezer
Introduction
Please take a few moments to carefully read through this manual. Correct maintenance and operation of this
machine will provide the best possible performance from your POLAR product.
Pack Contents
The following is included:
POLAR Blast Chiller /Freezer
Instruction manual
POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are supplied
fully functional and free of damage.
Should you find any damage as a result of transit, please contact your POLAR dealer immediately.

UK
Installation
Note: If the appliance has not been stored or moved in an upright position, let it stand upright for
approximately 12 hours before operation. If in doubt allow the appliance to stand.
1. Remove the appliance from the packaging. Make sure that all protective plastic film and coatings are
thoroughly removed from all surfaces
2. Maintain a distance of 20cm (7 inches) between the unit and walls or other objects for ventilation.
Increase the distance of the object is a heat source. Do not block front ventilation grills.
Note: Before using the appliance for the first time, clean the shelves and interior with soapy water.
Operation
It is important that food entering the Blast Chiller/Freezer does not exceed a temperature of 90C
It is recommended that metal containers / trays are used as other materials such as plastic or polystyrene
containers will act as an insulator and extend blast chilling times
Sufficient space must be left between products in order to guarantee a sufficient flow of cold air. Ensure product
is not in contact with the internal walls of the unit, and leave sufficient gaps between trays.
Never obstruct the inlet of the evaporator fans.
Products that are more difficult to chill because of their composition and size should be placed in the centre of
the unit.
Blast chilling data refers to standard products (low fat content) with a thickness below 50 mm: therefore avoid
overlaying products on trays or the insertion of pieces with a much higher thickness, as this will lead to an
extension of blast chilling times. Always distribute the product well on the trays and in the case of thick pieces
decrease the amount to blast chill.
Limit the number of times and the duration of time the doors are opened.
The chiller should be used for storage for short periods only.
When removing product that has undergone blast chilling / shock freezing, always wear gloves to protect the
hands from cold burns.
Introduction
The device has the following operational states:
• "on" (the device is switched on and an operating cycle is running)
• "stand-by" (the device is switched on but no operating cycle is running)
• "off" (the device is not switched on).
If power is interrupted during a timed blast chilling operation, when power is restored, chilling will continue
from the time point at which the interruption occurred (with a maximum error of 10 minutes).
If power is interrupted during a set-temperature blast chilling operation, when power is restored, chilling will
start again from the beginning.
If power is interrupted during a storage operation, when power is restored the storage operation will be reset.
If power is interrupted while in "stand-by" mode, when power is re- stored the device will be in the same state.

UK Telephone Helpline: 0845 146 2887 (United Kingdom)
Control Panel
Controller Display
In the “on" state, during normal operation, the display shows:
• the amount of time remaining for a timed blast chilling operation, if this is ongoing
• the temperature measured by the pin probe if a set-temperature chilling operation is ongoing
• the temperature of the cabinet, if storage is ongoing.
In "stand-by" mode, during normal operation, the display shows the temperature of the cabinet for ½ s every 3 s.
Signals
LED
Message
Timed Chilling LED
If on and the LED is off, a timed chilling operation is ongoing
If on and the LED is also on, a post timed-chilling storage operation is ongoing
If flashing, a timed chilling and storage cycle will have been selected
Set-temperature chilling LED
If on and the LED is off, a set-temperature chilling storage operation is ongoing
If on and the LED is also on, a post set-temperature chilling storage operation
will be ongoing
If flashing, a set temperature chilling and storage cycle will have been selected
If it’s on for ½ second every 3 seconds, the test to verify correct pin probe insertion
will be ongoing
If flashing and the LED is on, then the test to verify correct pin probe insertion
will have had a negative outcome and the cycle will have been started in timed mode
If flashing and the LED is on, the chilling stage will have had a negative
outcome and so this will continue
If flashing and the LEDs and are on, the chilling stage will have had a
negative outcome, the device will have switched to storage mode and this will be
ongoing
Storage LED
If on, a storage operation will be ongoing
If flashing then the operational set point will be being modified while a storage
operation is ongoing
Timed Chilling LED
Set-Temperature Chilling LED
Storage LED
Alarm LED
Degree Celsius LED
Degree Fahrenheit LED
Minute LED

UK
LED
Message
Alarm LED
If on, an alarm is ongoing
⁰C
Degree Celsius LED
If on the unit of measurement for temperature is degrees Celsius
⁰F
Degree Fahrenheit LED
If on the unit of measurement for temperature is degrees Fahrenheit
Decimal
Point
Minute LED
If flashing, the unit of measurement of magnitude displayed is the minute
Code
Message
d
Defrosting or drip draining is ongoing
OPERATIONAL CYCLES
The device has the following operational cycles:
timed positive chilling and storage
timed negative chilling and storage
Set-temperature positive chilling and storage
Set-temperature negative chilling and storage.
Set-temperature cycles are preceded by a test step in order to check correct insertion of the pin probe (see
paragraph 3.6).
To re-start using the same settings as the last cycle run:
ensure that the device is in "stand-by" mode, that no procedures are running and that another cycle has
not been selected
press for 2 seconds. The display will show the label of the last cycle run
press within 60 seconds: in the case of a timed cycle, the display will show the duration of the
blast chilling step (in minutes) or in the case of a set-temperature cycle, the set target temperature
press or within 15 seconds to change the value (the setting re- mains active until another
cycle is selected, when the value r1, r2, r3 or r4 is restored)
press within 15 seconds and the cycle will be activated

UK Telephone Helpline: 0845 146 2887 (United Kingdom)
TIMED POSITIVE BLAST CHILLING AND STORAGE CYCLE
To start the cycle:
ensure the device is in "stand-by" mode and no procedures are running
press to select "PoS" and ensure the LED is flashing
press within 15 seconds: the display will show the duration of the blast chilling step (in
minutes)
press or within 15 seconds to change the value (the setting remains active until another
cycle is selected, when the value assigned by parameter r1 is restored)
press : after 2 minutes , run timed positive blast chilling and storage cycle
During chilling:
the display shows the residual chilling time remaining
the LED is on
parameter r1 sets the chilling time duration
parameter r7 sets the operational set point
press several times to:
-display the message "PoS"
-display the cabinet temperature
-exit the procedure, or leave for 15 seconds.
Once the chilling period has elapsed:
the device switches to storage mode
the display shows the message "End"
the buzzer sounds for the period of time set by parameter AA
press any key to mute the buzzer; press once more to cancel the message "End".
During storage:
the display shows the cabinet temperature
the LEDs and are on
the parameter r9 sets the operational set point
press several times to:
-display the message "PoS"
-exit the procedure, or leave for 15 seconds.
To interrupt the cycle:
press for 2 seconds.

UK
TIMED NEGATIVE CHILLING AND STORAGE CYCLE
To start the cycle:
ensure the device is in "stand-by" mode and no procedures are running
press to select "nEg" and ensure the LED is flashing
press within 15 seconds: the display will show the duration of the blast chilling step (in
minutes)
press or within 15 seconds to change the value (the setting remains active until another
cycle is selected, when the value assigned by parameter r2 is restored)
press : after 2 minutes , run timed negative chilling and storage cycle
During chilling:
the display shows the residual chilling time remaining
the LED is on
parameter r2 sets the chilling time duration
parameter r8 sets the operational setpoint
press several times to:
-display the message "nEg"
-display the cabinet temperature
-exit the procedure, or leave for 15 s.
Once the chilling period has elapsed:
the device switches to storage mode
the display shows the message "End"
the buzzer sounds for the period of time set by parameter AA
press any key to mute the buzzer; press once more to cancel the message "End".
During storage:
the display shows the cabinet temperature
the LEDs and are on
the parameter rA sets the operational setpoint
press several times to:
-display the message "nEg"
-display exit the procedure or leave for 15 seconds
To interrupt the cycle:
press for 2 seconds.

UK Telephone Helpline: 0845 146 2887 (United Kingdom)
SET-TEMPERATURE POSITIVE BLAST CHILLING AND STORAGE CYCLE
To start the cycle:
ensure the device is in "stand-by" mode and no procedures are running
press to select "PoS" and ensure the LED is flashing
press or within 15 Seconds to change the value (the setting remains active until another
cycle is selected, when the value assigned by parameter r3 is reset)
press : after 2 minutes , run set-temperature positive blast chilling and storage cycle
Prior to starting the cycle:
the test is run in order to check correct pin probe insertion
-if the outcome of the test is positive, the cycle will be started
-if the outcome of the test is negative, the cycle will be started in timed mode.
During chilling:
the display shows the temperature measured by the pin probe
the LED is on
the parameter r3 sets the blast chilling endpoint temperature
the parameter r5 sets the maximum chilling time duration
the parameter r7 sets the operational set point
press several times to:
-display the maximum residual chilling time remaining
-display the message "PoS"
-display the flashing cabinet temperature
-exit the procedure, or leave for 15 s.
If the temperature measured by the pin probe reaches the chilling endpoint temperature prior to expiry of
the maximum chilling time duration:
the device will switch to storage mode
the display will show the message "End"
the buzzer will sound for the period of time set by parameter AA
press any key to mute the buzzer; press once more to cancel the message "End".
If the temperature measured by the pin probe does not reach the chilling endpoint temperature prior to expiry of
the maximum chilling time duration:
chilling will continue
the LED will flash and the LED will be on
the buzzer will sound
press several times to:
-mute the buzzer
-display the time elapsed since the maximum chilling time expired
-display the cabinet temperature
-display the message "PoS"
-exit the procedure, or leave for 15 seconds

UK
When the temperature measured by the pin probe reaches the chilling endpoint temperature:
-the device switches to storage mode
-the LED will continue to flash and the LED will stay on
-the display will show the message "End"
-the buzzer will sound for the period of time set by parameter AA
-press any key to mute the buzzer; press once more to cancel the message "End".
During storage:
the display shows the cabinet temperature
if chilling had a positive outcome, the LEDs and and will be on; if chilling had a negative
outcome, the LEDs and will be on and the LED will flash
the parameter r9 sets the operational set point
press several times to:
-display the message "PoS"
-exit the procedure, or leave for 15 s.
To interrupt the cycle:
press for2 seconds.
SET-TEMPERATURE NEGATIVE CHILLING AND STORAGE CYCLE
To start the cycle:
ensure the device is in "stand-by" mode and no procedures are running
press to select "nEg" and ensure the LED is flashing
press or within 15 seconds: the display will show the blast chilling end- point
temperature
press or within 15 s to change the value (the setting re- mains active until another cycle
is selected, when the value assigned by parameter r4 is restored)
press : after 2 minutes , run set-temperature negative chilling and storage cycle
Prior to starting the cycle:
the test is run in order to check correct pin probe insertion
-if the outcome of the test is positive, the cycle will be started
-if the outcome of the test is positive, the cycle will be started.
During chilling:
the display shows the temperature measured by the pin probe
the LED is on
the parameter r4 sets the chilling endpoint temperature
the parameter r6 sets the maximum chilling time duration
the parameter r8 sets the operational set point
press several times to:
-display the maximum residual chilling time remaining
-display the message "nEg"
-flashing display the cabinet temperature
-exit the procedure, or leave for 15 seconds

UK Telephone Helpline: 0845 146 2887 (United Kingdom)
If the temperature measured by the pin probe reaches the chilling endpoint temperature prior to expiry of the
maximum chilling time duration:
the device will switch to storage mode
the display will show the message "End"
the buzzer will sound for the period of time set by parameter AA
press any key to mute the buzzer; press once more to cancel the message "End".

If the temperature measured by the pin probe does not reach the chilling endpoint temperature prior to expiry of
the maximum chilling time duration:
chilling will continue
the LED will flash and the LED will be on
the buzzer will sound
press several times to:
-mute the buzzer
-display the time elapsed since the maximum chilling time expired
-display the cabinet temperature
-display the message "nEg"
-exit the procedure, or leave for 15 seconds
when the temperature measured by the pin probe reaches the chilling endpoint temperature:
-the device will switch to storage mode
-the LED will continue to flash and the LED will continue to stay on
-the display will show the message "End"
-the buzzer will sound for the period of time set by parameter AA
-press any key to mute the buzzer; press once more to cancel the message "End".
During storage:
the display shows the cabinet temperature
if chilling had a positive outcome, the LEDs and and will be on; if chilling had a negative
outcome, the LEDs and will be on and the LED will flash
the parameter rA sets the operational set point
press several times to:
-display the message "nEg"
-exit the procedure, or leave for 15 seconds.
To interrupt the cycle:
press for2 seconds.

UK
TEST TO CHECK CORRECT PIN PROBE INSERTION
Set-temperature cycles are preceded by a test step in order to check correct pin probe insertion.
The test has two stages:
if the outcome of the first stage is positive, the second will not be run
if the outcome of the first stage is negative, the second will be run. The outcome of the first stage is
positive if "the temperature measured by the pin probe - the temperature of the cabinet" is greater than
the value set by parameter rc at least 3 times out of 5 (the comparison is made every 10 s); if
parameter rc is set to 0, neither the first nor second stages will be run.
The outcome of the second stage is positive if the difference "temperature measured by the pin probe -
temperature of the cabinet" is greater by at least 1ºC/1ºF (with respect to the previous comparison) at
least 6 times out of 8 (the comparison is made every "rd/8 s").
If the outcome of the test is positive:
• the cycle will be activated.
the cycle will be started in timed mode
the LED will flash.
If power is interrupted during the test, when power is restored, the test will start again from the beginning.
SETTING THE CONFIGURATION PARAMETERS
The parameters are arranged on two levels.
To access the first level:
•ensure the device is in "stand-by" mode and no procedures are running
•press and for 4 s: the display will show "PA"
To access the second level:•
•access the first level
•press or to select "PA"
•press
•press or within 15 s to set "-19"
•press or leave for 15 s
•press and for 4 s: the display will show "CA1"
To select a parameter:
•press or
To modify a parameter:
•press
•press or within 15 s
•press or leave for 15 s

UK Telephone Helpline: 0845 146 2887 (United Kingdom)
To exit the procedure:
•press and for 4 s , or leave for 60 s.
Interrupt the device power supply after altering the parameters.
ALARMS
CODE
MESSAGE
AL
Minimum temperature alarm
Remedies:
• check the cabinet temperature
• check parameters A1 and A2
Consequences:
• the device will continue to function normally
AH
Maximum temperature alarm
Remedies:
• check the cabinet temperature
• check parameters A3 and A4
Consequences:
• the device will continue to function normally
id
Micro-port input alarm (only in "stand-by" mode and if parameter i0 is set to 0 or 1)
Remedies:
• check the causes which activated the input
• check parameters i0 and i1
Consequences:
• the outcome set by parameter i0
iA
Compressor protection input alarm (only if parameter i0 is set to 2)
Remedies:
• check the causes which activated the input
• check parameters i0 and i1
Consequences:
• the compressor will be shut down
When the cause that triggered the alarm has been resolved, the device restores normal operation.

UK
INTERNAL DIAGNOSTICS
Internal diagnostics
CODE
MESSAGE
Pr1
Cabinet probe error
Remedies:
•see P0 parameter
•check probe integrity
•check probe-device connection
•check the cabinet temperature
Consequences if the error occurs while in "stand-by" mode:
•if parameter C11 is set to 0, it will not be possible to start any of the cycles
•if parameter C11 is set to 1, the pin probe will function as the cabinet probe and
only timed cycles will be allowed to start
Consequences if the error occurs during a timed chilling operation:
•if parameter C11 is set to 0, the cycle will be interrupted
•if parameter C11 is set to 1, the pin probe will function as the cabinet probe and
the chilling operation will continue
Consequences if the error occurs during a set-temperature chilling operation:
•if parameter C11 is set to 0, the cycle will be interrupted
•if parameter C11 is set to 1, the pin probe will function as both the cabinet probe
and pin probe and the chilling operation will continue
Consequences if the error occurs during a storage operation:
•parameter C11 is set to 0, the compressor activity will depend on parameters C4,
C5 and C6
•if parameter C11 is set to 1, the pin probe will function as the cabinet probe and
the storage operation will continue
Pr2
Pin probe error
Remedies:
•the same as for the previous case, but in relation to the pin probe
Consequences if the error occurs while in "stand-by" mode:
•only timed operation cycles will be allowed to start
Consequences if the error occurs during a timed chilling operation:
•chilling will continue
Consequences if the error occurs during a set-temperature chilling operation:
•chilling will continue in timed mode
Consequences if the error occurs during storage mode:
•storage will continue

UK Telephone Helpline: 0845 146 2887 (United Kingdom)
Troubleshooting
If your POLAR appliance develops a fault, please check the following table before making a call to the Helpline
or your POLAR retailer.
Fault
Probable Cause
Action
The appliance is not
working
The unit is not switched on
Check the unit is plugged in correctly
and switched on
Plug and lead are damaged
Call POLAR agent or qualified
Technician
Fuse in the plug has blown
Replace the fuse
Power supply
Check power supply
Internal wiring fault
Call POLAR agent or qualified
Technician
The appliance is leaking
water
The appliance is not properly leveled
Adjust the screw feet to level the
appliance (if applicable)
The discharge outlet is blocked
Clear the discharge outlet
Movement of water to the drain is
obstructed
Clear the floor of the appliance (if
applicable)
The water container is damaged
Call POLAR agent or qualified
Technician
The appliance is
unusually loud
Loose nut/screw
Check and tighten all nuts and screws
The appliance has not been installed in
a level or stable position
Check installation position and
change if necessary
Technical Specifications
Model
Voltage
Power
Current
Capacity
Dimensions
H X W X D (mm)
Weight
(Kg)
CK640
230v 50Hz
450W
3A
3 x GN 2/3
390 x 600 x 585
42
Electrical Wiring
POLAR appliances are supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard.
The plug is to be connected to a suitable mains socket.
POLAR appliances are wired as follows:
Live wire (coloured brown) to terminal marked L
Neutral wire (coloured blue) to terminal marked N
Earth wire (coloured green/yellow) to terminal marked E
All POLAR appliances must be earthed, using a dedicated earthing circuit.
If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection
being required they must be readily accessible.

UK
Disposal
EU regulations require refrigeration product to be disposed of by specialist companies who remove or recycle
all gasses, metal and plastic components.
Consult your local waste collection authority regarding disposal of your appliance. Local authorities are not
obliged to dispose of commercial refrigeration equipment but may be able to offer advice on how to dispose of
the equipment locally.
Alternatively call the POLAR helpline for details of national disposal companies within the EU.
Compliance
The WEEE logo on this product or its documentation indicates that the product must not be
disposed of as household waste. To help prevent possible harm to human health and/or the
environment, the product must be disposed of in an approved and environmentally safe
recycling process. For further information on how to dispose of this product correctly, contact
the product supplier, or the local authority responsible for waste disposal in your area.
POLAR parts have undergone strict product testing in order to comply with regulatory
standards and specifications set by international, independent, and federal authorities.
POLAR products have been approved to carry the following symbol:
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any
means, electronic, mechanical, photocopying, recording or otherwise, without the prior written
permission of POLAR.
Every effort is made to ensure all details are correct at the time of going to press, however, POLAR
reserve the right to change specifications without notice.

NL Klantenondersteuning: 040 –2628080 (Nederland)
Veiligheidstips
• Plaatsen op een vlakke en stabiele ondergrond.
• De installatie en eventuele reparaties zijn door een servicetechnicus/vaktechnicus uit te voeren.
Verwijder geen componenten of servicepanelen van dit product.
• Raadpleeg en volg de plaatselijke en nationale regelgeving op m.b.t. tot het volgende:
oWetgeving van gezondheid en veiligheid op de werkplaats
oWerkregels
oBrandpreventie
oIEE bekabelingsnormen
oBouwverordeningen
• Dit product NIET reinigen met spuit-/drukreinigers.
• Dit product NIET gebruiken voor de berging van medische producten.
• In dit product GEEN elektrische apparaten gebruiken (zoals bijv. verwarmers, ijsmakers, etc.).
• NIET op de kastbasis, lades en deuren staan of als ondersteuning gebruiken.
• Laat NIET toe dat olie of vet in contact komt met plastic componenten of deurafdichtingen.
Onmiddellijk reinigen indien dit wel gebeurt.
• GÉÉN producten op de koellast bewaren.
• Uitsluitend geschikt voor gebruik binnenshuis.
• Flessen met en hoog alcoholpercentage moet goed worden gesloten en verticaal in de koelkast
worden bewaard.
• Dit product altijd in een verticale positie vervoeren, opbergen en gebruiken. Het product aan de
kastbasis vervoeren.
• Alvorens dit product te reinigen dient men altijd de stroomvoorziening uit te schakelen.
• Laat verpakkingsmateriaal niet binnen handbereik van kinderen. Verpakkingsmateriaal in
overeenstemming met de regelgeving van de plaatselijke overheden als afval laten verwerken.
• Indien de stroomkabel beschadigd raakt, dient men deze door een POLAR technicus of een
aanbevolen vaktechnicus te laten vervangen om gevaarlijke situaties te verhinderen.
• Dit toesel is niet bedoeld voor gebruik door personen (inclusief kinderen) met verminderde lichamelijke of
geestelijke vaardigheden of gebrek aan ervaring of kennis, tenzij ze toezicht of intructies in verband met het
gebruik van het toesel hebben ontvangen van een persoon die veranwoordelijk is voor hun veiligheid.
• Op kinderen moet toezicht worden gehouden om ervoor te zorgan dat ze niet met het toestel spelen.
Productbeschrijving
CK640 - POLAR Blast koel-/vrieskast
Inleiding
Neem er a.u.b. even de tijd voor om deze handleiding goed door te lezen. Met het juiste onderhoud en de juiste
bediening van uw POLAR product krijgt u de beste resultaten.

Klantenondersteuning: 040 –2628080 (Nederland) NL
Inhoud van de verpakking
Het volgende is inbegrepen:
POLAR Blast koel-/vrieskast
Instructiehandleiding
POLAR is trots op haar uitstekende kwaliteit en service en zorgt ervoor dat de inhoud ten tijde van de
verpakking volledig functioneel en schadevrij is.
Mocht er tijdens het vervoer iets zijn beschadigd, wordt u verzocht onmiddellijk contact op te nemen met uw
POLAR dealer.
Installatie
N.B. Als het toestel niet rechtop is bewaard of verplaatst, laat het dan ongeveer 12 uur rechtop staan
voordat het in gebruik wordt genomen. Laat het toestel in geval van twijfel staan.
1. Haal het toestel uit de verpakking. Zorg ervoor dat alle beschermende plastic folie en deklagen volledig
verwijderd zijn van alle oppervlakken
2. Houd het toestel minimaal op 20 cm afstand van de wand en andere voorwerpen. Handhaaf een grotere
afstand met voorwerpen die een hittebron zijn. Blokkeer geen ventilatieroosters.
N.B. Maak de legplanken en de binnenkant schoon met zeepwater voordat het toestel de eerste keer
wordt gebruikt.
Bediening
Het is belangrijk dat het voedsel dat in de Blast koel-/vrieskast wordt geplaatst, niet warmer is dan 90C.
Het wordt aanbevolen om metalen containers/trays te gebruiken aangezien andere materialen zoals plastic of
polystyreen containers als een isolator dienst doen en de koel/vriestijden verlengen.
Er moet voldoende ruimte voorzien worden tussen de producten zodat een voldoende stroom van koude lucht
wordt voorzien. Zorg dat het product niet in contact komt met de interne wanden van het toestel en voorzie
voldoende ruimte tussen de trays.
U mag de inlaat van de verdamperventilatoren nooit belemmeren.
Producten die omwille van hun samenstelling en omvang moeilijker af te koelen zijn, moeten in het midden van
het toestel geplaatst worden.
De data voor koelen/vriezen verwijzen naar standaardproducten (laag vetgehalte) van minder dan 50 mm dik:
daarom dient men te vermijden om producten boven elkaar te plaatsen op trays of veel dikkere stukken te
plaatsen, aangezien dit de koel-/vriestijden zal verlengen. U dient het product steeds goed te verdelen over de
trays en in het geval van dikke stukken dient u het te koelen/vriezen volume te verminderen.
Beperk het aantal keren en de tijd dat de deuren worden geopend.
De koelkast mag uitsluitend voor korte bewaarperioden gebruikt worden.
Wanneer een product wordt verwijderd dat koelen-vriezen/shockvriezen heeft ondergaan, dient u steeds
handschoenen te dragen om de handen te beschermen tegen koude brandwonden.

NL Klantenondersteuning: 040 –2628080 (Nederland)
Inleiding
Het toestel heeft de volgende bedrijfsstatussen:
• "aan" (het toestel is ingeschakeld en er is een bedrijfscyclus bezig)
• "stand-by" (het toestel is ingeschakeld maar er is geen bedrijfscyclus bezig)
• "uit" (het toestel is niet ingeschakeld).
Indien de stroom wordt onderbroken tijdens een getimede koel/vriesoperatie, gaat het koelen verder wanneer de
stroom wordt hersteld en dit vanaf het ogenblik waarop de onderbreking zich voordeed (met een foutmaximum
van 10 minuten).
Indien de stroom wordt onderbroken tijdens een vaste-temperatuur koel/vriesoperatie, begint het koelen opnieuw
vanaf het begin wanneer de stroom wordt hersteld.
Indien de stroom wordt onderbroken tijdens een opslagoperatie, wordt de opslagoperatie gereset wanneer de
stroom wordt hersteld.
Indien de stroom wordt onderbroken in de "stand-by" modus, blijft het toestel in dezelfde status wanneer de
stroom wordt hersteld.
Bedieningspaneel
Controller-display
In de status “aan", tijdens normale bediening, toont het scherm:
• de tijd die resteert voor een getimede koel/vriesoperatie, indien deze voortduurt
• de temperatuur gemeten door de pen-sonde wanneer een vaste-temperatuur koeloperatie bezig is
• de temperatuur van de kast indien de opslag bezig is.
In "stand-by" modus, tijdens normal bedrijf, toont het scherm de temperatuur van de kast gedurende ½ s om de
3s.
Tijd koelen LED
Insteltemperatuur koelen LED
Opslag LED
Alarm LED
Graden Celsius LED
Graden Fahrenheit LED
Minuut LED

Klantenondersteuning: 040 –2628080 (Nederland) NL
Signalen
LED
Bericht
Tijd koelen LED
Indien deze LED brandt en de LED uit is, is een getimede koeloperatie bezig
Indien deze LED brandt en de LED aan is, is er een getimede opslagoperatie na
het koelen bezig
Wanneer deze knippert, werd een getimede koel- en opslagcyclus geselecteerd
Insteltemperatuur koelen LED
Indien deze LED brandt en de LED uit is, is een koel-opslag-operatie met vaste
temperatuur bezig
Indien deze LED brandt en de LED aan is, is er een koel-opslagoperatie na de
ingestelde temperatuur bezig
Wanneer deze LED knippert, werd koel- en opslagcyclus met vaste temperatuur
geselecteerd
Indien deze LED om de 3 seconden een ½ seconde aan gaat, is de test bezig voor het
controleren van het correct inbrengen van de pen-sonde
Indien deze LED knippert en de LED brandt, heeft de test voor het controleren
van het correct inbrengen van de pen-sonde een negatief resultaat en de cyclus werd
gestart in de getimede modus
Indien deze LED knippert en de LED aan is, heeft de koelfase een negatief
resultaat gehad en dus blijft dit aanhouden
Indien deze LED knippert en de LED's en zijn aan, heeft de koelfase een
negatief resultaat gehad, het toestel is overgeschakeld op opslagmodus en dit blijft
voortduren
Opslag LED
Indien deze LED aan is, is een opslagoperatie bezig
Indien deze LED knippert, werd de operationele instelwaarde gewijzigd terwijl een
opslagoperatie bezig is
Alarm LED
Indien deze LED aan is, is een alarm bezig
⁰C
Graden Celsius LED
Indien de meeteenheid voor temperatuur graden Celsius is
⁰F
Graden Fahrenheit LED
Indien de meeteenheid voor temperatuur graden Fahrenheit is
Decimale
punt
Minuut LED
Indien deze LED knippert, is de weergegeven meeteenheid voor omvang minuten
Code
Bericht
d
Ontdooien of uitlekken is bezig

NL Klantenondersteuning: 040 –2628080 (Nederland)
BEDRIJFSCYCLI
Het toestel heeft de volgende bedrijfscycli:
getimed positief koelen en opslag
getimed negatief koelen en opslag
Vaste-temperatuur positief koelen en opslag
Vaste-temperatuur negatief koelen en opslag.
Vaste-temperatuurcycli worden voorafgegaan door een teststap om de correcte plaatsing van de pen-sonde te
controleren (zie paragraaf 3.6).
Om opnieuw te starten met dezelfde instellingen als de laatste cyclus:
zorg dat het toestel in "stand-by" modus staat, dat geen procedures worden uitgevoerd en dat geen
andere cyclus werd geselecteerd
druk gedurende 2 seconden in. Het scherm toont het label van de laatste cyclus
druk op binnen 60 seconden: in het geval van een getimede cyclus, het scherm toont de duur van
de koel/vriesstap (in minuten) of in het geval van een vaste-temperatuur cyclus, de ingestelde
doeltemperatuur
druk binnen 15 seconden op of om de waarde te veranderen (de instelling blijft actief
totdat een andere cyclus wordt geselecteerd, wanneer de waarde r1, r2, r3 of r4 is hersteld)
druk binnen 15 seconden op en de cyclus wordt geactiveerd
GETIMED POSITIEF KOELEN/VRIEZEN EN OPSLAGCYCLUS
Om de cyclus te starten:
zorg dat het toestel in "stand-by" modus staat en dat geen procedures worden uitgevoerd
druk op om "PoS" te selecteren en zorg dat LED knippert
druk binnen 15 seconden op : het scherm toont de duur van de koel-vriesstap (in minuten)
druk binnen 15 seconden op of om de waarde te wijzigen (de instelling blijft actief totdat
een andere cyclus werd geselecteerd, wanneer de waarde toegewezen door parameter r1 werd hersteld)
druk op : na 2 minuten , voer getimede positieve koel/vries- en opslagcyclus uit
Tijdens het koelen:
het scherm toont de resterende koeltijd
de LED is aan
parameter r1 stelt de duur van de koeltijd in
parameter r7 stelt het operationele stelpunt in
druk verschillende keren op om:
- het bericht "PoS" weer te geven
-de kasttemperatuur weer te geven
-de procedure af te sluiten of 15 seconden ongemoeid te laten.
Zodra de koelperiode is verstreken:
het toestel schakelt over op opslagmodus
het scherm toont het bericht "Einde"
de zoemer is te horen gedurende de periode ingesteld door parameter AA
druk op een toets om de zoemer te dempen; nogmaals drukken om het bericht "Einde" te annuleren.
