Polaroid FLM-0711LA User manual

7” Portable LCD TV with NTSC Tuner
FLM-0711LA
20060525

- -
1
Polaroid. Add a little color to your life.
Since 1937, America has turned to Polaroid for their photography needs. Today,
families look to Polaroid for consumer electronics that define the digital age: plasma
and LCD TVs, portable and standard DVD players, digital cameras. And while our
selection has changed, you’ll still receive the same friendly, helpful service that made
Polaroid anAmerican icon. Congratulations on your new Polaroid LCD TV purchase.
To ensure your new LCD TV provides you with years of enjoyment, please read this
guide carefully.
Important Notice
It is unlawful in most jurisdictions for a person to drive a motor vehicle
which is equipped with a television viewer or screen that is located in the
motor vehicle at any point forward of the back of the driver’s seat, or that is
visible, directly or indirectly, to the driver while operating the vehicle. In
the interest of safety, this system should never be installed where it will be
visible, directly or indirectly, by the operator of the motor vehicle.
Safety Precaution
For safety reasons, when changing video media, it is recommended that
the vehicle is not in motion, and that you do not allow children to unfasten
seat-belts to change video media or make any adjustments to the system.
Enjoy your entertainment system but always remember-safety of all
passengers remains the number one priority.

- -
2
ImportantSafetyInstruction
CAUTION
1. To reduce the risk of electric shock, do not remove the cover (or back). No
user-serviceable parts inside. Refer servicing to qualified service personnel.
Unplug the product from the wall outlet before servicing or when it is unused for a
long period of time.
2. The manufacturer should not hold responsibility for the damage caused by any
substitutions and modifications of the product without authorization from the
manufacturer or authorized unit.
3. Dangerofexplosionif batteryis incorrectlyreplaced. Replace onlywith thesame or
equivalent type.
WARNING
The apparatus shall not be exposed to dripping or splashing and that no objects filled
with liquids, such as vases, shall be placed on the apparatus.

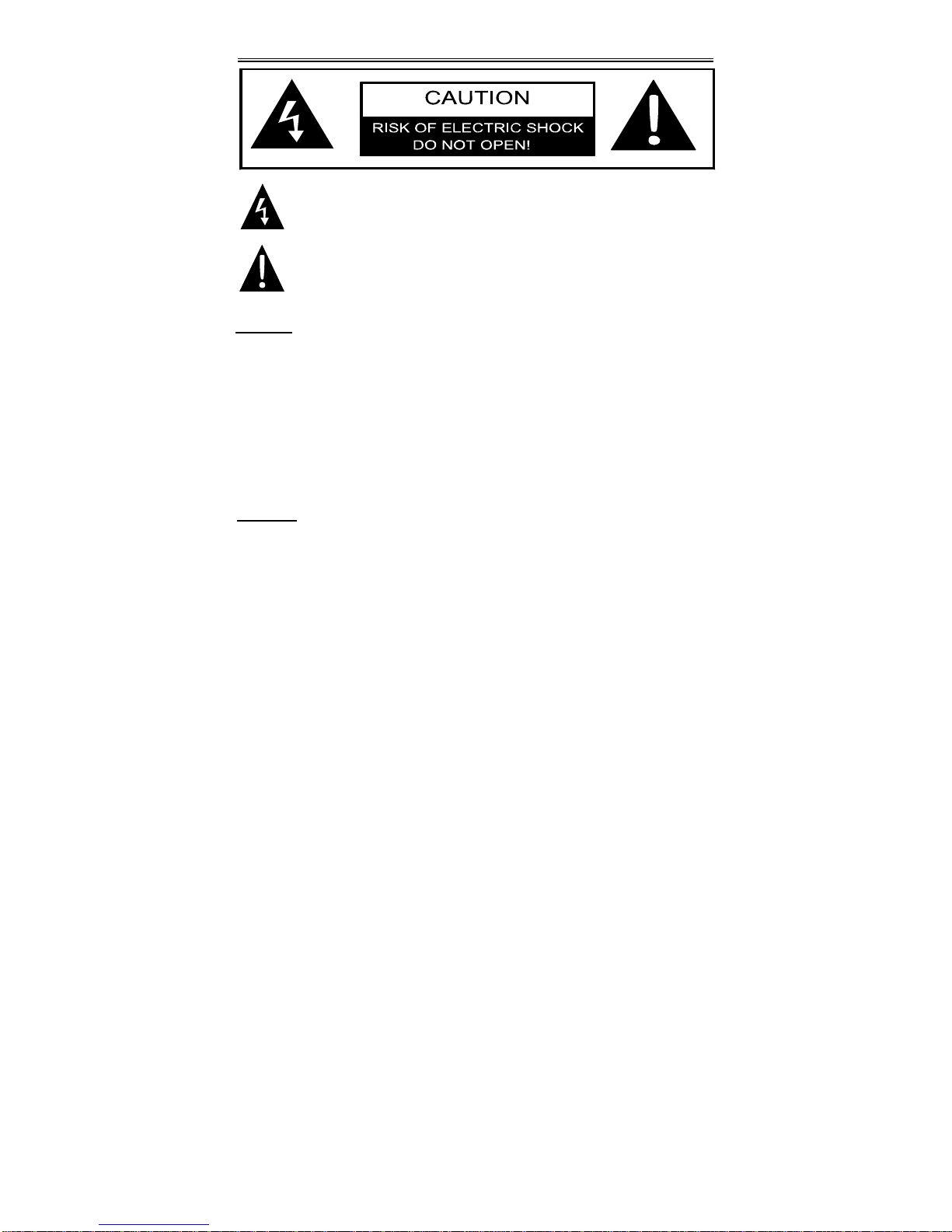

The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of un-insulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.

- -
3
ImportantSafetyInstruction
NOTES
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Maintain well ventilated conditions around
the product. Do not put product on bed, sofa or anything that blocks ventilation.
Install according to the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or
other apparatus (including amplifiers) that produce heat.
9. Read, heed and follow all instructions to ensure correct and safe installation and
interconnection of the apparatus;
10. The apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus;
11. The mains socket-outlet shall be installed near the apparatus and the mains plug
shall remain readily operable;
12. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
13. Only use attachments/accessories specified by the manufacturer.
14. Useonly withthe cart,stand,tripod, bracket,or tablespecified by themanufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
15. Unplug the apparatus during lightning storms or when unused for long periods of
time.
16. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
Note: Do not touch the color TFT LCD screen by hand directly.

- -
4
Product Features
TV Signal
Can be connected to the TV antenna for receiving TV signal.
SuperiorSound
Built-in 2x1.5w stereo amplifier realizes high quality sound effects.
LCD (Liquid Crystal Display)
Designed with 7" color TFT liquid crystal display clearly shows the data.
Audio and Video Input and Output
Audio and video output can be connected to external audio and video input device and
external AV signal source.
Channel Search Function
Auto channel searching function.

- 5 -
Table Of Contents
Introduction---------------------------------------------------------------------------------------------
Important Safety Instructions-----------------------------------------------------------------------
Product Features ------------------------------------------------------------------------------------
Table of Contents--------------------------------------------------------------------------------------
Product Description----------------------------------------------------------------------------------
Main Panel ----------------------------------------------------------------------------------------------
Rear Panel-----------------------------------------------------------------------------------------------
Remote Control Description-----------------------------------------------------------------------
Preparation of Remote Control ------------------------------------------------------------------
Rechargeable Battery--------------------------------------------------------------------------------
System Connections---------------------------------------------------------------------------------
Power Supply Connection ---------------------------------------------------------------------------
Connecting to a TV -------------------------------------------------------------------------------------
Connecting to an Amplifier----------------------------------------------------------------------------
Connecting to External AV Signal Source---------------------------------------------------------
Connecting to a DC Adapter ------------------------------------------------------------------------
Connecting to a Headphone-------------------------------------------------------------------------
Connecting to CATV Antenna-----------------------------------------------------------------------
Connecting to External Antenna(1)----------------------------------------------------------------
Connecting to External Antenna(2)----------------------------------------------------------------
TV Setup--------------------------------------------------------------------------------------------------
Troubleshooting---------------------------------------------------------------------------------------
Specifications------------------------------------------------------------------------------------------
1
2
4
5
6
6
7
8
10
11
14
14
14
15
15
16
16
17
17
18
20
21
22

- 6 -
Product Description
Main Panel
1. Power button
Press to turn on or off the power.
2. MENU button
Press to enter or exit the setup menu.
3. CH/button
In TV mode, press to select channel.
In the menu, press to adjust the value.
4. CH +/button
In TV mode, press to select channel.
In the menu, press to adjust the value.
5. button
Press to select item in the setup menu, used as direction button.
6. button
Press to select item in the setup menu, used as direction button.
7. Remote sensor
IR receiver for remote control operation.
8. Power Indicator
In standby mode, the light will turn off; in working status, it turns green.
9. Speakers
Output high quality stereo sound.
10. TV Antenna jack (1)
Used to connect to the external antenna.

- 7 -
Product Description (continued)
11. TV Antenna jack (2)
Used to connect to the external antenna or the CATV connecting line.
12. TV Antenna jack (3)
Used to connect to the external antenna.
13. LCD screen
7" color TFT LCD screen clearly display the data.
Left Panel
1. Headphone jack
When the headphone is plugged, the internal speakers output will turn off
automatically.
2. Volume Control knob
Used to adjust the volume of the headphone and speaker.
3. Video Input/Output Jack
Used to connect to an external monitor for video signal output or external video
source for video signal input.
4. Audio Input/Output Jack.
Used to connect to audio device for audio output or audio source for audio signal
input.
5. TV/AV Switch
Switch to TV to receive TV programs and output AV signal; switch to AV to input AV
signal.
6. DC 9.5V Input Jack
Used to connect the AC adapter or DC adapter.
Rear Panel
When using the unit, pull the bracket on
the rear panel out, and place the unit
resting on the table.

- 8 -
Remote Control Description
Remote Control

- 9 -
Remote Control Description
1. Power button
Press to access or exit standby mode.
2. LCD ON/OFF button
Press to turn on or off the LCD screen display.
3. 16:9 button
Press to change the screen aspect ratio to 16:9.
4. 4:3 button
Press to change the screen aspect ratio to 4:3.
5. MENU button
Press to enter or exit the setup menu.
6. Direction buttons (▲▼◄►)
Press to select or adjust items.
7. ENT button
Press to confirm the selection in setup menu.
8. EDIT button
In TV mode, press to edit the channels.
9. CH - button
In TV mode, press to select channels backward.
10. CH + button
In TV mode, press to select channels forward.
11. 0-9 number buttons
Select numbers by pressing these buttons.
12. -/-- button
In TV mode, press this button and the additional number buttons to select item
numbers which are greater than 9.
13. CH DISP button
Press to display the status information, press again to cancel the display.
14. MUTE button
Press to turn on/off the speaker output.
15. P-MODE button
Press to change the current picture mode among standard, memory, soft and light.
16. TIMER button
Press to display the sleep time on the screen, and then use the ▲▼ to select sleep
time.
17. LAST button
Press to return to the previous channel that you have viewed.

- 10 -
PreparationofRemoteControl
•The battery size is CR2025
•Refer to the drawing below, to
remove the battery receptacle.
•Insert the battery with the correct
polarity facing up according to the
mark on the battery holder.
•Re-insert into the remote control.
Usage of remote control
For best results, please aim the remote
control directly at the unit’s remote
sensor. Please operate the remote
control within angles about 60 degrees
and distance about 5 meters without
obstructions between the remote control
and the unit.
•The life of the battery is about six
months in normal use. Please
replace the battery when the
remote control is not so sensitive.
•Please take out the battery when
the remote control is not used for a
long period time. Abattery may leak
from long periods of non-use.

- 11 -

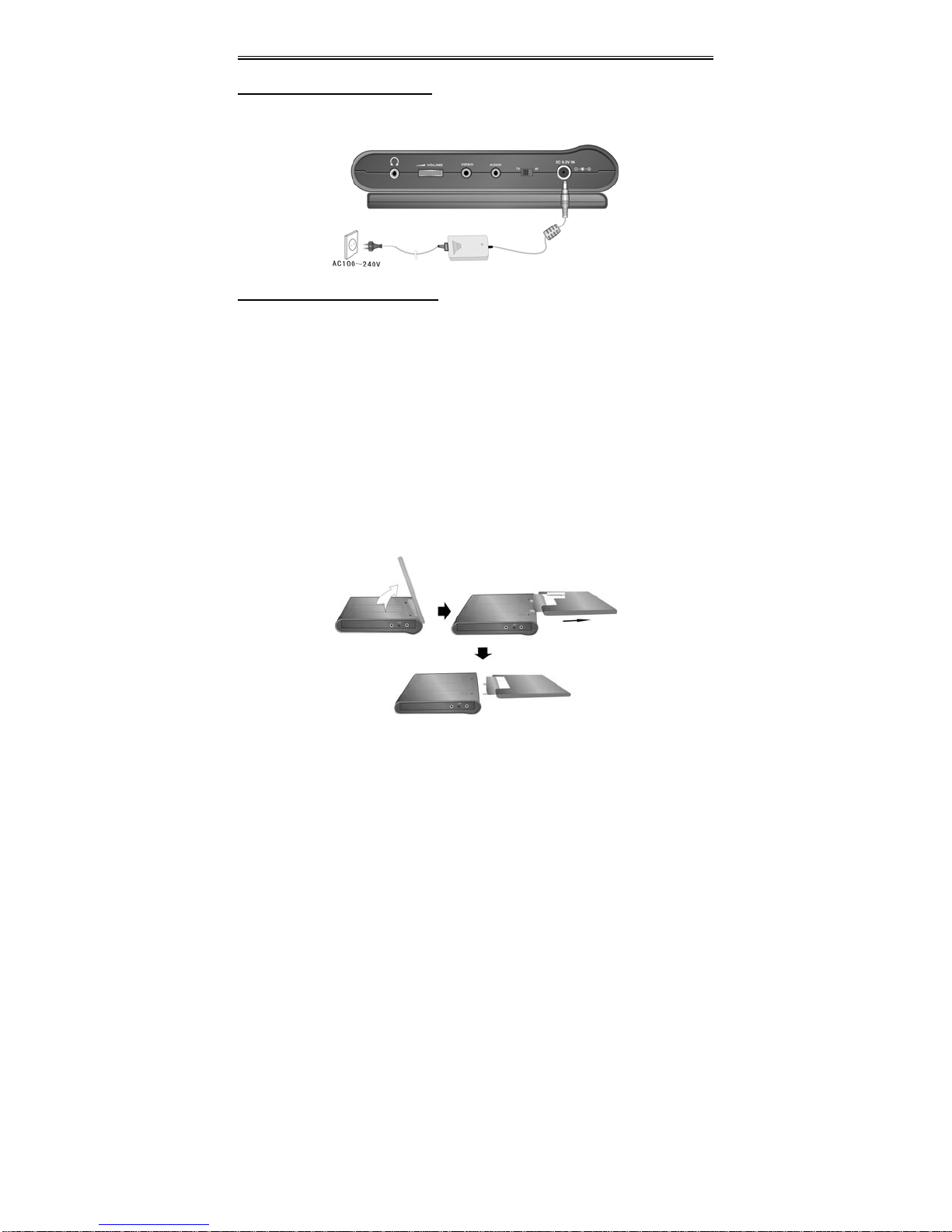

Rechargeable Battery Description
About Rechargeable Battery Pack
The unit can be connected with a lithium polymer rechargeable battery that attaches to
the bottom of the unit. Your new battery should be fully charged before initial use.
Charging time is normally about 4 hours. A fully charged battery delivers about 2.5 to 3
hours of use, but playing time varies from disc to disc. If the battery will not be used for
a long period of time, fully charge the battery prior to storage.
Working conditions and precautions of the battery
•Battery should only be used and charged when temperatures are between
32-80F.
•Never put the battery in fire or water.
•Do not expose the battery to high temperatures or store in hot, sunny places.
•Maintain well-ventilated conditions around the product, avoiding heat. Don’t
put the product on bed, sofa or anything that may block ventilation to the
product.
•Do not open the battery.
•Never charge the battery for more than 8 hours. Detach battery immediately
after charging is complete if it is not being used. When charging the battery,
the light on the battery will turn red, when the charging is complete or the
battery is being used, the light will turn green.
•Detach battery when not in use.
•When the battery is weak, there will be a mark displayed on the LCD screen,
and about one minute later, the unit will power OFF automatically.

- 12 -
Rechargeable Battery Description
Battery Pack Attaching and Placement
The unit’s power supply is the AC power adapter or the battery pack. The battery pack
can be used as a stand.
Refer to the following steps for attaching the Battery Pack:
1. Place the unit on a soft and smooth surface with its back cover facing UP (to avoid
scratching the screen).
2. Position the Battery Pack directly toward the battery slot on the back cover of the
unit.
3. Align the pins on the battery pack with holes on the unit until you hear it click and it
locks into place.
After attaching the Battery Pack, place the unit LCD screen in normal position. The
attached Battery Pack serves as a stand.
When used in a vehicle, the unit is placed into a sturdy carrying Bag/Mount. The
Bag/Mount is easy to attach to a headrest and fits on most vehicle headrest types. This
is convenient for the rear seated passengers to view the screen.

- 13 -
Rechargeable Battery Description
Charging the Battery Pack
The battery must be attached to the unit to charge it. Plug the Power Adapter into the
unit’s DC 9.5V IN Jack, which is located on left of the unit. Plug the other end of the
Power Cord into a wall Outlet.
Detaching the Battery Pack
If the unit is not going to be used for long periods of time, the Battery Pack should be
detached.
Make sure the power is turned OFF before detaching the Battery Pack. After detaching
the battery pack, take care when handling the unit.
1. Place the unit on a soft and smooth surface with its back cover up to avoid
scratching the screen.
2. Press the button located on the backside of the unit to unlock the battery pack and
while pressing the button pull the battery pack out from the unit.
NOTE: When attaching or detaching the battery pack, make sure to protect the LCD
screen.

- 14 -
System Connections
•Before plugging the power cord into an AC outlet, make sure that all other
connections have been made as described below.
•Always ensure that the unit, TV and any other electrical components are switched
OFF before connecting to the unit.
Power Supply Connection
Connectthe suppliedadapter tothe side ofthe unitin thejack marked“DC 9.5VIN”. Plug
the polarized two-prong end of the power cord to an AC100-240V outlet. If you have
difficulty inserting the plug, turn it over and reinsert it. If the unit will not be used for a
long time, disconnect the plug from the outlet.
Connecting to a TV
Use the audio/video cable to connect the audio/video output of the unit to the
audio/video input of the TV. Ensure that you observe the color coding when connecting
audio and video cables. Switch the TV/AV to TV.
In TV mode, it outputs an analog audio signal.

- 15 -
System Connections
Connecting to an Amplifier
Theunit canbe connectedto anamplifier. Plugthe suppliedA/V cableinto theaudio jack
on the left side of the unit and plug the other end into an audio input on the amplifier.
Please refer to the equipment’s manual of your amplifier before connecting. Switch the
TV/AV to TV.
In TV mode, it output analog audio signal.
Connecting to an External AV Signal Source
The unit supports AV input function, it can be connected to the external AV signal source,
such as a DVD, follow the below figure to connect and switch the TV/AV to AV.

- 16 -
System Connections

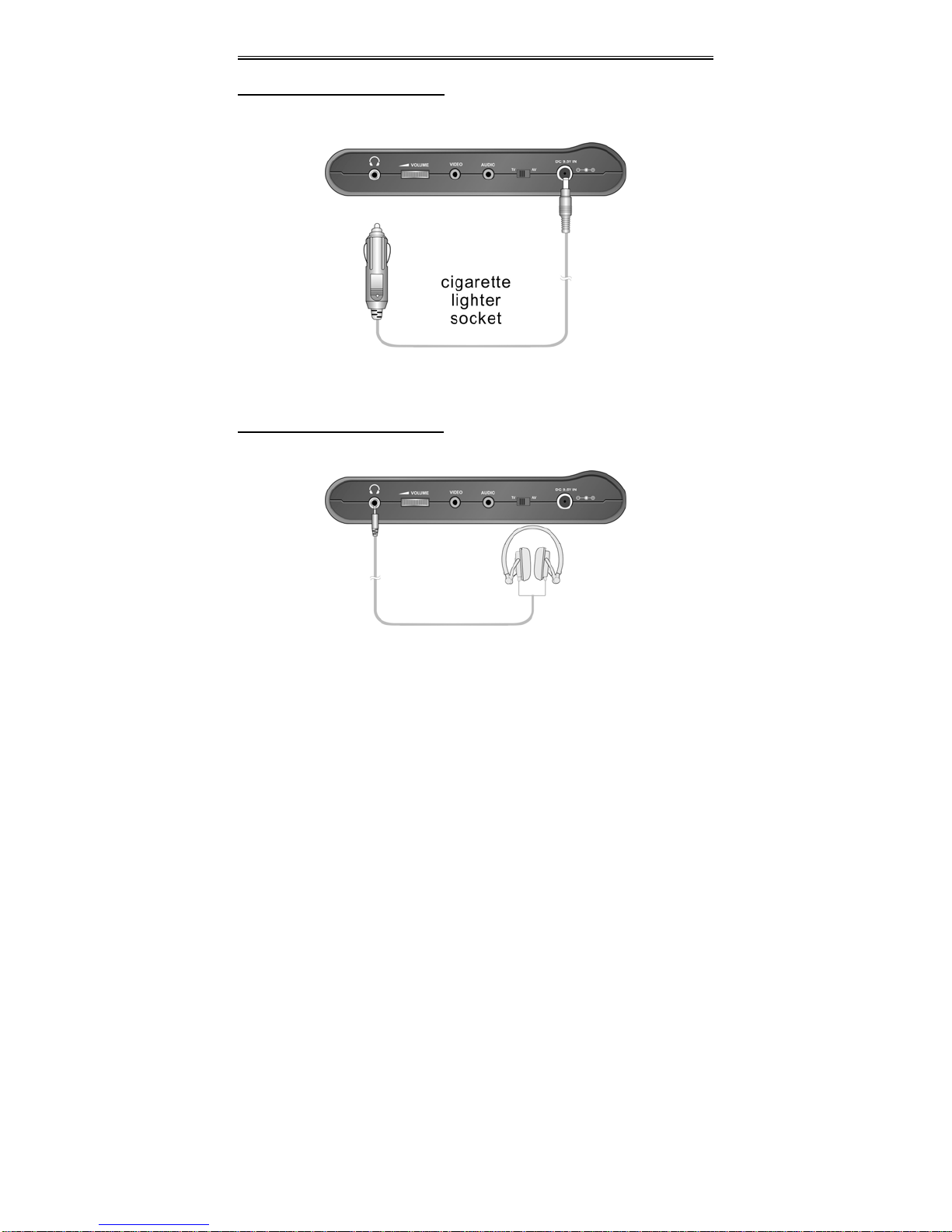

Connecting to a DC Adapter
Connect one end of the specific DC adapter to the “DC 9.5V IN” jack on the left panel of
the unit, and connect the other end to the cigarette lighter socket in the car as shown
below:
•The power supply of the car is not suitable for charging the battery.
•Do not connect the unit to the car adapter when you start the car.
Connecting to a Headphone
Connect the headphone to the headphone jack on left side of the unit.
When headphones are connected to this jack, the speaker will be turned off
automatically

- 17 -
System Connections
Connecting to CATV antenna
Connect one end of the provided connecting line to the TV signal input jack on the right
panel of the unit, and the other end to the CATV signal source, as shown below:
After connection, switch the TV/AV to TV.

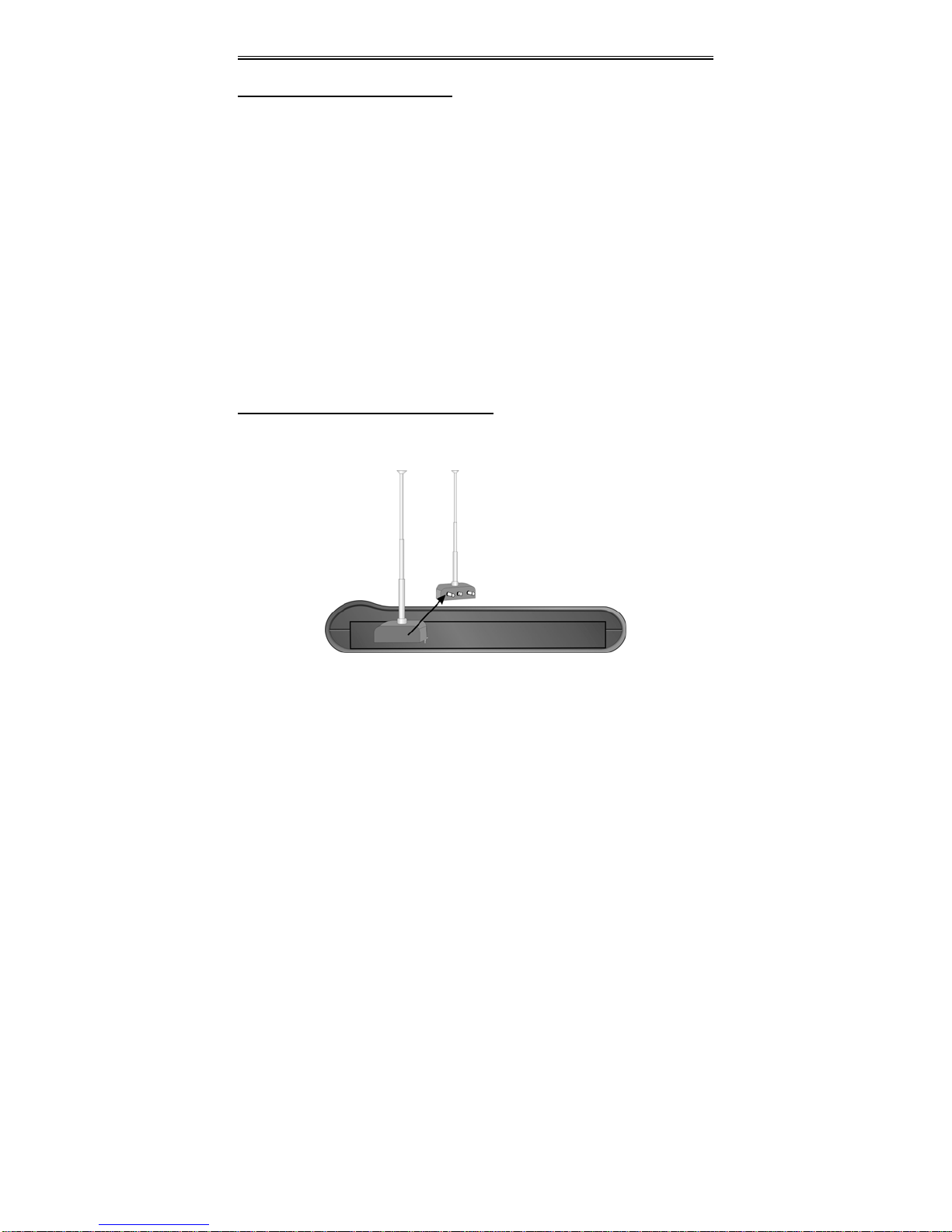

Connecting to external antenna (1)
Plug the provided external antenna (1) to the TV signal input jack and two fixing jacks on
the right panel of the unit, as shown below:
After connection, switch the TV/AV to TV.

- 18 -
System Connections
Connecting to external antenna (2)
Plug the provided externalantenna (2) to the TVsignalinput jackon theright panel of the
unit, as shown below:
After connection, switch the TV/AV to TV.

- 19 -
TVSetup
Preparation
1. Connect the unit to the external antenna or CATV connecting cord.
2. Connect to power supply.
3. Turn on the power of the unit.
4. Switch the TV/AV to TV.
5. Press the MENU button to enter the setup menu.
Picture Setup Menu
Press the MENU button once to enter the Picture setup menu, as shown on the below:
The items in the menu are used to adjust the brightness, contrast, and color of the
screen.
Pressthe  button to select the desired item. Then use the orbutton to adjust the
value.
You can adjust the items in this menu according to the environment around for your
preference.
TV Setup Menu
Press the MENU button twice to enter the TV setup menu, as shown on the below:
In the TV Setup menu, press the  button to select item.
1. TV Signal
Press the  button to select TV SIGNAL, press the  button to select CATV or AIR.
2. Channel
Press the  button to select CHANNEL, press the button to select the channel
number.
TVSetup
COLOR 30
CONTRAST 30
BRIGHT 30
TV SIGNAL AIR
CHANNEL 2
FINE 55.25VL
SKIP ON
AUTO SCAN OFF
TV SETUP
