Polaroid HD-Ready Widescreen LCD TV User manual

15” / 19”/ 22” HD-Ready Widescreen LCD TV
Questions? Need some help?
This manual should help you understand your new product. If you have
questions, call our toll-free number found on the insert with this icon:
Or visit www.polaroid.com.
Your TV may look different from the one pictured above.

2

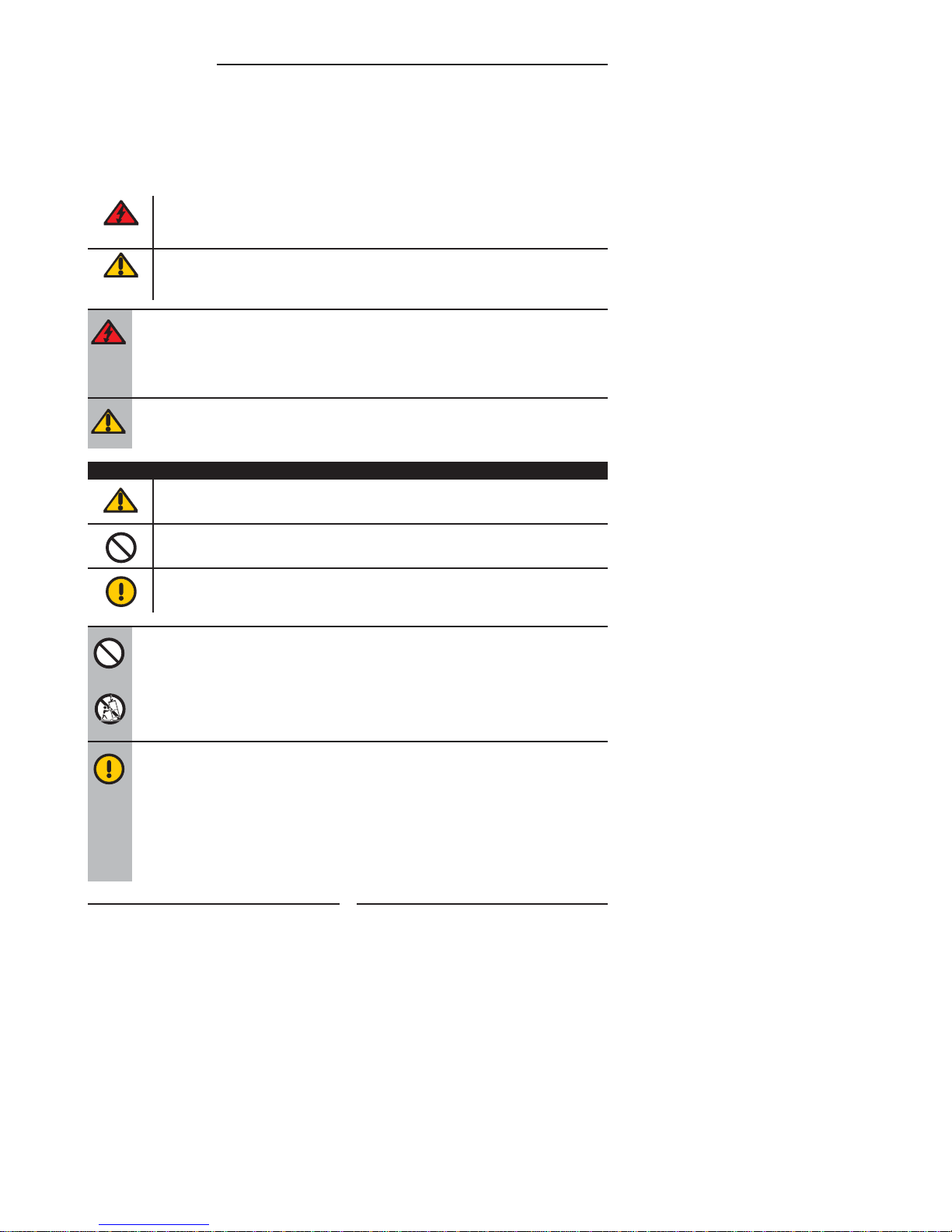

Warnings and Precautions
Warnings and Precautions
To reduce the risk of fire or electric shock, do not expose this equipment to rain or moisture.
This symbol is intended to alert the user to avoid the risk of electric shock.
This equipment must not be disassembled by anyone except qualified service personnel.
This symbol is intended to alert the user to the presence of important operating and
maintenance instructions in the literature accompanying the appliance.
▪TO REDUCE THE RISK OF ELECTRIC SHOCK,
▪DO NOT REMOVE COVER (OR BACK).
▪NO USER-SERVICEABLE PARTS INSIDE.
▪REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Use of controls, adjustments or performance of procedures other than those specified herein
may result in hazardous radiation exposure.
CAUTION
Important Safety Instructions
To prevent any injuries, the following safety precautions should be observed in the installation, use,
servicing and maintenance of this equipment.
Before operating this equipment, please read this manual completely, and keep it nearby for future
reference.
WARNING
▪Do not place the equipment on any uneven or unstable carts, stands, tables, shelves etc.
The equipment may fall, causing serious injury to children or adults and serious damage
to the equipment itself.
▪Use only a cart or stand recommended by the manufacturer. This equipment and
recommended cart or stand should be handled with care. Quick stops, excessive force,
and uneven surfaces may cause the equipment and cart/stand to overturn.
▪Do not disable the 3-wire grounding type plug. The grounding pin on the 3-prong plug is
an important feature. Removing the grounding pin will increase the risk of damaging the
equipment.
▪If you can not fit the plug into the electrical outlet, contact an electrician to install a
grounding outlet.
▪Always operate this equipment from the type of power source indicated on the rear of the
serial/model plate.
This symbol indicates caution points.
This symbol indicates actions that should not be done.
This symbol indicates actions that must be performed.

ENGLISHENGLISH
3
Warnings and Precautions
▪Never overload wall outlets and extensions.
▪Use and handle the power cord with care. Do not place any heavy objects on the AC
power cord.
▪Do not pull the AC power cord. Do not handle theAC power cord with a wet hand.
▪Do not touch the power cord and antenna cable during lightning.
▪Remove the plug from the wall outlet, if the equipment will not be used for a long period
of time.
▪Do not place, use or handle this equipment near water.
▪Never expose the equipment to liquid, rain, or moisture.
Seek for service if any of the above is spilled into the equipment.
▪Do not expose the equipment to extreme temperature or to direct sunlight, as the
equipment may heat up and suffer damage.
▪Do not install the equipment near any heat sources such as radiators, heat registers,
stoves, or any other apparatus that might produce heat.
▪Do not attempt to service the equipment yourself.
▪Opening and removing the covers may expose you to dangerous voltage or other
hazards and may void your warranty. Refer service to qualified personnel.
▪Do not place or drop any other objects on top.
▪Do not insert anything into the ventilation holes of your equipment.
Inserting any metal or flammable objects may result to fire or electric shock.
▪Do not place the equipment on uneven or unstable carts, stands, tables, shelves etc. The
equipment may fall, causing serious injury to children or adults and serious damage to
the equipment itself.
Always place the equipment on the floor or on a surface that is sturdy, level, stable and
strong enough to support the weight of the equipment.
▪Do not block any ventilating openings. Leave an open space around the equipment.
Never place the equipment :
on a bed, sofa, rug, or any other similar surfaces; too close to drapes/curtains/walls, in a
bookcase, built-in cabinet, or any other similar places that may cause poor ventilation.
▪Always remove the power cord from the outlet before cleaning the equipment.
▪Never use liquid or aerosol cleaners on the equipment.
Clean only with a soft dry cloth.
▪This equipment is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning the use of the equipment by a
person responsible for their safety.
▪Children should be supervised to ensure that they do not play with the equipment.

4
Warnings and Precautions
Outdoor Antenna Safety Instructions
Antenna lead-in wire
Antenna discharge unit
(NEC section 810-20)
Grounding conductors
(NEC section 810-20)
Ground clamps
Power service grounding
(NEC Art250 part H)
Ground clamps
Electric service
equipment
NEC : National Electrical code
If an outdoor antenna is connected, follow the precautions below:
EXAMPLE OF OUTDOOR ANTENNA GROUNDING
The example of outdoor antenna grounding provides information with respect to proper grounding of the
mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding
conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for
the grounding electrode.
▪An outdoor antenna should not be located in any area where it could come in contact with
overhead power lines, or any other electric light or power circuits.
▪When installing an outdoor antenna system, extreme caution should be taken to prevent
contact with power lines. Direct contact with power lines may be fatal and should be avoided
at all costs.

ENGLISHENGLISH
5
CONTENTS
Warnings and Precautions
Important Safety Instructions....................................................................................... 1
Antenna Safety Instructions......................................................................................... 3
Chapter 1 Introducing the LCD TV
Key Features ............................................................................................................... 5
Package Contents ....................................................................................................... 6
Setting Your LCD TV.................................................................................................... 7
Your LCD TV................................................................................................................ 9

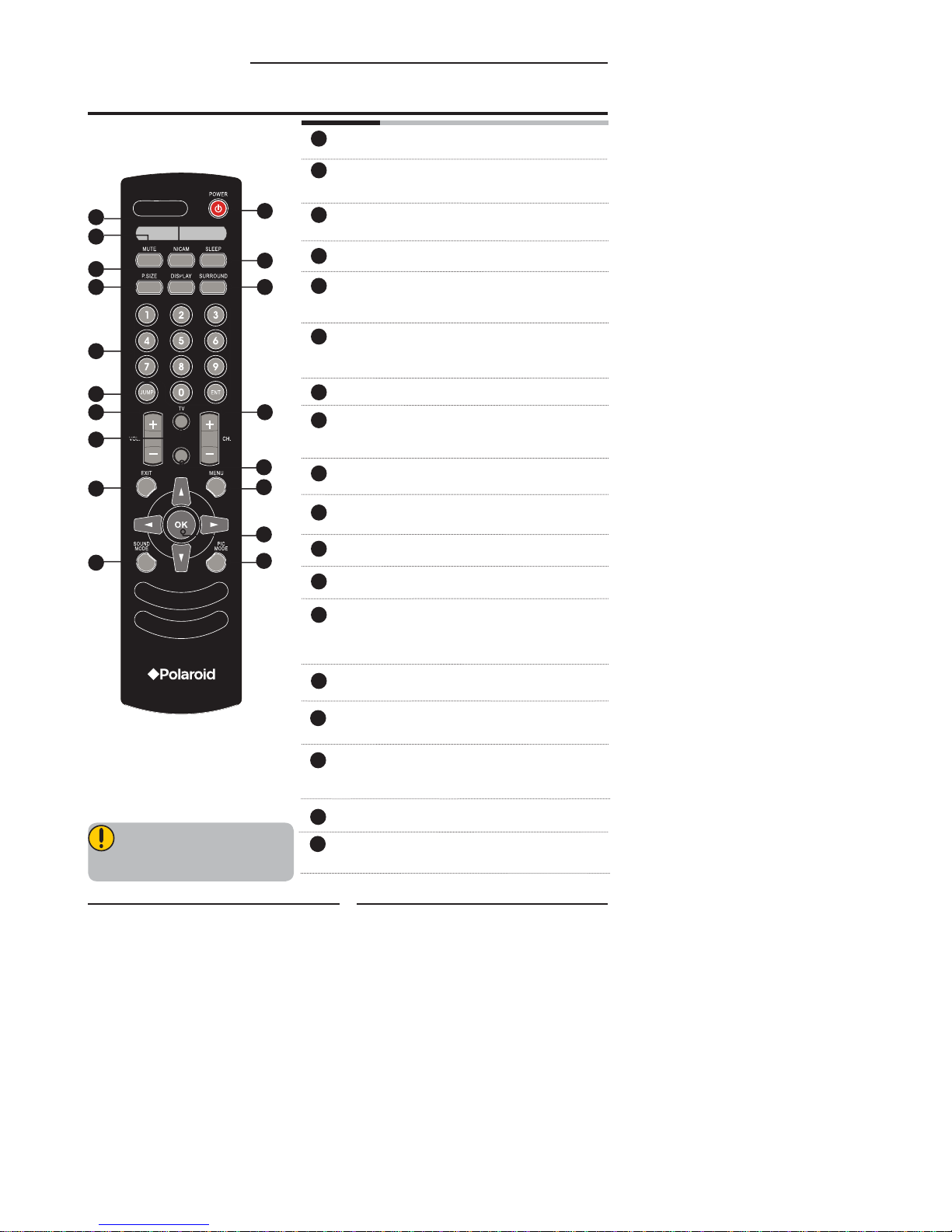

Your Remote Control ..................................................................................................11
Chapter 2 Installing the LCD TV

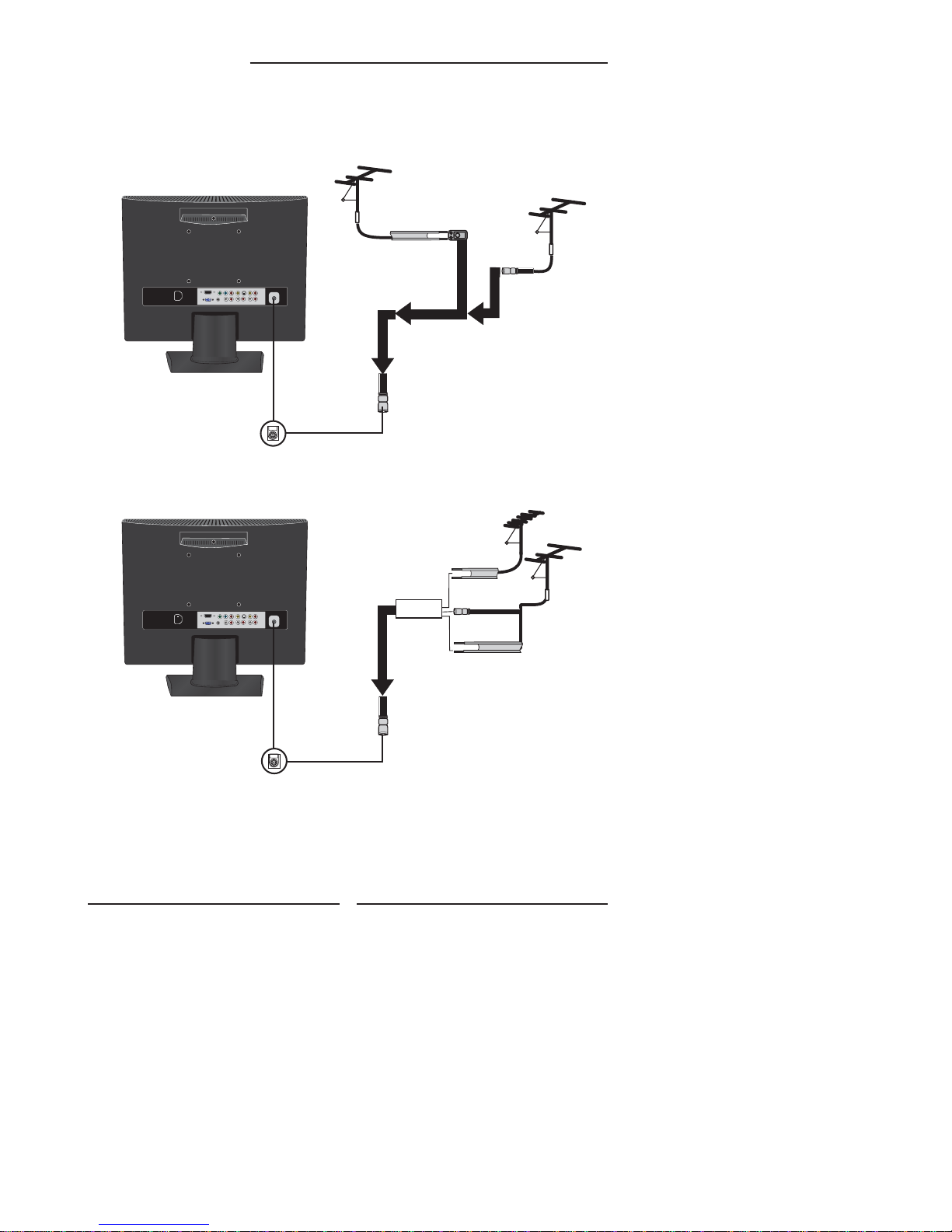

Connecting a TV Cable or anAntenna...................................................................... 12

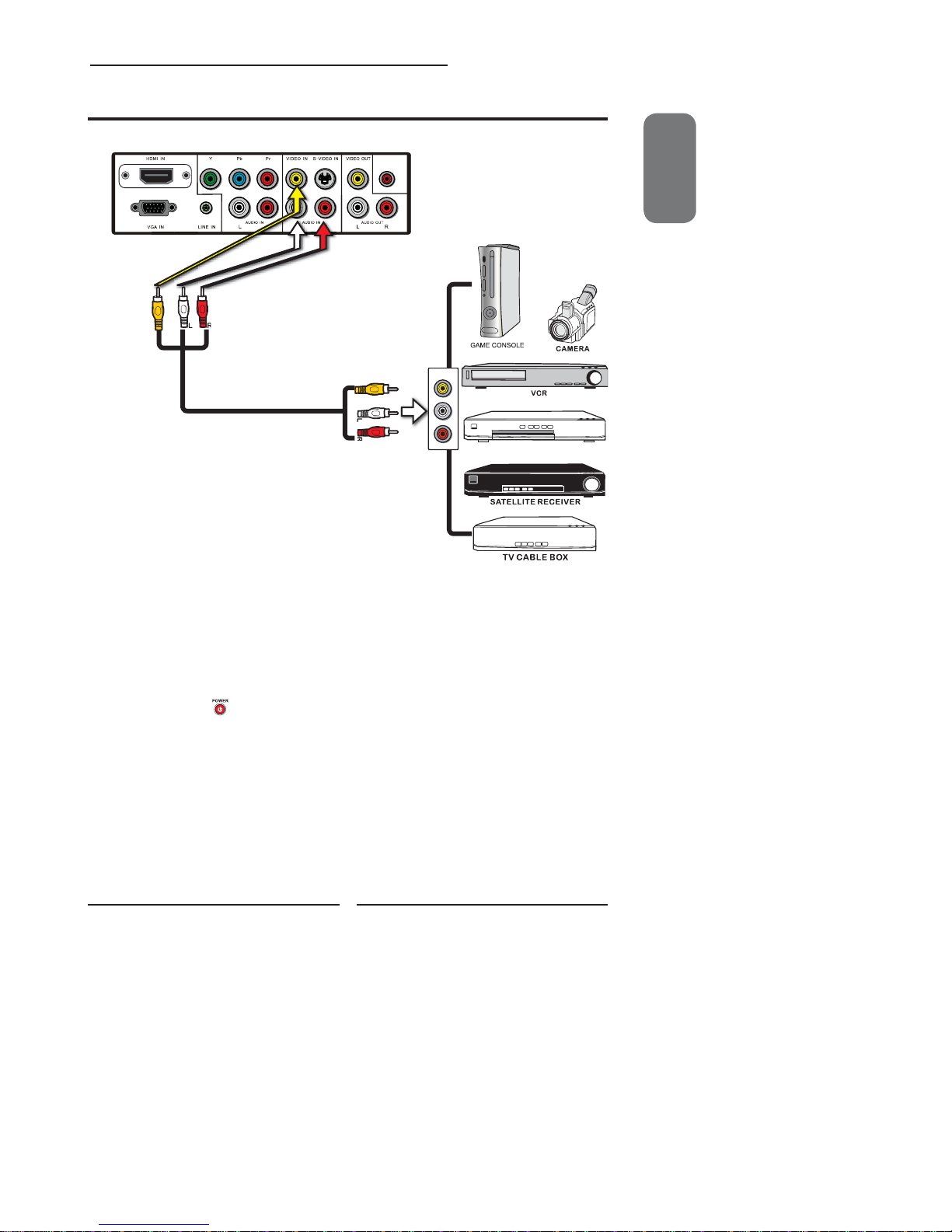

Connecting an A/V Device with Composite Connector.............................................. 16
Connecting an A/V Device with S-Video Connector.................................................. 17
Connecting an AV Device with Component (YPbPr/YCbCr) Connector.................... 18
Connecting a PC........................................................................................................ 19
Connecting two VCRs................................................................................................ 20
Connecting an AV Equipment with HDMI Connector................................................. 21
Connecting an AV Equipment with DVI Connector.................................................... 22
Connecting an Audio Receiver ..................................................................................23
Chapter 3 Using The Features
Operating the Menu........................................................................................24
Customizing the PICTURE Settings ..................................................................27
Customizing the AUDIO Settings ......................................................................29
Customizing the OSD SETUP Settings..............................................................30
Customizing the TV Settings.................................................................................... 31
Customizing the VGA Settings................................................................................. 32
Troubleshooting.................................................................................................... 33
Specifications........................................................................................................ 34

6
Chapter 1 Introducing the LCD TV
Various Audio/Video terminals for external equipment connection
▪1 composite Video input terminal
▪1 composite Video output terminal
▪1 S-Video terminal
▪1 set of component Video(YPbPr) input terminals
▪1 VGA/Audio input terminal
▪1 SPDIF output terminal
▪1 Headphone output terminal
▪1 HDMI input terminal
HDTV Component Video Inputs
▪Offers the best video quality for DVD(480p/576p) and digital set-top-box (HD1080i,
720p) connections.
Multimedia Enhanced Speakers
▪True multimedia sound without external speaker. The LCD TV features two built-in 3w
stereo speakers integrated into the stylish design.
High Contrast Ratio
▪Colors will appear vibrant and lifelike producing superior image quality.
Wide Viewing Angle
▪The 16:10 15.4” (1280x800), 19” (1440x900) 22” (1680x1050) widescreen gives wider
view angles. You can view DVD films in native wide format for an enhanced multimedia
experience and enjoy gaming action at full frame rates and higher widescreen
resolution.
Chapter 1
Introducing the LCD TV
Key Features

ENGLISH
7
Chapter 1 Introducing the LCD TV

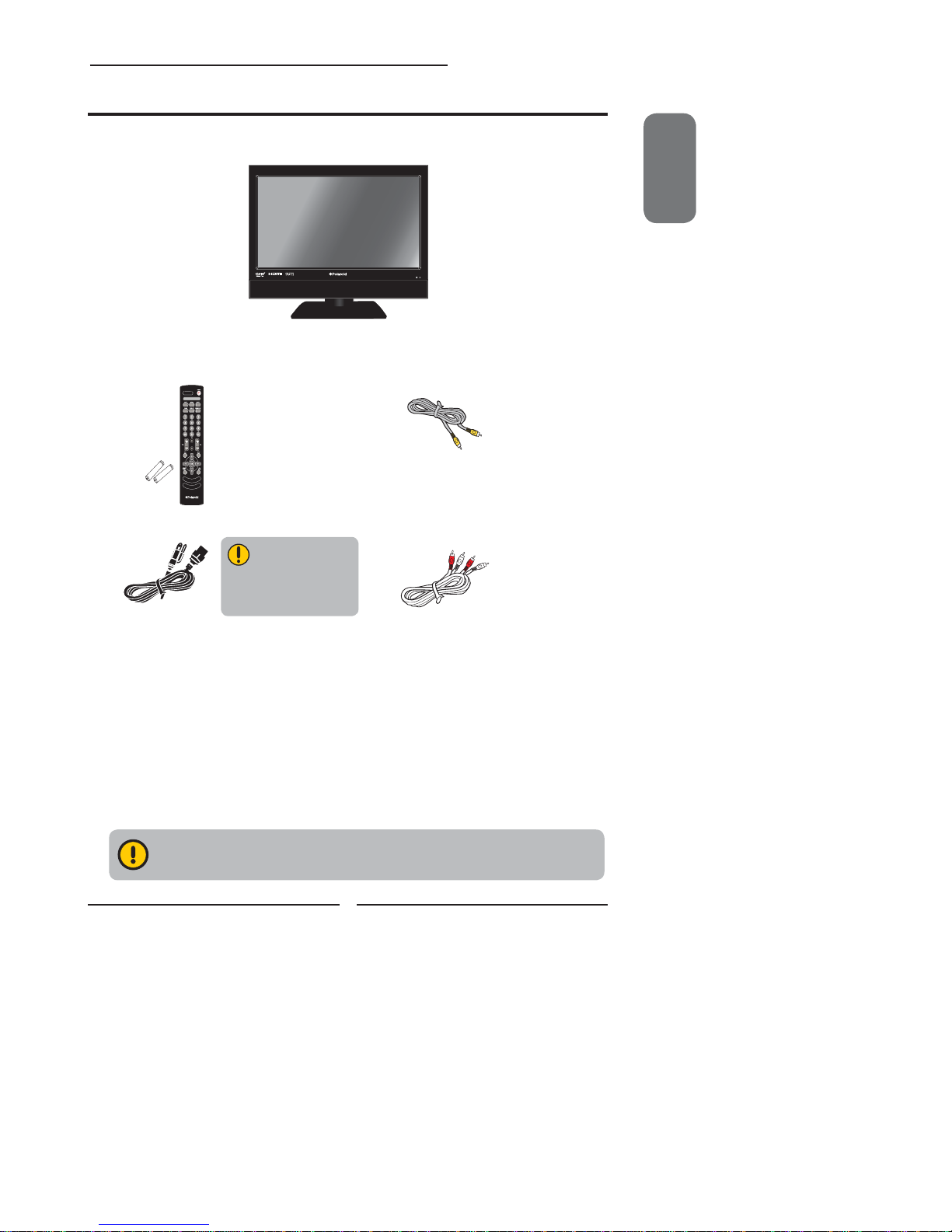

Make sure all of the above components are included. If you are missing any items,
please return this product to the original place of purchase.
 LCD TV
Make sure all of the following components are included.
 Power Cord
These items are all you need to set up and operate the LCD TV in its basic configuration.
Package Contents
 Remote Control/
AAA Batteries x 2  Video Cable
 Audio Cable
INPUT
The power cord type may
be different depending on
your country’s power type.

8
Chapter 1 Introducing the LCD TV
Follow the instructions below to install the TV stand:
 Open the box and make sure both the LCD TV and the stand are in the box.
Setting Up Your LCD TV
How to Install the TV Stand
 Cover an even stable surface with a soft cloth. Place the LCD TV unit face-
down on the cloth. Fit the stand onto the bottom of the LCD TV unit as shown:
LCD TV Stand
 Push until the stand clicks into the LCD TV’s stand socket.

ENGLISH
9
Chapter 1 Introducing the LCD TV
How to Setup the TV
Follow the instructions below to set up and install the LCD TV:

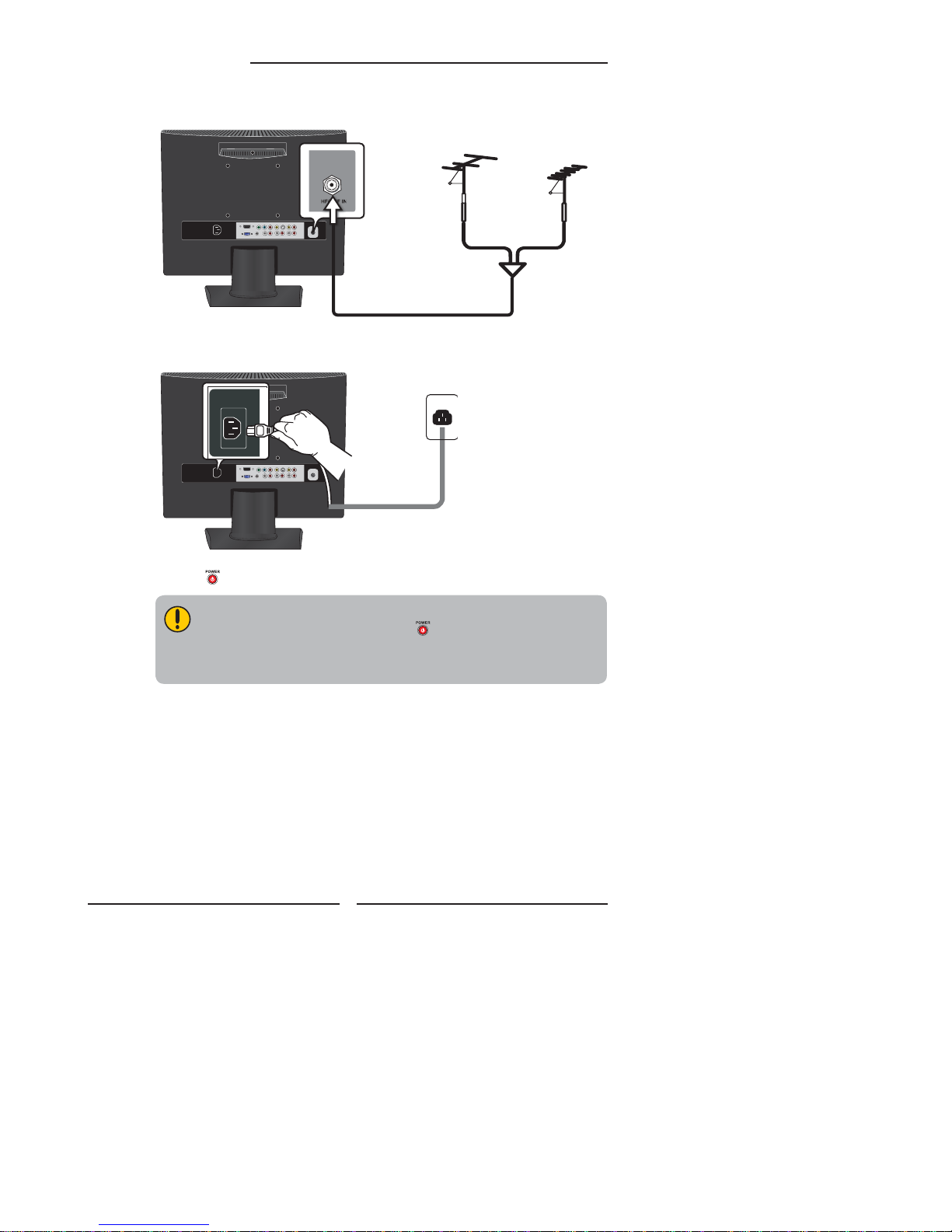

 Use a supplied antenna cable to connect the VHF/UHF signal to the LCD TV’s
ANT. terminal (refer to page14).
 Connect the AC power cord to the back of the TV and then to the wall outlet.
 Insert the 2 supplied batteries in remote control.
Step1 Slide the back cover up to open the
battery compartment of the remote
control.
Do not use caustic cleaners (porcelain, stainless steel, toilet, or oven cleaner
etc.) on the remote, as it may suffer damage.
Step2 Insert twoAAA size batteries.
Make sure to match the (+) and
( - ) ends of the batteries with
the (+) and ( - ) ends indicated
in the battery compartment.
Slide the cover back into place.
Connect an external A/V device (refer to page16-23).

10
Chapter 1 Introducing the LCD TV
Your LCD TV
Front Side View and Controls
MENU
Press once to display the OSD (on screen
display), press again to turn the OSD off.
VOLUME + -
Adjusts the volume up and down.
Selects the main-menu item and change
values for items when in the OSD mode.
Turns the LCD TV on and into standby mode.
CHANNEL▲▼
Scans up and down through channels.
Selects sub-menu item when in the OSD
mode.
INPUT
Chooses from different input signal sources.
IR
Infrared Receiver
LED
The LED light indicates when the
LCD TV is activated.
HEADPHONE
Connects to the external
headphone for private listening.
Front View Left Side ViewRight Side View

COAXIAL
VHF/UHF IN
Rear View and Jacks
COMPONENT VIDEO IN
Connects to the DVD player, Digital Set-Top-Box, or other AV
equipment with component(YPbPr) video and audio output jacks.
COAXIAL
Connects to the audio input jacks on AV equipment.
HDMI IN
Connects to devices with a HDMI interface.
S-VIDEO/VIDEO/AUDIO(L/R) IN
Connects to the S-Video/Composite VIDEO andAUDIO(L/R)
output jacks on external video equipment.
VIDEO/AUDIO(L/R) OUT
Connects to the Composite VIDEO and AUDIO(L/R) input jacks
on external video equipment.
VGA/LINE IN
Connects the PC, or other AV equipment with VGA andAUDIO
output jacks.
VHF/UHF IN
Connects RF input from VHF/UHF antenna or cable
to receive high/standard definition television.
AC IN
Connects to the AC power cord.
ENGLISH
11
Chapter 1 Introducing the LCD TV

INPUT
2
6
1
7
8
13
9
10
15
11
4
3
5
16
12
18
14
17
12
Chapter 1 Introducing the LCD TV
Your Remote Control
POWER Turns the LCD TV on and off.
NICAM Cycles through the multi-channel TV sound
options: Bilingual 1/Bilingual 2/MONO/
STEREO
MUTE Pressing once mutes audio. Pressing again
restores audio.
SLEEP Sets the LCD TV sleep time.
DISPLAY Pressing once displays a variety of
information such as the current channel
and the input source.
P. S I Z E Selects from the following mode:
Full,Zoom1,Zoom2,Normal (YPbPr/HDMI/
VGA does not have SCALE function)
SURROUND Turns the surround effect on and off.
0-9, Select and switch to a channel by
ENT(-/--) using 0-9 buttons and wait three seconds
after entering a channel.
JUMP Returns to previously selected channel.
VOLUME+- Increases and decreases volume.
CHANNEL+- Change channel up and down.
TV Pressing enter TV Mode.
SOURCE Pressing SOURCE repeatedly to select the
video equipment connected to the video
inputs of your LCD TV: TV/AV/ S-VIDEO/
YPbPr/HDMI/VGA
EXIT Exits the OSD menu.
MENU Displays the OSD menu on the screen.
▲▼►◄ Cycles through OSD options and
OK selects individual menu items. OK confirms
option settings.
S. MODE Selects Sound effect: User/Live/Rock/POP
P. M O D E Selects picture mode: Sport/Moive/Vivid/
User/Game
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Effective range:
The remote can control the LCD
TV from up to 5m away, if
pointed directly at the receiver.
18
15
16
17

ENGLISH
13
Chapter 2 Installing the LCD TV
Chapter 2
Installing the LCD TV
Refer to the owner’s manual of any external equipment to be connected.
When connecting any external equipment, do not connect any AC power cords to wall outlets
until all other connections are completed.

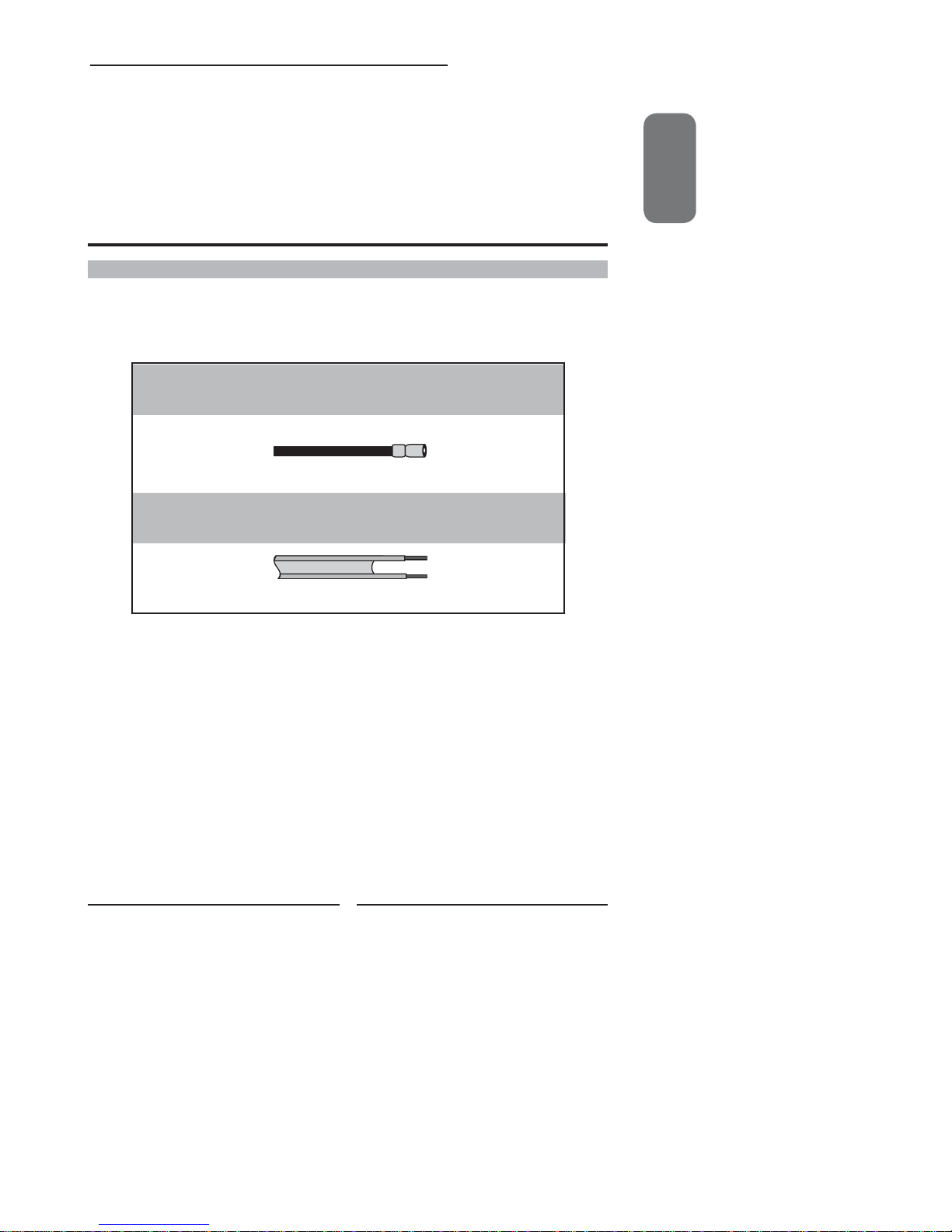

Antenna Connection
The antenna requirements for good color TV reception are more important than those for a black &
white TV reception. For this reason, a good quality outdoor antenna is strongly recommended.
The following is a brief explanation of the type of connection that is provided with the various antenna
systems.
300-ohm twin-lead cable (flat)
■A 300-ohm system is a flat twin-lead cable (not included) that can
be attached to a 75-ohm terminal through a 300-75-ohm adapter
(not included).
Connecting a TV Cable or an Antenna
75-ohm coaxial cable (round)
F-type connector
■A 75-ohm system is generally a round cable (not included) with F-
type connector that can easily be attached to a terminal without
tools.

14
Chapter 2 Installing the LCD TV
OUT IN
300-ohm twin-
lead cable
300-ohm twin-
lead cable
75-ohm
coaxial cable
UHF
Antenna
VHF
Antenna
Combiner
(not included)
A. Combination VHF/UHF antenna
300-ohm twin-
lead cable
75-ohm
coaxial cable
VHF/UHF
Antenna
VHF/UHF
Antenna
300/75-ohm adapter
(not included)
B. Separate VHF and/or UHF antennas
Use one of the following two diagrams when connecting an outdoor antenna.

ENGLISH
15
Chapter 2 Installing the LCD TV
A
IN
B
OUT
Cable TV Line
2 set signal
splitter
(not included)
RF switch
(not included)
Cable TV converter/
descrambler
(not included)
Cable TV (CATV) Connection
■The RF switch (not included) is required to provide two inputs (A and B). Setting
the RF switch to position A allows viewing of all unscrambled channels by using
the TV channel keys.
■Setting the RF switch to position B allows viewing of all scrambled channels via
the converter/descrambler by using the converter channel keys.
■A 75-ohm coaxial cable connector is built into the set for easy hookup.
When connecting the 75-ohm coaxial cable to the set, connect the 75-
ohm cable into the ANT. terminal.
■Some cable TV companies offer premium pay channels. Since the
signals of these premium pay channels are scrambled, a cable TV
converter/descrambler is generally provided to the subscriber by the
cable TV company.
This converter/descrambler is necessary for normal viewing of scrambled channels.
For more specific instructions on installing cable TV, consult your cable TV company.
One possible method of connecting the coverter/descrambler provided by your cable TV
company is shown in the diagram below.
VHF/UHF IN

16
Chapter 2 Installing the LCD TV
Use a supplied antenna cable to connect to the LCD TV’s TV UHF/VHF terminal.
 Connect the AC power cord at the back of the TV and connect the power cord
to wall outlet.
 Press the button on the remote to turn on the LCD TV.
Always disconnect the LCD TV from the main voltage when the LCD TV will
not be used for a long period of time. The button on the front panel is
only used for switching the LCD TV into standby, it does not disconnect the
device from the main voltage. To completely disconnect the main voltage,
please remove the power plug from the socket.
 Press the TV button repeatedly on the remote toenter TV mode.
AC IN
VHF/UHF IN

ENGLISH
17
Chapter 2 Installing the LCD TV
COAXIAL
Connecting an A/V Device with Composite Connector
Rear of TV
Use a composite cable to connect the external A/V device’s composite video/audio jacks to
the LCD TV’s VIDEO/AUDIO IN jacks.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
To view the A/V device’s with component input, press the SOURCE button on the remote to
select AV.
DVD PLAYER
L
R
VIDEO OUT
A/V Cable

18
Chapter 2 Installing the LCD TV
COAXIAL
Connecting an A/V Device with S-Video Connector
Rear of TV
Use an audio cable to connect the external A/V device’s audio output jacks to the LCD
TV’s audio inputs. Use a S-Video cable to connect the external A/V device’s S-Video
output jack to the LCD TV’s S-Video IN input jack.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
To view the A/V device’s with component input, press the SOURCE button on the remote
repeatedly to select S-VIDEO.
DVD PLAYER
L
R
S-VIDEO OUT
S-VIDEO Cable
AUDIO Cable

ENGLISH
19
Chapter 2 Installing the LCD TV
COAXIAL
Connecting an A/V Device with Component (YPbPr/YCbCr) Connector
Rear of TV
Pr
Cr
Pb
Cb
COMPONENT Cable
Use a component cable to connect the external A/V device’s component output jacks to the
LCD TV’s YPbPr IN input jacks.
Use an audio cable to connect the external A/V device’s component audio jacks to the LCD
TV’s audio input jacks.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
To view the A/V device’s with component input, press the SOURCE button on the remote
repeatedly to select YPbPr.
DVD PLAYER
Not all A/V device have the ability to connect to a TV. Please check your A/V
device user guide for compatibility.
The component video jacks on your A/V device are sometimes labeled YPbPr,
or YCbCr. For an explanation of component video, see your A/V device’s user
guide.
Pr/Cr
Pb/Pb
L
R
COMPONENT
OUT
Y
Pb
Pr
AUDIO Cable

20
Chapter 2 Installing the LCD TV
COAXIAL
Connecting a PC
Rear of TV
Use a VGA cable to connect the PC’s VGA output jack to the LCD TV’s VGA
input jack. Use an audio cable to connect the PC’s audio output jacks to LCD
TV’s LINE IN input.
Connect all AC power sources, before turning on the power switch of the
LCD TV or other connected equipment.
Press the button on the remote to turn on the LCD TV.
To view the A/V device’s with component input, press the SOURCE button on the
remote repeatedly to select VGA.
VGA Cable
AUDIO Cable
PC
