Polaroid ColorShot Printer User manual

Manuals in this Acrobat document
This Adobe Acrobat document contains three manuals for the Polaroid
ColorShot printer. To go to any of these manuals, click its title below.
Telephone Support Guide (page 3)
Installation Guide (following Telephone Support Guide)
User's Guide (following Installation Guide)
Navigating in Acrobat documents
The Adobe Acrobat Reader offers many ways to navigate through documents.
Some basic techniques are provided here to help you get started. For additional
navigation and search instructions, refer to the Acrobat Reader Online Guide
accessible from the Help menu.
Click here to continue 6
4/11/98

2 ColorShot printer telephone support guide
You can move forward or backward through this document by clicking these
buttons on the toolbar above:
Advance one page
Go back one page
Go to first page of document
Go to last page of document
Return to previously viewed page
This document contains hypertext links for quickly jumping to another page. The
text of these links is blue, and the cursor changes from a hand to a pointing
finger when you position it over a link.
To jump to the linked page, point to the blue text and click the mouse.
Adobe Acrobat bookmarks, displayed on the left side of your screen, are another
useful navigation tool. These bookmarks are similar to the table of contents in a
book. Jump to the indicated topic by clicking the bookmark with the mouse.
Bookmarks have subordinate levels that may be hidden to simplify the display.
A bookmark with subordinate topics has a small arrow ( ) to its left. Click on
the small arrow to display the subordinate topics.
Browsing through
pages
Using hypertext
links
Using the
bookmarks

3 ColorShot printer telephone support guide
Polaroid ColorShot Printer
Telephone Support Guide
© Copyright Polaroid Corporation 1998. All rights reserved.
"Polaroid", "ColorShot" and "IQA" are trademarks of Polaroid Corporation,
Cambridge, MA, U.S.A. All other product names may be the trademarks of their respective
owners.
Contents
Telephone support quick reference 8
Preparing to install the ColorShot printer 9
Installing the USB supplement and enabling USB in BIOS 13
Installing the USB supplement to OSR2 13
IRQs for USB controllers 17
Enabling USB in BIOS 18
Installation notes for specific computers 19
NEC laptop computers 19
Compaq Deskpro 4000 computers 20
Enabling USB with 430TX and 440LX chipsets 23

4ColorShot printer telephone support guide
Telephone support quick reference (continued)
Hardware and application related operating problems 24
PhotoMAX software 24
PaintShop Pro software 24
MGI PhotoSuite software 24
Harvard Graphics software 25
Symbios Logic USB board 25
HP PhotoSmart printer 26
Introduction 27
How to use this manual 27
Manual organization 28
Documentation provided with ColorShot printer 30
List of user documents 30
How to view or print user documents 33
1 ColorShot printer description 34
Description 34
How the printer works 35
Specifications 37
User features 38
Typical ColorShot uses 38

5 ColorShot printer telephone support guide
1 ColorShot printer description (continued)
System requirements 39
ColorShot package contents 40
Warranty and service information 41
2 Introduction to USB 42
USB overview 42
USB description 42
How USB devices are connected to a PC 43
Compatibility with parallel, serial and SCSI devices 45
Current level of USB compatibility 45
USB host requirements 46
USB hardware and firmware 46
USB host controller types 47
USB software 48
Verifying USB compatibility 48
Upgrading to USB 49
3 Solving problems 51
General approach to problem-solving 51
Solving general printer problems 53
Solving film-loading and transport problems 58

6 ColorShot printer telephone support guide
3 Solving problems (continued)
Solving image quality problems 59
Resolving error messages 68
Error message index 68
Error messages and corrective action 69
Printing a test image with PEGTEST 79
Purpose of PEGTEST 79
Test image evaluation 80
PEGTEST printing procedure 81
Clearing ColorShot from the Windows registry 82
Clearing the registry with REGEDIT 83
Restoring the registry 85
Correcting conflicts with Microsoft Fax 86
4 Film information 87
Recommended film type 87
Other films you can use 88
Identifying ColorShot film 88
5 What the install program does 89

7 ColorShot printer telephone support guide
6 Using IQA to enhance picture quality 92
7 Maintenance 93
Maintenance overview 93
Cleaning the rollers 93
Cleaning the printer 94
Disassembly warning 94
8 MGI PhotoSuite software information 95
Obtaining support for MGI PhotoSuite software 95
PhotoSuite software FAQs 96
General questions 96
Installation questions 97
Operational questions 99
ColorShot Installation Guide Following Telephone Support Guide
ColorShot User's Guide Following Installation Guide

8 ColorShot printer telephone support guide
Telephone support quick reference
This chapter contains information expected to be used most often by ColorShot
telephone support personnel. Refer to later chapters for additional detailed
information.
For the fastest resolution of problems according to their symptoms, see Chapter
3, "Solving problems," on page 51.
Important note: The procedures in this chapter and throughout this manual
have been tested on numerous PC models running the Microsoft Windows 95
operating system. It is not possible to test all systems and configurations,
however, and some unexpected results may occur.

9 ColorShot printer telephone support guide
Preparing to install the ColorShot printer
Before a customer connects the ColorShot printer to a PC and installs the driver,
he should perform the following checks to assure the computer's USB port is set
up correctly. If you are unfamiliar with the USB (universal serial bus) protocol,
review Chapter 2, "Introduction to USB," on page 42 before continuing.
1Verify that the computer has Windows 95 version B installed by following the
steps below. (This version B of Windows 95 is also called OSR2.)
aClick the My Computer icon with the right mouse button, then click
Properties on the shortcut menu that appears.

10 ColorShot printer telephone support guide
bClick the General tab and verify that the Windows 95 version number
ends in the letter "b."
EUHTXLUHGIRU
86%FRPSDWLELOLW\
If the Windows 95 version is correct, go to step 2.
If the Windows 95 version number does not end in "b," the system cannot
use ColorShot or other USB devices unless the operating system is
upgraded. For more information, see "Upgrading to USB" on page 49.

11 ColorShot printer telephone support guide

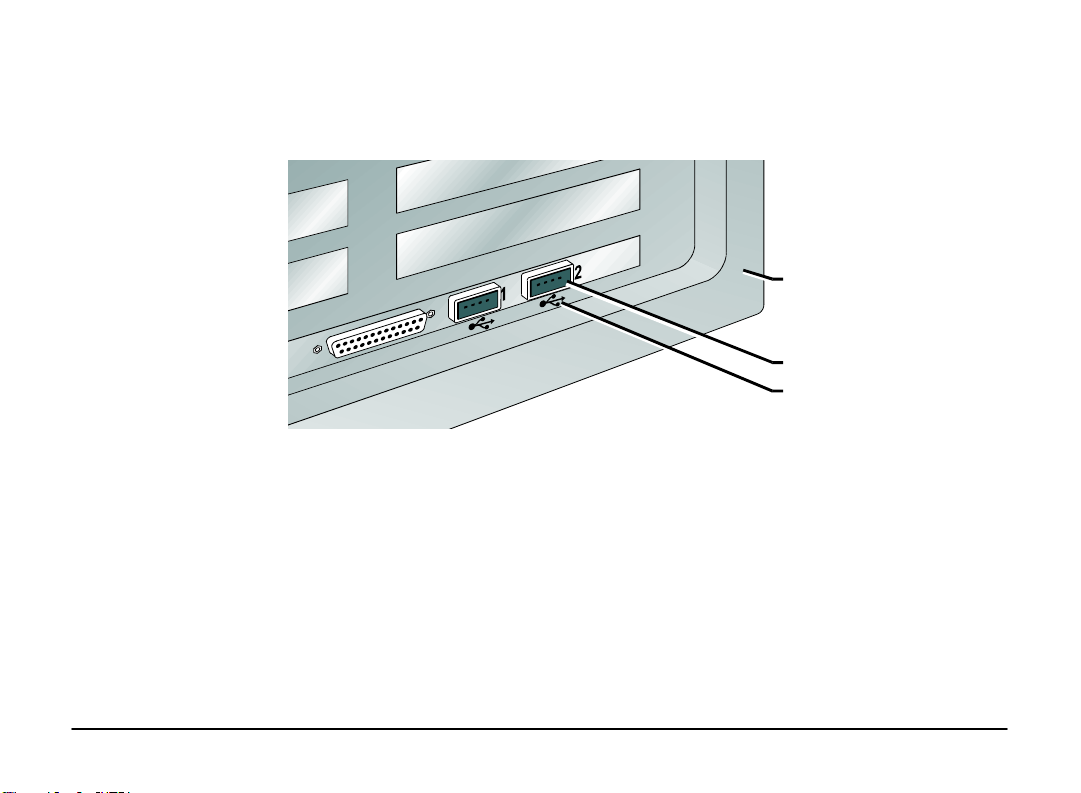

2Verify that the computer has a USB connector.
Desktop PCs usually have two USB connectors, and laptops may have only one.
86%&RQQHFWR
U
7\SLFDO
'HVNWRS
&RPSXWHU
86%6\PERO
If a USB connector is present, go to step 3.
If the computer does not have USB connectors, it must be upgraded with a USB
expansion board before it can be used with the ColorShot printer. See
"Upgrading to USB" on page 49 for more information.
3Verify that the USB ports are enabled with the following steps:
aClick the My Computer icon with the right mouse button, then click
Properties on the shortcut menu that appears.

12 ColorShot printer telephone support guide

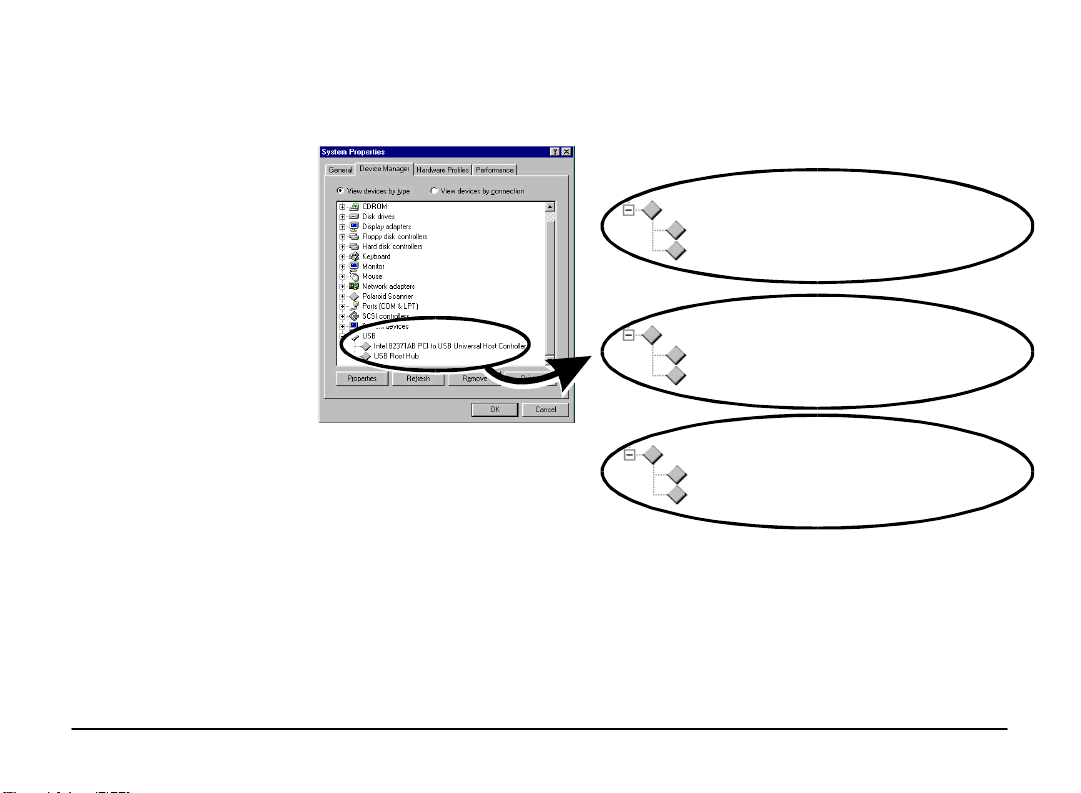

bClick the Device Manager tab and verify that a USB device appears at the
bottom of the list, with sub-entries similar to the examples shown below.
,QWHO$%3&,WR86%8QLYHUVDO+RVW&RQWUROOHU
86%5RRW+XE
86%
6WDQGDUG2SHQ+&'86%+RVW&RQWUROOHU
86%5RRW+XE
86%
9LD7HFK%XV$&3,3&,'HYLFH
9LD7HFK3&,8QLYHUVDO6HULDO%XV
86%
([DPSOHVRIFRUUHFWO\FRQILJXUHG'HYLFH0DQDJHU
If the USB device appears as shown, the system is ready for installation
according to instructions starting on page 6 of ColorShot Installation
Guide.

13 ColorShot printer telephone support guide
If the device is not visible or it is preceded by a yellow exclamation point
(), the customer may need to enable USB in the computer's BIOS and
install the USB supplement on the PC as described in the next section.
Installing the USB supplement and enabling USB in BIOS
If the procedure in the previous section indicates that the USB supplement to
OSR2 must be installed on the PC and USB must be enabled in the computer's
BIOS, follow the instructions in this section.
In general, the procedure consists of these general steps:
1Installing the USB supplement to OSR2.
2Enabling USB in the computer BIOS.
Use these steps to install the supplement necessary for enabling USB on the
computer.
1Following instructions with Windows 95, run ScanDisk to verify that no
problems exist on the computer hard drive.
Installing the USB
supplement to
OSR2

14 ColorShot printer telephone support guide
2Run DETROITR.EXE in the USB folder on the ColorShot CD ROM. (Click the
Windows Start button, click Run, click the Browse button, navigate to the USB
folder on the CD ROM drive, click DETROITR.EXE, click Open, and click OK
in the Run box.)
3Follow instructions on the screen to complete the installation, which includes
restarting the system.
4Verify that the USB ports are enabled with the following steps:
aClick the My Computer icon with the right mouse button, then click
Properties on the shortcut menu that appears.

15 ColorShot printer telephone support guide
bClick the Device Manager tab and verify that a USB device appears at the
bottom of the list, with sub-entries similar to the examples shown below.
,QWHO$%3&,WR86%8QLYHUVDO+RVW&RQWUROOHU
86%5RRW+XE
86%
6WDQGDUG2SHQ+&'86%+RVW&RQWUROOHU
86%5RRW+XE
86%
9LD7HFK%XV$&3,3&,'HYLFH
9LD7HFK3&,8QLYHUVDO6HULDO%XV
86%
([DPSOHVRIFRUUHFWO\FRQILJXUHG'HYLFH0DQDJHU
If the USB device appears as shown, click the OK button and proceed
with ColorShot installation according to instructions starting on page 6 of
ColorShot Installation Guide.

16 ColorShot printer telephone support guide
If the USB device instead appears in the Other Detected Devices category
instead of the way it is shown above, the drivers may not have installed
properly. In this case, continue with step 5 below.
5If the USB device appears in the Other Detected Devices category, click the
USB device to highlight it.
Note: Some systems, including many PC clones, require installation of
additional utilities before the USB configuration is complete. For example, some
chipsets require a patch file installation as described in "Enabling USB with
430TX and 440LX chipsets" on page 23.
6Remove the device by clicking the Remove button.
7Allow the system to detect the USB controller by closing the Device Manager
and restarting Windows.
The USB controller should appear as shown in the illustration following step 4b
above.
8Continue with enabling USB in the computer BIOS as described in the next
section.

17 ColorShot printer telephone support guide
When the USB host controller is enabled by installing the USB supplement as
described in the previous section, it typically installs on IRQ 9, 10 or 11. The
host controller installs itself on the PCI bus using the built-in process called IRQ
steering. With this process, Windows dynamically assigns ("steers") PCI bus
IRQs to PCI devices. The Device Manager often shows the USB host controller
sharing an IRQ with another device. This does not seem to cause problems with
the ColorShot printer.
In rare instances, a PCI board that worked before USB was enabled no longer
works after USB is enabled. When this happens, the Device Manager displays a
yellow exclamation point next to the device that no longer works. This problem
has two workarounds:
Assign another IRQ: Some PCI boards are shipped with utility programs for
assigning an IRQ to the device. These utilities are usually accessed during
startup.
Make another IRQ available: Another IRQ can be made available for the
board by disabling a device that the customer does not use. For example, many
laptop PCs have an infrared port occupying an IRQ. If the infrared port is not
used, the customer can disable its IRQ port through the BIOS setup. After the
system is restarted, that IRQ will be available for other devices.
IRQs for USB
controllers

18 ColorShot printer telephone support guide
Some computers may not have the USB controller enabled in the system BIOS.
Use the steps below to enable the controller or verify that it is already enabled.
Note: Be sure to follow the steps in "Installing the USB supplement to OSR2" in
the previous section before starting this procedure.
1Reboot the system and wait for on-screen instructions for displaying the BIOS
setup screens. For example, some computers require the user to press the F2 key
at a certain time during bootup.
2Navigate through the BIOS screens to the setting that enables the USB
controller. The USB setting is often in the "Advanced Chipset Setup, "
"Integrated Peripherals" or "Chipset" setup screen. Look for "USB Function" or
"USB Function Enable." On some systems, the USB function may be labeled
"USB Keyboard Controller."
3If the USB function is not enabled, follow instructions on the setup screen to
enable it.
4Follow instructions on the screen to save the new settings and reboot the system.
5Continue with ColorShot installation, starting with "Connect the printer" on
page 6 of ColorShot Installation Guide.
Enabling USB in
BIOS

19 ColorShot printer telephone support guide
Installation notes for specific computers
Some systems tested for ColorShot compatibility require special procedures for
proper installation.
Some NEC laptop computers, specifically the model 5060, may display the
following line in the Windows Device Manager (at step 3 on page 11), even if
USB has not been enabled in the computer BIOS:
2SHQ+&'86%+RVW&RQWUROOHU
If this line appears in the Device Manager on an NEC laptop computer, follow
these steps to prepare for installation:
1Enable USB in the computer BIOS. (See "Enabling USB in BIOS" on page 18.)
2Continue with ColorShot installation according to instructions starting on page 6
of ColorShot Installation Guide.
NEC laptop
computers

20 ColorShot printer telephone support guide
If the ColorShot software cannot be installed on a Compaq Deskpro 4000
computer, follow these steps:
1Click the My Computer icon with the right mouse button, then click Properties
on the shortcut menu that appears.
2Click the Device Manager tab.
If a USB device appears at the bottom of the list as shown below, discontinue
this procedure. Instead, click the OK button and proceed with ColorShot
installation according to instructions starting on page 6 of ColorShot Installation
Guide.
9LD7HFK%XV$&3,3&,'HYLFH
9LD7HFK3&,8QLYHUVDO6HULDO%XV
86%
Compaq Deskpro
4000 computers
