Polinovel V+ Series User manual

SHENZHEN POLINOVEL TECHNOLOGY CO., LTD
1
V+ Solar Home Battery
(Lithium-Iron Phosphate Battery)
Product Manual
Version: 1.0
SHENZHEN POLINOVEL TECHNOLOGY CO., LTD
Xintun Building 804, Xintun Middle Road 50, Longcheng Street,
Longgang District, Shenzhen, 518100, China
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Web: www.top1battery.com

SHENZHEN POLINOVEL TECHNOLOGY CO., LTD
2
LEGAL NOTICES
Copyright of Shenzhen Polinovel Technology Co., Ltd. Enjoin from abstracted
reproduced or translated by any unit or individual in any way without the written
permission.
Rights Reserved.
This product confirms to environmental protection and personal security. Product
storage, using and disposal should be in accordance with product manuals, relevant
contract and national laws.
When required product updates or technical changes, you can visit website of
Polinovel (www.top1battery.com) for the latest information, without notice if the
product improvements or technical change in other way.
Information Version: V1.0
Information Number: MKT-EX218-11
Revise History
Revision NO. Revision Date Revision Reason
1.0 2018.11.20 First Release

SHENZHEN POLINOVEL TECHNOLOGY CO., LTD
3
Preface
Thank you for using the Wall-Mounted Solar Home Battery from Shenzhen Polinovel
Technology Co., Ltd.
In order to bring you the best product at the best price under the safest conditions, we
have been making progress all the time. Because of your concern, our efforts will be
verified.
This manual describes the use of our Wall-Mounted Solar Home Battery, including
functions and features, performance indicators, outline structure, and operating
modes. Meanwhile, installation instructions, use and operation, maintenance
management, transportation and storage are also listed in details.
Notes：
The input voltage and output voltage of the battery are all above 48V DC. The
improper operation will cause short circuit or damage to load devices. Please read
this manual carefully before installation and operation, pay attention to the various
signs on the device, and do not let children touch it alone to prevent accidents. Do
not remove the battery case from non-professional maintenance personnel.

SHENZHEN POLINOVEL TECHNOLOGY CO., LTD
4
Contents
1 Safety Instructions............................................................................................................................................ 5
1.1 Symbol Description................................................................................................................................. 5
1.2 Precautions............................................................................................................................................... 5
2 Product Introduction.......................................................................................................................................7
2.1 Product Description................................................................................................................................ 7
2.2 Product Features..................................................................................................................................... 8
2.3 Product Model......................................................................................................................................... 8
2.4 Battery Management System (BMS)..................................................................................................8
2.5 Charge Parameters..............................................................................................................................10
2.6 Discharge Parameters......................................................................................................................... 10
2.7 Installation............................................................................................................................................... 11
2.8 Transportation........................................................................................................................................ 11
2.9 Storage.....................................................................................................................................................11
3 Installation Instructions..................................................................................................................................13
3.1 Installation requirements..................................................................................................................... 13
3.2 Battery pack appearance and structure...................................................................................... 14
3.3 Handling and Installation.................................................................................................................... 14
3.4 Panel and Switch Button Description.............................................................................................. 19
3.5 Sleep Mode............................................................................................................................................ 20
3.6 Parallel Use.............................................................................................................................................. 21
3.7 Troubleshooting..................................................................................................................................... 23

SHENZHEN POLINOVEL TECHNOLOGY CO., LTD
5
1Safety Instructions
This chapter describes safety signs and safety precautions. Please read this chapter
carefully before proceeding with any operation on this product to avoid personal safety or
equipment damage due to unsafe operation.
1.1 Symbol Description

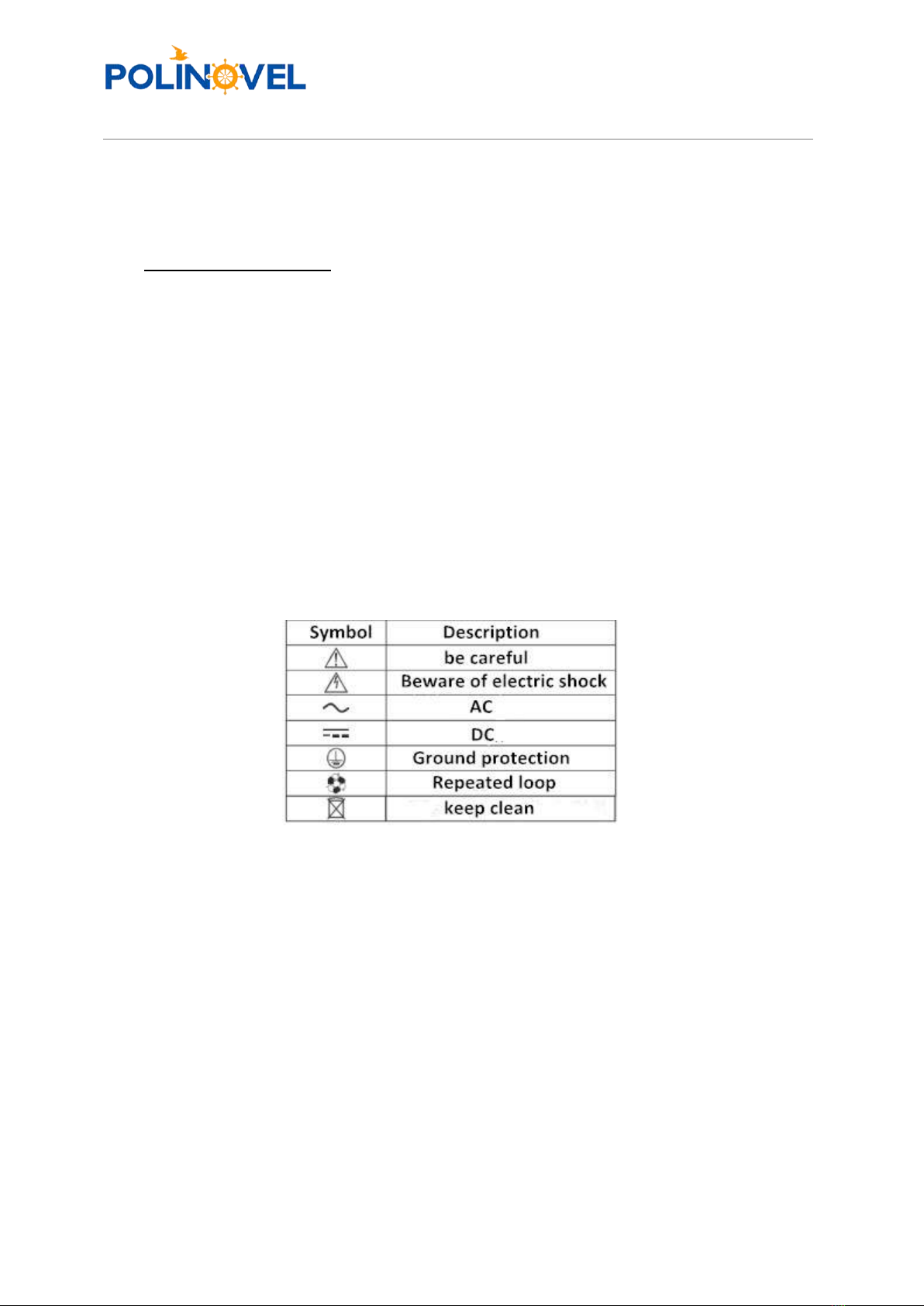

The safety symbols referenced in this manual are shown in Figure 1.1-1. These symbols are used
to remind the user of the safety precautions that should be followed when installing, operating,
and maintaining the product.
Figure 1.1-1
1.2 Precautions
During the installation, operation and maintenance of the product, the relevant safety
regulations and relevant operating procedures must be observed, otherwise personal safety
and equipment damage may be endangered. The safety precautions mentioned in the
manual are only used as a supplement to local safety regulations.
The company does not assume any responsibility for breach of general safety operation
requirements or violation of safety standards for design, production and use of product.

SHENZHEN POLINOVEL TECHNOLOGY CO., LTD
6
Battery use precautions
The Wall-Mounted Solar Home Battery is composed of a battery pack and a control system.
Non-professionals and improper operation and use may cause serious consequences such as
sparking and short circuit. The installation and maintenance of the system must be performed
by professional technicians, and the use must strictly comply with the relevant safety
regulations. Non-professionals are strictly prohibited from installing, repairing, and
over-discriminating lithium battery packs.
1. Please read this manual and keep it in a safe place.
2. Please pay attention to all warning signs on the battery, do not tear or damage the
warning labels.
3. Do NOT immerse the battery in sea water or water. When it is not in use, keep it in a cool
and dry place.
4. Do NOT use or leave the battery near hot high temperature source, such as fire, heater,
etc. Do NOT expose the lithium battery to fire, the lithium battery may explode.
5. Please charge it with the special charger for lithium battery. Do NOT plug the battery
directly into the power socket.
6. Do NOT directly connect positive and negative terminals of the battery with metal.
7. Do NOT knock or throw the battery, step on the battery or directly solder the battery and
pierce the battery with nails or other sharp objects.
Precautions
• Do not use or place the battery at high temperature, as this may cause the battery to
overheat, ignite or fail, and shorten its life.
• Do not use in places with strong static electricity and strong magnetic field, otherwise it
will easily damage the battery safety protection device and bring unsafe hidden dangers.
• If the battery leaks, the electrolyte enters the eyes, please do not rub it, rinse your eyes
with clean water, and immediately send to medical treatment, otherwise it will hurt your
eyes.
• If the battery emits an odor, get heat, discoloration or deformation, or any abnormality
during use, storage, or charging, immediately remove the battery from the device or
charger and stop using it.
• If the electrode is dirty, wipe it off with a dry cloth before use. Failure to do so may result in
poor contact failure.
• Cover the electrode with insulating paper before discard the battery, to prevent fire
caused by accidental short-circuit.
Keep the product well ventilated.

SHENZHEN POLINOVEL TECHNOLOGY CO., LTD
7
2Product Introduction
2.1 Product Description

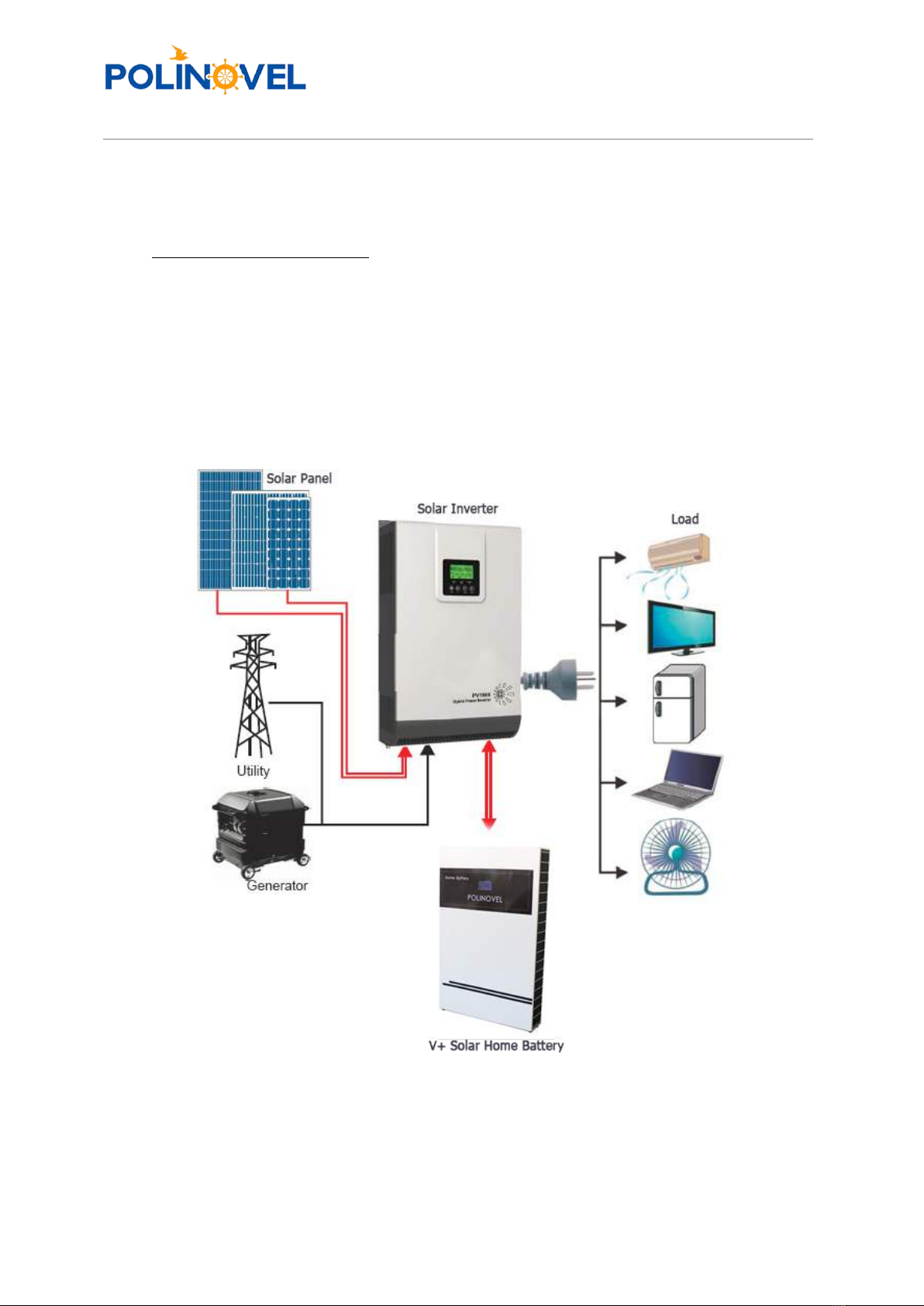

a. Polinovel wall-mounted solar home battery is an energy storage battery pack, which is
used together with solar modules, solar inverters and power grid to form a residential energy
storage system with off-grid function.
b. The energy storage battery pack serves as an energy storage unit, and constitutes a
small micro grid system with power grid, solar modules, and solar inverter. The energy storage
battery pack is a core component of the system.

SHENZHEN POLINOVEL TECHNOLOGY CO., LTD
8
2.2 Product Features
(1) Display for checking battery status and operation, including,
a, battery SOC;
b, battery voltage and current;
C, battery charging and discharging status.
Figure 2-1
(2) Battery management system and battery protection system.
(3) English display.
(4) Adopt lithium iron phosphate battery, safe and environmentally friendly.
(5) Waterproof and dust-proof: IP65
2.3 Product Model
Table 2-1 V+ Solar Home Battery Model
Product
Series Model Rated Voltage
Rated
Capacity Size Net Weight
V+ Series V+3000 51.2V 66Ah 740x600x122mm 63kg
V+ Series V+5000 51.2V 99Ah 930x605x122mm 85kg
V+ Series V+7000 51.2V 148.5Ah 1235x605x122mm 110kg
2.4 Battery Management System (BMS)
2.4.1 Voltage Protection
Low Voltage Protection in Discharge
When discharging, the protection will turn on if the battery or any single cell has lower voltage,
and the battery will stop discharging. When battery voltage or all single cells voltage are back
to normal, protection will be removed.

SHENZHEN POLINOVEL TECHNOLOGY CO., LTD
9
High Voltage Protection in Charge
When charging, the protection will turn on if the battery or any single cell has high voltage, and
the battery will stop charging. When battery voltage and all single cells voltage are back to
normal, protection will be removed.
Voltage protection parameters please see "Table 2-2 Protection Parameters".
2.4.2 Current Protection
Over-current Protection in Charge
If the charging current is higher than the protection value, the battery will stop charging. As
current back to normal, protection will be removed after the delay time.
Over-current Protection in Discharge
When the discharge current is higher than the protection value, the battery will stop
discharging. Protection will be removed after the delay time. Protection parameters please see
"Table 2-2 Protection Parameters".
Charging/Discharging Current Limit
To ensure the load product working safety, V+ solar home battery sets the maximum
charge/discharge current protection values. Please see "Table 2-2 Protection Parameters".
In product working, the maximum operating current of electrical load should be less than the
maximum battery discharge current.
2.4.3 Temperature Protection
Charging/Discharging Temperature Protection
Operation temperature of battery is 65℃, when temperature is above 65℃, protection will turn
on and cut off power.
2.4.4 Additional Protection Features
Short Circuit Protection
If short circuit occurs, the system starts short circuit protection and cut off power lasts 30
seconds.

SHENZHEN POLINOVEL TECHNOLOGY CO., LTD
10
The protection parameters of V+ solar home batteries please read table below.
Table 2-2 Protection Parameters
Item Type Protective Function Parameter to
Protection
Parameter to
Remove
Protection
1
Voltage
Cell Under-voltage in Discharging 2.5V 2.9V
2 Cell Over-voltage in Charging 3.75V 3. 34V
3 Pack Under-voltage in Discharging 43.2V 51.2V
4 Pack Over-voltage in Charging 57.6V 54.6V
5
Current
Over-current in Charging 105A 4 Seconds
Delay
6 Over-current in Discharging 105A 5 Seconds
Delay
7 Temperature Over Temperature 65℃ 50℃
2.5 Charge Parameters
When the product working, reasonable charge voltage you should set, recommended charge
voltage range shown in Table 2-3. The V+ battery limits the maximum charge current to protect
the power supply and load equipment.
Table 2-3 Charging Parameters
Model
Voltage Range in
Charging
Current Limit in
Charging
Recommend Current in
Charging
Min Max Max
V+3000 56V 57.6V 100A ≦60A
V+5000 56V 57.6V 100A ≦60A
V+7000 56V 57.6V 100A ≦60A
2.6 Discharge Parameters
To protect the load equipment, V+ battery limits the maximum discharge current shown in
Table 2-4 below.

SHENZHEN POLINOVEL TECHNOLOGY CO., LTD
11
Table 2-4 Discharging Parameters
Model Voltage Range in Discharging Current Limit in Discharging
Min Max Max
V+3000 43.2V 57.6V 100A
V+5000 43.2V 57.6V 100A
V+7000 43.2V 57.6V 100A
2.7 Installation
1. Please read this manual carefully before installation. If the product is not installed
according to the instructions in this manual, or if the precautions and instructions in this manual
are ignored, the company has the right to not provide warranty for the damages caused by
this.
2. All operations and wiring, should be operated by professional electricians or mechanical
engineers.
3. When installing, except for the terminal block and the part that must be removed,
please do not move the other parts inside the box.
4. All electrical installations must comply with local electrical safety standards.
5. For maintenance, please contact the local designated system installation and
maintenance personnel.
6. During the operation of the product, the temperature on the product may be relatively
high. Please touch carefully to prevent burns.
2.8 Transportation
This solar home battery has undergone rigorous inspection and testing before leaving the
factory. In order to avoid the battery pack from being damaged during transportation, please
use soft materials such as EPE foam for packaging and transport in a customized wooden box.
When transporting in non-container vehicles, the battery pack should be fixed as much as
possible to ensure safe transportation.
2.9 Storage
1. This solar home battery is better to be well packed and stored in a ventilated and dry
place;
2. The recommended storage temperature range is 5-45℃, humidity 65±20%;
3. If there are a large number of battery packs stored in the same place, the warehouse
should meet following conditions,
a, the temperature and humidity in warehouse could be controlled, such as, there is air
conditioning or dehumidification equipment, to avoid the battery pack in a high humidity
environment for long time;
b, the warehouse should be equipped with automatic fire extinguishing system,
emergency sprinkler system, dry powder fire extinguisher and fire sand (sand for construction is
ok);

SHENZHEN POLINOVEL TECHNOLOGY CO., LTD
12
c, can not be mixed with flammable materials (such as packaging materials cartons, etc.),
it is recommended to use a separate warehouse to store battery packs;
d, there’s secondary fire doors in the warehouse;
e. according to the instructions on the packaging of lithium battery and the stacking
requirements, please do not stack more than a certain height;
4. For long time storage, the battery should be charged and discharged in time within 3
months to prevent it from being over-discharged; pleases do not store the battery for a long
time if it is discharged.

SHENZHEN POLINOVEL TECHNOLOGY CO., LTD
13
3Installation Instructions
3.1 Installation requirements
This part of the guide provides the installer with the choice of the appropriate installation
location to avoid damage to the battery or the associated operator.
A. The product can be installed on the wall or on the ground.
To install it on the wall, the wall must be strong enough to bear the weight of the battery for
a long time.
To install it on the ground, because the battery is tall and slim, it is also recommended to be
fixed by the wall. Please refer to Chapter 3.3 for the installation method.
B. The installation location must conform to the size of the battery pack. Please refer to
Figure 3-5 for dimensions.
C. Do not install the battery pack on the surface of a building constructed of flammable or
non-heat resistant materials.
D. Do not install the battery pack in a place with poor air circulation to affect the natural
heat dissipation of the battery pack.
E. The protection level of the battery pack is IP65. It can be installed indoors or outdoors. It is
recommended not to expose the battery pack directly to the sun.
F. The ambient temperature around the battery pack should be -20~60℃.
G. Please pay attention to have enough clearance between the battery pack and other
devices (recommend to be minimum 200 mm).
H. Do not install the battery pack in a place where children can reach it.

SHENZHEN POLINOVEL TECHNOLOGY CO., LTD
14
3.2 Battery pack appearance and structure
Figure 3-1
3.3 Handling and Installation
DANGER! The energy storage battery pack is heavy, pay attention to balance when
handling, so as to prevent the battery from falling and hurting the operator.
Handling
Lift the battery out of the wooden box and move it to the designated installation location.
Figure 3-2

SHENZHEN POLINOVEL TECHNOLOGY CO., LTD
15
Installation Steps
(1) Install the wall mounting kits
a. Mark the drilling position on the wall with the wall mounting kits;

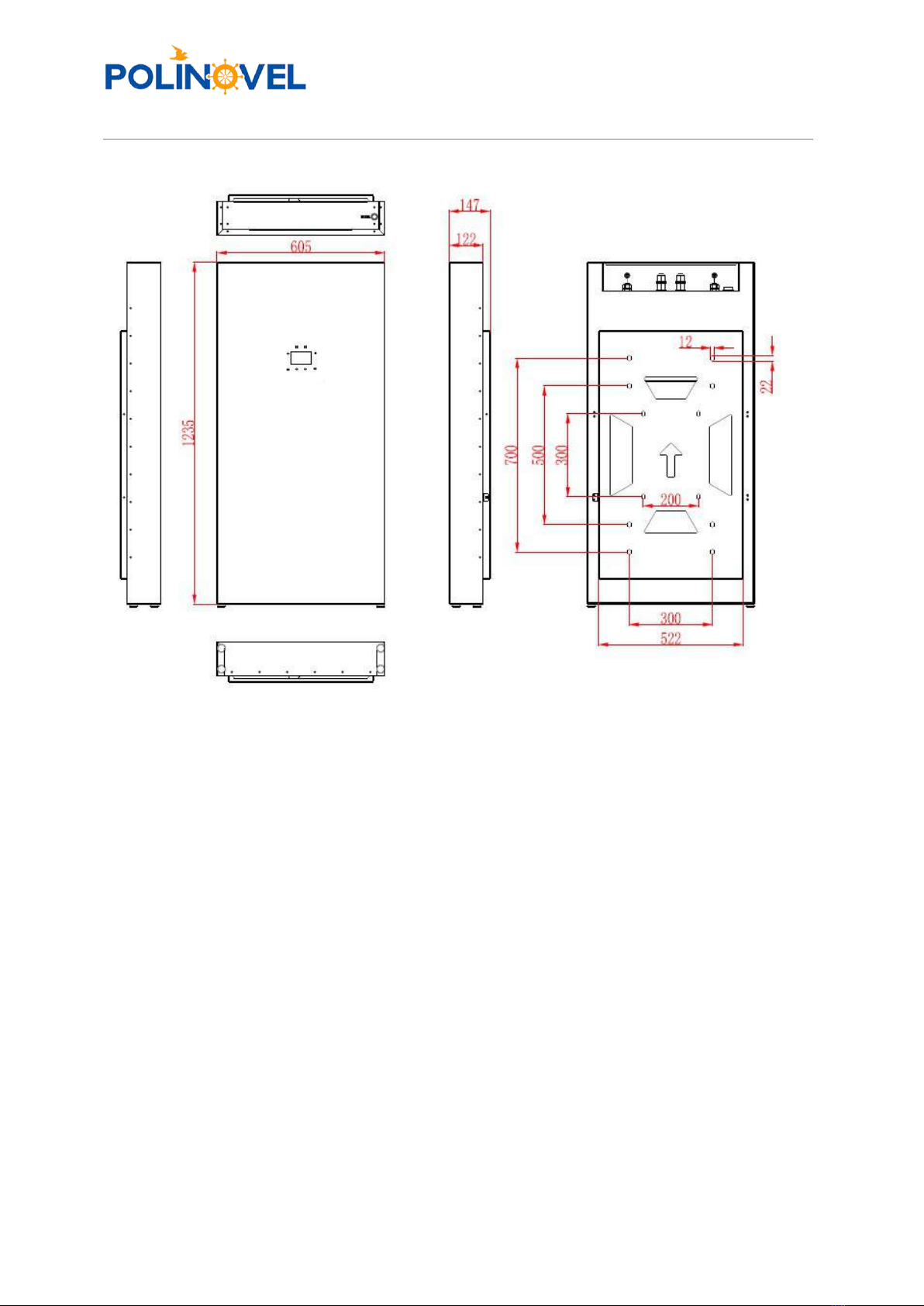

Figure 3-3 to Figure 3-5 show the outline of the battery pack and the shape of the wall
mounting plate and the mounting hole size for all three models. Please check which model you
ordered and take the correct drawing for reference.
Figure 3-3 (Model V+3000)

SHENZHEN POLINOVEL TECHNOLOGY CO., LTD
16
Figure 3-4 (Model V+5000)

SHENZHEN POLINOVEL TECHNOLOGY CO., LTD
17
Figure 3-5 (Model V+7000)
b. Drill holes in the marked positions with a hammer drill, insert the plastic parts, meanwhile, drill
the tapping screws;
c. Install the wall mounting plate on the wall as shown in Figure 3-6 below; fix it with M8*50
tapping screws.

SHENZHEN POLINOVEL TECHNOLOGY CO., LTD
18
Figure 3-6
(2) Lift the battery pack and hook it on the wall mounting plate through the hooks on the wall
mounting plate, as shown in Figure 3-7.
Figure 3-7

SHENZHEN POLINOVEL TECHNOLOGY CO., LTD
19
(4) Wire lug processing
This battery pack comes with two pieces of wire lugs, but does not come with the external
positive and negative wire harness. When the battery pack is installed, the wire lug should be
processed with proper wires (4AWG wires)as shown in Figure 3-8 below.
Figure 3-8
3.4 Panel and Switch Button Description
Figure 3-9

SHENZHEN POLINOVEL TECHNOLOGY CO., LTD
20
a, Display: display battery system information
b, Master switch: air switch, turn off and turn on the battery system
c. Power / Reset:
When the BMS is in sleep mode, press and hold this button for 1 second and release, the BMS
is activated;
When the BMS is active, press and hold this button for 3 seconds and release, the BMS turns to
sleep mode;
And, in sleep mode, the battery cannot charge or discharge.
d, COMM 1: RS485 communication interface, please contact us for protocol if the battery you
order has this function.
e, COMM 2: RS232 communication interface, please contact us for protocol if the battery you
order has this function.
f, P+ / P-: charge and discharge positive and negative, connect to solar inverter battery+ and
battery- if working with solar inverter.
3.5 Sleep Mode
3.5.1 Enter Sleep Mode
The battery pack enters sleep mode when any of the following conditions occurs,
(1) Single cell or the whole battery pack enters over-discharge protection for 1 minute, and
not recover.
(2) Press and hold the “Power / Reset” button for 3 seconds and release.
(3) The lowest single cell voltage is under preset voltage of 3300mV, and this last for a certain
time of sleep delay time (default 1440 minutes), meanwhile, no communication with other
devices, no charge or discharge on the battery pack.
(4) Turn off through the host computer.
Before start sleep mode, please make sure the battery pack is not under charging, otherwise,
it cannot enter sleep mode.
3.5.2 Exit Sleep Mode
The battery pack exits sleep mode and back to normal working when any of the following
conditions occurs,
(1) Connect the battery pack to the charger with charging voltage over 48V.
(2) Press and hold the “Power / Reset” button for 1 second and release.
