PolyJohn FLEET FS3-0026 Instruction sheet

Page 1 of 16
September 2023
NOTE: We recommend reading through the entire Assembly Instructions prior to proceeding with use, service or maintenance.
FLEET™SERIES SINK
PRODUCT INSTRUCTIONS

FLEETTM SERIES SINK
FS3-0026
Page 2 of 16
September 2023
DIMENSION IMPERIAL METRIC
Height 39 in. 100 cm
Width 17 in. 43 cm
Depth 21 in. 53 cm
Tank Capacity 20 gal 76 liter.
Pump Capacity (per stroke) 2 fl. oz 59.14 ml
Number of Single Dispenses 1280 1280
Weight Empty 16 lb. 7.26 kg.
Weight Full 183 lb. 83 kg.
PRODUCT SPECIFICATIONS
NOTE: All dimensions are subject to change due to environmental factors. All materials, including resin, pigments and additives used
to make the plastic components as well as the plumbing components that come in contact with the fresh water are U.S. FDA food grade
compliant.

FLEETTM SERIES SINK
FS3-0026
Page 3 of 16
September 2023

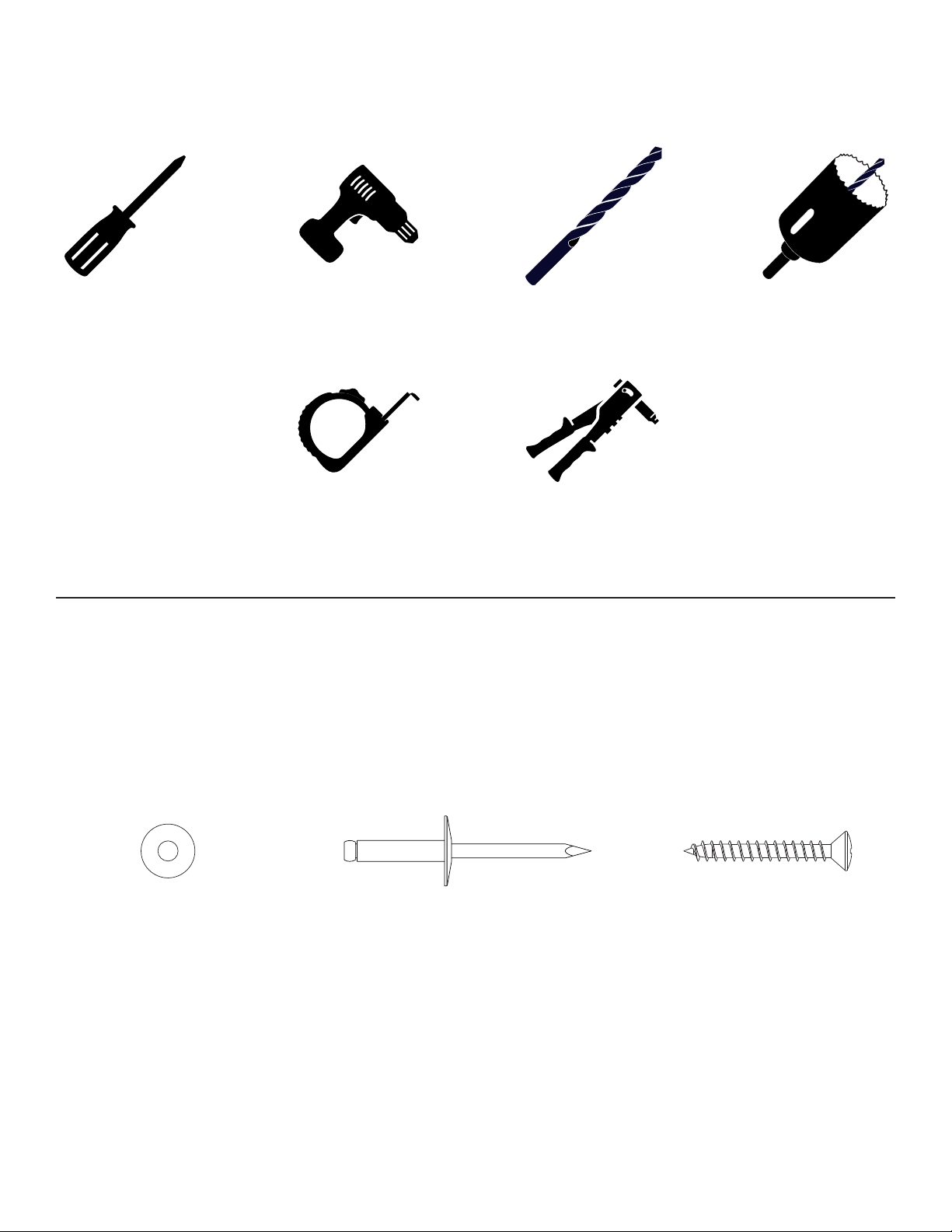

TOOLS REQUIRED FOR ASSEMBLY
(2) PC-000106
Back-up Washer
FULL SIZE SCALE
FASTENER DRAWINGS
(2) PC-000103 - Rivet
Large Flange
(1) PC-000158
Self Tapping Screw
Rivet GunTape Measure
1-1/8” (29mm)
Hole Saw
Phillips Screwdriver Drill 13/64” (5.33mm)
Drill Bit

FLEETTM SERIES SINK
FS3-0026
Page 4 of 16
September 2023
These self-contained hand wash sinks have been engineered with a larger bowl so users may wash up to their elbows.
Designed for either Flushing or Non-Flushing FS3 Fleet Series Portable Restrooms. Sinks are supplied fully assembled
including all fasteners for installation. One person will
be required to install the sink with the exception of some
assistance to hold the back-up washers when riveting the
sink to the wall panel. Installation of a sink into a flushing
unit will require two people.

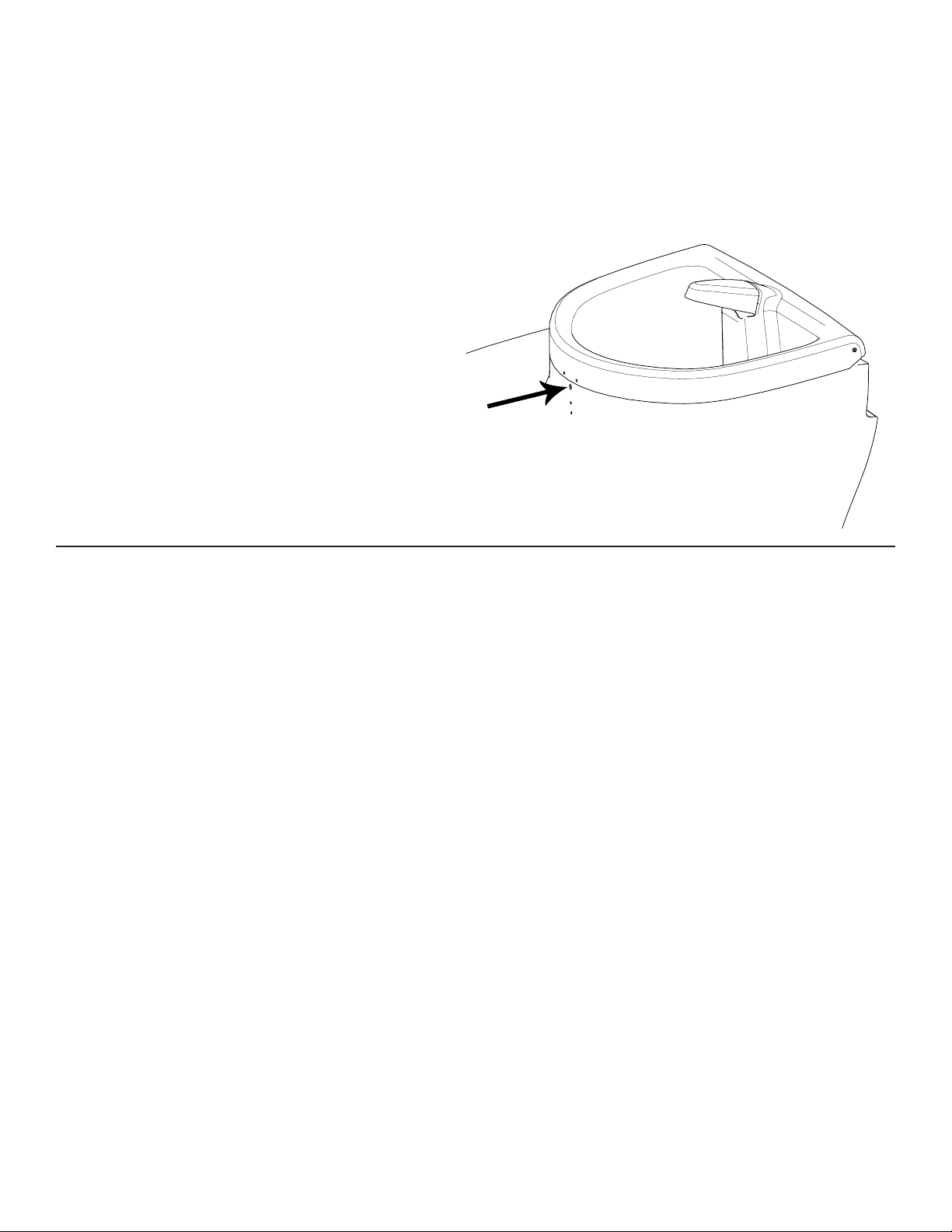

The sink bowl is attached to the sink tank with (2) PC-
000107 rivets that act as hinges. To unlock the sink,
insert a long thin object (the key for the lock on the T.P.
Dispenser works well) into the 1/4” hole directly below
the bottom of the sink lid (as shown below) while pushing
down on the front of the lid of the sink, push the key in to
release the catch, and lift up the lid.
PRODUCT OVERVIEW
NOT FOR COOKING OR DRINKING - is required by law in certain areas of the U.S. Other geographical areas
require that the materials used to manufacture the sinks comply with the U.S. Federal Food and Drug Administration (FDA)
guidelines 21 CFR 175.300 (resins), 177.1520 (olefin polymers) and 178.3297 (colorants for polymers). The materials
also comply with the U.S. Public Service Drinking Water Standards, 42 CFR part 72 and U.S Environmental Protection
Agency Interim Primary Drinking Water Regulations 40 CFR part 141.
HANDS FREE SINK - instruction for user to use foot pump to operate the sink.
UNIT MUST BE DRAINED BEFORE TRANSPORTING - reminds service operator to empty the sink before
transporting.
IMPORTANT DECALS

FLEETTM SERIES SINK
FS3-0026
Page 5 of 16
September 2023
REPLACEMENT INSTALLATION
FOR FLUSHING UNITS
Remove Existing Sink -
Carefully lay the unit on its back and disconnect the intake hose from the pump and the hose going to the bottom of the
waste tank. Stand the unit back upright. NOTE: Sinks for flushing units are supplied with the required
hoses attached. Drill out the rivets that hold the sink to the side panel; someone may have to hold the body of the rivets
with pliers inside the sink to keep the rivets from spinning. Remove the Phillips cross-head
screw from the base plate. Pull the sink up and out.
Install New Sink -
Place sink into its location. Route hoses through skid. Drill two 13/64” holes through
existing sink mounting holes and into sink. Fasten sink to the wall panels with the supplied
PC-000103 rivets and PC-000106 washers. Fasten to the floor plate with the PC-000158
screw. Carefully lay unit on its back. (Refer to the illustration at the right for reattachment of
the hoses.)
Operation
Valve Handle Positioning -
This sink can be used in a Recirculating Flush mode as well as a Fresh Flush mode. The
valve for changing from the Fresh Flush to Recirculating Mode is located behind a hatch
at the right rear corner of the unit. NOTE: The flow arrow on the valve should be pointed
downward for the Recirculating mode and upward for the Fresh Flush mode.
Filter Replacement -
Remove the sink from the unit. The filter is held in place by an elbow in the bottom of the sink.
To remove the filter from the 3/8” fitting, remove the hose from the quick disconnect fitting in
the elbow, unscrew the elbow and pull the filter out.
Pump Replacement -
Quick disconnect fittings are used for the plumbing system. To disconnect the tubing, pull the ring
of the fitting toward the fitting stem while pulling out on the tubing.
To Bottom of
Waste Tank
To Foot
Pump

FLEETTM SERIES SINK
FS3-0026
Page 6 of 16
September 2023
INSTALLATION FOR
NON-FLUSHING UNITS
Locate the drill spot on the top right surface of the waste tank. Use a
1-1/8” hole saw and cut the drain hole. Position the sink so the drain
pipe nipple is inserted into the hole.
(Refer to the illustration below) Drill two 13/64” holes through the wall
panels and the back of the sink. The sink should be flat against the wall
panel. Fasten the sink from the outside of the unit with (2) PC-000103
rivets and (2) PC-000106 back-up washers on the inside of the sink.
Attach the sink to the base skid; Drive (1) PC-000158 self-tapping
screw in the predrilled hole in the pump mounting plate.
Installation is complete.
39.50”
2”
10” 4”
Insert drain hose
into tank
Insert self
tapping screw

FLEETTM SERIES SINK
FS3-0026
Page 7 of 16
September 2023

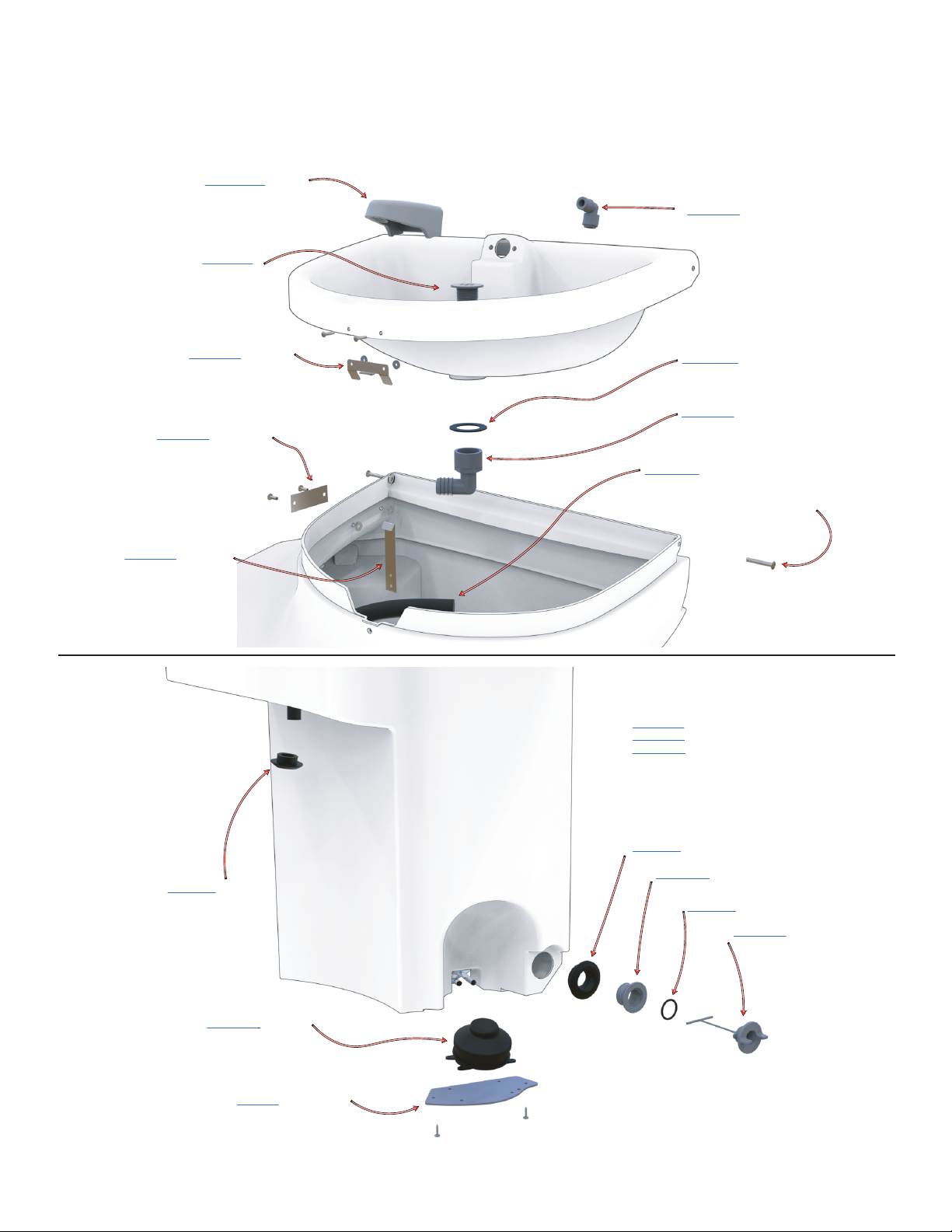

PC-000581G - Sink Tap
(2) PC-000104 - Rivet
(2) PC-000106 - Washer
PC-000310 -
Rubber Washer
PC-000224 - Locking Clip
(2) PC-000110 - Rivet
(2) PC-000111 - Washer
PC-000225 - Catch Lock
(2) PC-000110 - Rivet
(2) PC-000111 - Washer
PC-000339 - Elbow
PC-000308
Sink Strainer
PC-000322 - Elbow
Fasteners for Bowl
(2) PC-000107 - Rivet
(2) PC-000106 - Washer
CH075-028 -Drain Hose
PC-000351 - #10 Hose Clamp
FS3-0026PF - Fleet Sink Flushing Model
PC-000795 - Serial ID Plate
(2) PC-000102 - Rivet
(2) PC-000106 - Washer
http://www.polyjohn.com/pc-000322
http://www.polyjohn.com/pc-000107
http://www.polyjohn.com/pc-000106
http://www.polyjohn.com/pc-000351
http://www.polyjohn.com/ch075-028
http://www.polyjohn.com/pc-000339
http://www.polyjohn.com/pc-000310
http://www.polyjohn.com/pc-000581g
http://www.polyjohn.com/pc-000104
http://www.polyjohn.com/pc-000106
http://www.polyjohn.com/pc-000308
http://www.polyjohn.com/pc-000225
http://www.polyjohn.com/pc-000111
http://www.polyjohn.com/pc-000110
http://www.polyjohn.com/pc-000110
http://www.polyjohn.com/pc-000111
http://www.polyjohn.com/pc-000224
http://www.polyjohn.com/pc-000795
http://www.polyjohn.com/pc-000102
http://www.polyjohn.com/pc-000106
PC-000418
1” Uniseal
PC-100421B
Drain Body
PC-100421P
Drain Plug
PC-000241
O-Ring
PC-000600 -Foot Pump
(4) PC-000102 - Rivet
(4) PC-000106 - Washer
FS3-0052 - Foot Pump Plate
(2) PC-000147 - Screw
http://www.polyjohn.com/pc-000102
http://www.polyjohn.com/pc-000106
PC-000417
3/4” Uniseal
**NOT SHOWN
PC-000782 - Decal Not for Drinking
PC-000783 - Decal Transport
PC-000790 - Decal Foot Pump
http://www.polyjohn.com/pc-000782
http://www.polyjohn.com/pc-000783
http://www.polyjohn.com/pc-000790
http://www.polyjohn.com/pc-100421P
http://www.polyjohn.com/pc-000241
http://www.polyjohn.com/pc-100421b
http://www.polyjohn.com/pc-000418
http://www.polyjohn.com/pc-000600
http://www.polyjohn.com/pc-000147
http://www.polyjohn.com/fs3-0052
http://www.polyjohn.com/pc-000417
http://www.polyjohn.com/pc-000102
http://www.polyjohn.com/pc-000106

FLEETTM SERIES SINK
FS3-0026
Page 8 of 16
September 2023

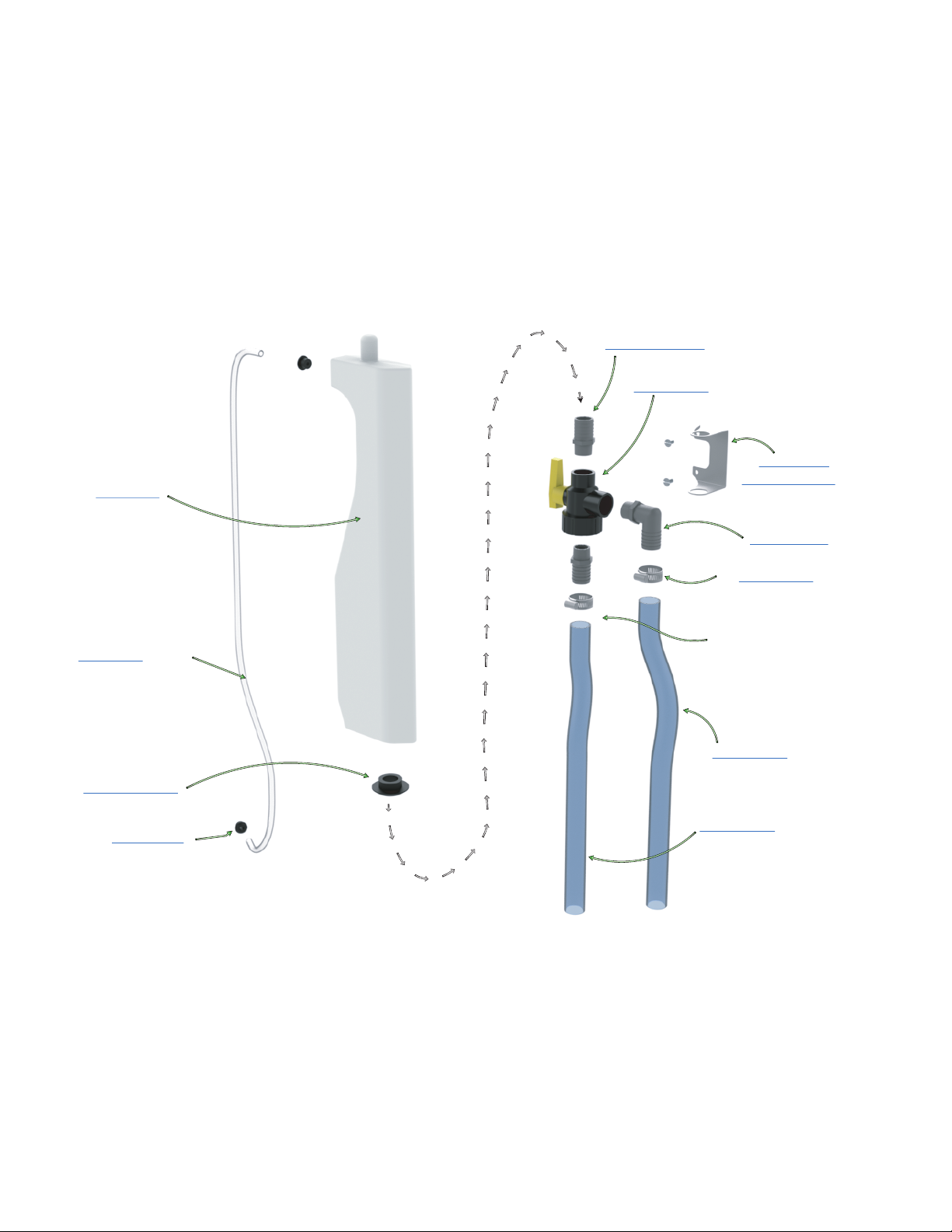

PARTS DIAGRAM
PC-000415
1/4” Uniseal
CT38-046
Tube (pump to tap)
PC-000339 - Elbow
FS3-0028
Anti-Siphon Tank
Assembly
**See tank diagram**
PC-000305
Plastic Filter
CT38-0065
Tube (tank to pump)
tank assembly & tube not installed on FS3-0026*C (static)
3-way Valve ONLY ON FLUSHING
RECIRC MODELS FS3-0026*F
http://www.polyjohn.com/fs3-0028
http://www.polyjohn.com/PC-000305
http://www.polyjohn.com/pc-000339
http://www.polyjohn.com/ct38-046
http://www.polyjohn.com/pc-000415
http://www.polyjohn.com/ct38-0065
PC-000415
1/4” Uniseal
CT38-046
Tube (pump to tap)
PC-000339 - Elbow
FS3-0028
Anti-Siphon Tank
Assembly
**See tank diagram**
PC-000305
Plastic Filter
CT38-0065
Tube (tank to pump)
PC-000417
3/4” Uniseal
PC-100324 - Fitting
PC-000415
1/4” Uniseal
FRESH FLUSH MODELS FS3-0026*FF
http://www.polyjohn.com/fs3-0028
http://www.polyjohn.com/PC-000305
http://www.polyjohn.com/pc-000339
http://www.polyjohn.com/ct38-046
http://www.polyjohn.com/pc-000415
http://www.polyjohn.com/ct38-0065
http://www.polyjohn.com/pc-000417
http://www.polyjohn.com/pc-000415
http://www.polyjohn.com/pc-100324
USE HOSE TO CONNECT
TO FOOT PUMP INLET

FLEETTM SERIES SINK
FS3-0026
Page 9 of 16
September 2023
(2) PC-000901 - Fitting
PC-000903 - 3-Way Valve
PC-100213 - Bracket
(2) PC-000147 - Screw
PC-000900 - Elbow
(4) PC-000352
Hose Clamp #12
CH100-028
Hose 1” x 28”
CH100-025
Hose 1” x 25”’
FS3-0028
Anti-Siphon Tank
(2) PC-000417
3/4” Uniseal
PC-000415
1/4” Uniseal
CT38-035 - Tube
(Intake to Anti-Siphon)
http://www.polyjohn.com/fs3-0028
http://www.polyjohn.com/pc-000901
http://www.polyjohn.com/pc-100213
http://www.polyjohn.com/pc-000417
http://www.polyjohn.com/pc-000903
http://www.polyjohn.com/pc-000900
http://www.polyjohn.com/pc-000352
http://www.polyjohn.com/ch100-025
http://www.polyjohn.com/pc-000147
http://www.polyjohn.com/pc-000415
http://www.polyjohn.com/ct38-035
FS3-0028C - SIPHON TANK COMPLETE
To Bottom of
Waste Tank
To Foot
Pump

FLEETTM SERIES SINK
FS3-0026
Page 10 of 16
September 2023
PARTS DIAGRAM

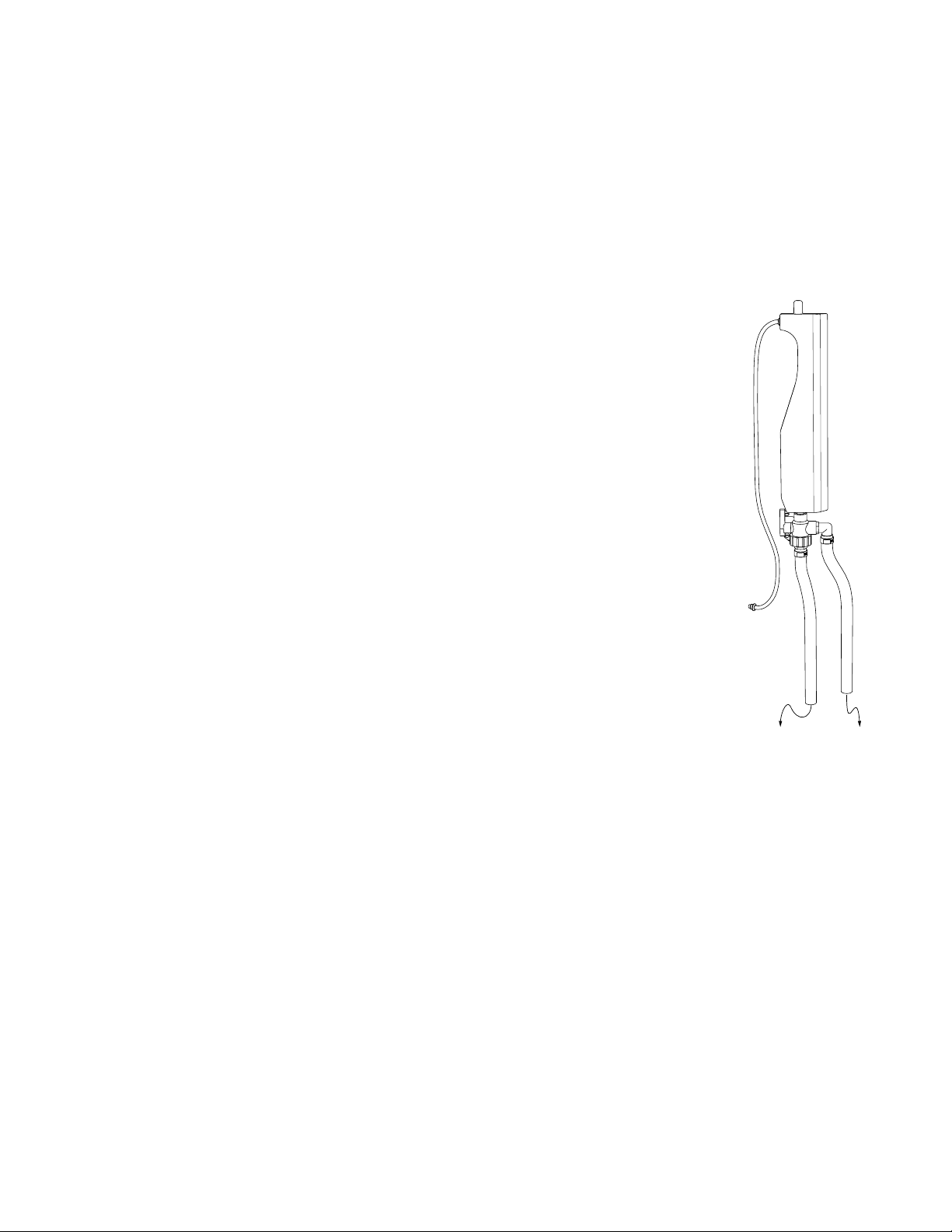

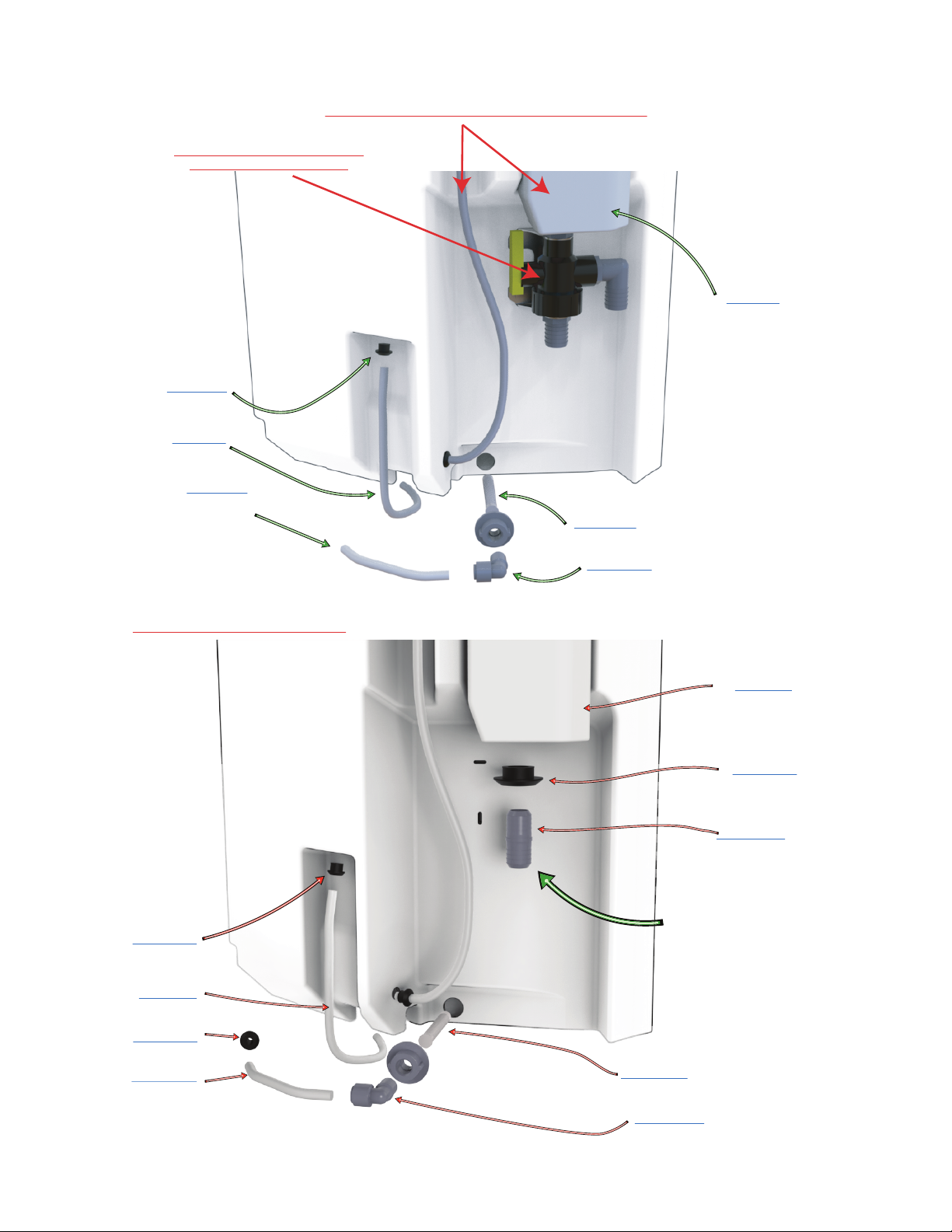

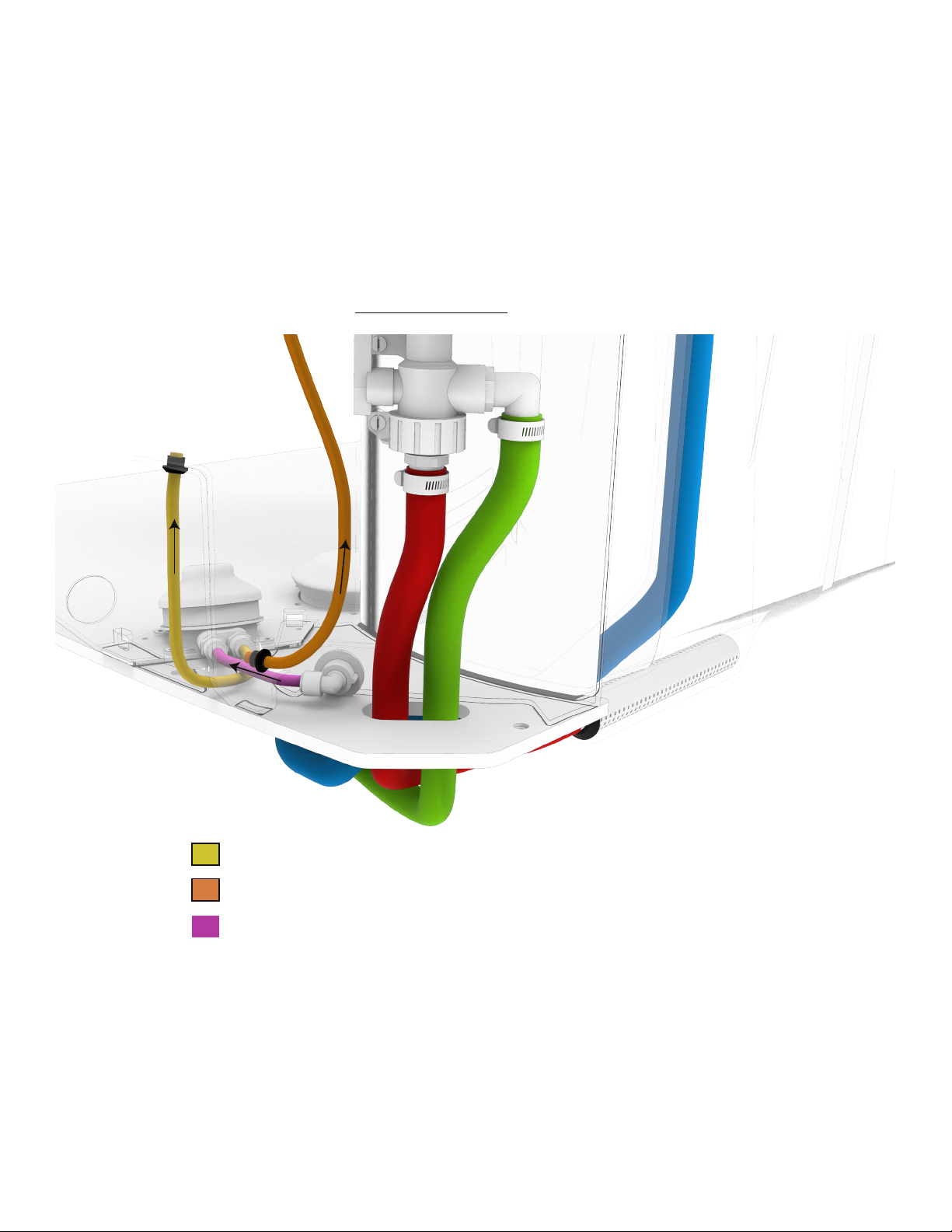

RECIRC HOSE CONNECTIONS
RECIRC Flush Hose Connections with 3-Way Valve Installed.
** CHECK FOR LEAKS AT
FOOT PUMP CONNECTIONS **
3-way Outlet to Pump Inlet #1
Pump Outlet to Flush Bowl
Recirc Filter to Pump Inlet #2
Sink Bowl Drain Hose
Into Waste Tank

FLEETTM SERIES SINK
FS3-0026
Page 11 of 16
September 2023
Sink Pump Outlet to Sink Tap
Sink Tank to Sink Pump Inlet
Sink Tank to Anti-Siphon Tank
Sink Tube Connections.

FLEETTM SERIES SINK
FS3-0026
Page 12 of 16
September 2023
OPTIONAL ACCESSORIES,
SUPPLIES AND CHEMICALS
Use a mild soap to clean all surfaces and component parts.
Minor scratches and abrasions can be lightly sanded or scrubbed with a mild abrasive cleaner (such as “Soft Scrub”) that contains calcium
carbonate, hypochlorate bleach, and detergents. Be sure to follow the cleaning product directions since these ingredients may cause hazardous
gases when mixed with other chemicals. Rinse the cleaned areas and buff with a conventional wax.
Some light scratches may also be hidden by using an industrial hot air gun.
For a source of cleaning, deodorizing and paper products contact:
PRO’S CHOICE
2500 GASPAR AVE.
WHITING, IN 46394-2175
800-292-1305
www.polyjohn.com/supplies/pros-choice.html
We highly recommend membership in the Portable Sanitation Association International (PSAI); the worldwide authority on portable sanitation
services. The PSAI, “Portable Sanitation Industry Certification Program” manual contains a wealth of information on standards and service
procedures. For more information contact the PSAI:
PORTABLE SANITATION ASSOCIATION INTERNATIONAL (PSAI)
7800 METRO PARKWAY, SUITE 104
BLOOMINGTON, MINNESOTA 55425 USA
800-822-3020 / 612-854-8300 FAX [phone]
www.psai.org

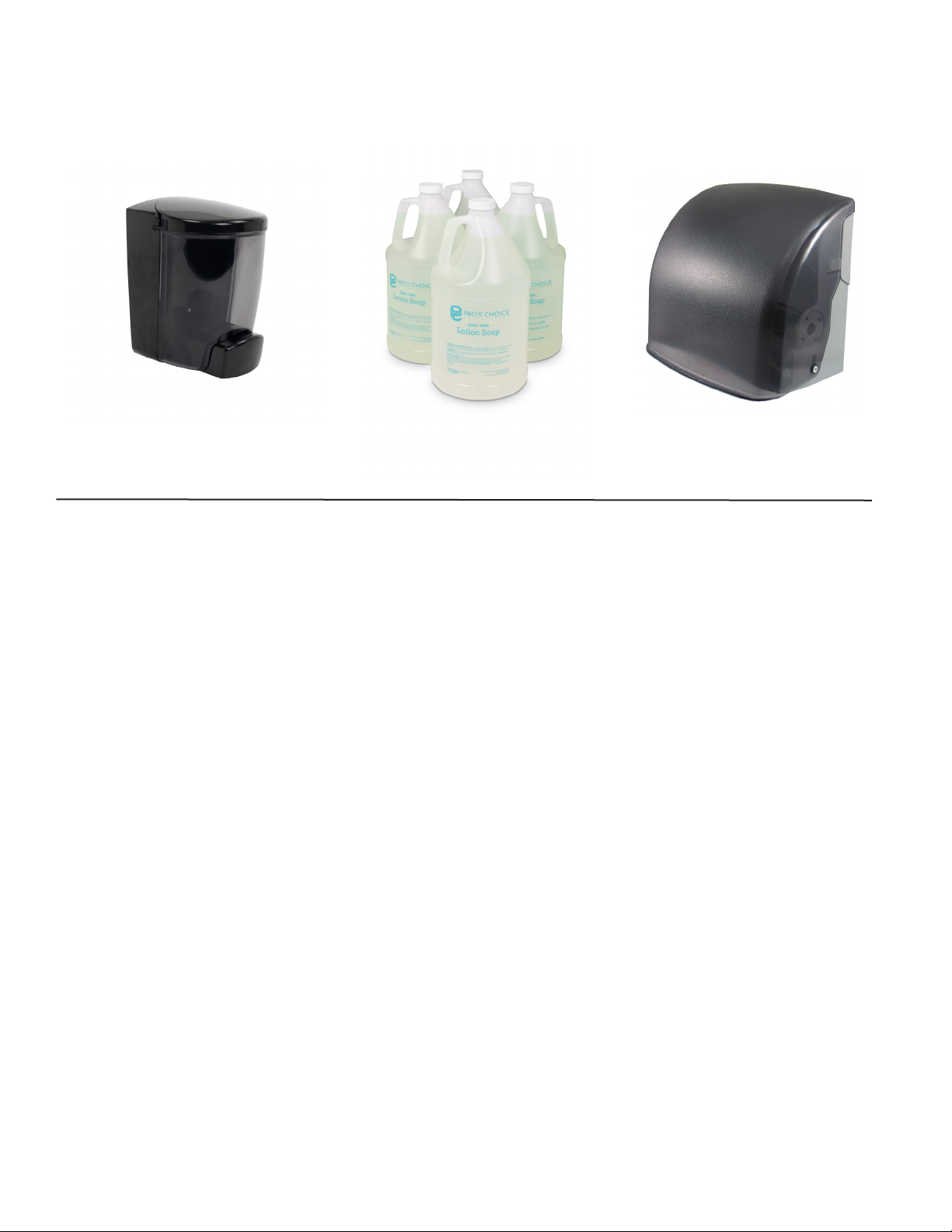

CLEANING AND MAINTENANCE
Liquid Soap Dispenser
PSD1-1000
Lotion Hand Soap
LS00-1000
Paper Towel Dispenser
TD04-1000

FLEETTM SERIES SINK
FS3-0026
Page 13 of 16
September 2023
REGULATIONS
P
rop 65
P
olyJohn Corporation would like to inform any customers or end users that some products may contain chemicals listed in California’s Safe
Drin
king Water & Toxic Enforcement Act of 1986. Commonly referred to as Proposition 65, this Act establishes a list of chemicals known by the
State of
California to present a risk of cancer, birth defects, or other reproductive harm.
C
hemical exposure typically occurs through inhalation, ingestion, or adsorption. PolyJohn products are not intended to be used in these methods.
P
olyJohn Corporation cannot foresee all uses of their products (both intended and unintended uses) and as a result has opted to provide a
gene
ral warning of known chemical presence.
T
he Proposition 65 chemical list can be found at http://www.P65Warnings.ca.gov
T
he following warnings are labels placed on affected products. If these labels are not present then they do not apply to that product.
WARNING: This product can expose you to chemicals including 4-Vinylcyclohexene which is known to the State of California to cause
cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
4
-Vinylcyclohexene label above to be used any product made with Bayblend T85
WARNING: This product can expose you to chemicals including titanium dioxide, which is known to the State of California to cause
cancer. For more information go to www.P65Warnings.ca.gov.
Confli
ct Minerals Compliance Statement
Section
1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act, and the Securities and Exchange Commission R
ules adopted in
connection t
herewith, require certain corporations to report the use of “Conflict Minerals” in the manufacture of their products. Generally, C
onflict
Mine
rals collectively refers to cassiterite, columbite-tantalite, gold, wolframite, or their derivatives, including tantalum, tin and tungsten, which
originate f
rom the Democratic Republic of the Congo or specified adjoining countries (referred to herein as “Covered Countries”).
W
hile we, as a privately held corporation, are not subject to the Conflict Minerals rules and reporting requirements, we understand that our
custome
rs may be, and we are committed to helping our customers comply with their reporting requirements. In order to determine if our
manufactured p
roducts contain Conflict Minerals, we have asked our relevant suppliers, as of September 1, 2020, to ascertain their use of any
C
onflict Minerals in the materials they supply to us. Their responses demonstrate that our relevant suppliers (i) do not use Conflict Minerals in the
materials t
hey supply to us, (ii) have no reason to believe the Conflict Minerals they use may have originated in the Covered Countries, and/
or (iii) reasonably beli
eve that the Conflict Minerals they use are from recycled or scrap sources. Consequently, we can in turn represent that, to
t
he best of our knowledge, our manufactured products either do not contain Conflict Minerals, or to the extent they may, such products are “DRC
conflict free” as defined
by paragraph (e)(4) of Section 1502.
W
e will continue to work with our key suppliers to ensure that we are able to identify the use of Conflict Minerals in our supply chain, and the
representations made in t
his compliance statement remain accurate. To that end, we reserve the right to amend this statement at any time based
on subsequent d
evelopments or information.
S
hould you have any questions or concerns regarding this statement, please do not hesitate to contact us.

FLEETTM SERIES SINK
FS3-0026
Page 14 of 16
September 2023
FREQUENTLY ASKED QUESTIONS
Sinks
Q: How do I know if my sink is full?
A:
There is not a fill level indicator on the sinks. So you either have to view down into the fill port or wait until you see water come from the top
of the unit. There are also some units with a weep hole that will show when you have reached the highest-level capacity.
Q: My sink is leaking, what do I do?
A: Many times, there might not be a leak. Water displacement can cause sink to appear to be leaking. There is a weep hole on some units and
if the water capacity goes past that level the water will leak out that hole. It could be that the water is too high. There is also the possibility that
water was filled into the sink and then tipped back to transport. If its leaned too far back, then water can come out of the revert holes at the
very top of the unit. That being said, there is always a very small chance that there is a manufacturing defect. If all other options have been
ruled out, then please visit the PolyJohn Warranty page.
Q: Where is the fill port?
A: Most of our sinks fill ports are colored blue to indicate fresh water. They will be located towards the middle of the unit.
Q: How do I drain my water from the sink?
A: It depends on what sink model you own, but most of them have a fresh water drain port and a gray water drain port at the bottom. Some
units like the 4 person wash station and the Encore models have a 4” port that can be suctioned out by a portable toilet operator.
Q: Where do I empty my gray water from the sink?
A: There are certain drains that you should not dump your gray water into. Storms drains for instance. Sewer drains are acceptable. You should
always check your localities for regulations for all dumping including that of gray water.

FLEETTM SERIES SINK
FS3-0026
Page 15 of 16
September 2023
WARRANTY
Restrooms and Toilets
POLYJOHN PORTABLE RESTROOMS LIMITED 3 YEAR PRODUCT WARRANTY
PolyJohn Enterprises Corp. warrants the major plastic parts of its portable restrooms (plastic front, wall panels, roof, and tank) against any breakage
or other problems that prevent the PolyJohn portable toilet from functioning in accordance with usual practices used in the portable toilet industry
and in their intended manner. This warranty covers any damages in material or workmanship for a total period of 3 years (36 months). This warranty
extends only to the original purchaser of the PolyJohn portable restroom. Proof of purchase, serial numbers, and photos will be required.
sinks, tanks, trailers and sanistands
PolyJohn Enterprises warrants our sinks, tanks, trailers and sanistands from the date of purchase. Any misuse or abuse of our products or failure to
properly follow recommended procedures shall void this warranty. The warranty is a 1 year limited warranty and a 90 day limited warranty for
components thereof.
What is Not Covered By Warranty
This warranty does not cover damage or failure contributed to or caused by: Not following PolyJohn assembly procedures, unauthorized
modification, acts of God, mishandling, misuse, use of incompatible solvents or other damaging chemicals, vandalism or accident. In no event shall
PolyJohn be liable for labor costs or for incidental or consequential damages.
For full details on PolyJohn’s warranty policy, and to view instructions for submitting a claim please visit https://www.polyjohn.com/warranty/.
Warranty Disclaimer
PolyJohn’s terms of sale are FOB (Free on Board Shipping Point). Meaning buyer takes on responsibility once it leaves PolyJohn’s shipping dock.
The carrier is wholly responsible for any damage incurred during transit. Important notice: All concealed/non-notated damages must be reported
within 5 business days of delivery (1st day is the day of delivery) as per the National Motor Freight Classification (NMFC) – Rule 300100 - for a
damaged claim to be filed. Reporting after this time will void a claim.
In order to prevent warranty disputes follow these steps immediately when receiving your products:
Inspect the shipment immediately and insist that visible damages be indicated on your copy of the freight bill. If they are not noted on the
freight bill it is very likely a claim will be denied.
Open the shipment if necessary, and inspect for any concealed damages.
If there are any damages that you cannot operate with you may refuse shipment. After you do this contact us immediately
Filing Process for Warranty
PolyJohn reserves the right to request inspection of products for verification of defect, which may include returning some or all of the parts with
shipping paid for by the purchaser. Once the items have been returned, inspected, and PolyJohn is found at fault shipping costs will be reimbursed.
You may contact PolyJohn to arrange for return shipping if desired.
To file your warranty claim follow these steps:
1. Go to polyjohn.com/warranty/
2. Fill out necessary contact information
3. Fill in invoice number, date of purchase, product, and product serial numbers.
4. Upload an images of affected products
5. Submit and someone will be in contact with you as soon as possible.

FLEETTM SERIES SINK
FS3-0026
Page 16 of 16
September 2023
OUR MISSION STATEMENT
POLYJOHN USA
[phone]
Whiting, Indiana
www.polyjohn.com
POLYJOHN INTERNATIONAL
UNITED KINGDOM
[phone]
Yorkshire, England
www.polyjohn.co.uk
POLYJOHN INTERNATIONAL
CZECH REPUBLIC
[phone]
Karlovy Vary, Czech Republic
www.polyjohn.eu
POLYJOHN CANADA
[phone]
Oro Medonte, Ontario
www.polyjohn.ca
www.fr.polyjohn.ca
POLYJOHN LATIN AMERICA
+01 800-953-1307
Chihuahua, Mexico
www.polyjohn.mx
POLYJOHN NEW ZEALAND
[phone]
Auckland, New Zealand
www.polyjohn.co.nz
POLYJOHN SOUTH AMERICA
[phone]
Bogotá, Colombia
www.polyjohn.com
POLYJOHN AUSTRALIA
[phone]
Brisbane, Australia
www.totalsanitationsolutions.com.au
POLYJOHN SOUTHERN AFRICA
[phone]
Johannesburg, South Africa
www.polyjohn.co.za
“PolyJohn is a family owned, state of the art, plastics manufacturing company dedicated
to providing its employees with a work environment committed to excellence, and its
customers with innovative products, services and technology that meet or exceed their
requirements.”
THANK YOU FOR PURCHASING POLYJOHN PRODUCTS!
