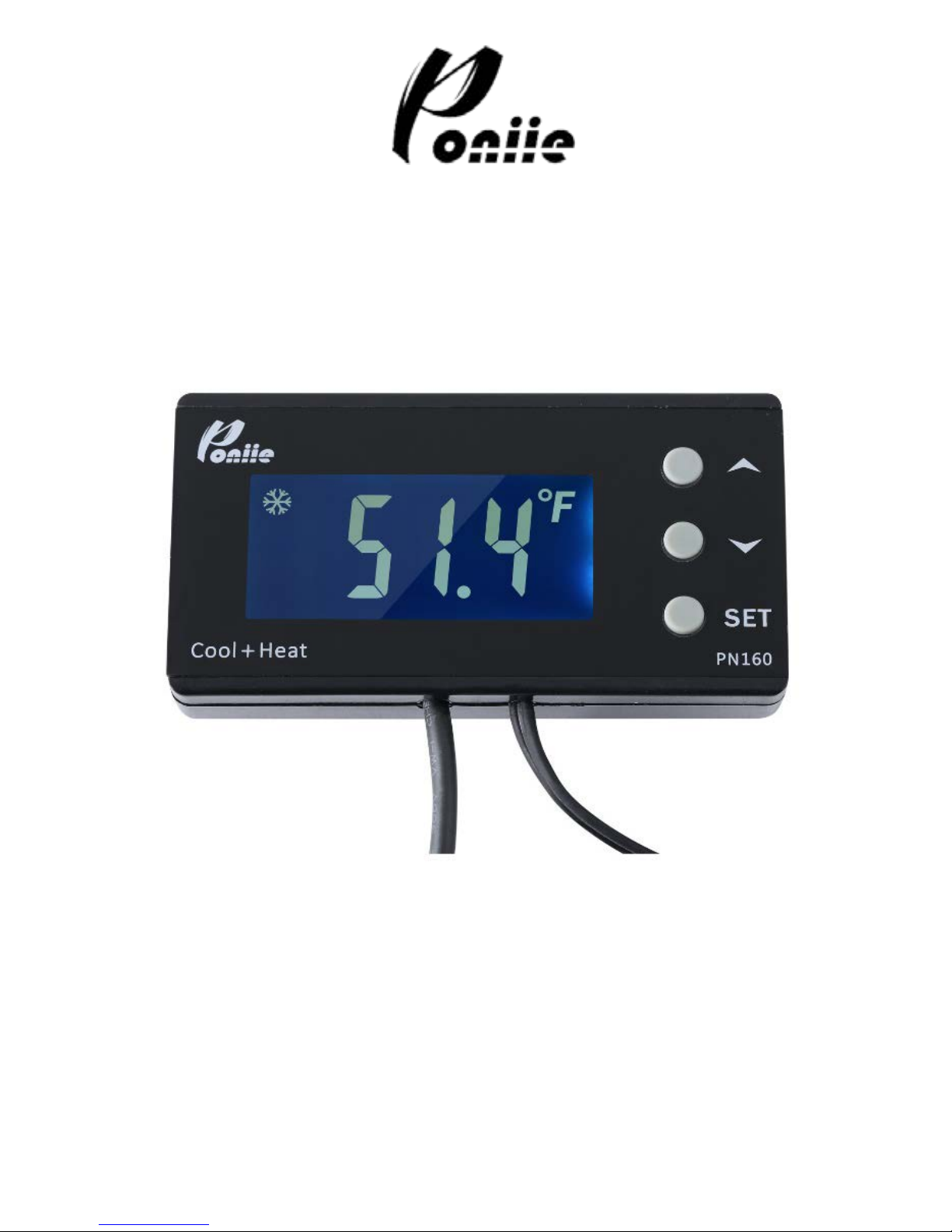

Poniie PN160 User manual

User Manual
Model No: PN160
Thank you for purchasing the Temperature Controller by Poniie. Please read
this manual carefully before using this product.

PN160 is an easy-to-use, safe and reliable dual relay output temperature controller.
The multifunctional thermostat can be used in many areas in our daily life. It is perfect
to be used as over temperature protection or automatic temperature control system for
various tasks. Such as Sous-vide, Home-brew & Fermentation, Kegerator, Aquarium
heat control, Breeding & Incubation, Germination & Seedling Heat Mat etc.
Warning
To avoid electric shock or personal injury, read the “Safety Information”
carefully before using the Thermostat.
1. DO NOT use the device on anything that could possibly have a rating and
start-up amp greater than required (see Technical Specifications part).
Note: Induction motors such as air conditioners, refrigerators, space heater,
freezers and pumps may have a start-up amp of 2 to 8 times the continuous rating.
2. DO NOT dismantle the device without authorization to avoid unexpected
accident.
3. DO NOT operate the controller around explosive gas, vapor or dust.
4. DO NOT allow children to operate this device, keep children stay away
from the controller.

5. DO NOT use or store the device in an environment of high temperature,
humidity, explosive or inflammable field.
6. NOTE: If the output relays are used over their life expectancy, contact
fusing or burning may occasionally occur. Please always consider the
application conditions and use the output relays within their rated load.
* Dual Relay Output (Heating and Cooling)
*Separate Heating and Cooling Setpoint
* Pre-wired plug and play design
* Large backlight LCD display
* Waterproof NTC sensor
* Temperature calibration function
* Compressor delay protection time setting
* High and low temperature alarm setting
* Sensor fault alarm function
1. Functional Buttons:“SET”, “▼” & “▲”
2. Indicator Light Status:
ON: Refrigeration is in working state;
FLASHING: Compressor delay state; OFF: Not working.

ON: Heating is in working state;
OFF: Not working.
Note: Backlight will be auto off after 30mins if there is no further
operation.
Note: LCD screen may show strange pattern when the protection film is
removed or when screen start to light. It’s a normal phenomenon caused
by static and will fade away in 3~5mins.
3. Menu Code: (see Menu code instruction for more information)
【t51】Heating Temperature Setpoint (TS1)
【Hd】Heating Differential (HD)
【t52】Cooling Temperature Setpoint (TS2)
【Cd】Cooling Differential (CD)
【Pt】Compressor Protection Time (PT)
【Hr】High Ringing Alarm (Hr)
【Lr】Low Ringing Alarm (Lr)
【CR】Temperature Calibration (CA)
* Sensor fault alarm
Temperature Control Range
TS1-HD ~ TS2+CD ℉
Setpoint TS1Range
-19.9 ~ TS2℉
Setpoint TS2Range
TS1~199.9 ℉
High Alarm (Hr) Limit
TS2 ~ 199.9 ℉
Low Alarm (Lr) Limit
-19.9 ~ TS1 ℉
Calibration (CA) Range
-19.9 ~ 19.9 ℉
Temperature Resolution
0.1 ℉
Temperature Accuracy
±1.0 ℉ (-19.9 ~ 176.0 ℉)
Temperature Control Mode
On/Off Control, Heating & Cooling
Applicable Power Supply
110 ~ 125V, 60Hz
Sensor Type
NTC sensor (Waterproof)

Input Power Cable Length
1.4m / 4.7ft
Screen Cable Length
1.7m / 5.6ft
Sensor Length
2.0m / 6.4ft
Maximum Output
- Resistive Load
(Such as ordinary fan, heating rod etc.)
1100W (110V)
Maximum Output
- Inductive Load
(Such as compressor, heat pump etc.)
800W (110V)
Start-up amp MAX. 16A
Ambient Temperature
5 ~ 140 °F
Ambient Humidity
20~85% (No Condensate)
Note
: The maximum continuous current of designed circuit is 12A,
however,
we still recommend using the thermostat under above listed output load
for
durability and safe use.
Enter Setup Mode:
Press and hold “SET” key over 3 seconds to enter (or quit) parameters setup
mode, menu code will be displayed in flashing status. Short press “▲” or “▼”
the first time to show the default (last time) setting value. Press “SET” key to
cycle through all the setting menu.
Note:
1) Press and hold “▲” or “▼”can adjust the number more quickly.
2) If there is no further operation for 30 seconds, system will quit setting mode
and return to normal temperature display mode, all setting changes will be
automatically saved.

【
t51
】
Heating TemperatureSetpoint
(turn off point when heating to this
temp. Could be taken as the basic lower end to stay at in most cases);
【
Hd
】
Heating Differential (set lower range trigger, how far from the TS1
setpoint temp can it drift before turning on heating);
【
t52
】
Cooling Temperature Setpoint (turn off pointwhen cooling to this
temp. Could be taken as the basic upper end to stay at in most cases);
【
Cd
】
Cooling Differential
(set upper range trigger, how far from the TS2
setpoint temp can it drift before turning on cooling);
【
Pt
】
Compressor Protection Time (how long it will keep the
refrigerating compressor off between cycles);
【
Hr
】
High Ringing Alarm Limit
(set the temperature at which it will
start beeping to notify you that the temperature has gone too high);
【
Lr
】
Low Ringing AlarmLimit
(set the temperature at which it will start
beeping to notify you that the temperature has gone too low);
【
CR
】
Temperature Calibration (to calibrate the temperature if it is
measuring incorrectly).

Menu
C
ode
Function
Setting
R
ange
D
efault
Setting
Remarks
TS
1
Heating
Temperature Setpoint
-
19.9~TS2
77
°F
1.1
HD
Heating Differential Value
0.5
~30.0
3
°F
TS2
Cooling
Temperature Setpoint
T
S1~199.9
88
°F
CD
Cooling Differential Value
0.5
~30.0
3
°F
PT
Compressor Delay
0 ~ 15
min
0
1
.2
Hr
High Alarm Limit
-
19.9~199.9
180
°F
-
Lr
Low
Alarm Limit
-
19.9~199.9
-
19.9 °F
CA
Temperature
Calibration
-
19.9 ~19.9°F
0°F
1
.3
TS
.2
TS1 Limit Adjust Reminder
Set TS2 larger
1
.1
TS
.1
T
S2 Limit Adjust Reminder
Set TS1 smaller
1.1 Temperature Control Range Setting (TS1, HD, TS2, CD)
For example, set TS1=77°F, HD=2°F, TS2=88°F and CD=3°F, then when
measured temperature is higher or equal to 91°F (TS2+CD) , system enters
refrigeration status; when temperature decline to 88°F(TS2), stop refrigeration;
when measured temperature is lower or equal to 75°F (TS1-HD), system enters
heating status; when the temperature raised to 77°F(TS1), stop heating.
Attentions: TS1≤TS2, if you find TS1 can’t be set any higher to 199.9 (or
TS2 can’t be set any lower to -19.9), please kindly set the TS2 value larger
(or set the TS1 smaller) first.

Note: The closer TS1 to TS2 (TS1 ≤ TS2), and the tighter differential value
the more stable the real temperature will be (more centered). Be aware of the
surge risk, especially when you set a relatively large differential value.
Note: Recommend to set TS1, TS2 close to each other to obtain a safe
controlled temperature range, because there will be no heat or cool device
working when temperature is in range TS1~TS2.
Note: Temperature may over TS1-HD~TS2+CD, large HD or CD value may
causea largetemperature surge, please always set aproper differentialvalue.
1.2 Compressor Delay (PT)
Under refrigeration mode, it will keep the refrigerating compressor off
between cycles to protect your compressor. That means compressor won't start
refrigeration immediately, but waiting for a delay time if it falls into the PT
time frame. Delay time will be calculated right after the refrigeration stops.
1.3 Temperature Calibration (CA)
When there is deviation between measured and actual temperature, use
calibration function to align the temperature.
A. Temperature won’t set above xx.x °F. Should go to 199.9 degrees.
Please kindly know that TS1≤TS2, if you find TS1 cannot be set any higher,
please kindly set the TS2 value larger first. And vice versa for TS2.
B. Alarm sound is on, what’s happening?
First check if the temperature is over the High or Low alarm limit. Then check the
sensor to see if it works right. Buzzer alarm could be dismissed by pressing any key.
