Pool Frog 6100 User manual

1
Customer Service 800-222-0169
www.frogproducts.com
POOL FROG®
Mineral Pool Care System
Model 6100
For Pools up to 25,000 Gallons
System Includes the
POOL FROG®Mineral Reservoir
Patented Mineral Disinfectant
®
Cleaner
because it kills bacteria two ways
Clearer
because it helps keep pH in range
Softer
because it reduces chlorine use up to 50%*
Easier
with pre-filled pacs for no mess,
no guess and no stress
*Compared to the minimum EPA recommended chlorine level of 1.0 ppm for a stabilized swimming pool.

2
TABLE OF CONTENTS
POOL FROG®Introduction 3
Notes and Safety Information 4
Safety Precautions 5
Notice 6
Step 1: Preparing the Pool 6
Step 2: Putting the System to Work 7
Step 3: Setting the Control Dial 8
Step 4: Routine Pool Care 9
Replacing POOL FROG®Mineral Reservoir 10
Using FROG BAM®11
Using POOL FROG®Bac Pac 12
Troubleshooting 13
Parts List 14
Maintenance - Replacing Control Dial O-Rings 15
Maintenance - Replacing Cap O-Rings and Knobs 15
Winterizing 16
Filter Flex-Hose Installation 17
Base Flex-Hose Installation 18
Hard-Plumbed Installation 19
For Proper Performance 20
Warranty 21
For information on King Technology’s entire product
line, visit our website at www.frogproducts.com

3
Welcome to easier pool care courtesy of
POOL FROG®. With POOL FROG®, your pool
water will look and feel better without a lot of
work or a lot of chlorine. This system†controls
bacteria using a combination of minerals and
reduced chlorine levels–up to 50%* less.

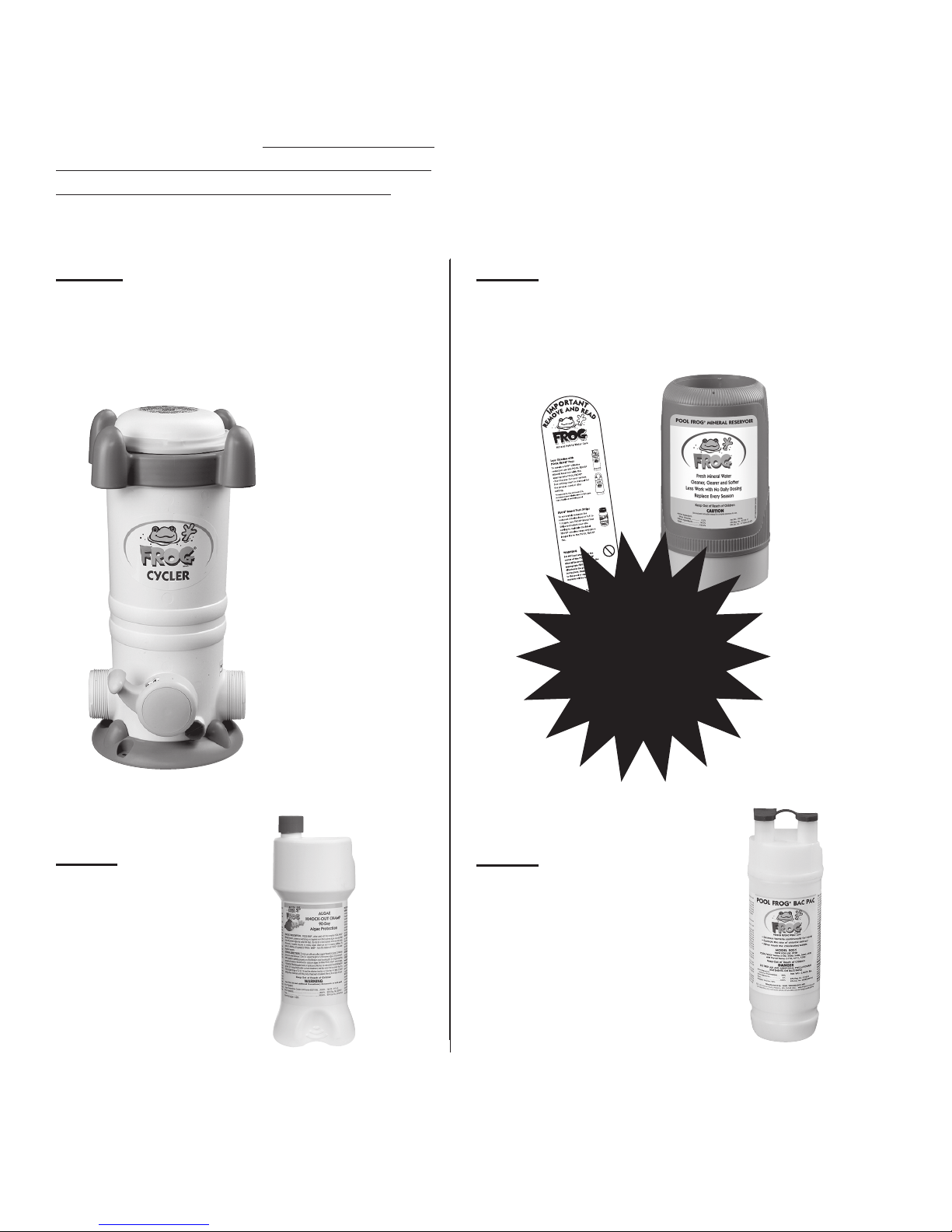

Part 1
POOL FROG®Cycler
The water treatment center that controls the ow of
water to each part of the POOL FROG®System.
Part 2
POOL FROG® Mineral Reservoir
Holds the minerals and ts inside the POOL FROG® Cycler.
Product #01-12-6112
For Pools up to
25,000 gallons.
Product #01-01-6180
Part 3
FROG BAM®
Use with the POOL
FROG® System for a
90-Day Algae-Protection
Guarantee. One bottle is
good for 15,000 gallons.
Product #01-10-5060
Part 4
POOL FROG®Bac Pac
Pre-lled with chlorine tablets and
ts inside the POOL FROG® Mineral
Reservoir. Product #01-03-5880
POOL FROG®Mineral Reservoir comes inside POOL FROG®Mineral Cycler and is also sold separately.
POOL FROG®Bac Pac and FROG BAM®also sold separately.
†FROG®Mineral System consists of the FROG®minerals silver chloride and carbonate used in conjunction with 0.5 ppm chlorine. The FROG®Mineral Reservoir
must be used in conjunction with the FROG®Bac Pac (EPA Reg. No.: 53735-2), an EPA registered chlorine pool product or a chlorine delivery device.
*Compared to the minimum EPA recommended chlorine level of 1.0 ppm for a stabilized swimming pool.
THE POOL FROG®
MINERAL RESERVOIR
MUST BE REPLACED
EVERY SIX MONTHS
OR AFTER ONE POOL
SEASON WHICHEVER
IS SHORTER.

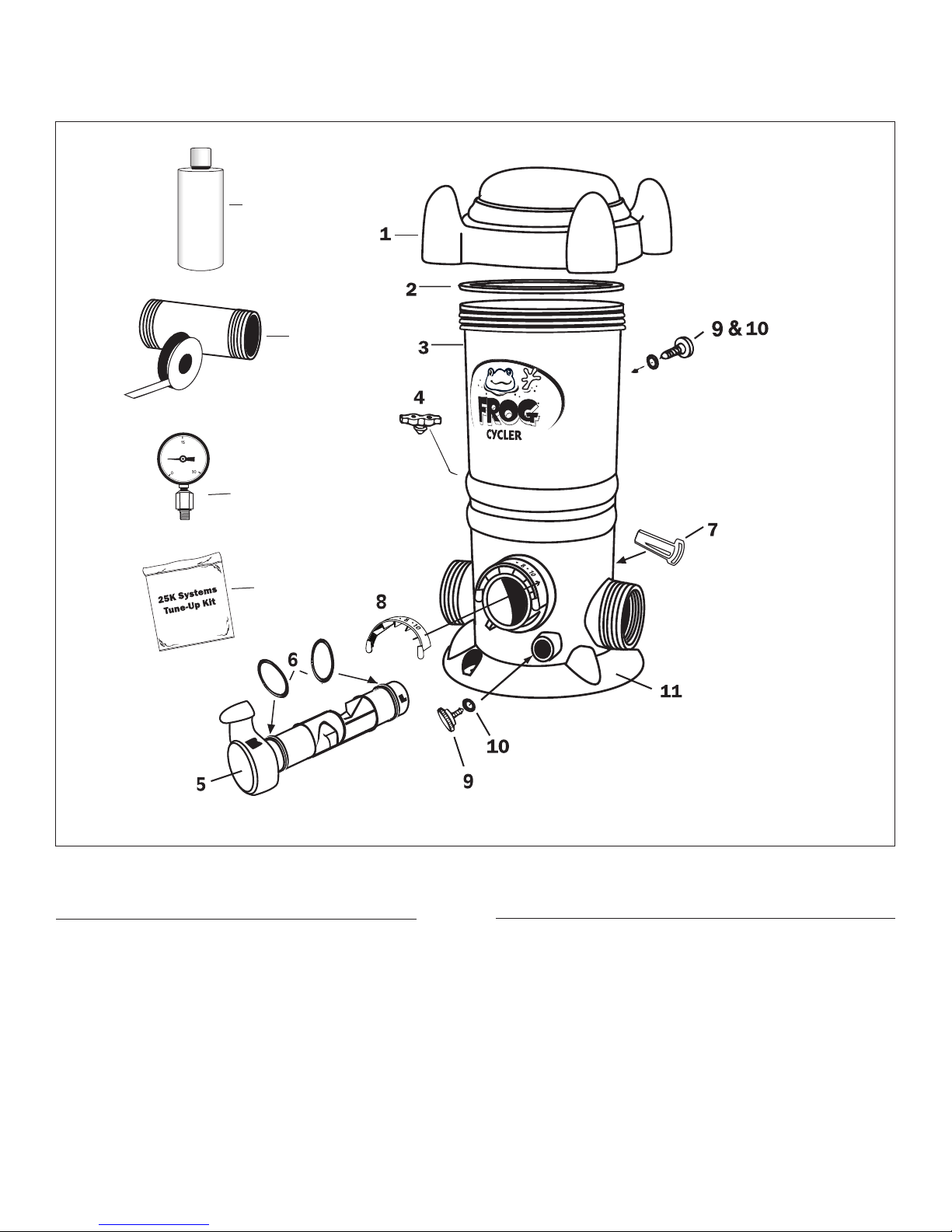

There are 4 parts to the POOL FROG®System:
1. Model 6100 POOL FROG®Cycler
2. POOL FROG®Mineral Reservoir
3. FROG BAM®90-day Algae Preventative
4. POOL FROG®Bac Pac.

4
General Notes
These instructions contain information for the safe and proper
operation of this system. Observe the following principles:
 •Readtheentiremanualpriortoinstallingorusingthis 
system.
 •Ensurethateveryoneusingthissystemfollowsthe 
instructions and safety precautions.
 •Keeptheinstructionsnearbyandavailableforreference
throughout the service life of this system.

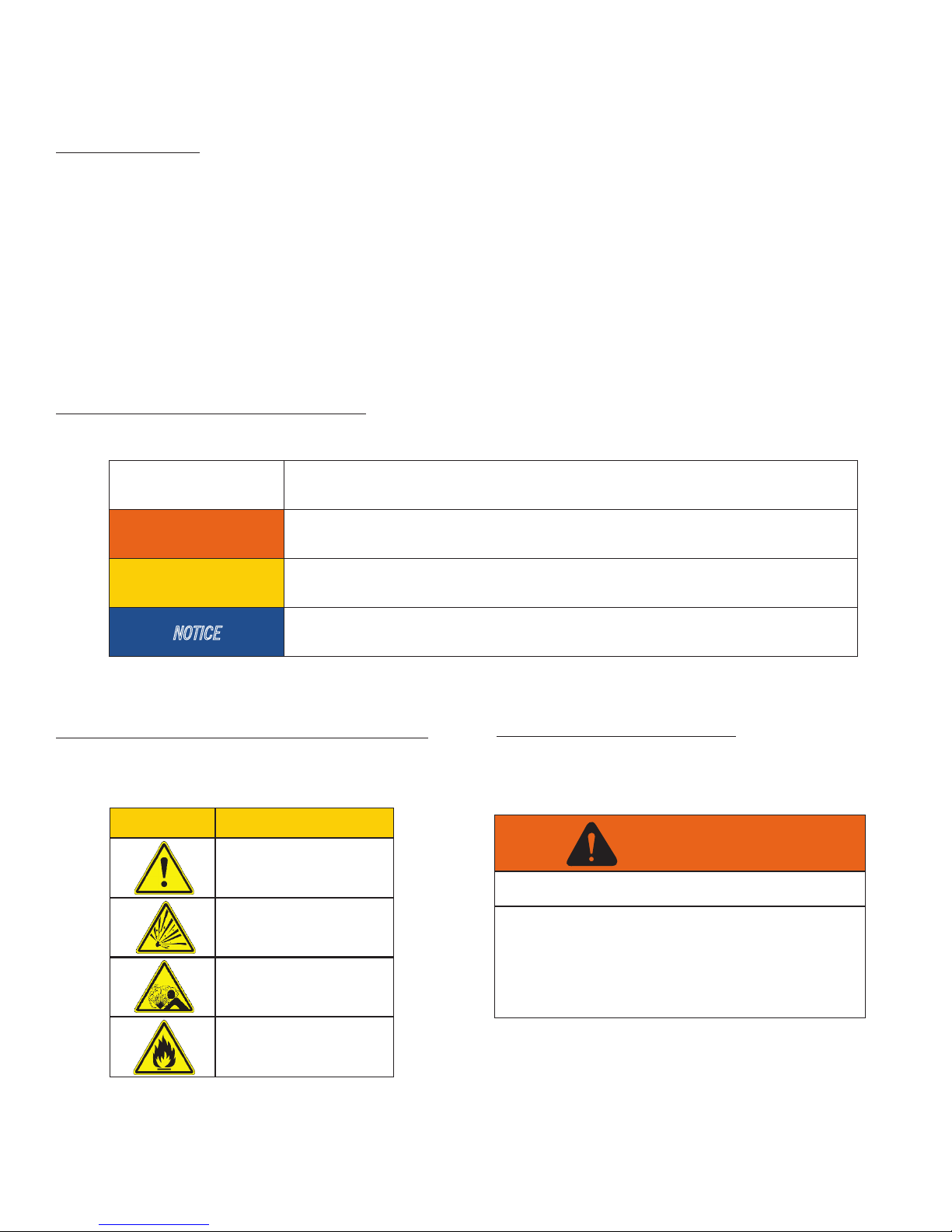

Signal Word Meaning
WARNING Indicates a hazardous situation which, if not avoided, could result in serious injury or death.
CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
Caution also alerts against unsafe practices.
NOTICE Indicates special instructions that are important but not related to physical injury hazards.
Explanationofthesafetypictographs
The following pictographs illustrate the type and source of
a hazard.
Pictograph Type of Danger
Safety Alert/General Hazard
ExplosionRisk
Hazardous Pressure
Flammable Fire Hazard
Identication of warnings
Warningsareintendedtohelpyourecognizerisksandavoid
negative consequences. This is how warnings are identied:
Signal Word
Pictographs
Description of danger.
Consequences if ignored.
aThearrowsignalsasafetyprecautiontobetakento
eliminate or reduce the danger.
These instructions do not provide for every possible contingency
that might be encountered in connection with installation, opera-
tion or maintenance of this equipment. Should further informa-
tion be desired or should particular issues arise which are not
covered sufciently in this manual, the matter should be referred
to the manufacturer.
Explanationofthesignalwords
Signal words, which depict the probability and severity of harm, are used in these instructions. They are dened as follows:
Notes and Safety Information

5
Safety Precautions
CAUTION
a FollowinstructionsforthePOOLFROG®SYSTEM,POOLFROG®BacPacs,POOLFROG®Minerals,andBAM®Algaecide.
a Avoid breathing in chemical fumes. Use protective equipment if necessary.
a Wash your hands and arms thoroughly after using this product.
WARNING
Fire, explosion and high pressure hazards
Tominimizetheriskofseriousinjury,deathorpropertydamage,followtheseinstructionsandsafetyprecautionsatall
timeswhileusingthePOOLFROG®System.
a Read,understandandfollowallinstructionsandsafetyprecautionsinthemanual,andonthissystemand
on any label for chemicals used with this system.
a UseonlyPOOLFROG®BacPacs,MineralReservoir,andFROGBAM®inthePOOLFROG®SYSTEM.
a Neverusebulkchemicals,fastdissolvingchlorinetablets,liquidbleach,orcalciumhypochloriteinthePOOLFROG®system.
a NevermixTrichlorChlorinetabletswithCalciumHypochlorite,orwithanyotherformofconcentratedchlorineorotherchemicals.
a Neveraddanyothertypesofchlorine,pHadjusters,shocktreatmentsoralgaecidesthroughtheskimmer.
These products should be added directly into the pool if required.
a TopreventthebuildupofgaspressureinthePOOLFROG®SYSTEM,besurethepoolreturnlinevalvesareopen–
exceptwhenopeningorservicingtheunit.
a Donotexceedmaximumoperatingpressureof50psi.
a Donotopenunderpressure.AlwaysturnoffpumpandbleedoffpressurebeforeopeningPOOLFROG®SYSTEM.
a Donotexceedmaximumwatertemperatureof104ºF.
a Do not install automatic or fast shut off valves downstream of feeder.
a NeverinstallPOOLFROG®before the heater.
a AnyadditionalsanitizingequipmentthatisinstalledwithFROG®mustbeinstalledaftertheFROG®(never before)
on the return line to the pool.
a Avoidsparks,smoking,oranyopenamenearPOOLFROG®SYSTEMorchemicals.

6

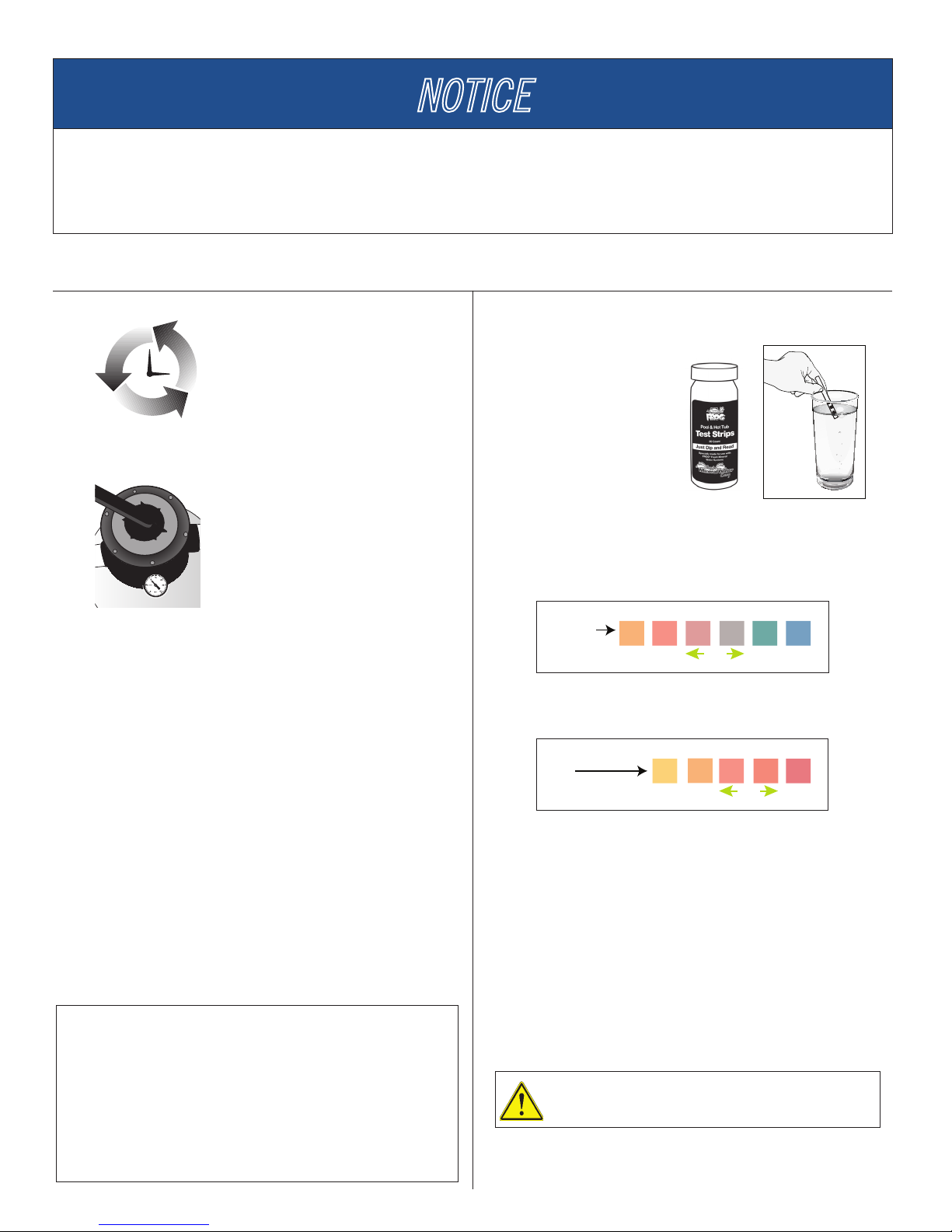

Step 1: Preparing the Pool
NOTICE
a Ensureproperplumbingconnectionspriortopressurizing.
a ReplacePOOLFROG®Systemifyouseesignsofcracks,damageordegradation.
a Failure to properly winterize your cycler could result in freeze damage.
Check for metals in the pool such as iron or copper.
Before attempting water balance these should
be removed. See your dealer for a metal out or
sequesterant and follow the label directions carefully.
Before beginning with any pool care program, you must
rst balance your pool water. Take a water sample to
your local pool professional (or use a complete test kit)
to test for the important Water Balance Guidelines.
IMPORTANT: Always follow printed instructions on the
balancing chemical packages. Add balancing chemicals
in small increments one at a time with circulation running.
For best results, wait 8-12 hours before testing again
and adding any additional balancing chemicals.
1. Make sure the pool has adequate
circulation. The total volume of pool
water must completely circulate
through the pump and lter at least
1 to 2 times per day. This usually
requires 8 to 12 hours of circulation.
Check with your dealer for the
proper circulation time for your pool.
2.
3.
5.
4.
Water Balance Guidelines
pH: 7.2 – 7.8
Total Alkalinity: 80 – 120 ppm
Calcium Hardness: 200 – 400
Total Dissolved Solids: <1500
Stabilizer: 20 – 80 ppm
Free Chlorine: 0.5 – 1.0 ppm
Check the pool’s lter gauge often
and periodically clean lter per the
manufacturer’s directions. A dirty
lter will slow the ow of water which
could hamper proper circulation.
Check the Water Hardness of your ll water before
adding to the pool. If calcium content is higher than
400 ppm, nd a soft water source to ll your pool
instead. Otherwise water balance will be very difcult.
NOTE: This step is very important to start-up. Shock
the pool with an EPA registered chlorine shock only to
rid the water of contaminants and establish a chlorine
residual. Follow manufacturer’s directions carefully.
b. Look at the Total Alkalinity reading rst. Adjustments
should be made to bring the Total Alkalinity in the range of
80 – 120 ppm prior to making any adjustments to pH even
if it throws pH off further.
c. After TA is in range, test for pH. It should be between
7.2 and 7.8. If higher or lower, add a pH adjuster.
d. Then test your Water Hardness again. If lower than 200
ppm, add Calcium Increaser. Always maintain 200-400 ppm.
e. Lastly test for stabilizer or conditioner levels. Add
conditioner if the level is below 20 ppm. This will prevent
chlorine burn off. If stabilizer level is above 80 ppm,
partially drain water and re-ll.
6.
a. Take a water sample
from the pool and dip a
FROG®Test Strip into it.
For best results in achieving water balance, follow
steps a through e in order.
Dip
u
6.2 6.8 7.2 7.8 8.4
LOW
BAJO
VERY LOW
MUY BAJO
HIGH
ALTO
LOW
BAJO
VERY LOW
MUY BAJO
HIGH
ALTO
VERY HIGH
MUY ALTO
040 80 120 180 240
Total Alkalinity
(ppm)
Alcalinidad Total
(mg/L)
Hold level for
15 Seconds
NOTE: Low pH readings may result when Total Alkalinity is below 80 ppm.
Important: Keep cap on tight between uses. Store at room temperature.
www.KingTechnology.com
Patent 6,030,842 Made in USA 553101443N
Read
v
w
IDEAL
USE BY DATE ON BOTTLE
USE ANTES FECHA
SmartChlor
Out Indicator
Active Chlorine
pH
If lighter color,
check Smart
Chlor catridge
If darker
color, OK
If lighter color,
turn cartridge
setting up
1 number
If darker color,
turn cartridge
setting down
1 number
Just Dip and Read
Test Strips
From
Specially made
for use with
FROG
Mineral Systems
50 100 250 450 800
Calcium
Hardness
Hot Tub
IDEAL
IDEAL
Dip
u
6.2 6.8 7.2 7.8 8.4
LOW
BAJO
VERY LOW
MUY BAJO
HIGH
ALTO
LOW
BAJO
VERY LOW
MUY BAJO
HIGH
ALTO
VERY HIGH
MUY ALTO
040 80 120 180 240
Total Alkalinity
(ppm)
Alcalinidad Total
(mg/L)
Hold level for
15 Seconds
NOTE: Low pH readings may result when Total Alkalinity is below 80 ppm.
Important: Keep cap on tight between uses. Store at room temperature.
www.KingTechnology.com
Patent 6,030,842 Made in USA 553101443N
Read
v
w
IDEAL
USE BY DATE ON BOTTLE
USE ANTES FECHA
SmartChlor
Out Indicator
Active Chlorine
pH
If lighter color,
check Smart
Chlor catridge
If darker
color, OK
If lighter color,
turn cartridge
setting up
1 number
If darker color,
turn cartridge
setting down
1 number
Just Dip and Read
Test Strips
From
Specially made
for use with
FROG
Mineral Systems
50 100 250 450 800
Calcium
Hardness
Hot Tub
IDEAL
IDEAL
7. Begin Routine Pool Care as soon as the pool is
prepared, page 9.
Do not add shock in or near the skimmer or into the POOL FROG®
Cycler as it could damage equipment, risk potential explosion or
discolor your pool surface.

7
®

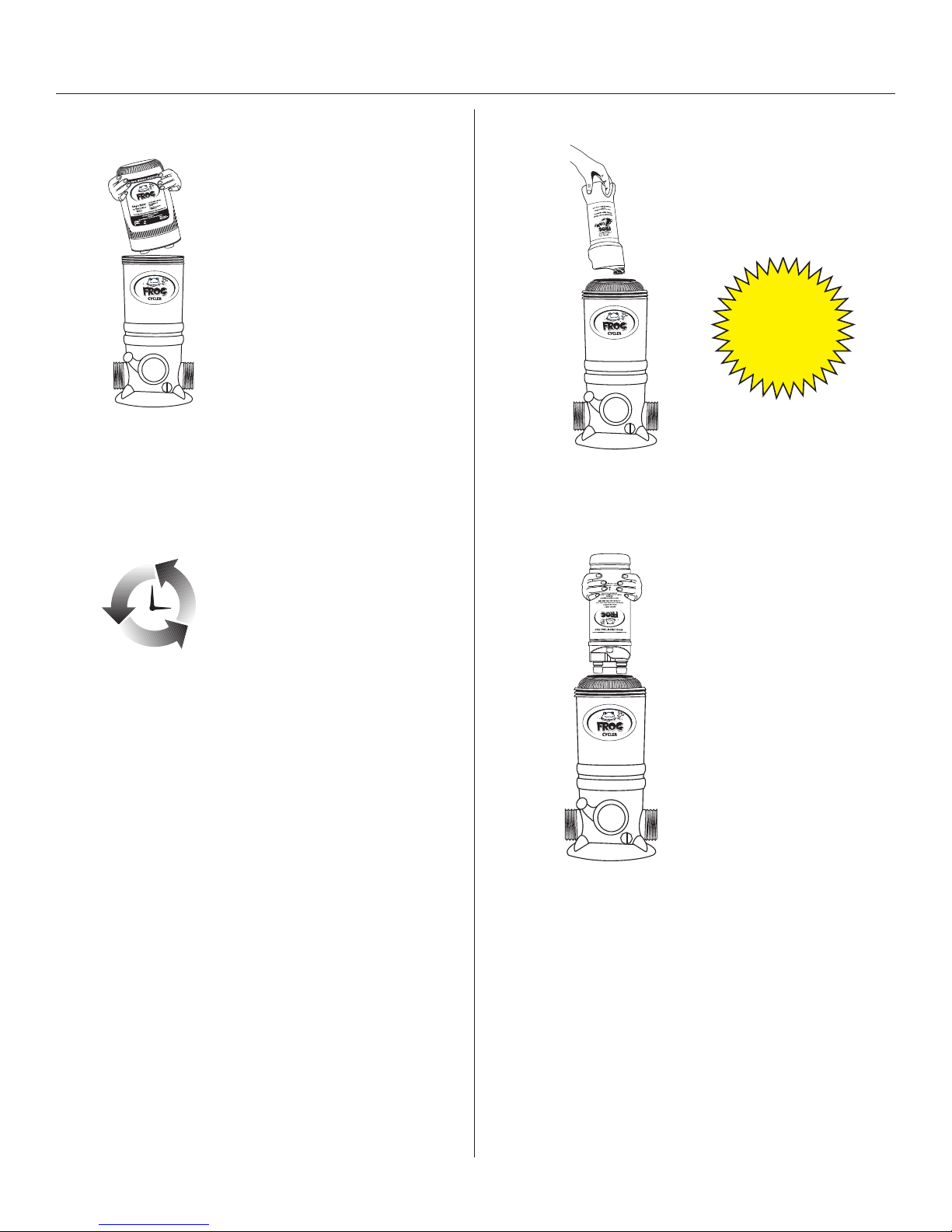

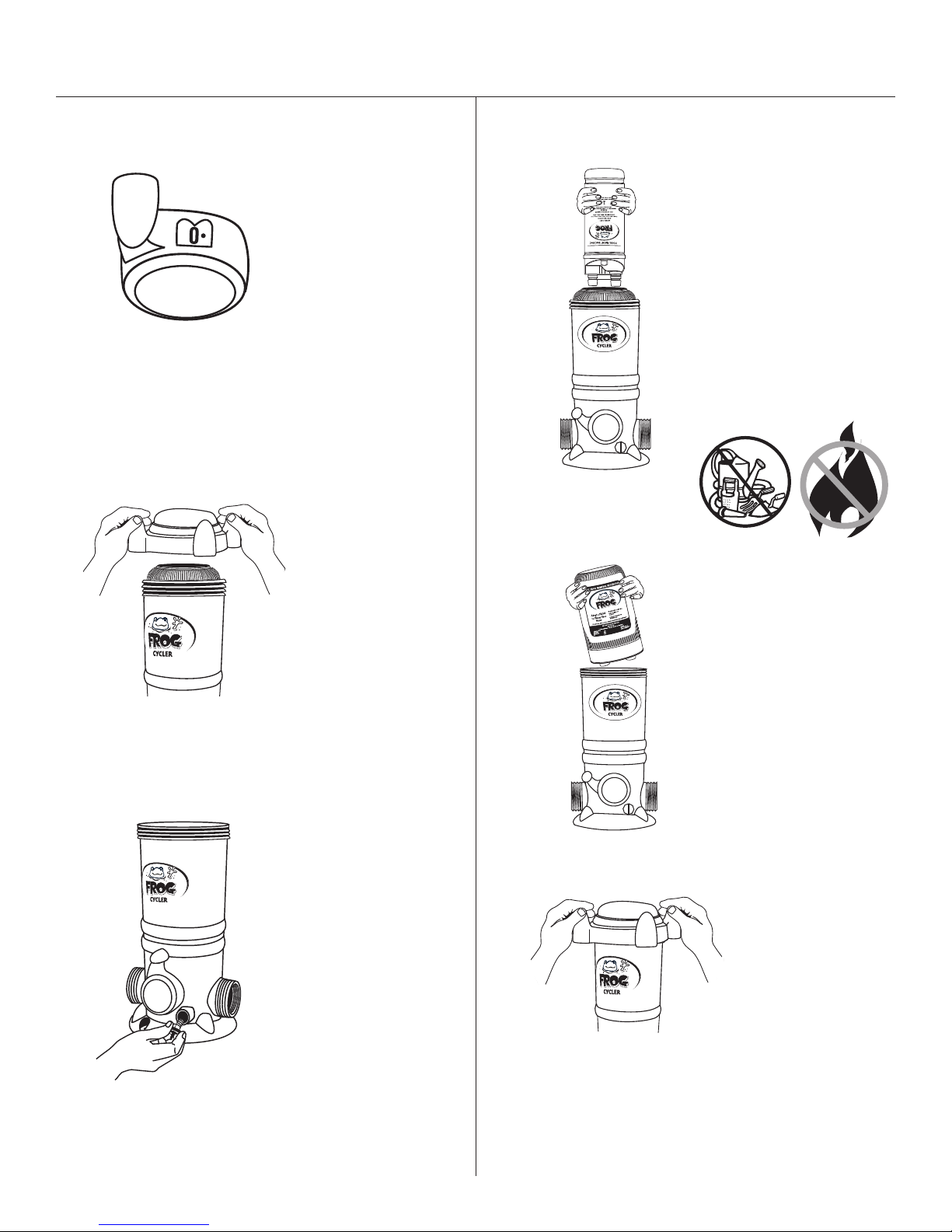

Install a POOL FROG®Mineral
Reservoir into the POOL
FROG®Cycler. (See page 10 for
directions.)
REPLACE THE POOL FROG®
MINERAL PAC EVERY 6
MONTHS OR AFTER ONE
POOL SEASON WHICHEVER IS
SHORTER. AFTER THAT TIME,
YOU WILL HEAR THE SPENT
MEDIA INSIDE, HOWEVER IT IS
NO LONGER EFFECTIVE AND
MUST BE REPLACED.
Replace cap and run POOL
FROG®Cycler, with POOL FROG®
Mineral Reservoir inserted, for
10 minutes on Setting 5.
Insert FROG BAM®into POOL
FROG®Mineral Reservoir in
POOL FROG®Cycler. (See page
11 for directions.)
When chlorine reading is down
to 1.0 ppm, which may take a
few days, insert POOL FROG®
Bac Pac. (See page 12 for
directions.)
Step 2: Putting the System to Work
1.
2. 4.
3.
®
Use FROG BAM®
for a 90-day
Algae Protection
Guarantee!

8
This system is designed to work effectively with a variety of pool equipment as long as the following basic procedures are followed.
Set control dial by matching up the parameters of your pool on the chart below. THIS IS A STARTING POINT ONLY and may need
to be adjusted to t your individual pool needs. see #2 below for adjusting directions. IMPORTANT: If using a multi-speed pump,
pump-run times of at least 6 hours per day at high speed are recommended for proper performance.
If running the pump at low speed only or on high speed less than 6 hours, please follow the 24 hour low-speed
directions below.
POOL SIZE
Gallons Diameter
8 HOUR PUMP RUN TIME 12 HOUR PUMP RUN TIME 24 HOUR PUMP RUN TIME
PUMP SIZE
1/2 hp 3/4 hp 1 hp 1 1/2 hp
PUMP SIZE
1/2 hp 3/4 hp 1 hp 1 1/2 hp
PUMP SIZE
1/2 hp 3/4 hp 1 hp 1 1/2 hp
7,000 (18’) 5.0 4.5 4.0 3.5 4.5 4.0 3.0 5.0* 3.5 3.0 2.5 4.0*
9,000 (21’) 5.5 5.0 4.5 4.0 5.0 4.5 4.0 5.5* 4.0 3.5 3.0 4.5*
12,000 (24’) 6.0 5.5 5.0 4.5 5.5 5.0 4.5 4.0 4.5 4.0 3.5 5.0*
15,000 NR 6.0 5.5 5.0 6.0 5.5 5.0 4.5 5.0 4.5 4.0 3.5
20,000 NR NR 6.0 5.5 NR 6.0 5.5 5.0 5.5 5.0 4.5 4.0
25,000 NR NR 6.5 6.0 NR 6.5 6.0 5.5 6.0 5.5 5.0 4.5
POOL SIZE
Gallons Diameter
12 HOUR PUMP RUN TIME
PUMP SIZE
1/2 hp 3/4 hp 1 hp 1 1/2 hp
7,000 (18’) 4.5 4.0 3.0 5.0*
9,000 (21’) 5.0 4.5 4.0 5.5*
12,000 (24’) 5.5 5.0 4.5 4.0
15,000 6.0 5.5 5.0 4.5
20,000 NR 6.0 5.5 5.0
25,000 NR 6.5 6.0 5.5
Step 3: Setting the Control Dial
1.
24 HOUR, LOW-SPEED PUMP-RUN TIME
In order to ensure proper performance when running the
pump on low speed for 24 hours per day or high speed less
than 6 hours per day, bleed the air while the pump is on by
unscrewing the knob on the back of the cycler near the cap
until water appears. Then screw the knob back on. Repeat this
process each time the cap is removed for any reason. Set the
control dial at 6 and follow the adjustment directions in Step 2
to determine the correct setting for your pool.
For the rst week test the pool water
daily for free chlorine with FROG®Test
Strips to ensure correct dial setting.
Continue to test weekly throughout the
season.
2.
After each testing, adjust the dial
up by 1/2 increment if the free
chlorine reading has dropped
below 0.5 ppm or adjust down by
1/2 increment if the reading has
risen above 1.0 ppm. Continue
this process each day until the free
chlorine reading stabilizes to at
least 0.5 ppm.
Remember to adjust dial by
1/2 increments only in order to
prevent over chlorination which
may bleach pool surfaces.
If using another means of
chlorine support set dial
to Setting 5. Maintain a
minimum chlorine reading
of 0.5 ppm with a chlorine
delivery device or hand
feeding.
* – Bypass installation recommended. NR – This pump size is not recommended for this size pool.
Find your starting dial setting by matching up the parameters of your
pool on the above chart. An above ground pool with approximately
12,000 gallons with a 1 horse power pump running 12 hours a day
would require a starting setting of 4.5.
RECOMMENDED FLOW RATE: 20-60 gpm

9

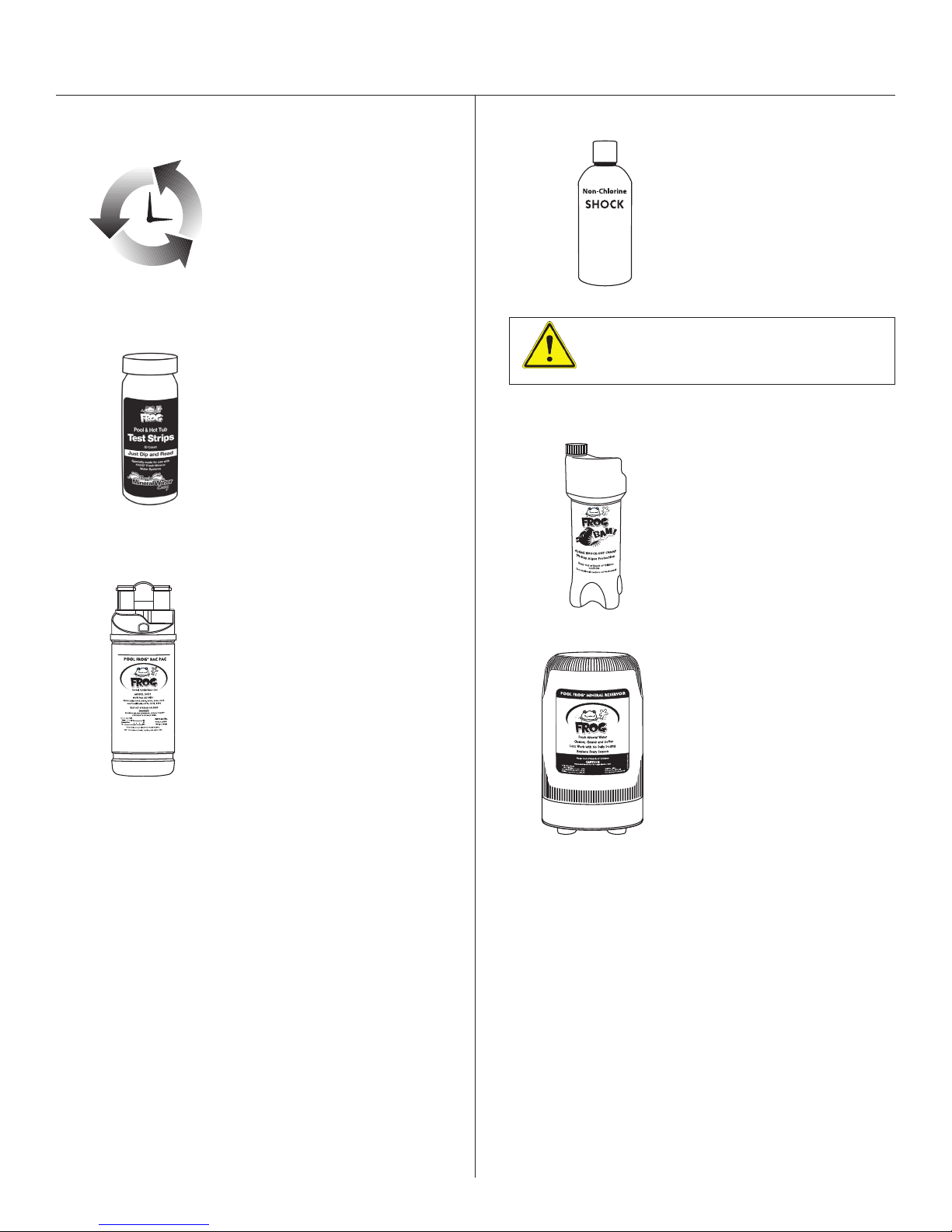

Step 4: Routine Pool Care
Run ltration system enough hours
to circulate all water 1 to 2 times per
day. More than that could result in
over chlorination.
2.
3.
1. 4.
6.
5.
Do not add shock in or near the skimmer or into the
POOL FROG®Cycler as it could damage equipment, risk
potential explosion or discolor your pool surface.
Remember to replace POOL FROG®
Mineral Reservoir and all other
FROG®replacements as directed.
Shock the pool every other week
or as needed. We recommend a
non-chlorine shock as reducing
chlorine use is the goal of FROG®
products. However, using a chlorine
shock is OK too.
Before closing the pool for winter,
use FROG BAM®following the
directions on page 11.
Maintain 0.5 to 1.0 ppm free
chlorine level at all times.
Note: These lower chlorine levels
are only acceptable when using
FROG®minerals.
Regularly test water with FROG®
Test Strips to maintain pH and Total
Alkalinity.
NOTE: Water balance is affected
by bather load, chemical usage,
evaporation and the makeup of
source water, so maintaining water
balance regularly is important.
®
B R AN D

10

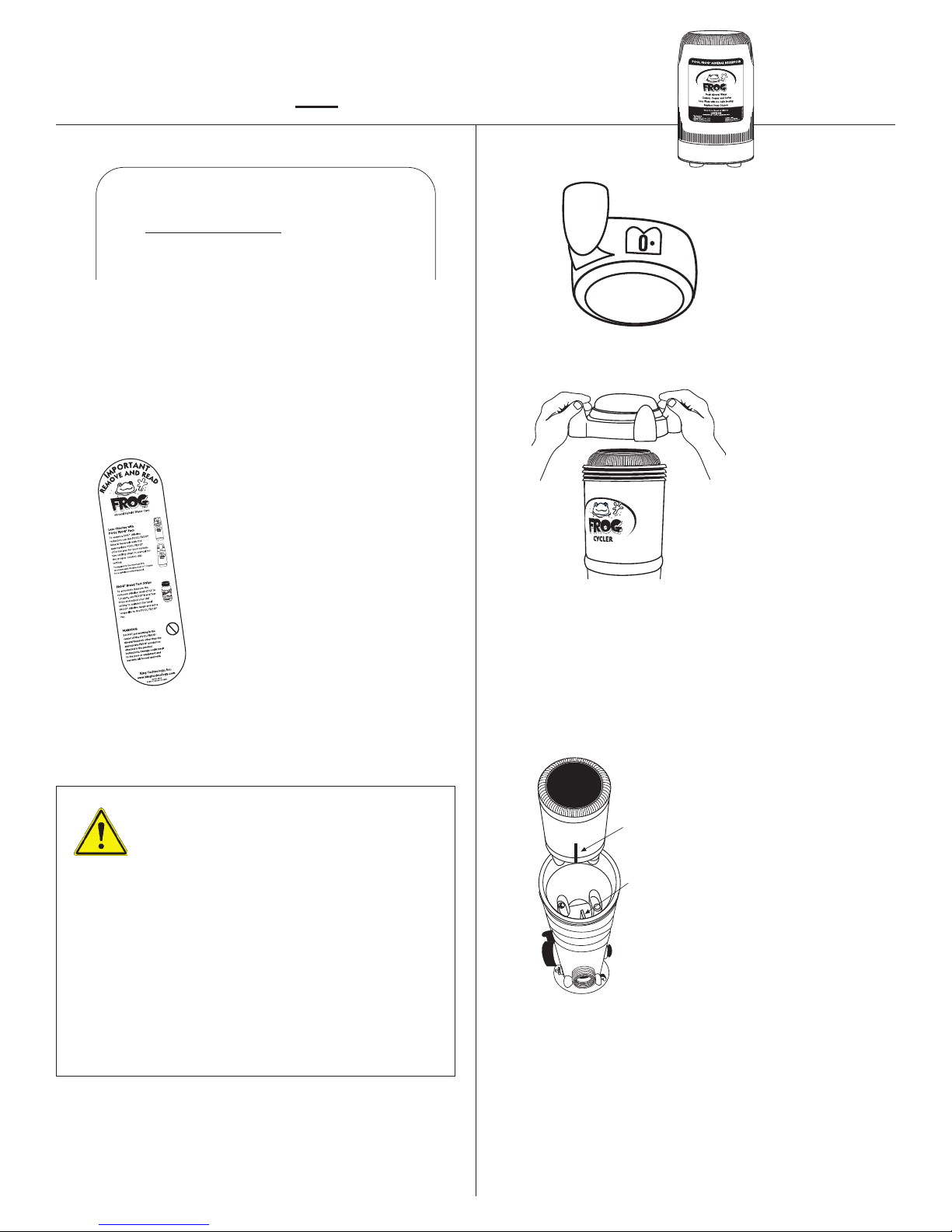

Replacing a POOL FROG®Mineral Reservoir
(POOL FROG®Mineral Reservoirs MUST be Replaced Every Season)
1.
Check the top of the box and back label of product to make
sure you have the correct POOL FROG®Mineral Reservoir to t
your POOL FROG®Cycler.
THE POOL FROG®MINERAL RESERVOIR MUST BE
REPLACED EVERY 6 MONTHS OR AFTER ONE POOL SEASON
WHICHEVER IS SHORTER
IMPORTANT: Remove and read the
information card.
Please note: Complete instructions
for inserting a POOL FROG®Mineral
Reservoir, FROG BAM®and POOL FROG®
Bac Pac are included inside the POOL
FROG®Mineral Reservoir
USE ONLY the factory recommended
replacement POOL FROG®Mineral Reservoir,
FROG BAM®and POOL FROG®Bac Pac.
DO NOT USE bulk chemical tablets in the
POOL FROG®Cycler or put anything inside the
POOL FROG®Cycler, other than the appropriate
POOL FROG®product as directed in the
product instructions. Use of any other product
could result in damage to pool equipment
or surface, unsafe pool conditions, re or
explosion. Warranty will be void if the correct
POOL FROG®Mineral Reservoir, FROG BAM®
and POOL FROG®Bac Pac are not used.
2.
3.
4. Open POOL FROG®
Cycler cap. Stand
back to avoid
inhaling chlorine
fumes from the
POOL FROG®Bac
Pac.
Turn off pump and
turn dial to Setting 0.
This reduces the ow
of water into the unit
when the cap is open.
Mark your calendar for the six month replacement of the
POOL FROG®Mineral Reservoir. Once wetted, the time-
released mineral coating of this product is effective up
to 6 consecutive months or one pool season whichever
is shorter. After that time, you will hear the spent media
inside, however it is no longer effective and must be
replaced.
7.
POOL FROG®MINERAL RESERVOIR
The Complete Low-Chlorine Alternative+
www.FrogProducts.com • 800-222-0169
Series
6100 (01-12-6112)
FOR POOLS UP TO 25,000 GALLONS
Product Description: The POOL FROG Mineral Reservoir is the heart of an advanced pool care system that destroys bacteria.
The patented mineral formula in the POOL FROG Mineral Reservoir also neutralizes acids, which helps keep the pH in an
acceptable range with less monitoring. The controlled release of minerals provides an optimum level of protection in your
pool. The FROG Mineral System+reduces chlorine use up to 50%*. Simply use with at least 0.5 ppm of an EPA registered
source of chlorine such as the POOL FROG Bac Pac (EPA Reg. No. 53735-2) or a chlorine delivery device. Using the POOL
FROG Mineral System
+
improves swimming pool pleasure by reducing the problems associated with chlorine including faded
bathing suits, premature damage to pool equipment or surfaces and smelly odors. With the POOL FROG Mineral Reservoir,
pool care is easy and effective. Once wetted, the time-released mineral coating of this product is effective up to 6 consecutive
months or one pool season whichever is shorter. After that time, even if upon shaking you hear the spent media inside, it is
no longer effective and must be replaced. Mark the calendar with stickers provided to replace this product.
Serial No.
6. Find slot on side of
POOL FROG®Mineral
Reservoir and line
up with n inside the
POOL FROG®Cycler.
Lower POOL FROG®
Mineral Reservoir into
POOL FROG®Cycler
until secure.
Replace POOL FROG®
Bac Pac unless
winterizing (see page
16).
SLOT IN POOL
FROG®MINERAL
RESERVOIR
FIN INSIDE OF
POOL FROG®
CYCLER
5.
Remove the FROG®Bac Pac and if not empty, set to the side
or store for winter. Then remove the FROG® Mineral Reservoir
and discard if has been used for one pool season or 6 months
whichever is shorter.

11

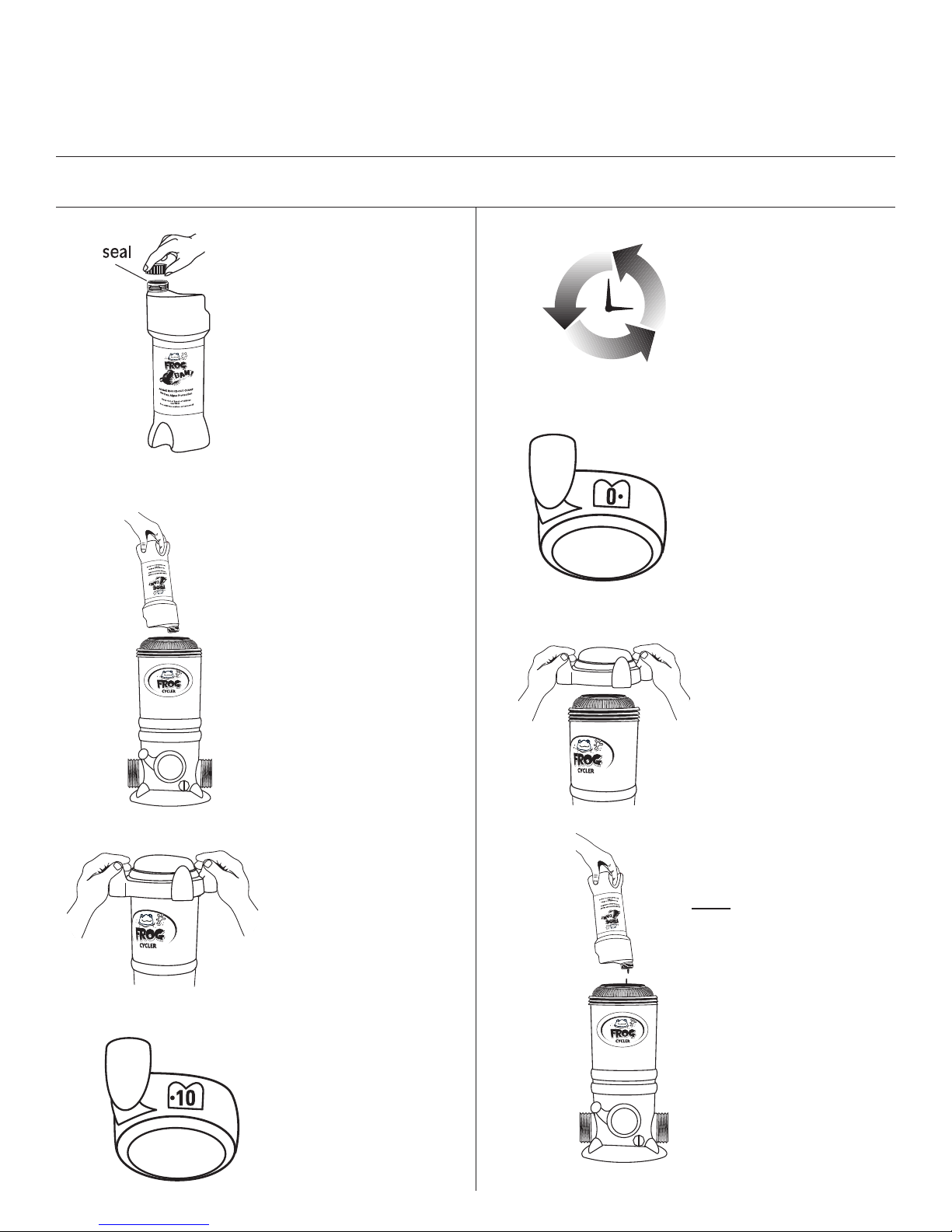

Using FROG BAM®for an Algae-Protection Guarantee
1.
If you are not using FROG BAM®, refer to page 12 for Using the
POOL FROG®Bac Pac. See FROG BAM®product labeling for
complete directions for use (EPA Reg. No. 53735-9).
For a preventive dose add:
•One FROG BAM®for pools up to 15,000 gallons.
•Two FROG BAM®for pools between 15,000 and 30,000 gallons.
Remove cap from FROG BAM®
without removing seal.
Insert upside down into center
of POOL FROG®Mineral
Reservoir pushing down rmly
on FROG BAM®bottle allowing
key in POOL FROG® Cycler to
puncture seal.
Replace cap by hand only.
DO NOT OVER TIGHTEN.
Turn control dial on POOL
FROG®Cycler to Setting 10.
2.
3.
4.
5.
Turn pump on for 90 minutes
allowing FROG BAM®to circulate
through pool.
6.
To remove expended FROG
BAM® , bottle turn pump off. Turn
dial to Setting 0.
7.
Remove POOL FROG®Cycler
cap.
8.
Lift FROG BAM®up and allow any
water in the container to drain
through the POOL FROG®Cycler
before discarding in trash.
NOTE: If water shows more
than a hint of blue inside POOL
FROG®Cycler, replace the
POOL FROG®Cycler cap, turn
dial to Setting 10 and run the
pump for one minute.
8a. If pool size requires
additional FROG BAM® , repeat
steps 1-8.
8b. When water is clear in
POOL FROG®Cycler, proceed to
Using a POOL FROG®Bac Pac
on page 12.
*NOTE: If using directly after a shock treatment, test the water rst to ensure the pH is in the proper range of 7.2-7.8 and the chlorine
level is no more than 4.0 ppm. Avoid using other chemicals until this product has been circulated (ltered) for at least 24 hours.

12
PAC
TOWERS
PAC
TOWERS
®
BRAND
Mark your calendar for the
approximate replacement times for
the POOL FROG®Bac Pac.
®
USE ONLY the factory recommended replacement POOL FROG®Bac Pac. (See label.)
DO NOT USE any other pac or bulk chemical tablets in the POOL FROG®Cycler. Use of any
other product could result in over chlorination, bleached liners, unsafe pool conditions, re
or explosion. Warranty will be void if the correct pac is not used.

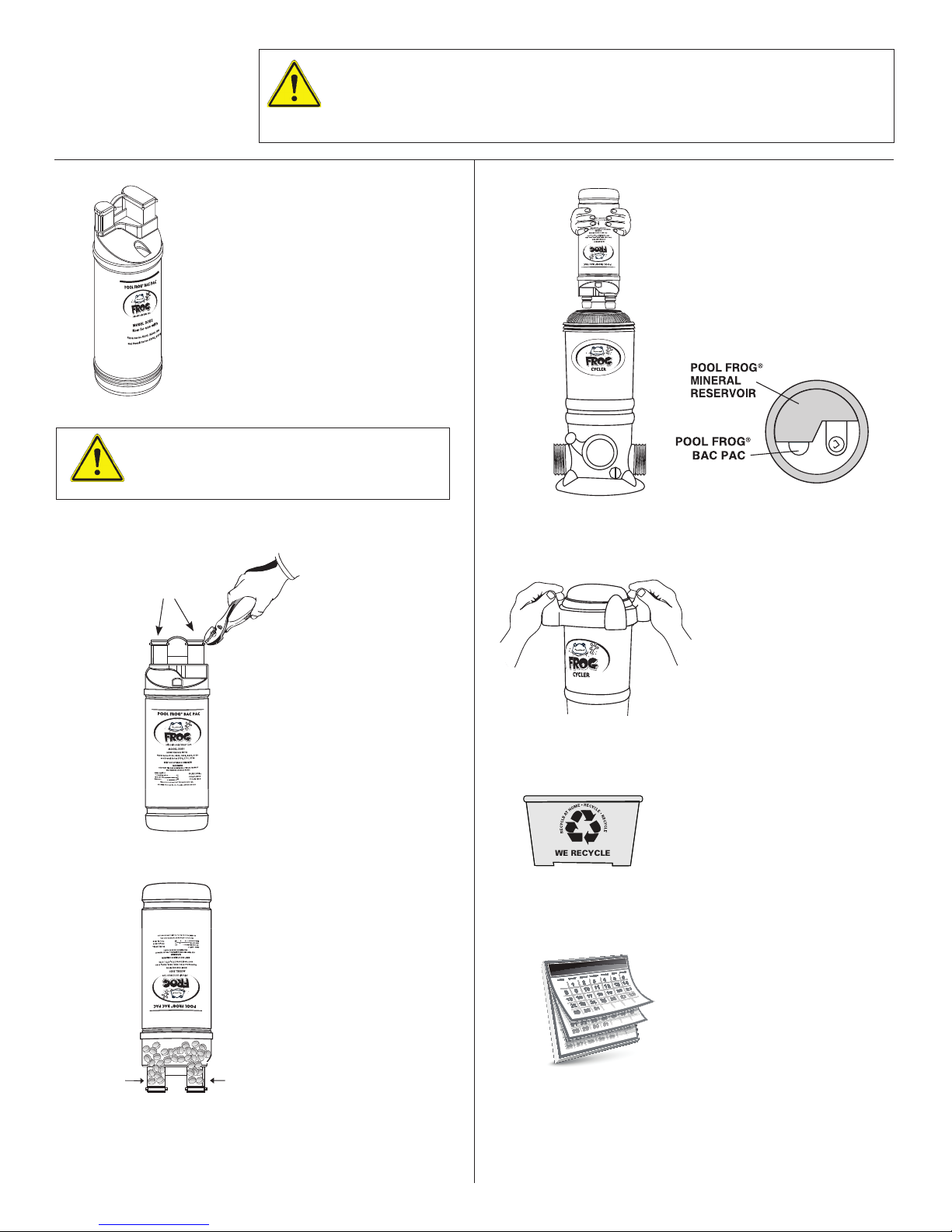

Using the POOL
FROG®Bac Pac
POOL FROG®Bac Pac recommended
to assure up to 50% reduction in
chlorine use*. POOL FROG®Bac Pac
sold separately.
(EPA Reg. No. 53735-2)
*Compared to the minimum EPA
recommended chlorine level of 1.0
ppm for a stabilized swimming pool.
Avoid sparks, open ame or smoking when
handling the POOL FROG®Bac Pac.
1.
Remove colored tabs by
grabbing on to the lip of one
cap with a pliers and pulling up
until cap releases. Repeat the
process for the other cap.
2. Invert POOL FROG®Bac
Pac and shake slightly until
chlorine tablets fall into tower
areas.
3. Line up the small leg of the POOL
FROG®Bac Pac with the small
opening in the POOL FROG®
Mineral Reservoir and the large leg
with the large opening. Lower POOL
FROG®Bac Pac into POOL FROG®
Mineral Reservoir until secure.
4.
5.
6.
Replace cap by hand only.
DO NOT OVER TIGHTEN.
The chlorine pacs are made
of HDPE plastic. Non-rellable
container. Do not reuse or rell
this container. Offer for recycling if
available. Rinse thoroughly before
recycling or discarding in trash.
®
BRAND
®
BRAND
Top View
WE RECYCLE
Colored Caps

13
1.
3.
4.
5.
2.
Troubleshooting
1. Make sure your ltration
system is working properly (i.e.
clean lter, skimmer and pump
basket).
2. Make sure circulation time
is adequate – increase pump
time if not.
3. Make sure the pool is
properly balanced. (See page 6.)
4. Shock the water to eliminate
build up of any organic matter.
5. Make sure pool has a
free chlorine reading of
0.5 to 1.0 ppm.
6. Check with your dealer
for more information.
1. Algae may be trying to form
– shock the pool, increase
circulation time if needed and
clean the lter.
2. Metals in the ll water
may have been oxidized.
Have the pool tested. See
pool dealer if a metal control
product is required.
3. Check with your dealer for
more information.
1. Use FROG BAM®or an
effective algaecide per the
directions on the bottle and
brush the sides of the pool
often.
2. Clean the lter and shock
the pool with chlorine daily
until water clarity returns.
3. If you are in an area of the
country that struggles with
algae growth, see your dealer
regarding a 90-day Algae
Protection Guarantee using
FROG BAM®
. See product hang
tag for guarantee details.
4. Check with your dealer for
more information.
1. If you are unable to
maintain 0.5 to 1.0 ppm, rst
make sure there are chlorine
tablets in the tower areas of
the POOL FROG®Bac Pac
and it is installed properly. If a
correction was made, test the
water in 24 hours.
2. If still low, turn the dial up
one setting and test the water
again in 24 hours. Continue
raising the setting by one
increment each day until the
proper reading is achieved.
3. Shock the pool if the reading
has been lower than 0.5 ppm
for more than one day.
4. Make sure pump run time is
at least 6 hours on high speed
(40 gpm or higher) or if not,
bleed the air from the back
knob each time cap is open.
5. Contact your dealer to have
your back pressure tested. If
under 4 psi consider a smaller
eye-ball tting in the return jet.
6. Check for a suction side
leak by looking for air bubbles
in your pump basket or at the
return jet. Contact dealer for
help in correcting this situation.
7. Contact King Technology’s
Customer Service Department
at 800-222-0169.
1. If the chlorine reading is
over 3.0 ppm, remove the
POOL FROG®Bac Pac from
the POOL FROG®Mineral
Reservoir and test the water
daily until the reading is down
to 1.0 ppm.
2. Reinsert the POOL FROG®
Bac Pac, lower the dial one
setting and test the water
again in 24 hours. If the
reading has risen, lower
the dial one setting again.
Continue this process until
proper reading is achieved.
3. If over-chlorinating at
the lowest possible setting,
consider decreasing the
circulation time. Depending on
your pump size, you may be
circulating the water more than
is necessary.
4. Contact your dealer to have
your back pressure tested. If
over 8 psi consider a larger
eye-ball tting in the return jet.
5. Check to see if the pressure
relief valve is loose or missing
and replace. It is a clear plastic
piece approximately 1” long
installed inside near the base.
If loose or missing, it can
provide another avenue for
water to reach the chlorine.
6. Contact King Technology’s
Customer Service Department
at 800-222-0169.
What do I do
if I am over
chlorinating with
the POOL FROG®
Bac Pac?
What do I do
if I am under
chlorinating with
the POOL FROG®
Bac Pac?
What do I do
if algae forms in or
on my pool?
What do I do
if the water turns
color?
What do I do
if the water looks
cloudy?
Problem Remedy
For more in-depth troubleshooting, go to www.frogproducts.com

14
Parts List Model 6100/6500
Included with POOL FROG®Cycler 6100 or 6500
REF. # DESCRIPTION QTY. INCLUDED
1 & 2 Cap w/O-Ring 1
3 Body 1
4 Pressure Relief Valve 1
5, 6, 7, 8 Control Dial with O-Rings,
Locking Pin and Number Plate 1
9 & 10 Knob with O-Ring 2
11 Mounting Base 1
12 Silicone Lubricant 1
13 Nipple Kit 1
Replacement parts for POOL FROG®Cycler 6100 or 6500
REF. # PART NO. DESCRIPTION
1 & 2 01-22-1417 Cap w/O-Ring
2 01-22-1920 Cap O-Ring
4 01-22-9486 Pressure Relief Valve
5, 6, 7. 8 01-22-1458 Control Dial with O-Rings,
Locking Pin and Number Plate
6 01-22-1456 Control Dial O-Ring Set
9 & 10 01-22-9628 Knob with O-Ring
11 01-22-1480 Mounting Base
12 01-22-9971 Silicone Lubricant 3/4 oz.
13 01-22-1710 Nipple Kit
14 01-22-4000 Pressure Gauge
15 01-22-1470 25k Tune-Up Kit
S
IL
I
C
O
N
E
L
U
B
R
I
C
A
N
T
14
15
13
12

15

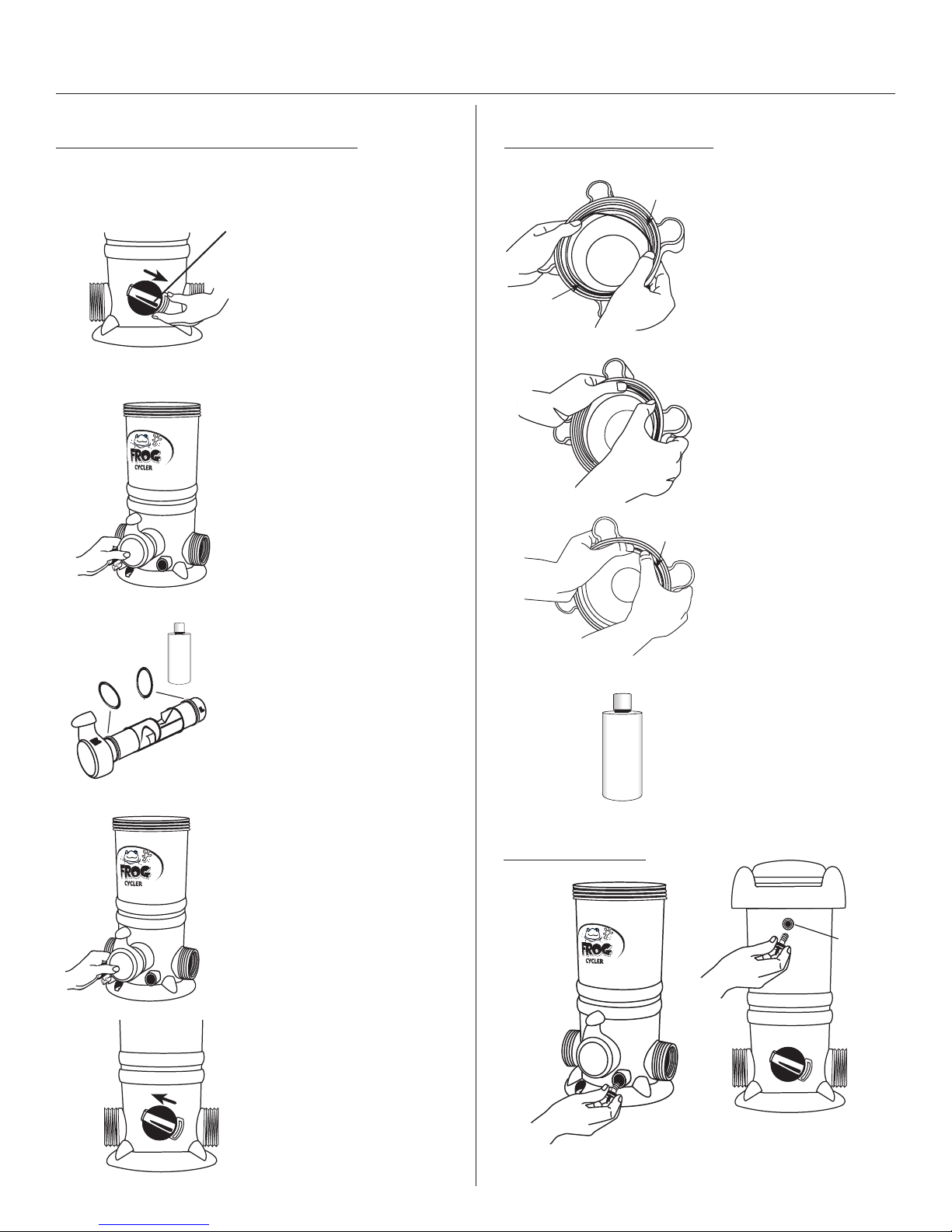

Replacing Knobs
Back of
POOL
FROG
®
Cycler
Front of
POOL
FROG
®
Cycler
1.
2.
3.
4.
5.
Center of locking pin
In the back of the POOL FROG®
Cycler depress center of locking
pin with a nger and pull pin out
of dial.
Turn control dial back and forth
as you pull it out of the housing.
Replace both o-rings. Apply
silicone lubricant that came
with your POOL FROG®Cycler on
o-rings.
Carefully insert control dial
back into housing.
Replace locking pin by pushing it
through the slots on the dial until
it locks into place.
Lubricate o-ring every couple
of months with silicone
lubricant that came with your
POOL FROG®Cycler.
DO NOT USE petroleum
based lubricants.
To replace, simply unscrew old knob and
replace with the new one.
POOL FROG®Cycler Maintenance
S
IL
I
C
O
N
E
L
U
B
R
I
C
A
N
T
S
IL
I
C
O
N
E
L
U
B
R
I
C
A
N
T
Place o-ring in bottom half
of groove.
Place your thumbs on each
side of the cap over the o-
ring in the groove.
Roll your thumbs back and
forth over the o-ring while
pushing upward until the
o-ring falls into the top of
the groove.
4.
1.
Bottom half
of groove.
Top half of
groove.
O-ring in top
of groove
3.
2.
Replacing the Control Dial O-Rings Replacing the Cap O-Ring
Product # 01-22-9971

16
Winterizing
1.
3.
4.
5.
2.
6.
Turn pump off and turn dial
to Setting 0.
Remove cap.
Unscrew knob from the front
of POOL FROG®Cycler. Allow
all water to drain.
If POOL FROG®Bac Pac still
contains chlorine, wrap in
plastic bag and store in shed
or cool well-ventilated location
away from children, pets, cars,
motorcycles or anything metal
that can rust, pit, etc. Make sure
POOL FROG®Bac Pac is away
from open ame.
If empty, rinse and recycle.
Remove the POOL FROG®
Mineral Reservoir and discard in
trash. You will hear spent media
inside, however it is no longer
effective.
Replace the cap and knob
loosely.
®
®

17
HOSE ADAPTER
TOOLS NEEDED
Screwdriver
Pipe Wrench
INCLUDED WITH POOL
FROG®CYCLER
Pipe Thread Tape
or Sealant
One 6” X 1½” TBE PVC
Nipple
MATERIALS NEEDED
One Hose Adapter
1½” X 1½” X 1¼”
One Section of
1½” or 1¼” Flex Hose
One
Hose Clamp
RECOMMENDED
4-8 psi Back Pressure
To avoid over or under chlorination,
replace eye ball ttings in the return
jets to a smaller or larger size to adjust
back pressure. For best results use
our pressure gauge, order part number
01-22-4000.

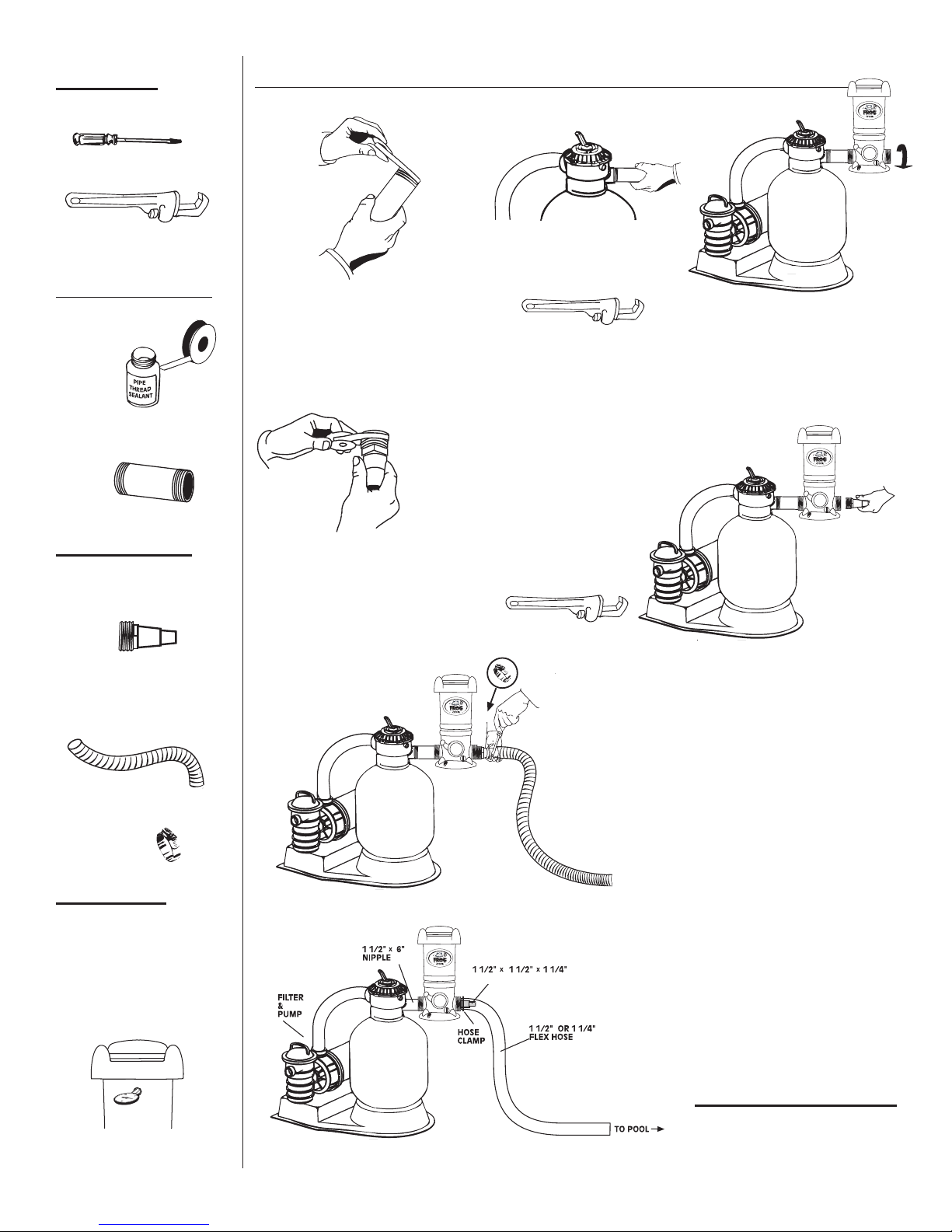

Filter Flex-Hose Installation
Apply pipe thread tape or sealant
to each threaded end of nipple.
Screw one end of nipple
into the lter return.
1. 2.
Hand tighten. Finish tightening
by turning 1 to 2 revolutions
with wrench. DO NOT OVER
TIGHTEN.
Screw either side of POOL
FROG®Cycler on to open
nipple end until upright
and secure.
Apply pipe thread tape or
sealant to threaded end of
hose adapter.
3.
4.
Screw adapter into the other
side of POOL FROG®Cycler.
Hand tighten. Finish
tightening by turning
1 to 2 revolutions
with wrench.
DO NOT OVER TIGHTEN.
5.
6.
Attach return section of hose to
the adapter with clamp. Tighten
clamp with screwdriver.
7.

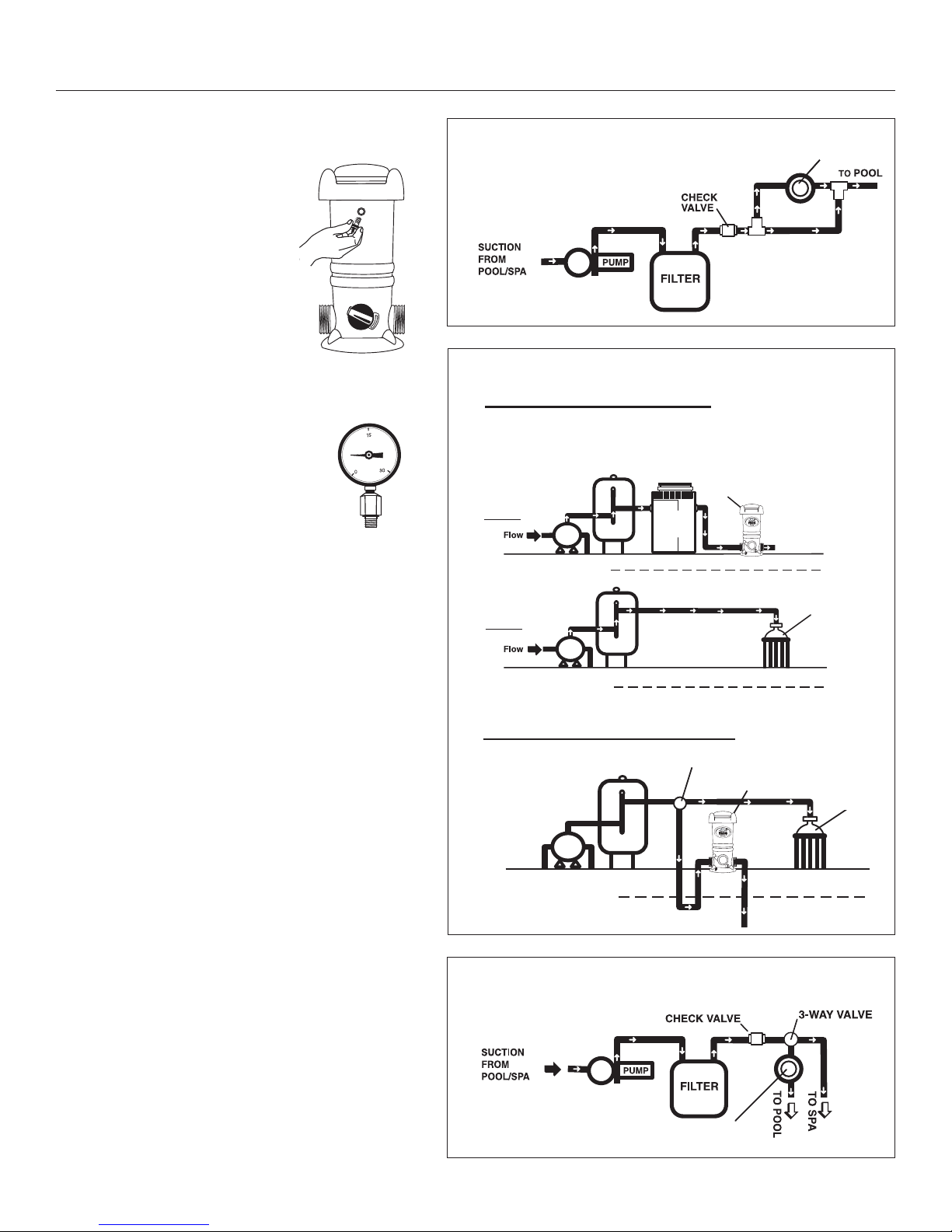

When using a POOL FROG®
Bac Pac, isolating the POOL
FROG®Cycler by installing a
corrosion resistant check valve
is recommended, especially if a
heater is installed.

18
TOOLS NEEDED
Screwdriver
Pipe Wrench
Materials Needed
Pipe Thread
Tape
or Sealant
Two Hose Adapters
1½” X 1½” X 1¼”
Two Sections of 1½”
or 1¼” Flex Hose
Two
Hose
Clamps
Recommended
4-8 psi Back Pressure
To avoid over or under chlorination,
replace eye ball ttings in the return
jets to a smaller or larger size to adjust
back pressure. For best results use
our pressure gauge, order part number
01-22-4000.
Apply pipe thread tape or sealant
to the threaded end of both hose
adapters.
1.
The POOL FROG®Cycler should always be installed
between the lter and pool (or between heater and
pool if applicable).
Base Flex-Hose Installation
Screw adapters into each end of POOL
FROG®Cycler. Hand tighten. Finish
tightening by turning 1 to 2 revolutions
with wrench. DO NOT OVER TIGHTEN.
2.
Attach the lter section of ex hose to one
hose adapter and the return section of ex
hose to the other hose adapter with clamps
and tighten with screwdriver. Bi-ow valve
design allows water ow in either direction.
3.
When using a POOL FROG®Bac Pac,
isolating the POOL FROG®Cycler by
installing a corrosion resistant check
valve is recommended, especially if a
heater is installed.
4.
For better stability, POOL FROG®Cycler may be
mounted on a treated wood base using Phillips pan
head screws. One in front and two in back.
5.
TO POOL
PUMP
FILTER
• Never install POOL FROG®
before the heater.
• Any additional sanitizing
equipment that is installed with
FROG®must be installed after
FROG®(never before) on the
return line to the pool.
HOSE
CLAMP
HOSE
ADAPTER
HOSE CLAMP
HOSE
ADAPTER
TO POOL
1 1/2" OR 1 1/4"
FLEX HOSE
1 1/2" X1 1/2" X1 1/4"
HOSE ADAPTER
HOSE
CLAMP
FILTER &
PUMP

19
1½” Male Adapter
(slip x MPT)
or
2” Female
Adapter
(slip x FPT)

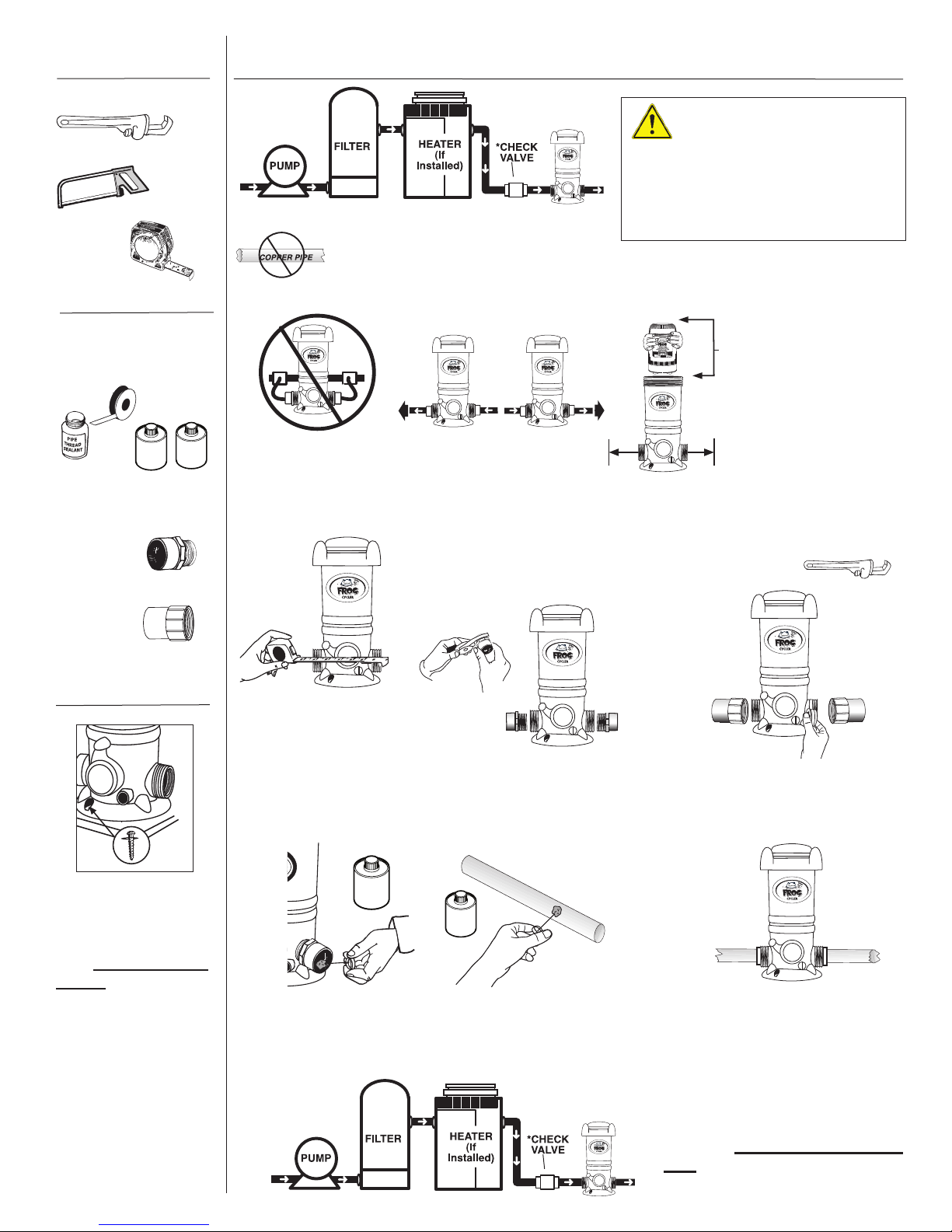

Hard-Plumbed Installation
Do NOT install POOL
FROG®off-line.
Following Primer directions, brush Primer on the inside of the
adapters and to ends of pipe. Repeat this process with PVC
cement following directions on that product.
Measure the distance
between the outside
adapters and cut out a
section of pipe 3” less
than that dimension.
Allow a minimum
of 12” above and
on each side of
POOL FROG®Cycler
to ensure room for
easy replacement of
POOL FROG®Mineral
Reservoir and Pool
FROG®Bac Pac.
Insert PVC pipe into adapters with
a twisting action. Hold in place 5 to
10 seconds to bond.
TOOLS NEEDED
Hacksaw
MATERIALS NEEDED
Tape
Measure
Secure Cyclers
When using a POOL FROG®Bac Pac,
isolating the POOL FROG®Cycler by
installing a corrosion resistant check
valve is recommended, especially if a
heater is installed.
1.
2a.
2.
2b.
3.
Pipe Wrench
Bi-ow valve design allows
installation in either ow
direction.
Pipe Thread Tape
or Sealant and Primer
and PVC Cement
If using male adapters, apply
pipe thread tape or sealant to the
threaded end of each adapter.
Screw adapters into each end of POOL FROG ® following directions
for a male adapter or a female adapter. Hand tighten. Finish
tightening by turning 1 to 2 revolutions with wrench.
DO NOT OVER TIGHTEN.
4.
5.
Install after all equipment and as far as possible from heater.
Do NOT install in copper pipe if using
FROG®Bac Pac as chemical corrosion
occurs.
P
r
i
m
e
r
• Never install POOL FROG®
before the heater.
• Any additional sanitizing
equipment that is installed
with FROG®must be installed
after FROG®(never before) on
the return line the pool.
For better stability,
POOL FROG®Cycler
may be mounted on
a treated wood base
using Phillips pan head
screws. One in front
and two in back.
P
r
i
m
e
r
P
V
C
C
e
m
e
n
t
P
V
C
C
e
m
e
n
t
12"
12" 12"
If using female adapters, apply
pipe thread tape or sealant to the
threaded end of each feeder port.
OR

20
✙
✙
✙
✙
✙
For Proper Performance
1) If using a multi-speed pump, run
pump for at least 6 hours per day at
high speed (at least 40 gpm).
If the pump will run on low speed 24
hours per day or less than 6 hours per
day on high speed, you must bleed the
air while the pump is on by unscrewing
the back knob until water appears.
Then screw the knob back in. Repeat
this process each time the cap is
removed for any reason.
2) Install system with 4-8 psi back pressure.
Lower back pressures could result in under
chlorination. Change the eye ball ttings in
the return jets to a smaller size to increase
back pressure. Contact King Technology at
800-222-0169 for a pressure gauge to
determine back pressure at pool start-up.
3) Special installation:
•If water ow is higher than 80 gpm, see
diagram A.
•If an in-oor cleaner is included with pool,
see diagram B, with two options. Preferred
installation is Option 1 with two separate lines.
•If set-up is a pool and spa combination with
common equipment, see diagram C.
•Any additional sanitizing equipment that is
installed with POOL FROG®must be installed
after POOL FROG®(never before) on the return
line to the pool.
NOTE: Over chlorination or damage to the POOL
FROG®or other equipment could result if these
special installations are not used in these situations.
Questions? Call Customer Service at 800-222-0169
Monday thru Friday, 8am to 5pm central standard
time.
A. With High GPMS
Install T-ttings exactly as shown.
B. With In-Floor Cleaner - TWO OPTIONS
The best option is to have two lines. One line with pump, lter, heater and
POOL FROG®Cycler and a second line with a separate pump for the in-oor
cleaning system (lter optional).
OPTION 1- A Two-Line Installation
POOL RETURN
POOL WATER LEVEL
POOL WATER LEVEL
POOL FROG®
POOL FROG®
IN-FLOOR
CLEANER
VALVE
FILTER
FILTER HEATER
OPTION 2 - A 3-Way Valve Installation
POOL WATER LEVEL
3-way manual valve or 3-way motor valve plus controls
POOL FROG®IN-FLOOR
CLEANER
VALVE
FILTER
PUMP
PUMP
PUMP
C. Pool and Spillover Spa Combination
POOL FROG®
Line 1
Line 2
