Poolelf 1002-02 User manual

#1002-02
User Manual
Poolel. <R

Pre-Use Info.
.
.
.
.
.
.
This is manual is pa 时 of the equipment.and necessa 叩 info.Provided by manufacturer to user to
make sure the equipment uses
in normal during its life time.
Users must read carefully, strictly abide the terms
of this manual and use in correct ways.
This manual is completed in Chinese language by manuafacturer,which can be translated to other
language to meet legal and business needs.
Read this manual carefully to avoid any unnecessary risks
or losses.
Some of the information and illustrations
in the manual may not exactly match the equipment you
are holding,but it doesn't affect the normal opration of the equipment.
The finel right
of interpretation is owned by the manufacturer.
Safety Regulations
• Read this manual carefully before using the equipment and make sure all information have been
understood, especially the safety instructions.
• This manual
is prepared in advance by the manufacturer for proper use of this equipment.
Improper use
of the equipment can endanger personal safety, health and can result in economic
loss. Keep
in mind that any accident is the responsibility of the operator or user and must not
endanger the
prope 时 y of others or oneself.
• These who cant operate the equipment: Children, Disabled people, Perceptive or mentally
handicapped, people lack
of experience or know how, unless a guard 旧 n is responsible for their
safety or receives instructions
on how to use the equipment. Make sure children dont operate this
equipment.
• If power transformer
is damaged, it must be replaced by the manufacturer, or a technical service
center, or a person with similar qualifications
in order to avoid risks.
• The min distance between power supply to the edge
of swimming pool must be 3 meters, make
sure power supply
in d 叩 and ventilated I 。 cation, where children unable to reach, for example,
locate power supply higher than 160cm.
• When equipment at its working life need to be fixed, the personal who handle this must with the
professional skills, qualifications and experience
of the indust 叩， If this requirement is not followed,.
this can pose serious health and safety risks.
• When performing any work
in the charging area, the plugged power cord must be disconnected.

• The cleaner robot cant be used without a top cover, if the mechanical parts of the cleaner robot
are damaged,
be sure to replace them
• The manufacturer doesn't assume any responsibility
if non-original parts are used.
• Do not use the cleaner robot
in a flammable environment.
• Only use the battery charger and
power 『 nodule to charge the cleaner robot. Improper use can
cause the motor, battery overheating or corrosive liquid to leak. The battery must
be cleaned with
water or neutral liquid.
If contact with eyes, please seek medical advice
Technical Specifications
Model NO.
Li-Ilion Battery 18650-68
Max. Swimming Pool Cleaning Area
Average Working Time
Charging Time
Filter Precision
Fault Self Detection
Diving Auto Start
Smart Obstacle Avoidance
Applicable Pool Material
Max Advance Speed
Pool Bottom Clean
Pool Wall Clean
Charge Method
Max. Pool Depth
Garbage Bin Capacity
Water-proof Level
Working Temperature Range
Storage Temperature Range
Product Dimension
Max. Gradeability
Product N.W.
2
#1002-02
22.2V 2200MA/H 48.84W/H
4om2s
2 hour
7-8 hours
0.28mm
Yes
Yes
Yes
Ceramic tile, Steel, Polymer, Resin
12 meter/minute
Yes
No
Contact charger
4 meters
2.5L
IP68
41 。 F-95 。 F(5 。 C-35 。 C
-59 。 F ～ 131 。 F(-15 。 C ～ 55 。 C)
14.3X12.2X9.76in(36.3X31.0X24.8cm)
10 。
6.4kg

Spare Parts
Cleaner R 。 b 。 t
Using Instructions
1. Spare parts using instructi 。 ns
Handle
R 。 lier Brush
Charger
命罪
3
T 。 p Cover Kn 。 b
Waters p 。 ut
Rechargeable Lid
Soft Cover
Indicator Light

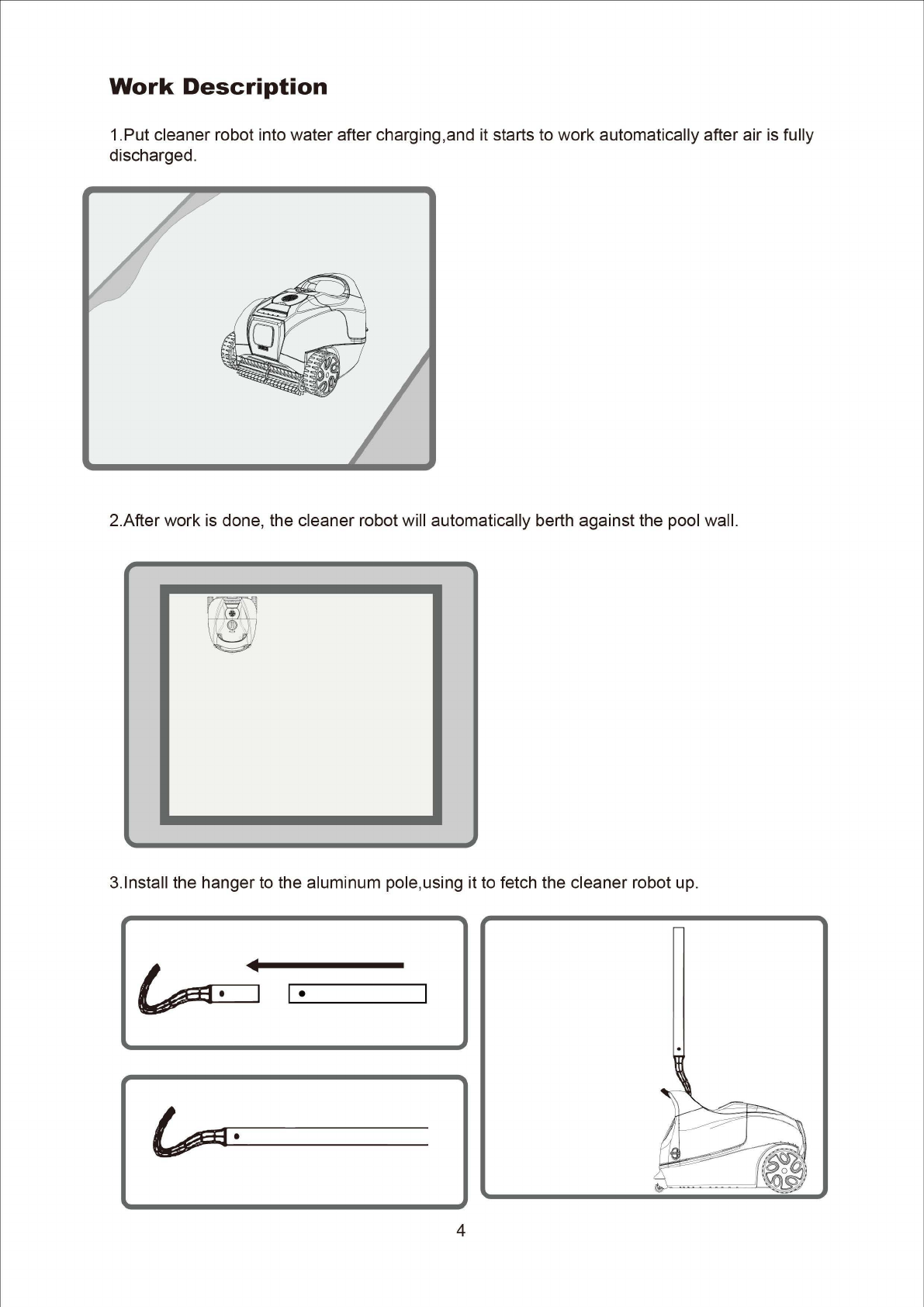

Work Description
1.Put cleaner robot into water after charging,and it sta 『 ts to work automatically after air is fully
discharged.
2.After work
is done, the cleaner robot will automatically be 『 th against the pool wall.
官
3.lnstall the hanger to the aluminum pole.using it to fetch the cleaner robot up.
合布斗 ［ .
~·
4

4.lftoo much big sized garbage(like leaver,rocks)in the pool,it is 「 ecommended to dissemble the
roller brush for better cleaning effect.
Fillter Cleaning Instructions
1.0pen the 2 knobs on the back and the 1one the top,then lift the back cover up.
0 )
2.Lift the cover and clean it up.
5

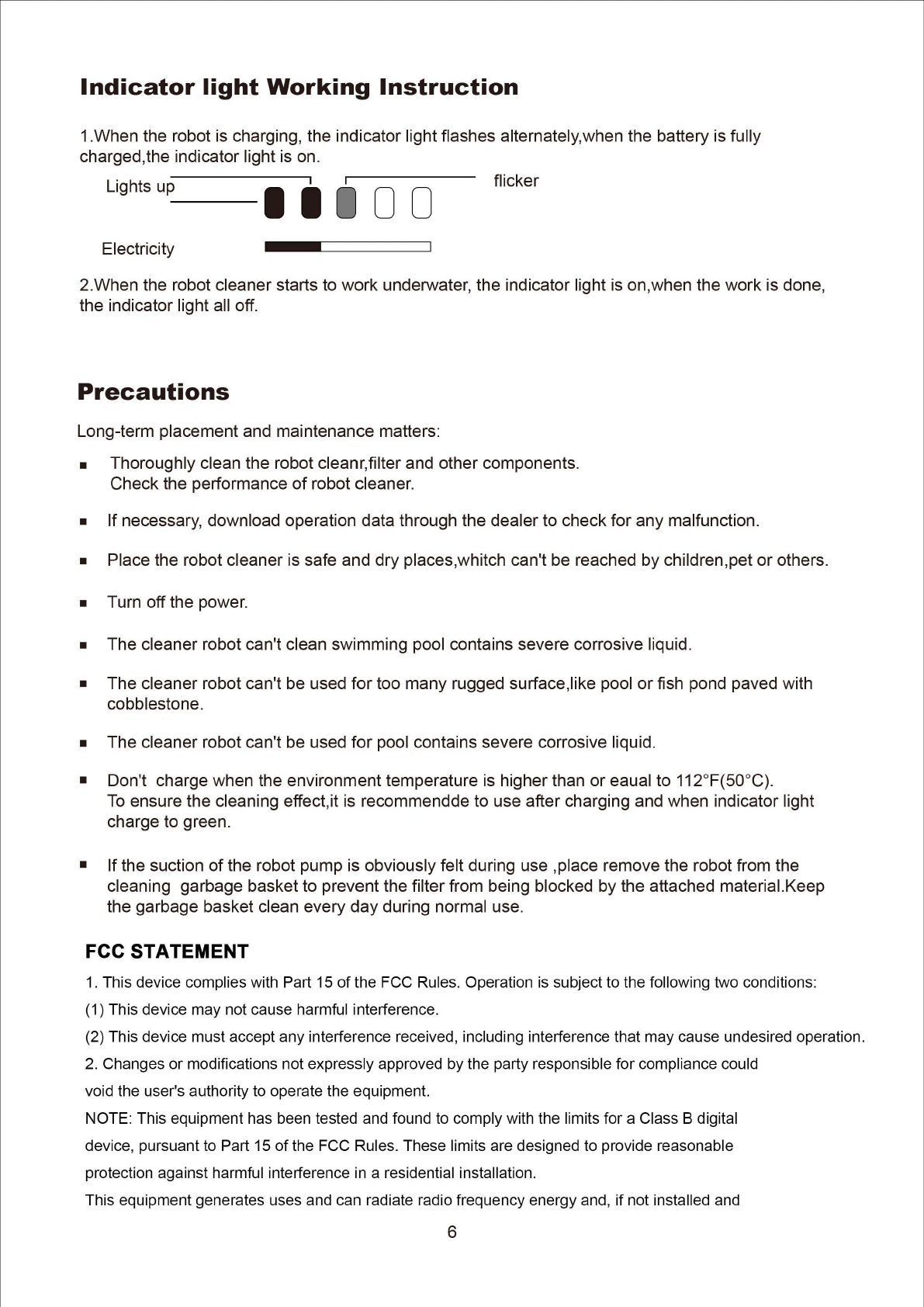

Indicator light Working Instruction
1.When the robot is charging, the indicator light flashes alternately,when the battery is fully
charged.the indicator light is on.
Lights up I
Iii
flicker
Electricity
2.When the robot cleaner
sta 『 ts to work underwater, the indicator light is on 川， en the work is done,
the indicator light all
o 忏．
Precautions
Long-term placement and maintenance matters:
• Thoroughly clean the robot cleanr,filter and
other components.
Check the performance of robot cleaner.
• If necessary, download operation data through the dealer to check for any malfunction.
• Place the robot cleaner is safe and dry places,whitch can’t be reached by children,pet
or others.
• Turn off the power.
•
The cleaner robot can’t clean swimming pool contains severe corrosive liquid.
•
The cleaner robot can’t be used for too many rugged su 『 face.like pool or fish pond paved with
cobblestone.
•
The cleaner robot can’t be used for pool contains severe corrosive liquid.
• Don’t charge
when the environment temperature is higher than or eaual to 112 。 F(SO 。 C).
To ensure the cleaning e 忏 ect,it is recommendde to use after charging and when indicator light
charge to green.
• If the suction
of the robot pump is obviously felt during use ,place remove the robot from the
cleaning garbage basket to prevent the filter from being blocked by the attached material.Keep
the
garbage basket clean eve 叩 day during normal use.
FCC STATEMENT
1 This device complies with Pa 「 t 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause ha 「 mful interfe 「 ence.
(2) This device must accept any interfe 「 ence 「 eceived , including interfe 「 ence that may cause undesi 「 ed ope 「 ation.
2. Changes O 「 modifications not exp 「 essly app 「 oved by the pa 「 ty responsible fo 「 compliance could
void
the use 「’ s autho 「 ity to ope 「 ate the equipment.
NOTE: This equipment
has been tested and found to comply with the limits fo 「 a Class B digital
device,
pu 「 suant to Pa 「 t 15 of the FCC Rules. These limits a 「 e designed to p 「 ovide 「 easonable
P 「 otection against ha 「 mful interfe 「 ence in a residential installation.
This equipment
gene 「 ates uses and can 「 adiate 「 adio f 「 equency ene 「 gy and , if not installed and
6

used in accordance with the instructions, may cause harmful interference to radio communications.
However, there
is no guarantee that interference will not occur in a pa 时 icular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and
on , the user is encouraged to t 叩 to correct the
interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into
an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or
an experienced radio/TV technician for help.

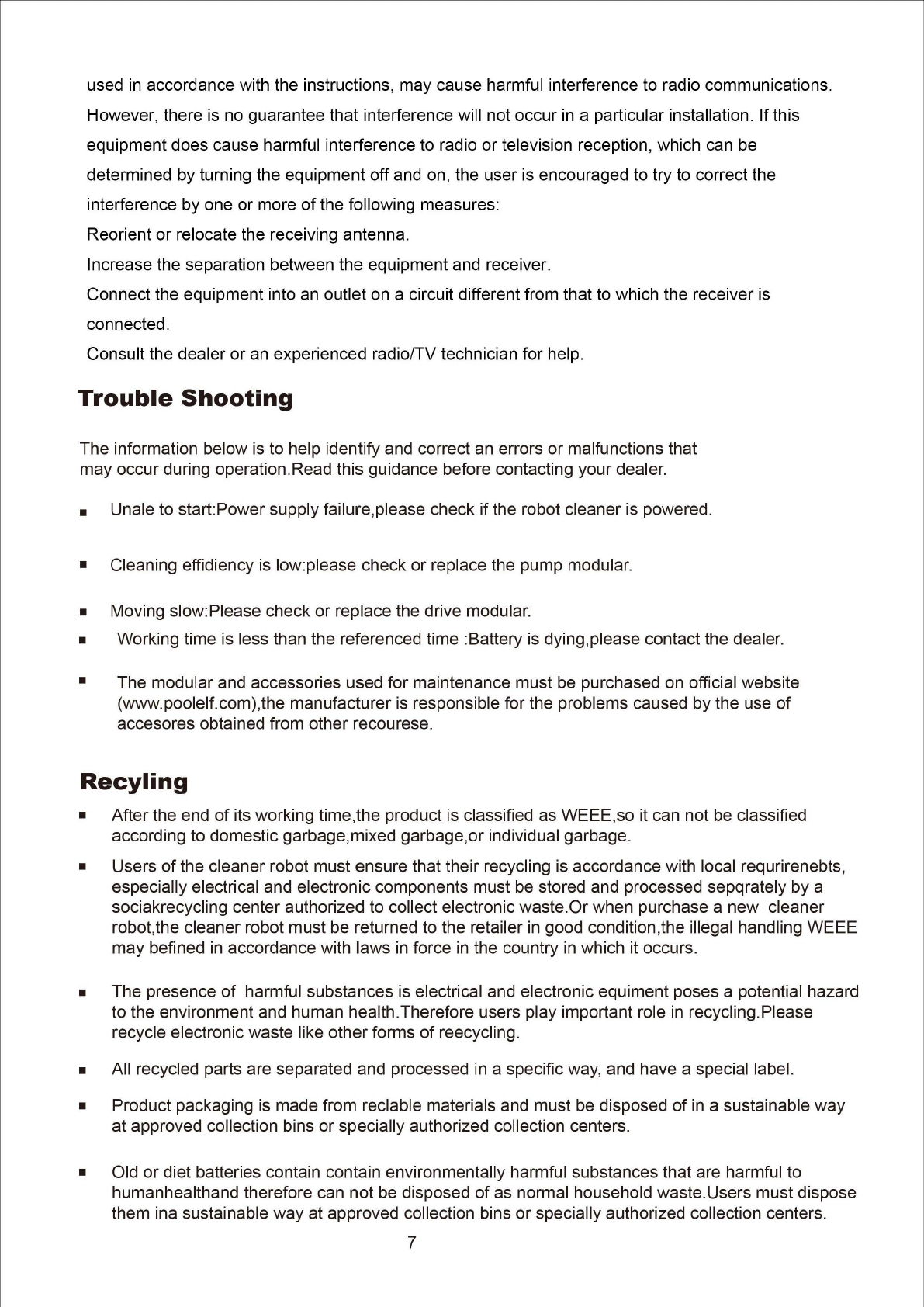

Trouble Shooting
The information below is to help identify and correct an errors or malfunctions that
may occur during operation.Read this guidance before contacting your dealer.
.
.
.
.
.
Unale to sta 『 t:Power supply failure,please check if the robot cleaner is powered.
Cleaning effidiency
is low:please check or replace the pump modular.
Moving slow:Please check or replace the drive modular.
Working time is less than the referenced time
:Batte 叩 is dying,please contact the dealer.
The modular and accessories used for maintenance must be purchased on official website
(www.poolelf.com),the manufacturer
is responsible for the problems caused by the use of
accesores obtained from other
「 ecourese.
Recyling
• After the end of its working time.the product is classified as WEEE,so it can not be classified
according to domestic garbage,mixed garbage,or individual garbage.
• Users
of the cleaner robot must ensure that their recycling is accordance with ｜。 cal requrirenebts,
espec 旧 lly electrical and electronic components must be stored and processed sepqrately by a
sociakrecycling center authorized to collect electronic waste.Or when purchase a new cleaner
robot.the cleaner robot must be
「 eturned to the retailer in good condition.the illegal handling WEEE
may befined
in accordance with laws in force in the country in which it occurs.
• The presence
of harmful substances is electrical and electronic equiment poses a potential hazard
to the environment and human health.Therefore users play
impo 「 tant role in recycling.Please
recycle electronic waste like other forms of reecycling.
• All recycled parts are separated and processed in a specific way, and have a
spec 旧 I label.
• Product packaging is made from reclable materials and must be disposed of in a sustainable way
at approved collection bins or specially authorized collection centers.
• Old or diet batteries contain contain environmentally harmful substances that are harmful to
humanhealthand therefore can not be disposed
of as normal household waste.Users must dispose
them ina sustainable way at approved collection bins or specially authorized
c 。 llection centers.
7
The distance between user and products should be no less than 20cm
