Pentair Pool Products LEGEND LL105G User manual

INSTALLATION MANUAL
www.pentairpool.com
Part #YYLEGENDMANUAL
®
REV. A 02-09-04

LL105G
Important Information:
The Legend® automatic pool cleaner comes ready to connect into a female threaded
1-1/2" line, dedicated to our Universal Booster Pump. Also, if you have a chlorinator,
solar system or other air inducing equipment, please contact our Technical Support Department
before you install the Legend®. (See diagram on page 2).
The following are important facts to remember before installing and operating the Legend®.
1. Always disconnect the Legend® from the pool wall when cleaning or back washing the pool
filter.
2. After cleaning or back washing, let the filtration system run for at least five minutes before
reconnecting the Legend®.
3. New plumbing lines should be flushed out before installing the Legend®.
4. The Legend®should not be used to remove plaster dust in new pools.
5. Always remove the Legend® before swimmers enter the pool.
6. Always handle the Legend® with care. Do not let children or pets play with the unit:
it is not a toy.
7. Always pick up the Legend® by the Vacuum Tube especially when lifting the unit out of the
water.
8. Unless checking the wheel RPM, do not handle the Legend® while it is operating.
9. Always remove the Legend® from the pool before chemical shock treatments. As a rule, any
pool water that is unsafe for swimming is unsafe for the Legend®.
10. Carefully cut the feed hose following the instructions on Page 3.
By following these simple guidelines, you can help protect against injury and prolong
the life of your Legend®.
Before the Legend®is installed, please take a moment to record the serial number. This number
is located on your warranty card and on the back of the Legend® near the rear jet. You will be
asked for this number when you contact our Technical Support Department.
SERIAL #__________________________________
LEGEND®INSTALLATION MANUAL
®

I.
II.
III.
IV.
TABLE OF CONTENTS
Introduction........................................................................................................................
A. ThankYou for Choosing the Legend®.............................................................
B. What to Expect from the Legend®.............................................................................
Installation Instructions......................................................................................................
A. Legend® Components................................................................................................
B. Pool Connections.......................................................................................................
C. Booster Pump Installation..........................................................................................
D. Installing the Twist Lock Pressure Relief Valve (Wall Fitting)......................................
E. Cutting the Feed Hose................................................................................................
F. Checking Operation....................................................................................................
G. Fine Tuning the Legend®............................................................................................
1. Thrust Jet Adjustment...........................................................................................
2. Sweep Hose Adjustment......................................................................................
3. Checking Wheel RPM...........................................................................................
Operation & Periodic Maintenance....................................................................................
A. Connecting/Disconnecting the Legend®.....................................................................
B. Turning the Legend® On/Off.......................................................................................
C. Cleaning the Sand & Silt Bag.....................................................................................
D. Periodic Maintenance.................................................................................................
1. Wall Fitting Screen................................................................................................
2. Tires & Bearings....................................................................................................
3. Roller Rings...........................................................................................................
4. Debris Bags..........................................................................................................
5. Sweep Hose..........................................................................................................
6. Debris Valve..........................................................................................................
E. Back washing the Pool Filter.......................................................................................
F. Storage and Winterizing.............................................................................................
G. Accessories................................................................................................................
1. Sweep Hose Weight...............................................................................................
2. Leaf Bag.................................................................................................................
3. Step Adapter..........................................................................................................
4. Suction Cup Tires..................................................................................................
Troubleshooting.................................................................................................................
Legend® Parts List.............................................................................................................
Legend® Exploded View.....................................................................................................
1
1
1
2
2
2
2
3
3-5
6
6
6
6
6-7
8
8
8
8
8
8
9
9
9
9
9
9
9
9-10
9
10
10
10
11-12
13-14
15
LEGEND®INSTALLATION MANUAL
®

1
B. What to Expect from the Legend®
When operating correctly, the Legend® will
travel randomly throughout the pool, vacuuming
and sweeping the bottom. The climbing ability
of the Legend® is dependent on the pools
shape. It will climb better in pools without sharp
angles or curves in the transition from the pool
floor to the pool wall.
The Legend® comes equipped with a Wall
Fitting (Part #EW22) that features a Twist Lock
Automatic Pressure Relief Valve. If the
Legend® is receiving too much water pressure
to the unit, the relief valve will automatically
reduce water pressure.
Approximately every three minutes and 30
seconds the Legend® will go into a back up
mode. At this time the Back-Up Valve will pull
the Legend® away from problem areas.
Occasionally some vinyl pools have steps
installed so the unit may not climb and remains
stationary until the Back-Up Valve pulls the unit
away from the steps. When this occurs you
need to use the optional Step Adapter
(Part#EU13) to prevent wearing the vinyl liner.
The Sweep Hose operates in a gentle sweeping
motion to prevent debris from becoming trapped
in hard to reach corners of the pool.
I. Introduction
A. Thank You for Choosing the
Legend® Pool Cleaner
Congratulations on the purchase of your new
automatic pool cleaner. The Legend® is
designed to give you years of dependable and
efficient service. With the Legend®, you and
your family will spend more time relaxing and
enjoying your pool and less time cleaning it.
The Legend® has been designed and built with
time proven features and patented innovations
to create an automatic pool cleaner that will give
you years of dependable service. The Legend®
is built with pride in the U.S.A., by people who
care about the product using state of the art
materials and backed by a limited warranty that
protects against defects in parts and
construction.
Like any mechanical device, the Legend®
requires some preventative maintenance and
the replacement of certain hard working parts.
We recommend that you have your Legend®
checked annually. For best results have your
Legend® installed by a qualified swimming pool
professional.
For pool owners with plumbing and mechanical
experience, installation instructions are included
in this manual.
Please put safety first! Be sure to take your
Legend® out of your pool and store it carefully
in a shaded area before anyone enters the pool.
LEGEND®INSTALLATION MANUAL
®

2
B. Pool Connections
The Legend® comes equipped to connect to a
female threaded 1-1/2" line, dedicated to our
Universal Booster Pump.
Also, if the pool doesn't have a dedicated
cleaner line please contact our Technical
Support Department at 1-800-831-7133
C. Booster Pump Installation
If you already have a 3/4 horsepower booster
pump installed at your equipment pad and it is
operational, skip this section and proceed to
Installing the Twist Lock Pressure Relief Valve
(Wall Fitting).
Detailed booster pump installation instructions
are packaged separately in our booster pump
box. Please follow these instructions
carefully.
The booster pump is not self-priming and
needs to be fed with water taken from the pool
filter before any type of in-line chlorinator. See
figure below.
II. Installation Instructions
A. Legend® Components
The Legend® Box Contains:
1. Cleaner Head
2. Sand & Silt Bag
3. Sweep Hose
4. Complete Feed Hose
a. 1 - 8.5" hose
b. 2 - 11'-2" white hoses
c. 1 - 20" clear hose/1 - 6' clear hose
d. 10 - Floats
e. 3 - Swivels
f. 1 - Back-Up Valve
g. 10 - Mender Nuts
h. 1 - Wall Fitting Complete
LEGEND®INSTALLATION MANUAL
BOOSTER
PUMP
®

3
2. Attach feed hose to the wall fitting and
attach wall fitting to the pool wall. Hold the
end of clear hose and walk the perimeter of
the pool keeping the hose straight (do not
stretch hose) to find the farthest point of the
pool from the wall fitting.
3. Measure the excess length between the
farthest point of the pool from Wall Fitting
and the end of 20 inch clear hose.
4. Half of this measured length is to be cut
equally from 11ft-2inch white hoses next
to the Marked Swivel. (Example: Half of 6ft
= 3ft each). If you are cutting more than 2ft
off the hoses, remove the floats next to the
Marked Swivel from both hoses. See figure
next page.

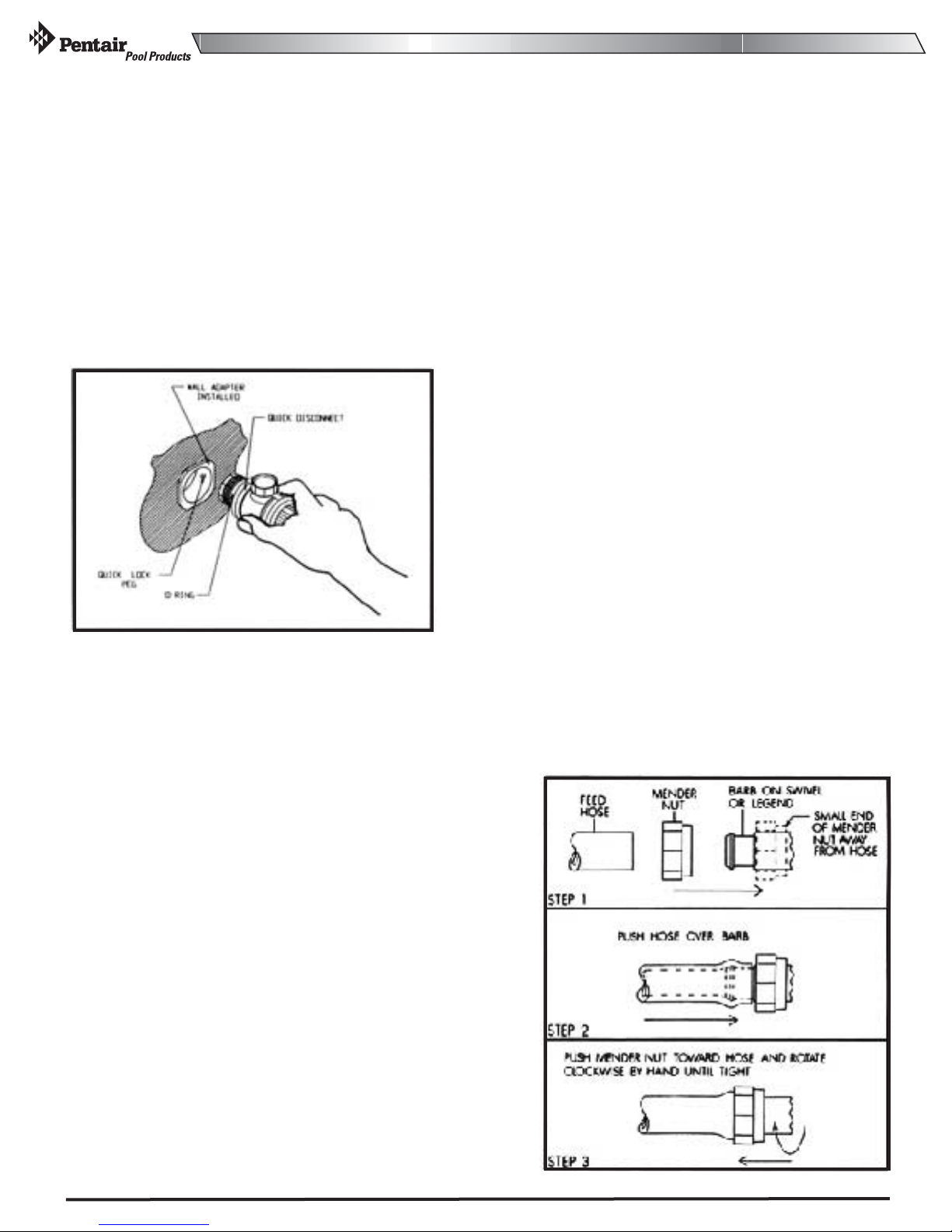

5.aRe-assemble the hoses and the swivel
using mender nuts. (See the Figure below).
Put mender nut on swivels first, then push
hose over swivel, rotate mender nut over
hose clockwise until tight. Note: Keep as
many floats as possible on white feed hoses
spaced evenly apart to hold hose up on top
of water.
D. Installing the Twist Lock Pressure
Relief Valve (Wall Fitting)
1. Take out any existing pool cleaner and/or
wall fitting.
2. Turn on the filtration pump and booster
pump, flush out the plumbing line.
3. Turn off filter pump and booster pump.
4. Remove the Wall Adapter from the Wall
Fitting and screw Adapter by hand into the
dedicated line. Turn until tight.
5. Take the Wall Fitting and Twist Lock the Wall
Fitting into the Wall Adapter 1/4 turn; to a
snug fit. Once the Wall Adapter is secure
you can now twist lock and unlock to
remove Wall Fitting with ease from the Wall
Adapter.
E. Cutting the Feed Hose
The Hose assembly comes in 5 sections now
covering approximately 30 ft. of the pool, which
provides ample hose for most residential pools.
The Back-Up Valve is now 20" from the head
cleaner and should always remain this distance.
For larger pools see paragraph 12 for
instructions on Adding Additional Feeder Hose.
1. Take Feeder Hose out of box and lay the
hose straight in the sun for one day if
possible, (this will take any memory out of
the hose due to being coiled up in the box).
LEGEND®INSTALLATION MANUAL
®

4
HOSE CUTTING DIAGRAM
End of 20" Clear Hose
Back-Up Valve
11'-2" White Hose
11'-2" White Hose
Swimming Pool
6ft Clear Hose
8.5" White Hose
Farthest Point Of
The Pool
From Wall Fitting
Float
Float
Swivel
Float
Float
Float (Remove if the cut is more than 2ft)
Swivel
Float
Float
Wall Fitting
Float
Marked Swivel (Cut hose equally on both sides to reduce length)
Float
Float (Remove if the cut is more than 2ft)
LEGEND®INSTALLATION MANUAL
®

5
6.
7.
8.
9.
10.
11.
E. Cutting the Feed Hose - (cont.)
When cutting hoses, please use strong
scissors or a sharp knife. Be sure to slide
the floats out of the way when cutting hose.
Put extra mender nut on the Legend® mast
and push clear hose gently over mast at
1/2", turn mender nut around clear hose
tight. Note: The Back-Up Valve still should
be 20" from the head of the cleaner.
Now take the bag, EU16, out of the box and
firmly twist lock bag onto the top of Legend®
throat over rubber debris valve.
Review and check list: White and clear
hoses cut properly and floats evenly spaced.
Mender nuts tight around swivels, Back-Up
Valve, Legend® mast and wall fitting. Make
sure wall fitting is securely locked into place.
Lower your complete Legend® assembly
into your pool carefully. It should look like
figure below.
Go back to your equipment and turn filter
pump on first (wait 30 seconds to force air
out of the hose), then turn booster pump
on.
12. For adding additional feeder hose for large
pools requiring more hose length you will
need to purchase one (1) additional hose
(ED45), four (4) floats (ED10P), one (1)
swivel (ED05), and two (2) mender nuts
(ED15). Attach extra white hose between
clear hose and existing white hose, using
floats, swivel and mender nuts. Divide
extra white hose overage by three (3) this
time to keep all white the same length.
LEGEND®INSTALLATION MANUAL
®

6
The Sweep Hose operates in a gentle sweeping
motion to prevent debris from becoming trapped
in hard to reach corners of the pools.
If the Legend® does not travel to all areas of the
pool, turn off the booster pump and pool
filtration pump and make the necessary
adjustments from the instructions in the next
section.
G.FineTuning the Legend ®
1. Thrust Jet Adjustment
There is a Thrust Jet located in the back of the
Legend®. This Thrust Jet alters the direction of
the cleaner. The factory standard position for
the jet is set in the middle and straight out. (See
illustration below).
2. Sweep Hose Adjustment
The Sweep Hose operates in a gentle sweeping
motion. To increase or decrease the motion of
the Sweep Hose, there is an adjustment screw
located on the Feed Mast Barb below the
F. Checking Operation
When operating correctly, the Legend® will
travel in a random pattern throughout the pool,
vacuuming and sweeping the bottom. The
climbing ability of the Legend® is dependent on
the pools structure and water flow coming into
the pool. It will perform more efficiently in pools
without sharp angles or curves in the transition
from the floor of the pool to the wall.
The Legend® comes with a Twist Lock Pressure
Relief Valve (Wall Fitting). If the Legend® is
receiving too much water pressure, the Relief
Valve in the Wall Fitting will release the excess
water pressure.
Approximately every three minutes and 30
seconds the Legend® will go into a back-up
mode. The Back-Up Valve cycle time, while in
the back-up mode, is approximately 30 seconds,
pulling the Legend® from problem areas.
New Back-Up Valve Information:
The Back-Up Valve Insert (#MBUVP) which is
slid into the slot over the jet of the valve. This is
secured with a stainless steel screw (#VX-9) as
show in the diagram. The insert will be set from
the factory with the larger (3/8") hole over the
opening of the jet. The larger hole is used for the
Legend cleaner. If you change the insert to the
smaller (1/4") hole, the Back-Up Valve will have
increased jet pressure and possibly tangle your
hose.
®®
LEGEND®INSTALLATION MANUAL
MBUVP
Screw
Back-Up Valve
®

7
If you have any additional
questions, please contact Pentair
Pool Products Technical Support
Department at 1-800-831-7133,
Monday through Friday.
3. Checking Wheel RPM - (cont.)
Mark the front drive Tire/Wheel with a marker, or
use the Pentair logo located on the side of tire
as a marker to count the rotations of the wheel
per minute.
Have someone turn on pool pump and then
booster pump while you place the Legend® in
the pool just beneath the water surface. (Be
sure to hold onto the Sweep Hose to avoid
getting wet).
Count the rotations of the marked wheel for
exactly one minute. (Be sure the Back-Up Valve
isn't cycling at this time). The rotations will give
you the Revolutions Per Minute. (RPM)
For proper performance, the Legend® operates
between 28-32 RPM. If the RPM is below 28
then call your local Pool Professional or contact
our Technical Support Department at 1-800-
831-7133.
If the RPM is more than 32, at the Wall Fitting
unscrew the Pressure Relief Valve slowly until
the RPM falls between 25-32.
LEGEND®INSTALLATION MANUAL
®

8
D. Periodic Maintenance
The following parts are wear items that should
be checked, maintained or replaced as needed.
Wear items are considered any working or
moving part(s) being worn due to the use of the
cleaner. Wear items are not covered under
warranty.
1. Wall Fitting Screen
Inside the wall fitting is a filter screen that acts
as a secondary filter. This screen is to keep
debris that is passed by the pool filter out of the
Legend®. Running the Cleaner without the filter
screen can damage the Legend® and will void
the warranty.
A continuous plugged or dirty screen is a sign of
problems in your pool filtration system and you
need to contact your local pool professional.
To clean the filter screen, pull the screen out
from inside the Wall Fitting and rinse thoroughly
and push back inside the wall fitting.
Whenever cleaning, back washing or repairing
filter, remove the wall fitting and flush out the
dedicated line before using the Legend®.
III. Operation/Periodic Maintenance
A. Connecting/Disconnecting the
Legend®
Turn off booster pump and pool pump. Then
take the Wall Fitting and twist lock the Wall
Fitting clockwise into the Wall Adapter. To
disconnect the Legend®, unlock and twist
counter clockwise. The Wall Adapter should
remain in the pool wall.
B. Turning On/Off the Legend®
The Legend® operates off the booster pump
coming from the equipment pad, and can be
turned on or off by merely turning on/off your
booster pump time clock.
C. Cleaning the Sand & Silt Bag
Carefully unlock the debris bag from the vacuum
tube and open the Velcro® Brand Fastener
closure at the top of debris bag and dump
debris.
If you have a lot of debris in your pool, especially
after a storm, you can run your Legend® in two
shorter cycles per day and empty the debris bag
between cycles.
Reconnect the debris bag to the vacuum tube.
Do NOT over turn.
If the Velcro® Brand Fastener strip on top of the
debris bag does not stay secure, rinse well, let it
dry and clean with a stiff brush.
A Helpful Hint: It is easier to empty the debris
bag when it is dry. A second bag may be used
while the full debris bag is drying.
It's best to empty the debris bag when it
becomes half full. The Legend® will have better
performance if the bag is not overloaded.
LEGEND®INSTALLATION MANUAL
®

9
III. Operation/Periodic Maintenance -
(cont.)
5. Sweep Hose
The Sweep Hose is provided to help keep the
bottom and sides of your pool clean. The Sweep
Hose is warranted free of defects when shipped
from the factory, and is considered a wear item.
6. Debris Valve
This valve is located under the Debris Bag, it is
designed to keep the debris inside the bag. It
functions like a check valve to allow the debris to
only enter through the bag one way. Replacement
is needed when valve begins to stiffen.
E. Back Washing the Pool Filter
Always disconnect the Legend® from the pool wall
before cleaning or back washing the pool filter.
After cleaning or back washing, let the pool
filtration system run for a minimum of five minutes
to flush out the return lines before reconnecting
the Legend®.
F. Storage and Winterizing
Never leave or store the Legend® in direct
sunlight. When storing the Legend® for the
winter, be sure to drain all the water from it. This is
important since freeze damage is not covered
under the warranty. Also, remove the Wall Fitting.
G. Accessories
1. Sweep Hose Weight
If the sweep hose tends to break the surface of
the water therefore squirting nearby windows or
innocent bystanders, a weight can be installed to
the end of the sweep hose.
(Part # for Hose Weight is EH09C)
2. Tires & Bearings
The tires are designed to protect the bottom of
your pool and provide better traction. You
need to rotate or replace the tires when edges
become rounded.
The Wheel Bearings are warranted free of
defects when shipped and are considered a
wear item. A good bearing will spin freely.
3. Roller Rings
Your Sweep Hose has a series of Roller Rings
to protect the Sweep Hose. Replace the rings
as needed. You can rotate the Roller Rings to
prevent flat spots.
4. Debris Bags
Fine Mesh Sand & Silt Bag
The Legend®comes with a Sand & Silt bag for
general use in all pools. We do not
recommend using the fine mesh bag to pick
up leaves and twigs or other large debris for
they have sharp points and edges that can
poke holes and eventually rip the bag.
Optional Leaf Bag
The leaf bag is a larger mesh bag made to
pick up heavier debris such as leaves, twigs,
acorns, etc. This bag can be helpful especially
after a storm.
A Helpful Hint: To prolong the life of bags,
remove cleaner from pool before adding
chemicals.
LEGEND®INSTALLATION MANUAL
®

10
III. Accessories (cont.)
2. Leaf Bag
(See previous page)
3. Step Adapter
This adapter is designed for vinyl liner pools that
have steps installed in such a way that the unit
may not climb and remains stationary until the
Back-Up Valve comes on. The adapter acts as a
bumper to turn the cleaner away from the steps
and continue on cleaning your pool.
It's easy to install: Simply slide the Step Adapter
into one of the slots (either side) located in the
front of your Legend® and adjust to the
appropriate height.
(Part # for Step Adapter is EU13)

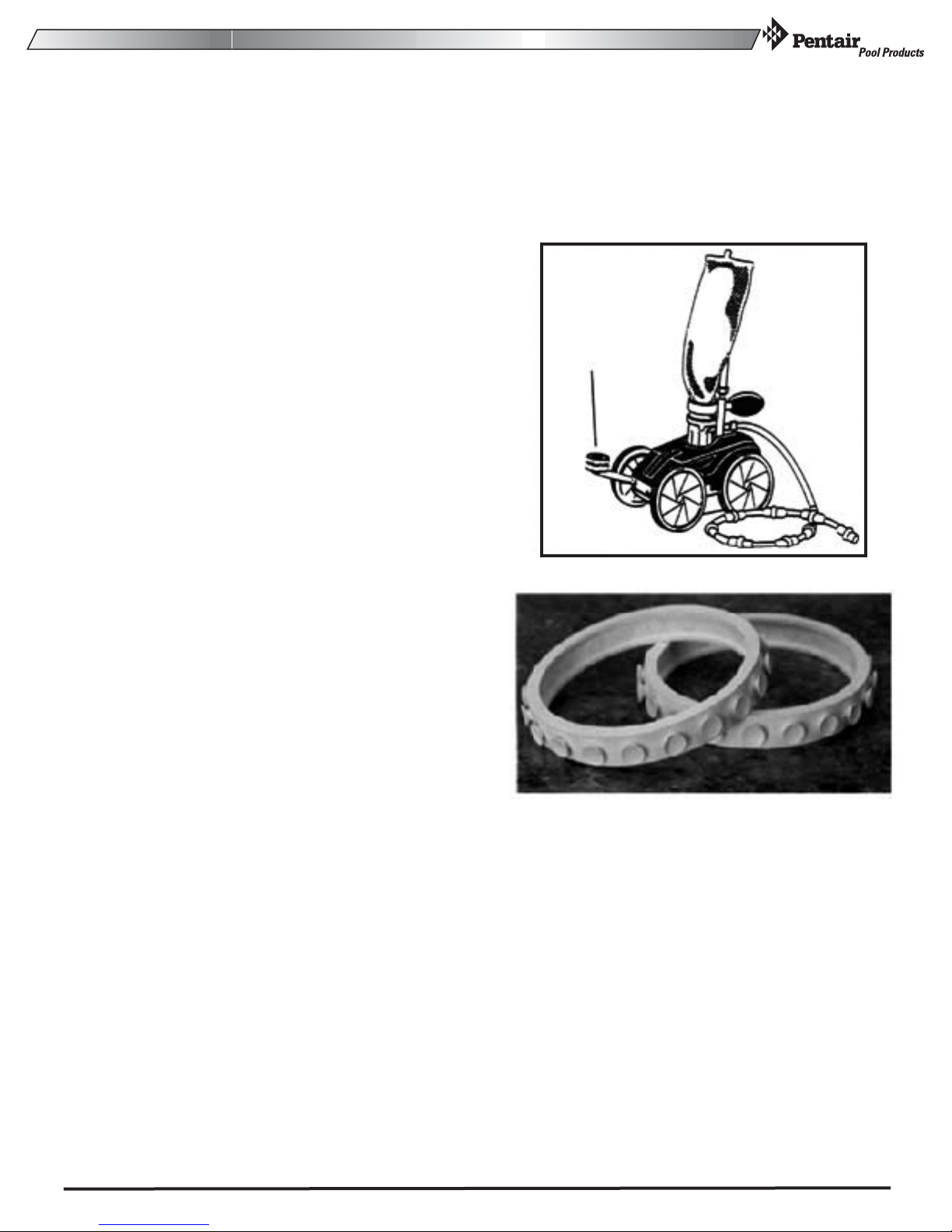

4. New Legend Suction Cup Tires
Designed to climb in problem areas, fiberglass,
tile and smooth surfaces. For other applications,
please contact our Technical Service
Department.
(Part # for Suction Cup Tires is LC6LSA)
Step Adaptor
Part #EU13
LEGEND®INSTALLATION MANUAL
®

11
Problem: Legend® will not back up.
Solution: 1. Determine if the Back-Up Valve is
cycling. (Hold the valve out of the
water and the jet should come on for
approx. 30 seconds, and shut off for
approx. 3 minutes and 30 seconds).
2. Check the wheel RPM (See page
6-7).
3. Empty the debris bag if full or half
full.
Problem: Legend®will not climb.
Solution: 1. Even if your pool doesn't show
algae you still need to brush
the sides of the pool wall.
2. Check the wheel RPM (See page
6-7).
3. Reposition the Thrust Jet. Loosen
the two screws to adjust the Thrust
Jet. Instructions for different
positioning are located on page 10.
A reminder: The climbing ability of the Legend® is
dependent on the pool's shape and available water
pressure. It will climb better in pools without sharp
angles or curves in the transition from the pool
floor to the pool wall.
Problem: Hoses tangling.
Solution: 1. Check the length of the Feed
Hose, they may be too long. (See
pages 3 through 5).
2. Check to see that the Feed Hose
is floating on top of surface. Check
hose floats for even spacing.
3. Twist the Hose Swivels to see if
they spin freely and replace any that
will not.
4. Lay out the Feed Hose straight in
the full sun to remove any memory.
To insure the best performance from
your cleaner, follow the troubleshooting
guide listed below.
A. PROBLEMS & SOLUTIONS
Problem: Legend® doesn't move or moves
sluggishly or hangs up on steps.
Solution: 1. Be sure filter pump and booster pump
are on and working properly. (You may
need to clean your pool filter system).
2. Check the Wall Fitting screen for
debris and rinse clean.
3. Check wheel RPM (See page 6-7).
4. Determine if the Back-Up Valve is
cycling. (Hold the valve out of the water
and the jet should come on for approx.
30 seconds and shut off for approx. 3
minutes and 30 seconds.
5. Check all the Hose connections and
Swivels for leaks that can cause loss of
water pressure.
6. Check debris that may be jammed in
the gear teeth on one of the front drive
wheels. Gently rotate the front wheels
backward to dislodge debris.
Problem: Legend® falling over or lying on its side.
Solution: 1. This usually indicates the bag needs
to be emptied.
2. Check to see if the ballast float
(EA20) is leaking by checking if there
is water inside. Unscrew by pulling
back while turning counter-clockwise.
When it comes off, shake it and listen
for water in float.
IV. TROUBLESHOOTING AND PERFORMANCE TIPS
LEGEND®INSTALLATION MANUAL
®

12
A. PROBLEMS & SOLUTIONS - (cont)
Problem: Sweep Hose is sucked into the cleaner.
Solution: 1. Adjust the Sweep Hose using the
Adjustment Screw located on the
bottom of the Swivel Mast and just
below the upper Thrust Jet. Turn
Adjustment Screw clockwise until the
Sweep Hose is in a gentle sweeping
motion.
Problem: Booster Pump very noisy.
Solution: 1. Make sure Wall fitting is mounted in
pool wall correctly.
2. Make sure Pool Filtration system is
working properly.
3. Contact your local Pool Professional
-possible Booster Pump problem.
IV. TROUBLESHOOTING AND PERFORMANCE TIPS
Problem: Sweep Hose breaks water surface
and sprays nearby windows, patio
decks and bystanders.
Solution: 1. Adjust Sweep Hose to a gentle
sweeping motion.
3. Add optional Sweep Hose weight
(See Page 9).
LEGEND®INSTALLATION MANUAL
®

13
LEGEND® PARTS LIST
Part #
LLU5N
LLU145N
EU10N
LLU6
EC86
EC83
EC80
EA40
EC110
EX120
EC120
EB5L
EB10
EB25
EB20
EA20
EH07
EU15
EU16
EU9
EU7
E18
EC130
EC135
EC65
EC70
EC45
EC6L
EC60
E10
EC55
LLC1
EB15
EC40
Diagram #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
17
18
19
20
21
22
23
24
25
27
28
34
36
37
38
39
40
41
42
Quantity
1
1
1
1
1
2
2
1
1
1
1
1
9
1
1
1
17
1
1
1
1
1
1
1
4
4
8
4
8
1
4
4
5
8
Description
Top Cover
Main Frame
Bottom Cover
Feed Mast w/O-Ring
Turbine Drive Shaft - Complete
Turbine Spacers
Turbine Bearings
Turbine Shaft Shield
Turbine Cover w/Elbows
Turbine Cover Hose - 9" length
Venturi Jet - Hose - 7 3/4" length
Sweep Hose - Complete
Sweep Hose - Wear Ring
Sweep Hose - Jet w/Collar
Sweep Hose - Adjustment Screw
Ballast Float
Sweep Hose - Hose Sleeve
Coarse Mesh Bag (Optional)
Fine Mesh Bag
Debris Valve
O-Ring for Feed Mast
O-Ring for Thrust Jet
Thrust Jet
Thrust Jet - Plate
Axle - Large Wheels
Axle Plate
Axle - Lock Washer
Wheel w/out Bearings
Wheel Bearings Only
Back-Up Valve
Wheel Screw - Plastic
Wheel - Rubber Tire
Hose Clamp
Screw
LEGEND®INSTALLATION MANUAL
®

8.5" FIRST 11'-2"
WHITE HOSE
6-FOOT CLEAR
HOSE 20"
CLEARHOSE
SECOND 11'-2"
WHITE HOSE
®
14
LEGEND® PARTS LIST
Description
Feed Hose - clear soft - 7'-8"
Float - Feed Hose
Feed Hose - white - 11'-2"
Swivel - Feed Hose
Adapter Hose - white - 8-1/2"
Mender Nut - plastic - feed hose
Wall Fittting
Screen - Wall Fitting
Quick Disconnect Adapter
Wheel - Plastic Washer
Sweep Hose Weight
Gears - for Back-Up Valve
Thrust Jet Repair Kit includes: LLC130, LLC153, LLC140
Screw for LLA40 and LLC110
Axle Bolt
Snap Fit Vac Tube Posts
Nut & Bolt - Feed Mast to Vac Tube
Venturi Jet
Hex Screw - Cover to Frame
Part #
ED50
ED10P
ED45
ED05
LLU1
ED15
EW22
E24
E23
EC64
EH09C
EG16
EC131
EA30
EU76
EU147
EU79
LLU8
EU80
Diagram #
44
45
46
47
48
49
50
51
52
53
54
55
56
57
60
62
63
64
65
Quantity
1
10
2
2
1
8
1
1
1
4
1
1
1
5
8
2
1
2
2
LEGEND®INSTALLATION MANUAL
®

LEGEND®
EXPLODED VIEW
LEGEND®INSTALLATION MANUAL
15
®

LEGEND®INSTALLATION MANUAL
®

Pentair Pool Products, Inc.
800-831-7133
02/04 P/N YYLEGENDMANUAL
Printed in USA Pentair Pool Products, Inc.
®
