INSTALLATION INSTRUCTIONS
L’EXPRESSION VANITY KIT
Model #89890-00
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.
INTRODUCTION
Thank you for selecting our Porcher product. To ensure that your installation proceeds smoothly, read these instructions carefully before
you begin. Also, review the recommended tools and materials section. Carefully unpack and examine your new plumbing fixture.
To maintain the beauty of the finish, avoid placing the furniture in direct sunlight, as sunlight causes fading. Also avoid extreme
changes in temperature by arranging furniture away from radiators, heat and air vents, and air conditioning units. Avoid placing
furniture directly under windows.
ALL INSTALLATION PROCEDURES MUST COMPLY IN STRICT ACCORDANCE WITH APPLICABLE LOCAL PLUMBING
AND BUILDING CODES

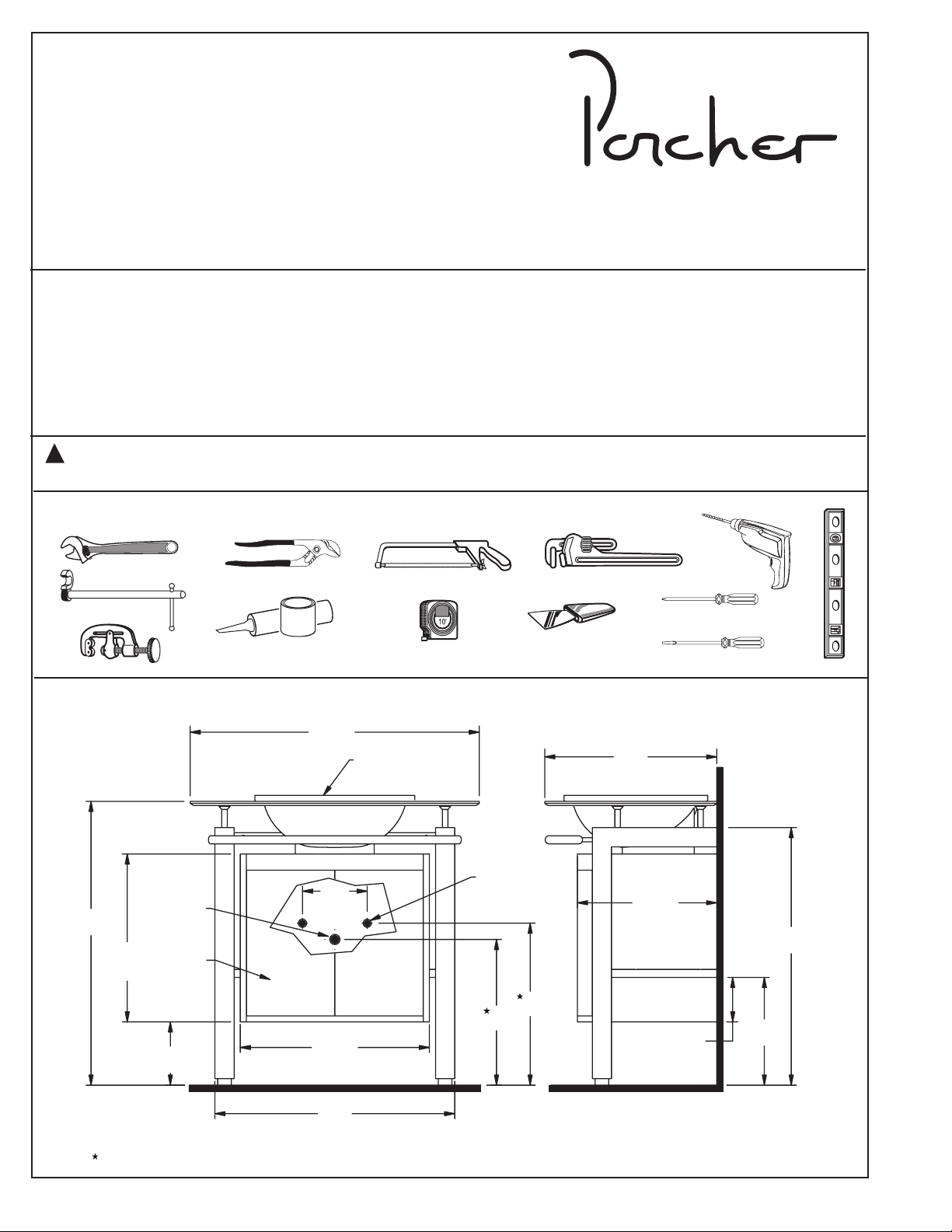

Roughing-in Dimensions | Vanity Kit 89890-00
Recommended Tools & Materials
Hacksaw
Channel Locks
Adjustable Wrench
Tubing Cutter
Basin Wrench
Putty Knife
Tape
Measure
Plumbers’ Putty or
Caulking Regular Screwdriver
Phillips Screwdriver
Drill
Level
Pipe Wrench
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND “P” TRAP ARE SUGGESTED
FRONT VIEW
SIDE VIEW
FIGURE 1.0
31 13/16
(808)
21 1/4
(540)
17 3/16
(437)
VANITY
5 1/2
(140)
13 5/16
(338)
20 3/4
(527)
VANITY
L'EXPRESSION
ROUND LAVATORY
35 11/16
(907)
35 1/16
(891)
7 13/16
(198)
23 3/8
(594)
VANITY
20
(508)
18
(457)
8
(203)
SUPPLIES AS
REQUIRED
1-1/4" (31)
O.D. WASTE
29 5/8
(752)
TOUCH
LATCH
DOORS
Units : Inches (mm)

VANITY INSTALLATION - VANITY KIT 89890-00
Unpack L’Expression Vanity carefully, taking care that bottom of unit does not drop and cause damage to the door panel and side gables (see
FIGURE 2.1).
Unpack L’Expression Minimalist Table carefully, taking care that the unit and glass top does not drop (see FIGURE 2.2).
NOTE: Remove and discard the reinforcement stringer that holds the top and bottom metal bar during shipping. The stringer is
not required.
Provide suitable reinforcement in the wall for anchoring the vanity to the wall. Centerline of reinforcement should be 30-5/8" up from the floor
(see FIGURE 3.0 / 3.2).
Rough in supply lines and waste per rough-in dimensions (see FIGURE 1.0).
Decorative molding may need to be notched to seat the vanity flush against the wall.
Move the assembled Minimalist Table into place and level with the adjustable levellers on the bottom of the legs. The levellers can be adjusted
outward up to 3/4” but it is recommended not to exceed 1/2” if possible.
Mark the 2 holes located in each of the (1) Top and Bottom Metal Bar located at the back of the Minimalist Table onto the wall. Drill and insert 4
plastic anchoring hardware provided into the wall. Anchor the Minimalist Table securely to the wall through the (1) Metal Bar (see Figure 3.1 / 3.2)
using 4 screws provided. Tighten the screws and snap the dome covers provided onto the screws. The dome covers conceal the screws.
Position the (2) L’Expression Vanity by nesting the notch at the back of the Vanity over the lower (1) Metal Bar (see FIGURE 3.1 / 3.2).
Mark the 2 holes located in each of the Top and Bottom Rear Stringer of Vanity onto the wall. Drill and insert 4 plastic anchoring hardware provided
into the wall. Anchor the Vanity securely to the wall using 4 screws provided through the Top and Bottom Rear Stringer (see Figure 3.2).
Secure the (3) Metal Stand-offs of the Minimalist Glass Top to the leg supports of the Minimalist Table using the 4 screws provided (see FIGURE 3.1).
Continue with installation appropriate for L’Expression Round Lavatory and faucet options chosen (see FIGURE 3.1 .
C/L of 2 x 6
Reinforcement
Finished
Floor
30 5/8"
(778)
27 3/16" to
(691)
FIGURE 3.0 FIGURE 3.1
(1) METAL FLAT BAR
SECURES TO WALL
METAL BAR FITS INTO
(2) SECURE VANITY TO
WALL USING 4x SCREWS
NOTCH AT BACK OF
VANITY
NOTCH AT BACK
OF VANITY
L'EXPRESSION
ROUND LAVATORY
10411-00
L'EXPRESSION VANITY
with DOORS
89411-00
L'EXPRESSION
MINIMALIST TABLE
89450-00
(1) METAL FLAT BAR
SECURES TO WALL
L'EXPRESSION MINIMALIST
GLASS TOP
89470-00
(3) METAL STAND-OFF's
FIXED TO THE UNDERSIDE OF
THE MINIMALIST GLASS TOP
SECURE TO THE LEG SUPPORT
FIGURE 2.1 | VANITY 89411-00
Units : Inches (mm)
FIGURE 2.2 | MINIMALIST TABLE 89450-00
Units : Inches (mm)
20 3/4
(527)
17 3/16
(437)
17 3/16
(437)
4 3/4
(121)
23 3/8
(594)
10 15/16
(277)
DOOR
10 15/16
(277)
DOOR
15 3/8
(391)
18
(457)
DOOR
NOTCH TO FIT
ONTO METAL SUPPORT
OF THE L'EXPRESSION
MINIMALIST TABLE
P-TRAP CUT-OUT
FOR L'EXPRESSION
ROUND LAVATORY
DOORS WITH
TOUCH LATCH
TO OPEN DOOR
11 11/16
(297)
5 1/2
(140)
FRONT VIEW SIDE VIEW FRONT VIEW SIDE VIEW
35 1/16
(891)
13 5/16
(338)
21 1/4
(540)
35 11/16
(907)
31 13/16
(808)
29 5/8
(752)
1
(25)
1
(25)
3
(76)
CUT-OUT IN GLASS FOR
L'EXPRESSION ROUND LAVATORY
10421-00
L'EXPRESSION MINIMALIST
1/2" (13) GLASS TOP
2 3/8
(60)
2 3/8
(60)
2 3/8
(60)
13/16
(21)
1 11/16
(43)
TOWEL
BAR
1/2
(13)
770020-100
- 2 -

FIGURE 3.2
Units : Inches (mm)
SIDE VIEW
21 1/4
(540)
17 3/16
(437)
VANITY
5 1/2
(140)
27 3/16
(691)
1 1/4
(32)
15 1/16
(383)
1 1/2
(38)
31 13/16
(808) 20 3/4
(527)
VANITY
HEIGHT
SECURE VANITY
TO WALL USING
TOP AND BOTTOM
REAR STRINGER
30 5/8
(778)
(1) TOP METAL BAR
OF MINIMALIST TABLE
SECURES TO WALL
(1) BOTTOM METAL BAR
OF MINIMALIST TABLE
SECURES TO WALL
(2) METAL BAR FITS INTO
NOTCH AT BACK OF
VANITY
Care and Cleaning
Clean the product by using a soft, slightly damp cloth. Buff the product by using a soft dry cloth. When cleaning the mirror, spray the
mirror with a glass cleaner and wipe clean. Avoid using silicone cleaners and waxes.
Clean up excess water and spills immediately. Use a blotting rather than a wiping action. Water left over a long period of time will
cause white spots in the finish.
NOTE: Please note that some chemicals may damage the finish. Take care to avoid the following: iodine, hair dye, shaving
cream,after shave lotion, alcohol, perfume, Lestoil®, Lysol Tub and Tile Cleaner®, Lysol Spray Disinfectant®, Dow Disinfectant®,
acetone, paint remover, Formula 409®, Tile-X®, and Nair®.
770020-100
- 2 -
In the United States:
Porcher Inc.
P.O. Box 6820
Piscataway, New Jersey 08855
Attention: Customer Care
For residents of the United States,
warranty information may also be
obtained by calling the following
toll free number: [phone]
www.porcher-us.com
In Canada:
Porcher
2480 Stanfield Rd.
Mississauga, Ontario
Canada L4Y 1S2
Toll Free: [phone]
In Mexico:
Porcher
Planta Santa Clara
Via Morelos #330
Santa Clara Coatitla
de Morelos 55540
Estado de Mexico, Mexico
PORCHER WOOD FURNITURE WARRANTY
If inspection of this Porcher plumbing product, within one year after its initial purchase, confirms that it is defective in materials or
workmanship, Porcher will repair or, at its option, exchange the product for a similar model. Variations in actual wood color and
finishes which may result from natural characteristics of the wood, such as grain patterns, mineral streaks and the like, are not
defects and are not covered by this warranty.
This limited warranty applies only to the original purchaser and installation of these products. In the event of a claim, proof of
purchase will be required; save your receipt.
This limited warranty does not apply to local building code compliance. Since local building codes vary considerably, the purchaser
of this product should check with a local building or plumbing contractor to insure local code compliance before installation.
This limited warranty shall be void if the product has been moved from its initial place of installation; if it has been subjected to faulty
maintenance, abuse, misuse, accident or other damages; if it was not installed in accordance with Porcher’s instructions; or if it has
been modified in a manner inconsistent with the product as shipped by Porcher.
Porcher’s option to repair or exchange the product under this limited warranty does not cover any labor or other costs of removal or
installation, nor shall Porcher be responsible for any other incidental or consequential damages attributable to a product defect or to
the repair or exchange of a defective product, all of which are expressly excluded from this limited warranty. This limited warranty
does not cover any liability for consequential or incidental damages, all of which are hereby expressly disclaimed, or the extension
beyond the duration of this limited warranty of any implied limited warranties, including those of merchantability or fitness for an
intended purpose. (Some states or provinces do not allow the exclusion or limitation of implied limited warranties, so this exclusion
may not apply to you).
This limited warranty gives you specific legal rights. You may have other statutory rights that vary from state to state or province to
province, in which case this limited warranty does not affect such statutory rights.
