Porcher OVALE 97620-60 User manual

RECOMMENDED TOOLS AND MATERIALS
Putty Knife Regular Screwdriver Adjustable Wrench Sealant Tape Measure
Hacksaw Wax Ring/Gasket Flexible Supply Tube Closet Bolts Carpenters Level
1REMOVE OLD TOILET
a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level before new toilet is installed!
SAVE FOR FUTURE USE
3
2
CLOSET FLANGE
CLOSET BOLTS
A
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
Product names listed herein are trademarks of Porcher
© Porcher, 2009
NOTE: Pictures may not exactly define contour of china and components.
OVALE™ - 1.6 GPF ONE-PIECE TOILET
Model 97620-60
ROUGHING-IN DIMENSIONS:
NOTE: Distance from wall to closet flange centerline must be as listed below:
5
4
INSTALL WAX SEAL
Invert toilet on floor (cushion to prevent damage), and
install wax ring evenly around waste flange (horn), with
tapered end of ring facing toilet. Apply a thin bead of
sealant around toilet base.
POSITION TOILET ON FLANGE
a. Unplug floor waste opening and install toilet on closet flange so bolts project
through mounting holes.
b. Loosely install retainer washers and nuts. Side of washers marked "THIS
SIDE UP" must face up!
WAX RING
SEALANT
7301359-100 Rev. A
WASHER
NUT
FLANGE
BOLT
T
H
I
S
S
I
D
E
U
P
Thank you for selecting Porcher. To ensure this product is installed properly, please read these instructions carefully before you begin.
(Certain installations may require professional help.) Also be sure your installation conforms to local codes.
!
INSTALL CLOSET BOLTS
Install closet bolts in flange channel, turn 90°, and slide
into place 6" (152 mm) apart and parallel to wall.
719mm
(28-3/8 )
FINISHED WALL
191mm (7-1/2)
20mm
(3/4 Min.)
419mm
(16-1/2)
729mm
(28-3/4)
400mm (15-3/4)
236mm
(9-5/16)
399mm
(15-3/4)
140mm
(5-1/2)
470mm
(18-1/2)
C/L OF SEAT POST
HOLES 140mm
(5-1/2) CENTERS
INSTALLATION INSTRUCTIONS
CARE AND MAINTENANCE
OVALE™
FINISHED
FLOOR
SUPPLY
AS
REQ'D.
12"
(305mm)
OVALE™ - 1.28 GPF ONE-PIECE TOILET
Model 97620-28

6
7
INSTALL TOILET
a. Position toilet squarely to wall and, with a rocking
motion, press bowl down fully on wax ring and flange.
Alternately tighten nuts until toilet is firmly seated on
floor.
CAUTION:
DO NOT OVERTIGHTEN NUTS
OR BASE MAY BE DAMAGED!
b. Install caps on washers. (If necessary, cut bolt height to
size before installing caps.)
c. Smooth off the bead of sealant around base. Remove
excess sealant.
INSTALL TOILET SEAT Install toilet seat in accordance with manufacturer's directions.
!
- 2 -
8a 8b
Before continuing, determine the type of water supply connecation you have from
the chart below and use the appropriate assembly parts required to properly
reconnect the water supply. DO NOT use plumber's putty to seal these fittings.
CAUTION: DO NOT USE
CONE WASHER WITH
PLASTIC SUPPLY LINE.
These parts must be used as
illustrated to insure water-tight
connection. Use of existing
coupling nut may result in
water leakage. Water supply
tube or pipe must extend at
least 1/2" inside threaded
shank of valve (does not apply
to flanged tubing).
Use existing
coupling nut
and washer.
Use existing spiral
cone washer.
Fluidmaster cone
washer may not
seal completely on
spiral type supply
line.
Captive cone
washers already
included. No
additional washers
needed.
CAUTION: Overtightening of
LOCK NUT or COUPLING NUT
could result in breakage and
potential flooding.
METAL/COPPER
FLARED TUBING
METAL FLANGED
TUBING
METAL SPIRAL
TUBING
VINYL/BRAIDED
CONNECTOR
LOCK NUTLOCK NUT LOCK NUT LOCK NUT
COUPLING
NUT
COUPLING
NUT
EXISTING
COUPLING
NUT
COUPLING
NUT
WATER
SHUT-OFF
WATER
SHUT-OFF
WATER
SHUT-OFF
WATER
SHUT-OFF
CONE
WASHER
EXISTING
CONE
WASHER
EXISTING
WASHER
With correct washers in place
(see Step 8a), tighten
COUPLING NUT 1/4 turn beyond
hand tight. DO NOT
OVERTIGHTEN.
7301359-100 Rev. A
BOLTS CLOSET FLANGE
BOLT CAP

TRIP
LEVER
BOLT
CAPS
9 10
ADJUSTMENTS
a. Adjust water level. Water level
should be adjusted to level indicated
on tank by adjusting float cup.
See Step 10 for water level adjustment
method.
b. If bowl fails to siphon, an adjustment
may be required with the lift chain.
Simply remove the bead chain from
the retainment clip (see Fig. 9A) and
take up slack on the chain, and
reinsert on lift rod. Make sure the chain
is not too taught.
11
- 3 -
CARE AND CLEANING
When cleaning your toilet, wash it with mild, soapy water, rinse thoroughly with clear water and dry with a soft cloth. Avoid detergents,
disinfectants, or cleaning products in aerosol cans. NEVER use abrasive scouring powders or abrasive pads on your toilet seat. Some
bathroom chemicals and cosmetics may damage the seat's finish.
WARNING: Do not use in-tank cleaners. Products containing chlorine (calcium hypochlorite) can seriously damage fittings in the
tank. This damage can cause leakage and property damage.
American Standard shall not be responsible or liable for any tank fitting damage caused by the use of cleaners containing
chlorine (calcium hypochlorite).
7301359-100 Rev. A
!
TANK
LEVER
"S"
CLIP
TOP OF
OVERFLOW
FLUSH
VALVE
TOP ARM
NIPPLE
Diagram 1
PARTS FOR WATER
CONNECTION
(SEE STEP 9)
CONE WASHER
VALVE
BODY
FLAPPER
THREADED
SHANK
SHANK
WASHER
COUPLING NUT
(HAND TIGHT ONLY)
FILL
VALVE
FLOAT
CUP
CRITICAL LEVEL
MARK ("C.L.")
MUST BE
1" ABOVE
OVERFLOW PIPE
REFILL
TUBE
ADJUSTABLE
HEIGHT
WATER LEVEL
ADJUSTMENT
ROD
LOCK NUT
Fig. 9A
Turn on water supply.
Submerge the FLOAT CUP
under the water for 30
seconds. Adjust the water to
desired level by turning
WATER LEVEL ADJUSTMENT
ROD and moving FLOAT CUP
up or down.
REPAIR PARTS LIST
TANK COVER
SEAT POST
MTG. KIT
SEAT AND COVER
(INCLUDES MTG. KIT)
FLAPPER
ASSEMBLY
FLUSH VALVE
FLUIDMASTER
WATER CONTROL
DESCRIPTIONCOMPONENT 97620-60
1.6 GPF
97620-28
1.28 GPF
Tank Cover
Seat - Elongated
Bolt Cap Kit
Trip Lever
Inlet Valve - 1.6 GPF
Inlet Valve - 1.28 GPF
Flush Valve - 1.6 GPF
Flush Valve - 1.28 GPF
Flapper Assembly - 1.6 GPF
Flapper Assembly - 1.28 GPF
√
√
√
√
√
√
√
80620-00.XXX
70320-00.XXX
034783-XXX0A
81750-00.XXX
738565-409.0070A
738565-429.0070A
738942-100.0070A
738942-102.0070A
738920-0070A
7381043-4000A
√
√
√
√
√
√
√

7301359-100 Rev. A
12
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Does not flush a. Water supply valve closed. a. Open valve and allow water to fill tank.
b. Supply line blocked. b. Shut off water supply, disconnect supply line, and inspect
all gaskets and washers. Reassemble. Also, see Fluidmaster
maintenance (see step 12).
c. Flush valve chain too loose or disconnected. c. Readjust chain length as required.
d. Sand or debris lodged in water control. d. Shut off water supply. Remove cap and clean per Step 12.
Poor or sluggish flush a. Bowl water level too low. a. Check that refill tube is connected to water control and
inserted into tank overflow without being kinked or damaged.
b. Supply valve partly closed. b. Open supply valve fully. Be sure that proper supply tube size is used.
c. Partially clogged trapway and/or drain pipe and/or vent. c. Remove obstruction. Consult a plumber if necessary.
d. Supply pressure too low. d. Normal supply pressure must be at least 20 psi.
Toilet leaks a. Poor supply line connection. a. Review Step 8 of installation procedure.
b. Poor bowl to tank/floor connection. b. Review Step 4 through 6 of installation procedure.
Toilet does not shut off a. Flush valve chain too tight, holding flush valve open. a. Readjust chain length as needed. Review step 9.
b. Flush valve seat and/or flapper worn or deformed. b. Replace flapper/flush valve assembly, as needed.
c. Sand or debris lodged in water control. c. Shut off water supply. Remove cap and clean per Step 12.
- 4 -
In the United States:
Porcher
P.O. Box 6820
Piscataway, New Jersey 08855
Attention: Director of Consumer Affairs
For residents of the United States, warranty information may also be
obtained by calling the following toll free number: [phone]
www.porcher-us.com
In Canada:
Porcher
2480 Stanfield Rd.
Mississauga, Ontario
Canada L4Y 1S2
Toll Free: [phone]
In Mexico:
Manager, Porcher
Ideal Standard, S.A. de C.V.
Via Morelos #330
Col. Santa Clara
Ecatepec 55540 Edo. Mexico

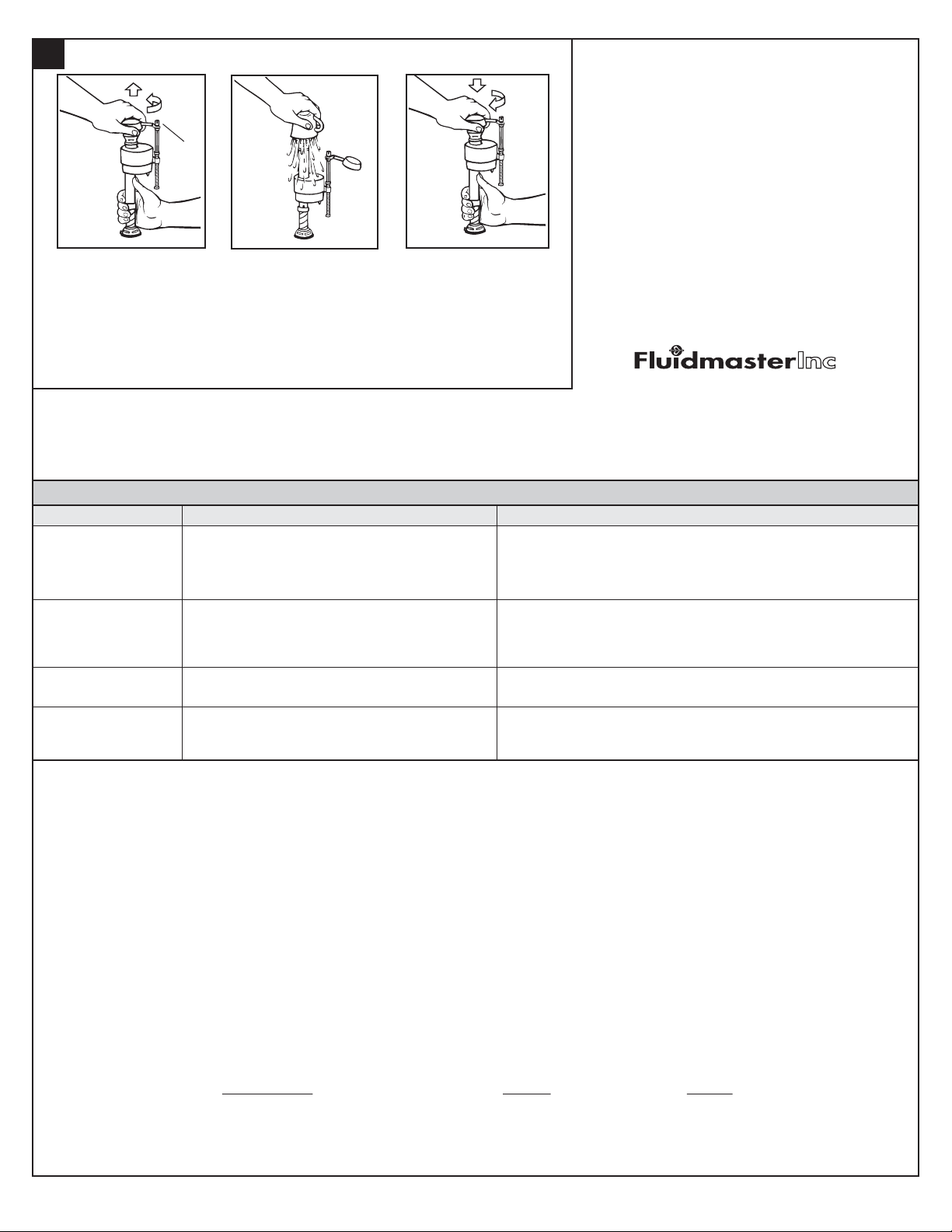

• Make sure water supply is
off. Remove valve TOP by
lifting arm and rotating top
and arm 1/8 turn
counterclockwise, pressing
down slightly on cap.
IMPORTANT: Always
clear sand and rust from
system.
• While holding a
container over the
uncapped VALVE to
prevent splashing, turn
water supply on and off
a few times. Leave
water supply off.
• Replace TOP by engaging
lugs and rotating 1/8 turn
clockwise. MAKE
CERTAIN TIP IS TURNED
TO THE LOCKED
POSITION. VALVE MAY
NOT TURN ON IF TOP IS
NOT FULLY TURNED TO
THE LOCKED POSITION.
For troubleshooting information please contact:
TROUBLESHOOTING
IF FILL VALVE SHUTS OFF BUT CONTINUES TO LEAK
SLOWLY, repeat Step 12.
IF FILL VALVE TURNS OFF AND ON DURING PERIODS OF
NON-USE, it is a signal you are wasting water because:
• The end of the refill tube is inserted into overflow pipe, below
water level in tank. Attach refill tube to overflow pipe using "S"
clip provided.
• The flush valve is leaking because it's worn, dirty or misaligned
with tank ball or flapper (replace with a new flapper).
IF FILL VALVE WON'T TURN ON OR SHUT OFF or REFILL
OF TANK WATER IS SLOW after valve has been in use for
some time, Fluidmaster Model 242 Replacement Seal may be
needed.
Go to our website at www.fluidmaster.com for more
solutions to toilet problems.
© 2001 Fluidmaster, Inc.
® Registered trademark of Fluidmaster, Inc.
Always use quality Fluidmaster repair parts when maintaining your Fluidmaster products. Fluidmaster
shall not be responsible or liable for any damages caused by products used with Fluidmaster valves
that were not manufactured by Fluidmaster, Inc.
30800 Rancho Viejo Road
San Juan Capistrano, CA 92675
[phone] [phone]
www.fluidmaster.com
LEVER LE
BRAS EN
PREMIER
This limited warranty applies only to the original purchaser and installation of the products. In the event of a limited warranty claim, proof of purchase will be required -
save sales receipt.
- If inspection of this Porcher plumbing product, inclusive of all china components, within ten years after its initial purchase, confirms that it is defective in materials
or workmanship, Porcher will repair or, at its option, exchange the product for a similar model.
- If inspection of this Porcher plumbing product, inclusive of all mechanical components, within five years after its initial purchase, confirms that it is defective in
materials or workmanship, Porcher will repair or, at its option, exchange the product for a similar model.
- If inspection of this Porcher plumbing product, inclusive of all toilet seat components, within one year after its initial purchase, confirms that it is defective in
materials or workmanship, Porcher will repair or, at its option, exchange the product for a similar model.
This warranty does not apply to local building code compliance. Since local building codes vary considerably, the purchaser of this product should check with a local
building or plumbing contractor to insure local code compliance before installation.
This warranty shall be void if the product has been moved from its initial place of installation; if it has been subjected to faulty maintenance, abuse, misuse, accident or
other damage; if it was not installed in accordance with PORCHER'S instructions; or if it has been modified in a manner inconsistent with the product as shipped by
PORCHER.
This warranty DOES NOT COVER any damage caused by the use of in-tank cleaners.
PORCHER'S option to repair or exchange the product under this warranty does not cover any labor or other costs of removal or installation, nor shall PORCHER be
responsible for any other incidental or consequential damages attributable to a product defect or to the repair or exchange of a defective product, all of
which are expressly excluded from this warranty. (Some states or provinces do not allow the exclusion or limitation of implied warranties, so this exclusion may not
apply to you.)
This warranty gives you specific legal rights. You may have other statutory rights that vary from state to state or from province to province, in which case this warranty
does not affect such statutory rights.
For service under this warranty, it is suggested that a claim be made through the contractor or dealer from or through whom the product was purchased, or that a
service request (including a description of the product model and of the defect) be sent to the following address:
LIMITED WARRANTY
