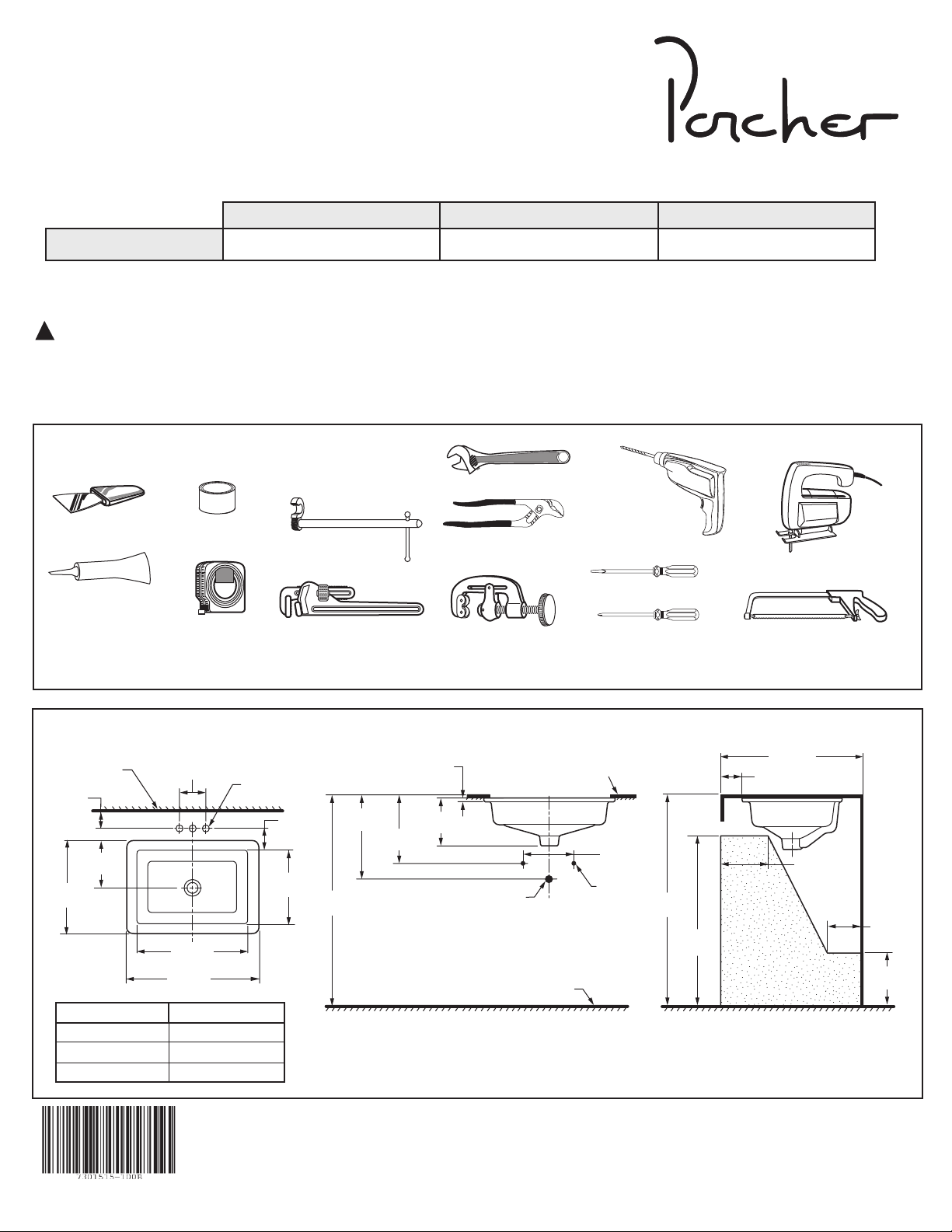

Porcher Marquee Petite 12100 User manual

Rectangular 12100
Petite
12060
Medium
12020
Grande
INSTALLATION INSTRUCTIONS
Thank you for selecting our Porcher product.To ensure that your installation proceeds smoothly, read these instructions carefully before
you begin.Also, review the recommended tools and materials section. Carefully unpack and examine your new plumbing fixture.
7301515-100 Rev. B
ALL INSTALLATION PROCEDURES MUST COMPLY IN STRICT ACCORDANCE WITH APPLICABLE LOCAL
PLUMBING AND BUILDING CODES
CAUTION: CHINA LAVATORIES MAY BE HEAVY AND ARE FRAGILE. USE EXTREME CARE WHEN HANDLING!
NOTE: Pictures may not exactly define contour of china and components.
!
Product names listed herein are trademarks of Porcher
© Porcher 2011
MARQUEE RECTANGULAR
UNDERCOUNTER SINKS
Adjustable Wrench
Channel Lock Pliers
Regular Screwdriver
Recommended Tools & Materials
Rough-in: 12020 Marquee Grande Rectangular Undercounter Lavatory
Phillips Screwdriver
10'
Pipe Wrench
Putty Knife
Silicone Adhesive
Basin Wrench
Plumbers' Putty
Tubing Cutter
Tape
Measure Hacksaw
Drill
Saber Saw
NOTE: More specialized tools may be necessary to install this sink to countertop materials other than wood or wood composites.
B-Fitting SpreadA-Fitting Dia.
AB
1-3/8"(35mm)
1-3/8"(35mm)
4"(102mm)
8"(203mm)
2" MIN.
(51mm)
FINISHED
WALL OR
SPLASHBACK
1-1/4" O.D. WASTE
SUPPLIES
AS REQ'D.
FINISHED FLOOR
BARRIER FREE
CLEARANCE
2-5/8"
(66mm)
A
BCOUNTERTOP
(BY OTHERS)
5/8"
(15mm)
7-1/2"
(191mm)
8"
(203mm) 8" MIN.
(203mm)
27" MIN.
(686mm)
9" MIN.
(229mm)
6" MAX.
(152mm)
34"
(864mm)
11-1/4"
(286mm)
13-3/4"
(349mm)
24"
(610mm)
4"
(102mm)
34"
(864mm)
8-3/8"
(211mm)
16-5/8"
(422mm)
13-1/2"
(342mm)
20-1/2"
(520mm)
23-5/8"
(600mm)

7301515-100 Rev. B
B-Fitting SpreadA-Fitting Dia.
AB
1-3/8"(35mm)
1-3/8"(35mm)
4"(102mm)
8"(203mm)
Rough-in: 12060
Marquee Rectangular
Undercounter Lavatory
Rough-in: 12100
Marquee Petite
Rectangular
Undercounter Lavatory
A
B
A
B
2" MIN.
(51mm)
FINISHED WALL
OR SPLASHBACK
1-1/4" O.D. WASTE
SUPPLIES
AS REQ'D.
FINISHED FLOOR
BARRIER FREE
CLEARANCE
2-5/8"
(66mm)
COUNTERTOP
(BY OTHERS)
5/8"
(15mm)
7-1/2"
(191mm)
8"
(203mm) 8" MIN.
(203mm)
27" MIN.
(686mm)
9" MIN.
(229mm)
6" MAX.
(152mm)
34"
(864mm)
11-1/4"
(286mm)
13-3/4"
(349mm)
24"
(610mm)
4"
(102mm)
34"
(864mm)
7-3/8"
(186mm)
14-5/8"
(371mm)
11-1/2"
(292mm)
17-3/4"
(451mm)
20-7/8"
(531mm)
2" MIN.
(51mm)
FINISHED WALL
OR SPLASHBACK
1-1/4" O.D. WASTE
SUPPLIES
AS REQ'D.
FINISHED FLOOR
BARRIER FREE
CLEARANCE
2-5/8"
(66mm)
COUNTERTOP
(BY OTHERS)
5/8"
(15mm)
7-1/2"
(191mm)
8"
(203mm) 8" MIN.
(203mm)
27" MIN.
(686mm)
9" MIN.
(229mm)
6" MAX.
(152mm)
34"
(864mm)
11-1/4"
(286mm)
13-3/4"
(349mm)
24"
(610mm)
4"
(102mm)
34"
(864mm)
6-3/8"
(161mm)
12-5/8"
(321mm)
9-1/2"
(241mm)
14-1/2"
(368mm)
17-5/8"
(448mm)

After checking fit and alignment of sink to cut out,
apply a bead of silicone adhesive to rim of sink.
The use other compounds is not reccomended.
A
Mount the drain assembly
(not included) on the sink,
following faucet
manufacturer's instructions.
Be certain to apply a bead
of sealing putty on the
underside of the drain (Part
"A") in order to ensure a
watertight seal between the
sink and drain. Remove
excess putty after installing
drain on sink.
5
6
Install faucet (not included) and countertop (not
included) following manufacturers instructions.
8
7
NOTE: To avoid damage to
countertop, install sink such that
future removal from underneath
the countertop is possible.
First, make sure the clearance
between the backsplash, faucet,
fixtures and cabinets are
acceptable for the new sink.
For ADA compliance, all models
must be installed with the
overflow in the rear.
Carefully cut out the enclosed template, then position and trace
the template on the countertop as shown on the template. Make
a mark of the faucet hole centerline on the countertop. Drill a
1/2" pilot hole on the inside of the cut line. Use a saber saw or a
keyhole saw to cut out the countertop opening.
7301515-100 Rev. B
Perimeter of Sink
Cutout
3/4" MIN.
Clip
3/4" MIN.
Clip
FOR MARBLE OR SOLID SURFACE COUNTERTOP
FOR WOOD COUNTERTOP
1
2
Mark and pre-drill the wood screw holes as located on the
enclosed template. Waterproof any exposed areas of wood.
To protect countertop, place it on a foam padding and drill
3/8 Dia. X 1/2 deep hole as per location shown on template.
3
4
Drill 1/8 dia. X 3/8 deep
#10 Wood Screw
Center bowl over cutout and tighten screws (see 3 or 4)
to secure bowl to countertop. Remove excess sealant
from inside lip.
NOTE: The screws
provided should be
used on countertops
with a minimum 1"
thickness. For thinner
countertops, use
appropriate anchors
and fasteners.
#10-24
Machine screw
Brass insert, exopy in place with
threaded evd exposed.
(Exopy not supplied.)

BC
Connect trap to drain
assembly hand tight to
check alignment. It may be
necessary to cut off part of
the tailpiece (area "B") or
part of the horizontal leg
of the trap (area "C").
Secure joints for watertight
assembly.
10
9Connect supply line to
faucet (finger tight) and
carefully bend tubes to
engage with the supply
shut-off valves. Tighten
connections at faucet
and shut-off valves for
water tight seal.
Shut-Off
Valves
Do not use harsh abrasives or caustic cleaners to clean fixture surfaces. A mild detergent, warm water, and a soft
cloth will remove normal dirt and soap accumulations from fittings and surfaces. Rinse thoroughly after cleaning
and polish with a soft dry cloth to restore original luster of material.
CARE AND MAINTENANCE
PORCHER ONE-YEAR LIMITED WARRANTY
If inspection of this Porcher plumbing product, within one year after its initial purchase, confirms that it is defective in
materials or workmanship, Porcher will repair or, at its option, exchange the product for a similar model.
This warranty does not apply to local building code compliance. Since local building codes vary considerably, the
purchaser of this product should check with a local building or plumbing contractor to insure local code compliance before
installation.
This warranty shall be void if the product has been moved from its initial place of installation; if it has been subjected to
faulty maintenance, abuse, misuse, accident or other damage; if it was not installed in accordance with Porcher's
instructions; or if it has been modified in a manner inconsistent with the product as shipped by Porcher.
Porcher's option to repair or exchange the product under this warranty does not cover any labor or other costs of removal or
installation, nor shall Porcher be responsible for any other incidental or consequential damages attributable to a
product defect or to the repair or exchange of a defective product, all of which are expressly excluded from this
warranty. (Some states or provinces do not allow the exclusion or limitation of implied warranties, so this exclusion may not
apply to you.)
This warranty gives you specific legal rights.You may have other statutory rights that vary from state to state or from province
to province, in which case this warranty does not affect such statutory rights.
For service under this warranty, it is suggested that a claim be made through the contractor or dealer from or through whom
the product was purchased, or that a service request (including a description of the product model and of the defect) be
sent to the following address:
7301515-100 Rev. B
REPAIR PARTS
REPAIR PARTREPAIR PART NUMBER
Mounting Kit7301442-100.0070A
