Porter-Cable CPLC7060V User manual

Part No. D23269-049-2
®
Single Stage Oillube
Compressor
Instruction
manual
To learn more about Porter-Cable
visit our website at:
http://www.porter-cable.com
The Model and Serial No. plate is located on the
frame. Record these numbers in the spaces below
and retain for future reference.
Model No.
Type
Serial No.
ESPAÑOL: PÁGINA 25
FRANÇAIS: PAGE 49
IMPORTANT
Please make certain that the person who is to use this
equipment carefully reads and understands these
instructions before starting operations.
PROFESSIONAL POWER TOOLS
Copyright © 2004 PORTER-CABLE Corporation
MODEL
CPLC7060V

2 - ENGD23269
indicates a
potentially hazardous situation which,
if not avoided, may result in minor or
moderate injury.
This manual contains information that is important for you to know and understand. This informa-
tion relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help
you recognize this information, we use the symbols below. Please read the manual and pay at-
tention to these sections.
indicates an
imminently hazardous situation
which, if not avoided, will result in
death or serious injury.
used without
the safety alert symbol indicates a
potentially hazardous situation which,
if not avoided, may result in property
damage.
indicates a
potentially hazardous situation which,
if not avoided, could result in death
or serious injury.
Call our Toll Free Number 1-888-559-8550, to obtain the location of the nearest Authorized
Service Center for ordering repair parts and for warranty repairs.
When ordering repair parts from your local Authorized Service Center, always give the fol-
lowing information:
• Model number of your compressor
• Part number and description of the item you wish to purchase
Retain Original Sales Receipt as Proof of Purchase for Warranty Repair Work.
SAFETY GUIDELINES - DEFINITIONS
IMPORTANT SAFETY INSTRUCTIONS
When using electric tools, basic safety precautions
should always be followed to reduce the risk of
fire, electric shock and personal injury, including the following:
READ AND FOLLOW ALL INSTRUCTIONS.
This tool was designed for certain applications. Porter-Cable strongly recommends
that this tool NOT be modified and/or used for any application other than for which it
was designed. If you have any questions relative to its application, DO NOT use the
tool until you have written Porter-Cable and we have advised you.
Technical Service Manager
Porter-Cable Corporation
4825 Highway 45 North
P.O. Box 2468
Jackson, TN 38302-2468

3 - ENG D23269
RISK OF BURSTING
SAVE THESE INSTRUCTIONS
IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD RESULT IN SERIOUS INJURY
AND PROPERTY DAMAGE. READ AND UNDERSTAND ALL WARNINGS AND OPERATING INSTRUC-
TIONS BEFORE USING THIS EQUIPMENT.
RISK OF EXPLOSION OR FIRE
AIR TANK: THE FOLLOWING CONDITIONS COULD LEAD TO A WEAKENING OF THE TANK, AND RESULT
IN A VIOLENT TANK EXPLOSION AND COULD CAUSE PROPERTY DAMAGE OR SERIOUS INJURY.
HAZARD
WHAT CAN HAPPEN HOW TO PREVENT IT
IMPORTANT SAFETY INSTRUCTIONS (cont’d)
WHAT CAN HAPPEN HOW TO PREVENT IT
IT IS NORMAL FOR ELECTRICAL CONTACTS
WITHIN THE MOTOR AND PRESSURE SWITCH TO
SPARK.
IF ELECTRICAL SPARKS FROM COMPRESSOR
COME INTO CONTACT WITH FLAMMABLE
VAPORS, THEY MAY IGNITE, CAUSING FIRE OR
EXPLOSION.
RESTRICTING ANY OF THE COMPRESSOR
VENTILATION OPENINGS WILL CAUSE SERIOUS
OVERHEATING AND COULD CAUSE FIRE.
UNATTENDED OPERATION OF THIS PRODUCT
COULD RESULT IN PERSONAL INJURY OR
PROPERTY DAMAGE. TO REDUCE THE RISK
OF FIRE, DO NOT ALLOW THE COMPRESSOR
TO OPERATE UNATTENDED.
ALWAYS OPERATE THE COMPRESSOR IN A
WELL VENTILATED AREA FREE OF COM-
BUSTIBLE MATERIALS, GASOLINE OR SOL-
VENT VAPORS.
IF SPRAYING FLAMMABLE MATERIALS, LOCATE
COMPRESSOR AT LEAST 20 FEET AWAY FROM
SPRAY AREA. AN ADDITIONAL LENGTH OF
HOSE MAY BE REQUIRED.
STORE FLAMMABLE MATERIALS IN A SECURE
LOCATION AWAY FROM COMPRESSOR.
NEVER PLACE OBJECTS AGAINST OR ON TOP
OF COMPRESSOR. OPERATE COMPRESSOR
IN AN OPEN AREA AT LEAST 12 INCHES AWAY
FROM ANY WALL OR OBSTRUCTION THAT
WOULD RESTRICT THE FLOW OF FRESH AIR TO
THE VENTILATION OPENINGS.
OPERATE COMPRESSOR IN A CLEAN, DRY, WELL
VENTILATED AREA. DO NOT OPERATE UNIT
INDOORS OR IN ANY CONFINED AREA.
ALWAYS REMAIN IN ATTENDANCE WITH THE
PRODUCT WHEN IT IS OPERATING.
ALWAYS DISCONNECT ELECTRICAL POWER
BY MOVING PRESSURE SWITCH LEVER TO
THE OFF POSITION AND DRAIN TANK DAILY
OR AFTER EACH USE.
1. FAILURE TO PROPERLY DRAIN CONDENSED
WATER FROM THE TANK, CAUSING RUST
AND THINNING OF THE STEEL TANK.
2. MODIFICATIONS OR ATTEMPTED REPAIRS
TO THE TANK.
3. UNAUTHORIZED MODIFICATIONS TO THE
UNLOADER VALVE, SAFETY VALVE, OR ANY
OTHER COMPONENTS WHICH CONTROL
TANK PRESSURE.
4. EXCESSIVE VIBRATION CAN WEAKEN THE
AIR TANK AND CAUSE RUPTURE OR
EXPLOSION.
ATTACHMENTS & ACCESSORIES:
EXCEEDING THE PRESSURE RATING OF AIR
TOOLS, SPRAY GUNS, AIR OPERATED ACCESSO-
RIES, TIRES AND OTHER INFLATABLES CAN
CAUSE THEM TO EXPLODE OR FLY APART, AND
COULD RESULT IN SERIOUS INJURY.
DRAIN TANK DAILY OR AFTER EACH USE. IF
TANK DEVELOPS A LEAK, REPLACE IT IMMEDI-
ATELY WITH A NEW TANK OR REPLACE THE
ENTIRE COMPRESSOR.
NEVER DRILL INTO, WELD, OR MAKE ANY MOD-
IFICATIONS TO THE TANK OR ITS ATTACH-
MENTS.
THE TANK IS DESIGNED TO WITHSTAND SPECIF-
IC OPERATING PRESSURES. NEVER MAKE
ADJUSTMENTS OR PARTS SUBSTITUTIONS TO
ALTER THE FACTORY SET OPERATING PRES-
SURES.
FOR ESSENTIAL CONTROL OF AIR PRESSURE,
YOU MUST INSTALL A PRESSURE REGULATOR
AND PRESSURE GAUGE TO THE AIR OUTLET OF
YOUR COMPRESSOR. FOLLOW THE EQUIPMENT
MANUFACTURERS RECOMMENDATION AND NEV-
ER EXCEED THE MAXIMUM ALLOWABLE PRES-
SURE RATING OF ATTACHMENTS. NEVER USE
COMPRESSOR TO INFLATE SMALL LOW-PRES-
SURE OBJECTS SUCH AS CHILDREN’S TOYS,
FOOTBALLS, BASKETBALLS. ETC.

4 - ENGD23269
RISK FROM FLYING OBJECTS
IMPORTANT SAFETY INSTRUCTIONS (cont’d)
WHAT CAN HAPPEN HOW TO PREVENT IT
AIR OBTAINED DIRECTLY FROM THE COMPRES-
SOR SHOULD NEVER BE USED TO SUPPLY AIR
FOR HUMAN CONSUMPTION. IN ORDER TO USE
AIR PRODUCED BY THIS COMPRESSOR FOR
BREATHING, SUITABLE FILTERS AND IN-LINE
SAFETY EQUIPMENT MUST BE PROPERLY
INSTALLED. IN-LINE FILTERS AND SAFETY
EQUIPMENT USED IN CONJUNCTION WITH THE
COMPRESSOR MUST BE CAPABLE OF TREAT-
ING AIR TO ALL APPLICABLE LOCAL AND FED-
ERAL CODES PRIOR TO HUMAN CONSUMP-
TION.
RISK TO BREATHING
WHAT CAN HAPPEN HOW TO PREVENT IT
YOUR AIR COMPRESSOR IS POWERED BY ELEC-
TRICITY. LIKE ANY OTHER ELECTRICALLY POW-
ERED DEVICE, IF IT IS NOT USED PROPERLY IT
MAY CAUSE ELECTRIC SHOCK.
NEVER OPERATE THE COMPRESSOR OUTDOORS
WHEN IT IS RAINING OR IN WET CONDITIONS.
NEVER OPERATE COMPRESSOR WITH PROTEC-
TIVCOVERS REMOVED OR DAMAGED. a
RISK OF ELECTRICAL SHOCK
WHAT CAN HAPPEN HOW TO PREVENT IT
THE COMPRESSED AIR STREAM CAN CAUSE
SOFT TISSUE DAMAGE TO EXPOSED SKIN AND
CAN PROPEL DIRT, CHIPS, LOOSE PARTICLES
AND SMALL OBJECTS AT HIGH SPEED, RESULT-
ING IN PROPERTY DAMAGE OR PERSONAL
INJURY.
ALWAYS WEAR ANSI Z87.1 APPROVED SAFETY
GLASSES WITH SIDE SHIELDS WHEN USING
THE COMPRESSOR.
NEVER POINT ANY NOZZLE OR SPRAYER
TOWARD ANY PART OF THE BODY OR AT
OTHER PEOPLE OR ANIMALS.
ALWAYS TURN THE COMPRESSOR OFF AND
BLEED PRESSURE FROM THE AIR HOSE AND
TANK BEFORE ATTEMPTING MAINTENANCE,
ATTACHING TOOLS OR ACCESSORIES.
WORK IN AN AREA WITH GOOD CROSS-VENTI-
LATION. READ AND FOLLOW THE SAFETY
INSTRUCTIONS PROVIDED ON THE LABEL OR
SAFETY DATA SHEETS FOR THE MATERIAL YOU
ARE SPRAYING. USE A NIOSH/MSHA
APPROVED RESPIRATOR DESIGNED FOR USE
WITH YOUR SPECIFIC APPLICATION.
THE COMPRESSED AIR DIRECTLY FROM YOUR
COMPRESSOR IS NOT SAFE FOR BREATHING.
THE AIR STREAM MAY CONTAIN CARBON
MONOXIDE, TOXIC VAPORS, OR SOLID PARTI-
CLES FROM THE TANK. BREATHING THESE
CONTAMINANTS CAN CAUSE SERIOUS INJURY
OR DEATH.
SPRAYED MATERIALS SUCH AS PAINT, PAINT
SOLVENTS, PAINT REMOVER, INSECTICIDES,
WEED KILLERS, CONTAIN HARMFUL VAPORS
AND POISONS.
REPAIRS ATTEMPTED BY UNQUALIFIED PERSON-
NEL CAN RESULT IN SERIOUS INJURY OR DEATH
BY ELECTROCUTION.
ANY ELECTRICAL WIRING OR REPAIRS
REQUIRED ON THIS PRODUCT SHOULD BE PER-
FORMED BY AUTHORIZED SERVICE CENTER
PERSONNEL IN ACCORDANCE WITH NATIONAL
AND LOCAL ELECTRICAL CODES.
ELECTRICAL GROUNDING: FAILURE TO PROVIDE
ADEQUATE GROUNDING TO THIS PRODUCT
COULD RESULT IN SERIOUS INJURY OR DEATH
FROM ELECTROCUTION. SEE GROUNDING
INSTRUCTIONS.
MAKE CERTAIN THAT THE ELECTRICAL CIRCUIT
TO WHICH THE COMPRESSOR IS CONNECTED
PROVIDES PROPER ELECTRICAL GROUNDING,
CORRECT VOLTAGE AND ADEQUATE FUSE
PROTECTION.

5 - ENG D23269
RISK FROM MOVING PARTS
RISK OF BURNS
RISK OF FALLING
IMPORTANT SAFETY INSTRUCTIONS (cont’d)
WHAT CAN HAPPEN HOW TO PREVENT IT
WHAT CAN HAPPEN HOW TO PREVENT IT
WHAT CAN HAPPEN HOW TO PREVENT IT
MOVING PARTS SUCH AS THE PULLEY, FLY-
WHEEL AND BELT CAN CAUSE SERIOUS
INJURY IF THEY COME INTO CONTACT WITH
YOU OR YOUR CLOTHING.
TOUCHING EXPOSED METAL SUCH AS THE
COMPRESSOR HEAD OR OUTLET TUBES, CAN
RESULT IN SERIOUS BURNS.
NEVER OPERATE THE COMPRESSOR WITH
GUARDS OR COVERS WHICH ARE DAMAGED OR
REMOVED.
NEVER TOUCH ANY EXPOSED METAL PARTS
ON COMPRESSOR DURING OR IMMEDIATELY
AFTER OPERATION. COMPRESSOR WILL
REMAIN HOT FOR SEVERAL MINUTES AFTER
OPERATION.
DO NOT REACH AROUND PROTECTIVE
SHROUDS OR ATTEMPT MAINTENANCE UNTIL
UNIT HAS BEEN ALLOWED TO COOL.
A PORTABLE COMPRESSOR CAN FALL FROM A
TABLE, WORKBENCH OR ROOF CAUSING DAM-
AGE TO THE COMPRESSOR AND COULD
RESULT IN SERIOUS INJURY OR DEATH TO THE
OPERATOR.
ALWAYS OPERATE COMPRESSOR IN A STABLE
SECURE POSITION TO PREVENT ACCIDENTAL
MOVEMENT OF THE UNIT. NEVER OPERATE
COMPRESSOR ON A ROOF OR OTHER ELEVAT-
ED POSITION. USE ADDITIONAL AIR HOSE TO
REACH HIGH LOCATIONS.
WHAT CAN HAPPEN HOW TO PREVENT IT
RISK OF PROPERTY DAMAGE WHEN
TRANSPORTING COMPRESSOR
(Fire, Inhalation, Damage
to Vehicle Surfaces)
OIL CAN LEAK OR SPILL AND COULD RESULT
IN FIRE OR BREATHING HAZARD, SERIOUS
INJURY OR DEATH CAN RESULT. OIL LEAKS
WILL DAMAGE CARPET, PAINT OR OTHER SUR-
FACES IN VEHICLES OR TRAILERS.
ALWAYS PLACE COMPRESSOR ON A PROTEC-
TIVE MAT WHEN TRANSPORTING TO PROTECT
AGAINST DAMAGE TO VEHICLE FROM LEAKS.
REMOVE COMPRESSOR FROM VEHICLE IMMEDI-
ATELY UPON ARRIVAL AT YOUR DESTINATION.
ATTEMPTING TO OPERATE COMPRESSOR WITH
DAMAGED OR MISSING PARTS OR ATTEMPT-
ING TO REPAIR COMPRESSOR WITH PROTEC-
TIVE SHROUDS REMOVED CAN EXPOSE YOU TO
MOVING PARTS AND CAN RESULT IN SERIOUS
INJURY.
ANY REPAIRS REQUIRED ON THIS PRODUCT
SHOULD BE PERFORMED BY AUTHORIZED
SERVICE CENTER PERSONNEL.

6 - ENGD23269
GLOSSARY
SPECIFICATIONS
Model No. CPLC7060V
Horsepower Peak 7.0
Voltage/Hertz/Phase 240V/60/1
Minimum Branch Circuit Requirement 15 Amp
* Fuse Type Time Delay
Air Tank Capacity (Gallon) 60 ASME, Vertical
Approximate Cut-in Pressure 110 PSIG
Approximate Cut-out Pressure 135 PSIG
SCFM @ 40 PSIG 12.1
SCFM @ 90 PSIG 9.7
Become familiar with these terms before operating the unit.
CFM: Cubic feet per minute.
SCFM: Standard cubic feet per minute; a unit of measure of air delivery.
PSIG: Pounds per square inch gauge; a unit of measure of pressure.
ASME: American Society of Mechanical Engineers; made, tested, inspected and
registered to meet the standards of the ASME.
Code Certification: Products that bear one or more of the following marks: UL,
CUL, ETL, CETL, have been evaluated by OSHA certified independent safety labo-
ratories and meet the applicable Underwriters Laboratories Standards for Safety.
Cut-In Pressure: While the motor is off, air tank pressure drops as you continue to
use your accessory. When the tank pressure drops to the factory set low pressure
the motor will restart automatically. The low pressure at which the motor automati-
cally restarts is called “cut-in” pressure.
Cut-Out Pressure: When an air compressor is turned on and begins to run, air
pressure in the air tank begins to build. It builds to a factory set high pressure
before the motor automatically shuts off - protecting your air tank from pressure
higher than its capacity. The high pressure at which the motor shuts off is called
“cut-out” pressure.
Branch Circuit: Circuit carrying electricity from electrical panel to outlet.
ACCESSORIES
Accessories for this unit are available at the store the unit was purchased.
* This air compressor can be operated on a 15 amp circuit if:
1. Voltage supply to circuit is normal.
2. Circuit is not used to supply any other electrical needs (lights, appliances, etc.)
3. Extension cords comply with specifications in owners manual.
4. Circuit is equipped with 15 amp circuit breaker or 15 amp time delay fuse
marked Type D.
If any of the above conditions cannot be met, or if operation of the air compressor
repeatedly causes interruption of the power it may be necessary to operate it from
a 20 amp circuit. It is not necessary to change the cord set.
* A circuit breaker is preferred. Use only a fuse or circuit breaker that is the same
rating as the branch circuit on which the air compressor is operated. If the air com-
pressor is connected to a circuit protected by fuses, use dual element time delay
fuses.

7 - ENG D23269
To Add Oil To Pump
Compressors are shipped without oil. A small amount
of oil may be present in the pump upon receipt of the
air compressor. This is due to plant testing and does not mean the
pump contains oil. Do not attempt to operate this air compressor
without first adding oil to the crankcase. Serious damage can result
from even limited operation unless filled with oil and broken in cor-
rectly. Make sure to closely follow initial start-up procedures.
Multi-Viscosity motor oils, like 10W 30, should not be
used in an air compressor. They leave carbon
deposits on critical components, thus reducing performance and
compressor life. Use air compressor oil only.
NOTE: Use an air compressor oil such as SAE-20 API CG/CD heavy duty motor oil.
Under extreme winter conditions use SAE-10 weight oil.
1. Place unit on a level surface.
2. Remove oil fill plug (A) and slowly add a com-
pressor oil until it is even with the top of the
oil fill hole. NOTE: Do not allow oil to be lower
than 3/8" (6 threads) from the top at any time.
When filling the crankcase, the oil flows very
slowly into the pump. If the oil is added too
quickly, it will overflow and appear to be full.
NOTE: Crankcase oil capacity is approximate-
ly 16 fluid ounces.
3. Replace oil fill plug.
A
Tools Required for Assembly
1 - 9/16” socket or open end wrench
Electric drill
Unpacking
1. Remove all packaging.
It may be necessary to brace or support one side of
the outfit when removing the pallet because the air
compressor will have a tendency to tip.
2. Remove and discard the (4) screws and washers holding the compressor to the
pallet.
3. With the help of another person carefully remove air compressor from pallet
and place on a level surface.
ASSEMBLY

8 - ENGD23269
INSTALLATION
Location of the Air Compressor
• Locate the air compressor in a clean, dry, and well ventilated area.
• Located the air compressor at least 12" away from the wall or other obstruc-
tions that will interfere with the flow of air.
• Locate the air compressor as close to the main power supply as possible to
avoid using long lengths of electrical wiring. Long lengths of electrical wiring
could cause power loss to the motor.
• The air filter must be kept clear of obstructions which could reduce air flow to
the air compressor.
Anchoring of the Air Compressor
Excessive Vibration can weaken the air tank and
cause an explosion. The compressor must be properly
mounted.
The air compressor MUST be bolted to a solid, level surface.
Hardware needed:
4 - Concrete anchors (not supplied)
4 - 3/8” Lag screw to fit concrete anchors
(not supplied)
4 - 5/8” Washer (found in parts bag)
- shims (if needed)
1. Place the air compressor
on on a solid, level sur-
face.
2. Mark the surface using
the holes in the air com-
pressor feet as a tem-
plate.
3. Drill holes in the surface
for the concrete anchors.
Install concrete anchors.
4. Line-up holes in surface
with holes in air com-
pressor feet.
5. Place the (4) washers (supplied) between the floor and air compressor feet. If
needed, solid shims may be placed between the washers and floor to evenly
distribute weight on all four feet. See next figure.
6. Place the (4) 3/8” lag screws through the air compressor feet, washers, shims,
and into the anchors.
7. Torque 3/8” lag screws to 7-10 ft.-lbs.

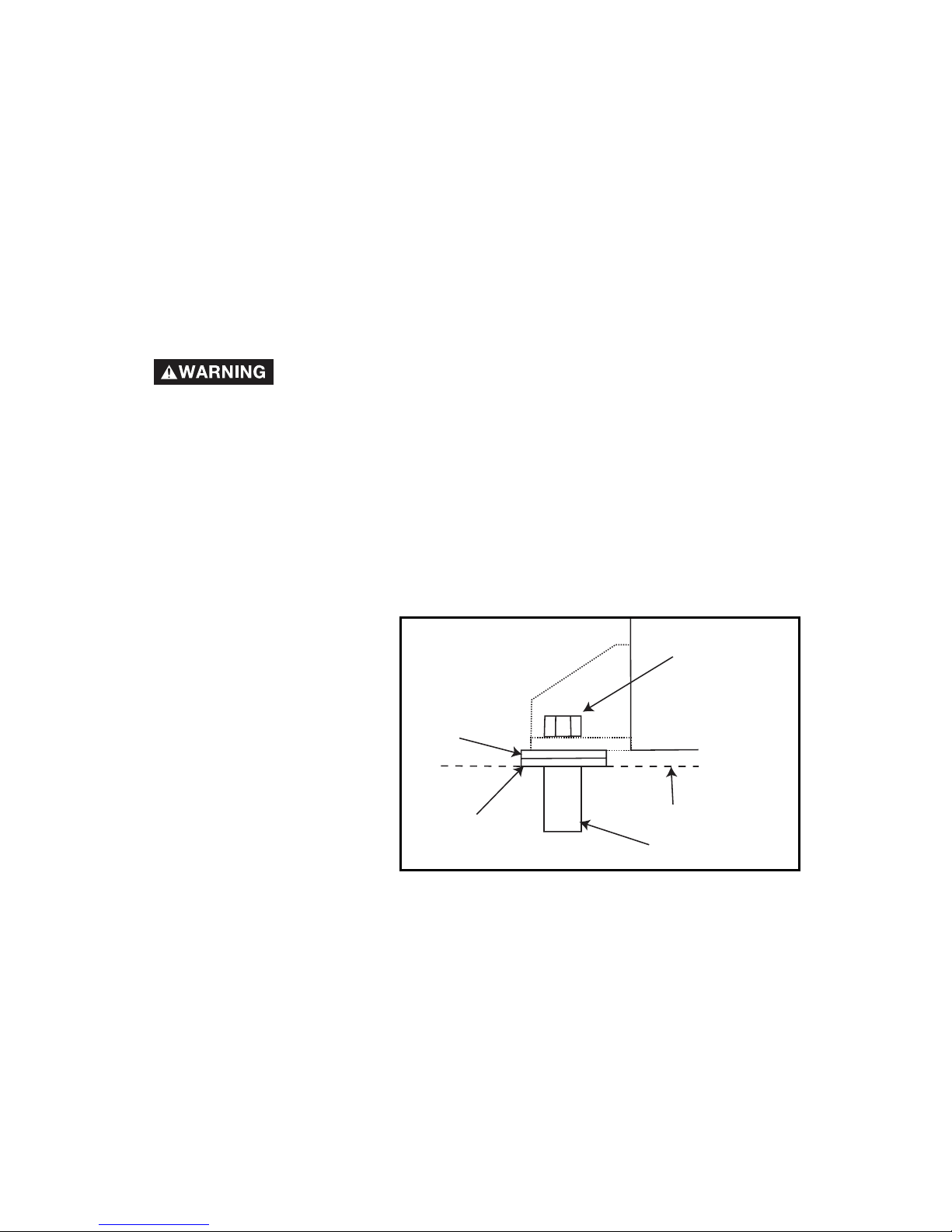

3/8” Lag
Screw
(not supplied)
5/8” Washer
(supplied)
Shim Under
Washer
(not supplied)
Concrete Anchor
(not supplied)
Surface Line

9 - ENG D23269
Wiring Instructions
Improper electrical installation of this product may
void its warranty and your fire insurance. Have circuit
wiring performed by qualified personnel such as a licensed electri-
cians who is familiar with the current national electrical code and any
prevailing local electrical codes.
RISK OF ELECTRICAL SHOCK. Improper electrical
grounding can result in electrical shock. The wiring
should be done by a qualified electrician
A qualified electrician needs to knows the following before wiring:
1. The amperage rating of the electrical box should be adequate. Refer to the
Specification Chart, in the parts manual, for this information.
2. The supply line should have the same electrical characteristics (voltage, cycle,
phase) as the motor. Refer to the motor nameplate, on side of motor, for this
information.
NOTE: The wiring must be the same as the motor nameplate voltage plus or minus
10%. Refer to local codes for recommended wire sizes, correct wire size, and maxi-
mum wire run; undersize wire causes high amp draw and overheating to the motor.
Electrical wiring must be located away from hot sur-
faces such as manifold assembly, compressor outlet
tubes, heads, or cylinders.
GROUNDING INSTRUCTIONS
This product should be connected to a metallic, permanent wiring system, of an
equipment-grounding terminal or lead on the product.
Voltage and Circuit Protection
Refer to the Parts Manual for the voltage and minimum branch circuit requirements.
Certain air compressors can be operated on a 15 amp circuit if the following condi-
tions are met.
1. Voltage supply through branch circuit is 15 amps.
2. Circuit is not used to supply any other electrical needs (lights, appliances, etc.).
3. Circuit is equipped with a 15 amp circuit breaker or 15 amp time delay fuse.
NOTE: If compressor is connected to a circuit protected by fuses, use only time
delay fuses marked “D”.
If any of the above conditions cannot be met, or if operation of the compressor
repeatedly causes interruption of the power, it may be necessary to operate it from
a 20 amp circuit.

10 - ENGD23269
Air Distribution System
Plastic or PVC pipe is not designed for use with
compressed air. Regardless of its indicated pres-
sure rating, plastic pipe can burst from air pressure. Use only metal
pipe for air distribution lines.
The next figure represents a typical air distribution system. The following are tips to
remember when setting up the air compressor’s air distribution system.
●Use pipe that is the same size as the air tank outlet. Piping that is too small will
restrict the flow of air.
●If piping is over 100 feet long, use the next larger size.
●Bury underground lines below the frost line and avoid pockets where conden-
sation can gather and freeze. Apply pressure before underground lines are cov-
ered to make sure all pipe joints are free of leaks.
●A flexible coupling is recommended to be installed between the air discharge
outlet and main air distribution line to allow for vibration.
●A separate regulator is recommended to control the air pressure. Air pressure
from the tank is usually to high for individual air driven tools.
DRAIN
TRAP
DRAIN
TRAPS
DRAIN
LEGS
MOISTURE
SEPARATOR
AND TRAP
DIRT
LEG
DIRT
LEG
LUBRICATOR
REGULATOR
FILTER
AIR DISCHARGE
VALVE
LUBRICATOR
MAIN DISTRIBUTION AIR LINES
Slope pipe in direction of air flow.
Water condensate flows along
bottom of pipe to drain legs,
preventing it from entering feeder
lines.
REGULATOR
FLEXIBLE
COUPLING
DRAIN COCK
VALVE
TYPICAL COMPRESSED
AIR DISTRIBUTION SYSTEM
AIR USAGE
LINES
AIR
COMPRESSOR

11 - ENG D23269
OPERATION
Know Your Air Compressor
READ THIS OWNER’S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR
UNIT. Compare the illustrations with your unit to familiarize yourself with the loca-
tion of various controls and adjustments. Save this manual for future reference.
Description of Operation
Become familiar with these controls before operating the unit.
On/Auto/Off Switch: Turn this switch ON to provide
automatic power to the pressure switch and OFF to
remove power at the end of each use.
Pressure Switch: The pressure switch automatically
starts the motor when the air tank pressure drops
below the factory set “cut-in” pressure. It stops the
motor when the air tank pressure reaches the facto-
ry set “cut-out” pressure.
Safety Valve: If the pressure switch does not shut
off the air compressor at its “cut-out” pressure set-
ting, the safety valve will protect against high pres-
sure by “popping out” at its factory set pressure
(slightly higher than the pressure switch “cut-out”
setting).
Tank Pressure Gauge: The tank pressure gauge
indicates the reserve air pressure in the tank.
Globe Valve (sold separately): Opens and closes air discharge valve. Turn knob
counter-clockwise to open and clockwise to close.
Drain Valve: The drain valve is located at the base of the
air tank and is used to drain condensation at the end of
each use.
Cooling System (not shown): This compressor contains
an advanced design cooling system. At the heart of this
cooling system is an engineered fan. It is perfectly normal
for this fan to blow air through the vent holes in large
amounts. You know that the cooling system is working when air is being expelled.
Air Compressor Pump (not shown): Compresses air into the air tank. Working air
is not available until the compressor has raised the air tank pressure above that
required at the air outlet.
Check Valve: When the air compressor is operating, the
check valve is “open”, allowing compressed air to enter the air
tank. When the air compressor reaches “cut-out” pressure,
the check valve “closes”, allowing air pressure to remain inside
the air tank.
Pressure Release Valve: The pressure release valve, located
on the side of the pressure switch, is designed to automatically
release compressed air from the compressor head and the
outlet tube when the air compressor reaches “cut-out” pres-
sure or is shut off. The pressure release valve allows the motor
to restart freely. When the motor stops running, air will be heard escaping from this
valve for a few seconds. No air should be heard leaking when the motor is running,
or continuous leaking after unit reaches “cut-out” pressure.
Pressure
Release
Valve
Check Valve
Pressure
Switch
On/Auto/Off
Switch
Safety
Valve
Tank
Pressure
Gauge
Globe Valve
Drain Valve

12 - ENGD23269
Air Intake Filter (not shown) This filter is designed to clean air coming into the
pump. This filter must always be clean and ventilation openings free from obstruc-
tions. See "Maintenance".
How to Use Your Unit
How to Stop:
1. Set the On/Auto/Off lever to “OFF”.
Before Starting
Break-in Procedure
Serious damage may result if the following break-in
instructions are not closely followed.
This procedure is required before the air compressor is put into service and when
the check valve or a complete compressor pump has been replaced.
1. Make sure the On/Auto/Off lever is in the "OFF" position.
2.
Recheck all wiring. Make sure wires are secure at all terminals connections.
Make sure all contacts move freely and are not obstructed.
3. Open the globe valve fully to permit air to escape and prevent air pressure
build up in the air tank during the break-in period.
4. Move the On/Auto/Off lever to "ON/AUTO" position. The compressor will start.
5. Run the compressor for 30 minutes. Make sure the globe valve is open and
there is minimal air pressure build-up in tank.
6. Check all air line fittings and connections/piping for air leaks by applying a
soap solution. Correct if necessary. NOTE: Minor leaks can cause the air com-
pressor to overwork, resulting in premature breakdown or inadequate perform-
ance.
7. Check for excessive vibration. Readjust or shim air compressor feet, if neces-
sary.
8. After 30 minutes, move the On/Auto/Off lever to "OFF" position and close the
globe valve.
9. Move the On/Auto/Off lever to "ON/AUTO" position. The air receiver will fill to
“cut-out” pressure and the motor will stop.
Before Each Start-Up:
1. Place On/Auto/Off lever to “OFF”.
2. Close the globe valve.
3. Attach hose and accessories. NOTE: A regulator MUST be installed when
using accessories rated at less than 110 PSI.
Too much air pressure causes a hazardous risk of
bursting. Check the manufacturer’s maximum pres-
sure rating for air tools and accessories. The regulator outlet pressure
must never exceed the maximum pressure rating.
How to Start
1. Turn the On/Auto/Off lever to “AUTO” and allow tank pressure to build. Motor
will stop when tank pressure reaches “cut-out” pressure.
2. When the tank pressure reaches “cut-out” pressure open the globe valve.
IMPORTANT: When using regulator and other accessories refer to the manufactur-
er-s instructions.
NOTE: Always operate the air compressor in well-ventilated areas free of gasoline
or other combustible vapors. If the compressor is being used to operate a sprayer,
DO NOT place compressor near the spray area.

13 - ENG D23269
MAINTENANCE
Customer Responsibilities
Daily or
after each
use
Before
each
use
Check Safety Valve
Drain Tank
Oil Leaks
Check Oil
Change Oil
Unusual Noise and/or
Vibration
Air Filter
Drive Belt
Condition
Motor Pulley/Flywheel
alignment
Air compressor pump
intake and exhaust
valves
Inspect air lines and fit-
tings for leaks
●
●
●
Unit cycles automatically when power is on.
When performing maintenance, you may be
exposed to voltage sources, compressed air, or moving parts.
Personal injuries can occur. Before performing any maintenance or
repair, disconnect power source from the compressor and bleed off all
air pressure.
●
Every
8
hours
Every
40
hours
Every
100
hours
Yearly
Every
160
hours
●
●
●1
●
●
●
1- more frequent in dusty or humid conditions
●
To ensure efficient operation and longer life of the air compressor outfit, a routine
maintenance schedule should be prepared and followed. The following routine
maintenance schedule is geared to an outfit in a normal working environment oper-
ating on a daily basis. If necessary, the schedule should be modified to suit the
conditions under which your compressor is used. The modifications will depend
upon the hours of operation and the working environment. Compressor outfits in an
extremely dirty and/or hostile environment will require a greater frequency of all
maintenance checks.
NOTE: See “Operation” section for the location of controls.
To Check Safety Valve
If the safety valve does not work properly, over-
pressurization may occur, causing air tank rup-
ture or an explosion.
1. Before starting compressor, pull the ring on the safety valve to make sure that
the safety valve operates freely. If the valve is stuck or does not operate
smoothly, it must be replaced with the same type of valve.

14 - ENGD23269
To Drain Tank
1. Set the On/Auto/Off lever to “OFF”.
2. Close the globe valve.
3. Remove the air tool or accessory.
4. Open the globe valve and allow the air to slowly bleed from the air tank until
tank pressure is approximately 20 psi.
5. Close the globe valve.
6. Drain water from air tank by opening drain valve (counter-clockwise) on bottom
of tank.
Water will condense in the air tank. If not drained,
water will corrode and weaken the air tank causing a
risk of air tank rupture.
7. After the water has been drained, close the drain valve (clockwise). The air
compressor can now be stored.
NOTE: If drain valve is plugged, release all air pressure. The valve can then be
removed, cleaned, then reinstalled.
Oil
Checking
1. Remove the oil fill plug (A). The oil level should be
even with the top of the fill hole and no lower than 6
threads from the top of fill hole.
2. If needed, slowly add oil until it reaches the top of fill
hole.
NOTE: Use a air compressor oil such as SAE-20 (API
CG/CD heavy duty motor oil. Under extreme winter con-
ditions use SAE-10 weight oil.
Changing
1. Remove the oil fill plug (A).
2. Remove the oil drain plug (B) and drain oil into a
suitable container.
3. Replace the oil drain plug (B) and tighten securely
NOTE: Use a air compressor oil such as SAE-20 (API CG/CD heavy duty motor oil.
Under extreme winter conditions use SAE-10 weight oil.
4. Slowly fill crankcase to the top of the fill hole. Crankcase capacity is 16 fluid
ounces (473.2 ml).
Overfilling with oil will cause premature compressor
failure. Do not overfill.
5. Replace oil fill plug (A) and tighten securely.
A
B
Air Filter - Inspection and Replacement
Hot surfaces. Risk of burn. Compressor heads are
exposed when filter cover is removed. Allow com-
pressor to cool prior to servicing.
Keep the air filter clean at all times. Do not operate
the air compressor with the air filter removed.

15 - ENG D23269
Motor Pulley/Flywheel Alignment
NOTE: Once the motor pulley has been moved from its factory set location, the
grooves of the flywheel and pulley must be aligned to within 1/16" to prevent
excessive belt wear.
The air compressor flywheel and motor pulley must be in-line (in the same plane)
within 1/16" to assure belt retention within flywheel belt grooves. To check align-
ment, perform the following steps:
1. Unplug air compressor from power source.
2. Remove belt guard
3. Place a straightedge against the outside
of the flywheel and the motor drive pulley.

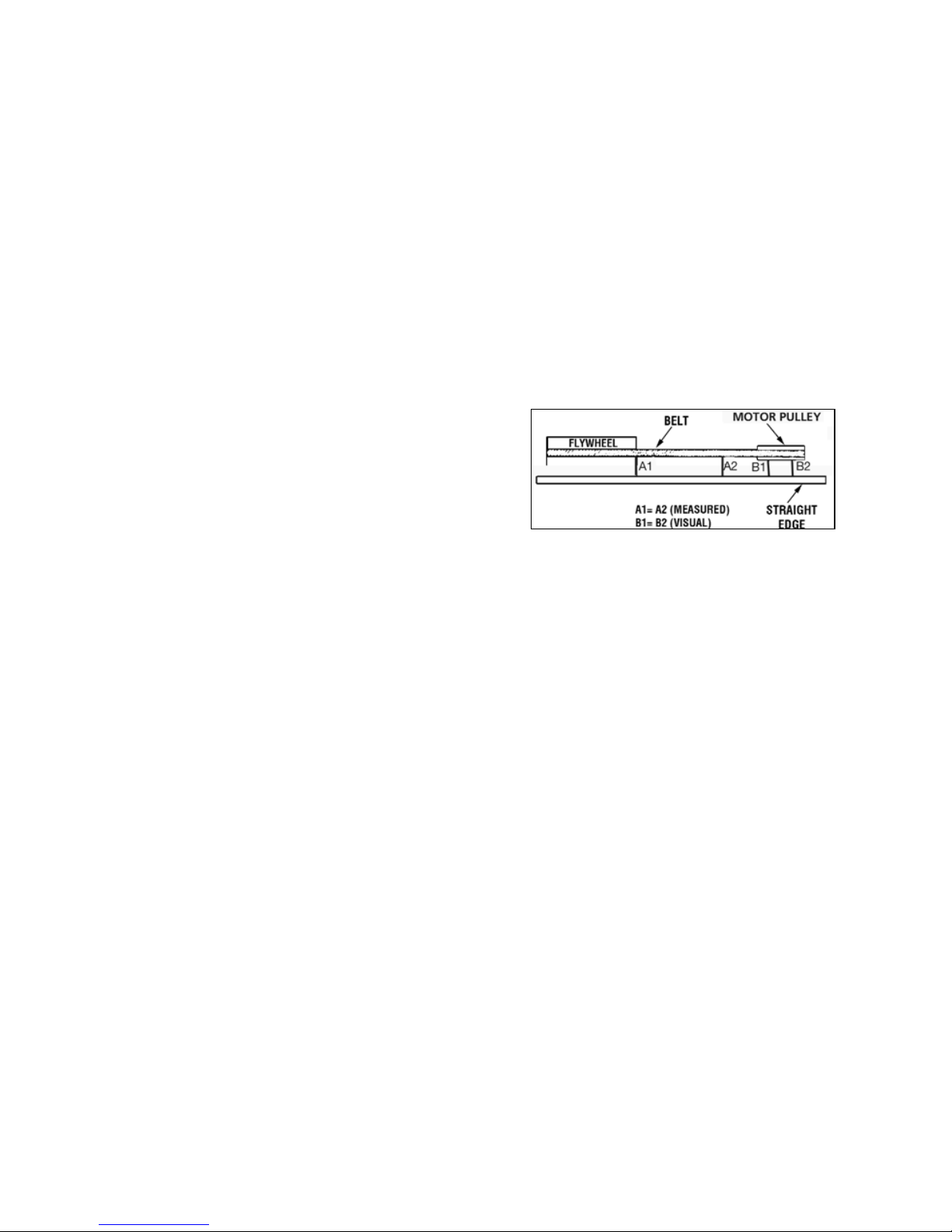

4. Measure the distance between the edge
of the belt and the straightedge at points
A1 and A2 in figure. The difference
between measurements should be no
more than 1/16".
5. If the difference is greater or less than 1/16" loosen the set screw holding the
motor drive pulley to the shaft and adjust the pulley’s position on the shaft until
the A1 and A2 measurements are within 1/16" of each other.
6. Tighten the motor drive pulley set screw to 70-80 in.-lbs.
7. Visually inspect the motor drive pulley to verify that it is perpendicular to the
drive motor shaft. Points B1 and B2 of Figure should appear to be equal. If
they are not, loosen the setscrew of the motor drive pulley and equalize B1 and
B2, using care not to disturb the belt alignment performed in step 2.
8. Retighten the motor drive pulley setscrew to 70-80 in.-lbs.
9. Reinstall belt guard.
A dirty air filter will not allow the compressor pump to operate at full capacity.
Before you use the compressor pump, check the air filter to be sure it is clean and
in place.
If it is dirty, replace it with a new filter. On some models,the filter may be removed
by using a pair of needle nose pliers or a screwdriver. Pull or pry out the old filter
and carefully clean the filter area. Push in the new air filter.
Air Compressor Pump Intake and Exhaust Valves
Once a year have a Trained Service Technician check the air compressor
pump intake and exhaust valves.
Inspect Air Lines and Fittings for Leaks
1. Turn the air compressor on to inspect for air leaks.
2. Apply a soap solution to all air line fittings and connections/piping.
3. Correct any leaks found.
IMPORTANT: Even minor leaks can cause the air compressor to overwork, resulting
in premature breakdown or inadequate performance.

16 - ENGD23269
SERVICE AND ADJUSTMENTS
Unit cycles automatically when power is on. When doing
Maintenance, you may be exposed to voltage sources, com-
pressed air or moving parts. Personal injuries can occur.
Before performing any Maintenance or repair, unplug the compressor and bleed off
all air pressure.
ALL MAINTENANCE AND REPAIR OPERATIONS NOT LISTED MUST
BE PERFORMED BY TRAINED SERVICE TECHNICIAN.
Before servicing:
●Unplug or disconnect electrical supply to the air compressor.
●Bleed tank of pressure.
●Allow the air compressor to cool.
To Replace or Clean Check Valve
1. Release all air pressure from air tank. See “To Drain Tank” in the Maintenance
section.
2. Unplug unit.
3. Using an adjustable wrench loosen
outlet tube nut at air tank and pump.
Carefully move outlet tube away from
check valve.
4. Using an adjustable wrench loosen
pressure relief tube nut at air tank and
pressure switch. Carefully move pres-
sure relief tube away from check valve.
5. Unscrew the check valve (turn coun-
terclockwise) using a 7/8” open end
wrench. Note the orientation for
reassembly.
6. Using a screwdriver, carefully push the
valve disc up and down. NOTE: The
valve disc should move freely up and
down on a spring which holds the
valve disc in the closed position, if not
the check valve needs to be cleaned or replaced.
7. Clean or replace the check valve. A solvent, such
as paint or varnish remover can be used to clean
the check valve.
8. Apply sealant to the check valve threads.
Reinstall the check valve (turn clockwise).
9. Replace the pressure release tube. Tighten nuts.
10. Replace the outlet tube and tighten nuts.
11. Perform the Break-in Procedure. See “Break-in
Procedure” in the Operation section. In closed position disc is visible.
In open position nothing is visible.
Screwdriver
Outlet Tube
Nuts
Nut
Pressure
Relief Tube
Check
Valve
Nut

17 - ENG D23269
To Replace Belt
Serious injury or damage may occur if parts of the
body or loose items get caught in moving parts.
Never operate the unit with the belt guard removed. The belt guard should
be removed only when the compresor is unplugged.
1. Unplug compressor.
2. Remove the front of the belt guard by
disengaging the snaps. Insert a flat
bladed screwdriver at each snap loca-
tion and pry the beltguard apart.
3. Loosen the wing nut on hold down
plate and tilt motor to allow for easy
removal or installation of the belt.
4. Remove belt.
5. Replace belt. NOTE: The belt must be
centered over the grooves on the fly-
wheel and motor pulley.
6. Turn the wing nut on the hold down
plate until it makes contact with the
washer, plus one additional turn.
7. Replace the belt guard.
Belt Guard
Wing Nut
Motor
This motor has a manual thermal overload protector. If the motor overheats for any
reason, the overload protector will shut off the motor. The motor must be allowed
to cool down before restarting. To restart:
1. Place the On/Auto/Off lever in the Off position.
2. Allow the motor to cool.
3. Depress the red reset button on the motor.
4. Place the On/Auto/Off lever in the On/Auto postion
to restart the motor.
IMPORTANT: If the overload protector shuts the motor
off frequently, check for a possible voltage problem.
Low voltage can also be suspected when:
1. The motor does not get up to full power or speed.
2. Fuses blow out when starting the motor; lights dim
and remain dim when motor is started and is running.

18 - ENGD23269
STORAGE
Before you store the air compressor, make sure you do the following:
1. Review the "Maintenance" section on the preceding pages and perform sched-
uled maintenance as necessary.
2. Set the On/Auto/Off lever to “OFF”.
3. Close the globe valve.
4. Remove the air tool or accessory.
5. Open the globe valve and allow the air to slowly bleed from the air tank until
tank pressure is approximately 20 psi.
6. Drain water from air tank by opening drain valve (counter-clockwise) on bottom
of tank.
Water will condense in the air tank. If not drained,
water will corrode and weaken the air tank causing a
risk of air tank rupture.
7. After the water has been drained, close the drain or drain valve.
NOTE: If drain valve is plugged, release all air pressure. The valve can then
be removed, cleaned, then reinstalled.
8. Protect the air hose from damage (such as being stepped on or run over).

19 - ENG D23269
TROUBLESHOOTING
Performing repairs may expose voltage sources, moving parts
or compressed air sources, moving parts or compressed air
sources. Personal injury may occur. Prior to attempting any repairs, unplug the air
compressor and bleed off all air tank air pressure.
PROBLEM CAUSE CORRECTION
Pressure switch does
not shut off motor when
compressor reaches
“cut-out” pressure.
Pressure switch “cut-
out” too high.
Move On/Auto/Off lever to the
“OFF” position, if the outfit does
not shut off contact a Trained
Service Technician.
Contact a Trained Service
Technician.
Excessive tank pres-
sure - safety valve
pops off.
Tube fittings are not tight
enough.
Tighten fittings where air can be
heard escaping. Check fittings
with soapy water solution. DO
NOT OVERTIGHTEN.
Air leaks at fittings.
Air leaks at pressure
switch release valve.
Defective pressure
switch release valve.
Contact a Trained Service
Technician.
Air leaks in air tank
or at air tank welds.
Defective air tank. Air tank must be replaced. Do
not repair the leak.
Do not drill into, weld or other-
wise modify air tank or it will
weaken. The tank can rupture or
explode.
Air leaks between
head and valve
plate.
Leaking seal. Contact a Trained Service
Technician.
Air leaks at or inside
check valve
Check valve seat dam-
aged.
A defective check valve results in
a constant air leak at the pressure
release valve when there is pres-
sure in the tank and the compres-
sor is shut off. Replace check
valve. Refer the “To Replace or
Clean Check Valve” in the
“Operation” section.

20 - ENGD23269
PROBLEM CAUSE CORRECTION
Possible defect in safe-
ty valve.
Operate safety valve manually by
pulling on ring. If valve still leaks,
it should be replaced.
Defective check valve. Remove and clean, or replace.
Knocking Noise.
Compressor is not
supplying enough
air to operate
accessories.
Prolonged excessive use
of air.
Compressor is not large
enough for air require-
ment.
Hole in hose.
Check valve restricted.
Air leaks.
Restricted air intake filter
Decrease amount of air usage.
Check the accessory air require-
ment. If it is higher than the
SCFM or pressure supplied by
your air compressor, you need a
larger compressor.
Check and replace if required.
Remove and clean, or replace.
Tighten fittings.
Clean or replace air intake filter.
Do not operate the air compressor
with the filter removed. Refer to
the “Air Filter” paragraph in the
“Maintenance “ section
Loose pulley Tighten pulley set screw,
70-80 in.-lbs.
Compressor mounting
screws loose
Tighten mounting screws,
15-20 ft.-lbs.
Loose flywheel Tighten flywheel screw,
15-20 ft.-lbs.
Loose belt Loosen wingnut and then tighten
wingnut until it contacts the wash-
er, plus one turn.
Carbon build-up in
pump
Have checked by a Trained
Service Technician.
Belt to tight Loosen wingnut and then tighten
wingnut until it contacts the wash-
er, plus one turn.
Loose belt. Loosen wingnut and then tighten
wingnut until it contacts the wash-
er, plus one turn.
