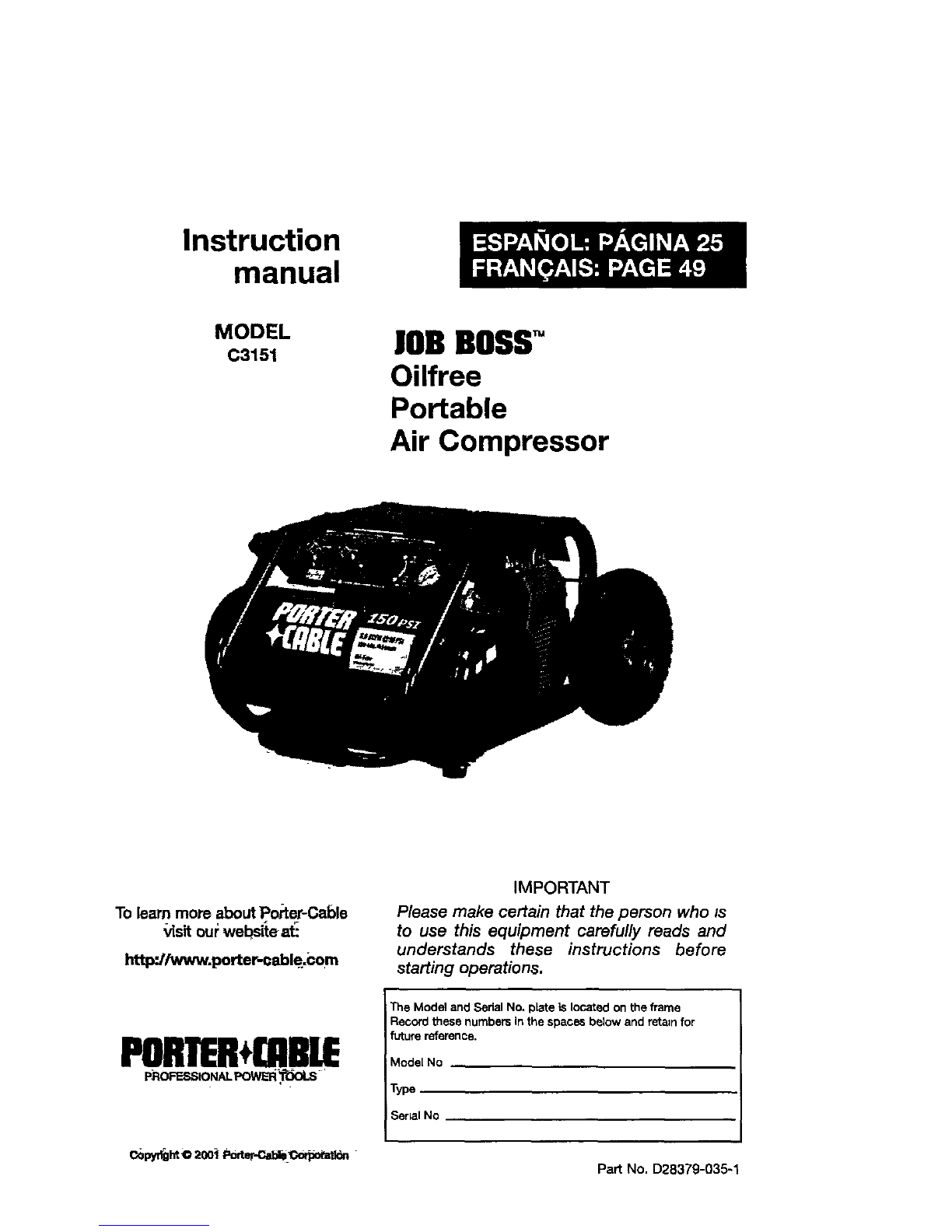

Porter-Cable J0B BOSS C3151 User manual

Instruction
manual
MODEL
C3151 10B BOSS"
Oilfree
Portable
Air Compressor
To learn more about PoPmr-Cable
_sit ou_we_eat_
httpd/www.po rter-cable/_om
PORTER÷OIBLE
IMPORTANT
Please make certain that the person who/s
to use this equipment carefully reads and
understands these instructions before
starting operations.
The Model and Sedal No, plate is located on the frame
Record these numbers in the spaces below and retain for
future reference.
Model No
Type
Serial No
Part No. D28379-035-1
Cop'/r_ht© 200_P=ter-CaU_Cor_at_

This manual contains information that is important for you to know and
understand. This information relates to protecting YOUR SAFETY and
PREVENTING EQUIPMENT PROBLEMS. To help you recognize this
information, we use the symbols below. Please read the manual and pay
attention to these symbols.
_ Indicates an imminently
hazardous situation
which, if not avoided, will result in
or serious injury.
I_l_lndicates a potentially
hazardous situation
which, if not avoided, _ result in
_leath or serious iniurv.
I_J_lJ_llndicates a potentially
hazardous situation
which, if not avoided, _ result in
minor or moderate iniury.
Iil_ll Usedwithout the safety
alertsymbolindicatesa
potentiallyhazardoussituationwhich,if
notavoided, may result in
am_L_m_.
I__ Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities contains chemicals
known (to the State of California) to cause cancer, birth defects or other
reproductive harm. Some example of these chemicals are:
• lead from lead-based paints
•crystalline silica from bricks and cement and other masonry products
• arsenic and chromium from chemically-treated lumber
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, always wear
MSHA/NIOSH approved, properly fitting face mask or respirator when using
such tools.
When using air tools, basic safety precautions should always be followed to
reduce the risk of of personal injury.
D28379 2-ENG

Save these instructions
Improper operation or maintenance of this product could result in sedous injuryand
property damage. Read and understand all warnings and operation instructions before
using this equipment.
WARNING: Risk of explosion or fire
What Could Happen
If electrical sparks from compressor
come into contact with flammable
vapors, they may Ignite, causing fire or
explosion,
Unattended operation of this product
could result in personal injury or
property damage. To reduce the risk of
fire, do not allow the compressor to
operate unattended.
How To Prevent It
If spraying flammable materials, locate
compressor at least 20 feet away from
spray area. An additional length of hose
may be required.
Store flammable materials in a secure
location away from compressor.
Always remain in attendance with the
perating.
disconnect electrical power by
moving pressure switch lever to the off
position and drain tank daily or after
each use.
3- ENG D28379

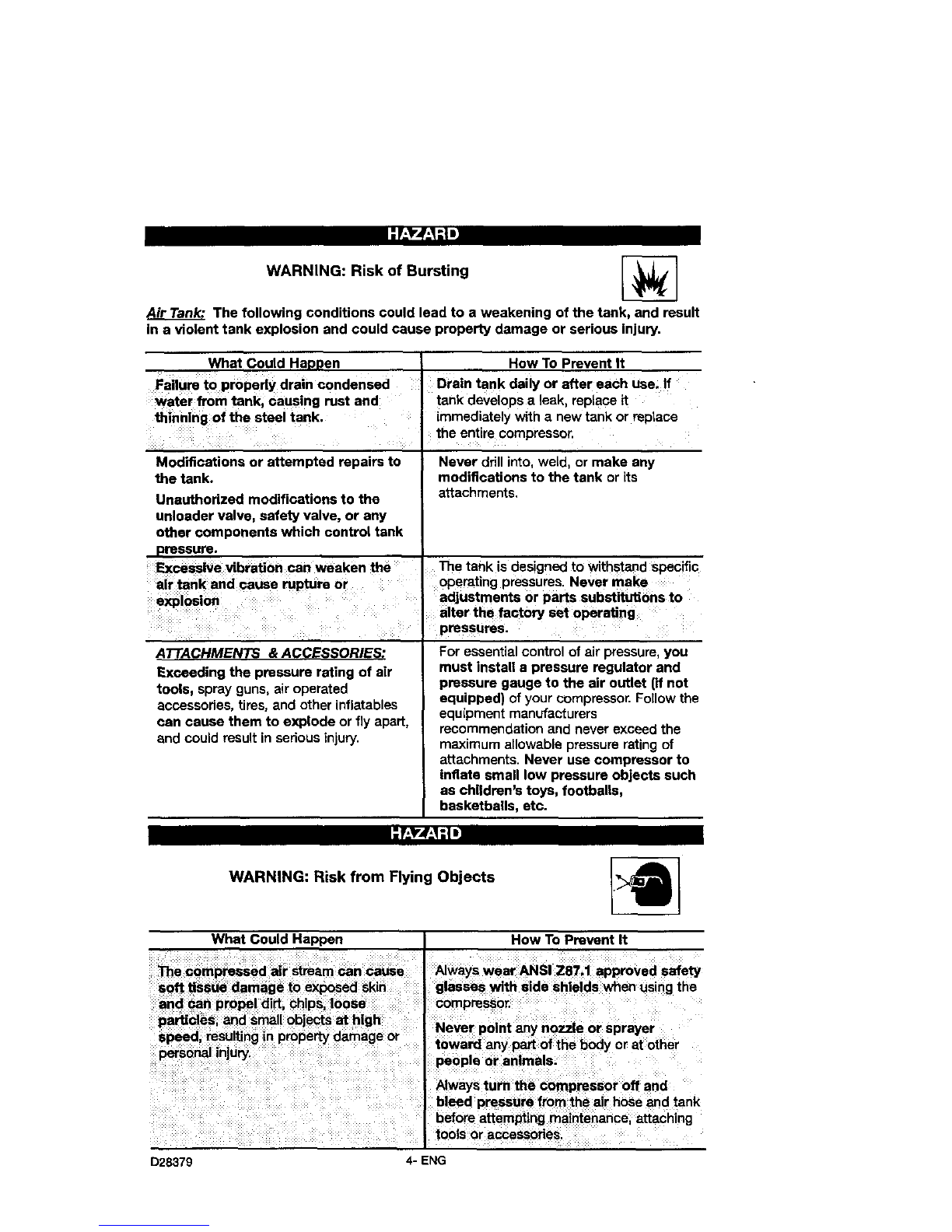

WARNING: Risk of Bursting
Air Tank: The following conditions could lead to a weakening of the tank, and result
in a violent tank explosion and could cause property damage or serious injury.
What Could Happen
Faiiure t0 pr0_eriy drain condensed
water from tank; causing rust and
thinnlng of the steel tank.
Modifications or attempted repairs to
the tank.
Unauthorized modifications to the
unloader valve, safety valve, or any
other components which control tank
pressure.
Excessive vibration can weaken the
rupture Or
explosio n
ATTACHMENTS &ACCESSORIES:
Exceeding the pressure rating of air
tools, spray guns, sir operated
accessories, tires, and other inflatables
can cause them to explode or fly apart,
and could result in serious injury.
How To Prevent It
Drain tank daily or after each use. If
tank develops a leak, replace it
immediately with anew tank or reptace
the entire Compressor.
Never drill into, weld, or make any
modifications to the tank or its
attachments.
The tank is designed to withstand specific
operating pressures. Never make
adjustments Or parts substitutions to
alter the factory set operating
pressureS.
For essential control of air pressure, you
must install a pressure regulator and
pressure gauge to the air outlet (if not
equipped) of your compressor. Follow the
equipment manufacturers
recommendation and never exceed the
maximum allowable pressure rating of
attachments. Never use compressor to
inflate small low pressure objects such
as children's toys, footballs,
basketballs, etc.
iri ,,ri il,
WARNING: Risk from Flying Objects
What Could Happen How To Prevent It
ii wea_ ANSI Z87ii approved Safi
_fl_S_ _anlag_ _ exposed Skin _;with side Sh!elds when usihg tl
and; _h p_! di_i _hip_i iOose cOmpresSor.
p_a_i and _m_ii obj_S =high; Neve r p0int _ _ nozzle or sprayer
pe_p!e 0[ a,!ma!s.
bleed pressure f_ the ai_ hose bnd !ank
before attem_ing m_[nt_ancel attaching
tools Or scceSSOrtes.
D28379 4- ENG

"rlt,fi il s

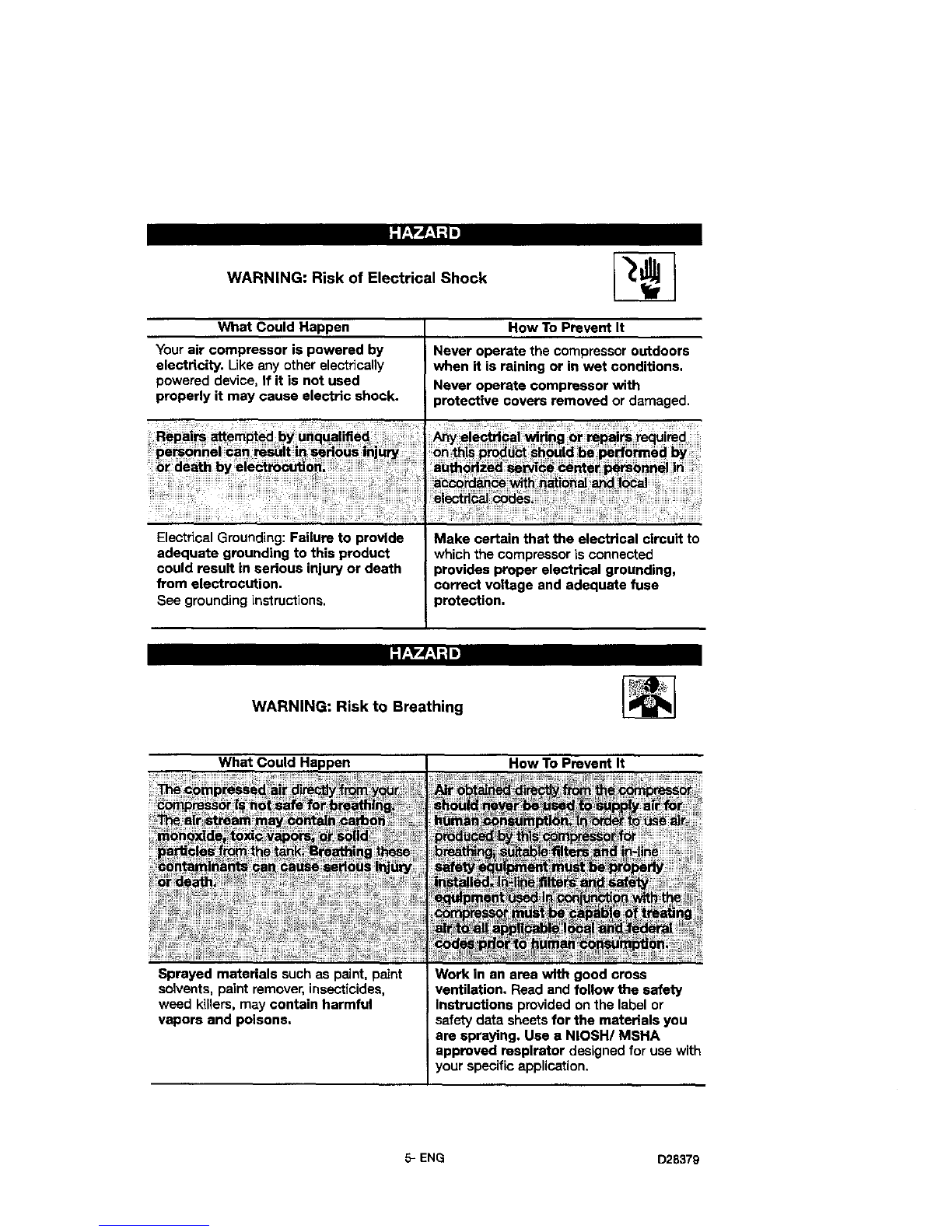

WARNING: Risk of Electrical Shock
What Could Happen
Your air compressor is powered by
electricity. Uke any other electrically
powered device, If it is not used
properly it may cause electric shock.
Electrical Grounding: Failure to provide
adequate grounding to this product
could result in serious injury or death
from electrocution.
See grounding instructions.
How To Prevent It
Never operate the compressor outdoors
when it is raining or in wet conditions.
Never operate compressor with
_rotective covers removed or damaged.
Make certain that the electrical circuit to
which the compressor is connected
provides proper electrical grounding,
correct voltage and adequate fuse
protection.
irl),fi il .
WARNING: Risk to Breathing
What
Sprayed materials such as paint, paint
solvents, paint remover, insecticides,
weed killers, may contain harmful
vapors and poisons,
How To Prevent It
Work in an area with good cress
ventilation, Read and follow the safety
Instructions provided on the label or
safety data sheets for the materials you
are spraying, Use a NIOSH/MSHA
approved respirator designed for use with
your specific application.
5- ENG D28379

_V.4",t±1;! D]
WARNING: Risk of Burns
What Could H_ How To Prevent It
13Y_,_J±I=tt]
WARNING: Risk from Moving Parts
What Could Happen How To Prevent It
Moving parts such as the pulley, flywheel,
and belt can cause serious Injury if they
come into contact with you or your
clothing.
Never operate the compressor with
guards or covers which are damaged or
removed.
F:I,_*:I;t s_
WARNING: Risk of Failing
What Could Happen
A portable compressor can fall from s
table, workbench, or roof causing
damage to the compressor and could
result in serious injury or death to the
operator.
How To Prevent It
Always operate compressor in a stable
secure position to prevent accidental
movement of the unit. Never operate
compressor on a roof or other elevated
position. Use additional air hose to
reach high locations.
D28379 6- ENG

,

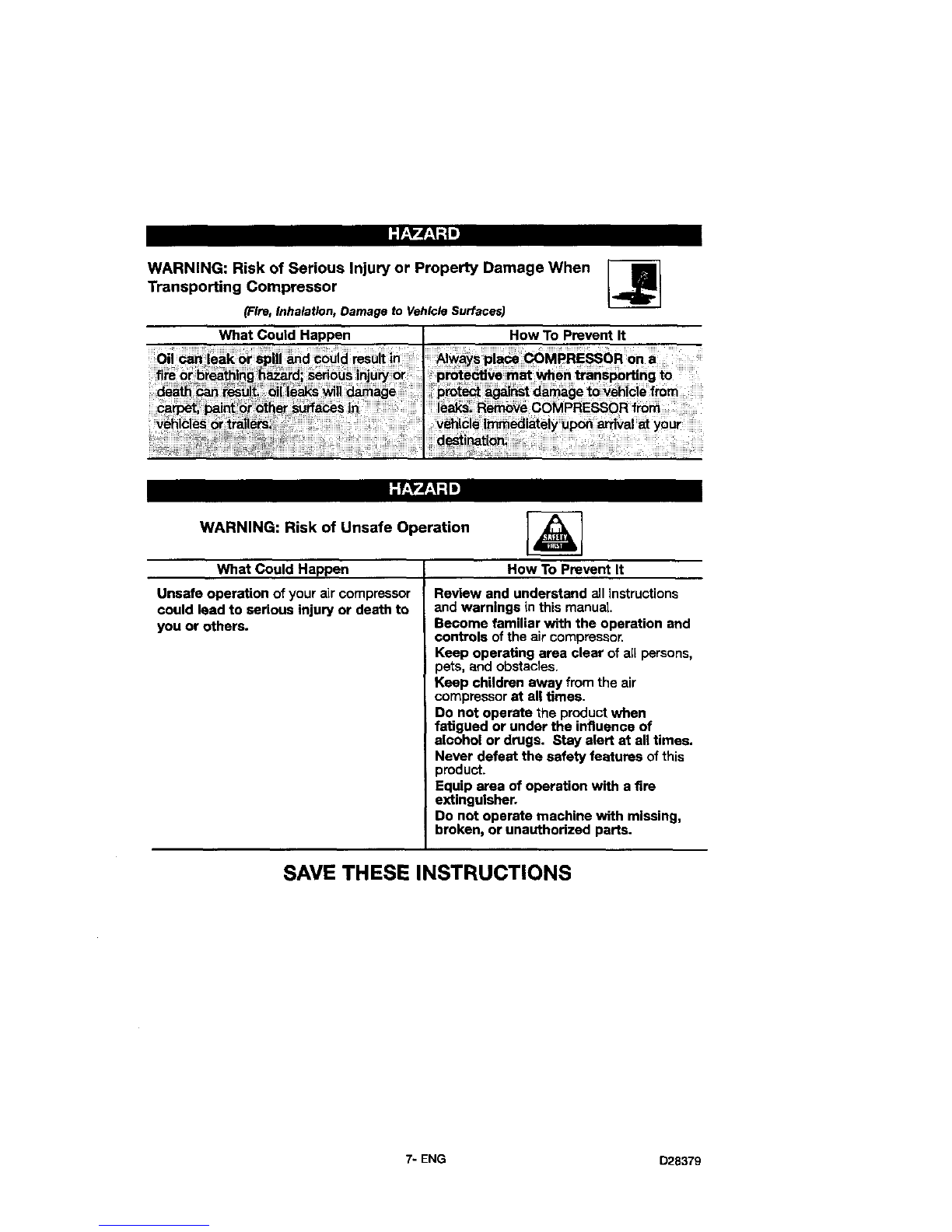

WARNING: Risk of Serious Injury or Property Damage When
Transporting Compressor
(Fire,InhalaUon,Damage to VehicleSurfaces)
How To Prevent It
!!Oil
............y ur;iiiiiiii
WARNING: Risk of Unsafe Operation
What Could Happen
Unsafe operation of your air compressor
could lead to serious injury or death to
you or others.
How To Prevent It
Review and understand all instructions
and warnings in this manual
Become familiar with the operation and
controls of the air compressor.
Keep operating area clear of all persons,
pets, and obstacles.
Keep children away from the air
compressor at all times.
Do not operate the product when
fatigued or under the influence of
alcohol or drugs. Stay alert at all times.
Never defeat the safety features ofthis
product.
Equip area of operation with a fire
extinguisher.
Do not operate machine with missing,
broken, or unauthorized parts.
SAVE THESE INSTRUCTIONS
7- ENG D28379

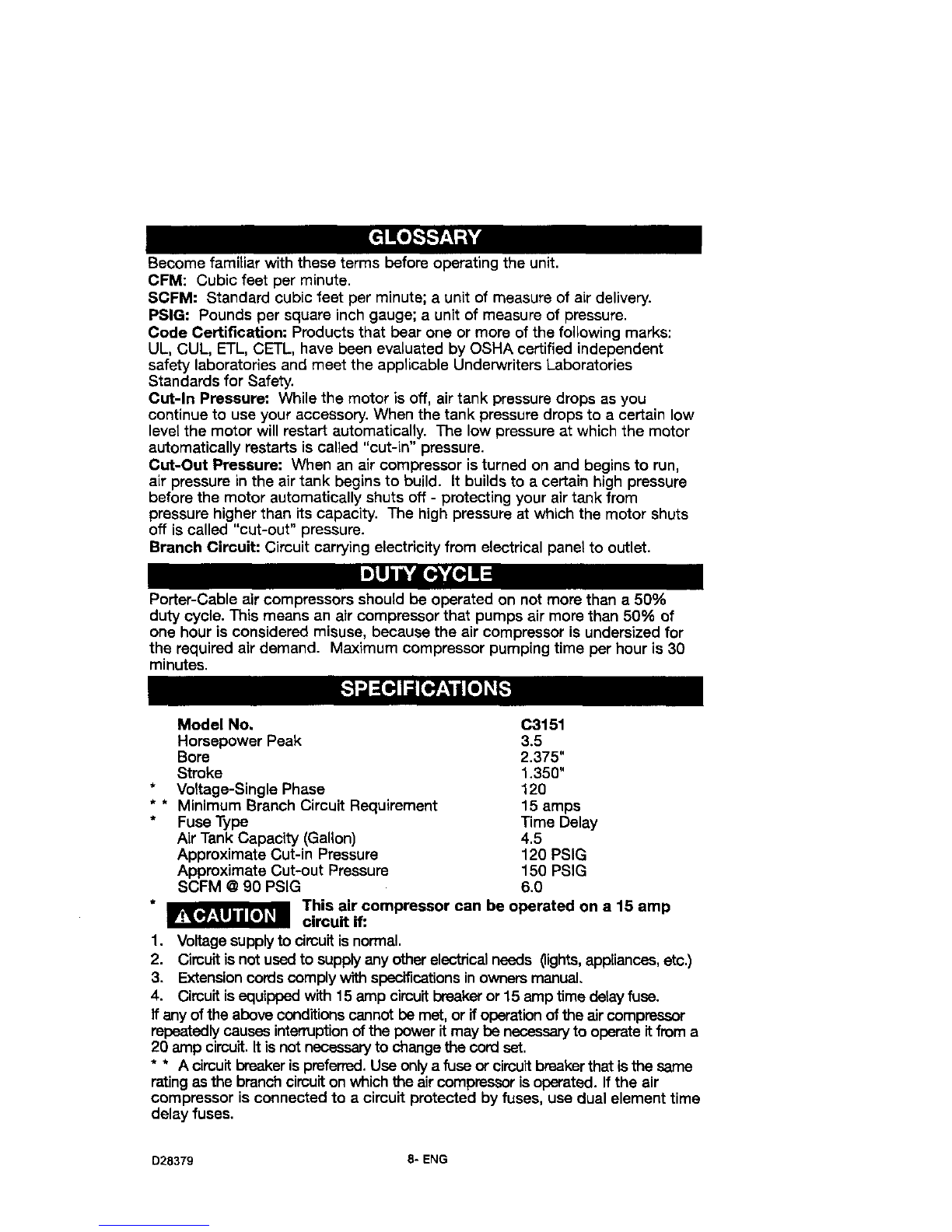

Become familiar with these terms before operating the unit.
CFM: Cubic feet per minute.
SCFM= Standard cubic feet per minute; a unit of measure of air delivery.
PSIG= Pounds per square inch gauge; a unit of measure of pressure.
Code Certification; Products that bear one or more of the following marks:
UL, CUL, ETL, CETL, have been evaluated by OSHA certified independent
safety laboratories and meet the applicable Underwriters Laboratories
Standards for Safety.
Cut-In Pressure: While the motor is off, air tank pressure drops as you
continue to use your accessory. When the tank pressure drops to a certain low
level the motor will restart automatically. The low pressure at which the motor
automatically restarts is called "cut-in" pressure.
Cut-Out Pressure: When an air compressor is turned on and begins to run,
air pressure in the air tank begins to build. It builds to a certain high pressure
before the motor automatically shuts off - protecting your air tank from
pressure higher than its capacity. The high pressure at which the motor shuts
off is called "cut-out" pressure.
Branch Circuit: Circuit carrying electricity from electrical panel to outlet.
Porter-Cable air compressors should be operated on not more than a 50%
duty cycle. This means an air compressor that pumps air more than 50% of
one hour is considered misuse, because the air compressor is undersized for
the required air demand. Maximum compressor pumping time per hour is 30
minutes.
Model No, C3151
Horsepower Peak 3.5
Bore 2.375"
Stroke 1.350"
* Voltage-Single Phase 120
* * Minimum Branch Circuit Requirement 15 amps
* Fuse Type Time Delay
Air Tank Capacity (Gallon) 4.5
Approximate Cut-in Pressure 120 PSIG
Approximate Cut-out Pressure 150 PSIG
SCFM @90 PSIG 6.0
* This air compressor can be operated on a 15 amp
circuit if:
1. Voltagesupplyto circuit isnormal.
2. Circuit isnot used to supplyany otherelectrical needs (lights,appliances, etc.)
3. Extensioncords comply with specificationsinownersmanual,
4. Circuitisequipped with 15 amp circuitbreakeror 15 amp time delay fuse.
ff any of the above conditionscannot be met, or ifoperationofthe air compressor
repeatedly causesinterruptionof the power it may be necessaryto operateitfrom a
20 amp circuit,it is not necessaryto change the cordset.
**Acircuitbreakerispreferred. Use onlya fuse or circuitbreaker that isthe same
rating asthe branch circuiton whichthe air compressoris operated. If the air
compressor is connected to acircuit protected by fuses, use dual element time
delay fuses.
D28379 8-ENG

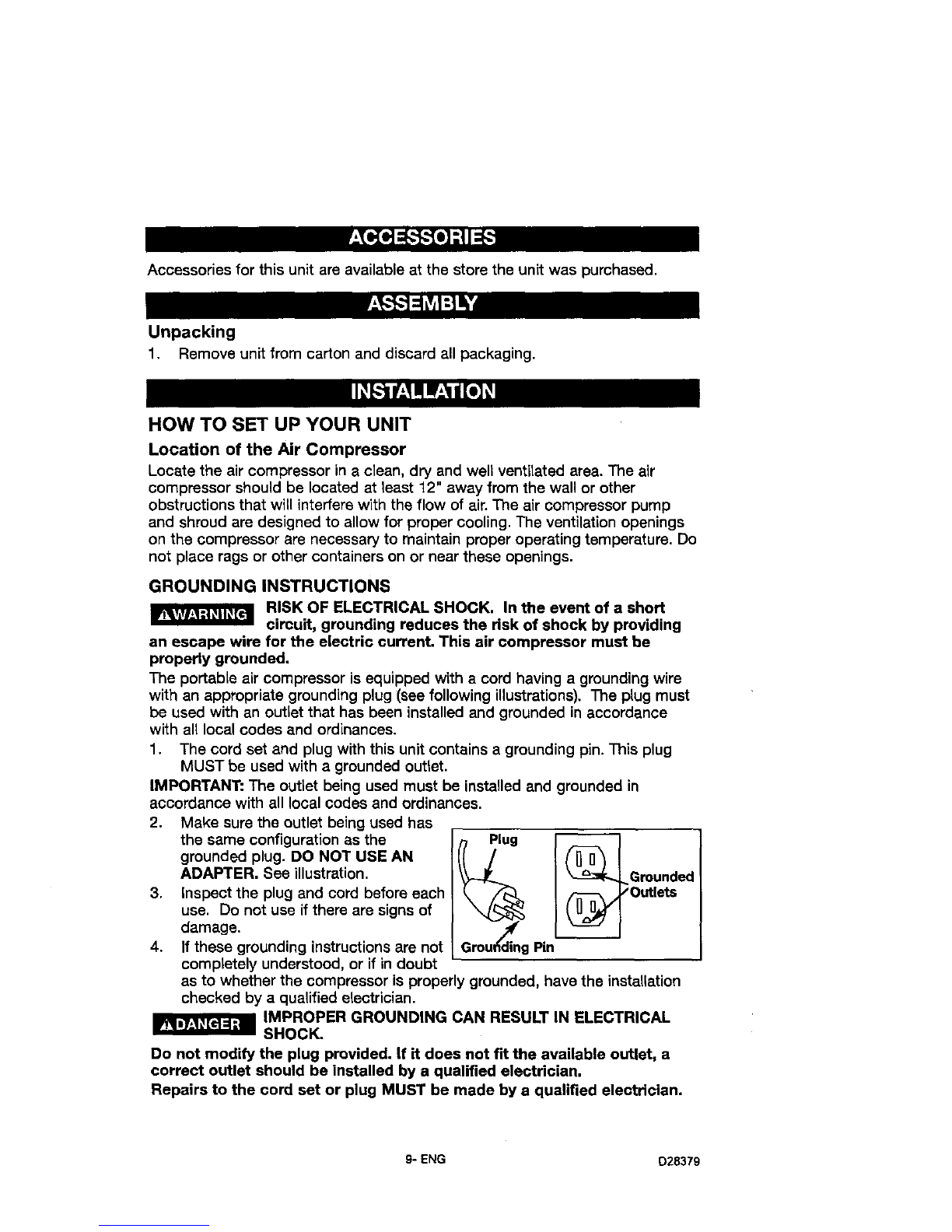

Accessories for this unit are available at the store the unit was purchased.
Unpacking
1, Remove unit from carton and discard all packaging.
HOW TO SET UP YOUR UNIT
Location of the Air Compressor
Locate the air compressor in a clean, dry and well ventilated area. The air
compressor should be located at least 12" away from the wall or other
obstructions that will interfere with the flow of air. The air compressor pump
and shroud are designed to allow for proper cooling. The ventilation openings
on the compressor are necessary to maintain proper operating temperature. Do
not place rags or other containers on or near these openings.
GROUNDING INSTRUCTIONS
RISK OF ELECTRICAL SHOCK. In the event of a short
circuit, grounding reduces the risk of shock by providing
an escape wire for the electric current. This air compressor must be
properly grounded.
The portable air compressor is equipped with a cord having a grounding wire
with an appropriate grounding plug (see following illustrations), The plug must
be used with an outlet that has been installed and grounded in accordance
with all local codes and ordinances.
1. The cord set and plug with this unit contains a grounding pin. This plug
MUST be used with a grounded outlet.
IMPORTANT: The outlet being used must be installed and grounded in
accordance with all local codes and ordinances.
2. Make sure the outlet being used has
3,
4.
the same configuration as the
grounded plug. DO NOT USE AN
ADAPTER. See illustration.
Inspect the plug and cord before each
use. Do not use if there are signs of
damage.
If these grounding instructions are not
completely understood, or if in doubt
as to whether the compressor is properly grounded, have the installation
checked by a qualified electrician.
IMPROPER GROUNDING CAN RESULT IN ELECTRICAL
SHOCK.
Do not modify the plug provided. If it does not fit the available outlet, a
correct outlet should be installed by a qualified electrician,
Repairs to the cord set or plug MUST be made by a qualified electrician.
9-ENG D28379

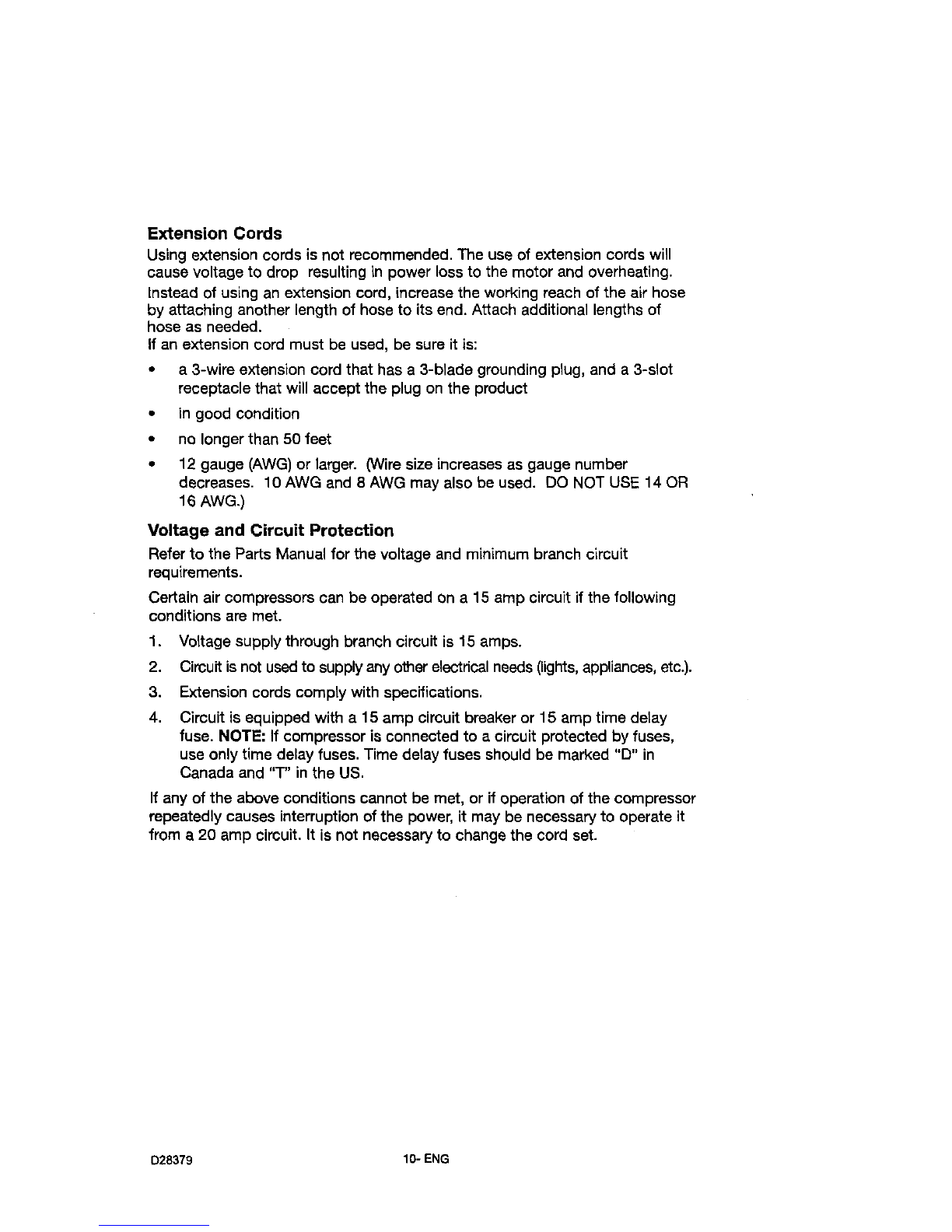

Extension Cords
Using extension cords is not recommended. The use of extension cords will
cause voltage to drop resulting in power loss to the motor and overheating.
Instead of using an extension cord, increase the working reach of the air hose
by attaching another length of hose to its end. Attach additional lengths of
hose as needed.
If an extension cord must be used, be sure it is:
• a 3-wire extension cord that has a 3-blade grounding plug, and a 3-slot
receptacle that will accept the plug on the product
in good condition
no longer than 50 feet
12 gauge (AWG) or larger. (Wire size increases as gauge number
decreases. 10 AW(3 and 8 AWG may also be used. DO NOT USE 14 OR
16 AWG.)
Voltage and Circuit Protection
Refer to the Parts Manual for the voltage and minimum branch circuit
requirements.
Certain air compressors can be operated on a 15 amp circuit if the following
conditions are met.
1. Voltage supply through branch circuit is 15 amps.
2. Circuit is not used to supply any other electrical needs (lights, appliances, etc.).
3. Extension cords comply with specifications.
4. Circuit is equipped with a 15 amp circuit breaker or 15 amp time delay
fuse. NOTE: If compressor is connected to a circuit protected by fuses,
use only time delay fuses. Time delay fuses should be marked "D" in
Canada and "T" in the US.
If any of the above conditions cannot be met, or ifoperation of the compressor
repeatedly causes interruption of the power, it may be necessary to operate it
from a20 amp circuit. It is not necessary to change the cord set.
D28379 10-ENG

Know Your Air Compressor
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with
the location of various controls and adjustments. Save this manual for future
reference.
Description of Operation
Become familiar with these controls before operating the unit,
On/Auto/Off Switch (A): Turn this
switch ON to provide automatic power
to the pressure switch and OFF to
remove power at the end of each use,
Pressure Switch (B): The pressure
switch automatically starts the motor
when the air tank pressure drops below
the factory set "cut-in" pressure. It stops
the motor when the air tank pressure
reaches the factory set "cut-out"
pressure.
Safety Valve (C): If the pressure switch does not shut off the air compressor at
its "cut-out" pressure setting, the safety valve will protect against high pressure
by "popping out" at itsfactory set pressure (slightlyhigher than the pressure
switch "cut-out" setting).
Outlet Pressure Gauge (D):
The outlet pressure gauge
indicates the air pressure
available at the outlet side of
the regulator. This pressure is
controlled by the regulator
and is always lessthan or
equal to the tank pressure.
Tank Pressure Gauge (E): The tank pressure gauge indicates the reserve air
pressure in the tank.
Regulator (F): Controls the air pressure shown on the outlet pressure gauge.
Pull the knob out and turn clockwise to increase pressure and
counterclockwise to decrease pressure. When the desired pressure is reached
push knob in to lock in place.
Universal Quick-Connect Body (G): The universal quick-connect body
accepts the three most popular styles of quick-connect plugs- Industrial,
automotive (Tru-flate), and ARO. One hand push-to-connect operation makes
connections simple and easy. The two quick connect bodies allow the use of
two tools at the same time.
Remote Console (H): Permits remote air regulation and control closer to work
area, includes two high-flow industrial/automotive style compatible quick-
connects, outlet pressure gauge, and a high-flow regulator.
11-ENG D28379

Cooling System (not shown): This compressor contains an advanced design
cooling system. At the heart of this cooling system is an engineered fan. It is
perfectly normal for this fan to blow air through the vent holes in large
amounts. You know that the cooling system is working when air is being
expelled.
Air Compressor Pump (not shown: Compresses air into the air tank.
Working air is not available unti{the compressor has raised the air tank
pressure above that required at the air outlet.
Drain Valve(I),, The drain valve is located
at the base of the air tank and is used to
drain condensation at the end of each
use.
Cheek Valve (L)." When the air compressor is
operating, the check valve is "open", allowing
compressed air to enter the air tank. When the air
compressor reaches "cut-out" pressure, the check
valve "closes", allowing air pressure to remain inside
the air tank.
Air Intake Filter (K): This filter is designed to clean air
coming intothe pump. This filter must always be clean
and ventilation openings free from obstructions. See
"Maintenance".
Pressure Release Valve (M): The pressure release
valve located on the side of the pressure switch, is
designed to automatically release compressed air from
the compressor head and the outlet tube when the air
compressor reaches "cut-out" pressure or is shut off.
The pressure release valve allows the motor to restart
freely. When the motor stops running, air will be heard
escaping from this valve for a few seconds. No air
should be heard leaking when the motor is running, or
continuous leaking after unit reaches "cut-out"
pressure.
How to Use Your Unit
How to Stop:
1. Set the On/Auto/Off lever to "OFF".
D28379 12-ENG

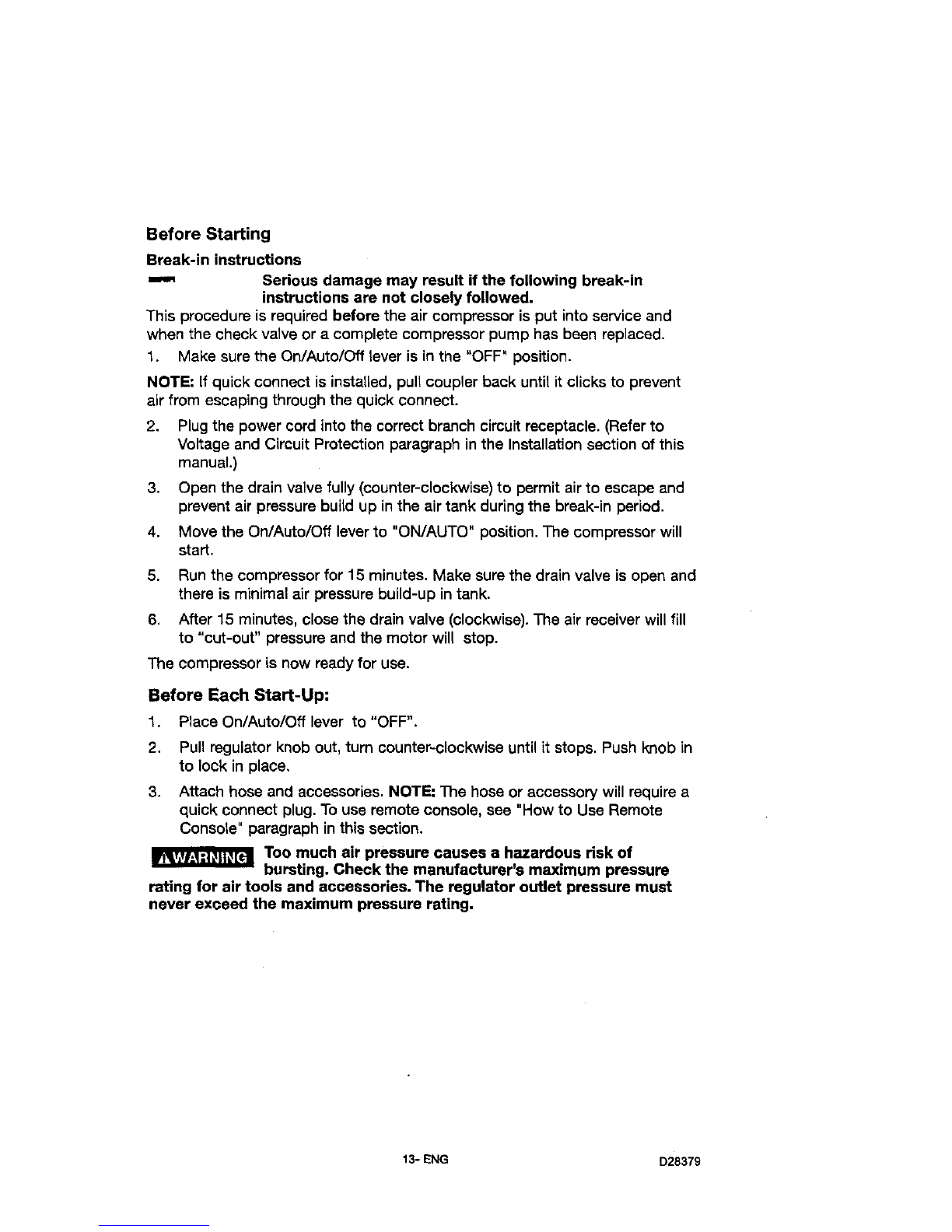

Before Starting
Break-in instructions
Serious damage may result if the following break-in
instructions are not closely followed,
This procedure is required before the air compressor is put into service and
when the check valve or a complete compressor pump has been replaced.
t. Make sure the On/Auto/Off lever is in the "OFF" position.
NOTE: If quick connect is installed, pull coupler back until itclicks to prevent
air from escaping through the quick connect.
2. Plug the power cord into the correct branch circuit receptacle. (Refer to
Voltage and Circuit Protection paragraph in the Installation section of this
manuel.)
3.
4.
Open the drain valve fully (counter-clockwise) to permit air to escape and
prevent air pressure build up in the air tank during the break-in period.
Move the On/Auto/Off lever to "ON/AUTO" position. The compressor will
start.
5. Run the compressor for 15 minutes. Make sure the drain valve is open and
there is minimal air pressure build-up in tank.
6. After 15 minutes, close the drain valve (clockwise). The air receiver will fill
to "cut-out" pressure and the motor will stop.
The compressor is now ready for use.
Before Each Start-Up:
1. Place On/Auto/Off lever to "OFF".
2,
3.
Pull regulator knob out, turn counter-clockwise until it stops. Push knob in
to lock in place.
Attach hose and accessories. NOTE: The hose or accessory will require a
quick connect plug. To use remote console, see "How to Use Remote
Console" paragraph in this section.
Too much air pressure causes a hazardous risk of
bursting, Check the manufacturer's maximum pressure
rating for air tools and accessories. The regulator outlet pressure must
never exceed the maximum pressure rating.
13-ENG D28379

How to Start:
1, Turn the On/Auto/Off lever to "AUTO" and allow tank pressure to build.
Motor will stop when tank pressure reaches "cut-out" pressure.
2. Pull the regulator knob out and turn clockwise to increase pressure. When
the desired pressure is reached push knob in to lock in place. The
compressor is ready for use.
NOTE: Always operate the air compressor in well-ventilated areas free of
gasoline or other combustible vapors. If the compressor is being used to
operate a sprayer DO NOT place near the spray area.
How to Use Remote Console:
When needed the remote console allows remote air regulation and control
closer to the work area.
Reduce air pressure in tank to 60 psi maximum before
removing or connecting portable control panel and when
connecting hose to tank quick-connect coupler.
1. Turn knobs counter clockwise to loosen knobs securing control panel.
2. Slide console up and away from frame, disconnect air hose from quick
connect (a), and remove console.
|
.Connect air hose (sold separately) to quick connect plug (b) and quick
connect (a). The console can then be brought closer to the work site to
rest on the console brackets (d) or be temporarily mounted using the
mounting hole (c).
Can cause serious injury or death. Tank may contain 150
PSI of air pressure. Never connect accessories to
unregulated air, Never operate tools or accessories above marked
maximum pressure.
D28379 14-ENG

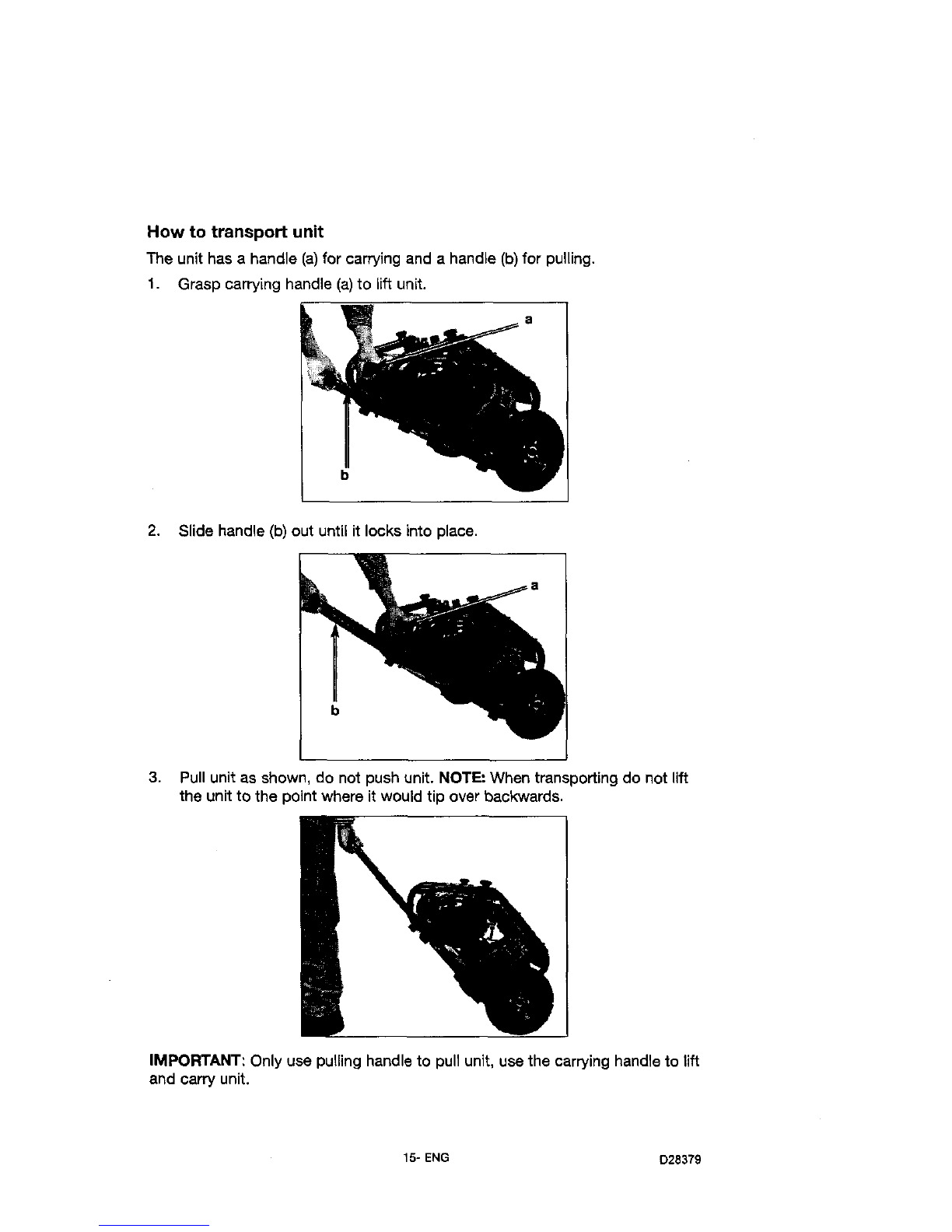

How to transport unit
The unit has a handle (a) for carrying and ahandle (b)for pulling.
t. Grasp carrying handle (a) to lift unit.
b
2. Slide handle (b) out until it locks into place.
3. Pull unit as shown, do not push unit. NOTE: When transporting do not lift
the unit to the point where it would tip over backwards.
IMPORTANT: Only use pulling handle to pull unit, use the carrying handle to lift
and carry unit.
15-ENG D28379

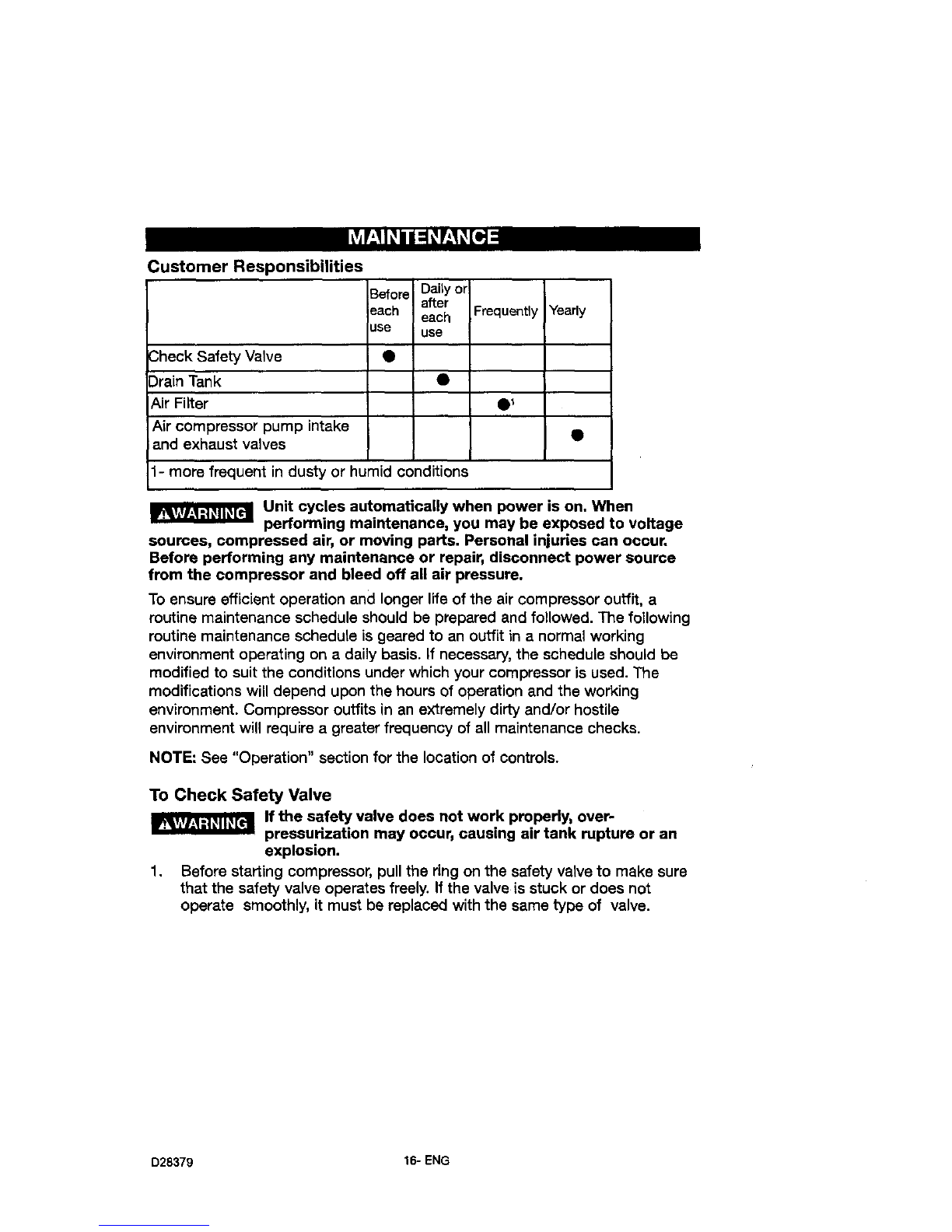

Customer Responsibilities
DaiLyor
Before a_er
each each
use use
Check Safety Valve •
DrainTank •
Air Filter
Air compressor pump intake
and exhaust valves
1- more frequent in dusty or humid conditions
Frequently
01
Yearly
Unit cycles automatically when power is on. When
performing maintenance, you may be exposed to voltage
sources, compressed air, or moving parts. Personal injuries can occur.
Before performing any maintenance or repair, disconnect power source
from the compressor and bleed off all air pressure.
To ensure efficient operation and longer life of the air compressor outfit, a
routine maintenance schedule should be prepared and followed. The following
routine maintenance schedule is geared to an outfit in a normal working
environment operating on adaily basis. If necessary, the schedule should be
modified to suit the conditions under which your compressor is used. The
modifications will depend upon the hours of operation and the working
environment. Compressor outfits in an extremely dirty and/or hostile
environment will require a greater frequency of all maintenance checks.
NOTE: See "Operation" section for the location of controls.
To Check Safety Valve
If the safety valve does not work properly, over-
pressurization may occur, causing air tank rupture or an
explosion.
1. Before starting compressor, pull the ring on the safety valve to make sure
that the safety valve operates freely. Ifthe valve is stuck or does not
operate smoothly, it must be replaced with the same type of valve.
D28379 16-ENG

To Drain Tank
1. Set the On/Auto/Off lever to "OFF".
2. Pull the regulator knob out and turn counterclockwise to set the outlet
pressure to zero.
3. Remove the air tool or accessory.
4. Pull ring on safety valve allowing air to bleed from the tank until tank
pressure is approximately 20 psi. Release safety valve ring.
5. Drain water from air tank by opening drain valve (counter-clockwise) on
bottom of tank.
Water will condense in the air tank. If not drained, water
_will corrode end weaken the air tank causing a risk of air
tank rupture.
6. After the water has been drained, close the drain valve (clockwise). The air
compressor can now be stored.
NOTE: If drain valve is plugged, release all air pressure. The valve can then be
removed, cleaned, the reinstalled.
Air Filter Inspection and Replacement
Hot surfaces. Risk of burn. Compressor heads are
exposed when filter cover is removed. Allow compressor
to cool prior to servicing.
Keep the air filter clean at all times. Do not operate the air
compressor with the air filter removed.
A dirty air filter will not allow the compressor pump to operate at full capacity.
Before you use the compressor pump, check the air filter to be sure it is clean
and in place.
ff it is dirty, replace it with a new filter.
1. Remove the air filter cover.
2, Remove the air filter from filter cover.
3. Place new air filter into filter cover. Refer to the "Repair Parts" for the
correct part number.
4. Replace air filter cover and lock into place.
Air Compressor Pump Intake and Exhaust Valves
Once a year have a Trained Service Technician check the air compressor pump
intake and exhaust valves.
17-ENG D28379

_m Unit cycles automatically when power is on. When doing
Maintenance, you may be exposed to voltage sources,
compressed air or moving parts. Personal injuries can occur. Before
performing any Maintenance or repair, unplug the compressor and bleed
off all air pressure.
ALL MAINTENANCE AND REPAIR OPERATIONS NOT LISTED MUST BE
PERFORMED BY TRAINED SERVICE TECHNICIAN.
Before servicing:
•Unplug or disconnect electrical supply to the air compressor.
• Bleed tank of pressure.
•Allow the air compressor to cool.
To Replace or Clean Check Valve
1. Release all air pressure from air tank. See "To Drain Tank" in the
Maintenance section.
2. Unplug outfit.
NOTE: If needed the top panel may be removed to make parts accessible.
3. Using an adjustable wrench loosen
outlet tube nut at air tank and
pump. Carefutly move outlet tube
away from check valve.
4. Using an adjustable wrench loosen
pressure relief tube nut at air tank
and pressure switch. Carefully move
pressure relief tube away from
check valve.
5. Unscrew the check valve (turn
counterclockwise) using a7/8" open
end wrench. Note the orientation
for reassembly.
6. Unscrew elbow fitting from the check valve (turn counterclockwise) using
an adjustable wrench. Note the orientation of the elbow fitting for
reassembly,
7. Using a screwdriver, carefully push the valve disc up and
down. NOTE: The valve disc should move freely up and
down on a spring which holds the valve disc in the
closed position. If not, the check valve needs to be
cleaned or replaced.
8, Clean or replace the check valve. Asolvent, such as
paint or varnish remover can be used to clean the check
valve.
9, Apply sealant to the check valve threads. Reinstalt the
check valve and elbow fitting (turn clockwise).
10. Replace the pressure release tube. Tighten nut.
11. Replace the outlet tube and tighten nut.
12. Perform the Break-in Procedure, See "Break-in Procedure" in the
Operation section.
028379 18-ENG

Before you store the air compressor, make sure you do the following:
1. Review the "Maintenance" section on the preceding pages and perform
scheduled maintenance as necessary.
2. Set the On/Auto/Off lever to "OFF".
3. Turn the regulator counterclockwise and set the outlet pressure to zero.
4. Remove the air tool or accessory.
5. Pull ring on safety valve allowing air to bleed from the tank until tank
pressure is approximately 20 psi. Release safety valve ring.
6. Drain water from air tank by opening drain valve on bottom of tank.
Water will condense in the air tank. If not drained, water
will corrode and weaken the air tank causing a risk of air
tank rupture.
7. After the water has been drained, close the drain or drain valve.
NOTE: If drain valve is plugged, release all air pressure. The valve can then be
removed, cleaned, then reinstalled.
8. Wrap electrical cord onto the cord
wrap as shown.
9. Protect the air hose from damage
(such as being stepped on
10. Push pulling handle into place for
storage.
11. Store the air compressor in a clean an
dry location.
19-ENG D28379

Performing repairs may expose voltage sources, moving
parts or compressed air sources, moving parts or
compressed sir sources, Personal injury may occur. PHor to attempting
any repairs, unplug the air compressor and bleed off all sir tank air
pressure.
PROBLEM
Excessive tank
pressure - safet'
valve pops off.
Air leaks at
fittings.
Air leaks at or
inside check
valve.
Air leaks at
pressure switch
release valve,
Air leaks in air
tank or at air
tank welds.
CAUSE
Pressure switch does not
shut off motor when
compressor reaches
"cut-out" pressure.
Pressure switch "cut-out"
too high.
Tube fittings are not tight
enough.
Check valve seat damaged.
Defective pressure switch
release vatve.
Defective air tank.
Air leaks Leaking seal.
between head
and valve plate.
D28379 20- ENG
CORRECTION
Move On/Auto/Off lever to
the "OFF" position, if the
outfit does not shut off
contact aTrained Service
Technician.
Contact aTrained Service
Technician.
Tighten fittings where air can
be heard escaping. Check
fittings with soapy water
solution. Do Not
Overtighten.
defective check valve
results in a constant air leak
at the pressure release valve
when there is pressure in the
tank and the compressor is
shut off. Replace check
valve. Refer to the "To
Replace or Clean Check
Valve" in the "Service and
Adjustment" section.
Contact a Trained Service
Technician.
Air tank must be replaced.
Do not repair the leak.
Do not drill into, weld or
otherwise modify air tank
or it will weaken. The tank
can rupture or explode.
Contact a Trained Service
Technician.
