Porter-Cable N003568 User manual

Française : Page 20
Español: Página 40
C2002
AIR COMPRESSOR
Oil-free pump
Compresor de aire
La pompe sans huile
Compresseur d’air
La bomba sin aceite
Instruction manual
Manuel d'instructions
Manual de'instrucciones
www.deltaportercable.com
INSTRUCTIVO DE OPERACIÓN, CENTROS
DE SERVICIO Y PÓLIZA DE GARANTÍA.
LÉASE ESTE INSTRUCTIVO
ANTES DE USAR EL PRODUCTO.

2 - ENGN003568
SAFETY GUIDELINES - DEFINITIONS
This manual contains information that is important for you to know and under-
stand. This information relates to protecting YOUR SAFETY and PREVENTING
EQUIPMENT PROBLEMS. To help you recognize this information, we use the
symbols below. Please read the manual and pay attention to these symbols.
Indicates an immi-
nently hazardous sit-
uation which, if not avoided, will result
in death or serious injury.
Indicates a potentially
hazardous situation
which, if not avoided, may result in
minor or moderate injury.
Indicates a potentially
hazardous situation
which, if not avoided, could result in
death or serious injury.
Used without the safety
alert symbol indicates
a potentially hazardous situation which,
if not avoided, may result in property
damage.
IMPORTANT SAFETY INSTRUCTIONS
This product contains chemicals known to the State of
California to cause cancer, and birth defects or other repro-
ductive harm. Wash hands after handling.
Some dust contains chemicals known to the State of
California to cause cancer, birth defects or other reproduc-
tive harm such as asbestos and lead in lead based paint.
Do not operate this unit until you read and
understand this instruction manual for safety,
operation and maintenance instructions.
SAVE THESE INSTRUCTIONS
HAZARD
RISK OF EXPLOSION OR FIRE
WHAT CAN HAPPEN HOW TO PREVENT IT
• Itisnormalforelectricalcon-
tacts within the motor and pres-
sure switch to spark.
• Alwaysoperatethecompressorina
well ventilated area free of combustible
materials, gasoline, or solvent vapors.
• Ifelectricalsparksfromcom-
pressor come into contact with
flammable vapors, they may
ignite, causing fire or explosion.
• Ifsprayingflammablematerials,locate
compressor at least 20' (6.1 m) away
from spray area. An additional length of
air hose may be required.
• Storeflammablematerialsinasecure
location away from compressor.

3 - ENG N003568
• Restrictinganyofthecompres-
sor ventilation openings will
cause serious overheating and
could cause fire.
• Neverplaceobjectsagainstorontopof
compressor.
• Operatecompressorinanopenareaat
least 12" (30.5 cm) away from any wall
or obstruction that would restrict the
flow of fresh air to the ventilation open-
ings.
• Operatecompressorinaclean,drywell
ventilated area. Do not operate unit in
any confined area. Store indoors.
• Unattendedoperationofthis
product could result in personal
injuryorpropertydamage.To
reduce the risk of fire, do not
allow the compressor to oper-
ate unattended.
• Alwaysremaininattendancewiththe
product when it is operating.
• Alwaysturnoffandunplugunitwhen
not in use.
HAZARD
RISK TO BREATHING (ASPHYXIATION)
WHAT CAN HAPPEN HOW TO PREVENT IT
• Thecompressedairdirectly
from your compressor is not
safe for breathing. The air
stream may contain carbon
monoxide, toxic vapors, or
solid particles from the air tank.
Breathing these contaminants
cancauseseriousinjuryor
death.
• Airobtaineddirectlyfromthecompres-
sor should never be used to supply air
for human consumption. In order to
use air produced by this compressor
for breathing, suitable filters and in-line
safety equipment must be properly
installed. In-line filters and safety equip-
mentusedinconjunctionwiththecom-
pressor must be capable of treating air
to all applicable local and federal codes
prior to human consumption.
• Sprayedmaterialssuchas
paint, paint solvents, paint
remover, insecticides, weed kill-
ers, may contain harmful vapors
and poisons.
• Workinanareawithgoodcrossventila-
tion. Read and follow the safety instruc-
tions provided on the label or safety
data sheets for the materials you are
spraying. Always use certified safety
equipment: OSHA/MSHA/NIOSH respi-
ratory protection designed for use with
your specific application.
• Somedustcreatedbypower
tools may contain harmful
chemicals.
• Toreduceyourexposuretothese
chemicals: work in a well ventilated area
and always wear OSHA/MSHA/NIOSH
approved, properly fitting face mask or
respirator when using such tools.

4 - ENGN003568
HAZARD
RISK OF BURSTING
Air Tank: The air tank on your compressor is designed and may be UM coded [for
units with air tanks greater than 6" (152.4 mm) diameter] according to ASME Section
VIII, Div. 1 rules. All pressure vessels should be inspected once every two years.
To find your state pressure vessels inspector, look under the Division of Labor and
Industries in the government section of a phone book .
The following conditions could lead to a weakening of the air tank, and result in a
violent air tank explosion:
WHAT CAN HAPPEN HOW TO PREVENT IT
• Failuretoproperlydraincon-
densed water from air tank,
causing rust and thinning of the
steel air tank.
• Drainairtankdailyoraftereachuse.
If air tank develops a leak, replace it
immediately with a new air tank or
replace the entire compressor.
• Modificationsorattempted
repairs to the air tank. • Neverdrillinto,weld,ormakeanymodi- fications to the air tank or its attach-
ments. Never attempt to repair a dam-
aged or leaking air tank. Replace with a
new air tank.
• Unauthorizedmodificationsto
the safety valve or any other
components which control air
tank pressure.
• Theairtankisdesignedtowithstand
specific operating pressures. Never
makeadjustmentsorpartssubstitutions
to alter the factory set operating pres-
sures.
Attachments & accessories:
• Exceedingthepressurerat-
ing of air tools, spray guns,
air operated accessories,
tires, and other inflatables
can cause them to explode
or fly apart, and could result
inseriousinjury.
• Followtheequipmentmanufacturers
recommendation and never exceed
the maximum allowable pressure
rating of attachments. Never use
compressor to inflate small low pres-
sureobjectssuchaschildren’stoys,
footballs, basketballs, etc.
Tires:
• Over inflation of tires could
result in serious injury and
property damage.
• Useatirepressuregaugetocheckthe
tires pressure before each use and while
inflating tires; see the tire sidewall for
the correct tire pressure.
NOTE: Air tanks, compressors and similar
equipment used to inflate tires can fill small
tires similar to these very rapidly. Adjust
pressure regulator on air supply to no more
than the rating of the tire pressure. Add air in
small increments and frequently use the tire
gauge to prevent over inflation.

5 - ENG N003568
HAZARD
RISK OF ELECTRICAL SHOCK
WHAT CAN HAPPEN HOW TO PREVENT IT
• Yourcompressorispoweredby
electricity. Like any other elec-
trically powered device, if it is
not used properly it may cause
electric shock.
• Neveroperatethecompressoroutdoors
when it is raining or in wet conditions.
• Neveroperatecompressorwithprotec-
tive covers removed or damaged.
• Repairsattemptedbyunquali-
fied personnel can result in
seriousinjuryordeathbyelec-
trocution.
• Anyelectricalwiringorrepairsrequired
on this product should be performed by
authorized service center personnel in
accordance with national and local elec-
trical codes.

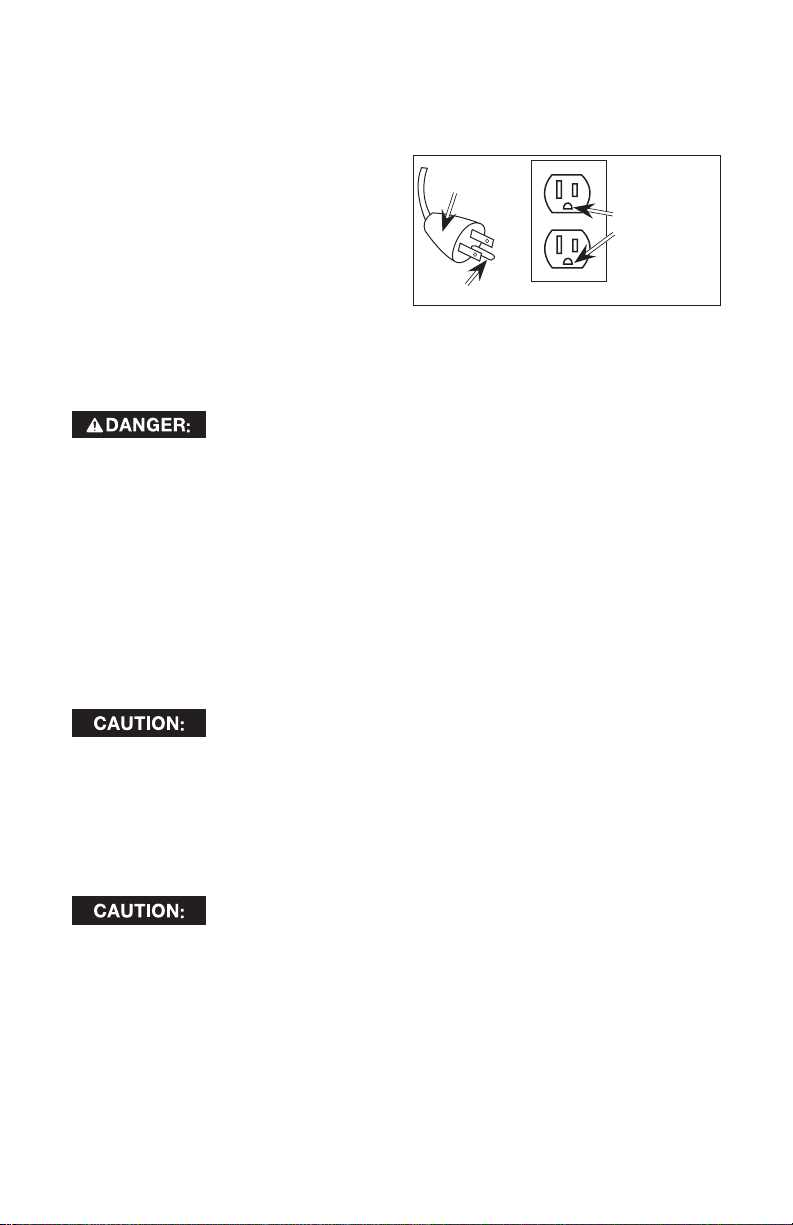

• Electrical Grounding: Failure
to provide adequate ground-
ing to this product could result
inseriousinjuryordeath
from electrocution. Refer to
Grounding Instructions para-
graph in the Installation section.
• Makecertainthattheelectricalcircuit
to which the compressor is connected
provides proper electrical grounding,
correct voltage and adequate fuse pro-
tection.
HAZARD
RISK FROM FLYING OBJECTS
WHAT CAN HAPPEN HOW TO PREVENT IT
• Thecompressedairstreamcan
cause soft tissue damage to
exposed skin and can propel
dirt, chips, loose particles, and
smallobjectsathighspeed,
resulting in property damage or
personalinjury.
• Alwayswearcertifiedsafetyequipment:
ANSI Z87.1 eye protection (CAN/CSA
Z94.3) with side shields when using the
compressor.
• Neverpointanynozzleorsprayer
toward any part of the body or at other
people or animals.
• Alwaysturnthecompressoroffand
bleed pressure from the air hose and
air tank before attempting maintenance,
attaching tools or accessories.

6 - ENGN003568
HAZARD
RISK OF HOT SURFACES
WHAT CAN HAPPEN HOW TO PREVENT IT
• Touchingexposedmetalsuch
as the compressor head, engine
head, engine exhaust or outlet
tubes, can result in serious
burns.
• Nevertouchanyexposedmetalparts
on compressor during or immediately
after operation. Compressor will remain
hot for several minutes after operation.
• Donotreacharoundprotectiveshrouds
or attempt maintenance until unit has
been allowed to cool.
HAZARD
RISK FROM MOVING PARTS
WHAT CAN HAPPEN HOW TO PREVENT IT
• Movingpartssuchasthepul-
ley, flywheel, and belt can
causeseriousinjuryifthey
come into contact with you or
your clothing.
• Neveroperatethecompressorwith
guards or covers which are damaged or
removed.
• Keepyourhair,clothing,andgloves
away from moving parts. Loose clothes,
jewelry,orlonghaircanbecaughtin
moving parts.
• Airventsmaycovermovingpartsand
should be avoided as well.
• Attemptingtooperatecompres-
sor with damaged or missing
parts or attempting to repair
compressor with protective
shrouds removed can expose
you to moving parts and can
resultinseriousinjury.
• Anyrepairsrequiredonthisproduct
should be performed by authorized ser-
vice center personnel.
HAZARD
RISK OF UNSAFE OPERATION
WHAT CAN HAPPEN HOW TO PREVENT IT
• Unsafeoperationofyour
compressor could lead to seri-
ousinjuryordeathtoyouor
others.
• Reviewandunderstandallinstructions
and warnings in this manual.
• Becomefamiliarwiththeoperationand
controls of the air compressor.
• Keepoperatingareaclearofallpersons,
pets, and obstacles.
• Keepchildrenawayfromtheaircom-
pressor at all times.

7 - ENG N003568
• Donotoperatetheproductwhen
fatigued or under the influence of alco-
hol or drugs. Stay alert at all times.
• Neverdefeatthesafetyfeaturesofthis
product.
• Equipareaofoperationwithafireextin-
guisher.
• Donotoperatemachinewithmissing,
broken, or unauthorized parts.
• Neverstandonthecompressor.
HAZARD
RISK OF FALLING
WHAT CAN HAPPEN HOW TO PREVENT IT
• Aportablecompressorcan
fall from a table, workbench,
or roof causing damage to the
compressor and could result in
seriousinjuryordeathtothe
operator.
• Alwaysoperatecompressorinastable
secure position to prevent accidental
movement of the unit. Never operate
compressor on a roof or other elevated
position. Use additional air hose to
reach high
locations.
HAZARD
RISK FROM NOISE
WHAT CAN HAPPEN HOW TO PREVENT IT
• Undersomeconditionsand
duration of use, noise from this
product may contribute to hear-
ing loss.
• Alwayswearcertifiedsafetyequipment:
ANSI S12.6 (S3.19) hearing protection.
SAVE THESE INSTRUCTIONS
FOR FUTURE USE
SPECIFICATIONS
Model No. C2002
Bore 1.875"
Stroke 1.250"
Voltage/Hz-Single Phase 120/60
Minimum Branch Circuit Requirement 15 amps
Fuse Type Time Delay
Air Tank Capacity (Gallon) 6
Approximate Cut-in Pressure 120 PSIG
Approximate Cut-out Pressure 150 PSIG
SCFM @ 40 PSIG *3.7
SCFM @ 90 PSIG *2.6
*Tested per ISO 1217
Refer to Glossary for abbreviations.

8 - ENGN003568
GLOSSARY
Become familiar with these terms before operating the unit.
CFM: Cubic feet per minute.
SCFM: Standard cubic feet per minute; a unit of measure of air delivery.
PSIG: Pounds per square inch gauge; a unit of measure of pressure.
Code Certification: Products that bear one or more of the following marks: UL,
CUL, ETL, CETL, have been evaluated by OSHA certified independent safety labo-
ratories and meet the applicable Standards for Safety.
Cut-In Pressure: Whilethemotorisoff,airtankpressuredropsasyoucontinue
touseyouraccessory.Whenthetankpressuredropstoacertainlowerlevelthe
motor will restart automatically. The low pressure at which the motor automatically
restarts is called "cut-in" pressure.
Cut-Out Pressure: Whenanaircompressoristurnedonandbeginstorun,air
pressure in the air tank begins to build. It builds to a certain high pressure before
the motor automatically shuts off, protecting your air tank from pressure higher
than its capacity. The high pressure at which the motor shuts off is called "cut-
out" pressure.
Branch Circuit: Circuit carrying electricity from electrical panel to outlet.
DUTY CYCLE
This air compressor pump is capable of running continuously. However, to
prolong the life of your air compressor, it is recommended that a 50%-75%
average duty cycle be maintained; that is, the air compressor pump should not
run more than 30-45 minutes in any given hour.
ACCESSORIES
Accessories for this unit are available at the store the unit was purchased.
ASSEMBLY
Unpacking
1. Remove unit from carton and discard all packaging.
INSTALLATION
HOW TO SET UP YOUR UNIT
Location of the Air Compressor
• Locatetheaircompressorinaclean,dryandwellventilatedarea.
• Theaircompressorshouldbelocatedatleast12"(30.5cm)awayfromthe
wall or other obstructions that will interfere with the flow of air.
• Theaircompressorpumpandshroudaredesignedtoallowforpropercool-
ing. The ventilation openings on the compressor are necessary to maintain
proper operating temperature. Do not place rags or other containers on or
near these openings.
GROUNDING INSTRUCTIONS
Risk of Electrical Shock. In the event of a short circuit,
grounding reduces the risk of shock by providing an
escape wire for the electric current. This air compressor must be properly
grounded.

9 - ENG N003568
The portable air compressor is equipped with a cord having a grounding wire with
an appropriate grounding plug (see following illustrations).
1. The cord set and plug with this unit contains a grounding pin. This plug
MUST be used with a grounded outlet.
IMPORTANT: The outlet being used must
Grounded
Outlets
Plug
Grounding Pin
be installed and grounded in accordance
with all local codes and ordinances.
2. Make sure the outlet being used has
the same configuration as the ground-
ed plug. DO NOT USE AN ADAPTER.
See illustration.
3. Inspect the plug and cord before each
use. Do not use if there are signs of damage.
4. If these grounding instructions are not completely understood, or if in doubt as
to whether the compressor is properly grounded, have the installation checked
by a qualified electrician.
Risk of Electrical Shock. IMPROPER GROUNDING CAN
RESULT IN ELECTRICAL SHOCK.
Do not modify the plug provided. If it does not fit the available outlet, a correct
outlet should be installed by a qualified electrician.
Repairs to the cord set or plug MUST be made by a qualified electrician.
EXTENSION CORDS
If an extension cord must be used, be sure it is:
• a3-wireextensioncordthathasa3-bladegroundingplug,anda3-slotrecep-
tacle that will accept the plug on the product
• ingoodcondition
• nolongerthan50feet
• 14gauge(AWG)orlarger.(Wiresizeincreasesasgaugenumberdecreases.
12AWGand10AWGmayalsobeused.DONOTUSE16OR18AWG.)
The use of an undersized extension cord will cause voltage
to drop resulting in power loss to the motor and overheating.
Instead of using an extension cord, increase the working reach of the air hose by
attaching another length of hose to its end. Attach additional lengths of hose as
needed.
VOLTAGE AND CIRCUIT PROTECTION
Refer to the specification chart for the voltage and minimum branch circuit require-
ments.
Risk of Opertion. Certain air compressors can be operated on a
15 amp circuit if the following conditions are met.
1. Voltage supply to circuit must comply with the National Electrical Code.
2. Circuit is not used to supply any other electrical needs.
3. Extension cords comply with specifications.
4. Circuit is equipped with a 15 amp circuit breaker or 15 amp time delay fuse.
NOTE: If compressor is connected to a circuit protected by fuses, use only
time delay fuses. Time delay fuses should be marked "D" in Canada and "T"
in the US.
If any of the above conditions cannot be met, or if operation of the compressor
repeatedly causes interruption of the power, it may be necessary to operate it from
a 20 amp circuit. It is not necessary to change the cord set.

10 - ENGN003568
OPERATION

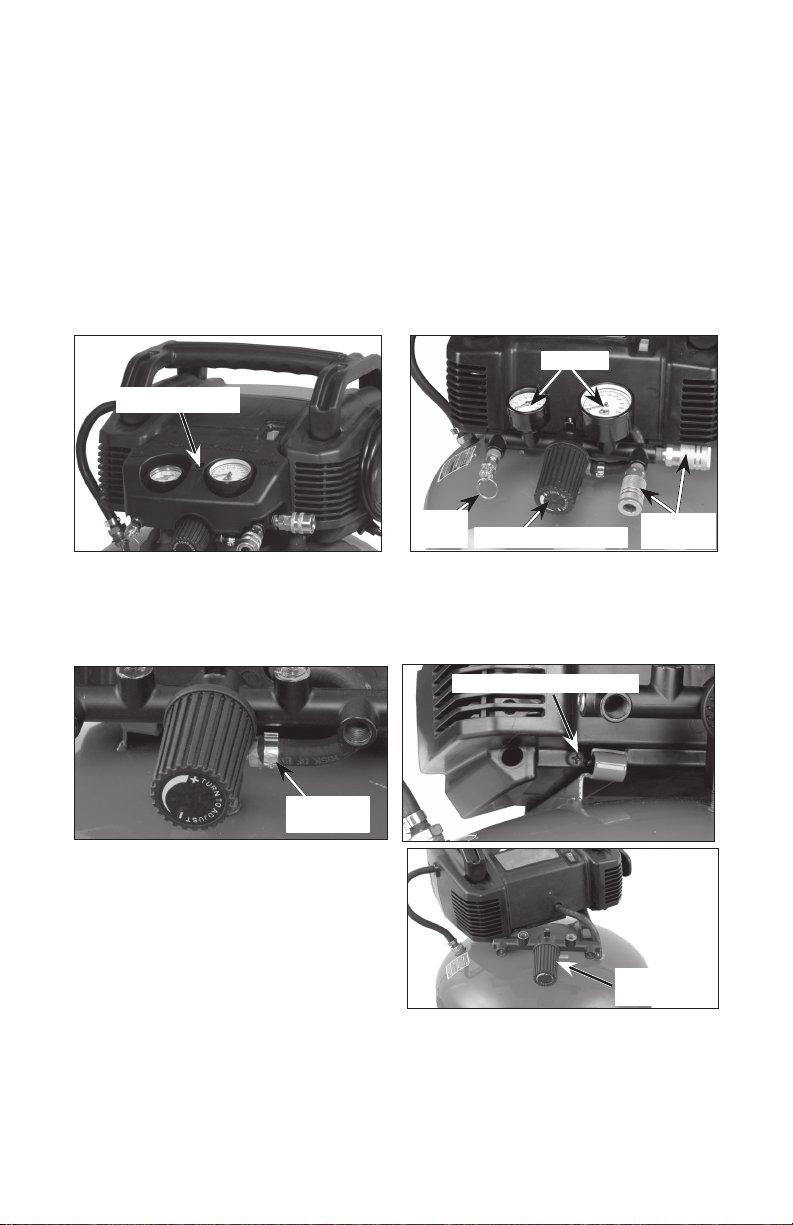

KNOW YOUR AIR COMPRESSOR
READ THIS OWNER’S MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with
the location of various controls and adjustments. Save this manual for future
reference.
On(I)/Off(O) Switch
Safety
Valve
Tank
Pressure
Gauge Outlet
Pressure
Gauge
Regulator
Quick
Connect
DESCRIPTION OF OPERATION
Become familiar with these controls before operating the unit.
On(I)/Off(O) Switch: Place this switch in the On (I) position to provide automatic
power to the pressure switch and Off (O) to remove power at the end of each
use.
Pressure Switch (not shown): The pressure switch automatically starts the
motor when the air tank pressure drops below the factory set "cut-in" pressure.
It stops the motor when the air tank pressure reaches the factory set "cut-out"
pressure.
Safety Valve: If the pressure switch does not shut off the air compressor at its
"cut-out" pressure setting, the safety valve will protect against high pressure by
"popping out" at its factory set pressure (slightly higher than the pressure switch
"cut-out" setting).
Tank Pressure Gauge: The tank pressure gauge indicates the reserve air pres-
sure in the tank.
Outlet Pressure Gauge: The outlet pressure gauge indicates the air pressure
available at the outlet side of the regulator. This pressure is controlled by the
regulator and is always less than or equal to the tank pressure.
Regulator: Controls the air pressure shown on the outlet pressure gauge. Turn
regulator knob clockwise to increase pressure and counterclockwise to decrease
pressure.
Cooling System (not shown): This compressor contains an advanced design
cooling system. At the heart of this cooling system is an engineered fan. It is
perfectly normal for this fan to blow air through the vent holes in large amounts.
You know that the cooling system is working when air is being expelled.

11 - ENG N003568
Air Compressor Pump (not shown): Compressesairintotheairtank.Working
air is not available until the compressor has raised the air tank pressure above that
required at the air outlet.
Drain Valve: The drain valve is located at the base of the
Drain
Valve
air tank and is used to drain condensation at the end of
each use.

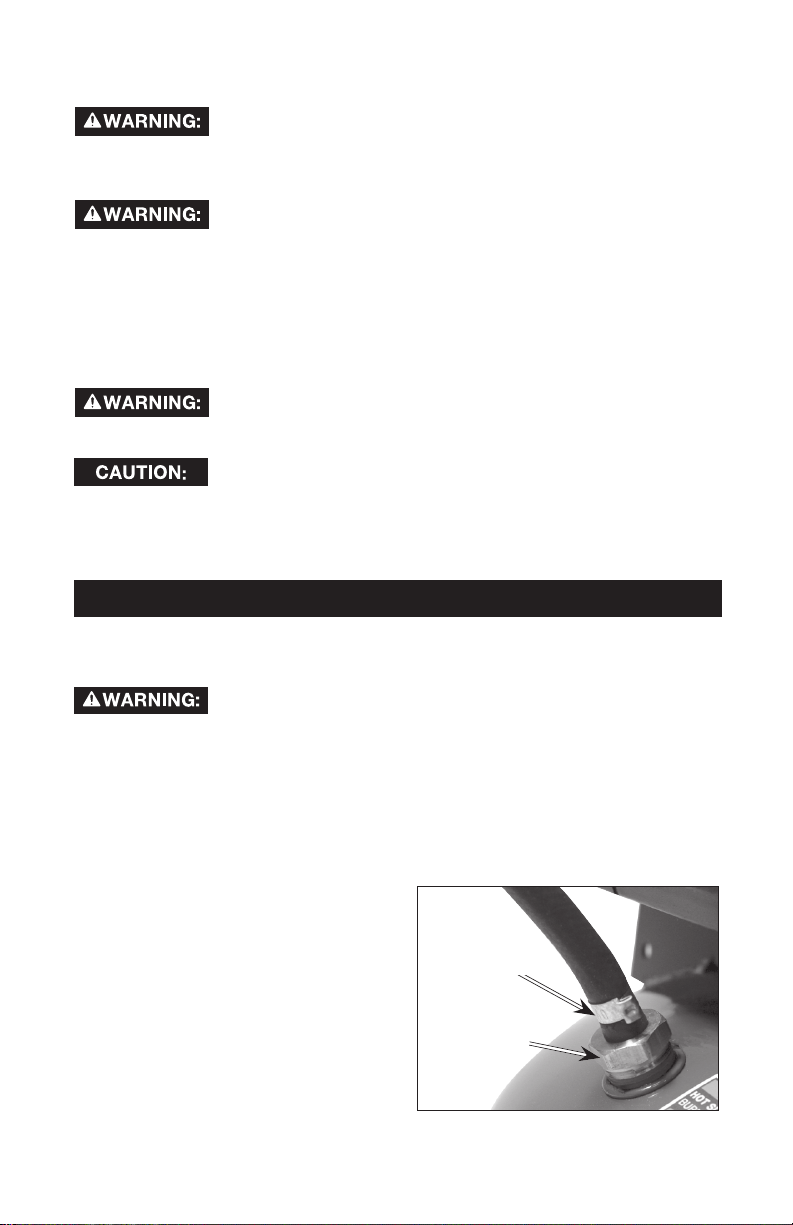

Check Valve:Whentheaircompressorisoperating,the
check valve is "open", allowing compressed air to enter
theairtank.Whentheaircompressorreaches"cut-out"
pressure, the check valve "closes", allowing air
Check Valve
pressure to remain inside the air tank.
Motor Overload Protector (not shown): The
motor has an automatic reset thermal overload
protector. If the motor overheats for any reason,
the overload protector will shut off the motor.
The motor must be allowed to cool down before
restarting. The compressor will automatically
restart after the motor cools.
HOW TO USE YOUR UNIT
How to Stop
1. Set the On/Off switch to "Off".
Before Starting
Do not operate this unit until you read and understand this
instruction manual for safety, operation and maintenance
instructions.
Break-in Procedure
Risk of Unsafe Operation. Serious damage may result if the
following break-in instructions are not closely followed.
This procedure is required before the air compressor is put into service and when
the check valve or a complete compressor pump has been replaced.
1. Make sure the On/Off switch is in the "Off" position.
2.
Plug the power cord into the correct branch circuit receptacle. (Refer to Voltage
and Circuit Protection paragraph in the Installation section of this manual.)
3. Open the drain valve (counter-clockwise) fully to permit air to escape and pre-
vent air pressure build up in the air tank during the break-in period.
4. Move the On/Off switch to "On" position. The compressor will start.
5. Run the compressor for 15 minutes. Make sure the drain valve is open and
there is minimal air pressure build-up in tank.
6. After 15 minutes, close the drain valve by turning clockwise. The air receiver
will fill to "cut-out" pressure and the motor will stop.
The compressor is now ready for use.
Before Each Start-Up
1. Set the On/Off switch to "Off".
2. Turn the regulator knob counter-clockwise to set the outlet pressure to zero.
3. Attach hose and accessories.
Risk of unsafe operation. Firmly grasp air hose in hand when
installing or disconnecting to prevent hose whip.
Risk of unsafe operation. Do not use damaged or worn
accessories.

12 - ENGN003568
NOTE: The hose or accessory will require a quick connect plug if the air outlet is
equipped with a quick connect socket.
Risk of Bursting. Too much air pressure causes a hazardous
risk of bursting. Check the manufacturer’s maximum pres-
sure rating for air tools and accessories. The regulator outlet pressure must
never exceed the maximum pressure rating.
Risk of unsafe operation. Compressed air from the unit may
contain water condensation and oil mist. Do not spray unfiltered
air at an item that could be damaged by moisture. Some air tools and accessories
may require filtered air. Read the instructions for the air tools and accessories.
How to Start
1.
Set the On/Off switch to "On" and allow tank pressure to build. Motor will stop
when tank pressure reaches "cut-out" pressure.
2. Turn regulator knob clockwise to increase pressure and stop when desired
pressure is reached.
Risk of unsafe operation. If any unusual noise or vibration
is noticed, stop the compressor immediately and have it
checked by a trained service technician.
The compressor is ready for use.
MAINTENANCE
CUSTOMER RESPONSIBILITIES
Before
each use Daily or after
each
use
Check Safety Valve X
Drain Tank X
Unit cycles automatically when power is on. When perform-
ing maintenance, you may be exposed to voltage sources,
compressed air, or moving parts. Personal injuries can occur. Before perform-
ing any maintenance or repair, disconnect power source from the compressor
and bleed off all air pressure.
NOTE: See Operation section for the location of controls.
TO CHECK SAFETY VALVE
Risk of Bursting. If the safety valve does not work properly,
over-pressurization may occur, causing air tank rupture or
an explosion.
Risk from Flying Objects. Always wear certified safety
equipment: ANSI Z87.1 eye protection (CAN/CSA Z94.3) with
side shields.
1. Before starting compressor, pull the ring on the safety valve to make sure
that the safety valve operates freely. If the valve is stuck or does not operate
smoothly, it must be replaced with the same type of valve.
NOTE: See Operation section for the location of controls.

13 - ENG N003568
TO DRAIN TANK
Risk of Unsafe Operation. Risk from noise. Air tanks contain
high pressure air. Keep face and other body parts away from
outlet of drain. Use ANSI Z87.1 eye protection (CAN/CSA Z94.3) when drain-
ing as debris can be kicked up into face.
Risk from noise. Use ear protection [(ANSI S12.6 (S3.19)
hearing protection] as air flow noise is loud when draining.
1. Set the On/Off switch to "Off".
2. Turn the regulator knob counter-clockwise to set the outlet pressure to zero.
3. Remove the air tool or accessory.
4. Pull ring on safety valve allowing air to bleed from the tank until tank pressure
is approximately 20 PSI. Release safety valve ring.
5. Drain water from air tank by opening drain valve on bottom of tank.
Risk of Bursting. Water will condense in the air tank. If not
drained, water will corrode and weaken the air tank causing
a risk of air tank rupture.
Risk of Property Damage. Drain water from air tank may contain
oil and rust which can cause stains.
6. After the water has been drained, close the drain valve. The air compressor
can now be stored.
NOTE: If drain valve is plugged, release all air pressure. The valve can then be
removed, cleaned, the reinstalled.
SERVICE AND ADJUSTMENTS
ALL MAINTENANCE AND REPAIR OPERATIONS NOT LISTED MUST BE
PERFORMED BY TRAINED SERVICE TECHNICIAN.
Risk of Unsafe Operation. Unit cycles automatically when
power is on. When servicing, you may be exposed to volt-
age sources, compressed air, or moving parts. Before servicing unit unplug
or disconnect electrical supply to the air compressor, bleed tank of pressure,
and allow the air compressor to cool.
TO REPLACE OR CLEAN CHECK VALVE
1. Release all air pressure from air tank. See "To Drain Tank" in the Maintenance
section.
2. Unplug unit.
3. Remove the hose by removing the
Check
Valve
Hose Clamp
hose clamp. NOTE: The hose clamp
is not reusable. You must purchase a
new hose clamp, see Replacement
Parts in the Service section or pur-
chase a standard hose clamp at a
local hardware store.
4. Unscrew the check valve (turn coun-
ter-clockwise) using a socket wrench.
5. Make sure the valve disc moves freely
inside the check valve and the spring
holds the disc in the upper, closed
position. The check valve may be
cleaned with a solvent, such as paint and varnish remover.

14 - ENGN003568
6. Apply sealant to the check valve threads. Reinstall the check valve (turn clock-
wise).
7. Replace hose and new hose clamp.
8. Perform the Break-in Procedure. See Break-in Procedure in the Operation
section.
TO REPLACE REGULATOR
1. Release all air pressure from air tank. See To Drain Tank in the Maintenance
section.
2. Unplug unit.
3. Remove the console cover.
4. Usinganadjustablewrenchremovethegauges,quickconnect,andsafety
valve from the regulator manifold.
Safety
Valve Regulator Manifold
Gauges
Quick
Connect
Console Cover
5. Remove the hose by removing the hose clamp. NOTE: The hose clamp is not
reusable. You must purchase a new hose clamp, see Replacement Parts in
the Service section or purchase a standard hose clamp at a local hardware
store.
6. Remove pump mounting screws securing pump (one on each side).
Hose
Clamp
Pump Mounting Screw
7. Carefully slide pump from brackets
Regulator
Manifold
Pump
shown
moved
out of the
way
and out of the way.
8. Usinganadjustablewrenchremove
the regulator manifold.
9. Apply pipe sealant to new regulator
manifold and assemble, tighten with
wrench.
10. Reapply pipe sealant to gauges,
quick connect, and safety valve.
11. Reassemble all components in reverse order of removal. Make sure to orient
gauges to read correctly and use wrenches to tighten all components.

15 - ENG N003568
STORAGE
Before you store the air compressor, make sure you do the following:
1. Review the Maintenance section on the preceding pages and perform sched-
uled maintenance as necessary.
2. Set the On/Off switch to "Off" and unplug unit.
3. Turn the regulator counterclockwise and set the outlet pressure to zero.
4. Remove the air tool or accessory.
5. Pull ring on safety valve allowing air to bleed from the tank until tank pressure
is approximately 20 PSI. Release safety valve ring.
6. Drain water from air tank by opening drain valve on bottom of tank.
Risk of Bursting. Water will condense in the air tank. If not
drained, water will corrode and weaken the air tank causing
a risk of air tank rupture.
7. After the water has been drained, close drain valve by turning clockwise.
NOTE: If drain valve is plugged, release all air pressure. The valve can then be
removed, cleaned, then reinstalled.
8. Protect the electrical cord and air hose from damage (such as being stepped
onorrunover).Windthemlooselyaroundthecompressorhandle.
9. Store the air compressor in a clean and dry location.
SERVICE
REPLACEMENT PARTS
Use only identical replacement parts. For a parts list or to order parts, visit our web-
site at servicenet.porter-cable.com. You can also order parts from your nearest
factory-owned branch,or by calling our Customer Care Center at 1-888-848-5175
to receive personalized support from highly-trained technicians.
SERVICE AND REPAIRS
All quality tools will eventually require servicing and/or replacement of parts. For
information about Porter-Cable, its factory-owned branches, or an Authorized
Warranty Service Center, visit our website at deltaportercable.com or call our
Customer Care Center at (888)-848-5175. All repairs made by our service cen-
tersarefullyguaranteedagainstdefectivematerialandworkmanship.Wecannot
guarantee repairs made or attempted by others.
You can also write to us for information at PORTER-CABLE, 4825 Highway 45
North, Jackson, Tennessee 38305 - Attention: Product Service. Be sure to include
all of the information shown on the nameplate of your tool (model number, type,
serial number, etc.).
ACCESSORIES
AcompletelineofaccessoriesisavailablefromyourPorter-Cable•DeltaSupplier,
Porter-Cable•DeltaFactoryServiceCenters,andPorter-CableAuthorizedService
Stations.Pleasevisit ourWebSite deltaportercable.com for a catalog or for the
name of your nearest supplier.
SinceaccessoriesotherthanthoseofferedbyPorter-Cable•Delta
have not been tested with this product, use of such accessories
couldbehazardous.Forsafestoperation,onlyPorter-Cable•Deltarecommended
accessories should be used with this product.

16 - ENGN003568
TROUBLESHOOTING
Risk of Unsafe Operation. Unit cycles automatically when
power is on. When servicing, you may be exposed to volt-
age sources, compressed air, or moving parts. Before servicing unit unplug
or disconnect electrical supply to the air compressor, bleed tank of pressure,
and allow the air compressor to cool.
PROBLEM CAUSE CORRECTION
Excessive tank pressure
- safety valve pops off. Pressure switch does not shut off motor when
compressor reaches
"cut-out" pressure.
Move On/Off lever to
the "Off" position, if
the outfit does not shut
off contact a Trained
Service Technician.
Pressure switch "cut-
out" too high. Contact a Trained Service Technician.
Air leaks at fittings. Tube fittings are not
tight enough. Tighten fittings where air can be heard escaping.
Check fittings with
soapy water solution.
Do Not Overtighten.
Air leaks in air tank or at
air tank welds. Defective air tank. Air tank must be replaced. Do not repair
the leak.
Risk
bursting. Do not drill
into, weld or otherwise
modify air tank or it will
weaken. The tank can
rupture or explode.
Air leaks between head
and valve plate. Leaking seal. Contact a Trained Service Technician.
Air leak from safety
valve. Possible defect in safety valve. Operate safety valve manually by pulling on
ring. If valve still leaks,
it should be replaced.
KnockingNoise. Possible defect in
safety valve. Operate safety valve manually by pulling on
ring. If valve still leaks,
it should be replaced.

17 - ENG N003568
PROBLEM CAUSE CORRECTION
Pressure reading on
the regulated pressure
gauge drops when an
accessory is used.
It is normal for "some"
pressure drop to occur. If there is an excessive amount of pressure drop
when the accessory
isused,adjustthe
regulator following
the instructions in
the Description of
Operation paragraph in
the Operation Section.
NOTE: Adjustthe
regulated pressure
under flow conditions
(while accessory
is being used).
Compressor is not
supplying enough air to
operate accessories.
Prolonged excessive
use of air. Decrease amount of air usage.
Compressor is not
large enough for
air requirement.
Check the accessory
air requirement. If
it is higher than the
SCFM or pressure
supplied by your air
compressor, you need
a larger compressor.
Hole in hose. Check and replace
if required.
Check valve restricted. Remove and clean,
or replace.
Air leaks. Tighten fittings.
Regulator knob has
continuous air leak. Damaged regulator. Replace.
Regulator will not
shut off air outlet. Damaged regulator. Replace.

18 - ENGN003568
PROBLEM CAUSE CORRECTION
Motor will not run. Fuse blown, circuit
breaker tripped. Check fuse box for blown fuse and
replace as necessary.
Reset circuit breaker.
Do not use a fuse or
circuit breaker with
higher rating than
that specified for your
particular branch circuit.
Check for proper
fuse. You should use
a time delay fuse.
Check for low
voltage problem.
Check the
extension cord.
Disconnect the other
electrical appliances
from circuit or operate
the compressor on its
own branch circuit.
Extension cord is wrong
length or gauge. Check the extension cord.
Loose electrical
connections. Check wiring connection inside terminal box.
Faulty motor. Have checked by
a Trained Service
Technician.
Motor overload
protection switch
has tripped
Refer to Motor
Overload Protection
under Operation.
If motor overload
protection trips
frequently, contact
a Trained Service
Technician

19 - ENG N003568
FULL ONE YEAR WARRANTY
PORTER-CABLE industrial tools are warranted for one year from date of purchase.
Wewillrepair,withoutcharge,anydefectsduetofaultymaterialsorworkmanship.
For warranty repair information, call (888)-848-5175. This warranty does not apply
to accessories or damage caused where repairs have been made or attempted by
others. This warranty gives you specific legal rights and you may have other rights
which vary in certain states or provinces.
LATIN AMERICA: This warranty does not apply to products sold in Latin America.
For products sold in Latin America, see country specific warranty information
contained either in the packaging, call the local company or see website for
warranty information.

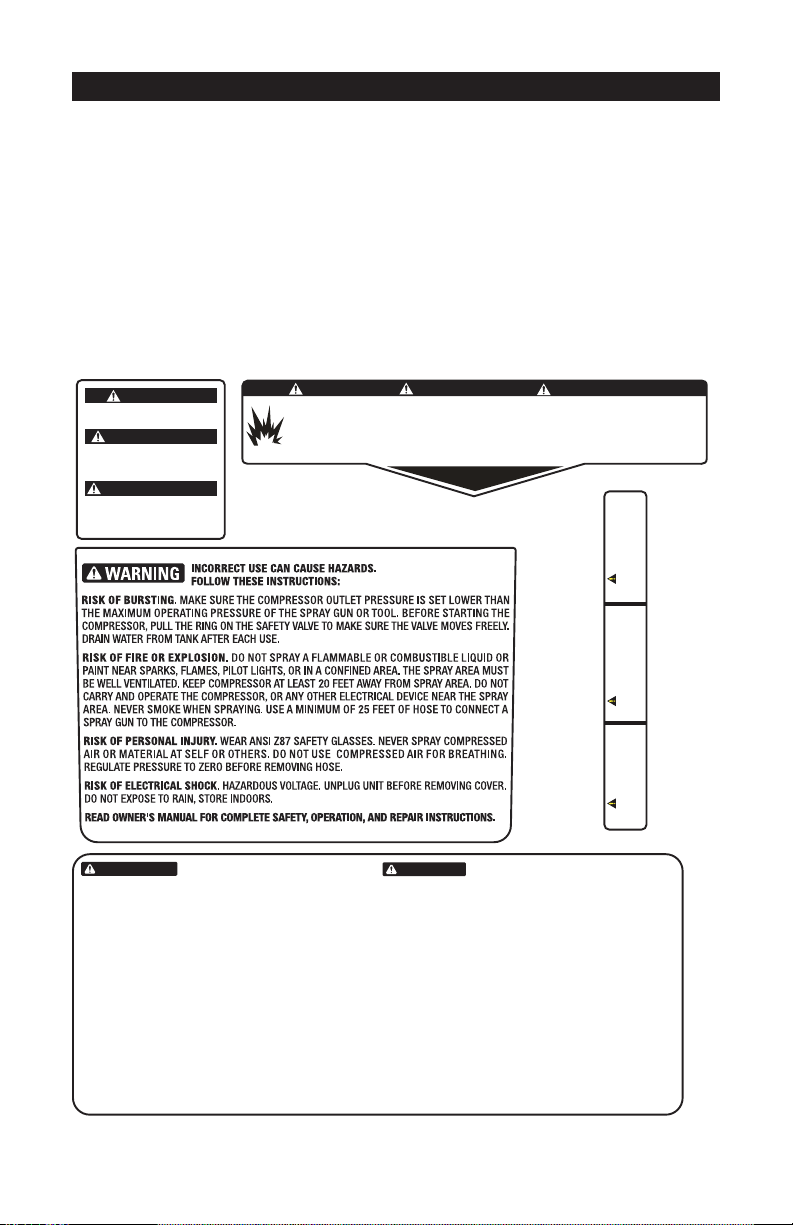

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible
or are missing, call (888)-848-5175 for a free replacement.
WARNING
HOT SURFACE. RISK OF
BURNS. DO NOT TOUCH.
SUPERFICIE CALIENTE.
RIESGO DE QUEMADURA.
NO TOCAR.
SURFACE TRÈS CHAUDE.
RISQUES DE BRÛLURES.
NE PAS TOUCHER.
S
ADVERTENCIA
AVERTISSEMENT
WARNING
S
ADVERTENCIA
AVERTISSEMENT
El tanque oxid ado
puede causar explosión
heri da s serias o fa tales.
Inclinar el tanque hacia
adelante para drenar
despué s de cada uso.
Ru sted tank can
cause explosion and
se vere or fa tal injury.
Tilt tank forward to
drain af ter ea ch use.
Un réservoir rouillé peut
provoquer une ex plosion et causer
des blessu res graves ou fa tales.
Inclinez leréservoir vers l'avant
pour le vidander après chaque
utilisation.
ADVERTENCIA
AVERTISSEMENT
UNE UTILISATION INCORRECTE PEUTÊTRE
DANGEREUSE. SUIVEZ LES INSTRUCTIONS CIDESSOUS :
RISQUE D'ECLATEMENT.
ASSUREZ-VOUS QUE LA PRESSION DE SORTIE DU COMPRESSEUR
EST RÉGLÉE À UN NIVEAU INFÉRIEUR À LA PRESSION D'UTILISATION MAXIMUM DU PISTOLET
VAPORISATEUR OU DE L'ACCESSOIRE. AVANT DE DÉMARRER LE COMPRESSEUR,TIREZ SUR
L'ANNEAU DE LA SOUPAPE DE SÛRETÉ POUR VOUS ASSURER QU'ELLE FONCTIONNE
LIBREMENT. VIDANGEZ L'EAU DU RÉSERVOIR À AIR APRÈS CHAQUE UTILISATION.
RISQUE D'INCENDIE OU D'EXPLOSION. NE PAS VAPORISER UN LIQUIDE OU UN PEINTURE
INFLAMMABLE OU COMBUSTIBLE PRÈS D'ÉTINCELLES, DE FLAMMES, DE VEILLEUSES NI
DANS UN ENDROIT RESTREINT OU RENFERMÉ. L'AIRE DE VAPORISATION DOIT ÊTRE BIEN
AÉRÉE. GARDEZ LE COMPRESSEUR À UNE DISTANCE D'AU MOINS 20 PIEDS DE LA
SURFACE À VAPORISER. NE PORTEZ PAS LE COMPRESSEUR ET NE L'UTILISEZ PAS NI
AUCUN AUTRE APPAREIL ÉLECTRIQUE À PROXIMITÉ DE L'AIRE DE VAPORISATION. NE
FUMEZ JAMAIS QUAND VOUS VAPORISEZ. UTILISEZ UN FLEXIBLE D'AIR D'UNE LONGUEUR
MINIMUM DE 25 PIEDS POUR RELIER LE PISTOLET VAPORISATEUR AU COMPRESSEUR.
RISQUE DE BLESSURES CORPORELLES. PORTEZ DES LUNETTES DE PROTECTION ANSI
Z87. NE DIRIGEZ JAMAIS L'AIR COMPRIME OU DES MATÉRIAUX VERS SOI OU VERS
AUTRUI. NE JAMAIS UTILISER DE L'AIR COMPRIMÉ POUR LA RESPIRATION. RÉGLEZ LA
PRESSION À ZÉRO AVANT DE RETIRER LE BOYAU.
RISQUE DE CHOC ÉLECTRIQUE. VOLTAGE DANGEREUX. DEBRANCHEZ LA MACHINE
AVANT D'ENLEVER BOITIER. N'EXPOSEZ PAS LE COMPRESSEUR À LA PLUIE. REMISEZ-LE
À L'INTÉRIEUR.
LISEZ LE MANUEL DE L'UTILISATEUR POUR DES INSTRUCTIONS COMPLÈTES
CONCERNANT LA SÉCURITÉ, L'UTILISATION ET LES RÉPARATIONS.
EL USO INDEBIDO PUEDE GENERAR RIESGOS.
SEGUIR ESTAS INSTRUCCIONES:
RIESGO DE ESTALLIDO. ASEGÚRESE QUE LA VÁLVULA DE SALIDA DEL COMPRESOR ESTE
REGULADA POR DEBAJO DEL MÁXIMO DE LA PRESIÓN DE OPERACIÓN DE LA PISTOLA
ROCIADORA O HERRAMIENTA. ANTES DE ARRANCAR EL COMPRESOR, TIRAR DEL ANILLO EN
LA VÁLBULA DE SEGURIDAD PARA ASEGURARSE QUE LA VÁLVULA SE MUEVE LIBREMENTE.
DRENAR EL AGUA DEL TANQUE DESPUÉS DE CADA USO.
RIESGO DE FUEGO O EXPLOSIÓN. NO ROCIAR LÍQUIDO NI PINTURAS INFLAMABLES O
COMBUSTIBLES CERCA DE CHISPAS, LLAMAS, LLAMAS DE PILOTO O EN ÁREAS CERRADAS.
EL ÂREA DE TRABAJO DEBE ESTAR BIEN VENTILADA. MANTENER EL COMPRESOR ALEJADO
POR LO MENOS 20 PIES DEL AREA DE PINTURA. NO LLEVAR NI OPERAR EL COMPRESOR NI
DISPOSITIVO ELÉCTRICO ALGUNO CERCA DEL AREA DEL ROCIADO. NUNCA FUME EN EL
ÁREA DEL ROCIADO. USAR UNA MANGUERE DE UN MÍNIMO DE 25 PIES PARA CONECTAR LA
PISTOLA AL COMPRESOR.
RIESGO DE DAÑOS PERSONALES. USAR GAFAS DE SEGURIDAD ANSI Z87. NUNCA APUNTAR
EL CHORRO DE AIRE COMPRIMIDO O DE MATERIAL QUE SE ESTÉ ROCIANDO A SÍ MISMO NI A
OTRAS PERSONAS. NE RESPIRAR EL AIRE COMPRIMIDO. REDUCIR LA PRESIÓN A CERO ANTES
DE DESMONTAR LA MANGUERA.
RIESGO DE CHOQUE ELÉCTRICO. ALTO VOLTAJE. DESCONECTAR LA UNIDAD ANTES DE
QUITAR LA CUBIERTA. NO EXPONER A LLUVIA. ALMACENAR EN INTERIORES.
PARA SEGURIDAD COMPLETA, OPERACIÓN E INSTRUCCIONES PARA REPARAR, LEER EL
MANUAL DEL OPERADOR.
ATTENTION
PRECAUCIÓNCAUTION
See owner's manual for
break-in procedures. Consultez le manuel de
l'utilisateur pour les
procédures de rodage.
Para el procedimiento de
asentado de la maquina,
ver manual del operario.

20 - FRN003568
MESURES DE SÉCURITÉ - DÉFINITIONS
Ce guide contient des renseignements importants que vous deviez bien saisir.
Cette information porte sur VOTRE SÉCURITÉ et sur LA PRÉVENTION DE
PROBLÈMES D'ÉQUIPEMENT. Afin de vous aider à identifier cette information,
nous avons utilisé les symboles ci-dessous. Veuillez lire attentivement ce guide en
portant une attention particulière à ces symboles.
Indique un danger
imminent qui, s'il
n'est pas évité, causera de graves
blessures ou la mort.
Indique la possi-
bilité d'un danger
qui, s'il n'est pas évité, peut causer
des blessures mineures ou moy-
ennes.
Indique la
possibilité
d’un danger qui, s’il n’est pas évité,
pourrait causer de graves blessures
ou la mort.
Sans le symbole
d’alerte. Indique la
possibilité d’un danger qui, s’il n’est
pas évité, peut causer des dom-
mages à la propriété.
CONSIGNES DE SÉCURITÉ IMPORTANTES
Ce produit contient des produits chimiques, reconnus
par l’État de Californie comme étant cancérigènes et
pouvant entraîner des anomalies congénitales et d’autres dangers relatifs à
la reproduction. Se laver les mains après toute manipulation.
Certaines poussières contiennent des produits
chimiques reconnus par l’État de la Californie comme
cancérigènes et pouvant entraîner des anomalies congénitales et d’autres
risques pour la reproduction tels que l’amiante ou le plomb contenu dans les
peintures au plomb.
Nepasutilisercetappareilavantd’avoirluet
comprislemoded’emploiainsiquel’intégralité
desdirectivesdesécurité,d’utilisationetd’entretien.
CONSERVER CES DIRECTIVES
DANGER
RISQUE D’EXPLOSION OU D’INCENDIE
CE QUI PEUT SE PRODUIRE COMMENT L’ÉVITER
• Ilestnormalquedescontacts
électriques dans le moteur et
le manocontacteur fassent une
étincelle.
• Faitestoujoursfonctionnerlecom-
presseur dans une zone bien aérée sans
matière combustible, essence ou vapeur
de solvant.
