Porter-Cable CPLC7060V User manual

Part No. N003195-MAR08-0
Single Stage Oillube
Compressor
Instruction
manual
To learn more about Porter-Cable
visit our website at:
http://www.porter-cable.com
The Model and Serial No. plate is located on the
frame. Record these numbers in the spaces below
and retain for future reference.
Model No._____________________________________
Type __________________________________________
Serial No.______________________________________
FRANÇAIS: PÁGINA 25
ESPAÑOL: PAGE 53
MODEL
CPLC7060V
IMPORTANT
Please make certain that the person who
is to use this equipment carefully reads
and understands these instructions before
starting operations.
®
Copyright © 2005, 2008 Porter-Cable

2 - ENGN003195
SAFETY GUIDELINES - DEFINITIONS
This manual contains information that is important for you to know and under-
stand. This information relates to protecting YOUR SAFETY and PREVENTING
EQUIPMENT PROBLEMS. To help you recognize this information, we use the
symbols below. Please read the manual and pay attention to these symbols.
Indicates an immi-
nently hazardous situation which, if not
avoided, will result in death or serious
injury.
Indicates a potentially
hazardous situation which, if not avoid-
ed, may result in minor or moderate
injury.
Indicates a potentially
hazardous situation which, if not avoid-
ed, could result in death or serious
injury.
Used without the safe-
ty alert symbol indicates a potentially
hazardous situation which, if not avoid-
ed, may result in property damage.
IMPORTANT SAFETY INSTRUCTIONS
This product contains chemicals known to the State of
California to cause cancer, and birth defects or other reproductive harm.
Wash hands after handling.
Some dust contains chemicals known to the State of
California to cause cancer, birth defects or other reproductive harm such as
asbestos and lead in lead based paint.
To reduce the risk of injury, read the instruction manual.
SAVE THESE INSTRUCTIONS
HAZARD
RISK OF EXPLOSION OR FIRE
WHAT CAN HAPPEN HOW TO PREVENT IT
• Itisnormalforelectricalcon-
tacts within the motor and
pressure switch to spark.
• Alwaysoperatethecompres-
sor in a well ventilated area
free of combustible materials,
gasoline, or solvent vapors.
• Ifelectricalsparksfromcompres-
sor come into contact with flam-
mable vapors, they may ignite,
causing fire or explosion.
• Ifsprayingflammablemateri-
als, locate compressor at least
20' (6.1 m) away from spray
area. An additional length of
air hose may be required.
• Storeflammablemateri-
als in a secure location
away from compressor.

3 - ENG N003195
• Restrictinganyofthecom-
pressor ventilation openings
will cause serious overheat-
ing and could cause fire.
• Neverplaceobjectsagainst
or on top of compressor.
• Operatecompressorinanopen
area at least 12" (30.5 cm) away
from any wall or obstruction that
would restrict the flow of fresh
air to the ventilation openings.
• Operatecompressorinaclean,
dry well ventilated area. Do
not operate unit in any con-
fined area. Store indoors.
• Unattendedoperationofthisprod-
uct could result in personal injury
or property damage. To reduce the
risk of fire, do not allow the com-
pressor to operate unattended.
• Alwaysremaininattendancewith
the product when it is operating.
• Alwaysturnoffandunplug
unit when not in use.
HAZARD
RISK TO BREATHING (ASPHYXIATION)
WHAT CAN HAPPEN HOW TO PREVENT IT
• Thecompressedairdirectlyfrom
your compressor is not safe for
breathing. The air stream may con-
tain carbon monoxide, toxic vapors,
or solid particles from the air tank.
Breathing these contaminants can
cause serious injury or death.
• Airobtaineddirectlyfromthecom-
pressor should never be used to
supply air for human consumption.
In order to use air produced by this
compressor for breathing, suitable
filters and in-line safety equipment
must be properly installed. In-line
filters and safety equipment used
in conjunction with the compres-
sor must be capable of treating air
to all applicable local and federal
codes prior to human consumption.
• Exposuretochemicalsindustcre-
ated by power sanding, sawing,
grinding, drilling, and other con-
struction activities may be harmful.
• Sprayedmaterialssuchaspaint,
paint solvents, paint remover, insec-
ticides, weed killers, may contain
harmful vapors and poisons.
• Workinanareawithgoodcross
ventilation. Read and follow the
safety instructions provided on
the label or safety data sheets
for the materials you are spray-
ing. Always use certified safety
equipment: NIOSH/OSHA respi-
ratory protection or properly fit-
ting face mask designed for use
with your specific application.

4 - ENGN003195
HAZARD
RISK OF SERIOUS INJURY OR PROPERTY DAMAGE
WHEN TRANSPORTING COMPRESSOR
WHAT CAN HAPPEN HOW TO PREVENT IT
• Oilcanleakorspillandcouldresult
in fire or breathing hazard; serious
injury or death can result. Oil leaks
will damage carpet, paint or other
surfaces in vehicles or trailers.
• Alwaysplacecompressorona
protective mat when transport-
ing to protect against damage to
vehicle from leaks. Remove com-
pressor from vehicle immediately
upon arrival at your destination.
HAZARD
RISK OF BURSTING
Air Tank: The air tank on your compressor is designed and may be UM coded [for
units with air tanks greater than 6" (152.4 mm) diameter] according to ASME Section
VIII, Div. 1 rules. All pressure vessels should be inspected once every two years.
To find your state pressure vessels inspector, look under the Division of Labor and
Industries in the government section of a phone book .
The following conditions could lead to a weakening of the air tank, and result in a
violent air tank explosion:
WHAT CAN HAPPEN HOW TO PREVENT IT
• Failuretoproperlydraincondensed
water from air tank, causing rust
and thinning of the steel air tank.
• Drainairtankdailyoraftereachuse.
If air tank develops a leak, replace
it immediately with a new air tank
or replace the entire compressor.
• Modificationsorattempted
repairs to the air tank. • Neverdrillinto,weld,ormakeany modifications to the air tank or its
attachments. Never attempt to
repair a damaged or leaking air
tank. Replace with a new air tank.
• Unauthorizedmodifica-
tions to the safety valve or
any other components which
control air tank pressure.
• Theairtankisdesignedtowith-
stand specific operating pres-
sures. Never make adjustments
or parts substitutions to alter the
factory set operating pressures.
• Excessive vibration can weaken
the air tank of a stationary com-
pressor and cause an explosion.
• The compressor must be properly
mounted, see Anchoring under
Installation.
Attachments & accessories:
• Exceedingthepressureratingof
air tools, spray guns, air oper-
ated accessories, tires, and other
inflatables can cause them to
explode or fly apart, and could
result in serious injury.
• Follow the equipment manufac-
turers recommendation and never
exceed the maximum allowable
pressure rating of attachments.
Never use compressor to inflate
small low pressure objects such
as children’s toys, footballs, bas-
ketballs, etc.

5 - ENG N003195
Tires:
• Overinflationoftirescouldresultin
serious injury and property damage. • Useatirepressuregaugetocheck the tires pressure before each use
and while inflating tires; see the tire
sidewall for the correct tire pressure.
NOTE: Air tanks, compressors and simi-
lar equipment used to inflate tires can fill
small tires similar to these very rapidly.
Adjust pressure regulator on air supply
to no more than the rating of the tire
pressure. Add air in small increments
and frequently use the tire gauge to
prevent over inflation.
HAZARD
RISK OF ELECTRICAL SHOCK
WHAT CAN HAPPEN HOW TO PREVENT IT
• Yourcompressorispowered
by electricity. Like any other
electrically powered device,
if it is not used properly it
may cause electric shock.
• Neveroperatethecompres-
sor outdoors when it is rain-
ing or in wet conditions.
• Neveroperatecompressorwithpro-
tective covers removed or damaged.
• Repairsattemptedbyunqualified
personnel can result in serious
injury or death by electrocution.
• Anyelectricalwiringorrepairs
required on this product should be
performed by authorized service
center personnel in accordance with
national and local electrical codes.
• Electrical Grounding: Failure to
provide adequate grounding to this
product could result in serious injury
or death from electrocution. Refer
to Grounding Instructions para-
graph in the Installation section.
• Makecertainthattheelectrical
circuit to which the compressor is
connected provides proper elec-
trical grounding, correct voltage
and adequate fuse protection.
HAZARD
RISK FROM FLYING OBJECTS
WHAT CAN HAPPEN HOW TO PREVENT IT
• Thecompressedairstreamcan
cause soft tissue damage to
exposed skin and can propel dirt,
chips, loose particles, and small
objects at high speed, resulting in
property damage or personal injury.
• Alwayswearcertifiedsafetyequip-
ment: ANSI Z87.1 eye protection
(CAN/CSA Z94.3) with side shields
when using the compressor.
• Neverpointanynozzleorsprayer
toward any part of the body or
at other people or animals.
• Alwaysturnthecompres-
sor off and bleed pressure from
the air hose and air tank before
attempting maintenance, attach-
ing tools or accessories.

6 - ENGN003195
HAZARD
RISK OF HOT SURFACES
WHAT CAN HAPPEN HOW TO PREVENT IT
• Touchingexposedmetalsuch
as the compressor head, engine
head, engine exhaust or outlet
tubes, can result in serious burns.
• Nevertouchanyexposedmetal
parts on compressor during or
immediately after operation.
Compressor will remain hot for
several minutes after operation.
• Donotreacharoundprotective
shrouds or attempt maintenance
until unit has been allowed to cool.
HAZARD
RISK FROM MOVING PARTS
WHAT CAN HAPPEN HOW TO PREVENT IT
• Movingpartssuchasthepulley,
flywheel, and belt can cause seri-
ous injury if they come into con-
tact with you or your clothing.
• Neveroperatethecompres-
sor with guards or covers which
are damaged or removed.
• Keepyourhair,clothing,and
gloves away from moving parts.
Loose clothes, jewelry, or long hair
can be caught in moving parts.
• Airventsmaycovermovingparts
and should be avoided as well.
• Attemptingtooperatecompressor
with damaged or missing parts or
attempting to repair compressor
with protective shrouds removed
can expose you to moving parts
and can result in serious injury.
• Anyrepairsrequiredonthisproduct
should be performed by autho-
rized service center personnel.

7 - ENG N003195
HAZARD
RISK OF UNSAFE OPERATION
WHAT CAN HAPPEN HOW TO PREVENT IT
• Unsafeoperationofyour
compressor could lead to serious
injury or death to you or others.
• Reviewandunderstandallinstruc-
tions and warnings in this manual.
• Becomefamiliarwiththeoperation
and controls of the air compressor.
• Keepoperatingareaclearofall
persons, pets, and obstacles.
• Keepchildrenawayfromthe
air compressor at all times.
• Donotoperatetheproduct
when fatigued or under the
influence of alcohol or drugs.
Stay alert at all times.
• Neverdefeatthesafetyfea
tures of this product.
• Equipareaofoperation
with a fire extinguisher.
• Donotoperatemachinewithmiss-
ing, broken, or unauthorized parts.
HAZARD
RISK OF INJURY FROM LIFTING
WHAT CAN HAPPEN HOW TO PREVENT IT
• Seriousinjurycanresult
from attempting to lift
too heavy an object.
• Thecompressoristooheavytobe
lifted by one person. Obtain assis-
tance from others before lifting.
HAZARD
RISK FROM NOISE
WHAT CAN HAPPEN HOW TO PREVENT IT
• Undersomeconditionsanddura-
tion of use, noise from this product
may contribute to hearing loss.
• Alwayswearcertifiedsafe-
ty equipment: ANSI S12.6
(S3.19) hearing protection.
SAVE THESE INSTRUCTIONS
FOR FUTURE USE

8 - ENGN003195
Model No. CPLC7060V
Running Horsepower *3.0
Voltage/Hertz/Phase 240V/60/1
Minimum Branch Circuit Requirement 15 Amp
Fuse Type Time Delay
Air Tank Capacity (Gallon) 60 ASME, Vertical (227.1 liters)
Approximate Cut-in Pressure 110 PSIG
Approximate Cut-out Pressure 135 PSIG
SCFM @ 40 PSIG *12.1
SCFM @ 90 PSIG *9.7
*Tested per ISO 1217
Refer to Glossary for abbreviations.
SPECIFICATIONS
Become familiar with these terms
before operating the unit.
CFM: Cubic feet per minute.
SCFM: Standard cubic feet per minute;
a unit of measure of air delivery.
PSIG: Pounds per square inch gauge;
a unit of measure of pressure.
Code Certification: Products that bear
one or more of the following marks: UL,
CUL, ETL, CETL, have been evaluated
by OSHA certified independent safety
laboratories and meet the applicable
Standards for Safety.
Cut-In Pressure: While the motor is
off, air tank pressure drops as you
continuetouseyouraccessory.When
the tank pressure drops to a certain low
level the motor will restart automati-
cally. The low pressure at which the
motor automatically restarts is called
"cut-in" pressure.
Cut-Out Pressure:Whenanaircom-
pressor is turned on and begins to run,
air pressure in the air tank begins to
build. It builds to a certain high pres-
sure before the motor automatically
shuts off - protecting your air tank from
pressure higher than its capacity. The
high pressure at which the motor shuts
off is called "cut-out" pressure.
Branch Circuit: Circuit carrying elec-
tricity from electrical panel to outlet.
To Lock Out Power: Place a lock on
the line power switch so no one else
can turn on the power.
DUTY CYCLE
This air compressor pump is capable
of running continuously. However, to
prolong the life of your air compressor,
it is recommended that a 50%-75%
average duty cycle be maintained; that
is, the air compressor pump should not
run more than 30-45 minutes in any
given hour.
GLOSSARY
ACCESSORIES
Accessories for this unit are available
at the store the unit was purchased. The use of any other
accessory not recommended for use
with this tool could be hazardous.
Use only accessories rated equal to
or higher than the rating of the air
compressor.

9 - ENG N003195
2. Remove and discard the (4) screws
and washers holding the compres-
sor to the pallet.
3. With the help of another person
carefully remove air compressor
from pallet and place on a level
surface.
This compressor was
shipped with oil in the pump crank-
case. Check oil before operating air
compressor, see Check Oil under
Maintenance.
LOCATION OF THE AIR
COMPRESSOR
• Locate the air compressor in a
clean, dry, and well ventilated
area.
• Located the air compressor at
least 12" (30.5 cm) away from the
wall or other obstructions that will
interfere with the flow of air.
• Locate the air compressor as
close to the main power supply
as possible to avoid using long
lengths of electrical wiring. NOTE:
Long lengths of electrical wiring
could cause power loss to the
motor.
• Theairfiltermustbekeptclearof
obstructions which could reduce
air flow to the air compressor.
ANCHORING OF THE AIR
COMPRESSOR
Risk of bursting.
Excessive vibration can weaken the
air tank and cause an explosion.
The compressor must be properly
mounted.
The air compressor MUST be bolted to
a solid, level surface.
Hardware needed:
4 - Concrete anchors
(not supplied)
4 - 3/8" Lag screw to fit concrete
anchors (not supplied)
 4 5/8"Washer
(found in parts bag)
- shims (if needed)
1. Place the air compressor on on a
solid, level surface.
2. Mark the surface using the holes
in the air compressor feet as a
template.
3. Drill holes in the surface for the
concrete anchors. Install concrete
anchors.
4. Line-up holes in surface with holes
in air compressor feet.
5. Place the (4) washers (supplied)
between the floor and air com-
pressor feet. If needed, solid shims
may be placed between the wash-
ers and floor to evenly distribute
weight on all four feet. See next
figure.
6. Place the (4) 3/8" lag screws
through the air compressor feet,
washers, shims, and into the
anchors.
3/8" Lag
Screw
(not supplied)
5/8" Washer
(supplied)
Shim Under
Washer
(not supplied) Concrete Anchor
(not supplied)
Surface Line
7. Torque 3/8" lag screws to 7-10 ft.-
lbs.
INSTALLATION
ASSEMBLY
TOOLS REQUIRED FOR
ASSEMBLY
1 - 9/16" socket or open end wrench
1 - Electric Drill
UNPACKING
1. Remove all packaging.
It may be necessary to
brace or support one side of the outfit
when removing the pallet because the
air compressor will have a tendency
to tip.

10 - ENGN003195
WIRING INSTRUCTIONS
Improper electrical
installation of this product may void its
warranty and your fire insurance. Have
circuit wiring performed by qualified
personnel such as a licensed electri-
cians who is familiar with the current
national electrical code and any prevail-
ing local electrical codes.
Risk of electrical shock.
Improper electrical grounding can result
in electrical shock. The wiring should
be done by a qualified electrician
A qualified electrician needs to knows
the following before wiring:
1. The amperage rating of the electri-
cal box should be adequate. Refer
to the Specification Chart, in the
parts manual, for this information.
2. The supply line should have the
same electrical characteristics
(voltage, cycle, phase) as the motor.
Refer to the motor nameplate, on
side of motor, for this information.
NOTE: The wiring must be the same
as the motor nameplate voltage plus
or minus 10%. Refer to local codes for
recommended wire sizes, correct wire
size, and maximum wire run; undersize
wire causes high amp draw and over-
heating to the motor.
Risk of electrical shock.
Electrical wiring must be located away
from hot surfaces such as manifold
assembly, compressor outlet tubes,
heads, or cylinders.
GROUNDING
INSTRUCTIONS
This product should be connected to
a metallic, permanent wiring system,
of an equipment-grounding terminal or
lead on the product.
VOLTAGE AND CIRCUIT
PROTECTION
Refer to the specification chart for the
voltage and minimum branch circuit
requirements.
Certain air compressors
can be operated on a 15 amp circuit if
the following conditions are met.
1. Voltage supply to circuit must
comply with the National Electrical
Code.
2. Circuit is not used to supply any
other electrical needs.
3. Extension cords comply with spec-
ifications.
4. Circuit is equipped with a 15 amp
circuit breaker or 15 amp time
delay fuse. NOTE: If compressor
is connected to a circuit protected
by fuses, use only time delay fuses.
Time delay fuses should be marked
"D" in Canada and "T" in the US.
If any of the above conditions cannot
be met, or if operation of the compres-
sor repeatedly causes interruption of
the power, it may be necessary to oper-
ate it from a 20 amp circuit. It is not
necessary to change the cord set.
AIR DISTRIBUTION SYSTEM
Plastic or PVC pipe
is not designed for use with com-
pressed air. Regardless of its indi-
cated pressure rating, plastic pipe
can burst from air pressure. Use only
metal pipe for air distribution lines.
The next figure represents a typical
air distribution system. The following
are tips to remember when setting up
the air compressor’s air distribution
system.
• Usepipethatisthesamesizeas
the air tank outlet. Piping that is too
small will restrict the flow of air.
• Ifpipingisover100feetlong,use
the next larger size.
• Bury underground lines below
the frost line and avoid pockets
where condensation can gather
and freeze. Apply pressure before
underground lines are covered to
make sure all pipe joints are free of
leaks.
• Aflexiblecouplingisrecommend-
ed to be installed between the air
discharge outlet and main air dis-
tribution line to allow for vibration.
• A separate regulator is recom-
mended to control the air pressure.
Air pressure from the tank is usu-
ally to high for individual air driven
tools.

11 - ENG N003195
DRAIN
TRAP
DRAIN
TRAPS
DRAIN
LEGS
MOISTURE
SEPARATOR
AND TRAP
DIRT
LEG
DIRT
LEG
LUBRICATOR
REGULATOR
FILTER
AIR DISCHARGE
VALVE/ GLOBE VAL V E
LUBRICATOR
MAIN DISTRIBUTION AIR LINES
Slope pipe in direction of air flow.
Water condensate flows along
bottom of pipe to drain legs,
preventing it from entering feeder
lines.
REGULATOR
FLEXIBLE
COUPLING
DRAIN COCK
VALV E
TYPICAL COMPRESSED
AIR DISTRIBUTION SYSTEM
AIR FLOW AIR FLOW
FEEDER LINES SLOPE
WITH AIR FLOW
AIR USAGE
LINES
AIR
COMPRESSOR

12 - ENGN003195

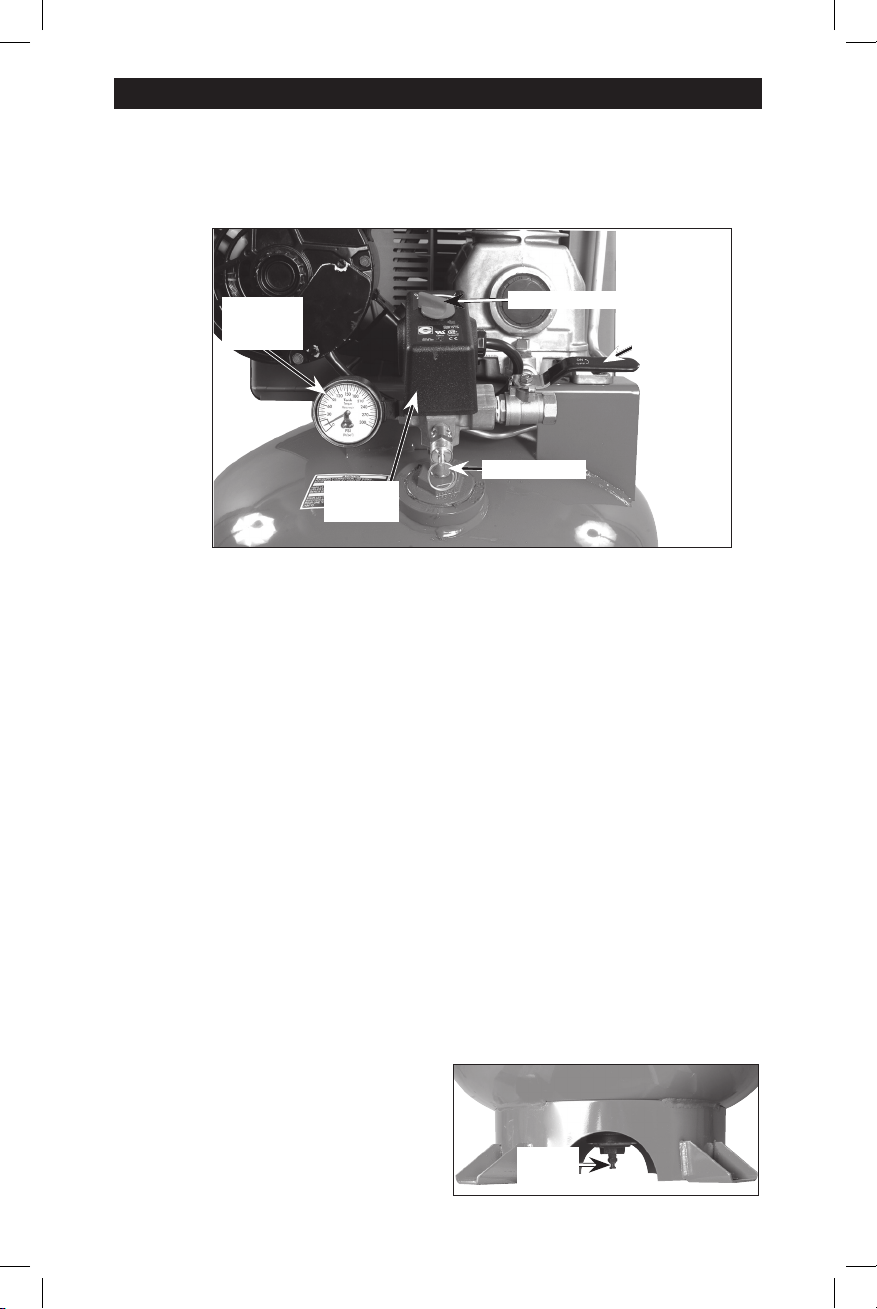

KNOW YOUR AIR COMPRESSOR
READ THIS OWNER’S MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with
the location of various controls and adjustments. Save this manual for future
reference.
OPERATION
DESCRIPTION OF OPERATION
Become familiar with these controls
before operating the unit.
On/Auto (I)/Off (O) Lever: Turn this
switch "On/Auto (I)" to provide auto-
matic power to the pressure switch and
"Off (O)" to remove power at the end of
each use.
Pressure Switch: The pressure switch
automatically starts the motor when
the air tank pressure drops below the
factory set "cut-in" pressure. It stops
the motor when the air tank pressure
reaches the factory set "cut-out" pres-
sure.
Safety Valve: If the pressure switch
does not shut off the air compressor
at its "cut-out" pressure setting, the
safety valve will protect against high
pressure by "popping out" at its factory
set pressure (slightly higher than the
pressure switch "cut-out" setting).
Tank Pressure Gauge: The tank pres-
sure gauge indicates the reserve air
pressure in the tank.
Globe Valve: (sold separately) Opens
and closes air discharge valve. Turn
knob counter-clockwise to open and
clockwise to close.
Regulator (sold separately, not
shown): An air pressure regulator or a
separate air transformer which com-
bines the functions of air regulation
and/or moisture and dirt removal is rec-
ommended for most applications.
Cooling System (not shown): This
compressor contains an advanced
design cooling system. At the heart of
this cooling system is an engineered
fan. It is perfectly normal for this fan to
blow air through the vent holes in large
amounts. You know that the cooling
system is working when air is being
expelled.
Air Compressor Pump (not shown):
Compressesairintotheairtank.Working
air is not available until the compressor
has raised the air tank pressure above
that required at the air outlet.
Drain Valve:The drain valve is located
at the base of the air tank and is used
to drain condensation at the end of
each use.
Drain
Valve
On/Auto (I)/Off (O) Switch
Safety Valve
Tank
Pressure
Gauge Globe Valve
Pressure
Switch

13 - ENG N003195
Check Valve:Whentheaircompressor
is operating, the check valve is "open",
allowing compressed air to enter the
air tank.  When the air compressor
reaches "cut-out" pressure, the check
valve "closes", allowing air pressure to
remain inside the air tank.

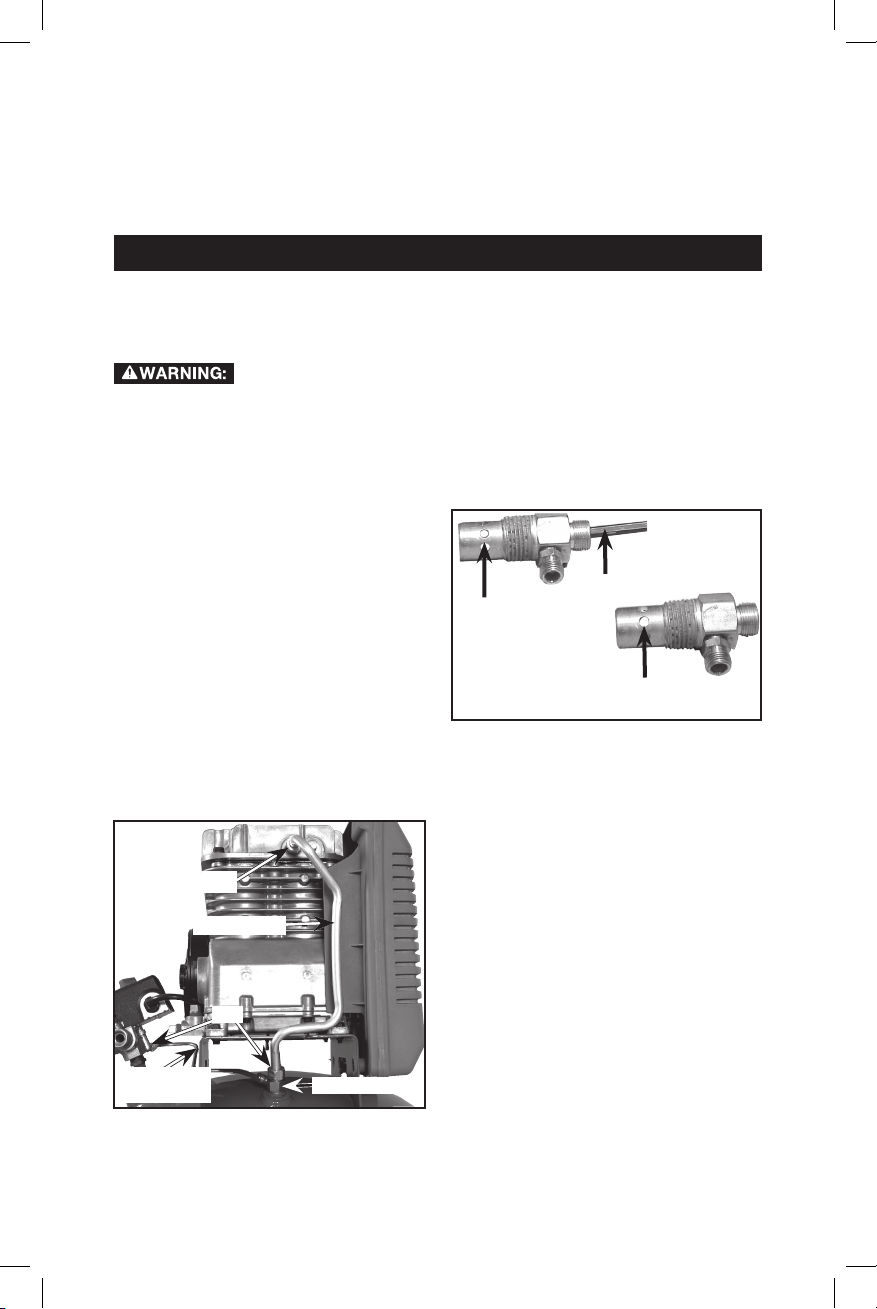

Check Valve
Pressure
Release
Valve
Pressure Release Valve: The pres-
sure release valve located on the side
of the pressure switch, is designed to
automatically release compressed air
from the compressor head and the
outlet tube when the air compressor
reaches "cut-out" pressure or is shut
off. The pressure release valve allows
the motor to restart freely. When the
motor stops running, air will be heard
escaping from this valve for a few sec-
onds. No air should be heard leaking
when the motor is running or after the
unit reaches "cut-out" pressure.
Motor Overload Protector: This motor
has a manual thermal overload protec-
tor. If the motor overheats for any rea-
son, the overload protector will shut off
the motor. The motor must be allowed
to cool down before restarting. To
restart:
1. Place the On/Auto/Off lever in the
"Off" position.
2. Allow the motor to cool.
3. Depress the red reset button on the
motor.
Reset
Button
4. Place the On/Auto/Off lever in the
"On/Auto" postion to restart the
motor.
Air Intake Filter (not shown):This filter
is designed to clean air coming into the
pump. This filter must always be clean
and ventilation openings free from
obstructions. See "Maintenance".
HOW TO USE YOUR UNIT
How to Stop:
1. Set the On/Auto/Off lever to "Off".
Before Starting
Do not operate this
unit until you read and understand
this instruction manual for safety,
operation and maintenance
instructions.
Break-in Procedure
Risk of Unsafe
Operation. Serious damage may
result if the following break-in
instructions are not closely followed.
This procedure is required before the
air compressor is put into service and
when the check valve or a complete
compressor pump has been replaced.
1. Make sure the On/Auto/Off lever is
in the "Off" position.
2. Check oil level in pump. See Oil
paragraph in the Maintenance
section for instructions.
3. Recheck all wiring. Make sure
wires are secure at all terminals
connections. Make sure all
contacts move freely and are not
obstructed.
4. Open the globe valve fully to
permit air to escape and prevent
air pressure build up in the air tank
during the break-in period.
5. Move the On/Auto/Off lever to "On/
Auto" position. The compressor
will start.
6. Run the compressor for 20 minutes.
Make sure the globe valve is open
and there is minimal air pressure
build-up in tank.

14 - ENGN003195
7. Check all air line fittings and con-
nections/piping for air leaks by
applying a soap solution. Correct
if necessary. NOTE: Minor leaks
can cause the air compressor to
overwork, resulting in premature
breakdown or inadequate perfor-
mance.
8. Check for excessive vibration.
Readjust or shim air compressor
feet, if necessary.
9. After 20 minutes, close the globe
valve. The air receiver will fill to
"cut-out" pressure and the motor
will stop.
The compressor is now ready for use.
Before Each Start-Up
1. Place On/Auto/Off lever to "Off".
2. Close the globe valve.
3. Visually inspect air hose, replace if
needed.
4. Attach hose and accessories.
Risk of unsafe opera-
tion. Firmly grasp air hose in hand
when installing or disconnecting to
prevent hose whip.
Risk of unsafe opera-
tion. Do not use damaged or worn
accessories.
NOTE: A regulator MUST be installed
when using accessories rated at less
than 110 psi.
NOTE: The hose or accessory will
require a quick connect plug if the air
outlet is equipped with a quick connect
socket.
Risk of bursting. Too
much air pressure causes a haz-
ardous risk of bursting. Check the
manufacturer’s maximum pressure
rating for air tools and accessories.
The regulator outlet pressure must
never exceed the maximum pressure
rating.
Risk of unsafe opera-
tion. Compressed air from the unit
may contain water condensation and
oil mist. Do not spray unfiltered air
at an item that could be damaged by
moisture. Some air tools and acces-
sories may require filtered air. Read
the instructions for the air tools and
accessories.
How to Start
1. Turn the On/Auto/Off lever to "On/
Auto" and allow tank pressure to
build. Motor will stop when tank
pressure reaches "cut-out" pres-
sure.
2. When the tank pressure reaches
"cut-out" pressure open the globe
valve.
IMPORTANT:Whenusingregulatorand
other accessories refer to the manufac-
turers instructions.
Risk of bursting. If any
unusual noise or vibration is noticed,
stop the compressor immediately
and have it checked by a trained
service technician.
The compressor is ready for use.

15 - ENG N003195
MAINTENANCE
CUSTOMER RESPONSIBILITIES
Before
each
use
Daily
or
after
each
use
Every
8
hours
Every
40
hours
Every
100
hours
Every
160
hours
Yearly
Check Safety Valve •
Drain Tank •
Oil Leaks •
Check Pump Oil •
Change Pump Oil •
Unusual Noise and/or
Vibration
•
Air Filter • (1)
Drive Belt-Condition •
Motor Pulley/Flywheel
alignment
•
Air compressor pump
intake and exhaust
valves
•
Inspect air lines and
fittings for leaks
•
Head Bolts - Check the torques of the head bolts after the first five hours of operation.
1- more frequent in dusty or humid conditions
Risk of unsafe operation. Unit cycles automatically when
power is on. When performing maintenance, you may be exposed to voltage
sources, compressed air, or moving parts. Personal injuries can occur. Before
performing any maintenance or repair, disconnect power source from the
compressor and bleed off all air pressure.
To ensure efficient operation and longer life of the air compressor outfit, a routine
maintenance schedule should be prepared and followed. The following routine
maintenance schedule is geared to an outfit in a normal working environment
operating on a daily basis. If necessary, the schedule should be modified to suit the
conditions under which your compressor is used. The modifications will depend
upon the hours of operation and the working environment. Compressor outfits in
an extremely dirty and/or hostile environment will require a greater frequency of all
maintenance checks.
NOTE: See Operation section for the location of controls.

16 - ENGN003195
Risk of property dam-
age. Drain water from air tank may
contain oil and rust which can cause
stains.
7. After the water has been drained,
close the drain valve. The air com-
pressor can now be stored.
NOTE: If drain valve is plugged, release
all air pressure. The valve can then be
removed, cleaned, then reinstalled.
OIL
Use air compressor
oil only. Multi-weight automotive
engine oils like 10W30 should not be
use in air compressors. They leave
carbon deposits on critical compo-
nents, thus reducing performance
and compressor life.
NOTE: Use 30W compressor oil or a
heavy duty SAE 30W, nondetergent,
SF grade or better oil DO NOT use
multi-weight automotive engine oils,
they will reduce compressor life. Under
extreme winter condition use SAE-10
weight oil.
NOTE: Crankcase oil capac-
ity is approximately 16 fluid ounces
(0.47 L).
Checking
1. Remove the oil fill plug (A). The oil
level should be even with the top
of the fill hole and no lower than 6
threads from the top of fill hole.
2. If needed, slowly add oil until it
reaches the top of fill hole.
A
B
Changing
1. Remove the oil fill plug (A).
2. Remove the oil drain plug (B) and
drain oil into a suitable container.
3. Replace the oil drain plug (B) and
tighten securely.
TO CHECK SAFETY VALVE
Risk of bursting. If the
safety valve does not work properly,
over-pressurization may occur, caus-
ing air tank rupture or an explosion.
Risk from Flying
Objects. Always wear certified safety
equipment: ANSI Z87.1 eye protection
(CAN/CSA Z94.3) with side shields.
1. Before starting compressor, pull
the ring on the safety valve to make
sure that the safety valve operates
freely. If the valve is stuck or does
not operate smoothly, it must be
replaced with the same type of
valve.
TO DRAIN TANK
Risk of unsafe
operation. Air tanks contain high
pressure air. Keep face and other
body parts away from outlet of drain.
Use eye protection [ANSI Z87.1 (CAN/
CSA Z94.3)] when draining as debris
can be kicked up into face.
Risk from noise. Use
ear protection (ANSI S12.6 (S3.19) as
air flow noise is loud when draining.
NOTE: All compressed air systems gen-
erate condensate that accumulates in any
drain point (e.g., tanks, filter, aftercoolers,
dryers). This condensate contains lubri-
cating oil and/or substances which may
be regulated and must be disposed of in
accordance with local, state, and federal
laws and regulations.
1. Set the On/Auto/Off lever to "Off".
2. Close the globe valve.
3. Remove the air tool or accessory.
4. Open the globe valve and allow the
air to slowly bleed from the air tank
until tank pressure is approximately
20 psi.
5. Close the globe valve.
6. Drain water from air tank by open-
ing drain valve on bottom of tank.
Risk of bursting.
Water will condense in the air tank.
If not drained, water will corrode and
weaken the air tank causing a risk of
air tank rupture.

17 - ENG N003195
4. Slowly add compressor oil until
the oil is even with the top of the
oil fill hole. NOTE:Whenfillingthe
crankcase, the oil flows very slowly
into the pump. If the oil is added
too quickly, it will overflow and
appear to be full.
Risk of unsafe opera-
tion. Overfilling with oil will cause pre-
mature compressor failure. Do not over-
fill.
5. Replace oil fill plug (A) and tighten
securely.
AIR FILTER - INSPECTION AND
REPLACEMENT
Hot surfaces. Risk of
burn. Compressorheadsareexposed
when filter cover is removed. Allow
compressor to cool prior to servic-
ing.
Keep the air filter
clean at all times. Do not operate
the air compressor with the air filter
removed.
A dirty air filter will not allow the
compressor pump to operate at full
capacity. Before using the compressor
pump, check the air filter to make
sure it is clean and in place.
If it is dirty, replace it with a new filter.
1. Using a pair of needle nose pliers
or a screwdriver pull or pry out
the old filter and carefully clean
the filter area.
2. Push the new air filter in place.
Refer to the Repair Parts for the
correct part number.
IMPORTANT: Do not operate the
compressor with the air filter removed.
BELT - REPLACEMENT
Risk of personal injury.
Serious injury or damage may occur
if parts of the body or loose items
get caught in moving parts. Never
operate the outfit with the belt guard
removed. The belt guard should be
removed only when the air compres-
sor power is disconnected.
1. Turn air compressor off, lock out
the power supply, and relieve all
air pressure from the air tank.
2. Remove the front of the belt guard
by disengaging the snaps. Insert
a flat bladed screwdriver at each
snap location and pry the belt-
guard apart.
Belt Guard
3. Loosen the wing nut on hold
down plate and tilt motor to allow
for easy removal or installation of
the belt.
4. Remove belt.
Risk of moving parts.
Use caution when rolling belt onto
flywheel, fingers can get caught
between the belt and flywheel.
5. Replace belt. NOTE: The belt must
be centered over the grooves on
the flywheel and motor pulley.
Wing Nut
6. Turn the wing nut on the hold
down plate until it makes contact
with the washer, plus one addi-
tional turn.
7. Replace the belt guard.

18 - ENGN003195
ADJUSTING BELT TENSION
1. Slide motor into original position,
line the motor up with the mark
made earlier on saddle.
2. Tighten two outside motor mount-
ing screws enough to hold the
motor in place for checking pulley
and flywheel alignment.
3. The belt should deflect 3/16"
(4.8 mm) at midway between the
pulley and the flywheel when a
5-10 pound weight is applied at the
midway point.
Downward Force
Deflection
4. When proper belt tension is
achieved, tighten all four motor
mounting screws.
NOTE: Once the engine pulley has been
moved from its factory set location, the
grooves of the flywheel and pulley must
be aligned to within 1/16" (1.6 mm) to
prevent excessive belt wear. Verify the
alignment by performing the following
Pulley and Flywheel - Alignment.
MOTOR PULLEY/FLYWHEEL
ALIGNMENT
NOTE: Once the motor pulley has been
moved from its factory set location, the
grooves of the flywheel and pulley must
be aligned to within 1/16" (1.6 mm) to
prevent excessive belt wear.
The air compressor flywheel and motor
pulley must be in-line (in the same plane)
within 1/16" (1.6 mm) to assure belt
retention within flywheel belt grooves.
To check alignment, perform the follow-
ing steps:
1. Turn air compressor off, lock out
the power supply, and relieve all air
pressure from the air tank.
2. Remove belt guard.

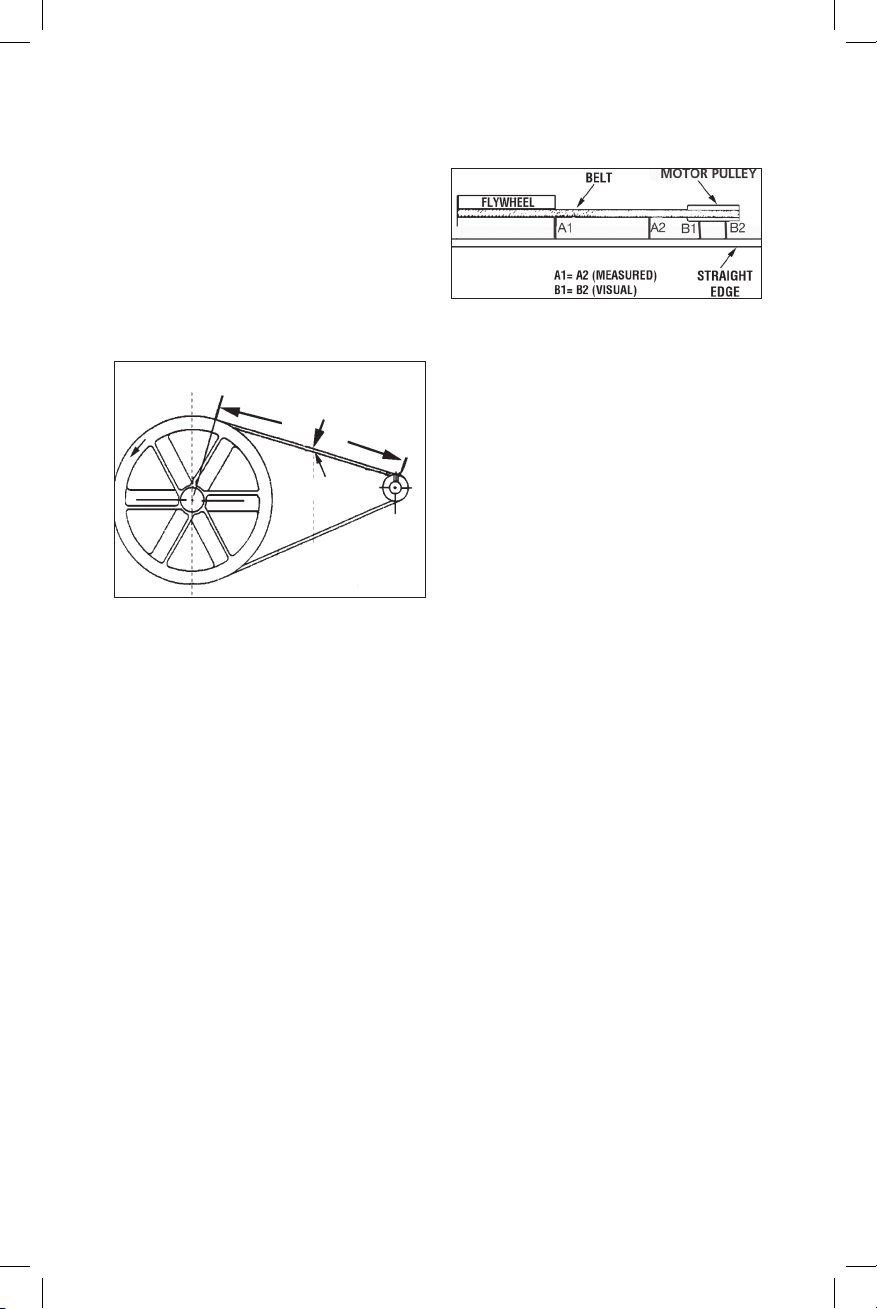

3. Place a straightedge against the
outside of the flywheel and the
motor drive pulley.
4. Measure the distance between the
edge of the belt and the straight-
edge at points A1 and A2 in figure.
The difference between measure-
ments should be no more than
1/16" (1.6 mm).
5. If the difference is greater than
1/16" (1.6 mm) loosen the set
screw holding the motor drive pul-
ley to the shaft and adjust the pul-
ley’s position on the shaft until the
A1 and A2 measurements are with-
in 1/16" (1.6 mm) of each other.
6. Tighten the motor drive pulley set
screw.
7. Visually inspect the motor drive
pulley to verify that it is perpen-
dicular to the drive motor shaft.
Points B1 and B2 of Figure should
appear to be equal. If they are not,
loosen the setscrew of the motor
drive pulley and equalize B1 and
B2, using care not to disturb the
belt alignment performed in step
2.
8. Retighten the motor drive pulley
setscrew. Torque to 10-100 in-lbs.
9. Reinstall belt guard.
AIR COMPRESSOR PUMP
INTAKE AND EXHAUST VALVES
Once a year have a Trained Service
Technician check the air compressor
pump intake and exhaust valves.
INSPECT AIR LINES AND
FITTINGS FOR LEAKS
1. Turn air compressor off, lock out
the power supply, and relieve all air
pressure from the air tank.
2. Apply a soap solution to all air line
fittings and connections/piping.
3. Correct any leaks found.

19 - ENG N003195
SERVICE AND ADJUSTMENTS
ALL MAINTENANCE AND REPAIR
OPERATIONS NOT LISTED MUST BE
PERFORMED BY TRAINED SERVICE
TECHNICIAN.
Risk of unsafe opera-
tion. Unit cycles automatically when
power is on. When servicing, you may
be exposed to voltage sources, com-
pressed air, or moving parts. Before
servicing unit unplug or disconnect
electrical supply to the air compres-
sor, bleed tank of pressure, and allow
the air compressor to cool.
TO REPLACE OR CLEAN CHECK
VALVE
1. Release all air pressure from air
tank. See To Drain Tank in the
Maintenance section.
2. Turn air compressor off, lock out
the power supply, and relieve all
air pressure from the air tank.
3. Using an adjustable wrench loosen
outlet tube nut at air tank and
pump. Carefully move outlet tube
away from check valve.
Check Valve
Pressure
Relief Tube
Nut
Outlet Tube
Nut
4. Using an adjustable wrench loos-
en pressure relief tube nut at air
tank and pressure switch. Carefully
move pressure relief tube away
from check valve.
5. Unscrew the check valve (turn
counterclockwise) using a 7/8"
open end wrench. NOTE the orien-
tation for reassembly.
6. Using a screwdriver, carefully push
the valve disc up and down. NOTE:
The valve disc should move freely
up and down on a spring which
holds the valve disc in the closed
position, if not the check valve
needs to be cleaned or replaced.
In closed position
disc is visible.
In open
position
nothing is
visible.
Screwdriver
7. Clean or replace the check valve.
A solvent, such as paint or varnish
remover can be used to clean the
check valve.
8. Apply sealant to the check valve
threads. Reinstall the check valve
(turn clockwise).
9. Replace the pressure release tube.
Tighten nuts.
10. Replace the outlet tube and tighten
nuts.
11. Perform the Break-in Procedure.
See Break-in Procedure in the
Operation section.
ADDITIONAL SERVICE
Disassembly or service of the air com-
pressor beyond what is covered in this
manual is not recommended. If addi-
tional service is required, contact your
nearest Authorized Warranty Service
Center.
IMPORTANT: Even minor leaks can
cause the air compressor to overwork,
resulting in premature breakdown or
inadequate performance.
AIR COMPRESSOR HEAD
BOLTS - TORQUING
The air compressor pump head bolts
should be kept properly torqued. Check
the torques of the head bolts after the
first five hours of operation. Torque to
25-30 ft.-lbs.

20 - ENGN003195
Before you store the air compressor,
make sure you do the following:
1. Review the Maintenance section
on the preceding pages and per-
form scheduled maintenance as
necessary.
2. Set the On/Auto/Off lever to "Off".
3. Close the globe valve.
4. Remove the air tool or accessory.
5. Open the globe valve and allow the
air to slowly bleed from the air tank
until tank pressure is approximately
20 psi.
STORAGE
6. Drain water from air tank by open-
ing drain valve on bottom of tank.
Water will condense in
the air tank. If not drained, water will
corrode and weaken the air tank caus-
ing a risk of air tank rupture.
7. After the water has been drained,
close the drain or drain valve.
NOTE: If drain valve is plugged, release
all air pressure. The valve can then be
removed, cleaned, then reinstalled.
8. Protect the air hose from damage
(such as being stepped on or run
over).
SERVICE
REPLACEMENT PARTS
Use only identical replacement parts.
For a parts list or to order parts, visit our
website at servicenet.porter-cable.
com. You can also order parts from
your nearest factory-owned branch,or
by calling our Customer Care Center
at 1-888-848-5175 to receive personal-
ized support from highly-trained techni-
cians.
SERVICE AND REPAIRS
All quality tools will eventually require
servicing and/or replacement of parts.
For information about Porter-Cable,
its factory-owned branches, or an
Authorized Warranty Service Center,
visit our website at deltaportercable.
com or call our Customer Care Center
at (888)-848-5175. All repairs made by
our service centers are fully guaranteed
against defective material and work-
manship.Wecannotguaranteerepairs
made or attempted by others.
You can also write to us for information
at PORTER-CABLE, 4825 Highway 45
North, Jackson, Tennessee 38305 -
Attention: Product Service. Be sure to
include all of the information shown on
the nameplate of your tool (model num-
ber, type, serial number, etc.).
ACCESSORIES
A complete line of accessories is avail-
able from your PorterCable•Delta
Supplier, PorterCable•Delta Factory
Service Centers, and Porter-Cable
Authorized Service Stations. Please
visitourWebSitedeltaportercable.com
for a catalog or for the name of your
nearest supplier.
Since accessories
other than those offered by
Porter‑Cable•Delta have not
been tested with this product,
use of such accessories could be
hazardous. For safest operation, only
Porter‑Cable•Delta recommended
accessories should be used with this
product.
