Porter-Cable 513 User manual

Lock Mortiser and
Lock Face Templet
Instruction
manual
The Model and Serial No. plate is located on the main
housing of the tool. Record these numbers in the
spaces below and retain for future reference.
Model No. ______________________________________
Type ___________________________________________
Serial No. _______________________________________
IMPORTANT
Please make certain that the person who is
to use this equipment carefully reads and
understands these instructions before
starting operations.
Part No. 903545 (018)
ESPAÑOL: PÁGINA 15
FRANÇAISE : PAGE 31
To learn more about Porter-Cable
visit our website at:
http://www.porter-cable.com
MODEL
513 Mortiser
Copyright © 2001 Porter-Cable Corporation
MODEL 517 Lock Face Templet
903545 - 08-31-01.qxd 2/12/02 11:46 AM Page 1

2
GENERAL SAFETY RULES
WARNING: READ AND UNDERSTAND ALL INSTRUCTIONS. Failure
to follow all instructions listed below, may result in electric shock, fire and/or
serious personal injury.
WARNING: SOME DUST CREATED BY POWER SANDING, SAWING,
GRINDING, DRILLING, AND OTHER CONSTRUCTION ACTIVITIES
contains chemicals known to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
· lead from lead-based paints,
· crystalline silica from bricks and cement and other masonry products, and
· arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.
SAVE THESE INSTRUCTIONS.
WORK AREA
1. Keep your work area clean and well lit. Cluttered benches and dark
areas invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in
the presence of flammable liquids, gases, or dust. Power tools create
sparks which may ignite the dust or fumes.
3. Keep bystanders, children, and visitors away while operating a
power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
1. Grounded tools must be plugged into an outlet properly installed and
grounded in accordance with all codes and ordinances. Never remove
the grounding prong or modify the plug in any way. Do not use any
adapter plugs. Check with a qualified electrician if you are in doubt as to
whether the outlet is properly grounded. If the tools should electrically
malfunction or break down, grounding provides a low resistance path to carry
electricity away from the user.
2. Avoid body contact with grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is grounded.
3. Don’t expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord to carry the tools or pull
the plug from an outlet. Keep cord away from heat, oil, sharp edges or
moving parts. Replace damaged cords immediately. Damaged cords
increase the risk of electric shock.
5. When operating a power tool outside, use an outdoor extension
cord marked “W-A” or “W”. These cords are rated for outdoor use and
reduce the risk of electric shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing, and use common sense when
operating a power tool. Do not use tool while tired or under the
903545 - 08-31-01.qxd 2/12/02 11:46 AM Page 2

3
influence of drugs, alcohol, or medication. A moment of inattention while
operating power tools may result in serious personal injury.
2. Dress properly. Do not wear loose clothing or jewelry. Contain long
hair. Keep your hair, clothing, and gloves away from moving parts.
Loose clothes, jewelry, or long hair can be caught in moving parts.
3. Avoid accidental starting. Be sure switch is OFF before plugging in.
Carrying tools with your finger on the switch or plugging in tools that have
the switch ON invites accidents.
4. Remove adjusting keys or wrenches before turning the tool ON. A
wrench or a key that is left attached to a rotating part of the tool may result in
personal injury.
5. Do not overreach. Keep proper footing and balance at all times.
Proper footing and balance enable better control of the tool in unexpected
situations.
6. Use safety equipment. Always wear eye protection. Dust mask, non-
skid safety shoes, hard hat, or hearing protection must be used for
appropriate conditions.
TOOLS USE AND CARE
1. Use clamps or other practical way to secure and support the
workpiece to a stable platform. Holding the work by hand or against your
body is unstable and may lead to loss of control.
2. Do not force tool. Use the correct tool for your application. The
correct tool will do the job better and safer at the rate for which it is
designed.
3. Do not use tool if switch does not turn it ON or OFF. A tool that
cannot be controlled with the switch is dangerous and must be repaired.
4. Disconnect the plug from the power source before making any
adjustments, changing accessories, or storing the tool. Such preventive
safety measures reduce the risk of starting the tool accidentally.
5. Store idle tools out of reach of children and other untrained
persons. Tools are dangerous in the hands of untrained users.
6. Maintain tools with care. Keep cutting tools sharp and clean.
Properly maintained tools, with sharp cutting edges are less likely to bind
and are easier to control.
7. Check for misalignment or binding of moving parts, breakage of
parts, and any other condition that may affect the tool’s operation. If
damaged, have the tool serviced before using. Many accidents are
caused by poorly maintained tools.
8. Use only accessories that are recommended by the manufacturer
for your model. Accessories that may be suitable for one tool may become
hazardous when used on another tool.
SERVICE
1. Tool service must be performed only by qualified repair personnel.
Service or maintenance performed by unqualified personnel may result in a
risk of injury.
2. When servicing a tool, use only identical replacement parts. Follow
instructions in the Maintenance Section of this manual. Use of
unauthorized parts or failure to follow Maintenance Instructions may create a
risk of electric shock or injury.
903545 - 08-31-01.qxd 2/12/02 11:46 AM Page 3

4
SPECIFIC SAFETY RULES AND SYMBOLS FOR LOCK
MORTISER
1. CAUTION: DO NOT OPERATE MOTOR UNIT UNLESS MOUNTED IN
LOCK MORTISER CARRIAGE.
2. BE SURE CORD IS FREE and will not “hang up” during operations.
3. KEEP HANDS CLEAR OF CUTTER when motor is running to prevent
personal injury.
4. STAY ALERT and keep cutter clear of all foreign objects while motor is
running.
5. BE SURE MOTOR HAS COMPLETELY STOPPED before withdrawing
cutter from machined mortise.
6. SOME WOOD CONTAINS PRESERVATIVES WHICH CAN BE TOXIC.
Take extra care to prevent inhalation and skin contact when working with
these materials. Request, and follow, any safety information available from
your material supplier.
7. WARNING: There are certain applications for which this tool was
designed. Porter-Cable strongly recommends that this tool NOT be modified
and/or used for any application other than for which it was designed. If you
have any questions relative to its application DO NOT use the tool until you
have written Porter-Cable and we have advised you.
Technical Service Manager
Porter-Cable Corporation
4825 Highway 45 North
Jackson, TN 38305
SYMBOL DEFINITION
V ........................ volts
A ........................ amperes
Hz ........................ hertz
W ........................ watts
kW ........................ kilowatts
µF ........................ microfarads
l ........................ liters
kg ........................ kilograms
N/cm2........................ newtons per square centimeter
Pa ........................ pascals
h ........................ hours
min ........................ minutes
s ........................ seconds
........................ alternating current
3 ........................ three-phase alternating current
3N........................ three-phase alternating current with neutral
........................ direct current
n0........................ no load
........................ alternating or direct current
........................ Class II Construction
........................ splash-proof construction
903545 - 08-31-01.qxd 2/12/02 11:46 AM Page 4

........................ watertight construction
…/min ........................ revolutions or reciprocation per minute
REPLACEMENT PARTS
When servicing use only identical replacement parts.
MOTOR
Many Porter-Cable tools will operate on either D.C., or single phase 25 to 60
cycle A.C. current and voltage within plus or minus 5 percent of that shown
on the specification plate on the tool. Several models, however, are designed
for A.C. current only. Refer to the specification plate on your tool for proper
voltage and current rating.
CAUTION: Do not operate your tool on a current on which the
voltage is not within correct limits. Do not operate tools rated A.C.
only on D.C. current. To do so may seriously damage the tool.
EXTENSION CORD SELECTION
If an extension cord is used, make sure the conductor size is large enough to
prevent excessive voltage drop which will cause loss of power and possible
motor damage. A table of recommended extension cord sizes will be found
in this section. This table is based on limiting line voltage drop to 5 volts (10
volts for 230 volts) at 150% of rated amperes.
If an extension cord is to be used outdoors it must be marked with the suffix
W-A or W following the cord type designation. For example – SJTW-A to
indicate it is acceptable for outdoor use.
RECOMMENDED EXTENSION CORD SIZES FOR USE WITH PORTABLE ELECTRIC TOOLS
FUNCTIONAL DESCRIPTION
FOREWORD
Model 513 Lock Mortiser permits builders and contractors to quickly cut
true, accurate mortises for door box locks.
Model 517 Lock Face Templet allows quick and economical routing for lock
faces on doors after the mortise cut for the lock itself has been completed.
5
Length of Cord in Feet
115V 25 Ft. 50 Ft. 100 Ft. 150 Ft. 200 Ft. 250 Ft. 300 Ft. 400 Ft. 500 Ft.
230V 50 Ft. 100 Ft. 200 Ft. 300 Ft. 400 Ft. 500 Ft. 600 Ft. 800 Ft. 1000 Ft.
0-2 18 18 18 16 16 14 14 12 12
2-3 18 18 16 14 14 12 12 10 10
3-4 18 18 16 14 12 12 10 10 8
4-5 18 18 14 12 12 10 10 8 8
5-6 18 16 14 12 10 10 8 8 6
6-8 18 16 12 10 10 8 6 6 6
8-10 18 14 12 10 8 8 6 6 4
10-12 16 14 10 8 8 6 6 4 4
12-14 16 12 10 8 6 6 6 4 2
14-16 16 12 10 8 6 6 4 4 2
16-18 14 12 8 8 6 4 4 2 2
18-20 14 12 8 6 6 4 4 2 2
Nameplate Ampere Rating
903545 - 08-31-01.qxd 2/12/02 11:46 AM Page 5

6
LOCK MORTISER ASSEMBLY
STANDARD EQUIPMENT

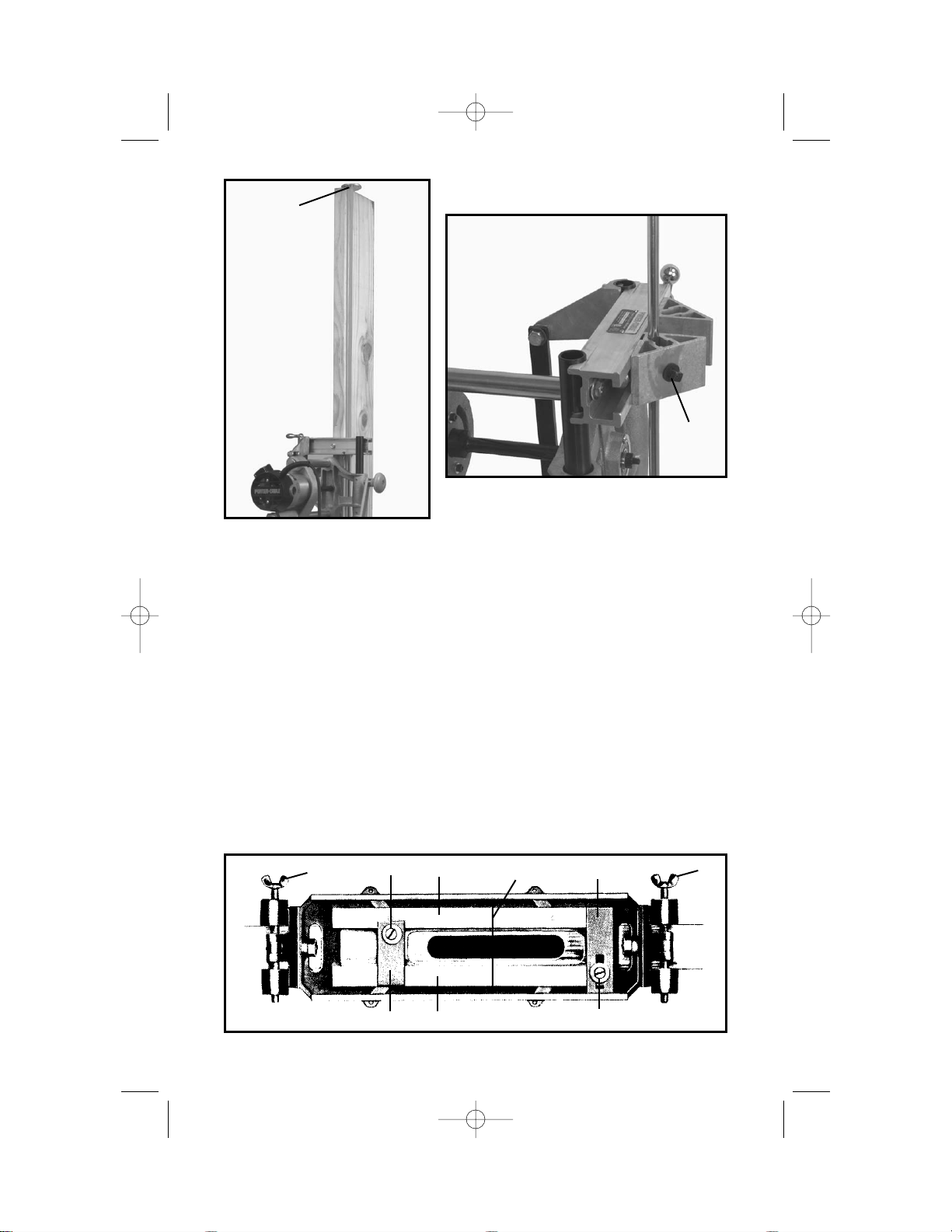

With the mortiser, the four sections of the height rod (A), and two bits (B) are
furnished. See Fig. 1.
ASSEMBLY OF BASE UNIT
The unit is shipped with the crank handle disassembled.
Place crank handle (D) to crank shaft (A) (See Fig. 2) with wooden knob
facing outward and “D” hole in handle aligned with flat on shaft. Place bolt
(C) through washer (B) and thread into shaft (A). Tighten securely.
ASSEMBLY OF MOTOR UNIT
CAUTION: Disconnect tool from power source.
1. Open hardware package and locate: two cap screws, two flat washers,
and 5/32" allen wrench. Place washers onto cap screws.
2. Insert splined cutter shaft (see Fig. 3) through motor carriage (L) and into
the spiral grooved bushing (M) in the main frame (N). Orient motor as shown
in Fig. 8 and seat into motor carriage.
3. Insert the two screw and washer assemblies (from Step 1) through motor
carriage (see Fig. 4) and thread into the threaded holes in motor housing.
Tighten securely with allen wrench.
Fig. 1
A
B
Fig. 2
A
B
C
D
903545 - 08-31-01.qxd 2/12/02 11:46 AM Page 6

OPERATION
DETERMINE WIDTH OF CUT
Measure the width of the lock box at its widest point, including any
protruding parts. DO NOT INCLUDE THE LOCK FACE. Select a cutter equal
to, or slightly larger than this width.
Example: 1) Overall width of lock box – 31/32" – Use PORTER-CABLE
#43704 1" diameter bit.
2) Overall width of lock box – 3/4" – Use PORTER-CABLE
#43703 3/4" diameter bit.
Various sizes of bits are available as accessories.
CAUTION: Disconnect tool from power source and exercise
extreme care when handling cutter to avoid bodily injury or damage
to cutting edge.
Thread selected bit onto end of splined cutter shaft and tighten securely.
DETERMINING LENGTH OR HEIGHT OF CUT
Measure the height of the lock box (see Fig. 5) including any protruding
parts. DO NOT INCLUDE THE LOCK FACE.
7
L
N
M
Fig. 3 Fig. 4
SCREWS & WASHER
Fig. 5
903545 - 08-31-01.qxd 2/12/02 11:46 AM Page 7

8
SETTING MORTISER FOR LENGTH OF CUT
CAUTION: Disconnect tool from power source.
See Fig. 6 to set mortiser for length of cut. Loosen crank pin nut (T) and turn
adjusting knob (U) until the correct graduation mark on the slide lines up with
the line on crank pin indicating washer. If it is difficult to turn the adjusting
knob (U), turn the crank (E) Fig. 8, until most of the tension is relieved.
Tighten crank pin nut (T), Fig. 6, securely.
EXAMPLE: If the mortise is to be 4" long, turn adjusting knob (U)
until the figure 4 graduation mark lines up with the line on the crank
pin indicating washer.
SETTING MORTISER FOR DEPTH OF CUT
CAUTION: Disconnect tool from power source.
Measure the lock box at its deepest part, including the thickness of the lock
face, and add 1/4" to this dimension for clearance. The depth of cut is
controlled by the feed rod (W) Fig. 7 which is marked in 1/4" increments.
Loosen the collar (X) and move it to the determined depth requirement and
lock in place.
Fig. 6
T
U
Fig. 7
WX
903545 - 08-31-01.qxd 2/12/02 11:46 AM Page 8

9
MAKING TRIAL CUT
After the mortiser (see Fig. 8) has been set up according to the preceding
instructions, it is strongly recommended that a trial cut be made in the
following manner to insure fit of lock box.
1. Clamp a length of 2" ×6", or larger, lumber in vise, or fasten it securely
to a work bench, in an upright position.
CAUTION: Disconnect tool from power source.
2. Move feed lever (A) to horizontal position (as shown in Fig. 8) and pull
motor carriage (B) to end of guide rod (C).
3. Place the mortiser against edge of the 2" ×6" so that the clamps are
firmly seated and crank (E) is free to revolve completely around. Tighten
clamp handles (D) securely to hold mortiser in position.
4. Move feed lever (A) to vertical position to engage feed mechanism.
CAUTION: Make sure motor switch is in the OFF position.
5. Connect mortiser to power source.
6. Turn motor switch ON and rotate crank (E) until collar (F) hits feed
housing, stopping depth of cut and completing mortise.
7. Turn motor OFF.
CAUTION: Disconnect tool from power source.
8. Move feed lever (A) to
horizontal position to disengage
feed mechanism.
9. Grasp motor carriage (B), Fig.
9, with both hands and pull
towards you until bit is clear of cut
mortise. Remove mortiser from 2"
×6".
10. Clean all chips from cut and
try lock box for fit. If necessary,
readjust mortiser as required and
make another trial cut.
Fig. 8
D
BC
A
F
E
Fig. 9
B
903545 - 08-31-01.qxd 2/12/02 11:46 AM Page 9

10
NOTE: Be sure the length of the mortise has not removed stock
required for the two screws that retain the lock box to the door.
MORTISING A DOOR
After trial cut has been made resulting in a satisfactory fit for the lock box,
the door should be mortised in the following manner.
1. Place door in an upright position and anchor securely. If door is hung,
use wedges under bottom of door to keep it from moving.
2. Place lock box against side of door so that the door knob will be the
desired distance from the floor.
3. Make a mark on the side of the door at the top of the lock box (See
Fig. 10). Transfer this mark to the front edge of the door.
4. Draw a line 3/8" above this mark across the front edge of the door. This is
required for clearance for the radius of the cutter. NOTE: The actual
clearance may be determined from the lock box and the trial cut in the 2" ×
6". This clearance may be used in place of 3/8".
CAUTION: Disconnect tool from power source.
5. Turn mortiser crank handle until the bit is in the top most position.
6. Place the mortiser on the door so that the top edge of the bit just
touches the line drawn on edge of the door.
7. Mortise door in the same manner as outlined under MAKING A TRIAL CUT.
PRODUCTION LOCK MORTISING
If you have a number of doors with the locks at the same height, the height
rod attachment (see Fig. 11) will be of great value. After you have determined
the height you want, and have the lock mortiser in position on the first door,
assemble the four rods that compose the height rod attachment. Insert the
rods in the mortiser and place the height rod stop (G) on the top of the rod so
it rests on the top of the door. Lock the height rod screws, (H) Fig. 11A. To
locate the mortiser on the next door, simply place the mortiser on the door
with the height rod stop resting on the top of the door and tighten the
clamps. This will assure having all locks located in the same position.
Fig. 10
903545 - 08-31-01.qxd 2/12/02 11:46 AM Page 10

11
MODEL 517 LOCK FACE TEMPLET
REQUIRED EQUIPMENT
Equipment required for use with Router and Lock Face Templet.
42024 Templet Guide
42237 Locknut
43440 5/8" Diameter Straight Bit
SETTING UP TEMPLET
1. Loosen locking screw (A), Fig. 12.
2. Adjust side guides (C), Fig. 12, so the space between them is 1/8" wider
than the lock face.
3. Firmly tighten screw (A).
4. Loosen locking screw (D), Fig. 12.
5. Adjust guide bar (E), Fig. 12, distance between (E) and (B) is 1/8" longer
than the lock face.
6. Firmly tighten screw (D).
Fig. 11
Fig. 11A
G
H
Fig. 12
GG
D
ECA
CFB
903545 - 08-31-01.qxd 2/12/02 11:47 AM Page 11

12
LOCATING TEMPLET ON DOOR
1. Draw a line across the door edge at the center of the mortise cut for the
lock.
2. Draw line (F), Fig. 12, on the templet side guides (C), midway between
bars (B) and (E).
3. Position templet on door so line (F) on templet matches line drawn on
the door edge at the center of the mortise cut.
4. Tighten the two wing screws (G), Fig. 12 to lock templet in place.
PREPARING ROUTER
CAUTION: Disconnect router from power source.
1. Assemble 42024 templet guide to router base with 42237 lock nut.
2. Install bit in router collet.
3. Set router on lock face templet and adjust depth of cut so bit just
touches door.
4. Set router depth adjusting ring to zero position.
5. Lift router from templet and adjust depth of cut equal to thickness of lock
face.
6. Firmly tighten motor locking device.
MAKING THE CUT
CAUTION: Make sure router switch is in the “OFF” position.
1. Connect router cord to power source.
2. Start router and mortise door for lock face, guiding the router by
keeping the templet guide against the templet guide bars.
3. A corner chisel 42234 is available as an accessory for squaring the
corners for the lock face.
FINISHED MORTISE
Fig. 13 shows how the mortise will look when completed. The cut is smooth
and even and the lock box may be inserted with no further hand work. In
Fig. 13 the lock face templet has been used and the corner chisel has
squared the corners, assuring a perfect fit.
Fig. 13
903545 - 08-31-01.qxd 2/12/02 11:47 AM Page 12

13
MAINTENANCE
KEEP TOOL CLEAN
Periodically blow out all air passages with dry compressed air. All plastic
parts should be cleaned with a soft damp cloth. NEVER use solvents to
clean plastic parts. They could possibly dissolve or otherwise damage the
material.
CAUTION: Wear safety glasses while using compressed air.
FAILURE TO START
Should your tool fail to start, check to make sure the prongs on the cord
plug are making good contact in the outlet. Also, check for blown fuses or
open circuit breakers in the line.
LUBRICATION
This tool has been lubricated with a sufficient amount of high grade lubricant
for the life of the unit under normal operating conditions. No further
lubrication is necessary.
BRUSH INSPECTION AND LUBRICATION
For your continued safety and electrical protection, brush inspection and
replacement on this tool should ONLY be performed by an AUTHORIZED
PORTER-CABLE SERVICE STATION or a PORTER-CABLE/DELTA
FACTORY SERVICE CENTER.
At approximately 100 hours of use, take or send your tool to your nearest
authorized Porter-Cable Service Station to be thoroughly cleaned and
inspected. Have worn parts replaced and lubricate with fresh lubricant. Have
new brushes installed, and test the tool for performance.
Any loss of power before the above maintenance check may indicate the
need for immediate servicing of your tool. DO NOT CONTINUE TO
OPERATE TOOL UNDER THIS CONDITION. If proper operating voltage is
present, return your tool to the service station for immediate service.
MORTISER MAINTENANCE
Keep the mortiser attachment free of dust and dirt, especially the vertical
tubes on which the main frame slides.
MORTISER LUBRICATION
A few drops of oil applied with an oil rag is advisable once every day or two
on the vertical tubes.
NOTE: DO NOT OIL THE SPLINED CUTTER SHAFT.
It is advisable to apply a few drops of bearing oil to each end of the crank
every day or two.
903545 - 08-31-01.qxd 2/12/02 11:47 AM Page 13

14
SERVICE AND REPAIRS
All quality tools will eventually require servicing or replacement of parts due
to wear from normal use. These operations, including brush inspection and
replacement, should ONLY be performed by either an AUTHORIZED
PORTER-CABLE SERVICE STATION or a PORTER-CABLE/DELTA
FACTORY SERVICE CENTER. All repairs made by these agencies are fully
guaranteed against defective material and workmanship. We cannot
guarantee repairs made or attempted by anyone other than these agencies.
Should you have any questions about your tool, feel free to write us at any
time. In any communications, please give all information shown on the
nameplate of your tool (model number, type, serial number, etc.).
ACCESSORIES
A complete line of accessories is available from your Porter-Cable •
Delta Supplier, Porter-Cable • Delta Factory Service Centers, and
Porter-Cable Authorized Service Stations. Please visit our Web Site
www.porter-cable.com for a catalog or for the name of your nearest
supplier.
WARNING: Since accessories other than those offered by Porter-Cable
•Delta have not been tested with this product, use of such accessories
could be hazardous. For safest operation, only Porter-Cable •Delta
recommended accessories should be used with this product.
PORTER-CABLE LIMITED
ONE YEAR WARRANTY
Porter-Cable warrants its Professional Power Tools for a period of one year from the date of original
purchase. We will repair or replace at our option, any part or parts of the product and accessories
covered under this warranty which, after examination, proves to be defective in workmanship or
material during the warranty period. For repair or replacement return the complete tool or accessory,
transportation prepaid, to your nearest Porter-Cable Service Center or Authorized Service Station.
Proof of purchase may be required. This warranty does not apply to repair or replacement required
due to misuse, abuse, normal wear and tear or repairs attempted or made by other than our Service
Centers or Authorized Service Stations.
ANY IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, WILL LAST ONLY FOR ONE (1) YEAR FROM THE DATE
OF PURCHASE.
To obtain information on warranty performance please write to: PORTER-CABLE CORPORATION,
4825 Highway 45 North, Jackson, Tennessee 38305; Attention: Product Service. THE FOREGOING
OBLIGATION IS PORTER-CABLE’S SOLE LIABILITY UNDER THIS OR ANY IMPLIED WARRANTY
AND UNDER NO CIRCUMSTANCES SHALL PORTER-CABLE BE LIABLE FOR ANY INCIDENTAL
OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied
warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
This warranty gives you specific legal rights and you may also have other legal rights which vary
from state to state.
903545 - 08-31-01.qxd 2/12/02 11:47 AM Page 14

The following are trademarks of PORTER-CABLE • DELTA (Las siguientes son marcas registradas de PORTER-CABLE • DELTA S.A.) (Les
marques suivantes sont des marques de fabriquant de la PORTER-CABLE
• DELTA): BAMMER®, LASERLOC®, OMNIJIG®, POCKET CUTTER®,
PORTA-BAND®, PORTA-PLANE®, PORTER-CABLE®, QUICKSAND®, SANDTRAP®, SAW BOSS®, SPEED-BLOC®, SPEEDMATIC®,
SPEEDTRONIC®, STAIR-EASE®, THE PROFESSIONAL EDGE®, THE PROFESSIONAL SELECT®, TIGER CUB®, TIGER SAW®, TORQ-BUSTER®,
VERSA-PLANE®, WHISPER SERIES®, DURATRONIC™, FRAME SAW™, INNOVATION THAT WORKS™, JETSTREAM™, MICRO-SET™,
MORTEN™, NETWORK™, RIPTIDE™, TRU-MATCH™, WOODWORKER’S CHOICE™, THE AMERICAN WOOD SHOP™ (design) , AUTO-
SET™, B.O.S.S.™, BUILDER’S SAW™, CONTRACTOR’S SAW™, DELTA™, DELTACRAFT™, HOMECRAFT™, JET-LOCK™, KICKSTAND™,
THE LUMBER COMPANY™ (design). MICRO-SET™, Q3™, QUICKSET II™, QUICKSET PLUS™, SAFEGUARD II™, SANDING CENTER™,
SIDEKICK™, UNIFENCE™, UNIGUARD™, UNIRIP™, UNISAW™, VERSA-FEEDER™ , TPS™, Emc²™.
Trademarks noted with ™ and ® are registered in the United States Patent and Trademark Office and may also be registered in other
countries. Las Marcas Registradas con el signo de ™ y ® son registradas por la Oficina de Registros y Patentes de los Estados Unidos y
también pueden estar registradas en otros países. Marques déposées, indiquées par la lettre ™ et ®, sont déposées au Bureau des brevets
d’invention et marques déposées aux Etats-Unis et pourraient être déposées aux autres pays.
PORTER-CABLE • DELTA SERVICE CENTERS
(CENTROS DE SERVICIO DE PORTER-CABLE • DELTA)
(CENTRE DE SERVICE PORTER-CABLE • DELTA)
Parts and Repair Service for Porter-Cable • Delta Power Tools are Available at These Locations
(Obtenga Refaccion de Partes o Servicio para su Herramienta en los Siguientes Centros de Porter-Cable
• Delta)
(Locations où vous trouverez les pièces de rechange nécessaires ainsi qu’un service d’entretien)
Authorized Service Stations are located in many large cities. Telephone [phone] or 731-541-6042 for assistance locating one.
Parts and accessories for Porter-Cable
• Delta products should be obtained by contacting any Porter-Cable • Delta Distributor,
Authorized Service Center, or Porter-Cable
• Delta Factory Service Center. If you do not have access to any of these, call 888-848-5175
and you will be directed to the nearest Porter-Cable
• Delta Factory Service Center. Las Estaciones de Servicio Autorizadas están
ubicadas en muchas grandes ciudades. Llame al 800-487-8665 ó al 731-541-6042 para obtener asistencia a fin de localizar una. Las
piezas y los accesorios para los productos Porter-Cable
• Delta deben obtenerse poniéndose en contacto con cualquier distribuidor
Porter-Cable
• Delta, Centro de Servicio Autorizado o Centro de Servicio de Fábrica Porter-Cable • Delta. Si no tiene acceso a ninguna
de estas opciones, llame al 888-848-5175 y le dirigirán al Centro de Servicio de Fábrica Porter-Cable
• Delta más cercano. Des centres
de service agréés sont situés dans beaucoup de grandes villes. Appelez au 800-487-8665 ou au 731-541-6042 pour obtenir de l’aide
pour en repérer un. Pour obtenir des pièces et accessoires pour les produits Porter-Cable
• Delta, s’adresser à tout distributeur Porter-
Cable
• Delta, centre de service agréé ou centre de service d’usine Porter-Cable • Delta. Si vous n’avez accès à aucun de ces centres,
appeler le 888-848-5175 et on vous dirigera vers le centre de service d’usine Porter-Cable
• Delta le plus proche.
ARIZONA
Tempe 85282 (Phoenix)
2400 West Southern Avenue
Suite 105
Phone: [phone]
Fax: [phone]
CALIFORNIA
Ontario 91761 (Los Angeles)
3949A East Guasti Road
Phone: [phone]
Fax: [phone]
San Leandro 94577 (Oakland)
3039 Teagarden Street
Phone: [phone]
Fax: [phone]
FLORIDA
Davie 33314 (Miami)
4343 South State Rd. 7 (441)
Unit #107
Phone: [phone]
Fax: [phone]
Tampa 33609
4538 W. Kennedy Boulevard
Phone: [phone]
Fax: [phone]
GEORGIA
Forest Park 30297 (Atlanta)
5442 Frontage Road, Suite 112
Phone: [phone]
Fax: [phone]
ILLINOIS
Addison 60101 (Chicago)
311 Laura Drive
Phone: [phone]
Fax: [phone]
Woodridge 60517 (Chicago)
2033 West 75th Street
Phone: [phone]
Fax: [phone]
MARYLAND
Elkridge 21075 (Baltimore)
7397-102 Washington Blvd.
Phone: [phone]
Fax: [phone]
MASSACHUSETTS
Braintree 02185 (Boston)
719 Granite Street
Phone: [phone]
Fax: [phone]
Franklin 02038 (Boston)
Franklin Industrial Park
101E Constitution Blvd.
Phone: [phone]
Fax: [phone]
MICHIGAN
Madison Heights 48071 (Detroit)
30475 Stephenson Highway
Phone: [phone]
Fax: [phone]
MINNESOTA
Minneapolis 55429
5522 Lakeland Avenue North
Phone: [phone]
Fax: [phone]
MISSOURI
North Kansas City 64116
1141 Swift Avenue
P.O. Box 12393
Phone: [phone]
Fax: [phone]
St. Louis 63119
7574 Watson Road
Phone: [phone]
Fax: [phone]
NEW YORK
Flushing 11365-1595 (N.Y.C.)
175-25 Horace Harding Expwy.
Phone: [phone]
Fax: [phone]
NORTH CAROLINA
Charlotte 28270
9129 Monroe Road, Suite 115
Phone: [phone]
Fax: [phone]
OHIO
Columbus 43214
4560 Indianola Avenue
Phone: [phone]
Fax: [phone]
Cleveland 44125
8001 Sweet Valley Drive Unit #19
Phone: [phone]
Fax: [phone]
OREGON
Portland 97230
4916 NE 122 nd Ave.
Phone: [phone]
Fax: [phone]
PENNSYLVANIA
Willow Grove 19090
520 North York Road
Phone: [phone]
Fax: [phone]
TEXAS
Carrollton 75006 (Dallas)
1300 Interstate 35 N, Suite 112
Phone: [phone]
Fax: [phone]
Houston 77055
West 10 Business Center
1008 Wirt Road, Suite 120
Phone: [phone]
Fax: [phone]
WASHINGTON
Renton 98055 (Seattle)
268 Southwest 43rd Street
Phone: [phone]
Fax: [phone]
Printed in U.S.A.
CANADIAN PORTER-CABLE •DELTA SERVICE CENTERS
ALBERTA
Bay 6, 2520-23rd St. N.E.
Calgary, Alberta
T2E 8L2
Phone: [phone]
Fax: [phone]
BRITISH COLUMBIA
8520 Baxter Place
Burnaby, B.C.
V5A 4T8
Phone: [phone]
Fax: [phone]
MANITOBA
1699 Dublin Avenue
Winnipeg, Manitoba
R3H 0H2
Phone: [phone]
Fax: [phone]
ONTARIO
505 Southgate Drive
Guelph, Ontario
N1H 6M7
Phone: [phone]
Fax: [phone]
QUÉBEC
1515 Ave.
St-Jean Baptiste,
Québec, Québec
G2E 5E2
Phone: [phone]
Fax: [phone]
1447, Begin
St-Laurent, (Montréal), Québec
H4R 1V8
Phone: [phone]
Fax: [phone]
903545 - 08-31-01.qxd 2/12/02 11:47 AM Page 48
