Porter&Charles DWTPC10SS User manual

Installation instructions
Instructions d’installation

Rev 0.0 1
CONTENTS EN
Contents
1 INTRODUCTION ........................................................................................3
2 SAFETY INFORMATION.............................................................................5
3 INSTALLATION MATERIAL ......................................................................... 8
3.1 Kit supplied with dishwasher ...................................................................... 9
4 DIMENSIONS OF DISHWASHER .............................................................10
5 INSTALLATION AND HOOK-UP ............................................................... 11
5.1 Leveling.................................................................................................... 12
5.2 Connections............................................................................................. 13
5.2.1 Connecting to the water supply................................................................14
5.2.1.1 Connecting to the water tap.....................................................................15
5.2.1.2 Connecting the drain hose .......................................................................17
5.2.2 Electrical connections and warnings.........................................................22
5.3 Commissioning ........................................................................................23
5.3.1 Installation procedure ..............................................................................23
5.3.2 Procedure for mounting the door panel .................................................... 25
5.3.3 Completion of installation .........................................................................28
5.4 Testing .....................................................................................................31

2 Rev 0.0
EN

Rev 0.0 3
INTRODUCTION EN
1 INTRODUCTION
Thank you for choosing one of our products. To install this dish-
washer correctly and safely, please read this manual carefully. The
manual is divided into sections giving you a step-by-step guide to
installation of the appliance. The texts are easy to understand and
are complete with detailed illustrations. This user-friendly manual will
provide answers to all your questions about installation of the dish-
washer.
This manual comprises the following sections:
INTRODUCTION: general information about the manual.
WARNINGS: a list of warnings concerning safety during installation.
INSTALLATION INSTRUCTIONS: for the qualified technician who
must carry out the installation, hook-up and testing of the appli-
ance.
Nomenclature of figures and tables:
The progressive number of each figure is shown in the bottom right-
hand corner of the relative box. An example of a progressive number
is “Fig. 4-01”, where the first number (4) indicates the section to
which the figure belongs, while the second number (01) indicates
the progressive number of the figure in section 4 (Fig. 4-01 is the
first figure in section 4). The tables are numbered in the same way,
bearing in mind that “Tab.” is used instead of “Fig.” (e.g.: Tab. 4-01
is the first table in section 4). If a table occupies more than one page,
a letter is added after the progressive number (e.g.: “Tab. 4-01a”,
Tab. 4-01b”).

4 Rev 0.0
INTRODUCTIONEN
Symbols used in this manual (see tab. 1-01)
DANGER. This symbol highlights information and warnings which,
if not observed, may compromise personal safety or damage the
appliance.
DANGER OF ELECTROCUTION. This symbol highlights information
and warnings of an electrical nature which, if not observed, may
compromise personal safety or damage the appliance.
This symbol highlights general information and warnings.
Tab. 1-01

Rev 0.0 5
WARNINGS EN
2 SAFETY INFORMATION
THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE:
IT MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE DISH-
WASHER. BEFORE USING THE APPLIANCE, CAREFULLY READ
ALL THE INSTRUCTIONS CONTAINED IN THIS MANUAL.
INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECH-
NICIAN, IN COMPLIANCE WITH THE REGULATIONS IN FORCE.
THIS APPLIANCE IS INTENDED FOR DOMESTIC USE AND SIMI-
LAR APPLICATIONS SUCH AS THE STAFF KITCHENS OF SHOPS,
OFFICES AND OTHER WORKPLACES, INSTITUTIONS, AND FOR
THE USE OF GUESTS AT HOTELS, HOSTELS, BED AND BREAK-
FAST ESTABLISHMENTS AND OTHER RESIDENTIAL FACILITIES
AND COMPLIES WITH DIRECTIVES 2006/95/EC AND 2004/108/
EC CURRENTLY IN FORCE, INCLUDING THE PREVENTION AND
ELIMINATION OF RADIO FREQUENCY INTERFERENCE.
THE APPLIANCE IS DESIGNED FOR THE FOLLOWING PUR-
POSE: WASHING AND DRYING OF DISHES; ANY OTHER USE
SHALL BE CONSIDERED IMPROPER. THE MANUFACTURER
DECLINES ALL RESPONSIBILITY FOR USES OTHER THAN
THOSE DESCRIBED ABOVE.
INSTALLATION, REPAIRS AND SERVICING MUST BE PER-
FORMED BY QUALIFIED AND AUTHORIZED TECHNICIANS.
AS WELL AS INVALIDATING THE WARRANTY, WORK CARRIED
OUT BY UNAUTHORIZED PERSONS MAY GENERATE HAZARDS.
INSTALLATION MUST BE PERFORMED IN COMPLIANCE WITH
ALL THE DIRECTIVES IN FORCE IN THE COUNTRY OF INSTALLA-
TION AND, IF THESE DO NOT EXIST: IN THE UNITED STATES THE
NATIONAL ELECTRIC CODE; IN CANADA THE CANADIAN ELEC-
TRIC CODE C22.1 - LATEST EDITION/PROVINCIAL AND MUNICI-
PAL CODES AND/OR LOCAL CODES.
THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL
NUMBER AND MARKINGS IS VISIBLY POSITIONED ON THE IN-
NER EDGE OF THE DOOR. THE NAMEPLATE ON THE INNER
EDGE OF THE DOOR MUST NEVER BE REMOVED.
THIS APPLIANCE IS NOT SUITABLE FOR USE ON BOATS, CARA-
VANS OR THE LIKE. DISHWASHERS CERTIFIED FOR DOMESTIC
USE ARE NOT SUITABLE FOR AUTHORISED FOOD FACTORIES.

6 Rev 0.0
WARNINGSEN
CHECK THAT THE VOLTAGE, FREQUENCY AND PROTECTION OF
THE DOMESTIC MAINS POWER SUPPLY MATCH THE RATINGS
ON THE NAME PLATE OF THE APPLIANCE.
TWO PEOPLE WEARING SAFETY GLOVES ARE REQUIRED
TO LIFT THE DISHWASHER.
DO NOT LEAVING DISCARDED PACKAGING MATERIALS UNSU-
PERVISED WITHIN THE HOME. SEPARATE THE VARIOUS PACK-
AGING MATERIALS AND TAKE THEM TO THE NEAREST SORTED
WASTE COLLECTION CENTRE. KEEP CHILDREN, PHYSICALLY
AND/OR MENTALLY IMPAIRED ADULTS, AND ANIMALS AWAY
FROM PACKAGING WASTE; DANGER OF SUFFOCATION.
BEFORE PROCEEDING WITH INSTALLATION, DISCONNECT THE
MAINS POWER SUPPLY FROM THE WORK AREA.
DURING INSTALLATION, TAKE CARE NOT TO INJURE YOURSELF
ON THE SHARP EDGES OF THE APPLIANCE; WEAR SAFETY
GLOVES.
THE APPLIANCE MUST BE PROVIDED WITH A GROUND CON-
NECTION IN ACCORDANCE WITH THE ELECTRICAL SAFETY
REGULATIONS IN FORCE. IF IN DOUBT, HAVE THE SYSTEM
CHECKED BY A QUALIFIED ELECTRICIAN.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
DAMAGE TO PERSONS OR PROPERTY RESULTING FROM
THE FAILURE TO GROUND THE APPLIANCE OR FROM A DE-
FECTIVE GROUND CONNECTION.
DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DUR-
ING TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER. THE APPLI-
ANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE
WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER
OR BY A QUALIFIED TECHNICIAN.

Rev 0.0 7
WARNINGS EN
DO NOT OPERATE THE DISHWASHER UNLESS ALL THE OUTER
PANELS HAVE BEEN POSITIONED CORRECTLY.
IMMEDIATELY AFTER INSTALLATION, BRIEFLY TEST THE APPLI-
ANCE FOLLOWING THE INSTRUCTIONS INDICATED BELOW. IF
THE DISHWASHER FAILS TO OPERATE CORRECTLY, DISCON-
NECT IT FROM THE ELECTRICAL POWER SUPPLY AND CALL THE
NEAREST TECHNICAL SERVICE CENTRE. DO NOT ATTEMPT TO
REPAIR THE APPLIANCE.
DO NOT USE EXTENSION CORDS, ADAPTORS OR SHUNT CON-
NECTIONS IN ORDER TO AVOID THE POSSIBILITY OF OVER-
HEATING OR BURNING, WITH CONSEQUENT FIRE HAZARD.
THE MANUFACTURER DECLINES ALL RESPONSIBIL-
ITY FOR DAMAGE TO PERSONS, ANIMALS OR PROPER-
TY RESULTING FROM FAILURE TO OBSERVE THE ABOVE
PRECAUTIONS, FROM TAMPERING WITH EVEN A SINGLE
COMPONENT OF THE APPLIANCE, OR FROM THE USE OF
UNORIGINAL SPARE PARTS.
IF IN DOUBT ABOUT THE CONTENTS OF THIS MANUAL,
CONTACT THE TECHNICAL ASSISTANCE SERVICE.

8 Rev 0.0
INSTALLATION INSTRUCTIONSEN
3 INSTALLATION MATERIAL

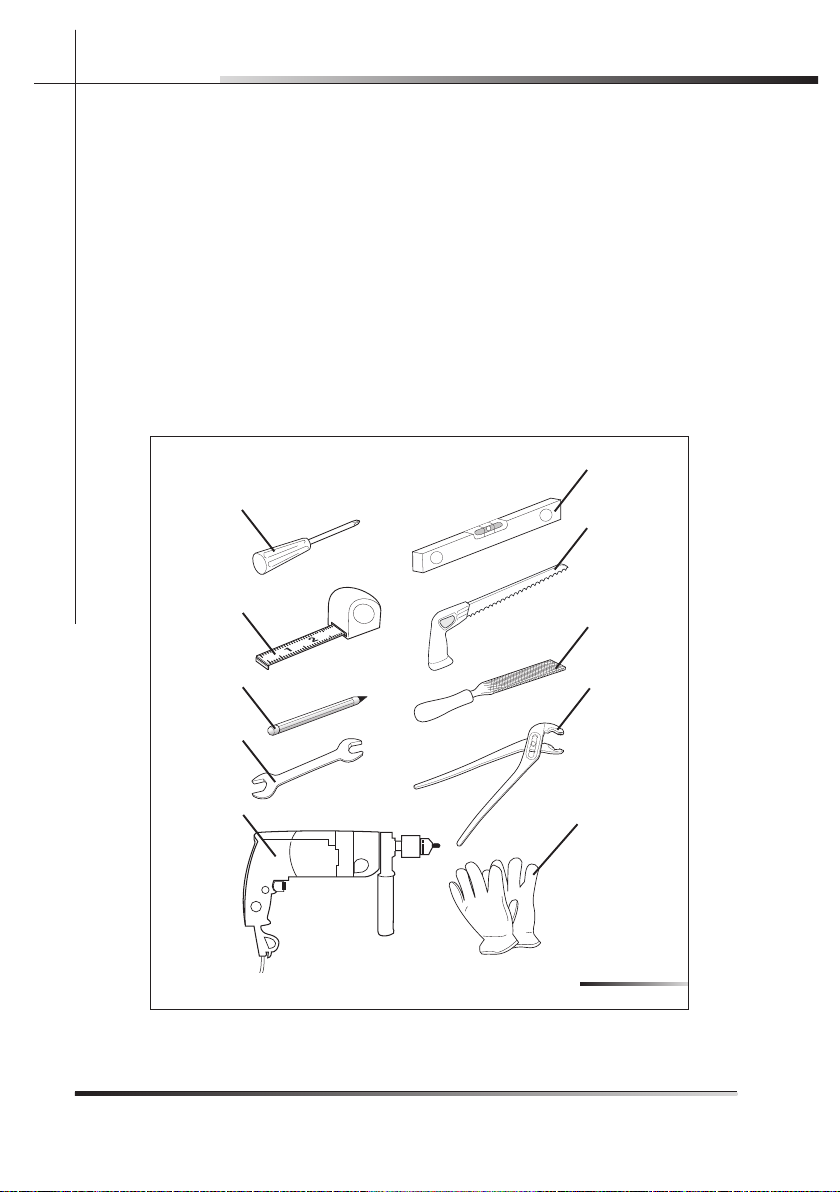

To install the dishwasher correctly, the following materials are required:
• Phillips screwdriver (ref. A fig. 3-01);
• spirit level (ref. B fig. 3-01);
• tape measure (ref. C fig. 3-01);
• compass saw (ref. D fig. 3-01);
• pencil (ref. E fig. 3-01);
• file (ref. F fig. 3-01);
• 13 mm open-ended wrench (ref. G fig. 3-01);
• plumbing pliers (ref. H fig. 3-01);
• drill (ref. I fig. 3-01);
• safety gloves (ref. L fig. 3-01).
Fig. 3-01
A
B
C
D
E
F
G
H
IL

Rev 0.0 9
INSTALLATION INSTRUCTIONS EN

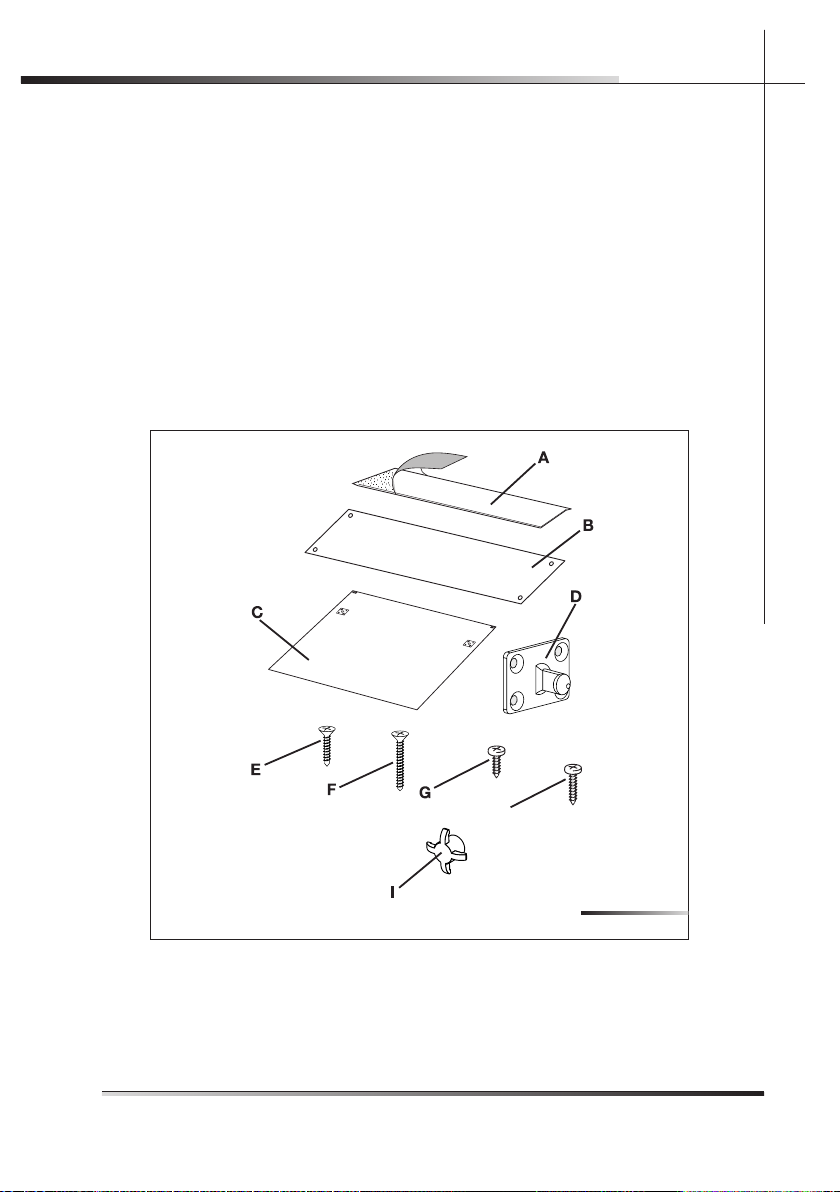

3.1 Kit supplied with dishwasher (DWTPC10FI)
The kit supplied with the dishwasher comprises:
• 1 adhesive steam guard (depending on the model) (ref. A fig. 3-02);
• 1 steel adhesive steam guard (depending on the model) (ref. B fig. 3-02)*;
• 1 template for door panel (ref. C fig. 3-02);
• 2 hooks for door panel (ref. D fig. 3-02);
• 8 screws for securing the door panel hooks (ref. E fig. 3-02);
• 2 screws for securing the door (ref. F fig. 3-02);
• 4 screws for fixing the dishwasher to the adjacent walls (ref. G fig. 3-02);
• 2 upper fixing screws (ref. H fig. 3-02);
• 2 screw caps (ref. I Fig. 3-02);
Accessories A and G also provided with the model DWTPC5FC
H
* The adhesive protection is suitable for kitchens with worktops that do not allow the
steel protection to be fixed with screws (e.g.:+ marble or masonry), but it can be also
used with other materials.
Fig. 3-02

10 Rev 0.0
INSTALLATION INSTRUCTIONSEN
4 DIMENSIONS OF DISHWASHER (See fig. 4-01)
Model A (height) B (width) C (depth)
DWTPC10FI 82 cm - 89 cm
32-9/32” - 35-3/64”
59.7 cm ÷ 59,9 cm
23-1/2” ÷ 23-37/64”
55 cm
21-21/32”
DWTPC5FC 82 cm - 89 cm
32-9/32” - 35-3/64”
59.7 cm ÷ 59.9 cm
23-1/2” ÷ 23-37/64”
60 cm
23-5/8”
Tab. 4-01
A
B
C
Fig. 4-01

Rev 0.0 11
INSTALLATION INSTRUCTIONS EN
5 INSTALLATION AND HOOK-UP
DURING INSTALLATION, TAKE CARE NOT TO INJURE YOURSELF
ON THE SHARP EDGES OF THE APPLIANCE.
Remove the polystyrene rack blocks. Position the appliance in the chosen in-
stallation position. The sides and rear of the appliance can lie against kitchen
units or walls. If the dishwasher is installed next to a heat source, separate it
with a heat insulating panel in order to prevent overheating and malfunctions.
To assure stability, only install built-in appliances under continuous worktops,
securing them to the adjacent kitchen units or worktop with screws.
BUILDING-IN A DISHWASHER UNDERNEATH A CERAMIC HOB IS
ABSOLUTELY FORBIDDEN. A DISHWASHER CAN BE BUILT-IN
UNDERNEATH A CONVENTIONAL HOB PROVIDED THERE IS NO
BREAK IN THE KITCHEN WORKTOP, AND THE DISHWASHER
AND HOB ARE INSTALLED AND SECURED CORRECTLY, SO
THAT NO HAZARDS ARE GENERATED.
MAKE SURE THE DISHWASHER HAS BEEN CORRECTLY IN-
STALLED AND GROUNDED BY A QUALIFIED FITTER. THIS
SAFETY REQUIREMENT MUST BE MET. IN CASE OF DOUBT,
CALL IN A QUALIFIED FITTER. THE MANUFACTURER DE-
CLINES ALL RESPONSIBILITY FOR DAMAGE TO PERSONS
OR PROPERTY RESULTING FROM THE FAILURE TO GROUND
THE APPLIANCE OR FROM A DEFECTIVE GROUND CON-
NECTION.
BEFORE PROCEEDING WITH INSTALLATION, DISCONNECT
THE MAINS POWER SUPPLY FROM THE WORK AREA.
Only for free-standing models
• It is strictly forbidden to mount a hob over a free-standing dishwasher.

12 Rev 0.0
INSTALLATION INSTRUCTIONSEN
• If the appliance is not in a niche and can therefore be accessed on one
side, cover the door hinge area for safety reasons (cutting hazard). Covers
are available as accessories from specialized retailers or from the Technical
Service Centre.
• To build in the dishwasher, purchase the relative kit from specialized retail-
ers or from the Technical Service Centre.
5.1 Leveling
5.1.2 Levelling the appliance
Level the appliance using the relative adjustable feet (e.g.: ref. A fig. 5-01); use
an open-ended wrench to rotate the feet until the dishwasher is perfectly level.
Some models are fitted with just one rear foot which can be adjusted with a
screw located at the bottom front of the appliance (ref. A fig. 5-02); use a suit-
able Phillips screwdriver or 8 mm hex head bushing to turn the screw until the
dishwasher is perfectly level.
Use a spirit level to check the appliance is perfectly level (ref. B fig. 5-01).
Leveling is vital for assuring correct dishwasher operation.
Make sure to leave a gap of at least 3 mm (7/64”) between the top of the dish-
washer and the worktop (ref. C fig. 5-01).
Fig. 5-01

Rev 0.0 13
INSTALLATION INSTRUCTIONS EN
Fig. 5-02
5.2 Connections
Install the dishwasher so as to allow ease of access to the electrical and hy-
draulic connections through the adjacent unit. These connections must never
be behind the dishwasher.
The inlet and drain hoses can be pointed in all directions. make sure that they
are not bent, crushed or too tight. Tighten the ring nut after pointing the hoses
in the required direction.
Figure 5-03 indicates the distances to maintain between the dishwasher and
the various connections.
FIRE HAZARD!
DO NOT COVER OR CRUSH THE CORD PLUG.
A = 1200 mm / 47”
B = 1500 mm / 59”
C = 1600 mm / 63”
D = min. 400 mm / 16”
A
BD
C
Fig. 5-03

14 Rev 0.0
INSTALLATION INSTRUCTIONSEN

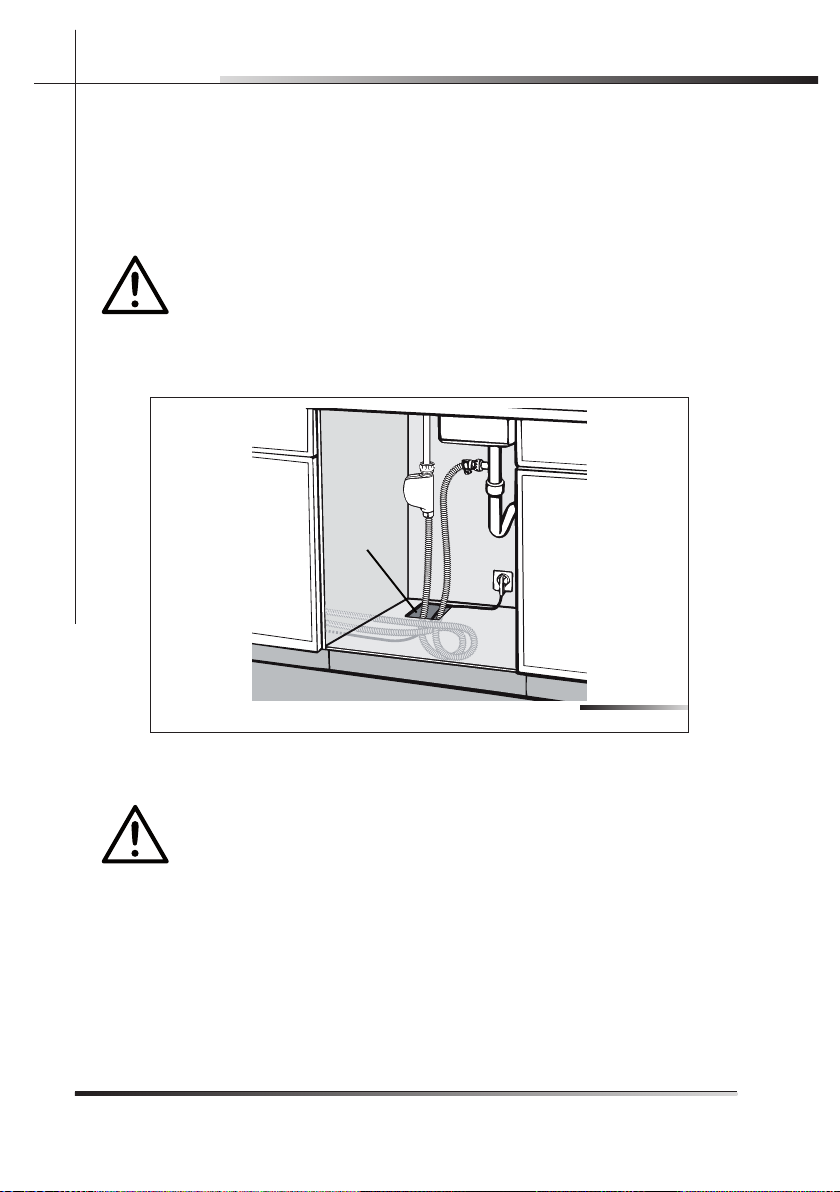

A through hole with a diameter of at least 8 cm (5/32”) is required to pass the
hoses and power cord (ref. A fig. 5-04).
Make sure there area no rough edges that could damage the power cord or
hoses. If the dishwasher is installed in a metal unit protect the edge of the
through hole for the hoses and power cord with a gasket. Do not use extension
cords when making the electrical connection as these do not guarantee safety.
ATTENTION!
INSTALLING THE DISHWASHER IN A NARROW SPACE MAY BEND
OR CRUSH THE POWER CORD. TAKE GREAT CARE IN ORDER TO
REDUCE THE POSSIBILITY OF DAMAGING THE POWER CORD
WHEN INSTALLING OR REMOVING THE APPLIANCE.
A
5.2.1 Connecting to the water supply
PREVENTING THE RISK OF CLOGGING OR DAMAGE: IF THE
WATER PIPE IS NEW OR HAS NOT BEEN USED FOR A LONG
TIME, BEFORE CONNECTING TO THE WATER SUPPLY CHECK
THAT THE WATER IS CLEAR AND FREE OF IMPURITIES, TO PRE-
VENT DAMAGE TO THE APPLIANCE. THE DISHWASHER MUST
ALWAYS BE CONNECTED TO THE WATER SYSTEM WITH
NEW HOSES; OLD OR USED HOSES MUST NEVER BE RE-
USED.
Fig. 5-04

Rev 0.0 15
INSTALLATION INSTRUCTIONS EN
5.2.1.1 Connecting to the water tap
Connect the inlet hose to a threaded ¾” gas cold water tap, fitting the supplied
filter (ref. A fig. 5-05). Firmly secure the hose by tightening the relative
ring nut with your hands (ref. B fig. 5-05); finish by tightening another
¼ turn using a pair of plumbing pliers. For models fitted with ACQUAS-
TOP (ref. C fig. 5-05) the filter is already present in the threaded ring nut.
The dishwasher can be filled with water at a temperature of less than
60°C (140°F).
If the appliance is filled with hot water, washing times will be reduced by about
20 minutes, but efficiency will be slightly impaired. Make the connection to the
domestic hot water tap using the same methods described for connecting the
appliance to the cold water tap.
• Recommended temperature: 49°C (120°F), max. 60°C (140°F).
• Recommended water pressure: 0.5 - 9 bar (7 -130 PSI).
If the pressure is too high, fit a pressure reducer.
A rubber hose connected to a sink spray may burst if installed on the
same pipes feeding the dishwasher. If your sink is fitted with this ac-
cessory, remove the hose and plug the hole.
Fig. 5-05

16 Rev 0.0
INSTALLATION INSTRUCTIONSEN

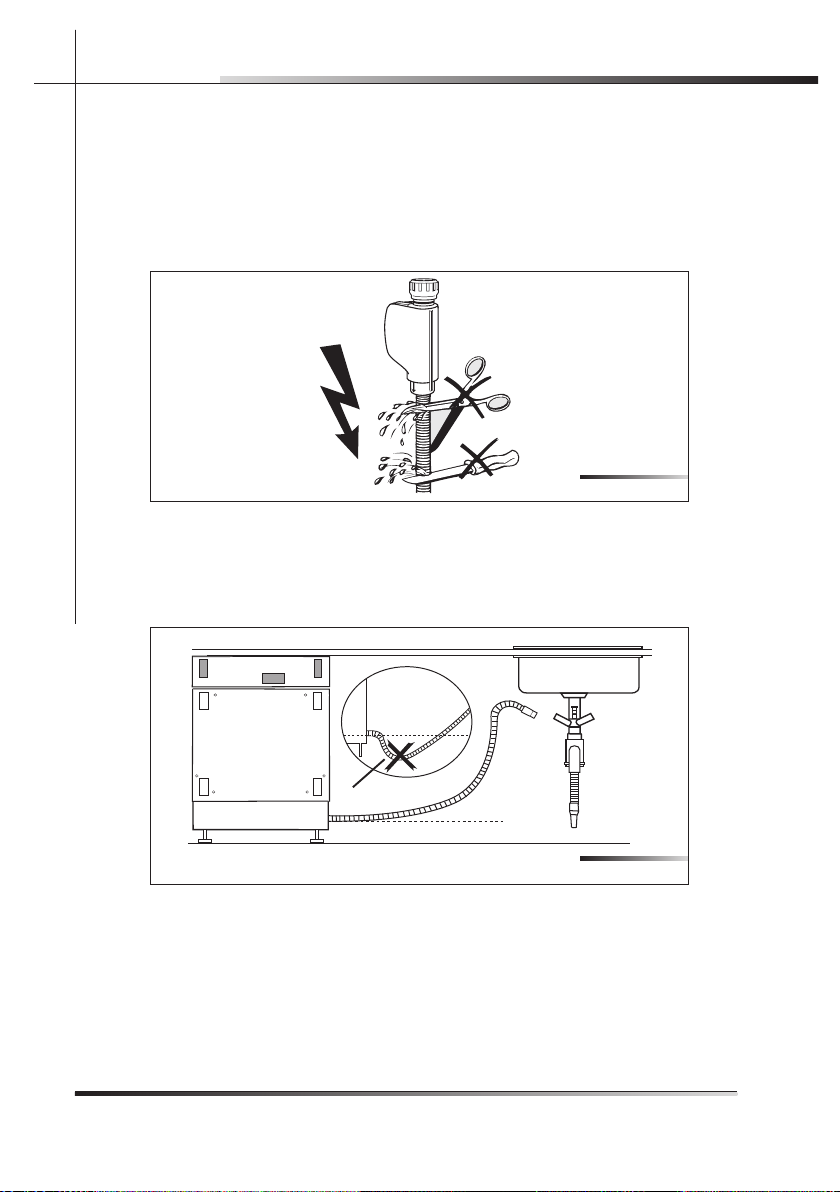

Do not cut the inlet hose (see fig. 5-06).
If the hose is cut, the dishwasher will not work, water will leak and you may be
injured.
If the hose is too long, wind it up tidily and place it behind the appliance.
The cable harness and electrical components must not come into contact with
the hydraulic system and the water inlet and drain hoses.
When connecting the dishwasher drain hose to the sink make sure that the
hose is not bent (ref. A fig. 5-07) in order to prevent cracks or breakages that
could damage it.
Fig. 5-07
A
Fig. 5-06

Rev 0.0 17
INSTALLATION INSTRUCTIONS EN
5.2.1.2 Connecting the drain hose
Connecting to a drain
Insert the relative hose into a drain with a minimum diameter of 4 cm (1-37/64”)
(ref. A fig. 5-08); alternatively, place the hose on the sink (ref. B fig. 5-08) using
the supplied hose support (see fig. 5-9), but taking care to avoid obstructions
or excessive curving. Make sure the hose cannot fall out. For this purpose,
the hose support is fitted with a hole (ref. A fig. 5-9) which can be used to fix
it to the wall or the tap with a piece of string. The free end must lie at a height
ranging from of 30 to 100 cm (from of 1-7/32” to 3-59/64”) (see fig. 5-08)
and must never be immerged in water. If horizontal extension hoses with a
maximum length of 3m are used, position the drain hose at a maximum height
of 85 cm (3-11/32”) above the floor.
Fig. 5-08
A
B
min O4 cm
1-37/64”
min 30 cm
1-7/32”
MAX 100 cm
3-59/64”
Fig. 5-9
A

18 Rev 0.0
INSTALLATION INSTRUCTIONSEN

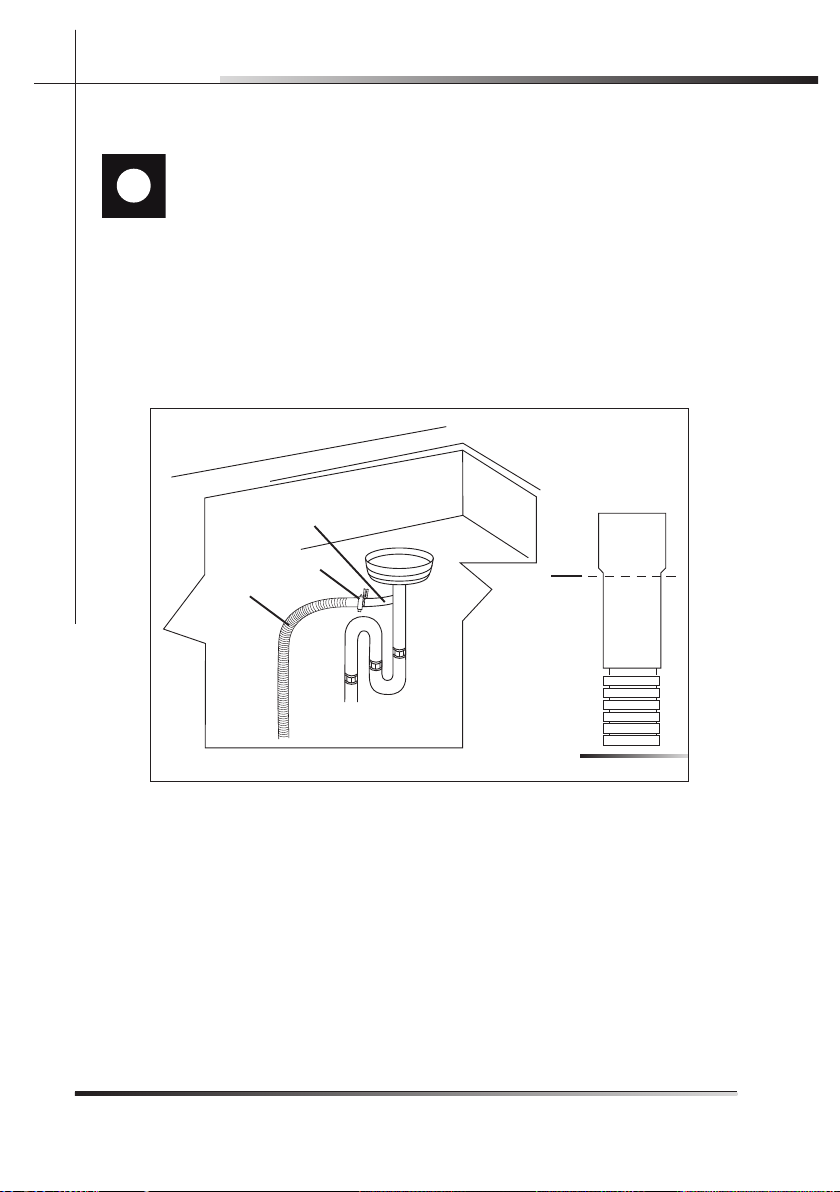

Connecting to a “T” union of the drain circuit
MAKE THE CONNECTION UPLINE FROM THE SIPHON OF THE
DRAIN LINE AND AT LEAST 400 mm (15-3/4”) ABOVE THE FLOOR
ON WHICH THE DISHWASHER WILL BE INSTALLED.
1. Connect the dishwasher drain hose (ref. A fig. 5-10) to the “T” union (ref. B
fig. 5-10) of the drain circuit using a 38 to 50 mm (1-1/2 to 2”) screw clamp*
(ref. C fig. 5-10); if necessary, cut the end of the dishwasher drain hose (ref.
D fig. 5-10) (do not cut the corrugated section).
* Available from any plumbing stockist
Fig. 5-10
A
C
B
D
