Porter&Charles SOPS60GL User manual

OPERATING AND INSTALLATION
INSTRUCTIONS OF
TOUCH CONTROL
BUILT-IN OVEN
SOPS60GL
Porter&Charles

Dear Customer,
Our goal is to offer top quality products that exceed your
expectations. These products are produced in modern
facilities with the best technology and are extensively tested.
This manual is prepared to help you to use your appliance with
confidence and maximum efficiency.
Before you use this oven, carefully read this guide which
includes the basic information for correct and safe installation,
maintenance and use. Contact the nearest Authorized Service
for any additional information required on the installation of
your product.

1
Contents
1- Description of appliance
2- Warnings
3- Preparation for installation and use
4- Using the oven
5- Cleaning and maintenance of your product
6- Service and Transport

2
PART 1: DESCRIPTION OF APPLIANCE
LIST OF COMPONENTS :
1- Control panel
2- Handle
3- Oven Door
4- Child Lock
5- Tray
6- Lower Heating Element (concealed)
7- Upper Heating Element
8- Wire Shelf
9- Racks
10- Oven Light
11- Convection Heating Element (behind
the plate)
12- Fan (behind the plate)
13- Air Outlet Shutters
Built-in Oven
10
11
12
13

3
PART 2: WARNINGS
BEFORE USING THIS APPLIANCE, PLEASE FOLLOW ALL ESSENTIAL SAFETY
MEASURES AND THOROUGHLY READ THE USER MANUAL
This appliance has been designed for domestic use as a built-in appliance.
After removing the packaging, make sure to check if there is any damage to the
appliance. If there is any damage, never attempt to use the appliance and immediately
contact your authorized service technician. Packaging materials, including labels and
stickers, need to be removed.
The appliance must be installed and put in operation by an authorized technician under
the conditions provided by the manufacturer in this manual. The manufacturer cannot
be held responsible for any damage that might occur due to faulty installation.
Before connecting this appliance to the mains in your home, make sure to check the
conformity of voltage settings and technical requirements, which are specified on the
information sticker attached to the appliance and/or packaging.
Do not operate the oven before it is fully installed.
Be sure that the supply cable is not wedged during the installation of the appliance. If the
supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
Before replacing the oven light, turn off the power to the appliance. Switch off the appliance
before cleaning, maintenance work etc. Some parts of the appliance may preserve their
heat for a long time; please wait until the parts primarily exposed to heat cool off before
touching them.
Do not keep flammable items/substances near the appliance while it is in use. When
operating other electrical devices near the appliance, pay attention that their cables do not
come into contact with heated parts.
When the appliance is not in use, make sure that the buttons are in off position.
Your appliance needs sufficient air circulation while it is operating. Carefully read the
section of this manual where installation procedures are explained, and make sure the
relevant conditions are satisfied.
This operating manual has been prepared for multiple models. Some of the specifications
explained in the manual may not be included in your appliance. Pay attention to the
explanations with illustrations while reading the manual.

4
The appliance becomes hot during use. Care should be taken to avoid touching heating
elements inside the oven.
WARNING: Accessible parts may become hot during use. Young children should be kept
away from the oven while operating.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
FOR THE EFFICIENCY AND SAFETY OF THE APPLIANCE, WE RECOMMEND
THAT YOU ALWAYS USE ORIGINAL SPARE PARTS AND CALL ONLY
AUTHORIZED SERVICE PERSONNEL SHOULD YOU NEED HELP.
Pay attention to the following when using your appliance.
Be careful to connect your appliance to an earthed power outlet or line.
Make sure to set the time before operating this oven, or following a power failure.
Heat and moisture will form in your cooking environment. Thoroughly ventilate your
kitchen.
An odour may emanate from your oven at first use. This is caused by the insulation
materials and the heater elements. For this reason, before using your oven, run it empty at
maximum temperature for 45 minutes. At the same time you need to properly ventilate the
cabinet in which the oven is installed.
Do not touch the interior and the heater when using the oven part of the appliance as it will
be hot. After switching off the burner, do not touch it with your hand before it is completely
cooled off.
Do not put flammable and combustible materials into the oven.
Be careful when using the oven part of the appliance as the oven surface can be hot. Keep
children away from the oven.
Do not let children climb or sit on the door when it is open.
The values indicated on the printed documents found on the product are values obtained in
the laboratory testing process. These values may vary according to the usage and
installation conditions of product.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass
since they can scratch the surface, which may result in shattering of the glass.
WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the
possibility of electric shock.

5
PART 3: PREPARATION FOR INSTALLATION AND USE
When choosing a place for the oven, attention should be paid that there are no flammable
or combustible materials in close vicinity, such as curtains, oil, cloth etc. which quickly
catch fire.
Furniture and cabinetry surrounding the oven must be made of materials resistant to
temperatures in excess of 50 C° more than room temperature.
Manufactured with best quality parts and materials, this modern, functional and practical
oven will meet your needs in all respects. Make sure to read the manual to obtain successful
results and avoid any problems in the future. The information given below contains
conditions that are necessary for correct positioning and service operations. They should be
read by the technician who will position the appliance.
CONTACT THE AUTHORIZED SERVICE FOR INSTALLATION OF YOUR OVEN!
3.1. CHOOSING A PLACE FOR THE OVEN
There are several points to pay attention to when choosing a place for your oven. Make sure
to take into account our recommendations below in order to prevent any problems and
dangerous situations, which might occur later!
3.2. INSTALLATION OF BUILT_IN OVEN
Mounting screws

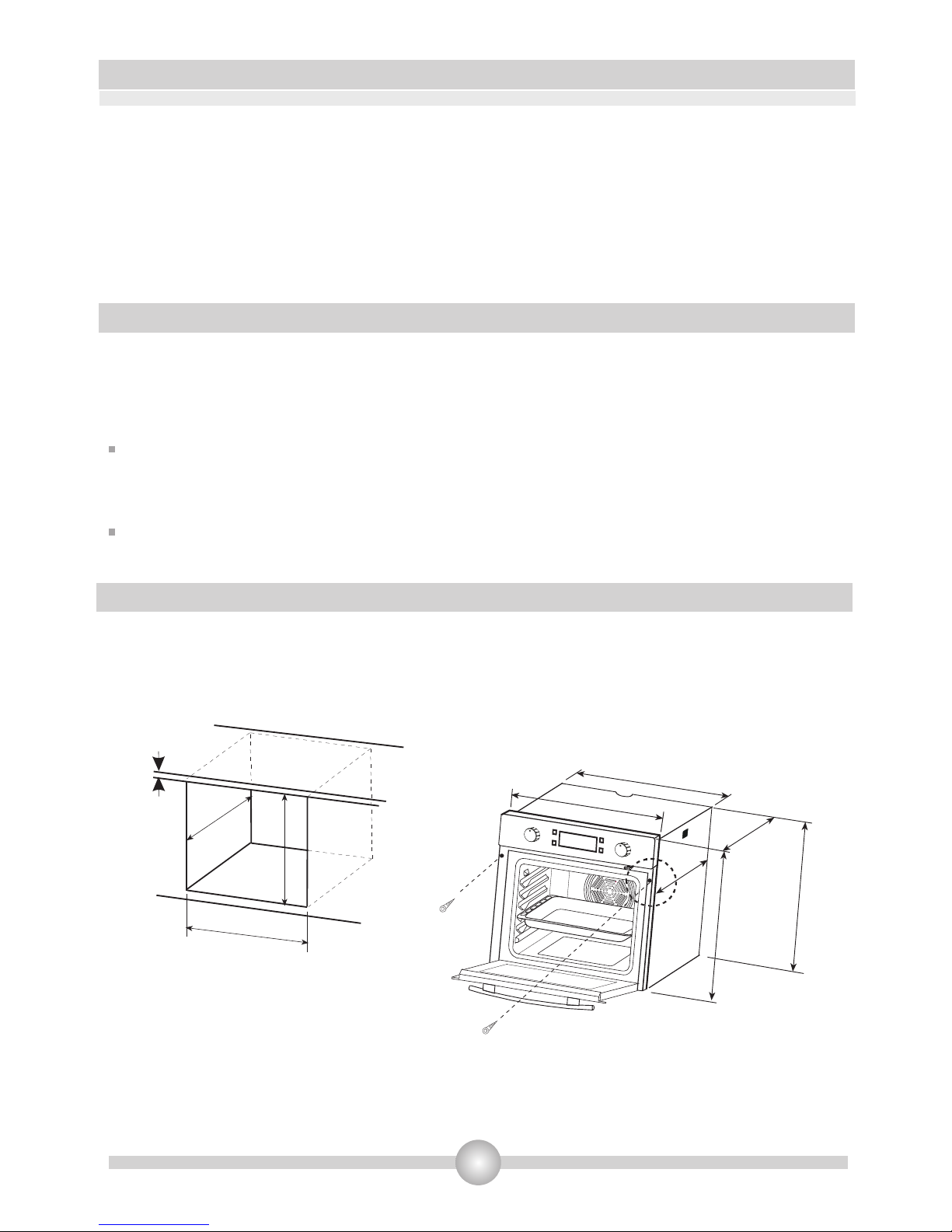

Cabinet cut-out size. We recommend using a cabinet with exterior dimensions of
5
60cm/23 / ”.
8
1
2/ ”
8
7
1
2/ ”
8
7
1
2/ ”
7
316
2/”
8
7
12/”
1
22
2/ ”
1
22
2/ ”
7
316
2/”
8
5
2
2/”
1
216
C
Min 1”

6

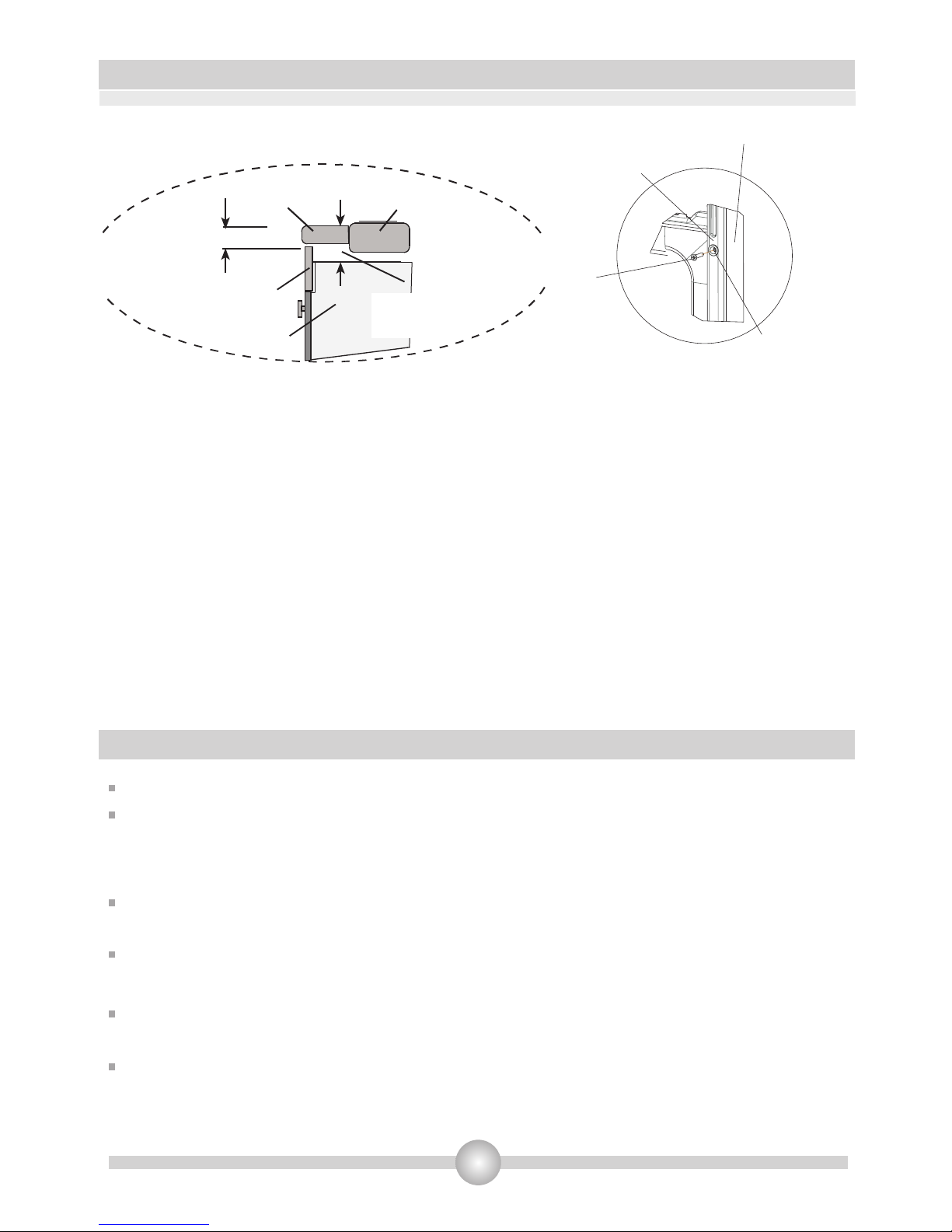

C DETAIL
Product sizes
B DETAIL
Countertop
Built-in oven
Min.25mm
Control
panel
Distance between
countertop and
control panel
Min. 50mm
Built-in hob
Distance between
countertop snd
top panel of built-in
oven
Front
frame
Spacer
Mounting
screw
Wooden
part
Insert the oven into cabinet by pushing it forward. Open the oven door and insert 2 screws in
the holes located on the oven frame. While the product frame touches the wooden surface of
cabinet, tighten the screws.
The dimensions and material of the cabinet in which the oven will be installed must be correct
and resistant to increases in temperature. In a correct installation, contact with electrical or
insulated parts must be prevented. Insulating parts need to be fitted securely to ensure that
they cannot be removed. Installing the appliance in the close vicinity of a refrigerator or a
deep-freezer is not recommended. Otherwise, the performance of the above-mentioned
appliances will be negatively affected due to emanating heat. After removing your oven from
its packaging, be sure that the oven is not damaged. In case you suspect any damage to the
appliance, do not use it; immediately contact your dealer or Authorized Service Technician.
3.3. WIRING AND SAFETY OF BUILT-IN OVEN
The instructions given below must be followed without fail during wiring :
The earthing cable must be connected via the screw with the earthing mark. Supply cable
connection must be as shown in Figure 1. If there is no earthed outlet conforming to
regulations in the installation environment, call theAuthorized Service immediately.
The earthed outlet must be in close vicinity of the appliance. Never use an extension cord.
The supply cable should not contact the product's hot surface.
In case of any damage to the supply cable, make sure to call the Authorized Service. The
cable must be replaced by theAuthorized Service.
Wiring of the appliance must be performed by an Authorized Service Technician. A 20AMP
breaker is required.
Faulty wiring may damage the appliance. Such damage will not be covered under the
warranty.

7
Wiring of the appliance must be performed by an Authorized Service Technician. The
appliance is designed to connect to 208-240V~ electricity. If the mains electricity is different
than the value given, call the Authorized Service immediately. The appliance is designed for
fixed connection to the mains. It is necessary that you install a double pole switch between
the product and the electricity supply (mains), with a minimum gap of 3 mm between the
switch contacts. (20Arated, delay function type).
The appliance is designed to connect to 208-240V~ electricity. If the mains electricity is
different than the value given above, call an Authorized Service Technician immediately.
The Importer declares that it bears no responsibility whatsoever for any kind of damage
and loss arising from non compliance with safety requirements!
3.4. GENERAL WARNING AND PRECAUTIONS
Your appliance is produced in conformity with the relevant safety instructions relating to
electrical appliances. Maintenance and repair work must be performed only by Authorized
Service technicians trained by the manufacturer / supplier. Installation and repair work
performed without following regulations may be dangerous.
The outer surface is heated while your appliance is operating. The elements heating the
inner surface of the oven and the steam generated are extremely hot. These sections will
continue to preserve their heat for a short while even if the appliance is switched off. Never
touch the hot surfaces. Keep children away.
In order to cook in your oven, the oven function and temperature buttons need to be set,
and the oven timer needs to be programmed. Otherwise, the oven will not operate.
While the oven door is open, do not place anything on it. You may disturb the balance of the
appliance or break the door.
Protect your appliance from atmospheric effects. Do not leave it under the effects of the
sun, rain, snow, dust, etc.
(L) (N)
L1 L2

8
Table 1
The oven light and the fan will be turned on.
Performs the function of defrosting the frozen foods.
The oven’s thermostat and indicator lights, the fan and the
rear heating element will be switched on.
The oven’s thermostat and lights, the fan and the
lower and upper heating elements will be switched on.
indicator
The oven’s thermostat and lights, and the grill element
will be switched on.
indicator
The oven’s thermostat and lights, the upper heating
element, the grill element will be switched on.
indicator
The oven’s thermostat and lights, the upper heating
element, the grill element, and the fan will be switched on.
indicator
The oven’s thermostat and lights, the lower
heating element, and the rear heating element, will be switched
on.
indicator the fan,
The oven’s thermostat and lights and the lower and
upper heating elements will be switched on.
indicator
The oven light will be turned on.
Availability of the functions explained below vary depending on the product model.
4.1. USING THE OVEN FUNCTIONS
PART 4: USING THE OVEN
DEFROST
CONVECTION
CONVENTIONAL
FAN ASIST
PIZZA MODE
HALF-GRILL
FULL GRILL
FAN GRILL
