Porter&Charles SOPS76PS User manual

SOPS76PS
30” Built-In Multi-function Electric Oven
2020 User Manual (EN) & Mode D'emploi (FR)

2
Congratulations on the purchase of your appliance.
We are sure it will provide you with many years of great cooking
experience.
You may find that it has different features and characteristics to your last
appliance.
It is essential you read this operation manual thoroughly to fully
understand all of the various functions and operations. Experiment with
your cooking and take advantage of the features your new appliance offers.
This manual should be retained for future reference. Should ownership of
the appliance be transferred, please ensure that the manual is also passed
onto the new owner.
Contents
A - Installation check and warnings Page 3 - 5
B - Using the appliance for the first time Page 6
C - Control panel display operation Page 7 - 17
D - Cooking modes and instructions Page 18 - 24
E - Cleaning and maintenance Page 25 - 29
F - Trouble shooting guide Page 30
G - Installation instructions Page 30 - 33
H - Electrical wiring diagrams and instructions Page 34 - 36
I - Warranty Page 37

3
A - Installation check and warnings
Before the installation and use of the appliance,carefully read the supplied instructions.
The manufacturer is not responsible for any injuries or damages that are the result of incorrect
installation or usage. Always keep the instructions in a safe and accessible location for future
reference.
WARNING
• This appliance can be used by children 8 years of age and older and also persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they are under
supervision or have been given instruction concerning the use of the appliance in a safe way and
understand the hazards involved.
• Children between 3 and 8 years of age and persons with very extensive and complex disabilities
shall be kept away unless continuously supervised.
• Children less than 3 years of age should be kept away unless continuously supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep children and pets away from the appliance when in operation or when it cools down.
Accessible parts are hot.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.
WARNING
During use the appliance becomes hot. Care should be taken to avoid touching heating elements
inside the oven.
• Always use oven gloves to remove or put in accessories or ovenware.
IMPORTANT:
Please ensure that the oven cavity, venting and wiring is as specified in the relevant
section G/H of this manual.
A licensed electrician must perform the electrical work when installing or servicing the appliance.
The supply cable and fuse rating must be suitable for the appliance. You must never repair or
replace any part of the appliance unless specifically recommended in the operation manual.
Ventilation opening must not be covered or obstructed in any way.
DO NOT use aluminum foil on the base of ovens
The use of foil on the base of the oven to avoid spillage and improve cleaning is not
recommended. The bottom element is concealed under the base of the oven liner (not exposed).
Foil or dishes with reflective qualities must never be placed on the base of the oven during
cooking as the concentration of direct and reflected heat will damage the enamel surface.

4
Damage resulting from such use is not covered under the provisions of the warranty.
Initial heat up
Some smoke and smell may be noticed during the initial heat up cycle. This should quickly
dissipate. If abnormal levels of smoke are observed (i.e.: it is not food that is burning), have the
appliance thoroughly checked.
Don’t use the appliance as a space heater
The appliance must never be used for warming or heating the surrounding room. Combustible
materials must never be placed on or near the appliance.
Do not leave children alone
Children must not be left unsupervised in the area where the appliance is in use. Children must
never be allowed to sit or stand on any part of the appliance.
Wear proper apparel when using the appliance
Loose fitting, hanging or highly flammable garments (such as synthetics) should never be worn
while using the appliance.
Use only dry pot holders
Moist or damp pot holders on hot surfaces may result in burns from steam. Do not allow pot
holders to touch hot heating elements. Do not use a towel or bulky cloth when handling hot
cooking utensils in the appliance.
Oven compartments must never be used for storage
Items, particularly flammable materials, must never be stored in an oven or near surface units.
Do not use water on grease fires
Fires or flames should be smothered using flameproof material or extinguished using a dry
chemical or other suitable fire retardant.
Accessories
Your appliance should come equipped with the following items.
Single Oven –
•1 x pair of Retractable Slide Runners fitted to upper position and capable of being moved
to any selected position as required
•1 x Deep Enameled Roasting Pan with dual height reversible Grill Rack insert – which
must be positioned on its shelf support, then ready for sliding into side rack positions or
fitting onto Retractable Slide Runner
•2 x Wire Oven Shelves that can be fitted into Retractable Slide Runners or for sliding into
side rack positions
•Note: Additional Retractable Slide Runners are available as an optional extra and can be
fitted at any time
•Note: Additional oven shelves and pans are available as optional extras
The oven shelf support consists of 6 positions. Always remember to position the racks
before warming up the oven, and remove all the shelves and roasting pan before cleaning
operation.
The slide runners can be positioned on shelf positions 2 to 6.

5

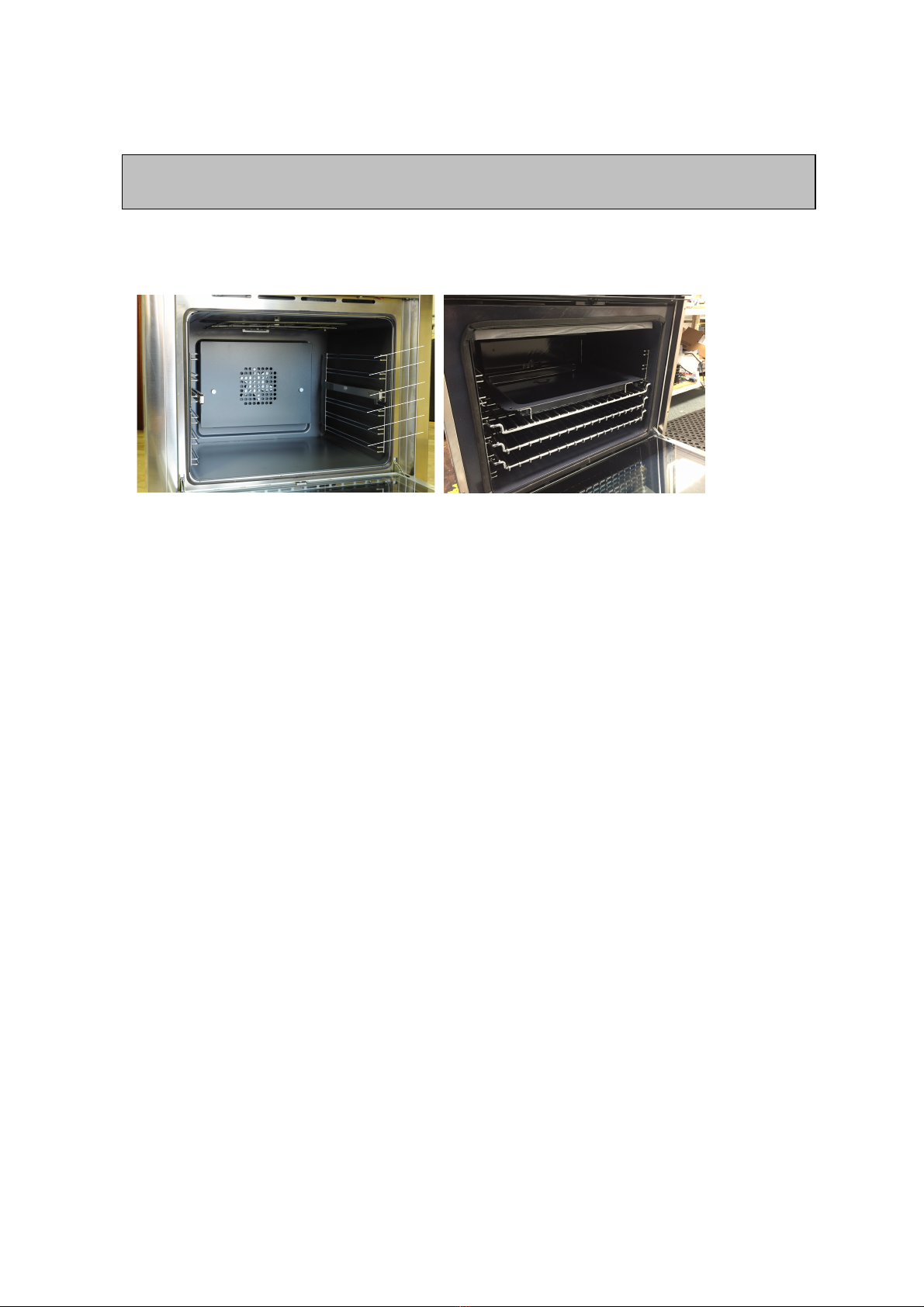

How to correctly place the oven shelves and roasting pan
2
4
1
5
6
3
The retractable slide runners can operate on shelf positions 2 to 6. The wire shelves can be
inserted at any shelf position, or on the retractable slide runner.
The roasting pan must be inserted on the oven shelf.
When inserting the wire shelf, the riser should be positioned upwards at the rear of the oven. The
grooves on the sides of the shelves, toward the rear provide an anti-slide stability for the oven
shelves when extended.
The retractable slide runners can be inserted on any shelf position by clipping or unclipping them
between the upper and lower rail of each shelf position.

6
B - Using the appliance for the first time
After installation, remove all notification labels (not identification or warning labels) and packaging
materials. After cleaning, make sure cleaned surfaces are thoroughly rinsed and wiped dry using
a clean, soft cloth.
NOTE: Oven will not operate unless time clock is set
The clock will require setting when you first turn on the power (or following a power failure)
See electronic control panel instructions.
Burning in
Before cooking in the appliance, an initial pre-heating is required to burn off the fine oil film used
to protect the elements during shipping. The first time you heat up the oven (or grill), the oil will
give off smoke, which is perfectly normal.
– Provide good ventilation during and after the first use at maximum temperature
operation.
Select one cooking mode and set the oven temperature to 180°C. With the oven door closed,
leave for approximately five minutes.
Repeat the above step for each cooking mode.
After completing the above, make sure all controls are turned off. The oven is now ready for
cooking and grilling.
NOTE:
On oven start up or possibly at other times, due to electricity supply deviations – the
programmer may freeze on a function – if this occurs we recommend that, after checking
other solutions without success, the power supply be disconnected from the appliance for
a few minutes, then reconnected. This may result in clearing the frozen function, allowing
you to reset the clock for normal operation.
Cooling Fan
The ovens are provided with a cooling fan motor to reduce the heat around the oven. The fan
motor is activated independently from oven temperature.
When you end the cooking program, the cooling fan will continue to operate until the oven
temperature drops below 70°C. This safeguards both the oven and the adjoining cupboards from
the possibility of temperature damage.
Safety Thermostat
Your oven is fitted with an over temperature sensor that will automatically shut down your oven
for a period if it is deemed to be overheating - this sensor is fitted to the rear wall of the oven,
inside the outer case – it will only activate in extreme circumstances and is provided as protection
to the appliance and the adjoining furnishings. If activated it will shut down the appliance for a
short time and will automatically reset allowing normal operation – you should consult your
service technician if the problem re-occurs.
TOUCH-CONTROL KEYS
The “touch-control” keys are operated by the fingers (just touching the key).When using touch
controls, it is best to use the ball of your finger rather than the tip.

7
C- Control Panel
NAME DESCRIPTION
Stop
Childlock on
Temperature
and time decrease
Touch and hold for 4 seconds to switch
the childlock off
Childlock off
Start
Touch and hold for 4 seconds to switch
the childlock on
Temperature
and time increase
Touch to return to the previous screen - shows on the
cooking menu screen when a program has
not started
Touch and hold for 2 seconds to start cooking
Touch and hold for 2 seconds to stop cooking
Touch and hold until the required temperature
and time is reached
Touch and hold until the required temperature
and time is reached
Back
ICON

8
NAME DESCRIPTION
Ok
Touch to confirm settings. The icon will show
the green tick for one second before proceeding
to the next menu screen.
Light off
Touch to switch the light off – shows when
a program is running
Touch to switch the light on – shows when
a program is running.
The light remains off during the self cleaning operations.
Light on
Minute minder
Touch to open the cooking timer menu screen.
Touch to open the minute minder menu screen
Cooking timer
Settings Touch to open the settings menu screen
ICON
Touch to confirm and start the countdown
Ok

9
NAME DESCRIPTION
ICON
Touch to activate the heating element - or to change
from one to another
Heating elements
Heating elements The heating elements are shown in grey
off
Cooking time Touch to select the cooking time
End cooking time Touch to select the end cooking time
Manual Touch to open the manual menu
Auto Touch to open the automatic menu

10
SPECIAL COOKING MENU SCREEN
ICON PROGRAM TEMPERATURE PRESET COOKING TIME
Special program
Steam cooking 150°C(adjustable from
110°C - 180°C
Self cleaning 430°C 90-150min
Keeping food warm 70°C (adjustable 60-80°C)
40 60min (adjustable as required)°C (adjustable 35-45°C)
60min (adjustable as required)
60min (adjustable as required)
Defrost
Yogurt 38 60min (adjustable as required)°C (adjustable 30-90°C)
Dough proving
40 90min (adjustable as required)°C (adjustable 38-43°C)
SF
Sabbath mode 70°C 72 hours

11
STANDBY
When the oven is not in use, the display shows the Standby Screen with the clock.
STANDBY
MAIN SCREEN
By touching the screen when in standby, the Main Menu Screen is opened.
4 small icons:
CHILD LOCK to activate/deactivate the child safety lock, press the button for 3 seconds
TIMER to open the minute minder screen
SETTINGS to open the setting menu
LAMP turn the lamp ON or OFF
4 big icons:
AUTO to open the Automatic Program menu
MANUAL to open the Manual Program screen
SPECIAL to open the Special Program menu
SELF CLEANING to open the Self Cleaning Program menu

12
SETTINGS MENU
In this menu it is possible to set the Language and Temperature unit of measurement (°C or °F),
time of day and time format to either 12H (AM and PM) or 24H.
Press OK to come back to the main screen.
AUTO MENU
In this menu the user can choose Automatic Cooking functions

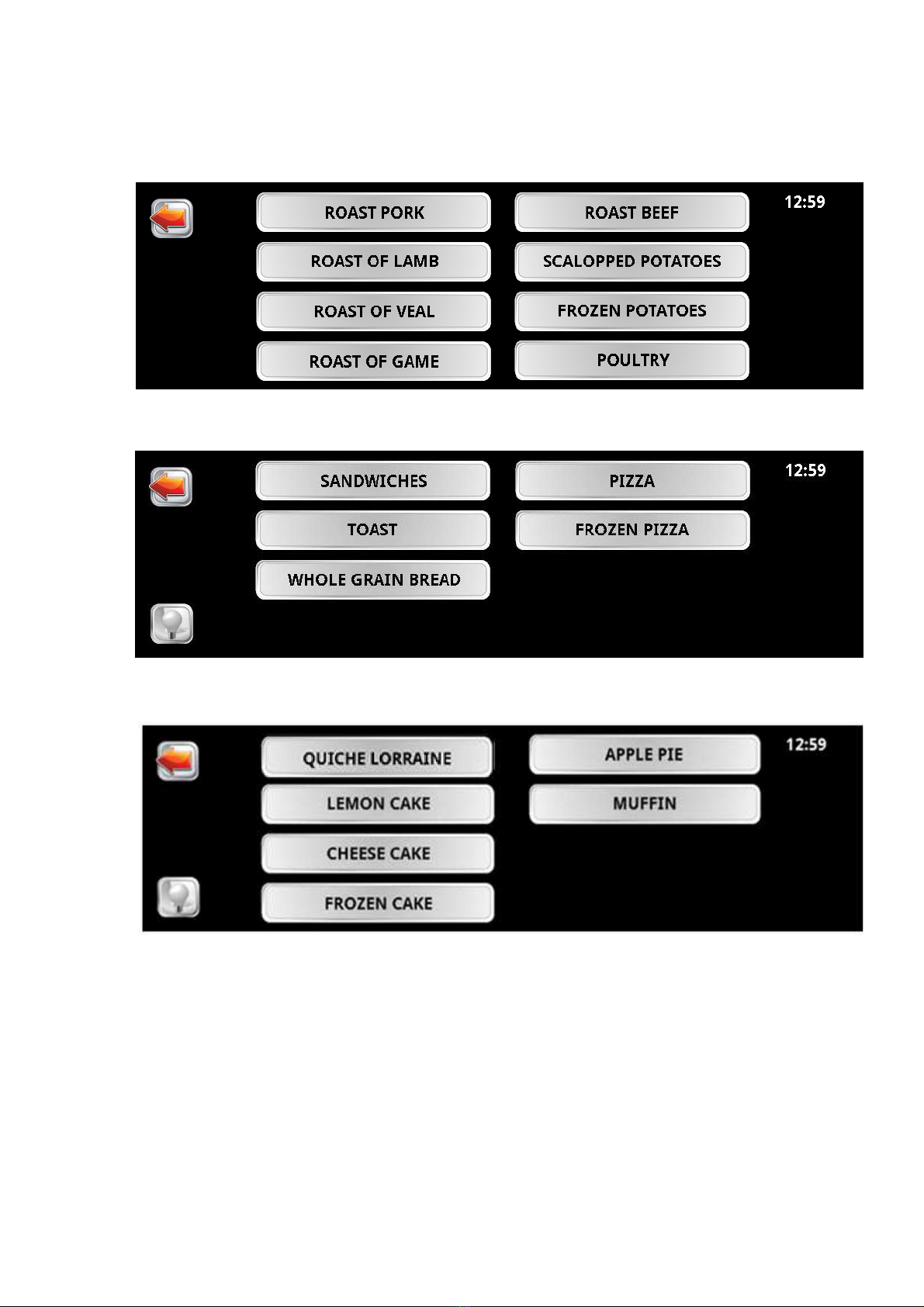

Touch the icon of the food that is to be cooked
LASAGNE CHOICES

13
ROAST CHOICES
BREAD & PIZZA CHOICES
CAKE CHOICES
When a food choice is selected the Cooking Menu is shown.

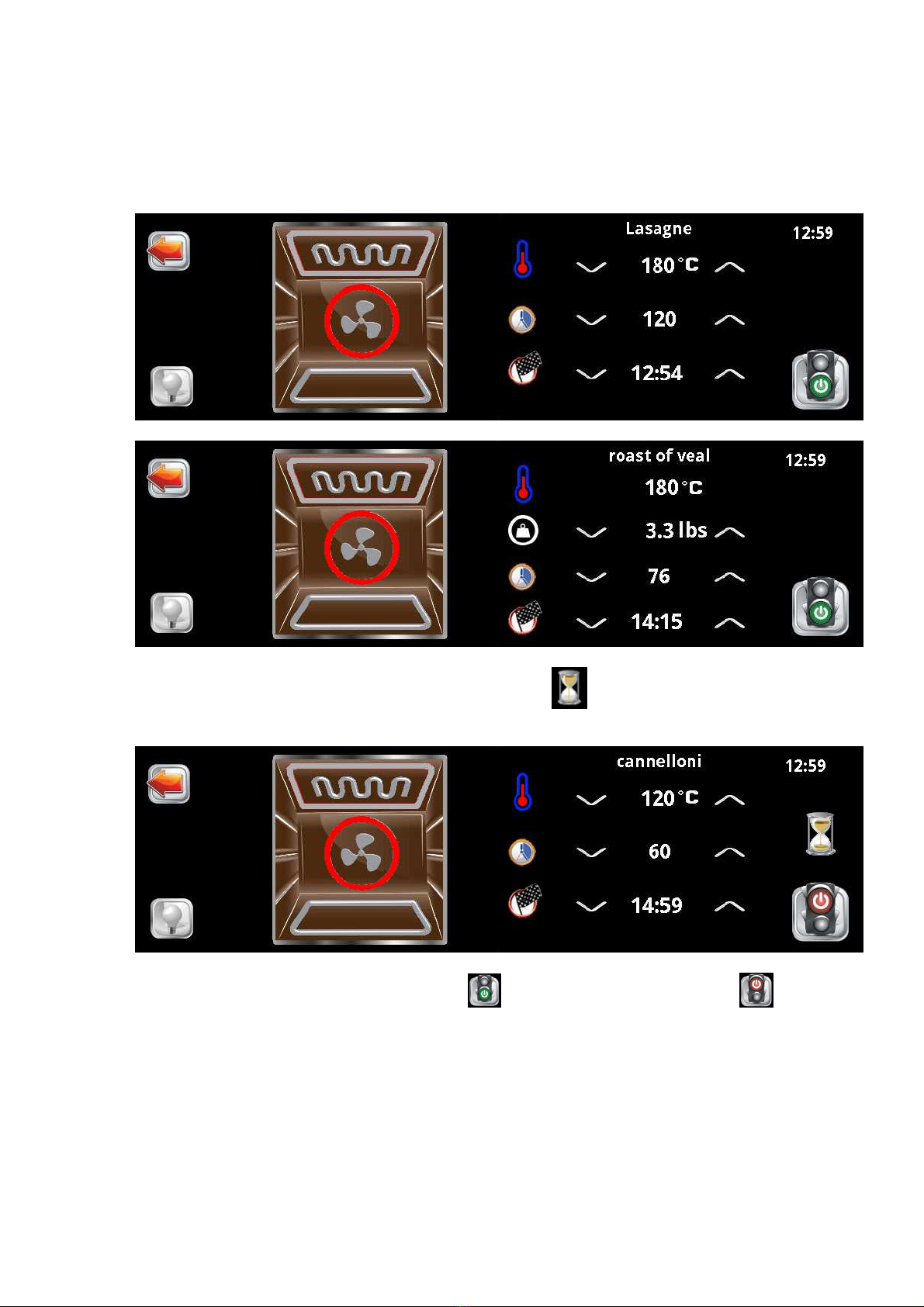

There are two different cooking menus that can be displayed, depending on the recipe chosen.
The first method is by Temperature, the second method is by Weight.

14
The User can change which elements are being used by touching the element symbol to activate
or deactivate the different elements (as described in Manual Mode) the user can also change the
cooking parameters: Temperature, Cooking time and End time.
Or
If the End time is increased by the user, the hourglass symbol will move while the display
shows the delay start cooking function.
To start cooking press and hold the light symbol for 3 seconds until it becomes red
and a long beep is heard. Preheating will start and the selected temperature will blink in lower
case red and lower case white. When the selected temperature is reached a long beep is heard
and the temperature is shown in solid red color.
At the end of the set cooking time, the oven will shut all elements off and 3 short beeps will sound
for a minute.

15
MANUAL MODE
In this menu, the user can select or deselect elements by touching the corresponding image.
You can also set the Temperature, Duration and End time.
The end cooking time ( ) is calculated by adding the cooking duration ( ) to the current
time (12:59 + 70’ = 14:09). The user can also change the end time. (example 14:30), the
hourglass symbol will be displayed until the cooking start time is reached (13:20).
TIMER
By touching the Bell icon it is possible to access the Minute Minder menu.
The user can set the Minute Minder from 10 seconds to a maximum of 150 minutes.
Press the ok button to start the countdown .
Press back button to return to the main menu.
At the end of the minder an alarm will sound for a minute, touch the screen to stop.

16
SPECIAL MENU
The user can choose up to 5 automatic functions from the Special Menu, Defrost,
Keep Warm, Yogurt, Steam and Yeast.
Select the program icon, the menu above will open. Start the program by pressing the light button
for 3 seconds, the icon picture will show on the left of the screen.

17
SABBATH FUNCTION MODE
To switch on the Sabbath Function, press and hold the AUTO and MANUAL buttons at the same
time for 4 seconds until the display turns off and shows “SF” in the top right hand corner.
The Sabbath Function activates a lower power heating element that holds the oven temperature
to about 70°C for 72 hours. After 72 hours, the Shabbat Function is deactivated automatically.
The oven light is off during this function.
To switch off the Sabbath Function manually, touch the screen and hold for 4 seconds.
SELF CLEANING
In the Self Cleaning program, only the time can be changed.
90 or 150 minutes can be selected using the arrow keys or the oven light is off during
this program.

18
D - Cooking Modes and Instructions
NOTE: COOKING FUNCTIONS: below is a description of the Functions available on
this oven.
Please note: only 2 heating elements can be operated at the same time + fan motor.

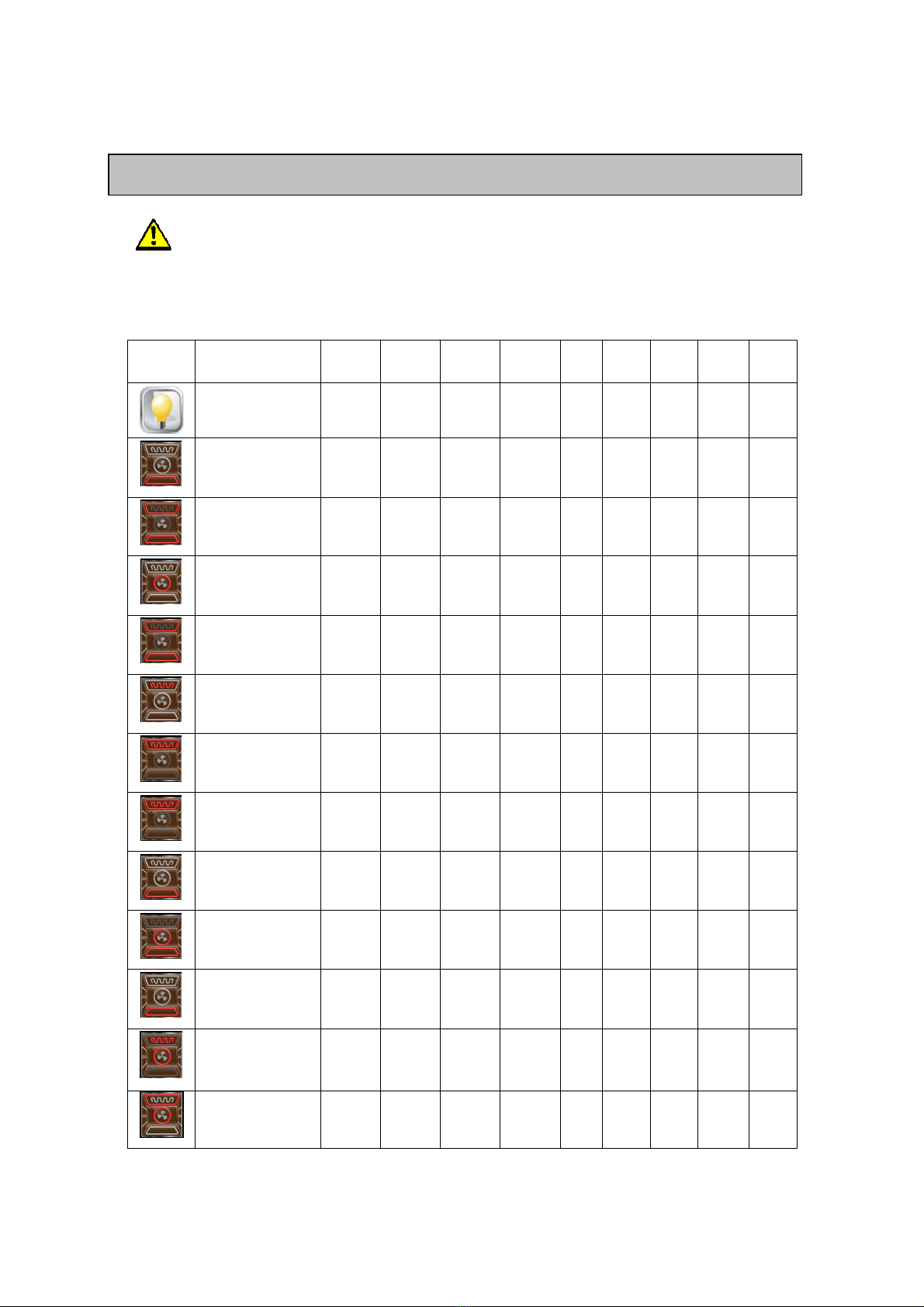

The following table summarizes the operating parameters of each cooking mode.
Display Oven function Grill
element Top element Bottom element Fan element Light Fan motor Temp min.
°c
Temp
preset
°c
Temp
max.
°c
Light X
Defrost X X X 35 40 45
Conventional X X X 50 180 260
Convection X X X 50 180 260
Fan Assist X X X X 50 180 260
Half Grill X X 50 180 260
Full Grill X X X 50 180 260
Fan Grill X X X X 50 180 260
High Bake X X X 50 180 260
Pizza (Preheat) X X X X 50 180 260
Classic Bake X X 50 180 260
Convection+half
grill X X X X 50 180 260
Convection+top
element X X X X 50 180 260

19
PREHEATING
Preheating the oven is not essential, but you will achieve better results if you do. Some foods
such as, cakes and pastries, are cooked better in a preheated oven. Other foods for example,
casseroles cook just as well when cooked in a non-preheated oven but may need longer cooking
times.
For faster preheating, select Pizza Mode and the required temperature. Once the oven has
reached the required level, change to the cooking mode/function for the task.
To preheat the oven:
1- Set the mode required for preheating.
2- Set the oven to the desired temperature.
Preheating guide (for 180°C settings)
Cooking Mode
Preheat Time
CONVENTIONAL
OVEN 20-30 MINUTES
PIZZA MOD
E
15
-
20 MINUTES
NOTE:
Any food or other cooking utensils placed in the oven during preheating will affect the preheating
time. The preheat time may also vary with installations.
WARNING
When using an alternative cooking mode for a faster preheat, be sure to turn the cooking mode to
your required setting before placing food in the oven.
HINT:
To reduce heat loss while placing food into the oven, preheat the oven 10-20°C higher and then
reduce the temperature to your desired cooking temperature.
Always preheat the oven when cooking multiple dishes at the same time.
Roasting guide. These cooking charts are intended as a guide only. Temperature and cooking
times may vary to suit individual tastes.
Type of Meat
Approx. 450 grams =
1lb
Cuts of Meat Time per lb
(allow) Oven Temperature
0
C
Beef
Prime Rib, rolled
sirloin bolar blade,
Top Loin, New York
St
rip Sirl
o
i
n
30 minutes per 1lb
20 minutes per 1lb
180
0
– 200
0
180
0
- 200
0
Veal Shoulder or leg (with
bone or r
olled)
20-25 minutes per 1lb 180
0
- 200
0
Lamb Leg, shoulder (loin or
rolled) 20-25 minutes per 1lb 180
0
- 200
0
Pork
Le
g loin
45
min
utes per 1
lb
220
0
-
2
3
0
0
/
180
0
-
200
0

20
Pork leg should be cooked at a higher temperature for the first 15-25 minutes then reduced to
lower temperature for remaining cooking time.
Type of Poultry Size of Meat Time per lb Oven Temperature
0
C
Chicken Whole or pieces 30 minutes per lb. 180
0
- 200
0
Duck 3lbs – 4.1lbs 30 minutes per lb.
+
3
5 minu
tes extra
180
0
- 200
0
Turkey 5.4lbs – 21lbs 40-50 minutes per lb.
+ 35 minutes extra 180
0
- 200
0
Turkey should be well basted and turned during cooking.
Type of Fish Cuts of Fish Time per lb Oven Temperature
0
C
F
ish
Whole o
r
fi
llet
s
10
minutes
p
er lb.
170
-
190
0
C
In Conventional Oven mode, fish should be covered for the first ¾ of the cooking time to help
retain moisture.
Baking guide. These cooking charts are intended as a guide only. Temperature and cooking
times may vary to suit individual tastes.
Oven Temperature
0
C
General Times
Foods Suitable
130
0
– under Very slow Small meringues, pavlova, custard, reheating
130
0
- 150
0
Slow Rich fruit cake, light fruit cake
150
0
- 180
0
Moderate Casseroles, deep butter cake
180
0
- 200
0
Moderately hot Shallow butter cakes, sponges, biscuits, meat loaf,
baked fish
200
0
- 230
0
Hot Swiss roll, patty cakes, rock cakes, short crust pastry
230
0
– and over Very Hot Scones, Choux pastry
DEFROST
All foods may be defrosted using the Fan Forced Convection mode. It is important to note that
this function actives the fan motor and the light only, but it is possible to adjust the temperature
between 35°C to 45°C after the program starts.
As a general guide, the defrosting time for meat is approximately 15-20 minutes per lb.
