PORTMAN EVO ELEMENT User manual

USER MANUAL
version: 1.0 –NOV 2023
language: English
PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
© Portman Lights sp. z o. o.
Designed and made in Poland, EU

WELCOME
EVO ELEMENT™
2 / 20
◼WELCOME
Dear User,
Thank you for choosing Portman EVO
ELEMENT™–the original product with a
registered design.
We are proud to deliver you the highest quality,
greatest design and real passion with our
product.
Each fixture in the Portman portfolio is different,
yet all of them ensure you the best performance
to support your creativity.
FOR YOUR SAFETY, PLEASE READ THIS
USER MANUAL CAREFULLY BEFORE
YOUR INITIAL START-UP!
Please remember:
•any updates on this document,
•current products’ libraries,
•current products’ firmware,
•RMA procedure
can be found on our webpage in the support
area: www.portmanlights.com/support
© 2016-2023 Portman Lights Sp. z o. o. All rights reserved.
The information and specifications are subject to change
without notice. Portman Lights Sp. z o. o. disclaims liability for
any injury, damage, direct or indirect loss, consequential or
economic loss or any other loss occasioned by the use of,
inability to use or reliance on the information contained in this
user manual.
◼TABLE OF CONTENTS
◼WELCOME.....................................................2
◼TABLE OF CONTENTS................................2
◼SAFETY INFORMATION.............................3
◼TECHNICAL SPECIFICATION....................5
◼PRODUCT OVERVIEW................................6
◼PREPARATION FOR USE...........................7
◼MENU .......................................................... 11
◼DMX MODES.............................................. 14
▪MODE SUPER SIMPLE ....................14
▪MODE SIMPLE ..................................14
▪MODE STANDARD..........................14
▪MODE STANDARD FINE ................15
▪MODE PIXEL......................................15
▪MODE PIXEL FINE............................16
▪RDM DATA........................................16

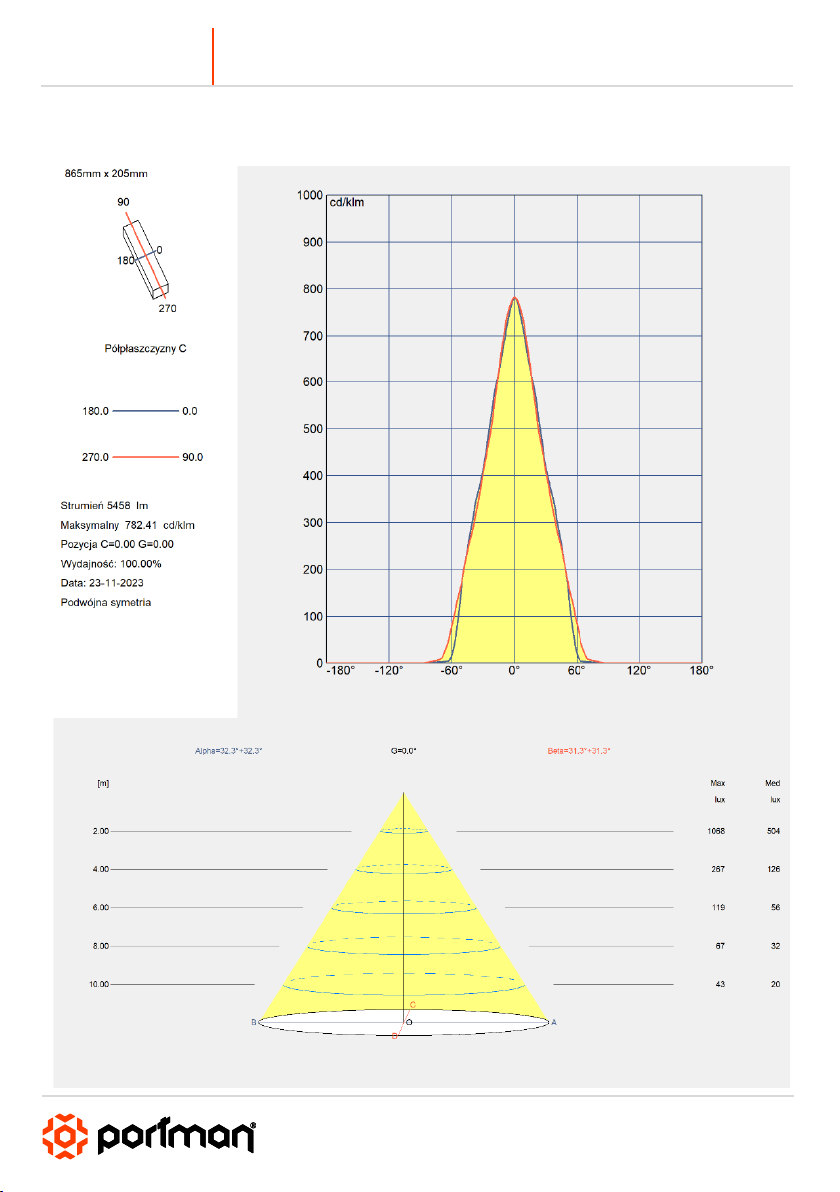

◼PHOTOMETRICS....................................... 17

USER MANUAL
SAFETY INFORMATION
3 / 20
◼SAFETY INFORMATION
WARNING!
This product is for professional use only! It is not for household use.
This product presents a risk of lethal or severe injury due to heat, electric shock, fire or falls. Intense and
flashing light could trigger epileptic seizures. Read this manual before your initial start-up and follow the
safety information in this manual and engraved on the fixture.
Every person involved in the installation, service and maintenance of this device must be qualified and have
experience in working with stage lighting fixtures.
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
CAUTION! Keep this device away from rain and moisture!
CAUTION! Be careful with your operations! With a dangerous voltage you can
suffer an electrical shock when touching the fixture and wires!
CAUTION! When in operation the fixture’s surface becomes hot. Allow the
device to cool down for approximately 30 minutes before any maintenance or
service. Keep a minimum 0,2-meter distance from flammable materials to the
fixture.
CAUTION! Avoid looking directly into the light source (meant especially for
epileptics)!
CAUTION! Unplug the mains lead before opening the housing.
Protection against electrical shock
•Disconnect the fixture from AC power when not in use.
•Disconnect the fixture from AC power before any maintenance or service.
•Do not remove the rear cover. There are no user-serviceable parts inside.
•Always ground the fixture electrically.
•Use only the wires attached to the kit. If the power cable shows any sign of damage do not use it!

SAFETY INFORMATION
EVO ELEMENT™
4 / 20
•Use only a source of AC power that complies with local building and electrical codes and has both overload
and ground-fault protection.
•Do not expose the fixture to rain or moisture.
Protection against burns and fire
•Never operate when the fixture is damaged or some part is missing.
•Do not touch the surface when the fixture is in operation. The exterior of the fixture can reach temperatures
up to 70°C (158°F). Allow the fixture to cool for approximately 30 minutes before any maintenance or
service.
•Keep all combustible and flammable materials (for example fabric, wood, paper) at a distance of at least
20 centimetres away from the fixture. Do not cover the fixture when in operation and when it is hot.
•Do not modify the fixture.
•Do not operate the fixture if the ambient air temperature exceeds 45°C (113°F).
•Do not operate the fixture after an extreme change in the surrounding environment temperature. Allow the
fixture to acclimate for at least an hour before operating.
Protection against falls
•Use only professional tripods and clamps to mount the fixture. Ensure, that the clamp or tripod is designed
to withstand the weight of the fixture.
•Ensure that the structure intended for installation can hold at least 10 times the weight of all installed
devices.
•Ensure that all fixtures are attached correctly to the structure and use an approved means of secondary
attachment such as a safety cable.
•Block access below the work area whenever installing or removing the fixture.
Protection against eyesight damage and epileptic seizure
•Do not stare directly into the light sources. Never look at an exposed light source while it is lit.
•Provide advance notice that a flashlight is in use.
•Avoid long cycles of rapid flashing light.
•Always use safety glasses to protect your eyes when opening the front cover.

USER MANUAL
TECHNICAL SPECIFICATION
5 / 20
◼TECHNICAL SPECIFICATION
dimensions
866 x 205 x 189mm
(34.09 x 8.07 x 7.44in)
weight (fixture only)
5,2kg
(11,46lbs)
input voltage
100-240V 50Hz/60Hz
power consumption
max 240W
light source
portman haloLED
RGBW GLOW
power
3 x 60W
3 x 12W
luminous flux
TBA
TBA
colour temperature
1600K –3200K
R G B + White 6000K
CRI
>90
beam angle
94o
DMX channels
9, 15, 23, 39, 22, 37
DMX modes
6
connectors
2 x 5-PIN DMX
1 x AC powerCON TRUE1 (inlet and outlet)
1 x SMA (WDMX antenna) *optional
other features
built-in drivers
Portman Colour Feedback System
built-in macros
WDMX module optional
Appliance class
Class I
IP rating
IP20
declarations of
conformity
CE
UKCA

PRODUCT OVERVIEW
EVO ELEMENT™
6 / 20
◼PRODUCT OVERVIEW
Dimensions
Pixel order
Back view

USER MANUAL
PREPARATION FOR USE
7 / 20
Kit content (what’s in the box)
•1x EVO ELEMENT™
•1x AC power wire 2m
•1x User Manual
•1x hanging adapter
•1x spigot + cotter
Optional accessories (not included)
•E-CONN™connector
•P2 EVO™base
•P2 EVO™height adapter
•male-male connector
•W-DMX module
•flight case
EVO ELEMENT™is fully compatible with the P2 EVO™fixture and its accessories (base, height adaptor, spigot and
cotter).
◼PREPARATION FOR USE
AC power connection
Luminaire must be powered with 100-240V and 50/60Hz. This fixture will automatically detect the
alternating current frequency. To turn on the fixture, simply plug in the powerCON TRUE1 and set the
power switch to “ON”. Use only high quality 3 x 2.5 mm2or larger mains power cords. Inspect all the power
feed cables for damages before use. Make sure to always connect the fixtures to a protected circuit with an
appropriate electrical ground. Never connect the fixture to a dimmer plug, even if it supplies proper current.
Only qualified electricians following all known electrical regulations can install the fixtures.
Luminaire comes with a power input cord terminated with powerCON TRUE1 on one end and tube
connectors on the other end. Follow the rules from the table below to assemble the power plug to the wire:
Connection
EU wires
US wires
Live
L
Brown
Black
Neutral
N
Blue
White
Earth
Green/Yellow
Green or Green/Yellow

PREPARATION FOR USE
EVO ELEMENT™
8 / 20
CAUTION! Do not use the power cord without a plug attached!
CAUTION! Always double-check the wire with a plug attached before use!
REMEMBER! Only a qualified person can change or install the plug!
Installation
Before mounting the fixture, read and follow all safety recommendations indicated in the Safety
Information.
EVO ELEMENT™may be hung using 2 brackets on the back of the fixture with rigging clamps or hung using
the hanging adapter (included). The fixture may be also installed on the the tripod or on a P2 EVO floor
base (sold separately). To install the fixture on a tripod use the hanging adapter. You can also use a hanging
adapter combined with the male-male connector, which makes it possible to put the fixture in the regular,
not upside-down orientation. The fixture is compatible with E-Conn, the structure building accessory.
Please refer to the E-CONN™user manual for more information. Please note that the PIXEL order and
MENU orientation can be changed in the menu to the upside down position.
To hang the fixture on a clamp under the truss you have to install the hanging adapter. Always double-
check if the hanging adapter is attached properly to the fixture and the spigot is locked tightly. The back
hanging brackets and the hanging adapter have 15 mm (0,59 in) holes for the spigot or rigging clamp.
Before rigging operations make sure, that the structure onto which you are mounting the fixtures can
withstand the weight of all of the fixtures. Check if there is enough room for ventilation, configuration and
maintenance in the location where you want to place the fixture. You must secure every hanged fixture with
the appropriate safety wire. Make sure there are no people under the work area when hanging fixtures. You
can aim the fixture to any position that you want except towards
the rigging structure. Remember not to let the power and DMX
wires touch the surface of the fixture. Always keep a safe
distance from the closest object.
The fixture may be installed also on optional accessories or
original accessories attached to P2 EVO™.
REMEMBER! Always secure the hung
fixture with safety wire!

USER MANUAL
PREPARATION FOR USE
9 / 20
CAUTION! Incorrect installation may result in the device falling and may
damage it or cause damage to other objects!
CAUTION! Always use only original spigots and cotters to install or hang the
fixture. Never use other brands’ spigots.
REMEMBER! Never use more than two units on base or on the hanging clamp
without additional safety support.
Operation modes
The luminaire can work in three operation modes: DMX, MASTER and SLAVE. DMX mode is designed to
work with DMX consoles. MASTER mode is designed to operate the fixture manually, without an external
controlling signal. In the MASTER mode, the fixture sends a controlling signal on the DMX output socket.
The signal can control other units in SLAVE mode. Please consider that unit in MASTER mode connected to
a regular DMX chain can corrupt DMX signal quality. The SLAVE mode allows you to control the fixture with
the control signal sent from a unit in MASTER mode. However, the DMX signal has got the highest priority
and the fixture always reacts to the connected DMX signal regardless of the operating mode.
Event
Operating Mode
DMX
Master
Slave
DMX wire
connected
Reacts to DMX
Reacts to DMX
Reacts to DMX
WDMX
connected
Reacts to WDMX
Stays in Master Mode
Receives control signal from
Master unit
DMX
disconnected
Keeps last DMX frame
Gets back to the last Macro or
Manual setting
Receives control signal from
Master unit
After power
reset
All values default
Gets back to the last Macro or
Manual setting
Receives control signal from
Master unit
There are three ways to operate the fixture in the DMX OPERATING MODE. You can use DMX input signal,
onboard manual control or WDMX input signal to control the fixture(if the WDMX card is installed). You can

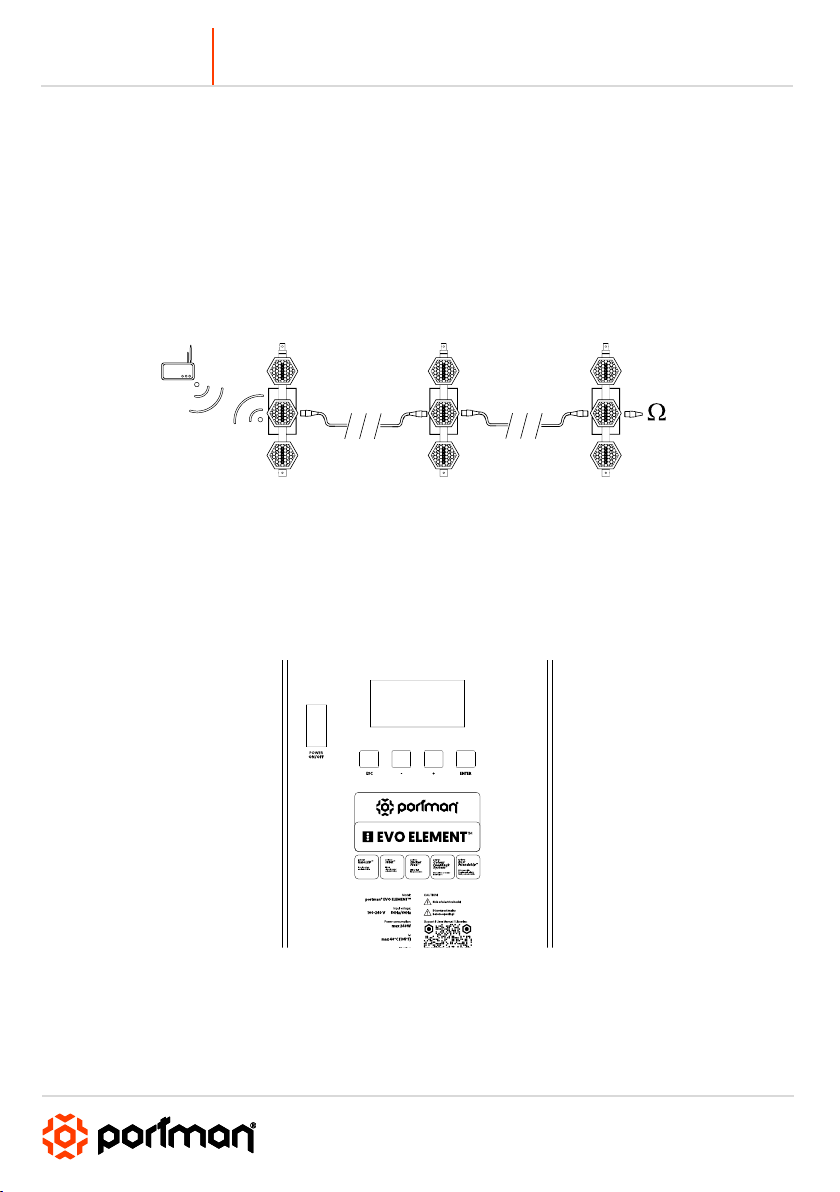

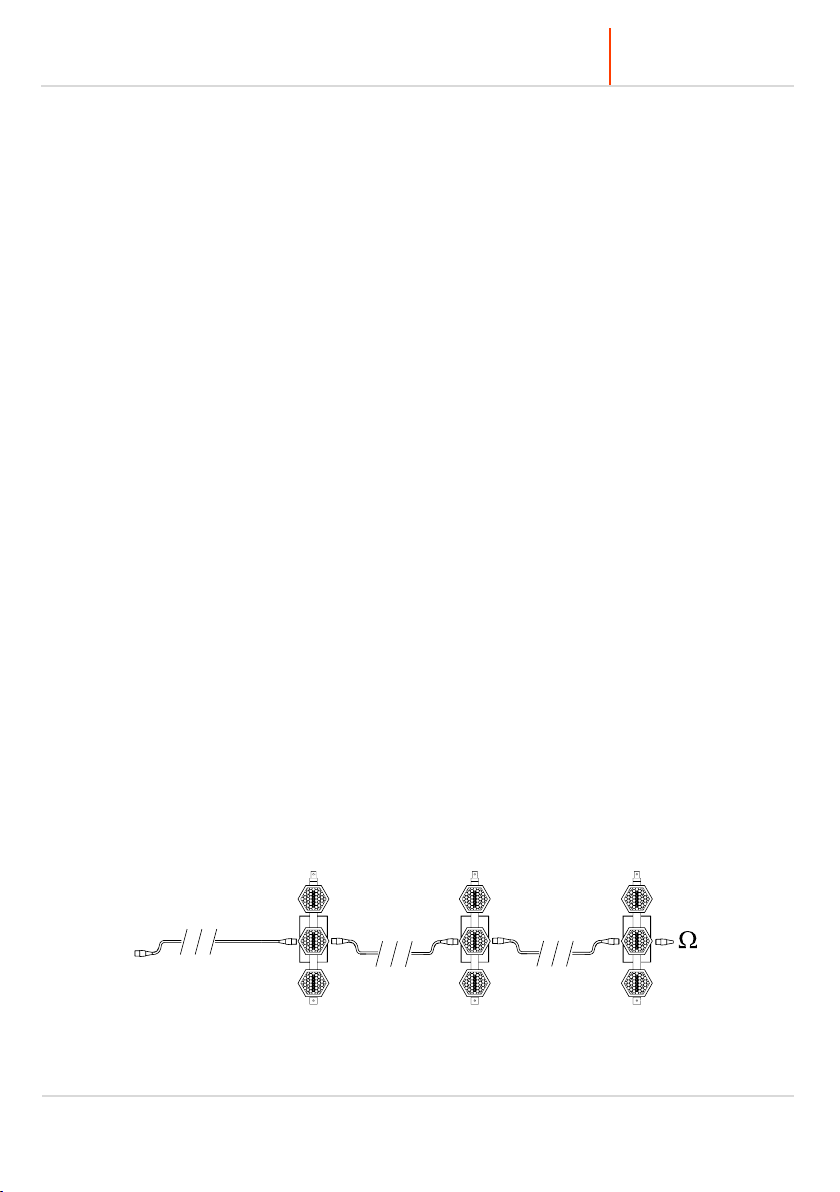

link the fixture to a DMX controller using a 5 pin DMX wire, or Wireless Solution Sweden hardware (if the
WDMX card is installed). You can control each channel individually whether with a DMX controller or a
manual control build in the fixture. The fixture has 6 DMX personalities and it supports RDM. In DMX mode
fixture will not remember the manual settings after a reset is performed.

PREPARATION FOR USE
EVO ELEMENT™
10 / 20
To remember the manual settings you have to use MASTER mode. You can set any lighting scene using the
manual control section in the fixture’s menu or play build-in macros. The fixture always switches to DMX
when a DMX wire is connected. After disconnecting DMX in MASTER mode the fixture always goes back to
the last macro/manual setting. After a power reset the unit remembers the last manual/macro settings. If
you are going to control the fixture by onboard manual control it is recommended to use MASTER
OPERATING MODE.
RDM
RDM (Remote Device Management) is an enhancement of the DMX 512 protocol and allows bi-directional
communication between DMX consoles and fixtures. It works simultaneously with DMX 512 and on the
same lines and wires. RDM is not affecting non-RDM devices in a line however, non-RDM devices can
disrupt communication with the console. RDM allows you to change the fixture’s options (such as DMX
address) without even touching neither ladder or fixture’s buttons. The fixture fully supports the RDM
standards.
Manual operation
The fixture works in manual operation when it’s not receiving DMX signal whether wired or wireless. You
can adjust the brightness of all LED sources at once from the main screen, or you can control each source
individually from the “CONTROL ME MANUALLY” option in the menu (refer to the “Menu” chapter to learn
how to manually control channels). To enter the menu simply press “ENTER”.
DMX 512
The fixture automatically switches into DMX mode after receiving DMX data. To learn how to change the
DMX address or signal source (wired or wireless) refer to the “Menu” chapter. When the fixture works in
the wired DMX mode You can daisy chain fixtures using 5 pin DMX wires. When daisy-chaining remember,
that you can connect up to 32 devices per DMX 512 universe. Always terminate the DMX 512 line. Put the
120 Ωterminator into the last device’s DMX OUT XLR socket.

USER MANUAL
MENU
11 / 20
When the fixture is being operated in the wireless mode (only when the WDMX card is installed) it is
receiving DMX 512 signal from Wireless Solution Sweden transmitters and can send the signal throughout
the 5-pin DMX OUT XLR socket. You can put the fixture with the WDMX card installed as the first fixture in
a line and use it as a WDMX receiver. The fixture supports a bi-directional WDMX TRX module. It means,
that the fixture supports RDM in wireless mode too. To link fixture with the WDMX transmitter first use the
“UPAIR ALL WDMX DEVICES” option from the menu, then turn the scanning mode on the transmitter. The
transmitter will link with all unlinked devices. For more detailed information please refer to your
transmitter’s user manual.
◼MENU
Navigation buttons are located under the LCD on the back panel. To enter the menu press the “Enter”
button. To navigate the menu use the “+” and “-“ buttons. To exit the menu from any level press “ESC”. For
confirming simply push the enter button.
Portman Colour Feedback System (CFS)

MENU
EVO ELEMENT™
12 / 20
Luminaire is equipped with Portman Colour Feedback System. The navigation buttons under the OLED
screen are highlighted with RGB LEDs. The Portman CFS allows you to check the fixture status without
even touching the display or buttons. There are few possibilities:
Button colour
Fixture state
White
Fixture receives DMX or WDMX signal
Red flashing
The fixture is in DMX operating mode, but there is no DMX nor WDMX signal detected
Green
The fixture is in MASTER operating mode and there is no DMX signal detected
Blue flashing
The fixture is in SLAVE mode and there is no DMX nor MASTER signal detected
Blue
The fixture is in SLAVE mode and there is MASTER signal detected. There is no DMX signal.
Portman Colour Feedback System works also when you operate the menu. When you navigate through the
menu the buttons change their colours. In the first level of the menu, the buttons are blue, the second level
of the menu is cyan. When you start editing a parameter in the menu the buttons turn red. Remember that
any changes will not be saved until you confirm them with the “ENTER” button. The changes are stored
only after you see the “You made it!” confirmation screen.
Main section
Level 1
Level 2
Level 3
Description
MY DMX
ADDRESS:
DMX ADDRESS
Sets up the DMX start address
MY PERSONAL
SETTINGS
DMX MODE
SUPER SIMPLE
Sets up the DMX mode. Refer to DMX chart for DMX
channels order.
SIMPLE
STANDARD
STANDARD FINE
PIXEL
PIXEL FINE
DMX INPUT
WIRED
Changes the DMX input to wired (default). In this mode,
the fixture is receiving a DMX signal from the DMX IN 5 pin
XLR socket.
WIRELESS
Changes the DMX input to wireless. This mode works only
when the WDMX card is installed. Fixture is receiving DMX
data from the WDMX card.
OPERATING MODE
DMX
Changes the fixture’s operating mode. Refer to the
Operation Modes chapter for more info. DMX is default
MASTER
SLAVE
DIMM CURVE
LINEAR
Changes dimming curve of filaments. Halogen mode is
emulating the behavior of halogen using also glow
sources. Logarithmic is the default.
LOGARITHMIC
FLICKER MODE
MODE 1 (2.4kHz)
Changes the frequency of the LED driving signals.

USER MANUAL
MENU
13 / 20
MODE 2 (5.1kHz)
MODE 3 (12kHz)
ORIENTATION
REGULAR
Sets up the pixel order relation. Auto mode discovers the
orientation of the fixture automatically and sets the first
pixel of the fixture on the top. Please refer to Orientation
chapter for more info
UPSIDE DOWN
DISPLAY AND BUTTONS
DP BRIGHTNESS
Changes the parameters of display and buttons highlight.
DISPLAY OFF TIME
WELCOME SCREEN
NO DMX BTN FLASH
RESET ALL TO DEFAULT
Resets all the options to default values.
WANNA GO
WIRELESS?
UNPAIR ALL WDMX
DEVICES
UNPAIRING MODE
Unpairs all connected WDMX transmitters
WDMX MODE
G3
Switches between WDMX modes
G4
G5
WDMX INFO
SIGNAL STRENGTH
Shows WDMX card info.
LINK STATUS
RDM STATUS
DMX DATA STATUS
INFO ABOUT
MYSELF
WHO MADE ME
Shows the name of the fixture’s manufacturer.
MY NAME IS
Shows the fixture’s name given by the manufacturer.
YOU CALL ME
Shows the fixture’s name given by the user.
MY ID IS
Shows the fixture’s RDM unique ID number.
MY VERSION IS
Shows actual firmware version
I WORKED HARD FOR
It Shows time the fixture has been turned on
CONTROL ME
MANUALLY
MAIN SOURCES
INTENSITY
0 –100% BRIGHTNESS
Sets all main sources dimmer value
STROBE
0 -100% STROBE
Sets all main sources strobe value
GLOW
INTENSITY
0 –100% BRIGHTNESS
Sets glow all pixels dimmer value
RED
0 –100% RED
Sets glow red value
GREEN
0 –100% GREEN
Sets glow green value
BLUE
0 –100% BLUE
Glow blue value
WHITE
0 –100% WHITE
Glow white value
MACRO
MACRO
MACRO NUMBER SELECT
Selects macro
MACRO SPEED
MACRO SPEED
Sets the macro speed
MACRO INTENSITY
0 –100% BRIGHTNESS
Sets macro intensity value
Orange values are editable.

DMX MODES
EVO ELEMENT™
14 / 20
◼DMX MODES
▪MODE SUPER SIMPLE
DMX
CH
Parameter
Description
1)
Intensity Main
Source Ch.1
Pixel 1 HaloLED 8 bit dimmer
0 –100%
2)
Intensity Main
Source Ch.2
Pixel 2 HaloLED 8 bit dimmer
0 –100%
3)
Intensity Main
Source Ch.3
Pixel 3 HaloLED 8 bit dimmer
0 –100%
4)
All Glow Red
Red glow 8 bit on all pixels 0
–100%
5)
All Glow Green
Green glow 8 bit on all pixels
0 –100%
6)
All glow Blue
Blue glow 8 bit on all pixels 0
–100%
7)
All glow White
White 8 bit on all glow pixels
0 –100%
8)
Strobe Main Source
HaloLED strobe channel
9)
Strobe glow
Glow strobe channel
▪MODE SIMPLE
DMX
CH
Parameter
Description
1)
Intensity Main
Source Ch.1
Pixel 1 HaloLED 8 bit dimmer
0 –100%
2)
Intensity Main
Source Ch.2
Pixel 2 HaloLED 8 bit dimmer
0 –100%
3)
Intensity Main
Source Ch.3
Pixel 3 HaloLED 8 bit dimmer
0 –100%
4)
Intensity Glow
RGBW
RGBW Glow All pixels 8 bit
dimmer 0 –100%
5)
All Glow Red
Red 8 bit on all glow pixels 0
–100%
6)
All Glow Green
Green 8 bit on all glow pixels
0 –100%
7)
All glow Blue
Blue 8 bit on all glow pixels 0
–100%
8)
All glow White
White 8 bit on all glow pixels
0 –100%
9)
Strobe Main Source
HaloLED strobe channel
10)
Strobe Glow
Glow strobe channel
11)
Colour wheel All
Glow
Glow virtual colour wheel on
all pixels
12)
Intensity Macro
Macro 8 bit dimmer 0 –100%
13)
Macro
Macro select channel
14)
Macro speed
Macro speed channel
15)
Control
Fixture control channel
▪MODE STANDARD
DMX
CH
Parameter
Description
1)
Intensity Main
Source Ch.1
Pixel 1 HaloLED 8 bit dimmer
0 –100%
2)
Intensity Main
Source Ch.2
Pixel 2 HaloLED 8 bit dimmer
0 –100%
3)
Intensity Main
Source Ch.3
Pixel 3 HaloLED 8 bit dimmer
0 –100%
4)
Intensity Glow
RGBW
Dimmer 8 bit of RGBW Glow
0 –100%
5)
Ch.1 Glow Red
Red 8 bit on glow pixel 1 0 –
100%
6)
Ch.1 Glow Green
Green 8 bit on glow pixel 1 0
–100%
7)
Ch.1 Glow Blue
Blue 8 bit on glow pixel 1 0 –
100%
8)
Ch.1 Glow White
White 8 bit on glow pixel 1 0
–100%
9)
Ch. 2 Glow Red
Red 8 bit on glow pixel 2 0 –
100%
10)
Ch. 2 Glow Green
Green 8 bit on glow pixel 2 0
–100%
11)
Ch. 2 Glow Blue
Blue 8 bit on glow pixel 2 0 –
100%
12)
Ch. 2 Glow White
White 8 bit on glow pixel 2 0
–100%
13)
Ch. 3 Glow Red
Red 8 bit on glow pixel 3 0 –
100%
14)
Ch. 3 Glow Green
Green 8 bit on glow pixel 3 0
–100%
15)
Ch. 3 Glow Blue
Blue 8 bit on glow pixel 3 0 –
100%
16)
Ch. 3 Glow White
White 8 bit on glow pixel 3 0
–100%
17)
Strobe Main Source
HaloLED strobe channel
18)
Strobe Glow
Glow strobe channel
19)
Colour wheel All
Glow
Glow virtual colour wheel on
all pixels
20)
Intensity Macro
Macro 8 bit dimmer 0 –100%
21)
Macro
Macro select channel
22)
Macro speed
Macro speed channel
23)
Control
Fixture control channel

USER MANUAL
15 / 20
▪MODE STANDARD FINE
DMX
CH
Parameter
Description
1)
Intensity Main
Source Ch.1
Pixel 1 HaloLED 8 bit dimmer 0 –
100%
2)
Intensity Main
Source Ch.1 fine
Pixel 1 HaloLED 16 bit dimmer 0 –
100%
3)
Intensity Main
Source Ch.2
Pixel 2 HaloLED 8 bit dimmer 0 –
100%
4)
Intensity Main
Source Ch.2 fine
Pixel 2 HaloLED 16 bit dimmer 0 –
100%
5)
Intensity Main
Source Ch.3
Pixel 3 HaloLED 8 bit dimmer 0 –
100%
6)
Intensity Main
Source Ch.3 fine
Pixel 3 HaloLED 16 bit dimmer 0 –
100%
7)
Intensity Glow
RGBW
RGBW Glow All pixels 8 bit dimmer
0 –100%
8)
Intensity Glow
RGBW fine
RGBW Glow All pixels 16 bit
dimmer 0 –100%
9)
Ch. 1 Glow Red
Red 8 bit on glow pixel 1 0 –100%
10)
Ch. 1 Glow Red fine
Red 16 bit on glow pixel 1 0 –100%
11)
Ch. 1 Glow Green
Green 8 bit on glow pixel 1 0 –
100%
12)
Ch. 1 Glow Green
fine
Green 16 bit on glow pixel 1 0 –
100%
13)
Ch. 1 Glow Blue
Blue 8 bit on glow pixel 1 0 –100%
14)
Ch. 1 Glow Blue
fine
Blue 16 bit on glow pixel 1 0 –
100%
15)
Ch. 1 Glow White
White 8 bit on glow pixel 1 0 –
100%
16)
Ch. 1 Glow White
fine
White 16 bit on glow pixel 1 0 –
100%
17)
Ch. 2 Glow Red
Red 8 bit on glow pixel 2 0 –100%
18)
Ch. 2 Glow Red fine
Red 16 bit on glow pixel 2 0 –100%
19)
Ch. 2 Glow Green
Green 8 bit on glow pixel 2 0 –
100%
20)
Ch. 2 Glow Green
fine
Green 16 bit on glow pixel 2 0 –
100%
21)
Ch. 2 Glow Blue
Blue 8 bit on glow pixel 2 0 –100%
22)
Ch. 2 Glow Blue
fine
Blue 16 bit on glow pixel 2 0 –
100%
23)
Ch. 2 Glow White
White 8 bit on glow pixel 2 0 –
100%
24)
Ch. 2 Glow White
fine
White 16 bit on glow pixel 2 0 –
100%
25)
Ch. 3 Glow Red
Red 8 bit on glow pixel 3 0 –100%
26)
Ch. 3 Glow Red fine
Red 16 bit on glow pixel 3 0 –100%
27)
Ch. 3 Glow Green
Green 8 bit on glow pixel 3 0 –
100%
28)
Ch. 3 Glow Green
fine
Green 16 bit on glow pixel 3 0 –
100%
29)
Ch. 3 Glow Blue
Blue 8 bit on glow pixel 3 0 –100%
30)
Ch. 3 Glow Blue
fine
Blue 16 bit on glow pixel 3 0 –
100%
31)
Ch. 3 Glow White
White 8 bit on glow pixel 3 0 –
100%
32)
Ch. 3 Glow White
fine
White 16 bit on glow pixel 3 0 –
100%
33)
Strobe Main Source
HaloLED strobe channel
34)
Strobe Glow
Glow strobe channel
35)
Colour wheel All
Glow
Glow virtual colour wheel on all
pixels
36)
Intensity Macro
Macro 8 bit dimmer 0 –100%
37)
Macro
Macro select channel
38)
Macro speed
Macro speed channel
39)
Control
Fixture control channel
▪MODE PIXEL
DMX
CH
Parameter
Description
1)
Intensity Main
Source Ch.1
Pixel 1 HaloLED 8 bit dimmer 0 –
100%
2)
Ch.1 Glow Red
Red 8 bit on glow pixel 1 0 –100%
3)
Ch.1 Glow Green
Green 8 bit on glow pixel 1 0 –100%
4)
Ch.1 Glow Blue
Blue 8 bit on glow pixel 1 0 –100%
5)
Ch.1 Glow White
White 8 bit on glow pixel 1 0 –100%
6)
Intensity Main
Source Ch.2
Pixel 2 HaloLED 8 bit dimmer 0 –
100%
7)
Ch. 2 Glow Red
Red 8 bit on glow pixel 2 0 –100%
8)
Ch. 2 Glow Green
Green 8 bit on glow pixel 2 0 –
100%
9)
Ch. 2 Glow Blue
Blue 8 bit on glow pixel 2 0 –100%
10)
Ch. 2 Glow White
White 8 bit on glow pixel 2 0 –
100%
11)
Intensity Main
Source Ch.3
Pixel 3 HaloLED 8 bit dimmer 0 –
100%
12)
Ch. 3 Glow Red
Red 8 bit on glow pixel 3 0 –100%
13)
Ch. 3 Glow Green
Green 8 bit on glow pixel 3 0 –
100%
14)
Ch. 3 Glow Blue
Blue 8 bit on glow pixel 3 0 –100%
15)
Ch. 3 Glow White
White 8 bit on glow pixel 3 0 –
100%
16)
Strobe Main Source
HaloLED strobe channel
17)
Strobe Glow
Glow strobe channel
18)
Colour wheel All
Glow
Glow virtual colour wheel on all
pixels
19)
Intensity Macro
Macro 8 bit dimmer 0 –100%
20)
Macro
Macro select channel
21)
Macro speed
Macro speed channel
22)
Control
Fixture control channel

EVO ELEMENT™
16 / 20
▪MODE PIXEL FINE
DMX
CH
Parameter
Description
1)
Intensity Main
Source Ch.1
Pixel 1 HaloLED 8 bit dimmer 0 –
100%
2)
Intensity Main
Source Ch.1 fine
Pixel 1 HaloLED 16 bit dimmer 0 –
100%
3)
Ch. 1 Glow Red
Red 8 bit on glow pixel 1 0 –100%
4)
Ch. 1 Glow Red fine
Red 16 bit on glow pixel 1 0 –100%
5)
Ch. 1 Glow Green
Green 8 bit on glow pixel 1 0 –
100%
6)
Ch. 1 Glow Green
fine
Green 16 bit on glow pixel 1 0 –
100%
7)
Ch. 1 Glow Blue
Blue 8 bit on glow pixel 1 0 –100%
8)
Ch. 1 Glow Blue
fine
Blue 16 bit on glow pixel 1 0 –
100%
9)
Ch. 1 Glow White
White 8 bit on glow pixel 1 0 –
100%
10)
Ch. 1 Glow White
fine
White 16 bit on glow pixel 1 0 –
100%
11)
Intensity Main
Source Ch.2
Pixel 2 HaloLED 8 bit dimmer 0 –
100%
12)
Intensity Main
Source Ch.2 fine
Pixel 2 HaloLED 16 bit dimmer 0 –
100%
13)
Ch. 2 Glow Red
Red 8 bit on glow pixel 2 0 –100%
14)
Ch. 2 Glow Red fine
Red 16 bit on glow pixel 2 0 –100%
15)
Ch. 2 Glow Green
Green 8 bit on glow pixel 2 0 –
100%
16)
Ch. 2 Glow Green
fine
Green 16 bit on glow pixel 2 0 –
100%
17)
Ch. 2 Glow Blue
Blue 8 bit on glow pixel 2 0 –100%
18)
Ch. 2 Glow Blue
fine
Blue 16 bit on glow pixel 2 0 –
100%
19)
Ch. 2 Glow White
White 8 bit on glow pixel 2 0 –
100%
20)
Ch. 2 Glow White
fine
White 16 bit on glow pixel 2 0 –
100%
21)
Intensity Main
Source Ch.3
Pixel 3 HaloLED 8 bit dimmer 0 –
100%
22)
Intensity Main
Source Ch.3 fine
Pixel 3 HaloLED 16 bit dimmer 0 –
100%
23)
Ch. 3 Glow Red
Red 8 bit on glow pixel 3 0 –100%
24)
Ch. 3 Glow Red fine
Red 16 bit on glow pixel 3 0 –100%
25)
Ch. 3 Glow Green
Green 8 bit on glow pixel 3 0 –
100%
26)
Ch. 3 Glow Green
fine
Green 16 bit on glow pixel 3 0 –
100%
27)
Ch. 3 Glow Blue
Blue 8 bit on glow pixel 3 0 –100%
28)
Ch. 3 Glow Blue
fine
Blue 16 bit on glow pixel 3 0 –
100%
29)
Ch. 3 Glow White
White 8 bit on glow pixel 3 0 –
100%
30)
Ch. 3 Glow White
fine
White 16 bit on glow pixel 3 0 –
100%
31)
Strobe Main Source
HaloLED strobe channel
32)
Strobe Glow
Glow strobe channel
33)
Colour wheel All
Glow
Glow virtual colour wheel on all
pixels
34)
Intensity Macro
Macro 8 bit dimmer 0 –100%
35)
Macro
Macro select channel
36)
Macro speed
Macro speed channel
37)
Control
Fixture control channel
▪RDM DATA
Manufacturer ID
01CCh
Model ID
00.10
Super Simple personality ID
01
Simple personality ID
02
Standard personality ID
03
Standard Fine personality ID
04
Pixel personality ID
05
Pixel Fine personality ID
06
Parameters supported:
Parameter ID
Operation supported
DISC_UNIQUE_BRANCH
discovery
DISC_MUTE
discovery
DISC_UN_MUTE
discovery
DEVICE_INFO
get
SUPPORTED_PARAMETERS
get
SOFTWARE_VERSION_LABEL
get
DMX_START_ADDRESS
get and set
IDENTIFY_DEVICE
get and set
DEVICE_MODEL_DESCRIPTION
get
MANUFACTURER_LABEL
get
DEVICE_LABEL
get and set
DMX_PERSONALITY
get and set
DEVICE_HOURS
get

USER MANUAL
PHOTOMETRICS
17 / 20
◼PHOTOMETRICS

PHOTOMETRICS
EVO ELEMENT™
18 / 20

USER MANUAL
19 / 20

Thank you for buying
original products!
By buying original products you buy the real
quality but also support creativity and progress
in the industry.
Any problem and/or question according to
fixtures –contact us following these steps:
1. Send a message here:
[email protected]
Remember to add these important details:
[Serial number of the fixture]
[Issue description, videos, pictures]
2. Continue using a ticket number
You will receive an automatic ticket number. Our
Support team has up to 48h to start resolving
the issue. You may be asked for more details by
our support team or by a distributor. Always use
your ticket number for quicker resolution of the
case.
If you are looking for updated version of this
User Manual, newest Libraries for the fixture,
newest Firmware please visit our Support
webpage (www.portmanlights.com/support).
Designed and made in Poland, EU.
Portman Lights Sp. z o. o.
ul. Chwaszczyńska 190D
81-571 Gdynia, POLAN
Help preserve the environment! Ensure that this product is recycled at the end of its life.
Your supplier can give details of local arrangements for the disposal of Portman products.
