POS-X ION BLUETOOTH User manual

All manuals and user guides at all-guides.com
all-guides.com

Table of Contents
Chapter 1 System Information
1.1 Setup Scanner with PC
1.2 Setup Scanner with Mobile Device
1.3 Configure iOS On-Screen Keyboard
1.4 Memory Mode
1.5 Sleep Settings
1.6 How to Configure the Scanner
Chapter 2 System Setup
2.1 Terminator
2.2 Beeper Tone
2.3 Trigger Mode
2.4 String Options (Prefix & Suffix)
2.5 Setup Insertion
Chapter 3 Barcode Configuration
3.1 UPC-A 17
3 2 UPC-E 20
3 3 EAN-13 23
3.4 EAN-8 25
3.5 Code 39 27
3 6 Codabar 30
3.7 Code 93 34
3 8 Code 128 36
3 9 Interleaved 2 of 5 39
41
43
45
47
49
51
53
55
3.10 Industrial 2 of 5
3.11 Matrix 2 of 5
3.12 China Postage
3.13 MSI/Plessey
3.14 Code 32
3.15 Code 11
3.16 Telepen
3.17 GS1 DataBar
Appendix 61
3
4
4
5
6
7
9
10
11
12
13
All manuals and user guides at all-guides.com

Scan Bluetooth SPP Mode
Scan Cradle Pairing Mode
Plug Cradle into Computer
Scan Pairing Mode

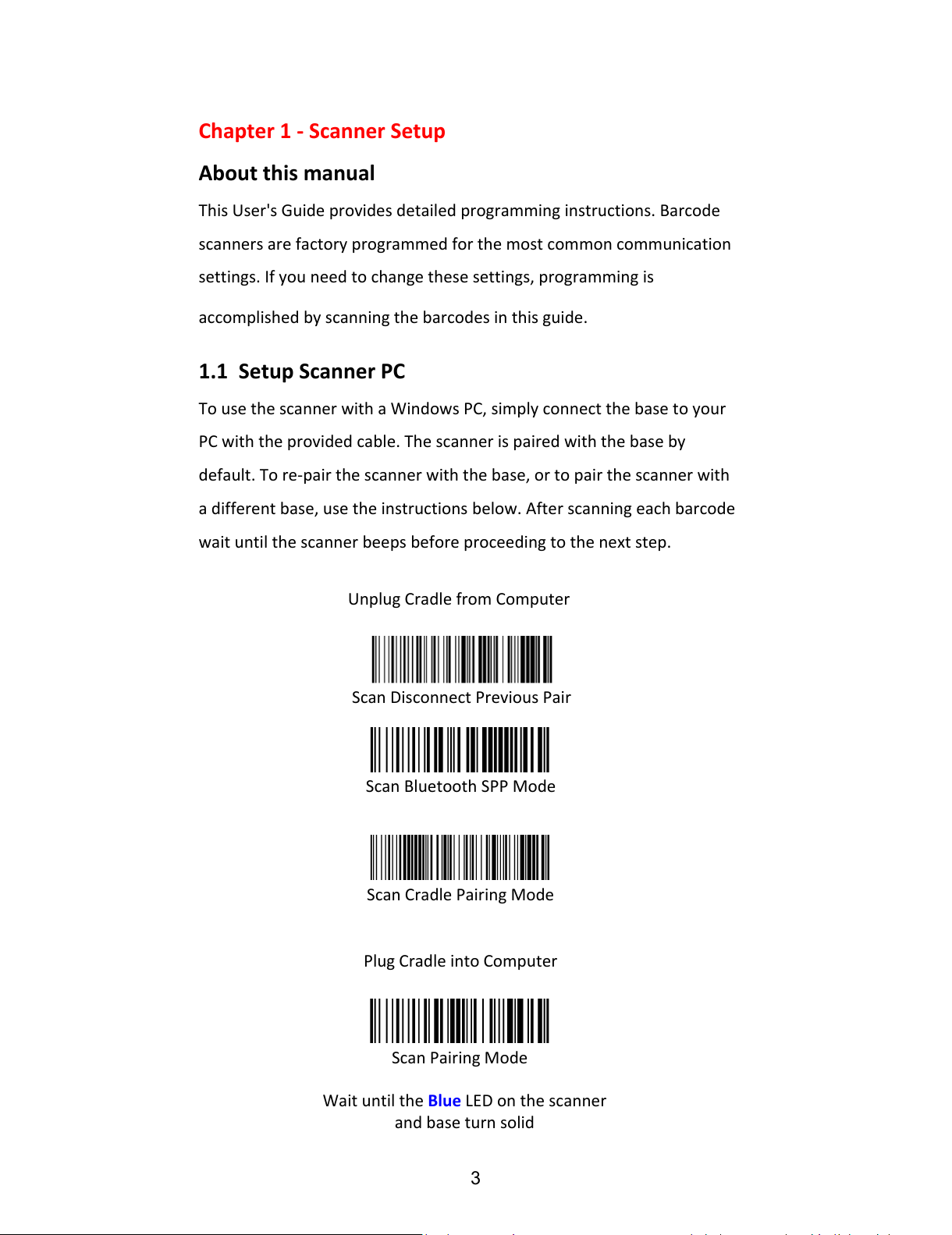

Chapter 1 - Scanner Setup
About this manual
This User's Guide provides detailed programming instructions. Barcode
scanners are factory programmed for the most common communication
settings. If you need to change these settings, programming is
accomplished by scanning the barcodes in this guide.
1.1 Setup Scanner PC
To use the scanner with a Windows PC, simply connect the base to your
PC with the provided cable. The scanner is paired with the base by
default. To re-pair the scanner with the base, or to pair the scanner with
a different base, use the instructions below. After scanning each barcode
wait until the scanner beeps before proceeding to the next step.
Wait until the Blue LED on the scanner
and base turn solid
Unplug Cradle from Computer
3
Scan Disconnect Previous Pair
All manuals and user guides at all-guides.com

1.2 Setup Scanner with Mobile Device
To use the scanner with a mobile device (iOS, Android, or
Bluetooth Windows device) use the instructions below.
Scan HID Mode
Enable/Disable iOS Quick
Keyboard Shortcut
Toggle iOS
On-Screen Keyboard
To toggle the iOS on screen keyboard a single time, use the
barcode below.
Scan Pairing Mode
Open Bluetooth settings on your mobile device and tap on
"Bluetooth Scanner" to pair with the scanner. The Blue LED on the
back of the scanner will turn solid once it is successfully paired.
1.3 Configure iOS On-Screen Keyboard
When the scanner is connected to an iOS device, rapidly pulling
the trigger twice will toggle the iOS on-screen keyboard. If this
functionality is not needed use the barcode below to disable it.
4
Scan Disconnect Previous Pair
All manuals and user guides at all-guides.com

1.4 Memory Mode
The scanner can be configured to store all scanned barcodes in the
scanners internal memory. While in memory mode the scanner will
not transmit any barcodes until the "Transmit Stored Data" barcode
is scanned. The scanner can hold a maximum of X barcodes in
internal memory.
Scanning "Transmit Count of Stored Barcodes" will transmit the
number of barcodes currently held in memory mode. "Clear All
Stored Data" will erase all stored barcodes from the scanners
memory and can not be un-done.
Enter Memory Mode
Transmit Stored Data
Exit Memory Mode
Transmit Count of Stored Barcodes
Clear All Stored Data
5
All manuals and user guides at all-guides.com

1.5 Sleep Settings
If the scanner has not been used for a set amount of time the
scanner will automatically enter sleep mode. To take the scanner
out of sleep mode simply press and hold the trigger for 1 second.
To change the amount of time before the scanner enters sleep
mode, scan one of the barcodes below.
WARNING: Longer sleep times may result in shorter battery life
20 Seconds
30 Seconds
1 Minute
2 Minutes
5 Minutes
10 Minutes
20 Minutes
Never
6
All manuals and user guides at all-guides.com
all-guides.com

1.6 How to configure the scanner
(1) Scan Start Configuration to enter programming mode
(2) Scan all necessary barcodes for settings that meet your needs.
(3) Scan End Configuration to exit programming mode.
Start Configuration End Configuration
Default Settings
Check Version
An asterisk (*) next to an option indicates it is the default setting.
Power Off
7
All manuals and user guides at all-guides.com

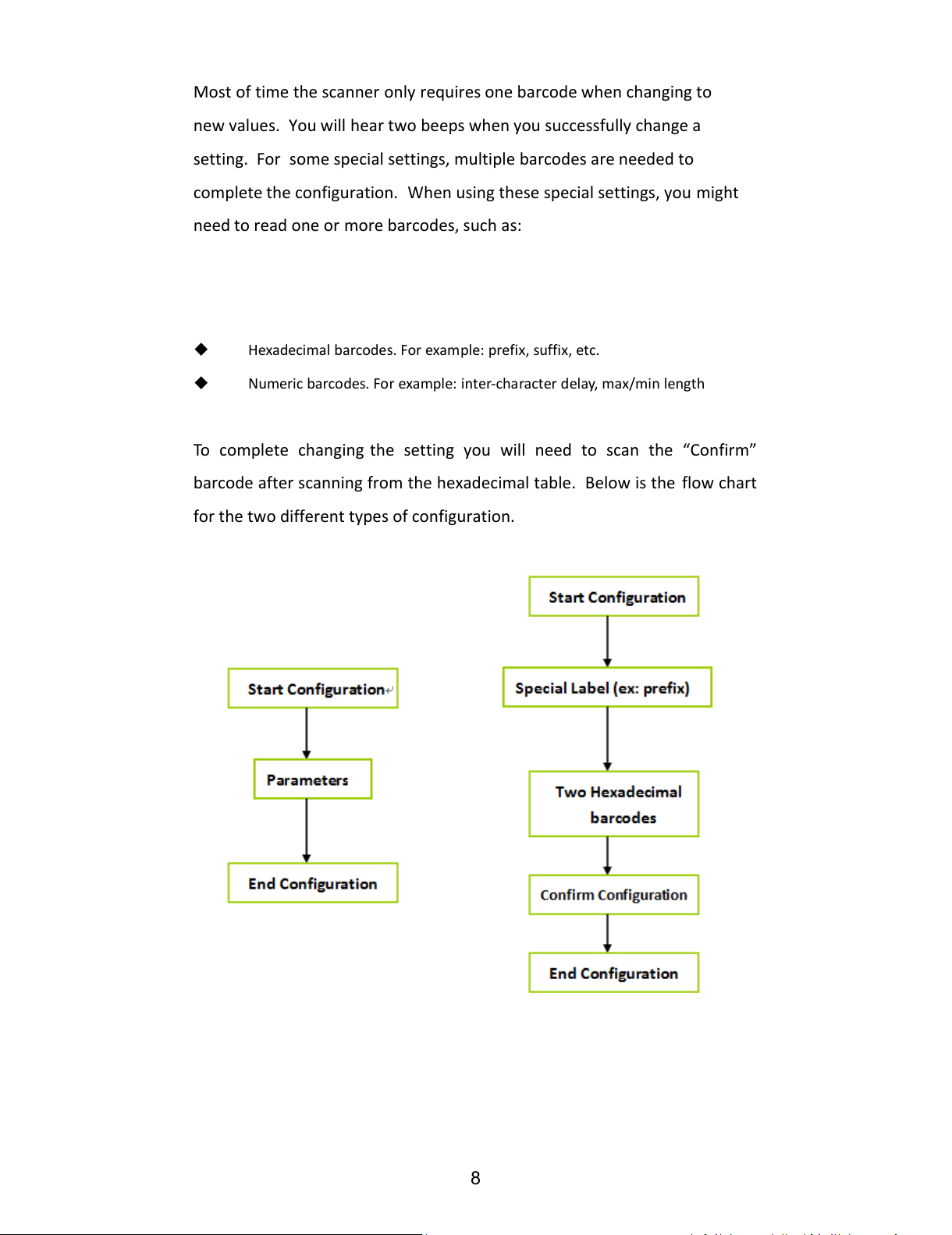

Most of time the scanner only requires one barcode when changing to
new values. You will hear two beeps when you successfully change a
setting. For some special settings, multiple barcodes are needed to
complete the configuration. When using these special settings, you might
need to read one or more barcodes, such as:
Hexadecimal barcodes. For example: prefix, suffix, etc.
Numeric barcodes. For example: inter-character delay, max/min length
To complete changing the setting you will need to scan the “Confirm”
barcode after scanning from the hexadecimal table. Below is the flow chart
for the two different types of configuration.
8
All manuals and user guides at all-guides.com

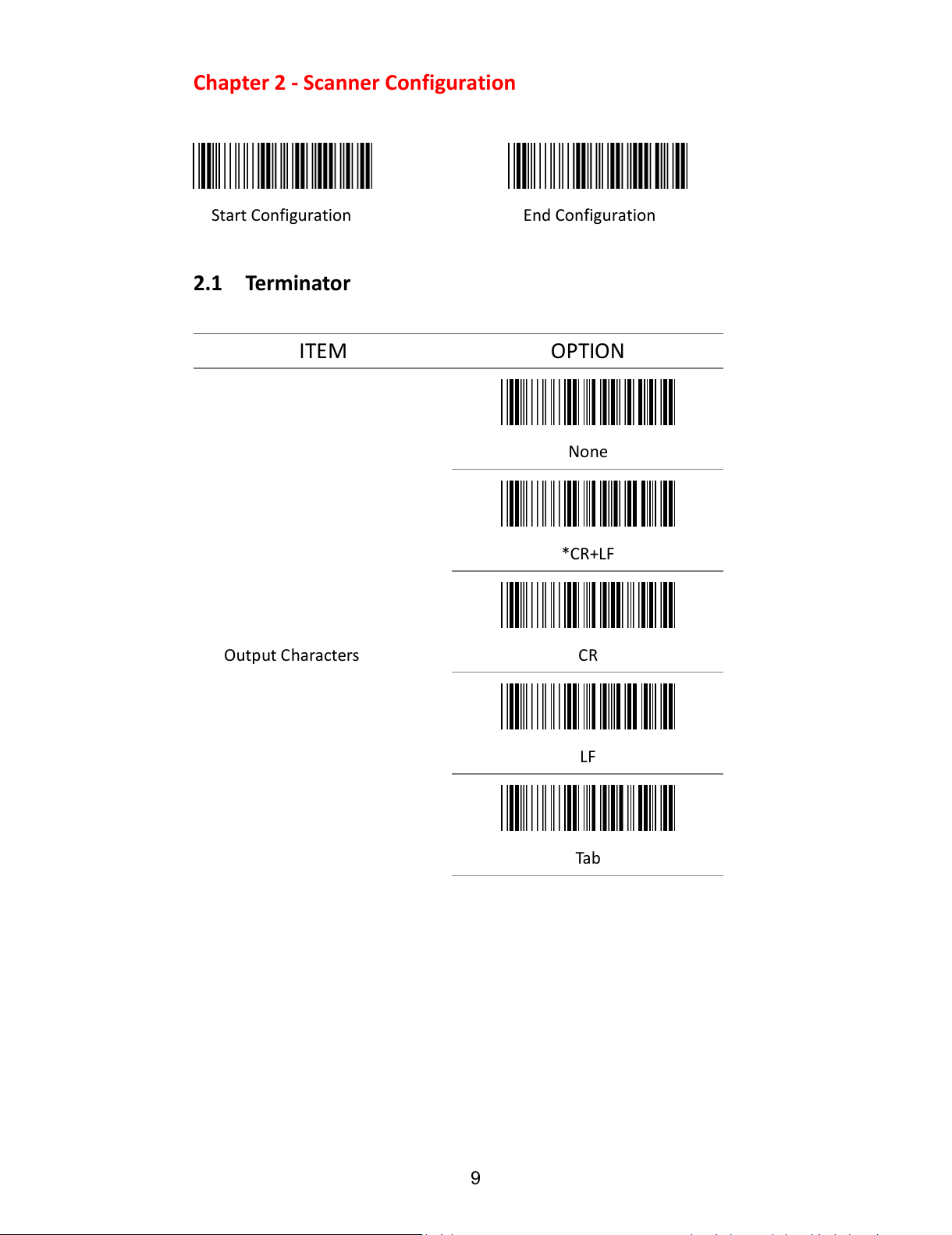

Chapter 2 - Scanner Configuration
Start Configuration End Configuration
2.1 Terminator
ITEM OPTION
None
*CR+LF
CR
LF
Tab
Output Characters
9
All manuals and user guides at all-guides.com

Start Configuration End Configuration
ITEM OPTION
* Ref: Appendix (00-10H)
Beep Tone
(Default : 09H)
* Ref: Appendix (00-10H)
Beep Sound Duration
(Default : 05H)
* Enable
Power On Beeper
Disable
* On
Beeper
Off
2.2 Beeper Tone
10
All manuals and user guides at all-guides.com

2.3 Beeper tone selection
Start configuration End configuration
ITEM OPTION
* ON
Beeper
OFF
Start Configuration End Configuration
ITEM OPTION
* Trigger On/Good Read Off
Reading Mode
Trigger On/Off
Continuous/Trigger Off

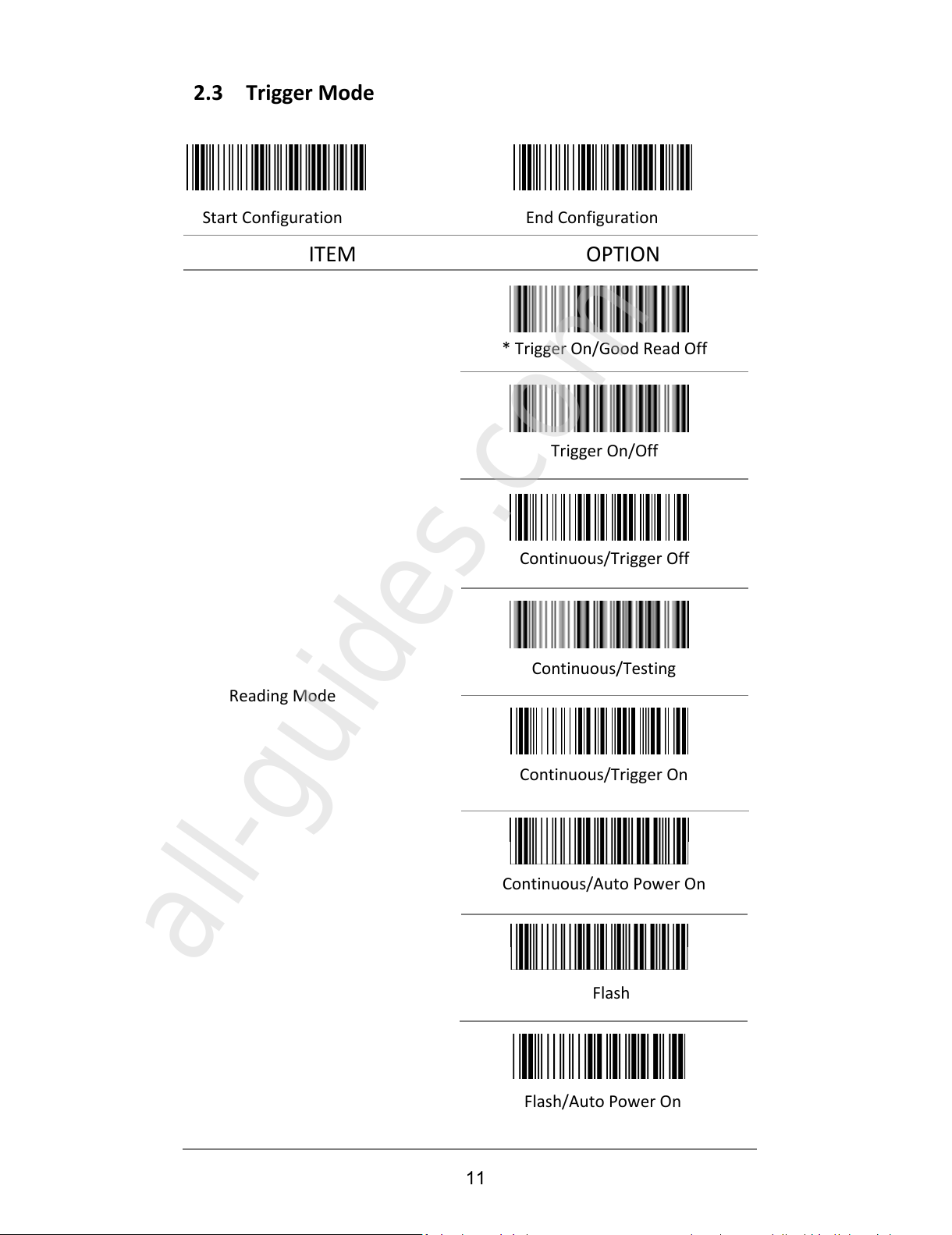

2.3 Trigger Mode
Continuous/Testing
Continuous/Trigger On
Continuous/Auto Power On
Flash
Flash/Auto Power On
11
All manuals and user guides at all-guides.com
all-guides.com

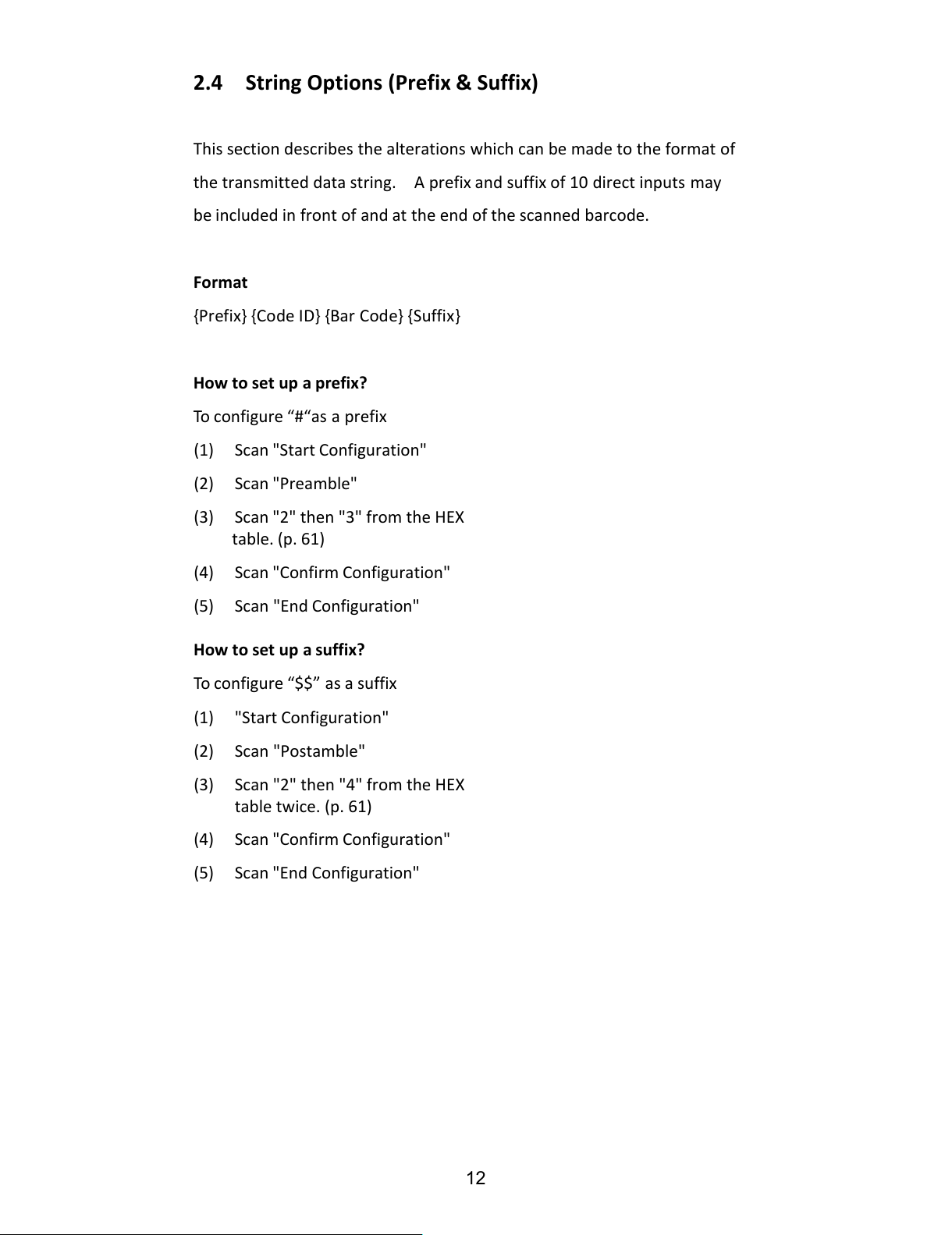

2.4 String Options (Prefix & Suffix)
This section describes the alterations which can be made to the format of
the transmitted data string. A prefix and suffix of 10 direct inputs may
be included in front of and at the end of the scanned barcode.
Format
{Prefix} {Code ID} {Bar Code} {Suffix}
How to set up a prefix?
To configure “#“as a prefix
(1) Scan "Start Configuration"
(2) Scan "Preamble"
(3) Scan "2" then "3" from the HEX
table. (p. 61)
(4) Scan "Confirm Configuration"
(5) Scan "End Configuration"
How to set up a suffix?
To configure “$$” as a suffix
(1) "Start Configuration"
(2) Scan "Postamble"
(3) Scan "2" then "4" from the HEX
table twice. (p. 61)
(4) Scan "Confirm Configuration"
(5) Scan "End Configuration"
12
All manuals and user guides at all-guides.com

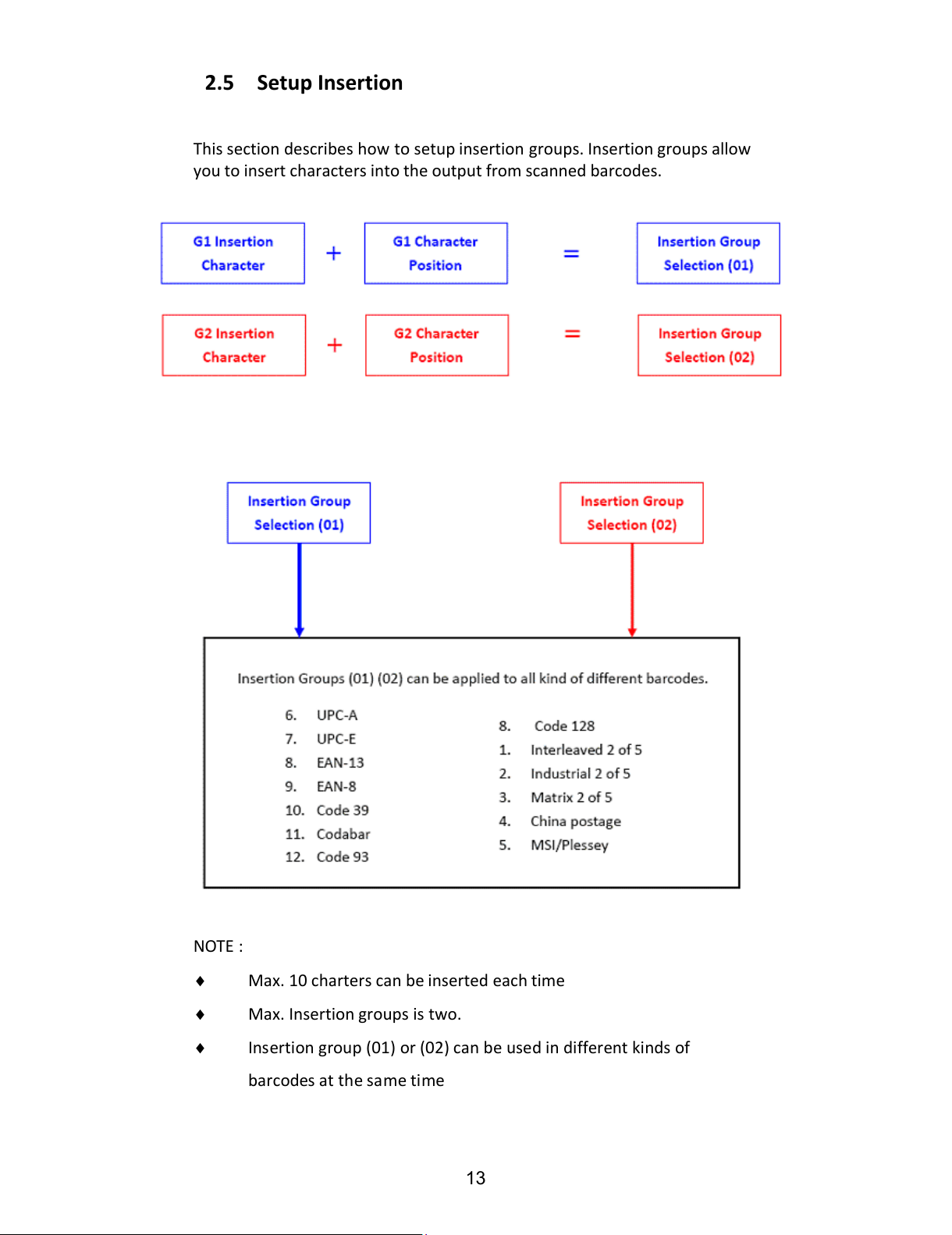

2.5 Setup Insertion
This section describes how to setup insertion groups. Insertion groups allow
you to insert characters into the output from scanned barcodes.
NOTE :



Max. 10 charters can be inserted each time
Max. Insertion groups is two.
Insertion group (01) or (02) can be used in different kinds of
barcodes at the same time
13
All manuals and user guides at all-guides.com

Example:
To make the above barcode output 12A3456789,
insert an "A" character before the third digit (3).
How to set the character you want to insert
(1) Scan “Start Configuration“ barcode
(2) Scan “G1 Insertion character”
(3) Scan “4” and “1” from HEX Table (p.61)
(4) Scan “Confirm Configuration“ barcode
(5) Scan “End Configuration“ barcode
How to set the position you wish to place the character
(6) Scan “Start Configuration“ barcode
(7) Scan “G1 Character Position”
(8) Scan “0” and “3” from HEX Table (p.61)
(which sets the position)
(9) Scan “Confirm Configuration“ barcode
(10) Scan “End Configuration“ barcode
How to set the insertion for Code 39
Go to page 27 (Code 39)
(11) Scan “Start Configuration“ barcode
(12) Scan “Insert Group Selection” barcode
(13) scan “0” and “1” from the HEX Table (p.61)
(which represents the group, 01, that was just created)
(14) Scan “Confirm Configuration“ barcode
(15) Scan “End Configuration“ barcode
14
All manuals and user guides at all-guides.com

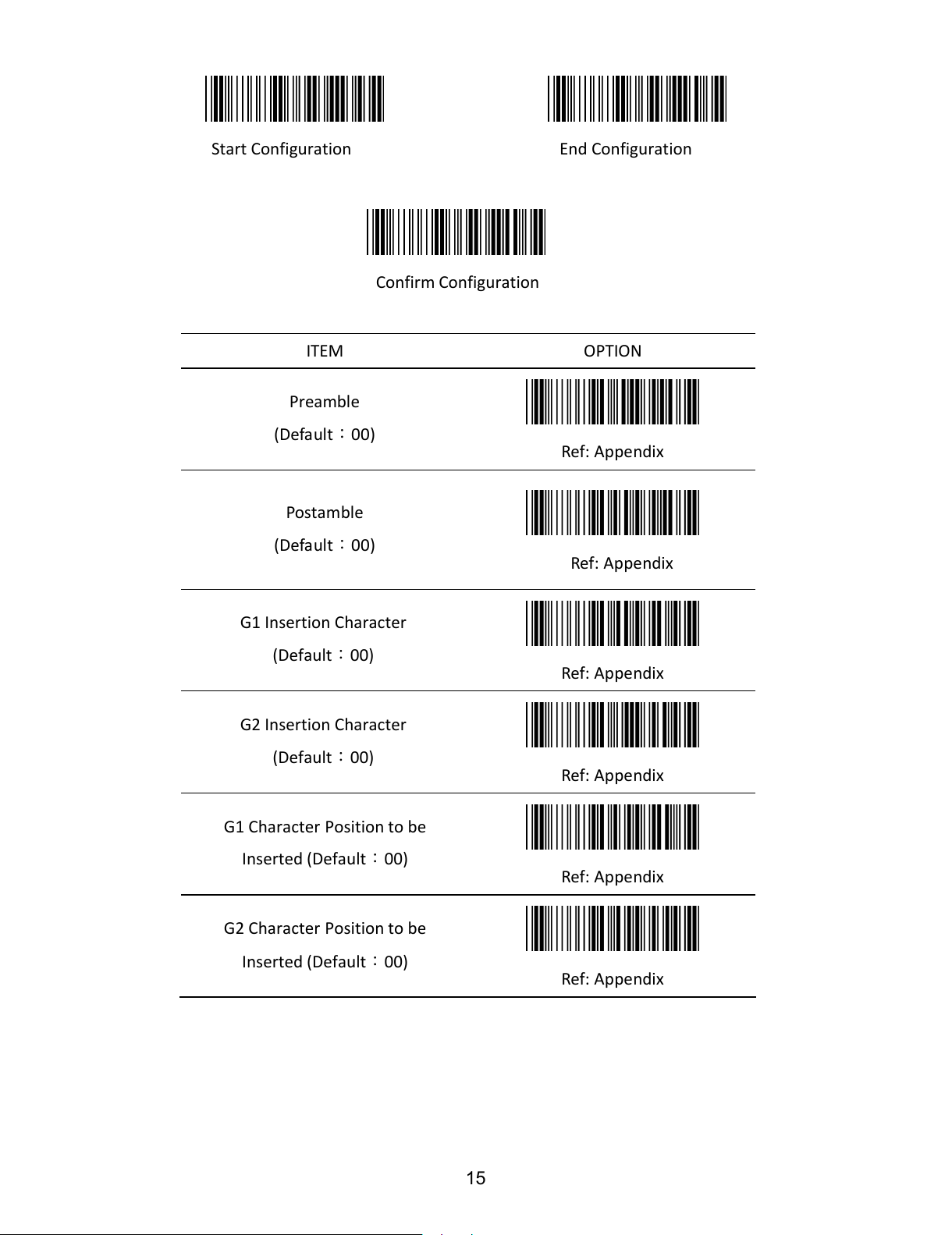

Start Configuration End Configuration
Confirm Configuration
ITEM OPTION
Preamble
(Default：00)
Ref: Appendix
Postamble
(Default：00)
Ref: Appendix
G1 Insertion Character
(Default：00)
Ref: Appendix
G2 Insertion Character
(Default：00)
Ref: Appendix
G1 Character Position to be
Inserted (Default：00)
Ref: Appendix
G2 Character Position to be
Inserted (Default：00)
Ref: Appendix
15
All manuals and user guides at all-guides.com

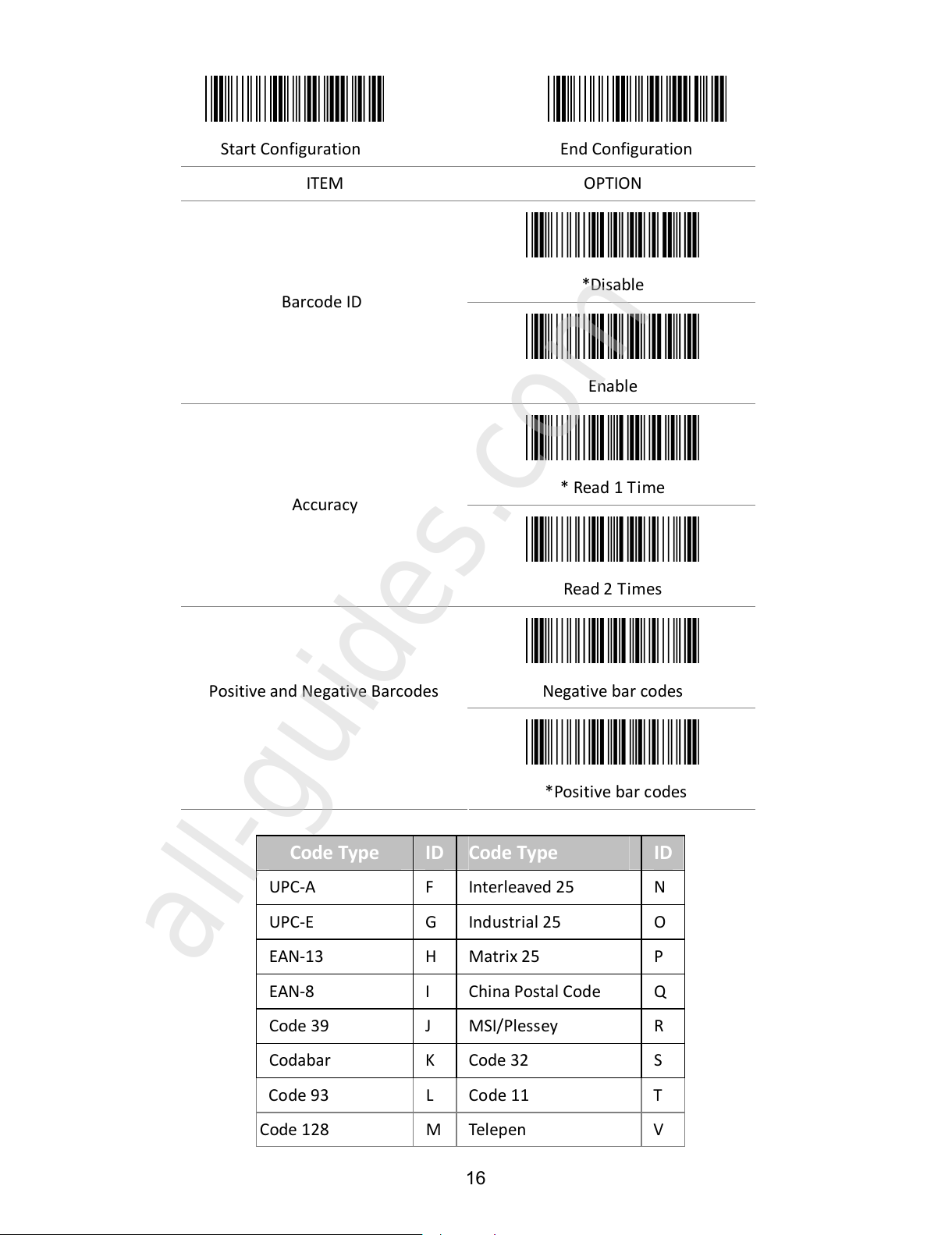

Start Configuration End Configuration
ITEM OPTION
*Disable
Barcode ID
Enable
* Read 1 Time
Accuracy
Read 2 Times
Negative bar codes Positive and Negative Barcodes
*Positive bar codes
Code Type ID
Code Type ID
UPC-A F Interleaved 25 N
UPC-E G Industrial 25 O
EAN-13 H Matrix 25 P
EAN-8 I China Postal Code Q
Code 39 J MSI/Plessey R
Codabar K Code 32 S
Code 93 L Code 11 T
Code 128 M
Telepen V
16
All manuals and user guides at all-guides.com
all-guides.com

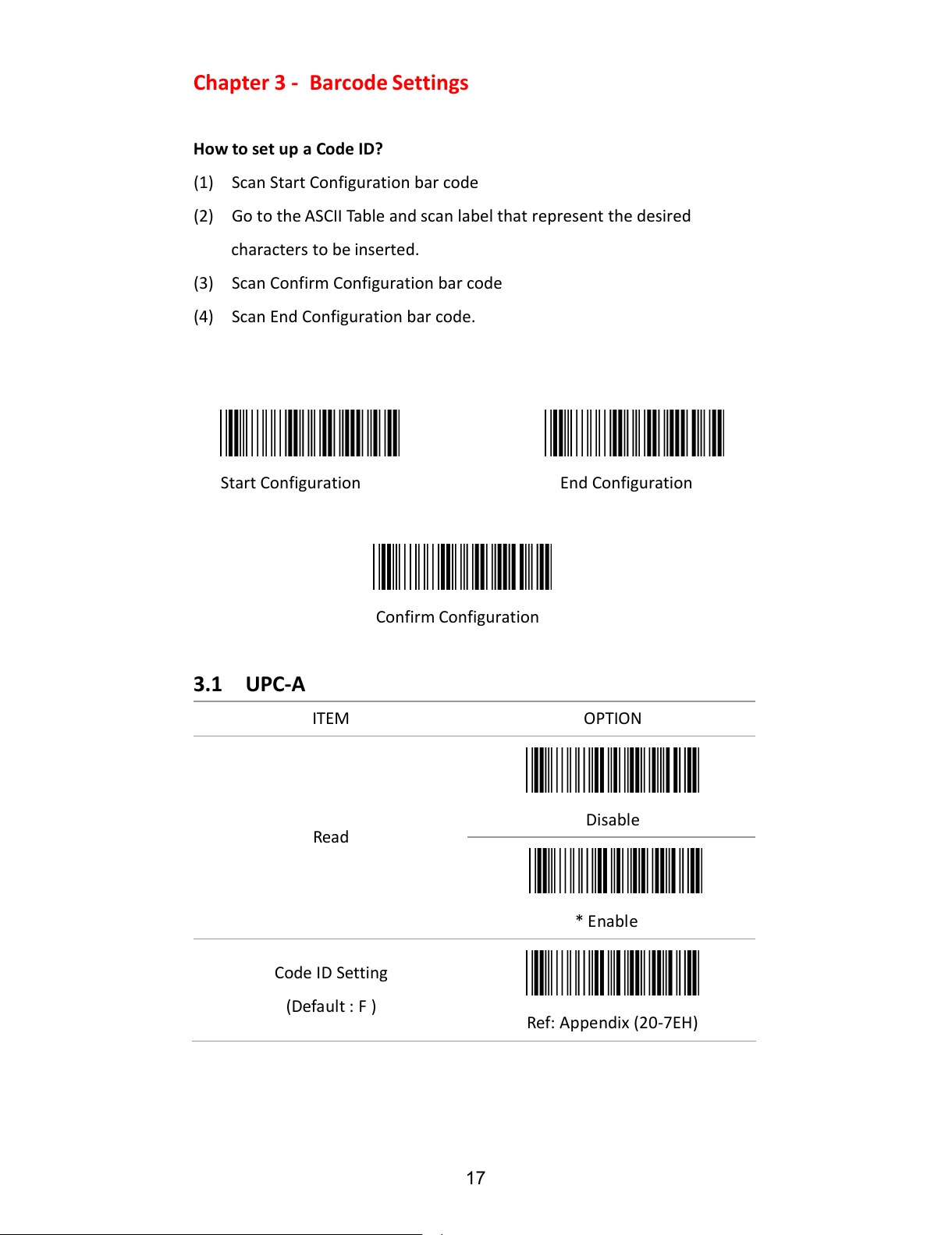

Chapter 3 - Barcode Settings
How to set up a Code ID?
(1) Scan Start Configuration bar code
(2) Go to the ASCII Table and scan label that represent the desired
characters to be inserted.
(3) Scan Confirm Configuration bar code
(4) Scan End Configuration bar code.
Start Configuration End Configuration
Confirm Configuration
3.1 UPC-A
ITEM OPTION
Disable
Read
* Enable
Code ID Setting
(Default : F )
Ref: Appendix (20-7EH)
17
All manuals and user guides at all-guides.com

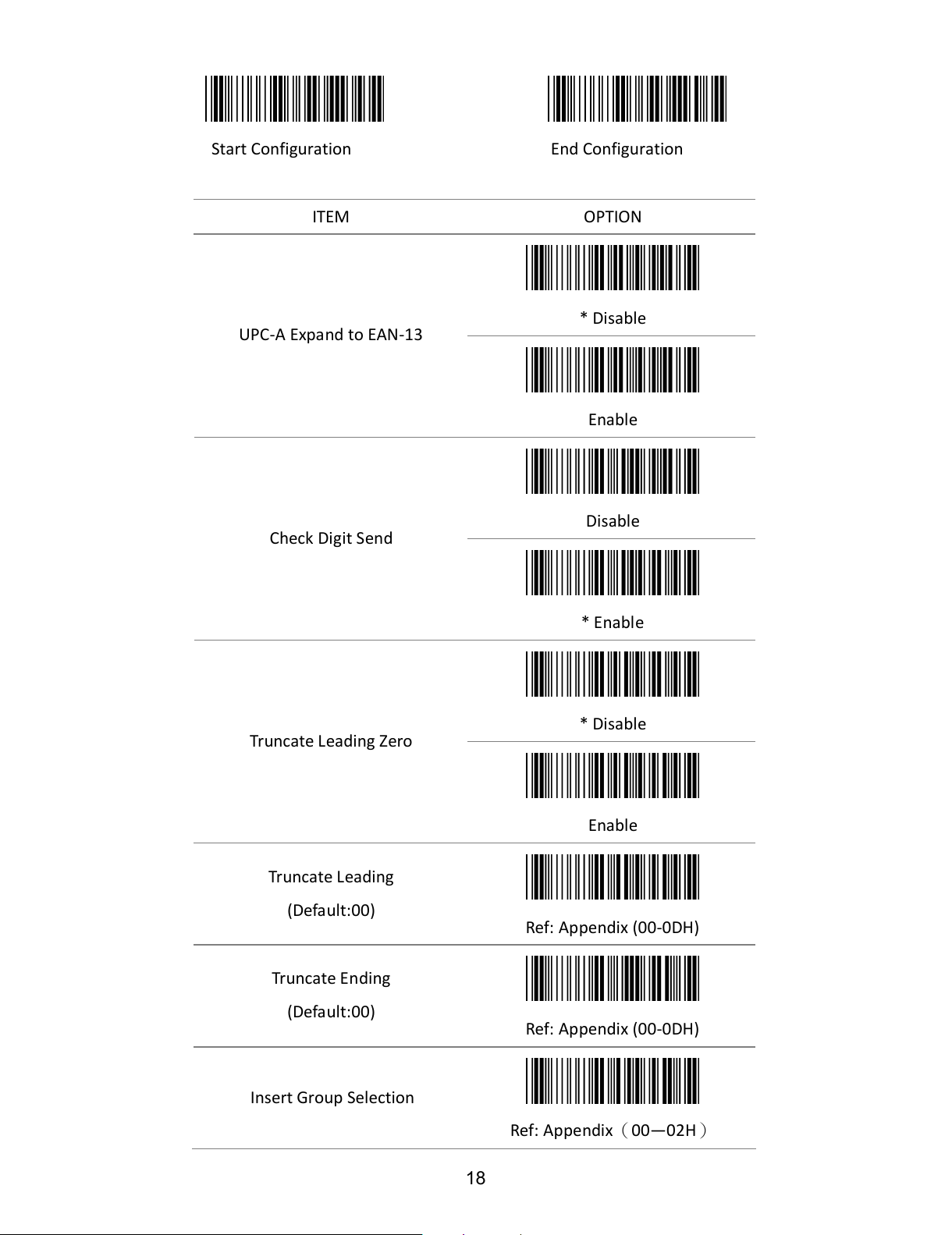

Start Configuration End Configuration
ITEM OPTION
* Disable
UPC-A Expand to EAN-13
Enable
Disable
Check Digit Send
* Enable
* Disable
Truncate Leading Zero
Enable
Truncate Leading
(Default:00)
Ref: Appendix (00-0DH)
Truncate Ending
(Default:00)
Ref: Appendix (00-0DH)
Insert Group Selection
Ref: Appendix（00—02H）
18
All manuals and user guides at all-guides.com

Start Configuration End Configuration
ITEM OPTION
* NONE
2 digits
5 digits
2 or 5digits
Supplement Digits
Auto-discriminate Supplement
19
All manuals and user guides at all-guides.com

3.2 UPC-E
Start Configuration End Configuration
ITEM OPTION
Disable
Read
* Enable
Code ID Setting
(Default : G) Ref: Appendix (20-7EH)
20
