POS-X EVO-TP4 Pro
Manual
More information available at POSMicro.com

USER MANUAL
EVO-TP4
Hardware System
VERSION 1.1 November 2011

ii
Copyright 2011
All Rights Reserved
Manual Version 1.1
Part Number: 3LMPP4850211
The information contained in this document is subject to change without notice.
We make no warranty of any kind with regard to this material, including, but not
limited to, the implied warranties of merchantability and fitness for a particular
purpose. We shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use of
this material.
This document contains proprietary information that is protected by copyright. All
rights are reserved. No part of this document may be photocopied, reproduced
or translated to another language without the prior written consent of the
manufacturer.
TRADEMARK
Intel®, Pentium® and MMX are registered trademarks of Intel® Corporation.
Microsoft® and Windows® are registered trademarks of Microsoft Corporation.
Other trademarks mentioned herein are the property of their respective owners.
Safety
IMPORTANT SAFETY INSTRUCTIONS
To disconnect the machine from the electrical power supply, turn off the power1.
switch and remove the power cord plug from the wall socket. The wall socket must
be easily accessible and in close proximity to the machine.
Read these instructions carefully. Save these instructions for future reference.2.
Follow all warnings and instructions marked on the product.3.
Do not use this product near water.4.
Do not place this product on an unstable cart, stand, or table. The product may fall,5.
causing serious damage to the product.
Slots and openings in the cabinet and the back or bottom are provided for6.
ventilation to ensure reliable operation of the product and to protect it from
overheating. These openings must not be blocked or covered. The openings
should never be blocked by placing the product on a bed, sofa, rug, or other
similar surface. This product should never be placed near or over a radiator or heat
register or in a built-in installation unless proper ventilation is provided.
This product should be operated from the type of power indicated on the marking7.
label. If you are not sure of the type of power available, consult your dealer or local
power company.
Do not allow anything to rest on the power cord. Do not locate this product where8.
persons will walk on the cord.
Never push objects of any kind into this product through cabinet slots as they9.
may touch dangerous voltage points or short out parts that could result in a re or
electric shock. Never spill liquid of any kind on the product.

iii
CE MARK
This device complies with the requirements of the EEC directive 2004/108/EC with
regard to “Electromagnetic compatibility” and 2006/95/EC “Low Voltage Directive”.
FCC
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that
may cause undesired operation.
CAUTION ON LITHIUM BATTERIES
There is a danger of explosion if the battery is replaced incorrectly. Replace only
with the same or equivalent type recommended by the manufacturer. Discard used
batteries according to the manufacturer’s instructions.
Battery Caution
Risk of explosion if battery is replaced by an incorrectly type. Dispose of used
battery according to the local disposal instructions.
Safety Caution
Note: To comply with IEC60950-1 Clause 2.5 (limited power sources, L.P.S)
related legislation, peripherals shall be 4.7.3.2 “Materials for fire enclosure”
compliant.
4.7.3.2Materialsforreenclosures
For MOVABLE EQUIPMENT having a total mass not exceeding 18kg.the material
of a FIRE ENCLOSURE, in the thinnest signi cant wall thickness used, shall be of
V-1 CLASS MATERIAL or shall pass the test of Clause A.2.
For MOVABLE EQUIPMENT having a total mass exceeding 18kg and for all
STATIONARY EQUIPMENT, the material of a FIRE ENCLOSURE, in the thinnest
signi cant wall thickness used, shall be of 5VB CLASS MATERIAL or shall pass the
test of Clause A.1

iv
LEGISLATION AND WEEE SYMBOL
2002/96/EC Waste Electrical and Electronic Equipment Directive on the treatment,
collection, recycling and disposal of electric and electronic devices and their
components.
The crossed dust bin symbol on the device means that it should not be disposed
of with other household wastes at the end of its working life. Instead, the device
should be taken to the waste collection centers for activation of the treatment,
collection, recycling and disposal procedure.
To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product, or their local government office, for details of where and how they can
take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of
the purchase contract.
This product should not be mixed with other commercial wastes for disposal.

v
Revision History
Changes to the original user manual are listed below:
Revision Description Date
1.0 Initial release•November 2010
1.1 C68 MB added•November 2011

vi
Table of Contents
1. PackingList.............................. 1
1-1. Standard Accessories..............................................1
1-2. Optional Accessories ...............................................2
2. System View ............................. 3
2-1. Front & Side View....................................................3
2-2. Rear View with stand...............................................3
2-3. I/O Ports View..........................................................4
2-4. System Dimension...................................................5
3. System Assembly & Disassembly 6
3-1. Stand Disassembly..................................................6
3-2. Power Adapter Replacement...................................6
3-3. HD Replacement .....................................................7
3-4. Open the System.....................................................8
3-5. RAM Replacement ..................................................9
4. Peripheral Installation ............ 10
4-1. MSR Installation .....................................................10
4-2. VFD Installation ...................................................... 11
4-3. Second Display Installation ....................................12
4-4. Wall Mounting Kit Installation .................................13
4-5. Cable Cover Installation .........................................14
4-6. Cash Drawer Installation ........................................15
5. Specications ......................... 17

vii
6. JumperSetting........................ 19
6-1. C48 Motherboard....................................................19
6-1-1. Motherboard Layout ................................................ 19
6-1-2. Connectors & Functions .......................................... 21
6-1-3. Jumper & BIOS/Utility Setting ................................. 22
6-2. B68 Motherboard....................................................27
6-2-1. Motherboard Layout ................................................ 27
6-2-2. Connectors & Functions .......................................... 28
6-2-3. Jumper Setting ........................................................ 29
6-3. C68 Motherboard....................................................32
6-3-1. Motherboard Layout ................................................ 32
6-3-2. Connectors & Functions .......................................... 33
6-3-3. Jumper Setting ........................................................ 34
Appendix: Drivers Installation .... 39

viii
The page is intentionally left blank.

1
PackingList1.
StandardAccessories
1-1.
System (with stand)a.
Driver CDb.
Power adapterc.
Power cordd.
RJ45-DB9 cable (x3)e.
Cable coverf.
a
b
c
d
e
f

2
OptionalAccessories
1-2.
MSR modulea.
VFD module (with RJ-45 cable)b.
Second display (with VGA cable)c.
Wall mount kitd.
a
b
c
d

3
System View2.
Front & Side View
2-1.
Item No. Description
1 Touch screen
2 MSR module (optional)
3 Rugged footprint
4 Ventilation
5 HDD door
Rear View with stand
2-2.
Item No. Description
6 VFD dummy cover
7 MSR dummy cover
1
2
4
3
5
6
7

4
I/O Ports View
2-3.
Item No. Description
a Power button
b Parallel
c VGA out
d USB x 4
e COM 1, 2, 3, 4 (from right to left)
f Line-out
g Cash drawer
h LAN x 2
i Power switch
j DC-IN
k Cable strap
C68 Motherboard
C48 / B68 Motherboard
abcdefghi j k
Item No. Description
a Power button
b 2nd VGA
c Parallel
d USB x 4
e COM 1, 2, 3, 4 (from right to left)
f Line-out
g Mic-in
h Cash drawer
i LAN
j Power switch
k DC-IN
abcdefghijk

5
System Dimension
2-4.
248mm
361mm
337mm

6
System Assembly & Disassembly3.
Stand Disassembly
3-1.
Loosen the thumb screw (x1) and1.
slide the stand towards the IO
panel to release it from the system.
Reverse the steps above to attach2.
stand to the system.
PowerAdapterReplacement
3-2.
Power adapter is secured to the system stand by a holding bracket and screws.
To attach power adapter, please follow the steps below.
Route the cable as shown in the1.
picture.
Connect the cable to the DC-IN2.
port on system IO panel.

7
To remove the HDD from the System
Power the system down.1.
Remove the screw(x1) from the HDD door.2.
Open the HDD door.3.
While pinching the HDD bracket4.
tabs pull the HDD from the
system. For easier removal pull
the plastic puller (see picture) at
the same time.
Please remove the current HDD rst.
Disassemble HDD
To release the HDD from the bracket gently pull it open until the four pins5.
are removed.
HDReplacement
3-3.

8

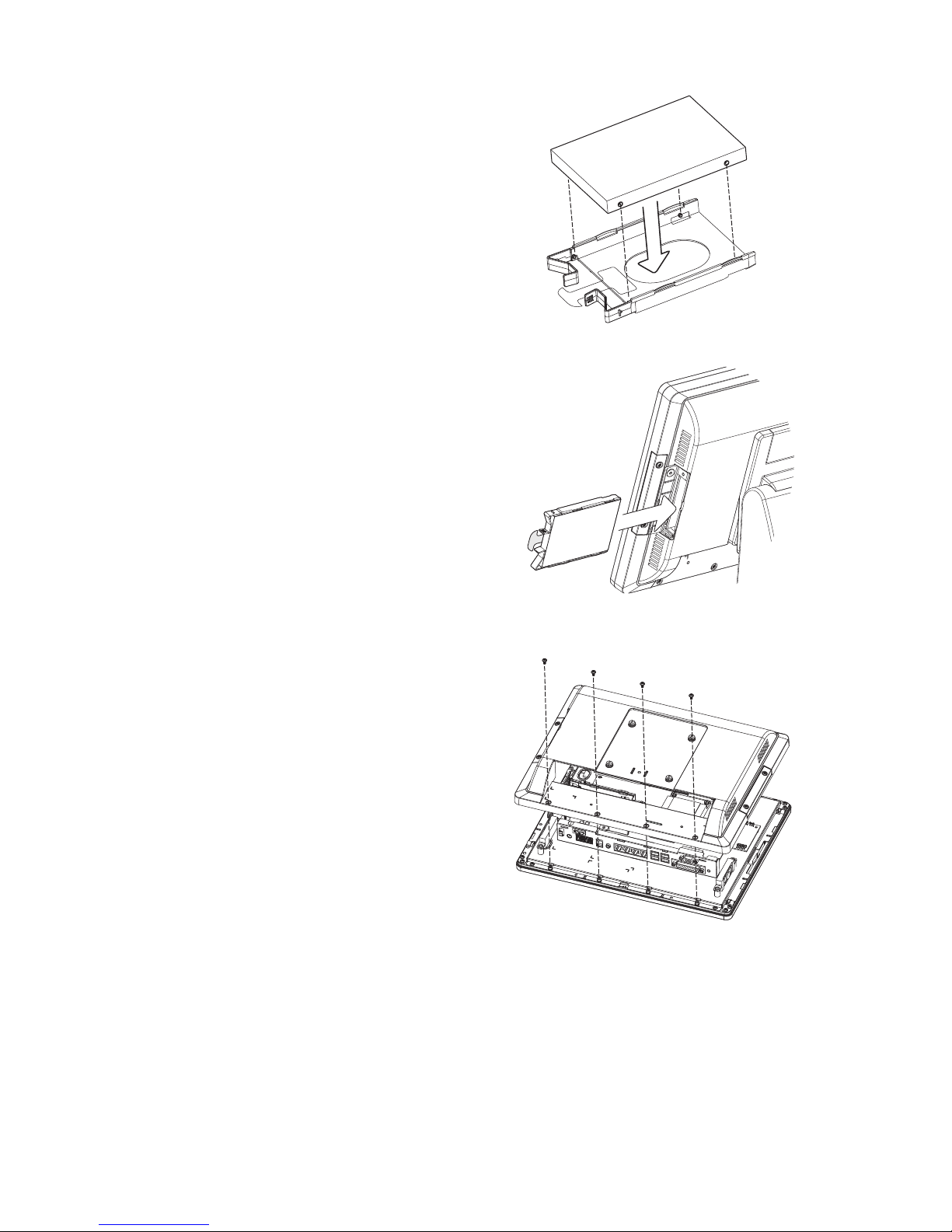

Open the System
3-4.
Place the system face down.1.
Making sure not to scratch the
screen.
Remove the screws (x4) on system2.
rear cover to open the system.
note: If the system is equipped
with a MSR. The MSR must be
removed first.(refer to Chapter
4-1 and reverse the steps to
remove the MSR)
To install a new HDD. Attach the6.
HDD to the bracket until it clicks in
place. Make sure to press the edges
of the drive not the center to avoid
damaging the drive.
Finally slide the HDD into the slot till7.
it clicks.

9
RemovingaRAMmodule
To remove the module pull the3.
ejector clips out of the side of the
module.
Slide the memory out of the slot.4.

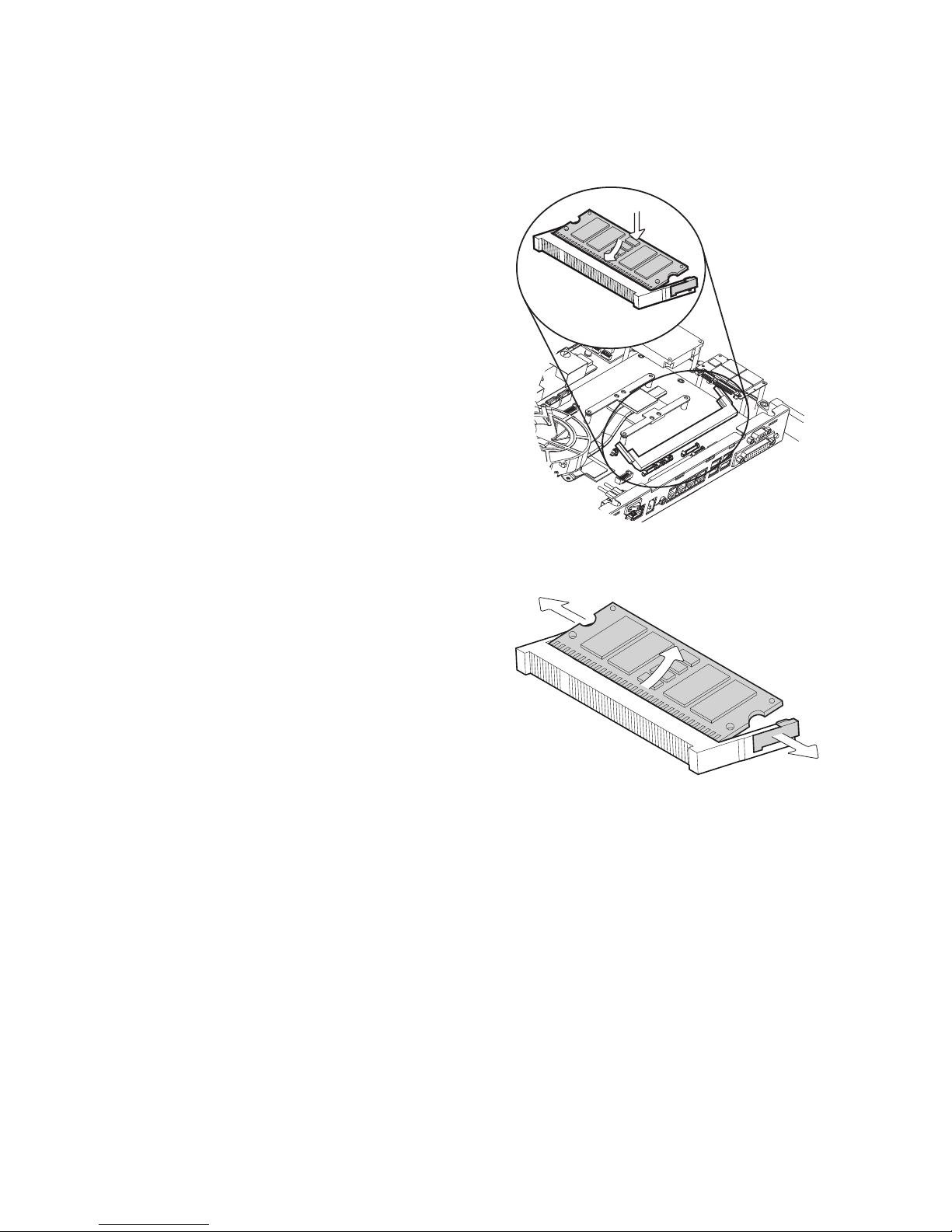

RAMReplacement
3-5.
Follow the steps in Chapter 3-4 to1.
open the system.
The RAM is located on the right2.
side of the system (see picture).
InstallingaRAMmodule
Slide the memory module into the3.
memory slot and press down until
it locks in place.

10
Peripheral Installation4.
MSR Installation
4-1.
Remove the screws (x2) to1.
release the MSR dummy cover.
MSR module can be installed to either side of the system. Choose one side and
follow the steps below. Make sure the unit is powered down before starting.
Connect MSR cable to the2.
connector on system side.
Insert MSR module in place and3.
fasten the screws (x2) on the back
to secure the module.

11

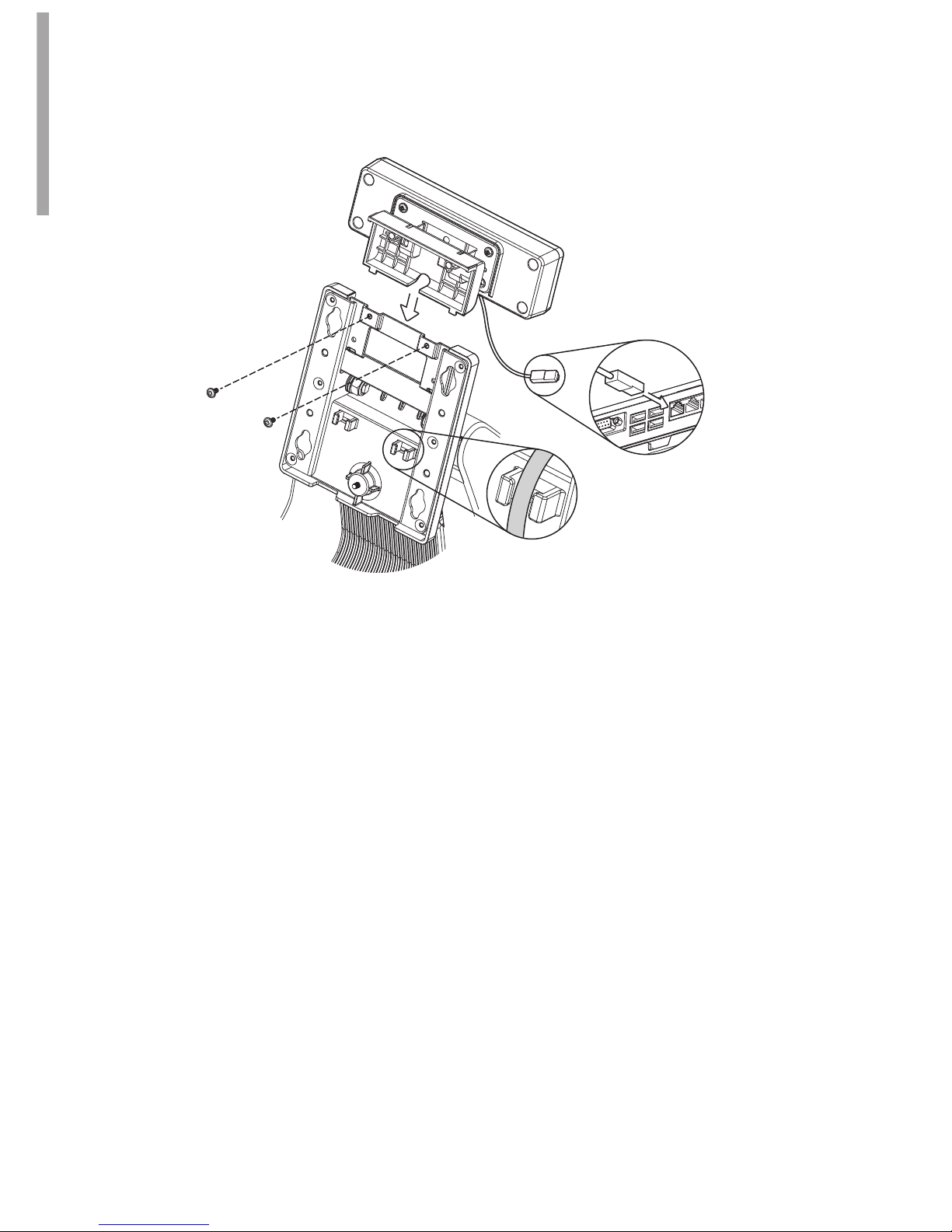

VFD Installation
4-2.
Follow steps in Chapter 3-1 to disassemble the system stand.1.
Attach the VFD module to system by fastening the screws (x2).2.
Route the cable through cable mangement on the system stand.3.
Connect the RJ-45 cable to COM 4 on the systems IO panel. Make sure the4.
system is powered off.
