ILLUSTRATED PARTS LIST
MODEL NO. 96012003101
CUSTOMER CATALOG NO. DB24H42YT
199282 Rev. 1 06.01.05 TR

2
TRACTOR - - MODEL NUMBER DB24H42YT (96012003101)

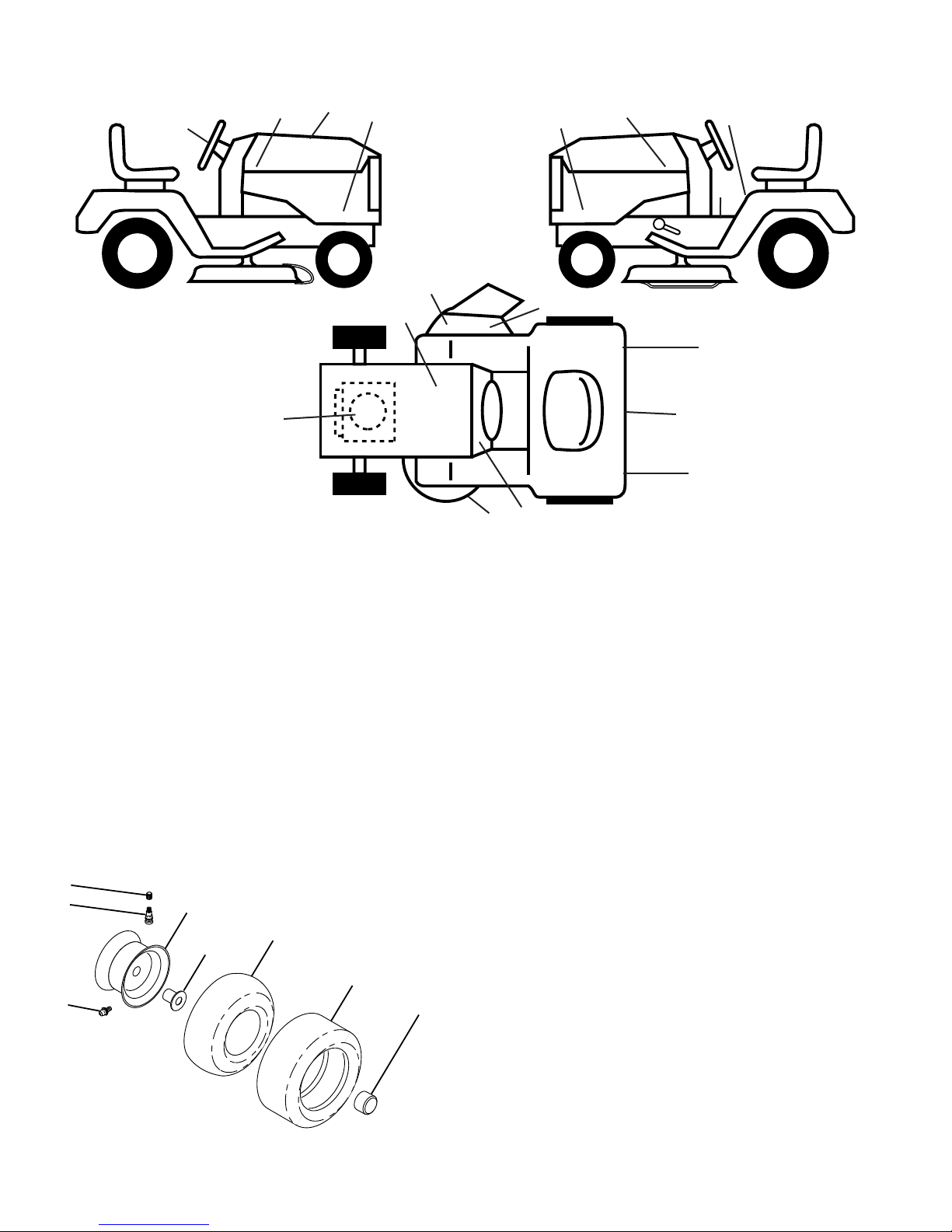

DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
5,8
4,10
3,9
11
7
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
10
5
1 59192 Cap Valve Tire
2 65139 Stem Valve
3 106222X Tire F T 15 x 6 0 - 6 Service
4 59904 Tube Front (Service Item Only)
5 106732X421 Rim Asm 6" Front Service
6 278H Fitting Grease (Front Wheel Only)
7 9040H Bearing Flange (Front Wheel nly)
8 106108X421 Rim Asm 8" Rear Service
9 138468 Tire R T 20 x 8-8 Service
10 7152J Tube Rear (Service Item Only)
11 104757X421 Cap Axle Blk 1 50 x 1 00
- - 144334 Sealant, Tire (10 oz. Tube)
8
23
14
1 187407 Reflector, LH
2 186503 Decal Dash
3 176272 Decal Hood Rh
4 176273 Decal Hood LH
5 172740 Decal Fender Logo
6 170563 Decal Warning, Keep Hand Away
8 179128 Decal Deck "B" 42"
9 195023 Decal Replacement Hood
10 157140 Decal Fender Danger
14 160396 Decal V-Belt Schematic
15 187408 Decal Reflector, RH
18
16 172743 Decal Ins Strg Whl
18 193939 Decal Oper
20 145004 Decal Battery
21 195676 Decal Side Panel Logo
23 191652 Decal Engine
- - 166960 Decal By Pass Lt Hydro
- - 184310X428 Pad Footrest LH
- - 184311X428 Pad Footrest RH
- - 195021 Manual Operator's E&F
- - 199282 Manual Parts E&F
321 4
20
15
1
2
16
9
6
21

3
BATTERY
FUSE
SOLENOID
A M
AMMETER
(OPTIONAL)
HEADLIGHTS
CLUTCH / BRAKE
(PEDAL UP)
PTO
(DISENGAGED)
REVERSE SWITCH
NOT IN REVERSE
ELECTRIC CLUTCH
SEAT SWITCH
(NOT OCCUPIED)
SHORTING CONNECTOR
HOUR
METER
(OPTIONAL)
STARTER
IGNITION SWITCH
BSM
G
LA2
A1
IGNITION
UNIT
SPARK PLUGS
GAP
(2 PLUGS
ON TWIN CYL. ENGINES)
LIGHT SW
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
RED
RED
RED
ORANGE
BROWN
RED RED
WHITE
WHITE
BLACK
GRAY
GRAY
BLACK
BLACK
BLACK
BLACK / WHITE
BLACK
BLACK
BLACK
BLACK
BLACK
BLUE
BLUE
BLACK
(IF SO EQUIPPED)
REMOVABLE
CONNECTIONS
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR BRIGHTEST.
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED CLIPS
WERE REMOVED FOR SERVICING OF
UNIT, THEY SHOULD BE REPLACED
TO PROPERLY SECURE YOUR WIRING.
IGNITION SWITCH
CIRCUITPOSITION
OFF
B+A1
RUN/OVERRIDE
B+S+A1START
M+G+A1
B+A1RUN
“MAKE”
L+A2
NON-REMOVABLE
CONNECTIONS
02833
ALTERNATOR
YELLOW
28 VOLTS AC @ 3600 RPM
(REGULATOR DISCONNECTED)
REGULATOR
CHARGING SYSTEM OUTPUT
16 AMP DC @ 3600 RPM
TRACTOR - - MODEL NUMBER DB24H42YT (96012003101)

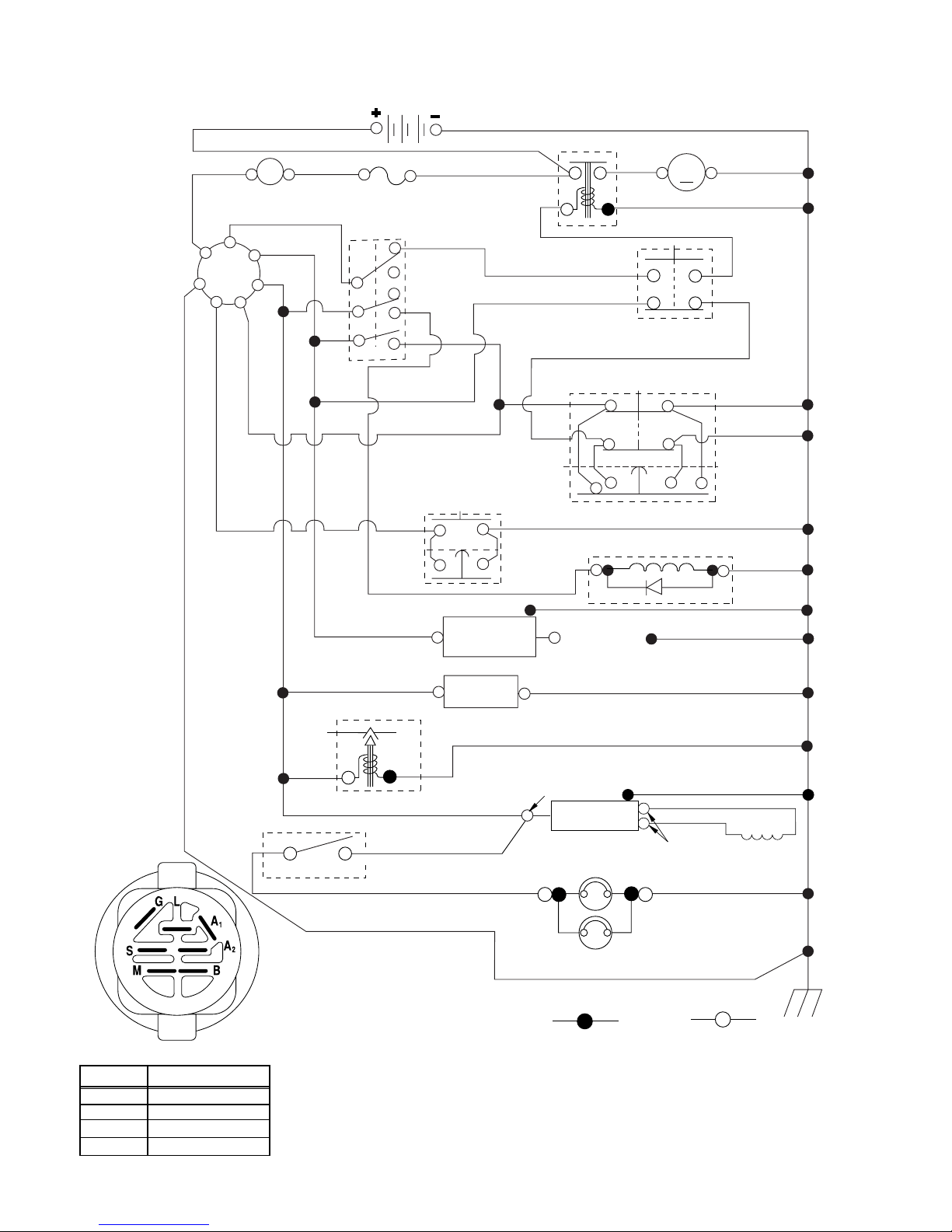

SCHEMATIC

4
TRACTOR - - MODEL NUMBER DB24H42YT (96012003101)

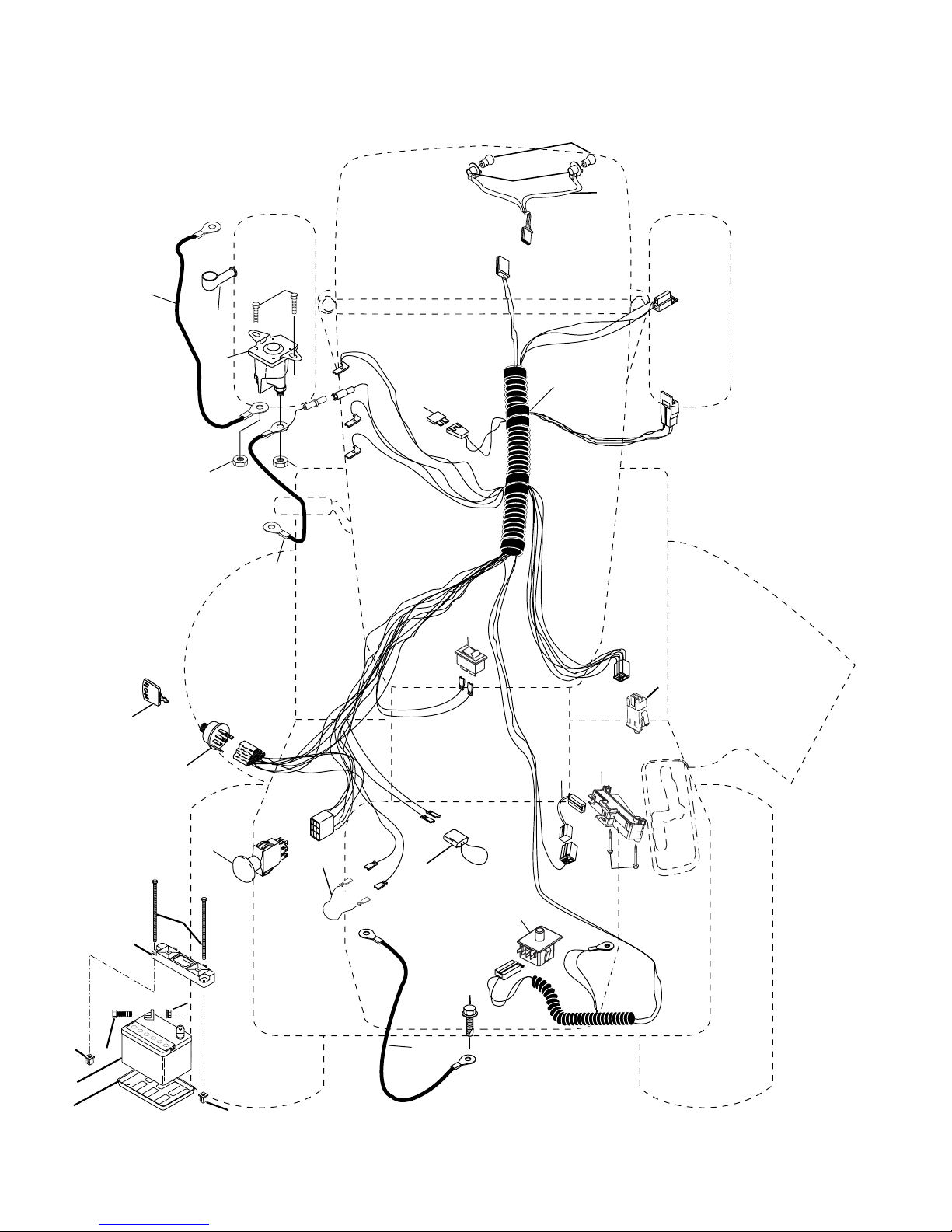

ELECTRICAL
28
29
26
40
33
30
50
24
42
43
25
41
27
27
193389ROS
94
93
92
34
12
12
11
10
8
2
1
27
48
22
79 21
52
16
55

5
TRACTOR - - MODEL NUMBER DB24H42YT (96012003101)
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 144927 Battery
2 74760412 Bolt Hex Hd 1/4-20 unc x 3/4
8 7603J Tray Battery
10 145211 Bolt Battery Front 1/4-20 x 7.5
11 150109 Holddown Battery
12 145769 Nut Push Nylon 1/4
16 176138 Switch Interlock
21 175688 Harness Socket Light
22 4152J Bulb, Light # 1156
24 8860R Cable Battery
25 146148 Cable Battery 6 Ga. Red w/16 wire
26 175158 Fuse
27 73510400 Nut Keps Hex 1/4-20 unc
28 145491 Cable Ground 21" Blk 6 Ga.
29 192749 Switch Seat
30 193350 Switch Ign
33 140401 Key Ign Molded Generic
34 110712X Switch Light/Reset
40 193389 Harness Ign
41 17720408 Bolt Fin Hex 1/4-20 unc x 1/2
42 131563 Cover Terminal Red
43 178861 Solenoid
48 140844 Adapter Ameter
50 174653 Switch PTO
52 141940 Protection Loop
55 17490508 Screw Thdrol 5/16-18 x 1/2
79 175242 Socket Asm Bulb Twistlock
92 193465 Harness Pigtail Reverse Switch
93 192540 Screw Plastite 10-14 x 2.0
94 191834 Module Revers ROS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

6
TRACTOR - - MODEL NUMBER DB24H42YT (96012003101)

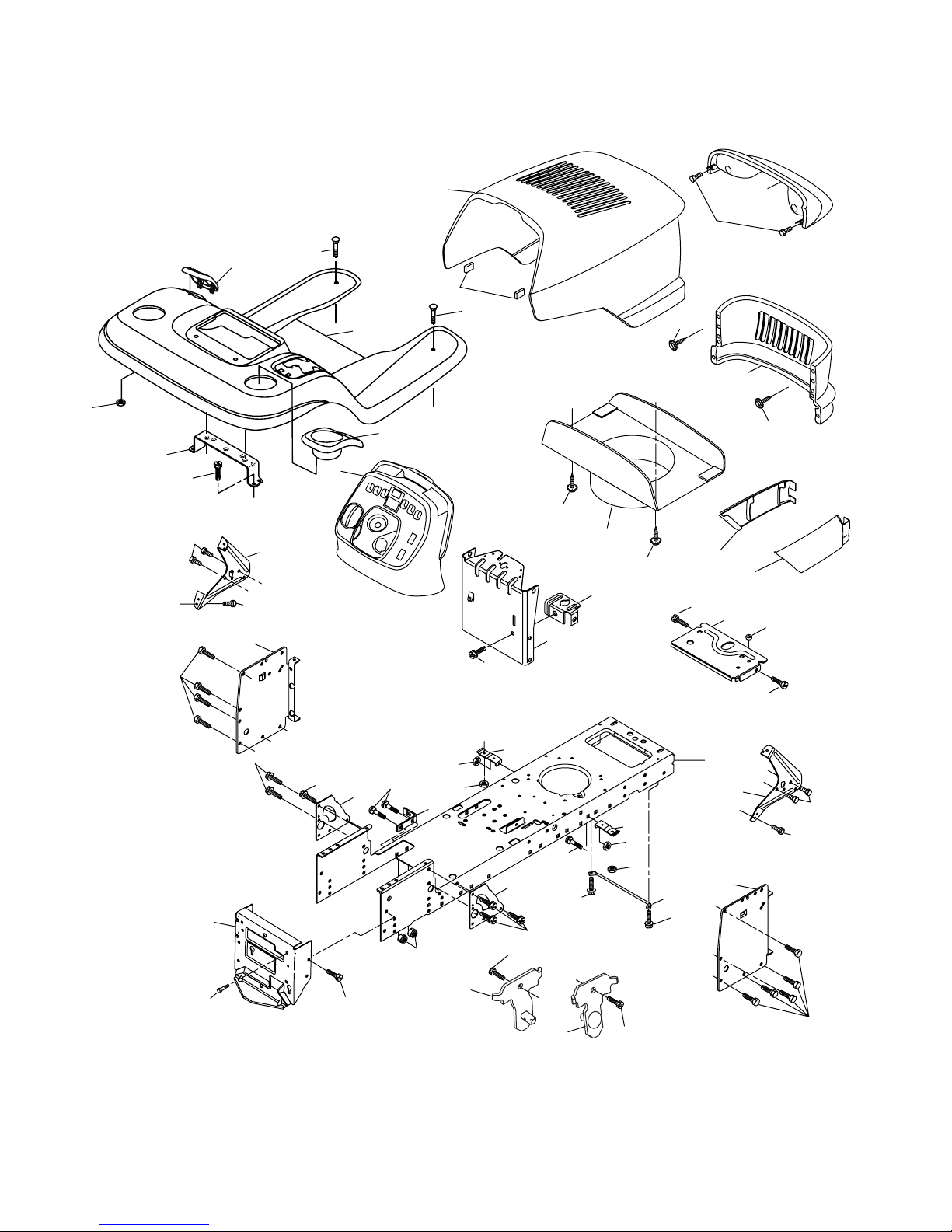

CHASSIS
64
209
158
74
209
13
1
9
26
144
26
209
209
142
209
142
143
60
17 29
145
161
278
37
37
209
11
209
209
20
59
28
278
278
154
209
278
155
278
209
54
58
54
14
14
38
38
213
214
209
2
10
30
209
31
10
90
159
217
chassis-stealth.stlt_27
206
144
26
26
60

7
TRACTOR - - MODEL NUMBER DB24H42YT (96012003101)
CHASSIS
KEY PART
NO. NO. DESCRIPTION
1 174619 Chassis
2 176554 Drawbar
9 193636X428 Dash
10 72140608 Bolt Carriage 3/8-16 x 1
11 167203 Panel Dash Lh
13 178298 Panel Dash Rh
14 17490608 Screw Thdrol 3/8-16 x 1/2
17 175260X428 Hood
20 162026 Plate Battery
26 73800600 Nut Lock Hex W/Ins 3/8-16 unc
28 175289X428 Grille
29 161840 Lens Bar
30 192395X428 Fender Footrest
31 139976 Bracket Fender
37 17490508 Screw Thdrol 6/16-18 x 1/2 TYT
38 175710 Bracket Asm Pivot Mower Rear
54 192512 Screw WSHD Hex 10-32 x 5/8
58 175351 Duct Air
59 187495 Bushing
60 72140606 Bolt RDHD Sqnk 3/8-16 unc x 3/4
64 174997 Dash Lower STLT
74 73680600 Nut Crownlock 3/8-16 unc
90 124346X Nut Self Thd Wsh - HD 1/4 Zinc
142 175702 Plate Reinforcement STLT
143 186689 Bracket Swaybar Chassis
144 175582 Bracket Footrest Step-thru
145 156524 Rod Pivot Chassis/Hood
154 161897 Bracket Dash RH
155 161900 Bracket Dash LH
158 162037 Bracket Parking Brake
159 191120X428 Cupholder
161 164655 Bumper Hood
206 170165 Bolt Shoulder 5/16-18
209 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4
213 169848X428 Skirt Grille LH
214 169847X428 Skirt Grille RH
217 179132X428 Console Fuel Window
278 191611 Screw 10 x 3/4 Single Lead-Hex
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

8
TRACTOR - - MODEL NUMBER DB24H42YT (96012003101)

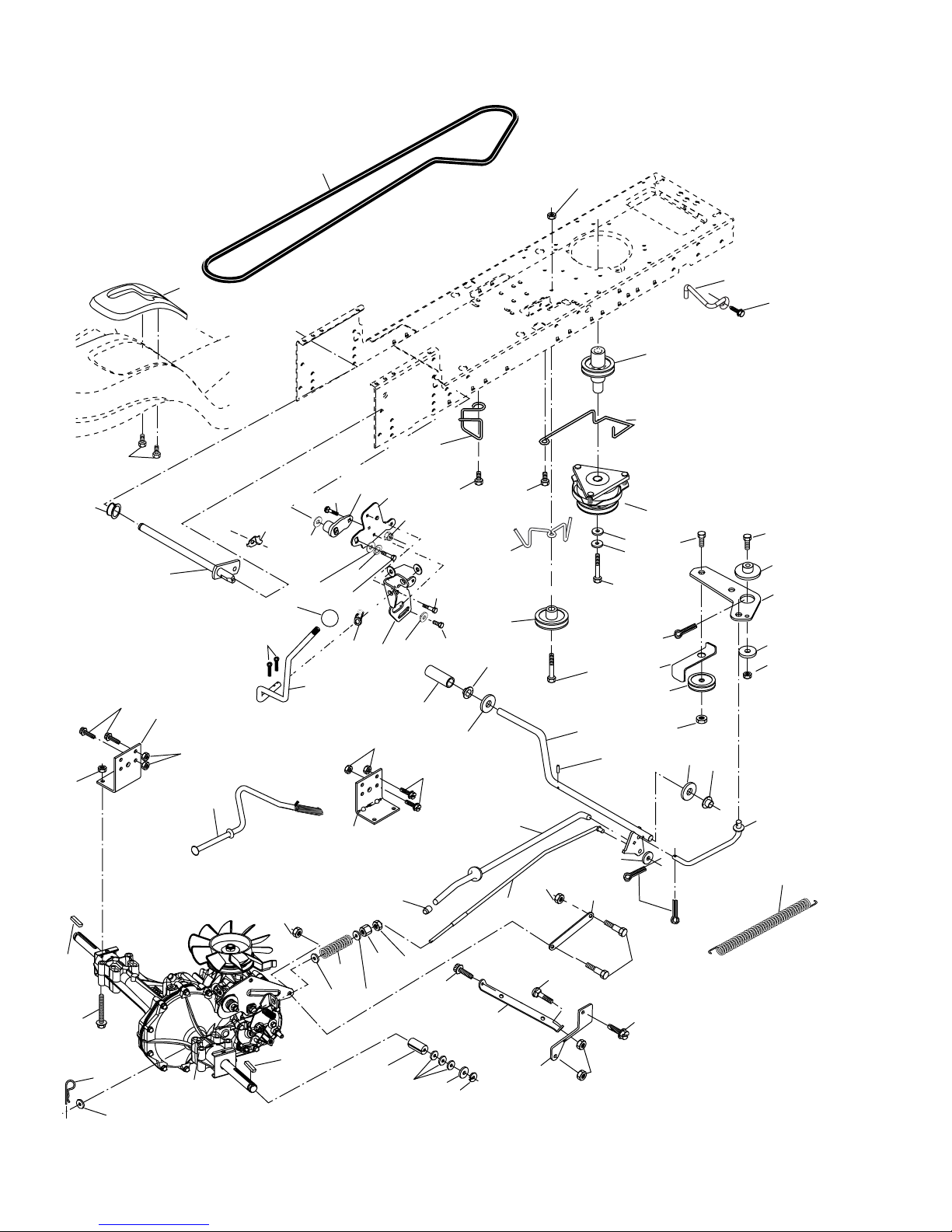

DRIVE
29
28
30
52
32
37
53
35
55
36
62
35
36
22
34
16
1
77
77
84
16
263
71
200
73 16
263
199
32
30
52
57
96
26
25 19 24
26
26
95
76
78
75
74
27
26
59
61
38
41
39
56
9
63
65
17
64
66
15
89
120
27
51
48
150
151
202
49
47
50
120
81
156 166
165
82
168
163
14
112
21
8
10
83
159
161
198
158
162
169
197
16
drive-hydro.stlt_73
23
254
69

9
TRACTOR - - MODEL NUMBER DB24H42YT (96012003101)
DRIVE
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - Transaxle Hydro Gear 314-0510
(Order Parts From Transaxle Manu-
facturer)
8 192502 Rod Shift
9 180505 Clutch Ogura
10 76020416 Pin Cotter 1/8 x 1 CAD
14 10040400 Washer Lock Hvy Helical
15 74490544 Bolt, Hex FLGHD 5/16-18 Gr. 5
16 73800500 Nut Lock Hex W/Ins 5/16-18 unc
17 126197X Washer
19 73800600 Nut Lock Hex W/Wsh 3/8-16 unc
21 106933X Knob
22 169498 Rod, Brake Hydro
23 190736 Bracket Anti Rotation
24 73350600 Nut
25 106888X Spring, Brake Rod
26 19131316 Washer
27 76020412 Pin Cotter 1/8 x 3/4 CAD.
28 175765 Rod, Parking Brake
29 71673 Cap, Parking Brake
30 169592 Bracket, Transaxle
32 74760512 Bolt Hex Hd 5/16-18 unc x 3/4
34 175578 Shaft, Foot Pedal
35 120183X Bearing, Nylon
36 19211616 Washer
37 1572H Pin, Roll
38 179114 Pulley, Composite
39 72110622 Bolt Rdhd 3/8-16 unc x 2-3/4 Gr. 5
41 175556 Keeper, Belt Idler
47 127783 Pulley, Idler, V-Groove
48 154407 Bellcrank Clutch Grnd Drv STL
49 123205X Retainer, Belt
50 72110612 Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5
51 73680600 Nut Crownlock 3/8-16 unc
52 73680500 Nut Crownlock 5/16-18 unc
53 105710X Link, Clutch
55 105709X Spring, Return, Clutch
56 17060620 Screw 3/8-16 x 1-1/4
57 140294 V-Belt, Ground Drive
59 169691 Keeper, Center Span
61 17120614 Screw 3/8-16 x .875
62 123533X Cover, Pedal
63 174607 Pulley, Engine
64 173937 Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 Thr
65 10040700 Washer
66 154778 Keeper Belt Engine
69 142432 Screw Hex Wsh Hi-Lo 1/4 x 1/2 unc
71 169183 Strap Torque Lh Hydro
73 169182 Strap Torque Rh Hydro
74 137057 Spacer, Axle
75 121749X Washer 25/32 x 1-1/4 x 16 Ga.
76 12000001 E-Ring
77 123583X Key, Square
78 121748X Washer 25/32 x 1-5/8 x 16 Ga.
81 165596 Shaft Asm. Cross Hydro
82 165711 Spring Torsion T/A
83 19171216 Washer 17/32 x 3/4 x 16 Ga.
84 169594 Link Transaxle
89 192387X428 Console, Shift
95 170201 Control Asm Bypass Hydro
96 4497H Retainer Spring 1" Zinc/Cad
112 19091210 Washer 9/32 x 3/4 x 10 Ga.
120 73900600 Nut Lock Flg 3/8-16 unc
150 175456 Spacer Retainer
151 19133210 Washer 13/32 x 2 x 10 Ga.
156 166002 Washer Srrted 5/16 ID x 1.125
158 165589 Bracket Shift Mount
159 183900 Hub Shift
161 72140406 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5
162 73680400 Nut Crownlock 1/4-20 unc
163 74780416 Bolt Hex Fin 1/4-20 unc x 1 Gr. 5
165 165623 Bracket Pivot Lever
166 17490510 Screw 5/16-18 x 5/8
168 165492 Bolt Shoulder 5/16-18 x .561
169 165580 Plate Fastening Lt
197 169613 Nyliner Snap-In 5/8" ID
198 169593 Washer Nyl 7/8 ID x .105
199 169612 Bolt Shoulder 5/16-18 unc
200 72140508 Bolt Rdhd Sqnk 5/16-18 unc x 1
202 72110614 Bolt Carr Sh 3/8-16 x 1-3/4 Gr. 5
254 17000616 Screw 3/8-16 x 1
263 17000612 Thdrol Screw 3/8-16 x 3/4
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

10
TRACTOR - - MODEL NUMBER DB24H42YT (96012003101)
STEERING ASSEMBLY
11
5
87
5
87
4
3
43
95
43
8
40
8
6
46
46
8
6
2
68 67
67
67
13
65
68
15
29
29 82
10
38
12
39
1
37
36
37
41
42
88
71
17
29
43
91
steering_stealth_prem_13
32
26
30
28

11
TRACTOR - - MODEL NUMBER DB24H42YT (96012003101)
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 186094X428 Wheel Steering
2 184706 Axle Asm Cast Iron LT
3 169840 Spindle Asm LH
4 169839 Spindle Asm RH
5 6266H Bearing Race Thrust Harden
6 121748X Washer 25/32 x 1-5/8 x 16 Ga.
8 12000029 Ring Klip #t5304-75
10 175121 Link Drag
11 10040600 Washer Lock Hvy Hlcl Spr 3/8
12 73940800 Nut Hex Jam Toplock 1/2-20 unf
13 136518 Spacer Brg Axle Front
15 145212 Nut Hex Flange Lock
17 177883 Shaft Asm Steering
26 126847X Bushing Link Drag
28 19131416 Washer 13/32 x 7/8 x 16 Ga.
29 17000612 Screw 3/8-16 x .75
30 76020412 Pin Cotter 1/8 x 3/4
32 192757 Rod Tie
36 155105 Bushing Strg
37 152927 Screw
38 186095X428 Insert Cap Strg Wh
39 19183811 Washer 9/16 ID x 2-3/8 OD x 11 Ga.
40 73540600 Crownlock nut
41 159945 Adaptor Wheel Strg
42 163888X428 Boot Steering Dash
43 121749X Washer 25/32 x 1 1/4 x 16 Ga.
46 121232X Cap Spindle Fr Top Blk
65 160367 Spacer Brace Axle
67 72110618 Bolt RDHD SQNK 3/8-16 x 2 1/4
68 169827 Axle, Brace
71 175146 Steering Asm
82 169835 Bracket Susp Chassis Front
87 173966 Washer Flat .781 x 1-1/2 x .14
88 175118 Bolt Shoulder 7/16-20 unc
91 175553 Clip Steering
95 188967 Washer Harden .739 x 1.637 x 060
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

12
TRACTOR - - MODEL NUMBER DB24H42YT (96012003101)
SEAT ASSEMBLY
1 189022 Seat
2 140551 Bracket Pivot Seat 8 720
3 71110616 Bolt Fin Hex 3/8-16 unc x 1
4 19131610 Washer 13/32 x 1 x 10 Ga.
5 145006 Clip Push-In
6 73800600 Nut Hex w/Ins. 3/8-16 unc
7 124181X Spring Seat Cprsn 2 250 Blk Zi
8 17000616 Screw 3/8-16 x 1.5 Smgml
9 19131614 Washer 13/32 x 1 x 14 Ga.
10 182493 Pan Seat
11 166369 Knob Seat
12 174648 Bracket Mounting Switch
13 121248X Bushing Snap Blk Nyl 50 Id
14 72050412 Bolt Rdhd Sqnk 1/4-20 x 1-1/2
15 121249X Spacer Split 28x 88
16 123740 Spring Cprsn
17 123976X Nut Lock 1/4 Lge Flg Gr. 5 Zinc
18 124238X Cap Spring Seat
21 171852 Bolt Shoulder 5/16-18 unc
22 73800500 Nut Hex Lock W/Ins 5/16-18
24 19171912 Washer 17/32 x 1-3/16 x 12 Ga.
25 127018X Bolt Shoulder 5/16-18 x 62
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1
24
16
15
12
13
17
25
4
3
8
9
7
8
9
7
18
11
2
6
22
21
5
10
5
14
seat_lt.knob_2

13

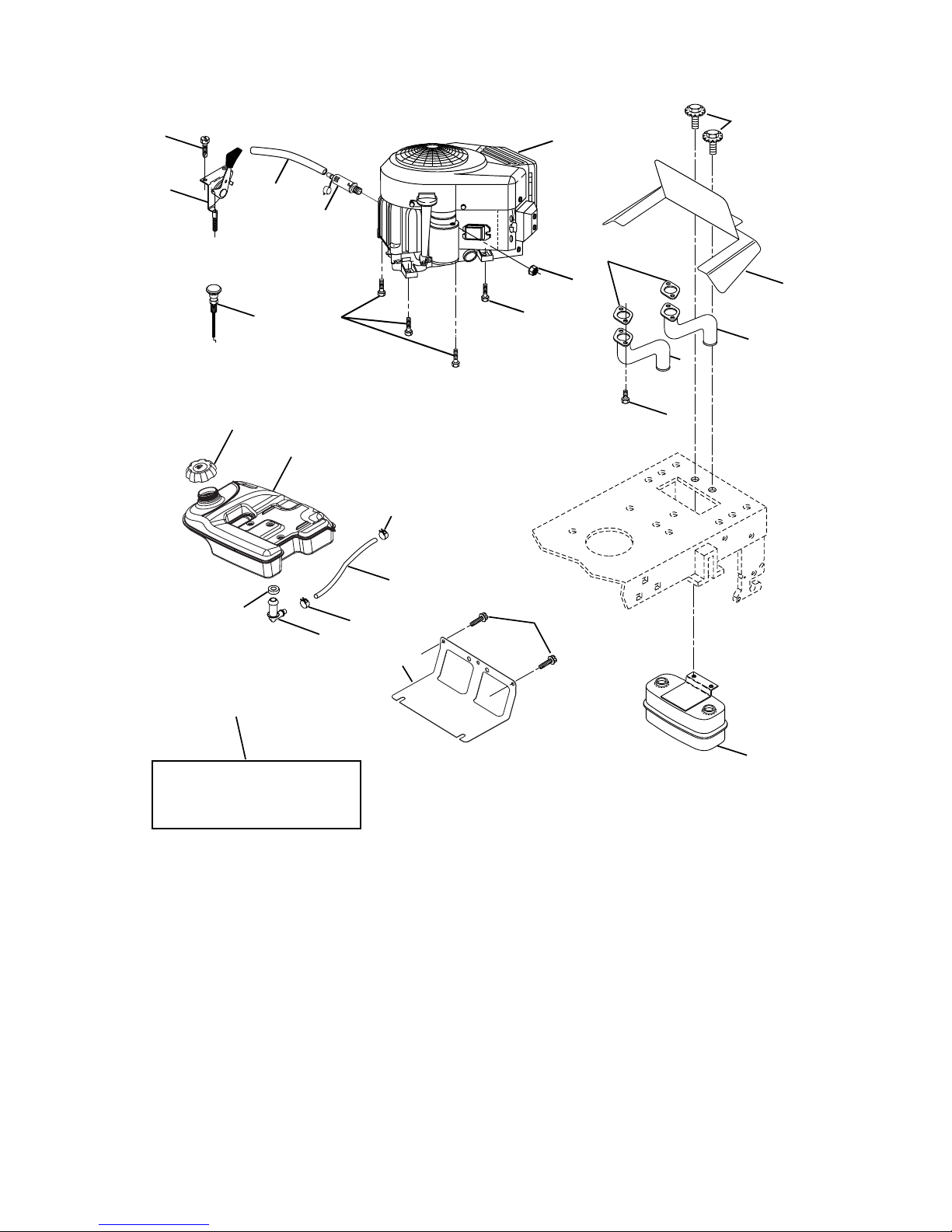

TRACTOR - - MODEL NUMBER DB24H42YT (96012003101)
ENGINE
2
1
OPTIONAL EQUIPMENT
Spark Arrester
29
10
6
5
72
13
25
4
8
23
45
32
31
33
37
33
engine-bs.twin_43
41
112
17 17
3
81
14
38
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Briggs & Stratton 1-800-233-3723
Kohler Co. 1-800-544-2444
Tecumseh Products 1-800-558-5402
Honda Engines 1-800-426-7701
Kawasaki 1-949-460-5688
1 175437X428 Control, Throttle/Choke
2 191611 Screw Hex Single Lead 10 x 3/4
3 - - - - - - - Engine Briggs Model 445677
(Order Parts from Engine Mfg.)
4 149723 Muffler
5 159955 Tube Exhaust LH
6 160589 Tube Exhaust RH
8 171877 Bolt 5/16-18 unc x 3/4 w/Sems
10 162797 Shield Browning
13 165391 Muffler Gasket
14 148456 Tube Oil Drain
17 17060624 Screw 3/8-16 x 1-1/2
23 169837 Shield, Browning/Debris Guard
25 187766X428 Control Choke
29 137180 Arrester, Spark
31 179022 Tank, Fuel
32 179124X428 Cap Gauge, Fuel
33 123487X Clamp, Hose Blk
37 8543R Line, Fuel
38 181654 Plug Drain Oil Easy
41 139277 Stem Tank Fuel
45 17000612 Screw Hex Wsh Thdrol 3/8-16 x 3/4
72 183906 Screw 5/16-18 x 1
81 73510400 Nut Keps Hex 1/4-20 unc
112 3645J Bushing
KEY PART
NO. NO. DESCRIPTION

14
15
14
13
11
10
98
16
68
30
31
32
33
146
148
145
150
184
45
144
54
55
56
34
1
46
44
21
24
25
26
27
2
28
29
23
21
21
21
18
18
20
2
59
19
4
56
21
40
143
36
40
40
159
61
149
118
136
21
139
2
119
117
116
5
21
134
21
5
134
135
136
116
113
117
119
118
2
140
138
113
3
129
92
131
130
92
42_D.elec.t-path.adjwl.stlt_3
TRACTOR - - MODEL NUMBER DB24H42YT (96012003101)
MOWER DECK

15
TRACTOR - - MODEL NUMBER DB24H42YT (96012003101)
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 182032 Mower Deck Assembly, 42"
2 72140506 Bolt
3 138017 Bracket Asm Fr. Sway Bar 3/42
4 165460 Bracket Asm Deck 42" Sway Bar
5 4939M Retainer Spring
6 178024 Bar Sway Deck
8 850857 Bolt 3/8-24 x 1.25 Gr. 8 patched
9 10030600 Washer, Lock
10 140296 Washer, Hardened
(The following Blades are available)
11 138971 Blade Mower 42” Hi-Lift (for bagging
and discharging)
- - 134149 Blade, Mulching 42” Std (for mulch-
ing mowers only)
- - 139775 Blade Mulching 42” Premium (For
better wear when mulching)
13 137645 Shaft Assembly, Mandrel, Vented
14 128774 Housing, Mandrel, Vented
15 110485X Bearing, Ball, Mandrel
16 174493 Stripper, Mandrel Deck
18 72140505 Bolt, Carriage 5/16-18 x 5/8
19 132827 Bolt, Shoulder
20 159770 Baffle, Vortex
21 73680500 Nut
23 177563 Bracket, Deflector Mower 42"
24 105304X Cap, Sleeve 80 x 112 Blk Mower
25 123713X Spring, Torsion, Deflector 2 52
26 110452X Nut, Push Phos & Oil
27 130968X428 Shield, Deflector 42" Blk
28 19111016 Washer 11/32 x 5/8 x 16 Ga.
29 131491 Rod, Hinge 42" 6 75 W/G
30 173984 Screw Thdrol
31 187690 Washer, Spacer Mower Vented
32 173436 Pulley, Mandrel
33 178342 Nut, Toplock
34 72110612 Bolt Carr SH 3/8-16 x 1-1/2 Gr.5
36 173438 Pulley, Idler, Flat
40 73900600 Nut Lock 3/8-16
44 140088 Guard, Mandrel, LH
45 4497H Retainer
46 137729 Screw, Thdrol 1/4-20 x 5/8 T
54 178515 Washer, Hardened
55 155046 Arm, Idler
56 122052X Spacer, Retainer
59 141043 Guard TUV Idler
61 174882 Spring Ext Elect. Clutch
68 174883 V-Belt, 42" Mower
92 73800600 Nut Lock Hex w/Ins. 3/8-16 unc
113 17060512 Screw 5/16-18 x 3/4
116 4898H Bolt, Shoulder
117 188606 Wheel, Gauge
118 73930600 Nut Centerlock 3/8-16
119 19121414 Washer 3/8 x 7/8 x 14 Ga.
129 19131312 Washer 13/32 x 13/16 x 12 Ga.
130 74780616 Bolt Fin HEx 3/8-16 unc x 1 Gr. 5
131 72140608 Bolt RDHD SQNK 3/8-16 unc x 1
134 156941 Pin Head Rivet
135 159765 Bracket Asm. Whl Ga. R LH
136 155986 Bar Adjusting Gauge Wheel
138 159763 Bracket Asm Whl Ga. R RH
139 159767 Bracket Asm. Whl Ga. F RH
140 159768 Bracket Asm Whl Ga. F LH
143 157109 Bracket Arm Idler 42"
144 173441 Keeper Belt 42" Clutch Cable
145 173437 Pulley Idler Flat
146 173443 Bolt Carriage Idler
148 169022 Spring Return Idler
149 165898 Retainer Spring Yellow
150 19091210 Washer 9/32 x 3/4 x 10 Ga.
159 72140614 Bolt Rdhd Sqn 3/8-16 unc x 1-3/4
184 19131410 Washer 13/32 x 7/8 x 10 Ga.
- - 130794 Mandrel Assembly (Includes Hous-
ing Shaft and Shaft Hardware Only
- Pulley Not Included)
- - 181542 Replacement Mower, Complete
(Std. deck Order separately gauge
wheel componants Key Nos. 116-
119)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

16
TRACTOR - - MODEL NUMBER DB24H42YT (96012003101)
MOWER LIFT
36
15
20
1617 18 20
20
15
20
4
5
6
2
3
1
6
5
4
7
37
41
40
38
12
11
31
32
31
32
19
19
13
13
13
13
23
24
25
27
28
29
30
50
26
49
lift-rh.1pc.stlt_12
1 197981 Plunger Asm.
2 198070 Shaft Asm Lift RH w/Inf
3 188822 Pin Groove 2"
4 12000002 E Ring #5133-62
5 19211621 Washer 21/32 x 1 x 21 Ga.
6 120183X Bearing Nylon Blk 629 Id
7 175830 Grip Handle
11 139865 Link Lift LH Fixed Length
12 139866 Link Lift RH Fixed Length
13 4939M Retainer Spring
15 173288 Link Front
16 73350800 Nut Jam Hex 1/2-13 unc
17 175689 Trunnion
18 73800800 Nut Lock W/Wsh 1/2-13 unc
19 139868 Arm Suspension Rear
20 194209 Pin Cotter 7/16 Bow Tie Lock
23 110807X Nut Special
24 19131016 Washer 13/32 x 5/8 x 16 Ga.
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
25 164024 Spring Infin. Height
26 169484 Retainer Clip
27 164543 Rod Adjust Lift
28 73350600 Nut Hex Jam 3/8-16 unc
29 138057 Knob Infin. 3/8-16 unc
30 150233 Trunnion Infi. Height
31 169865 Bearing Pvt Lift
32 73540600 Nut Crownlock 3/8 - 24
36 155097 Pointer Height Indicator
37 123935X Plug Hole Blk 1.485/1.515 Dia.
38 17060516 Screw 5/16-18 x 1
40 19112410 Washer 11/32 x 1-1/2 10 Ga.
41 155098 Indicator Height STLT
49 145212 Nut Hexflange Lock
50 110452X Nut Push
KEY PART
NO. NO. DESCRIPTION
