Poulan Pro PB195A46LT User manual

OPERATOR’S MANUAL
MODEL:
PB195A46LT
LAWN TRACTOR
ALWAYS WEAR EYE PROTECTION DURING OPERATION
Visit our website: www.poulanpro.com
WARNING:
Read this Manual and follow all Warnings
and Safety Instructions. Failure to do so
can result in serious injury.
IMPORTANT MANUAL DO NOT THROW AWAY
Gasoline containing up to 10% ethanol (E10) is acceptable for use in this machine.
The use of any gasoline exceeding 10% ethanol (E10) will void the product warranty.
11.05.12 TH
115 53 15-27 Printed in the U.S.A.

2
SAFETY RULES
Safe Operation Practices for Ride-On Mowers
DANGER: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE
TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.
• Never leave a running machine unattended. Always turn
off blades, set parking brake, stop engine, and remove
keys before dismounting.
• Disengage blades when not mowing. Shut off engine
and wait for all parts to come to a complete stop before
cleaning the machine, removing the grass catcher, or
unclogging the discharge chute.
• Operate machine only in daylight or good artificial light.
• Do not operate the machine while under the influence of
alcohol or drugs.
• Watchfortraffic whenoperating nearor crossingroadways.
• Use extra care when loading or unloading the machine
into a trailer or truck.
• Always wear eye protection when operating machine.
• Data indicates that operators, age 60 years and above,
are involved in a large percentage of riding mower-related
injuries. These operators should evaluate their ability to
operate the riding mower safely enough to protect them-
selves and others from serious injury.
• Follow the manufacturer's recommendation for wheel
weights or counterweights.
• Keepmachinefreeof grass,leavesorotherdebris build-up
which can touch hot exhaust / engine parts and burn. Do
not allow the mower deck to plow leaves or other debris
which can cause build-up to occur. Clean any oil or fuel
spillage before operating or storing the machine. Allow
machine to cool before storage.
II. SLOPE OPERATION
Slopes are a major factor related to loss of control and tip-
over accidents, which can result in severe injury or death.
Operation on all slopes requires extra caution. If you cannot
back up the slope or if you feel uneasy on it, do not mow it.
• Mow up and down slopes, not across.
• Watch for holes, ruts, bumps, rocks, or other hidden ob-
jects. Uneven terrain could overturn the machine. Tall
grass can hide obstacles.
• Choose a low ground speed so that you will not have to
stop or shift while on the slope.
• Do not mow on wet grass. Tires may lose traction.
Alwayskeepthemachinein gearwhengoing downslopes.
Do not shift to neutral and coast downhill.
• Avoid starting, stopping, or turning on a slope. If the tires
lose traction, disengage the blades and proceed slowly
straight down the slope.
• Keep all movement on the slopes slow and gradual. Do
not make sudden changes in speed or direction, which
could cause the machine to roll over.
• Use extra care while operating machine with grass catch-
ers or other attachments; they can affect the stability of
the machine. Do no use on steep slopes.
• Do not try to stabilize the machine by putting your foot on
the ground.
• Do not mow near drop-offs, ditches, or embankments.
The machine could suddenly roll over if a wheel is over
the edge or if the edge caves in.
I. GENERAL OPERATION
• Read, understand, and follow all instructions on the ma-
chine and in the manual before starting.
• Do not put hands or feet near rotating parts or under the
machine. Keep clear of the discharge opening at all times.
• Only allow responsible adults, who are familiar with the
instructions, to operate the machine.
• Clear the area of objects such as rocks, toys, wire, etc.,
which could be picked up and thrown by the blades.
• Ensure the area is clear of bystanders before operating.
Stop machine if anyone enters the area.
• Never carry passengers.
• Do not mow in reverse unless absolutely necessary.
Always look down and behind before and while backing.
• Never direct discharged material toward anyone. Avoid
dischargingmaterialagainst awallor obstruction.Material
may ricochet back toward the operator. Stop the blades
when crossing gravel surfaces.
• Do not operate machine without the entire grass catcher,
discharge chute, or other safety devices in place and
working.
• Slow down before turning.
WARNING: In order to prevent accidental
starting when setting up, transporting,
adjustingormakingrepairs, always discon-
nect spark plug wire and place wire where
it cannot contact spark plug.
WARNING
Engineexhaust,someofits constituents,andcertain
vehicle components contain or emit chemicals
known to the State of California to cause cancer
and birth defects or other reproductive harm.
WARNING
Battery posts, terminals and related accessories
containleadand leadcompounds,chemicalsknown
to the State of California to cause cancer and birth
defects or other reproductive harm. Wash hands
after handling.
WARNING: Do not coast down a hill in neut-
ral, you may lose control of the tractor.
WARNING: Tow only the attachments that
are recommended by and comply with
specifications of the manufacturer of your
tractor. Use common sense when towing.
Operate only at the lowest possible speed
when on a slope. Too heavy of a load, while
on a slope, is dangerous. Tires can lose
traction with the ground and cause you to
lose control of your tractor.

3
SAFETY RULES
Safe Operation Practices for Ride-On Mowers
• Ensure the area is clear of bystanders before operating.
Stop machine if anyone enters the area.
• Never carry passengers.
• Do not mow in reverse unless absolutely necessary.
Always look down and behind before and while backing.
• Never carry children, even with the blades shut off. They
may fall off and be seriously injured or interfere with safe
machine operation. Children who have been given rides
in the past may suddenly appear in the mowing area
for another ride and be run over or backed over by the
machine.
• Keep children out of the mowing area and in the watchful
care of a responsible adult other than the operator.
• Be alert and turn machine off if a child enters the area.
• Before and while backing, look behind and down for small
children.
• Mow up and down slopes (15° Max), not across.
• Choose a low ground speed so that you will not have to
stop or shift while on the slope.
• Avoid starting, stopping, or turning on a slope. If the tires
lose traction, disengage the blades and proceed slowly
straight down the slope.
• If machine stops while going uphill, disengage blades,
shift into reverse and back down slowly.
• Do not turn on slopes unless necessary, and then, turn
slowly and gradually downhill, if possible.
• When loading or unloading this machine, do not exceed
the maximum recommended operation angle of 15°.
III. CHILDREN
WARNING. CHILDRENCANBEINJUREDBY
THIS EQUIPMENT. The American Academy
ofPediatricsrecommendsthatchildren bea
minimum of 12 year of age before operating
a pedestrian controlled lawn mower and a
minimumof16yearsofage beforeoperating
a riding lawn mower.
Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the ma-
chine and the mowing activity. Never assume that children
will remain where you last saw them.
• Keep children out of the mowing area and in the watchful
care of a responsible adult other than the operator.
• Be alert and turn machine off if a child enters the area.
• Before and while backing, look behind and down for small
children.
• Never carry children, even with the blades shut off. They
may fall off and be seriously injured or interfere with safe
machine operation. Children who have been given rides
in the past may suddenly appear in the mowing area for
anotherride andberunoverorbackedoverbythemachine.
• Never allow children to operate the machine.
• Use extra care when approaching blind corners, shrubs,
trees, or other objects that may block your view of a child.
IV. TOWING
• Tow only with a machine that has a hitch designed for
towing. Do not attach towed equipment except at the hitch
point.
• Follow the manufacturer's recommendation for weight
limits for towed equipment and towing on slopes.
• Never allow children or others in or on towed equipment.
• On slopes, the weight of the towed equipment may cause
loss of traction and loss of control.
• Travel slowly and allow extra distance to stop.
V. SERVICE
SAFE HANDLING OF GASOLINE
To avoid personal injury or property damage, use extreme
care in handling gasoline. Gasoline is extremely flammable
and the vapors are explosive.
• Extinguish all cigarettes, cigars, pipes, and other sources
of ignition.
• Use only approved gasoline container.
• Neverremovegascapor add fuel with the enginerunning.
Allow engine to cool before refueling.
• Never fuel the machine indoors.
• Never store the machine or fuel container where there
is an open flame, spark, or pilot light such as on a water
heater or other appliances.
• Never fill containers inside a vehicle or on a truck or
trailer bed with plastic liner. Always place containers on
the ground away from your vehicle when filling.
• Remove gas-powered equipment from the truck or trailer
and refuel it on the ground. If this is not possible, then
refuel such equipment with a portable container, rather
than from a gasoline dispenser nozzle.
• Keep the nozzle in contact with the rim of the fuel tank or
container opening at all times until fueling is complete.
Do not use a nozzle lock-open device.
• If fuel is spilled on clothing, change clothing immediately.
• Never overfill fuel tank. Replace gas cap and tighten
securely.
GENERAL SERVICE
• Never operate machine in a closed area.
• Keep all nuts and bolts tight to ensure the equipment is
in safe working condition.
• Never tamper with safety devices. Check their proper
operation regularly.
• Keep machine free of grass, leaves, or other debris build-
up. Clean oil or fuel spillage and remove any fuel-soaked
debris. Allow machine to cool before storing.
• Ifyoustrike aforeignobject,stop andinspectthe machine.
Repair, if necessary, before restarting.
• Never make any adjustments or repairs with the engine
running.
• Checkgrasscatcher componentsandthe dischargechute
frequentlyandreplace withmanufacturer'srecommended
parts, when necessary.
• Mower blades are sharp. Wrap the blade or wear gloves,
and use extra caution when servicing them.
• Check brake operation frequently. Adjust and service as
required.
• Maintain or replace safety and instruction labels, as nec-
essary.

4
TABLE OF CONTENTS
SAFETY RULES ......................................................... 2-3
PRODUCT SPECIFICATIONS....................................... 4
CUSTOMER RESPONSIBILITIES................................. 4
ASSEMBLY.................................................................6-8
OPERATION ............................................................. 9-14
MAINTENANCE SCHEDULE ...................................... 15
MAINTENANCE .....................................................15-16
SERVICE AND ADJUSTMENTS............................ 17-25
STORAGE.................................................................... 26
TROUBLESHOOTING............................................ 27-28
WARRANTY................................................................. 30
CONGRATULATIONS on your purchase of a new tractor.
It has been designed, engineered and manufactured to
give you the best possible dependability and performance.
Should you experience any problem you cannot easily
remedy, please contact your nearest authorized service
center/department. Wehavecompetent,well-trainedtechni-
cians and the proper tools to service or repair this tractor.
Please read and retain this manual. The instructions will
enable you to assemble and maintain your tractor properly.
Always observe the “SAFETY RULES”.
CUSTOMER RESPONSIBILITIES
• Read and observe the safety rules.
• Follow a regular schedule in maintaining, caring for
and using your tractor.
• FollowtheinstructionsintheMaintenanceandStorage
sections of this manual.
• Wear proper Personal Protective Equipment (PPE)
while operating this machine, including (at a minimum)
sturdyfootwear,eyeprotection, andhearingprotection.
Do not mow in shorts and/or open toed footwear.
• Always let someone know you are outside mowing.
WARNING: This tractor is equipped with an internal
combustion engine and should not be used on or near
any unimproved forest-covered, brush-covered or grass-
covered land unless the engine’s exhaust system is
equipped with a spark arrester meeting applicable local
or state laws (if any). If a spark arrester is used, it should
be maintained in effective working order by the operator.
A spark arrester for the muffler is available through your
nearest authorized service center/department.
In the state of California the above is required by law
(Section 4442 of the California Public Resources Code).
Other states may have similar laws. Federal laws apply
on federal lands.
PRODUCT SPECIFICATIONS
Gasoline Capacity
and type: 1.5 Gallons/5,67 L Regular Unleaded
Oil Type:
(API: SG-SL) SAE 30 (above 32°F/0°C) SAE 5W30 (below 32°F/0°C)
Oil Capacity: W/Filter: 56 Oz./1,65 L
W/out Filter: 48 Oz./1,4 L
Spark Plug: Champion RC12YC
(Gap: .030"/0.76 mm)
Charging
System: 3 Amps Battery 5 Amps Headlights
Battery: Amp/Hr: 18
Min. CCA: 230
Case size: U1R
Blade Bolt Torque: 45-55 Ft. Lbs./62-75 Nm

5
UNASSEMBLED PARTS
Steering Wheel
Steering
Wheel
Seat
(1) Seat
Steering Boot
Steering
Extension
Shaft
Steering Wheel
Adapter
Key(s)
Slope Sheet
(1) Hex Bolt
(1) Lock
Washer
(1) Large
Flat Washer
Steering
Wheel Insert
(1) Knob
(1) Cup Washer

6
TOREMOVETRACTORFROMCARTON
UNPACK CARTON
• Remove all accessible loose parts and parts cartons
from carton.
• Cut along dotted lines on all four panels of carton.
Remove end panels and lay side panels flat.
• Check for any additional loose parts or cartons and
remove.
BEFORE REMOVING TRACTOR FROM
SKID
TO CHECK BATTERY (See Fig. 1)
• Lift seat to raised position.
NOTE: If this battery is put into service after month and
year indicated on label (label is located between terminals)
charge battery for minimum of one hour at 6-10 amps.
(See "BATTERY" in Maintenance section of this manual
for charging instructions.)
• For battery and battery cable installation see
"REPLACING BATTERY" in the Service and Adjust-
ments section in this manual.
Fig. 1
Fig. 2
LABEL
ASSEMBLY
TOOLS REQUIRED FOR ASSEMBLY
A socket wrench set will make assembly easier. Standard
wrench sizes are listed.
(1) 5/16" wrench Utility knife
(2) 7/16" wrenches Tire pressure gauge
(2) 1/2" wrenches Pliers
(1) 9/16" wrench
Whenrightorlefthand is mentionedinthismanual,itmeans
when you are in the operating position (seated behind the
steering wheel).
TO INSTALL STEERING WHEEL (See Fig. 2)
ASSEMBLE EXTENSION SHAFT AND BOOT
• Slide extension shaft onto lower steering shaft.
• Place tabs of steering boot over tab slots in dash and
push down to secure.
INSTALL STEERING WHEEL
• Position front wheels of the tractor so they are pointing
straight forward.
• Remove steering wheel adapter from steering wheel
and slide adapter onto steering shaft extension.
• Position steering wheel so cross bars are horizontal
(left to right) and slide inside boot and onto adapter.
• Assemble large flat washer, lock washer, hex bolt and
tighten securely.
• Snapsteeringwheel insertintocenterofsteering wheel.
• Remove protective materials from tractor hood and
grill.
IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES IN
SKID THAT MAY PUNCTURE TIRES WHERE TRACTOR IS TO
ROLL OFF SKID.
LOWER
STEERING
SHAFT
STEERING
BOOT
EXTENSION
SHAFT
STEERING
WHEEL
INSERT
ADAPTER
BOLT
LOCK
WASHER LARGE
FLAT
WASHER
Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes.
To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use
the correct tools as necessary to ensure proper tightness.

7
ASSEMBLY
CHECK TIRE PRESSURE
The tires on your tractor were overinflated at the factory
for shipping purposes. Correct tire pressure is important
for best cutting performance.
• Reduce tire pressure to PSI shown on tires.
CHECK DECK LEVELNESS
For best cutting results, mower housing should be
properly leveled. See “TO LEVEL MOWER HOUSING” in
the Service and Adjustments section of this manual.
CHECK FOR PROPER POSITION OF BELTS
See the figures that are shown for replacing motion and
mower blade drive belts in the Service and Adjustments
sectionofthismanual. Verifythatthebeltsareroutedcorrectly.
CHECK BRAKE SYSTEM
Afteryoulearnhowtooperate your tractor, check to see that
the brake is operating properly. See “TO CHECK BRAKE”
in the Service and Adjustments section of this manual.
NOTE: You may now roll your tractor off the skid. Follow
the instructions below to remove the tractor from the skid.
WARNING: Before starting, read, understand and
followallinstructions in theOperationsectionof thismanual.
Ensure tractor is in a well-ventilated area. Ensure the area
in front of tractor is clear of other people and objects.
TOROLL TRACTOROFF SKID (SeeOperation
section for location and function of controls)
• Raise attachment lift lever to its highest position.
• Releaseparkingbrakebydepressingclutch/brakepedal.
• Place freewheel control in "transmission disengaged"
position (See “TO TRANSPORT” in the Operation
section of this manual).
• Roll tractor forward off skid.
• Removebandingholdingthe deflectorshieldupagainst
tractor.
Continue with the instructions that follow.
Fig. 3
ADJUSTMENT
KNOB
CUP WASHER
03035
03036
SEAT
PAN
PADS
INSTALL SEAT (See Fig. 3)
Adjust seat before tightening adjustment knob.
• Remove adjustment knob and cup washer securing
seat to cardboard packing and set aside.
• Remove seat from the cardboard packing and set seat
aside. Remove the cardboard packing and discard.
• Place seat on seat pan so all three (3) bottom pads
are positioned over large slotted holes in pan.
• Push down on seat to engage pads in slots and pull
seat towards rear of tractor.
• Pivot seat and pan forward and assemble adjustment
knob and cup washer loosely. Do not tighten.
• Lower seat into operating position and sit in seat.
• Slide seat until a comfortable position is reached which
allowsyoutopress clutch/brake pedalallthewaydown.
• Get off seat without moving its adjusted position.
• Raise seat and tighten adjustment knob securely.

8
ASSEMBLY
✓CHECKLIST
BEFORE YOU OPERATE YOUR NEW TRACTOR, WE
WISH TO ASSURE THAT YOU RECEIVE THE BEST
PERFORMANCE AND SATISFACTION FROM THIS
QUALITY PRODUCT.
PLEASE REVIEW THE FOLLOWING CHECKLIST:
✓All assembly instructions have been completed.
✓No remaining loose parts in carton.
✓Battery is properly prepared and charged.
✓Seat is adjusted comfortably and tightened securely.
✓All tires are properly inflated. (For shipping purposes,
the tires were overinflated at the factory).
✓Be sure mower deck is properly leveled side-to-side/
front-to-rear for best cutting results. (Tires must be
properly inflated for leveling).
✓Check mower and drive belts. Be sure they are routed
properly around pulleys and inside all belt keepers.
✓Check wiring. See that all connections are still secure
and wires are properly clamped.
✓Before driving tractor, be sure freewheel control is in
“transmission engaged” position (see “TO TRANS-
PORT” in the Operation section of this manual).
WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY EX-
TRA ATTENTION TO THE FOLLOWING IMPORTANT ITEMS:
✓Engine oil is at proper level.
✓Fuel tank is filled with fresh, clean, regular unleaded
gasoline.
✓Become familiar with all controls, their location and
function. Operate them before you start the engine.
✓Be sure brake system is in safe operating condition.
✓Be sure Operator Presence System and Reverse Op-
eration System (ROS) are working properly (See the
Operation and Maintenance sections in this manual).

9
OPERATION
These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning.
DANGER, KEEP HANDS
AND FEET AWAY
FREE WHEEL
(Automatic Models only)
OVER TEMP
LIGHT
KEEP AREA CLEAR SLOPE HAZARDS
15
15
(SEE SAFETY RULES SECTION)
BATTERY REVERSE FORWARD
FAST SLOW
ENGINE ON
ENGINE OFF
OIL PRESSURE
FUEL
CHOKE
MOWER HEIGHT
PARKING BRAKE
LOCKED
PARKING BRAKE
UNLOCKED
REVERSE NEUTRAL HIGH LOW
ATTACHMENT
CLUTCH ENGAGED
PARKING BRAKE
IGNITION SWITCH
ATTACHMENT
CLUTCH DISENGAGED
P
ENGINE START
MOWER LIFT
Failure to follow instructions
could result in serious injury or
death. The safety alert symbol
is used to identify safety inform-
ation about hazards which can
result in death, serious injury
and/or property damage.
DANGER indicates a hazard which, if not avoided,
will result in death or serious injury.
WARNING indicates a hazard which, if not avoided,
could result in death or serious injury.
CAUTION indicates a hazard which, if not avoided,
might result in minor or moderate injury.
CAUTION when used without the alert symbol,
indicates a situation that could result in damage
to the tractor and/or engine.
FIRE indicates a hazard which, if not avoided,
could result in death, serious injury and/or
property damage.
HOT SURFACES indicates a hazard which,
if not avoided, could result in death, serious injury
and/or property damage.
REVERSE
OPERATION
SYSTEM (ROS)
LIGHTS ON

10
OPERATION
KNOW YOUR TRACTOR
READ THIS MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR
Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments.
Save this manual for future reference.
Our tractors conform to the applicable safety standards of the American National Standards Institute.
Fig. 4
(A) ATTACHMENT LIFT LEVER - Used to raise and lower
the mower or other attachments mounted to your tractor.
(B) BRAKE PEDAL - Used for braking the tractor and
starting the engine.
(C) PARKING BRAKE - Locks clutch/brake pedal into
the brake position.
(D) THROTTLE/CHOKE CONTROL - Used for starting
and controlling engine speed.
(E) ATTACHMENTCLUTCHLEVER-Used to engagethe
mowerbladesorother attachments mountedtoyourtractor.
(F) IGNITION SWITCH - Used for starting and stopping
the engine.
(G) REVERSE OPERATION SYSTEM (ROS) "ON"
POSITION - Allows operation of mower or other powered
attachment while in reverse.
(H) LIGHT SWITCH - Turns the headlights on and off.
(J) MOTION CONTROL LEVER - Selects the speed and
direction of the tractor.
(M) FREEWHEEL CONTROL - Disengages transmission
for pushing or slowly towing the tractor with the engine off.
E
A
M
F
B
J
G
C
H
D

11
HOW TO USE YOUR TRACTOR
TO SET PARKING BRAKE (See Fig. 5)
Your tractor is equipped with an operator presence sens-
ing switch. When engine is running, any attempt by the
operator to leave the seat without first setting the parking
brake will shut off the engine.
• Depress clutch/brake pedal (B) into full “BRAKE”
position and hold.
• Place parking brake lever (C) in “ENGAGED” position
and release pressure from clutch/brake pedal. Pedal
should remain in “BRAKE” position. Ensure parking
brake will hold tractor securely.
Fig. 5
Fig. 6
Fig. 8
Fig. 7
TO USE THROTTLE CONTROL (D) (See Fig. 7)
Always operate engine at full speed (fast).
• Operating engine at less than full speed (fast) reduces
the engine's operating efficiency.
• Full speed (fast) offers the best mower performance.
The operation of any tractor can result in foreign objects thrown into the eyes, which can
result in severe eye damage. Always wear safety glasses or eye shields while operating
your tractor or performing any adjustments or repairs. We recommend standard safety
glasses or a wide vision safety mask worn over spectacles.
OPERATION
GROUND DRIVE
• To stop ground drive, depress brake pedal all the way
down.
• Move motion control lever (J) to neutral position.
ENGINE
• Move throttle control (D) between half and full speed
(fast) position.
STOPPING (See Fig. 6)
MOWER BLADES
• To stop mower blades, place attachment clutch control
in the “DISENGAGED” position ( ).
CAUTION: Always stop tractor com-
pletely, as described above, and set
parkingbrakebeforeleavingtheopera-
tor's position.
NOTE: Failure to move throttle control between half and full
speed (fast) position, before stopping, may cause engine
to “backfire”.
• Turn ignition key (F) to “STOP” position and remove
key.Alwaysremovekey when leaving tractortoprevent
unauthorized use.
• Never use the choke to stop the engine.
IMPORTANT: LEAVING THE IGNITION SWITCH IN ANY
POSITION OTHER THAN "STOP" WILL CAUSE THE BATTERY
TO DISCHARGE AND GO DEAD.
NOTE: Under certain conditions when tractor is standing
idle with the engine running, hot engine exhaust gases
may cause “browning” of grass. To eliminate this possibility,
always stop engine when stopping tractor on grass areas.
TO MOVE FORWARD AND BACKWARD
(See Fig. 8)
The direction and speed of movement is controlled by the
motion control lever(J).
• Starttractorwithmotion control leverinneutralposition.
• Release parking brake.
• Slowly move motion control lever to desired position.
J
D
F
B
C
( ) ATTACHMENT
CLUTCH LEVER
“ENGAGED”
() ATTACHMENT
CLUTCH LEVER
“DISENGAGED”

12
Fig. 10
Fig. 9
TO ADJUST MOWER CUTTING HEIGHT
(See Fig. 9)
The position of the attachment lift lever (A) determines the
cutting height.
• Put attachment lift lever in desired cutting height slot.
The cutting height range is approximately 1" to 4". The
heights are measured from the ground to the blade tip with
the engine not running. These heights are approximate
and may vary depending upon soil conditions, height of
grass and types of grass being mowed.
• The average lawn should be cut to approximately
2-1/2" during the cool season and to over 3" during hot
months. For healthier and better looking lawns, mow
often and after moderate growth.
• For best cutting performance, grass over 6" in height
should be mowed twice. Make the first cut relatively
high; the second to desired height.
A
OPERATION
TO ADJUST GAUGE WHEELS (See Fig. 10)
Gauge wheels are properly adjusted when they are slightly
off the ground when mower is at the desired cutting height
in operating position. Gauge wheels then keep the deck
in proper position to help prevent scalping in most terrain
conditions.
NOTE: Adjust gauge wheels with tractor on a flat level
surface.
• Adjust mower to desired cutting height (See “TO
ADJUSTMOWERCUTTING HEIGHT”inthe Operation
section of this manual).
• With mower in desired height of cut position, gauge
wheels should be assembled so they are slightly off
the ground. Install gauge wheel in appropriate hole as
shown and tighten securely.
• Repeatforoppositeside installinggaugewheelinsame
adjustment hole.
TO OPERATE ON HILLS
CAUTION:Donotdriveupordownhills
with slopes greater than 15° and do not
drive across any slope.
• Choose the slowest speed before starting up or down
hills.
• Avoid stopping or changing speed on hills.
• If slowing is necessary, move throttle control lever to
slower position.
• If stopping is absolutely necessary, push clutch/brake
pedalquicklytobrakepositionandengageparkingbrake.
• Move motion control lever to neutral position.
IMPORTANT: THE MOTION CONTROL LEVER DOES NOT
RETURN TO NEUTRAL POSITION WHEN THE BRAKE PEDAL
IS DEPRESSED.
• To restart movement, slowly release parking brake and
clutch/brake pedal.
• Slowly move motion control lever to slowest setting.
• Make all turns slowly.
TO OPERATE MOWER
Your tractor is equipped with an operator presence sensing
switch. Any attempt by the operator to leave the seat with
the engine running and the attachment clutch engaged will
shut off the engine. You must remain fully and centrally
positioned in the seat to prevent the engine from hesitat-
ing or cutting off when operating your equipment on rough,
rolling terrain or hills.
• Select desired height of cut with attachment lift lever.
• Start mower blades by engaging attachment clutch
control.
TO STOP MOWER BLADES
• Disengage attachment clutch control.
CAUTION: Do not operate the mower
without either the entire grass catcher,
onmowerssoequipped,or thedeflector
shield (S) in place (See Fig. 11).
Fig. 11
S

13
ADD GASOLINE
• Fill fuel tank to bottom of filler neck. Do not overfill. Use
fresh,clean,regularunleadedgasoline with a minimum
of 87 octane. (Use of leaded gasoline will increase
carbon and lead oxide deposits and reduce valve life).
Do not mix oil with gasoline. Purchase fuel in quantities
thatcanbe usedwithin30daystoensurefuel freshness.
CAUTION: Wipe off any spilled oil or
fuel. Do not store, spill or use gasoline
near an open flame.
IMPORTANT: WHENOPERATINGIN TEMPERATURESBELOW
32°F/0°C, USE FRESH, CLEAN WINTER GRADE GASOLINE
TO HELP ENSURE GOOD COLD WEATHER STARTING.
CAUTION: Alcohol blended fuels (called gasohol
or using ethanol or methanol) can attract moisture
which leads to separation and formation of acids
duringstorage. Acidicgas candamagethefuel sys-
tem of an engine while in storage. To avoid engine
problems,thefuel systemshouldbe emptiedbefore
storage of 30 days or longer. Drain the gas tank,
start the engine and let it run until the fuel lines and
carburetor are empty. Use fresh fuel next season.
SeeStorageInstructions foradditionalinformation.
Never use engine or carburetor cleaner products
in the fuel tank or permanent damage may occur.
BEFORE STARTING THE ENGINE
CHECK ENGINE OIL LEVEL
The engine in your tractor has been shipped, from the
factory, already filled with summer weight oil.
• Check engine oil with tractor on level ground.
• Remove oil fill cap/dipstick and wipe clean, reinsert the
dipstick and screw cap tight, wait for a few seconds,
remove and read oil level. If necessary, add oil until
“FULL” mark on dipstick is reached. Do not overfill.
• For cold weather operation you should change oil for
easier starting (See “OIL VISCOSITY CHART” in the
Maintenance section of this manual).
• To change engine oil, see the Maintenance section in
this manual.
OPERATION
TOWINGCARTSANDOTHERATTACHMENTS
Tow only the attachments that are recommended by and
comply with specifications of the manufacturer of your trac-
tor. Use common sense when towing. Too heavy of a load,
while on a slope, is dangerous. Tires can lose traction with
the ground and cause you to lose control of your tractor.
REVERSE OPERATION SYSTEM (ROS)
Your tractor is equipped with a Reverse Operation System
(ROS). Any attempt by the operator to travel in the reverse
directionwiththeattachment clutch engagedwillshutoffthe
engineunlessignitionkeyisplacedintheROS"ON"position.
WARNING: Backing up with the attachment clutch en-
gaged while mowing is strongly discouraged. Turning the
ROS "ON", to allow reverse operation with the attachment
clutch engaged, should only be done when the operator
decides it is necessary to reposition the machine with the
attachment engaged. Do not mow in reverse unless
absolutely necessary.

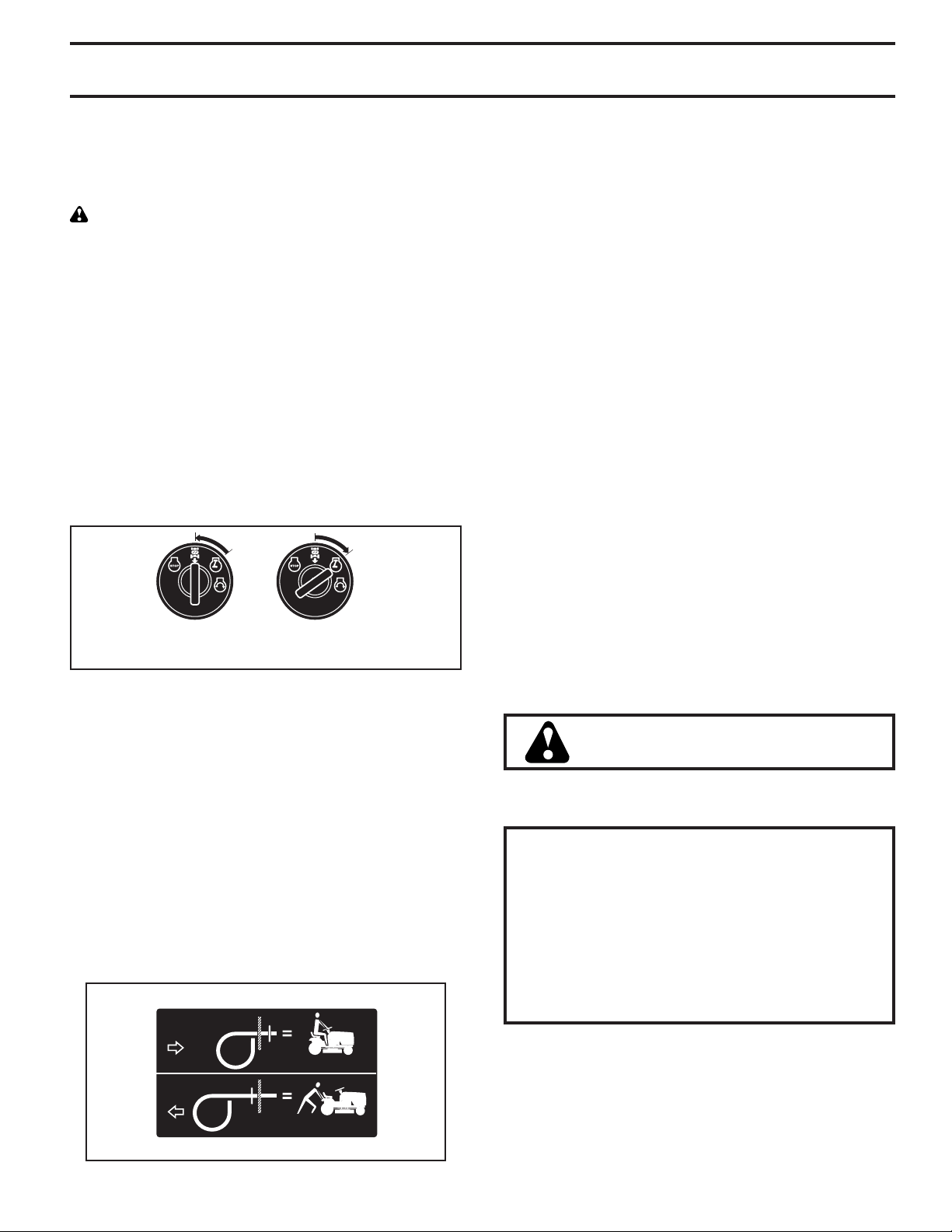

USINGTHEREVERSEOPERATIONSYSTEM(SeeFig.12)
Only use if you are certain no children or other bystanders
will enter the mowing area.
• Move motion control lever to neutral (N) position.
• Withenginerunning,turnignition key counterclockwise
to ROS "ON" position.
• Look down and behind before and while backing.
• Slowly move motion control lever to reverse (R)
position to start movement.
• When use of the ROS is no longer needed, turn the
ignition key clockwise to engine "ON" position.
Fig. 12
Fig. 13
ROS "ON"
POSITION ENGINE "ON" POSITION (NORMAL OPERATING)
0
2
8
2
8
TO TRANSPORT (See Fig. 13)
When pushing or towing your tractor, be sure to disengage
transmission by placing freewheel control in freewheeling
position. Free wheel control is located at the rear drawbar
of tractor.
• Raiseattachmentlift to highestpositionwithattachment
lift control.
• Move motion control lever to neutral position.
• Pull freewheel control out until the free wheel control
rod locks in extended position.
• Do not push or tow tractor at more than two (2) MPH.
• To reengage transmission, reverse above procedure.
NOTE: Freewheel control will automatically disengage
when the brake/clutch pedal is depressed.
NOTE: To protect hood from damage when transporting
your tractor on a truck or a trailer, be sure hood is closed
and secured to tractor. Use an appropriate means of tying
hood to tractor (rope, cord, etc.).
TRANSMISSION ENGAGED
TRANSMISSION DISENGAGED

14
OPERATION
TO START ENGINE (See Fig. 4)
When starting the engine for the first time or if the engine
has run out of fuel, it will take extra cranking time to move
fuel from the tank to the engine.
• Ensurefreewheelcontrolisinthe transmissionengaged
position.
• Sit on seat in operating position, depress clutch/brake
pedal and set parking brake.
• Place motion control lever in neutral position.
• Move attachment clutch to “DISENGAGED” position.
• Move throttle control to choke position.
NOTE: Before starting, read the warm and cold starting
procedures below.
• Insertkeyintoignitionandturnkeyclockwiseto“START”
position and release key as soon as engine starts.
Do not run starter continuously for more than fifteen
seconds per minute. If the engine does not start after
several attempts, move throttle control to fast position,
wait a few minutes and try again. If engine still does
not start, move the throttle control back to the choke
position and retry.
WARM WEATHER STARTING (50°F/10°C and above)
• When engine starts, move the throttle control to the
fast position.
• The attachments and ground drive can now be used. If
the engine does not accept the load, restart the engine
and allow it to warm up for one minute using the choke
as described above.
COLD WEATHER STARTING (50°F/10°C and below)
• Whenenginestarts,allowenginetorunwiththethrottle
controlin thechokepositionuntilthe enginerunsroughly,
then move throttle control to fast position. This may
requireanengine warm-upperiodfromseveralseconds
to several minutes, depending on the temperature.
AUTOMATIC TRANSMISSION WARM UP
• Beforedrivingtheunitincold weather, the transmission
should be warmed up as follows:
• Ensure the tractor is on level ground.
• Place the motion control lever in neutral.
Release the parking brake and let the clutch/brake
slowly return to operating position.
• Allow one minute for transmission to warm up. This
can be done during the engine warm up period.
• The attachments can also be used during the engine
warm-upperiodafterthetransmissionhasbeenwarmed
up.
NOTE: If at a high altitude (above 3000 feet) or in cold
temperatures(below32°F/0°C)thecarburetor fuel mixture
may need to be adjusted for best engine performance.
See “TO ADJUST CARBURETOR” in the Service and
Adjustments section of this manual.
MOWING TIPS
• Tire chains cannot be used when the mower housing
is attached to tractor.
• Mower should be properly leveled for best mowing
performance. See “TO LEVEL MOWER HOUSING” in
the Service and Adjustments section of this manual.
• Thelefthand sideofmowershouldbeusedfor trimming.
• Drive so that clippings are discharged onto the area
that has been cut. Have the cut area to the right of
the tractor. This will result in a more even distribution
of clippings and more uniform cutting.
• When mowing large areas, start by turning to the right
so that clippings will discharge away from shrubs,
fences, driveways, etc. After one or two rounds, mow
in the opposite direction making left hand turns until
finished (See Fig. 14).
Fig. 14
• If grass is extremely tall, it should be mowed twice to
reduce load and possible fire hazard from dried clip-
pings. Make first cut relatively high; the second to the
desired height.
• Do not mow grass when it is wet. Wet grass will plug
mower and leave undesirable clumps. Allow grass to
dry before mowing.
• Always operate engine at full throttle when mow-
ing to ensure better mowing performance and proper
discharge of material. Regulate ground speed by
selecting a low enough gear to give the mower cutting
performance as well as the quality of cut desired.
• When operating attachments, select a ground speed
that will suit the terrain and give best performance of
the attachment being used.

15
➀General Purpose Grease
➁Refer to Maintenance “ENGINE” Section
01965
➁ENGINE
➀FRONT
WHEEL
BEARING
ZERK
➀STEERING
SECTOR
GEAR
TEETH
➀FRONT
WHEEL
BEARING
ZERK
➀SPINDLE ZERK ➀SPINDLE ZERK
MAINTENANCE
LUBRICATION CHART
GENERAL RECOMMENDATIONS
The warranty on this tractor does not cover items that have
beensubjectedtooperatorabuse or negligence. To receive
full value from the warranty, operator must maintain tractor
as instructed in this manual.
Some adjustments will need to be made periodically to
properly maintain your tractor.
At least once a season, check to see if you should make
any of the adjustments described in the Service and
Adjustments section of this manual.
• At least once a year you should replace the spark plug,
clean or replace air filter, and check blades and belts
for wear. A new spark plug and clean air filter assure
proper air-fuel mixture and help your engine run better
and last longer.
BEFORE EACH USE
• Check engine oil level.
• Check brake operation.
• Check tire pressure.
• Check operator presence and ROS systems for proper
operation.
• Check for loose fasteners.
IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS
WHICH HAVE SPECIAL NYLON BEARINGS. VISCOUS
LUBRICANTS WILL ATTRACT DUST AND DIRT THAT WILL
SHORTENTHE LIFEOFTHESELF-LUBRICATINGBEARINGS.
IF YOU FEEL THEY MUST BE LUBRICATED, USE ONLY A
DRY, POWDERED GRAPHITE TYPE LUBRICANT SPARINGLY.
T
R
A
C
T
0
R
1 - Change more often when operating under a heavy load or in high ambient temperatures.
2 - Service more often when operating in dirty or dusty conditions.
E
N
G
I
N
E
3
2
2
2
2
3 - Replace blades more often when mowing in sandy soil.
4 - Not required if equipped with maintenance-free battery.
5 - See Cleaning in Maintenance Section.
1 ,
1,2
2
4
5
1,2
BEFORE
EACH
USE
EVERY
8
HOURS
EVERY
25
HOURS
EVERY
50
HOURS
EVERY
100
HOURS
EVERY
SEASON
BEFORE
STORAGE
Inspect Muffler/Spark Arrester
Clean Air Filter
Change Engine Oil (with oil filter)
Replace Air Filter Paper Cartridge
Replace Spark Plug
Check Engine Oil Level
Clean Engine Cooling Fins
Clean Air Screen
Replace Oil Filter (If equipped)
Replace Fuel Filter
Change Engine Oil (without oil filter)
Lubrication Chart
Check Brake Operation
Check Battery Level
Check Tire Pressure
Clean Battery and Terminals
MAINTENANCE
SCHEDULE
Check for Loose Fasteners
Check/Replace Mower Blades
Clean Debris Off Steering Plate
Che
Check Operator Presence & ROS Systems
ck V-Belts
Check Mower Levelness

16
BLADE
BLADE BOLT
(SPECIAL)
CENTER HOLE
STAR
MANDREL ASSEMBLY
TRACTOR
Always observe safety rules when performing any
maintenance.
BRAKE OPERATION
If tractor requires more than five (5) feet to stop at highest
speed in highest gear on a level, dry concrete or paved
surface, then brake must be checked and adjusted. (See
“TO CHECK BRAKE” in the Service and Adjustments
section of this manual).
TIRES
• Maintain proper air pressure in all tires (See the sides
of tires for proper PSI).
• Keep tires free of gasoline, oil, or insect control
chemicals which can harm rubber.
• Avoid stumps, stones, deep ruts, sharp objects and
other hazards that may cause tire damage.
NOTE: To seal tire punctures and prevent flat tires due
to slow leaks, tire sealant may be purchased from your
local parts dealer. Tire sealant also prevents tire dry rot
and corrosion.
OPERATOR PRESENCE SYSTEM AND REVERSE
OPERATION SYSTEM (ROS) (See Fig. 15)
Ensure operator presence and reverse operation systems
are working properly. If your tractor does not function as
described, repair the problem immediately.
• The engine should not start unless the brake pedal is
fully depressed, and the attachment clutch control is
in the disengaged position.
CHECK OPERATOR PRESENCE SYSTEM
• Whentheengine isrunning,anyattemptby theoperator
to leave the seat without first setting the parking brake
should shut off the engine.
• When the engine is running and the attachment clutch
is engaged, any attempt by the operator to leave the
seat should shut off the engine.
• The attachment clutch should never operate unless
the operator is in the seat.
CHECK REVERSE OPERATION (ROS) SYSTEM
• When the engine is running with the ignition switch in
the engine "ON" position and the attachment clutch
engaged, any attempt by the operator to shift into
reverse should shut off the engine.
• When the engine is running with the ignition switch
in the ROS "ON" position and the attachment clutch
engaged, any attempt by the operator to shift into
reverse should NOT shut off the engine.
BLADE CARE
Forbest results mowerbladesmustbekeptsharp. Replace
bent or damaged blades.
CAUTION:Useonlyareplacementbladeap-
proved by the manufacturer of your tractor.
Using a blade not approved by the manu-
facturer of your tractor is hazardous, could
damageyourtractorandvoidyourwarranty.
BATTERY
Yourtractorhasa batterychargingsystemwhich is sufficient
for normal use. However, periodic charging of the battery
with an automotive charger will extend its life.
• Keep battery and terminals clean.
• Keep battery bolts tight.
• Keep small vent holes open.
• Recharge at 6-10 amperes for 1 hour.
NOTE: The original equipment battery on your tractor is
maintenance free. Do not attempt to open or remove caps
or covers. Adding or checking level of electrolyte is not
necessary.
TO CLEAN BATTERY AND TERMINALS
Corrosion and dirt on the battery and terminals can cause
the battery to “leak” power.
• Disconnect BLACK battery cable first then RED bat-
tery cable and remove battery from tractor.
• Rinse the battery with plain water and dry.
• Clean terminals and battery cable ends with wire brush
until bright.
• Coat terminals with grease or petroleum jelly.
• Reinstall battery (See “REPLACING BATTERY" in
the Service and Adjustments section of this manual).
Fig. 15
BLADE REMOVAL (See Fig. 16)
• Raise mower to highest position to allow access to
blades.
NOTE: Protect your hands with gloves and/or wrap blade
with heavy cloth.
• Remove blade bolt by turning counterclockwise.
• Install new or resharpened blade with stamped "THIS
SIDE UP" facing deck and mandrel assembly.
IMPORTANT: TO ENSURE PROPER ASSEMBLY, CENTER
HOLE IN BLADE MUST ALIGN WITH STAR ON MANDREL
ASSEMBLY.
• Install and tighten blade bolt securely (45-55 Ft. Lbs.
torque/62-75 Nm).
IMPORTANT: SPECIAL BLADE BOLT IS HEAT TREATED.
Fig. 16
ROS "ON"
POSITION ENGINE "ON" POSITION (NORMAL OPERATING)
0
2
8
2
8
MAINTENANCE

17
V-BELTS
Check V-belts for deterioration and wear after 100 hours
of operation and replace if necessary. The belts are not
adjustable. Replace belts if they begin to slip from wear.
MAINTENANCE
TRANSAXLE MAINTENANCE
The transaxle was sealed at the factory and fluid mainte-
nance is not required for the life of the transaxle. Should
the transaxle ever leak or require servicing, contact your
nearest authorized service center/department.
ENGINE
LUBRICATION
Only use high quality detergent oil rated with API service
classification SG-SL. Select the oil’s SAE viscosity grade
according to your expected operating temperature.
TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
SAE VISCOSITY GRADES
-20 0 30 40 80 100
-30 -20 0 20 30 40
F
C
32
-10 10
60
5W-30
SAE 30
NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)
improvestartingincoldweather,theywillresultin increased
oil consumption when used above 32°F/0°C. Check your
engine oil level more frequently to avoid possible engine
damage from running low on oil.
Change the oil after every 50 hours of operation or at least
once a year if the tractor is not used for 50 hours in one year.
Check the crankcase oil level before starting the engine
and after each eight (8) hours of operation. Tighten oil fill
cap/dipstick securely each time you check the oil level.
TO CHANGE ENGINE OIL (See Fig. 17)
Determine temperature range expected before oil change.
All oil must meet API service classification SG-SL.
• Ensure tractor is on level surface.
• Oil will drain more freely when warm.
• Catch oil in a suitable container.
• Remove oil fill cap/dipstick. Be careful not to allow dirt
to enter the engine when changing oil.
• Slide oil drain extension under oil drain hole (drain hole
maybeflushwithorprotrudefromengineblocksidewall).
• Ensure back face of oil drain extension is flush with
engine side wall.
• Ensure bottom lip of oil drain extension is lined up with
bottom of oil drain hole.
• Position a container to catch oil directly under front end
of oil drain extension.
• Slide a 1/2” (12 point) socket mounted on an extension
onto oil drain plug.
• Loosen plug while holding the oil drain extension firmly
in place.
• Drain oil into container.
• After oil has drained completely, reinstall oil drain plug.
(Do not tighten more than 13 Ft. Lbs./18 Nm.)
• Refill engine with oil through oil fill dipstick tube. Pour
slowly. Do not overfill. For approximate capacity see
“PRODUCTSPECIFICATIONS”sectionof thismanual.
• Use gauge on oil fill cap/dipstick for checking level.
Ensure dipstick cap is tightened securely for accurate
reading. Keep oil at “FULL” line on dipstick. Tighten
cap onto the tube securely when finished.
Fig. 17
OIL DRAIN HOLE
OIL DRAIN
EXTENSION
OIL DRAIN PLUG
CAUTION: If engine has been operated
for an extended period of time immedi-
ately prior to draining oil, oil will be hot.
ENGINE OIL FILTER
Replace the engine oil filter every season or every other oil
changeifthe tractor isusedmorethan 100hoursinoneyear.

18
CLEAN AIR SCREEN
Air screen must be kept free of dirt and chaff to prevent
engine damage from overheating. Clean with a wire brush
or compressed air to remove dirt and stubborn dried gum
fibers.
MAINTENANCE
MUFFLER
Inspect and replace corroded muffler and spark arrester (if
equipped) as it could create a fire hazard and/or damage.
SPARK PLUGS
Replace spark plugs at the beginning of each mowing
season or after every 100 hours of use, whichever comes
first. Spark plug type and gap setting is shown in Product
Specifications section of this manual.
IN-LINE FUEL FILTER (See Fig. 19)
The fuel filter should be replaced once each season. If fuel
filter becomes clogged, obstructing fuel flow to carburetor,
replacement is required.
• Withenginecool,removefilterandplugfuellinesections.
• Place new fuel filter in position in fuel line with arrow
pointing towards carburetor.
• Ensure there are no fuel line leaks and clamps are
properly positioned.
• Immediately wipe up any spilled gasoline.
Fig. 19
00667
FUEL FILTER
CLAMP
CLAMP
Fig. 20
• Keep finished surfaces and wheels free of all gasoline,
oil, etc.
• Protect painted surfaces with automotive type wax.
We do not recommend using a garden hose or pressure
washer to clean your tractor unless the engine and trans-
mission are covered to keep water out. Water in engine or
transmission will shorten the useful life of your tractor. Use
compressed air or a leaf blower to remove grass, leaves
and trash from tractor and mower.
CLEANING
• Clean engine, battery, seat, finish, etc. of all foreign
matter.
• Clean debris from steering plate. Debris can restrict
clutch/brake pedal shaft movement, causing belt slip
and loss of drive.
CAUTION: Avoid all pinch points and
movable parts (See Fig. 20)
CLUTCH/BRAKE PEDAL
STEERING
PLATE
STEERING SYSTEM,
DASH, FENDER AND
MOWER NOT SHOWN
CLEAN TOP SIDE
CAUTION:
PINCH
POINTS
AIR FILTER
Your engine will not run properly using a dirty air filter.
Service air cleaner more often under dusty conditions.
See engine manual.
ENGINE COOLING SYSTEM (See Fig. 18)
Debris may clog the engine's air cooling system. Remove
blower housing and clean the area shown to prevent over-
heating and engine damage.
CLEAN OUT CHAFF AND DEBRIS
02744
AIR SCREEN
Fig. 18

19
WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:
•Depress brake pedal fully and set parking brake.
•Place motion control lever in neutral position.
•Place attachment clutch in “DISENGAGED” position.
•Turn ignition key to “STOP” and remove key.
•Ensure the blades and all moving parts have completely stopped.
•Disconnectsparkplug wirefromsparkplugand placewirewhereit cannotcomeincontactwith plug.
SERVICE AND ADJUSTMENTS
TO REMOVE MOWER (See Fig. 21)
• Place attachment clutch in “DISENGAGED” position.
• Lower attachment lift lever to its lowest position.
• Roll belt off engine pulley (M) and belt keepers (G).
• Remove retainer spring (K), slide collar (L) off and
push housing guide (P) out of bracket.
• Remove clutch cable spring (Q) from idler arm (R).
• Disconnect front link (E) from mower - remove retainer
spring and washer.
• Go to either side of mower and disconnect mower
suspension arm (A) from chassis pin (B) and rear lift
link (C) from rear mower bracket (D) - remove retainer
springs and washers.
CAUTION: AFTER REAR LIFT LINKS
ARE DISCONNECTED, THE ATTACH-
MENT LIFT LEVER WILL BE SPRING
LOADED. HAVE A TIGHT GRIP ON LIFT
LEVER WHEN CHANGING POSITION
OF THE LEVER.
• Slide mower out from under right side of tractor.
IMPORTANT: IF AN ATTACHMENT OTHER THAN THE
MOWER IS TO BE MOUNTED ON THE TRACTOR,
REMOVE THE FRONT LINK (E) AND REAR LIFT LINKS
(C) FROM TRACTOR AND HOOK THE CLUTCH SPRING
(Q) INTO THE CABLE GUIDE ON FRONT EDGE OF
LOWER DASH.
TO INSTALL MOWER (See Fig. 21-26)
Besuretractor isonlevelsurface andengageparkingbrake.
• Lower attachment lift lever to its lowest position.
CAUTION: LIFT LEVER IS SPRING
LOADED. HAVE A TIGHT GRIP ON
LIFT LEVER, LOWER IT SLOWLY AND
ENGAGE IN LOWEST POSITION.
NOTE: Be sure mower side suspension arms (A) are point-
ing forward before sliding mower under tractor.
• Slide mower under tractor until it is centered under
tractor.
E
F
C
G
Q
R
D
K
G
P
B
L
M
A
Fig. 21

20
SERVICE AND ADJUSTMENTS
E
F
C
G
Q
R
D
K
G
P
B
L
M
A
IMPORTANT: CHECK BELT FOR PROPER ROUTING
IN ALL MOWER PULLEY GROOVES.
• Raise attachment lift lever to highest position.
• If necessary, adjust gauge wheels before operating
mowerasshownintheOperation sectionofthismanual.
E
F
H
J
M
Fig. 24
Fig. 25
A
B
D
C
Fig. 22
Fig. 23
• ATTACH MOWER SIDE SUSPENSION ARMS (A) TO
CHASSIS - Position hole in arm over pin (B) on outside
of tractor chassis and secure with retainer spring.
• Repeat on opposite side of tractor.
• ATTACH REAR LIFT LINKS (C) - Lift rear corner of
mower and position slot in link assembly over pin (D)
on rear mower bracket and secure with washer and
retainer spring.
• Insert end of link (E) into hole in front mower bracket
and secure with washer and retainer spring (J).
• Hook end of clutch cable spring (Q) into hole in idler
arm (R).
• Push clutch cable housing guide (P) into bracket, slide
collar(L)ontoguideandsecure with retainer spring (K).
• Install belt on engine pulley (M), in belt keepers (G).
• ATTACH FRONT LINK (E) - Work from left side of trac-
tor. Insert rod end of link assembly through front hole
in tractor front suspension bracket (F).
Fig. 26
