Power Electronics Profipower User manual

PROFIPOWER
PROFIBUS - GATEWAY
Communication Network
profibus gateway

modbus – profibus gateway
Communication Network
Edition: June 2007
GBC02CI Rev. C

PROFIPOWER POWER ELECTRONICS
2

POWER ELECTRONICS PROFIPOWER
SAFETY SYMBOLS 3
SAFETY SYMBOLS
Always follow safety instructions to prevent accidents and potential hazards
from occurring.
This symbol means improper operation may results in
serious personal injury or death.
Identifies shock hazards under certain conditions.
Particular attention should be given because dangerous
voltage may be present. Maintenance operation should be
done by qualified personnel.
Edition of June 2007
This publication could present technical imprecision or misprints. The
information here included will be periodically modified and updated, and all
those modifications will be incorporated in later editions.
To consult the most updated information of this product you might access
through our website www.power-electronics.com where the latest version of
this manual can be downloaded.
Revisions
Date Revision Description
16 / 06 /2006 A Software version Profipower 1.0
31 / 10 /2006 B Wiring updating for SD700 and V5
13 / 06 /2007 C Misprints update

PROFIPOWER POWER ELECTRONICS
4

POWER ELECTRONICS PROFIPOWER
INDEX 5
INDEX
SAFETY INSTRUCTIONS..............................................................................7
1. INTRODUCTION ....................................................................................10
1.1. Equipment Description...............................................................10
2. TECHNICAL CHARACTERISTICS ........................................................11
2.1. General Information ...................................................................11
2.2. Dimensions................................................................................12
3. INSTALLATION AND CONNECTION....................................................13
3.1. Installation of Profipower Gateway.............................................13
3.2. Connections of Profipower Gateway..........................................14
3.3. Setting of Profibus Address........................................................23
3.4. Display and Faults Code............................................................24
4. TRIAL RUN ............................................................................................26
4.1. Introduction................................................................................26
4.2. Trial Run with Siemens (Step 7 Set-up).....................................31
4.3. Configuration and Set up ...........................................................33
5. PROGRAMMING FOR STEP 7..............................................................43
5.1. Example of program for Step 7 ..................................................44
5.2. Monitoring and Modification of Modbus Registers......................45
6. DIAGNOSIS............................................................................................46

PROFIPOWER POWER ELECTRONICS
6 INDEX

POWER ELECTRONICS PROFIPOWER
SAFETY INSTRUCTIONS 7
SAFETY INSTRUCTIONS
IMPORTANT!
Safety instructions showed in this manual are useful to teach user
how to use the product in a correct and safety way with the purpose
of preventing possible personal injuries or property damages.
Safety messages included here are classified as it follows:
WARNING
Do not remove the cover while the power is applied or the unit is in
operation.
Otherwise, electric shock could occur.
Do not run the inverter with the front cover removed.
Otherwise, you may get an electric shock due to the high voltage
terminals or exposure of charged capacitors.
Do not remove the cover except for periodic inspections or wiring,
even if the input power is not applied.
Otherwise, you may access the charged circuits and get an electric shock.
Wiring and periodic inspections should be performed at least 10
minutes after the equipment that is going to be connected to this
gateway is disconnected from the input power and after checking
the DC Link voltage is discharged with a meter (below 30VDC).
Otherwise, you may get an electric shock.
Operate the switches with dry hands.
Otherwise, you may get an electric shock.
Do not use cables with damaged insulation.
Otherwise, you may get an electric shock.
Do not subject the cables to the abrasions, excessive stress, heavy
loads or pinching.
Otherwise, you may get an electric shock.

PROFIPOWER POWER ELECTRONICS
CAUTION
Do not allow lint, paper, wood chips, dust, metallic chips or other
foreign matter into the gateway.
Otherwise, fire or accident could occur.
WARNINGS
RECEPTION
Material of Power Electronics is carefully tested and perfectly
packed before leaving the factory.
In the even of transport damage, please ensure that you notify
the transport agency and POWER ELECTRONICS: 902 40 20 70
(International [phone]) or your nearest agent, within
24hrs from receipt of the goods.
UNPACKING
Make sure received merchandise corresponds with delivery note,
models and serial numbers.
Each gateway is supplied with a technical manual.
8 SAFETY INSTRUCTIONS

POWER ELECTRONICS PROFIPOWER
SAFETY INSTRUCTIONS 9
SAFETY
Before operating the equipment, read this manual thoroughly to
gain and understanding of the unit. If any doubt exists then
please contact POWER ELECTRONICS, (902 40 20 70 / +34 96
136 65 57) or your nearest agent.
Wear safety glasses when operating the equipment with power
applied and the front cover is removed.
Install the inverter according to the instructions within this
manual.
Ensure that the mounting orientation is correct.
Do not drop the gateway or subject it to impact.
The Profipower gateways contain static sensitive printed circuits
boards. Use static safety procedures when handling these
boards.
CONNECTION PRECAUTIONS
To ensure correct operation of the equipment it is recommended
to use a SCREENED CABLE for the control wiring.
TRIAL RUN
Follow the steps described in this manual.
Always apply voltage and current signals to each terminal that
are within levels indicated within this manual. Otherwise, damage
to the gateway may result.

PROFIPOWER POWER ELECTRONICS
1. INTRODUCTION
1.1.Equipment Description
The Profipower gateway allows integrating all of the equipments of
Power Electronics into Profibus networks easily and comfortably.
Its useful design will allow you to know the operating status of the
gateway all the time.
1. Power supply connector
2. Communication connector
3. Status visualization 2
3
1
10 INTRODUCTION

POWER ELECTRONICS PROFIPOWER
TECHNICAL CHARACTERISTICS 11
2. TECHNICAL CHARACTERISTICS
2.1.General Information
2.1.1. Interfaces
Profibus-DP Connector 9 Pin D-SUB / F.
Voltage terminals 3 wires.
RS232 terminals 3 wires.
2.1.2. Power Supply Source
Rated value 24 Vdc.
Allowed range (curly included) 18 to 28Vdc.
Maximum Consumption 130mA.
+24V Limitation to 130mA.
2.1.3. Electrical Insulation
Profibus – DP / RS232 connection 500Vac.
2.1.4. Local Indications
ON Led (Green): If it is lit indicates operative voltage. The gateway
is power supplied.
FAULT Led (Red): If it is lit indicates gateway fault.
7 segments display: it indicates the status of the gateway.

PROFIPOWER POWER ELECTRONICS
2.1.5. Profibus-DP Interface
Profibus – DP Interface.
Transmission speed Auto-detected at 12Mb.
Diagnosis data length of 13 Bytes (maximum).
Data length of Set up of 176 Bytes (maximum).
Configuration data length of 8 Byte (maximum).
Polling length of 120 Bytes (maximum).
File GSD PWE_05DD.GSD.

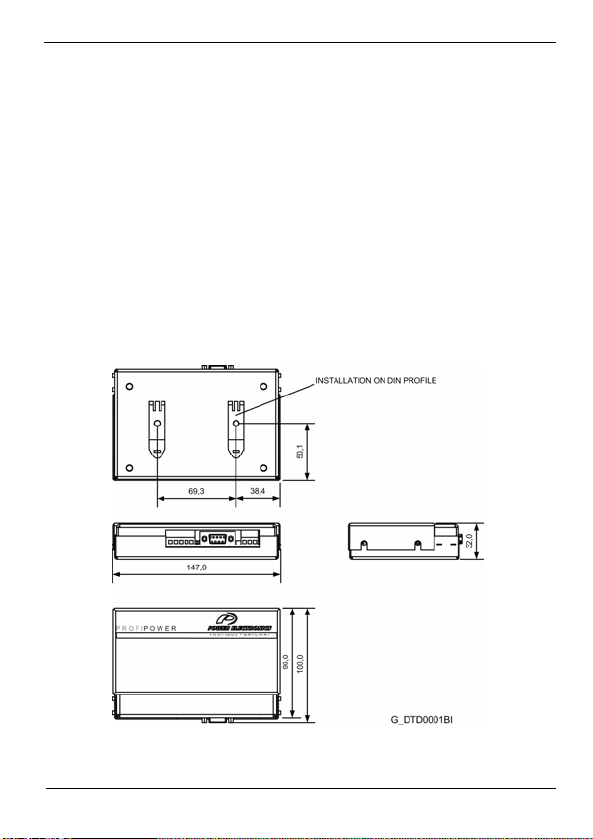

2.2.Dimensions
External dimensions of Profipower gateway can be observed in the
attached figure. The device is ready to be installed on Din profile.
Figure 2.1 Profipower dimensions. Modbus – Profibus gateway
12 TECHNICAL CHARACTERISTICS

POWER ELECTRONICS PROFIPOWER
INSTALLATION AND CONNECTION 13
3. INSTALLATION AND CONNECTION
3.1.Installation of Profipower Gateway
The Profipower gateway of Power Electronics is a module to connect
the inverters and soft starters of Power Electronics to a PROFIBUS
network directly. It is necessary to use one gateway for each
equipment to connect it to the network.
Note: Gateway installation does not involve that the inverter or soft
starter and/or the power is configured or connected in a correct way
respectively. Make sure the peripheral installation is well done to
guarantee a correct operation of the system.
CAUTION
Motor controllers of Power Electronics operate with a high electric
energy.
Make sure the power supply has been disconnected and wait for at least
10 minutes to guarantee that DC Link voltage is discharged, before
installing the interface module of Profibus. Otherwise, you may get
personal injuries or an accident could occur.
The gateway should be installed near to the motor controller. The
maximum distance between the motor controller and the gateway
should be of 3 meters, but only if it is necessary.

PROFIPOWER POWER ELECTRONICS
3.2.Connections of Profipower Gateway
3.2.1. Description of terminals and Leds
In the Profipower gateway, it exist different connectors to install this
gateway and to connect it to the variable speed drives and digital
soft-starters of Power Electronics.
Figure 3.1 Location of the connectors of the Profipower interface
TERMINALS DESCRIPTION
7 segments display. It shows the operation status of the
Profipower gateway.
U109
J201
(PROFIBUS) Connector SUB-D 9 pins to connect the signals of the Profibus network.
RS232 port to connect Modbus signals.
JP203
(MODBUS) 1: TxD signal
2: RxD signal
GND: Common for communications
RS485 port to connect Modbus signals.
JP204
(MODBUS) B: High Signal (+)
A: Low Signal (-)
14 INSTALLATION AND CONNECTION

POWER ELECTRONICS PROFIPOWER
INSTALLATION AND CONNECTION 15
TERMINALS DESCRIPTION
Connector for the signals of the gateway power supply.
Power supply connection of 24Vdc.
J301 (POWER) +24V: Positive of the power supply source.
GND: Negative of the power supply source.
PE: Ground
To connect the ending resistors of the network. If it is
not necessary to enable the ending resistor of the
network, the jumper will be not connected. Otherwise,
the jumper will be connected and so these resistors will
be enabled.
J1 (Jumper 1)
Rotary selectors to adjust the addresses in
Hexadecimal. Selectors are on the right-hand side of
the 7 segments display.
U107, U108
Green. If it is lit indicates that the gateway is power
supplied.
ON Led
Red. If it is lit indicates that the gateway is in fault
status.
FAULT Led
You can observe the above mentioned terminals below:
Figure 3.2 Description of the Profipower interface terminals

PROFIPOWER POWER ELECTRONICS
3.2.2. Profibus Connections
For profibus connection, a standard connector SUB-D 9 pins is used
according to the definition of the standard EN 50170. The wiring for the
connector of nine pins is shown in the attached figure.
If additionally, more information is required, refer to “Installation Guide
of PROFIBUS DP/FMS" of the profibus users group, where you can
find more detailed information about the connection.
Figure 3.3 Connections of the connector SUB-D 9 pins
16 INSTALLATION AND CONNECTION

POWER ELECTRONICS PROFIPOWER
INSTALLATION AND CONNECTION 17
3.2.3. Connection for Equipments of Power Electronics
3.2.3.1. Variable Speed Drives of SD250 Series
Use S+ terminal to connect RS485 high signal and use S- terminal
to connect RS485 low signal.
SD25DTC0005AE
P4MO MG 24 P1 P2 CM P3 S+S-
P5 CM P6 P7 P8 VR V1 IAM3A 3C 3B
TB3 TB1
TB4TB2
Figure 3.4 TB1 connector of the control board
RS485 communication data:
Transmission form: Bus method, Multi drop Link System.
Applicable drives: SD250.
Converter: RS232 converter.
Connectable drives: Maximum 31.
Transmission distance: Below 1.200m maximum (700m recommended).
Recommended cable: 0.75mm² (18AWG),Shield type twisted-pare.
Installation: S+ and S- terminals of TB1 connector located on control board.
Power supply: Power supply insulated from the drive power supply.
After connecting the communication line, set the following
parameters as follows:
Par. Description Setting
drv Drive mode 3 RS485 communication.
Frq Frequency setting
mode 7 RS485 communication.
I60 Slave No. in
communic. network Use different numbers in case of more than 1 inverter is installed.
1 – 250
I61 Transmission speed 3 9.600bps; factory setting.

PROFIPOWER POWER ELECTRONICS
Par. Description Setting
I62 Stop mode after
signal loss 0 Non stop. Factory setting.
I63 Time to determ.
signal loss 1.0sec Factory setting.
I59 Communication
protocol 0 0: Modbus RTU
Connection drawing:
Figure 3.5 Connection of SD250 – Profipower gateway
18 INSTALLATION AND CONNECTION
