Power Max PMG4000iSR User manual

Model: PMG4000iSR
Inverter Gasoline
OPERATOR’S MANUAL
Warning: The Engine Exhaust from this product contains chemicals known to the
State of California to cause cancer, birth defects or other reproductive harm.
PowerMaxConverters.com

TABLE OF CONTENTS

INTRODUCTION
Thank you for purchasing this superior quality portable generator from PowerMax.
When operating and maintaining this product as instructed in this manual, your generator will give
you many years of reliable service.
Product Specications:
This generator is an engine-driven, portable generator. It is designed to supply electrical power to
operate tools, appliances, camping equipment, lighting, or serve as a backup power source during
power outages.
How to contact us:
You can contact us by Telephone: [phone], Email: [email protected], or write to us at:
PowerMax
11161 E SR 70, Suite 110-103
Lakewood Ranch, FL 34202
The emissions control system for this generator is compliant with all standards set by the Environmental Protection Agency.
Record the following information below for service or warranty assistance.
Date Of Purchase:
Model Number:
Serial Number:

Safety Rules
SAFETY SYMBOLS
Safety instructions
Indicates a potentially hazardous
situation which could result in serious
injury or death if not avoided.
Indicates a potentially hazardous
situation which could result in damage
to equipment or property.
The manufacturer cannot anticipate every possible hazardous circumstance that the user may encounter.
Therefore, the warnings in this manual, on tags, and on affixed decals are not all-inclusive. To avoid
accidents, the user must understand and follow all manual instructions and use common sense.
Read and understand this manual in its entirety before operating this generator.
Improper use of this generator could result in serious injury or death.
WARNING!
WARNING!
WARNING!
WARNING!
CAUTION!
Risk of explosionRisk of fireToxic Fumes
Risk of electric shock Hot surface
Do not operate indoors or in a confined space preventing dangerous
carbon monoxide gas from dissipating.
• Using a generator indoors WILL KILL YOU IN MINUTES!
• Carbon monoxide gas is a poisonous, odorless gas that can cause headache, confusion, fatigue, nausea,
fainting, sickness, seizures, or death. If you start to experience any of these symptoms, IMMEDIATELY get fresh
air and seek medical attention.
• Never use indoors, in a covered area, or in a confined space, even if doors and windows are open.
• Install a battery operated carbon monoxide alarm near bedrooms.
• Keep exhaust from this unit from entering a confined area through windows, doors, vents, or other openings.
• When working in areas where vapors could be inhaled, use a respirator mask according to all of its instructions.
Engine exhaust contains chemicals that lead to cancer and cause birth defects.
• Always wash hands after handling generator.
4

WARNING!
WARNING!
WARNING!
WARNING!
WARNING!
WARNING!
Never exceed generators wattage / amperage capacity. This could
damage the generator and / or connected electrical devices.
Never start or stop engine with electrical devices plugged in to the receptacles.
Failure to do so could damage the generator and / or connected electrical devices.
Avoid contacting hot areas of this unit
Pull cord recoils rapidly and pulls arm towards engine faster than
you can let go which could result in injury.
Starter and other moving parts can catch on clothing, jewelry, and hair.
Keep engine away from flammable objects and other hazardous materials.
• Check operating voltage and frequency requirements of all electrical devices prior to plugging them
into the generator.
• Always start the engine and let it stabilize before connecting any electronic devices.
• Disconnect all electronic devices before stopping the engine.
• Use caution around the muffler, cylinder, and other engine parts as they can be extremely hot.
• Allow hot components to cool before touching.
• To avoid recoil, pull starter cord slowly until resistance is felt, then pull rapidly.
• Do not wear loose clothing or gloves.
• Remove jewelry or anything else that could be caught in moving parts.
• Tie back or wear protective head covering to contain long hair.
• The fuel and its vapors used to power this unit are highly flammable and could explode resulting in
serious injury or death.
• Never fill or drain fuel tank indoors.
• Never overfill fuel tank. If fuel spills, move the unit at least 30 feet away from the spill and wipe up
any remaining fuel on the unit before starting the engine.
• Never smoke while operating or fueling this unit.
• Never operate or store this unit near an open flame, heat, or any other ignition source.
• Generator should have at least 5 feet of clearance from buildings or other equipment during
operation.
• Keep engine free of grass, leaves, or grease which are flammable.
• When adding or draining fuel, unit should be turned off for at least 2 minutes to cool before removing
fuel cap. If unit has been running then the fuel cap is under pressure, remove slowly.
• To keep fuel from spilling, secure unit so it cannot tip while operating or transporting.
• When transporting unit, disconnect the spark plug wire and make sure the fuel tank is empty with the
3 in 1 switch is turned to the off position.
5
Safety Rules

Safety Rules
WARNING! This generator produces a very high voltage which could result in burn or
electrocution causing serious injury or death
• Never handle the generator, electronic devices, or any cord while standing in water, while barefoot, or
when hands or feet are wet.
• Always keep the generator dry. Never operate generator in rain or under wet conditions.
• Use a ground fault circuit interrupter (GFCI) in a damp or highly conductive area, such as metal
decking or steel work.
• Never plug electronic devices into generator having frayed, worn, or bare wires. Never touch bare
wires or make contact with receptacles.
• Never permit a child or unqualified person to operate generator. Keep children a minimum of
10 feet away from the generator at all times.
• If using the generator for back up power, notify the utility company.

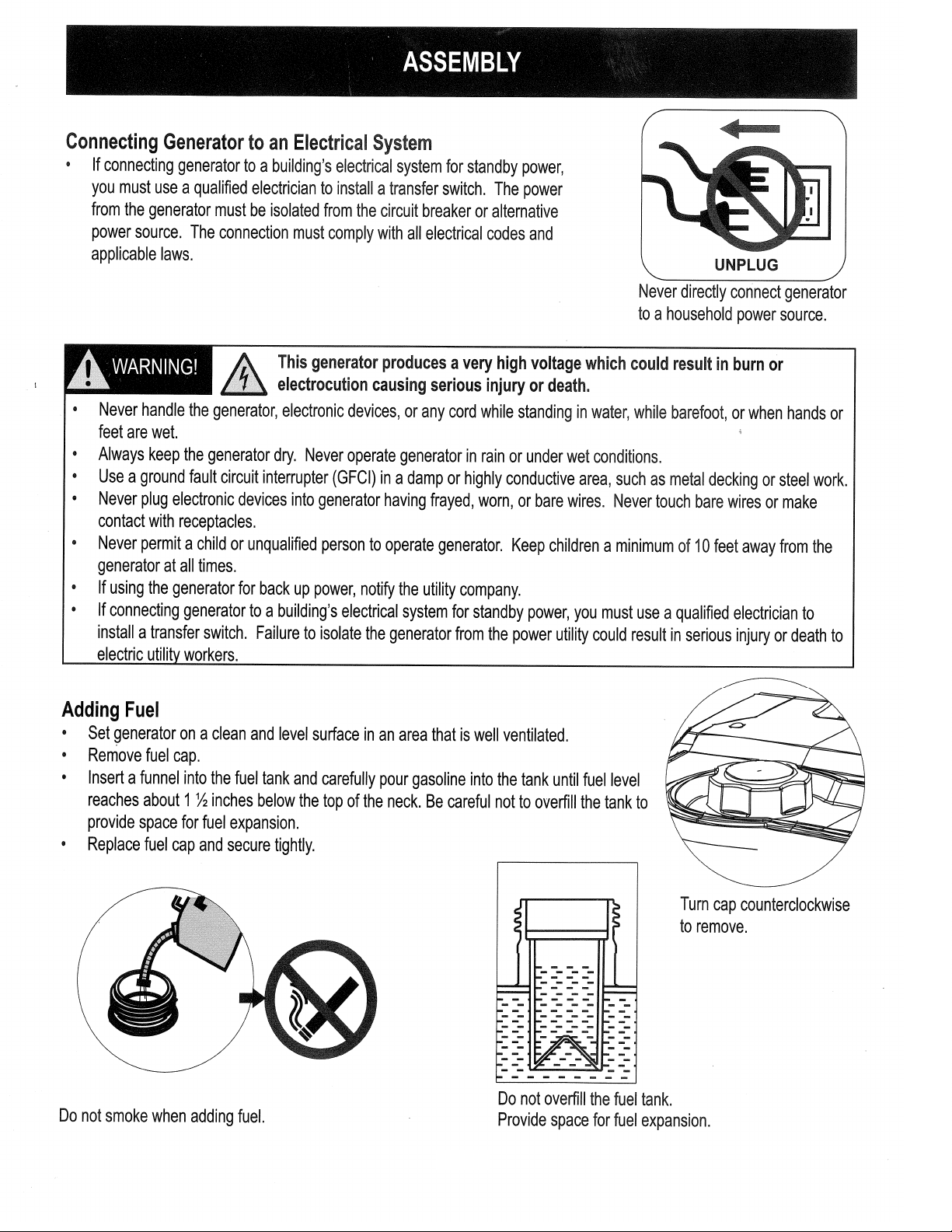

• If connecting generator to a building’s electrical system for standby power, you must use a
qualified electrician to install a transfer switch. Failure to isolate the generator from the power
utility could result in serious injury or death to electric utility workers.
WARNING! Generator must be properly grounded to prevent electrocution.
• Only operate generator on a level surface.
• Always connect the nut and ground terminal on the frame to an appropriate ground source.
WARNING!
WARNING!
WARNING!
Never modify this unit in any way or modify governed speed.
Only use this unit as it is intended or serious injury or death could result.
Never operate this unit if there are any broken or missing parts and only use
PowerMax replacement parts specifically designed for this unit.
• Increasing governing speed is dangerous which can result in personal injury and / or damaged equiment.
• Decreasing governing speed adds an excessive load and can damage equipment.
• Only when operating at the preset governing speed will this generator supply the correct rated
frquency and voltage.
• Do not bypass any safety device. Moving parts are covered with guards. Make sure all protective covers
are in place.
• Never transport or make adjustments to this unit while it is running.
• Never insert objects through cooling slots.
• Improper treatment of generator can damage the unit and shorten its life.
• Always repair this unit as specified in this manual. If you have any questions contact your dealer or consult
a qualified service center.
• Shut generator off if electrical outpost is missing, unit vibrates excessively or begins to smoke, spark or
emit flames.
6
PROP 65 WARNING: This product contains chemicals known to the state of California to cause
cancer and birth defects or other reproductive harm.

7

8

9

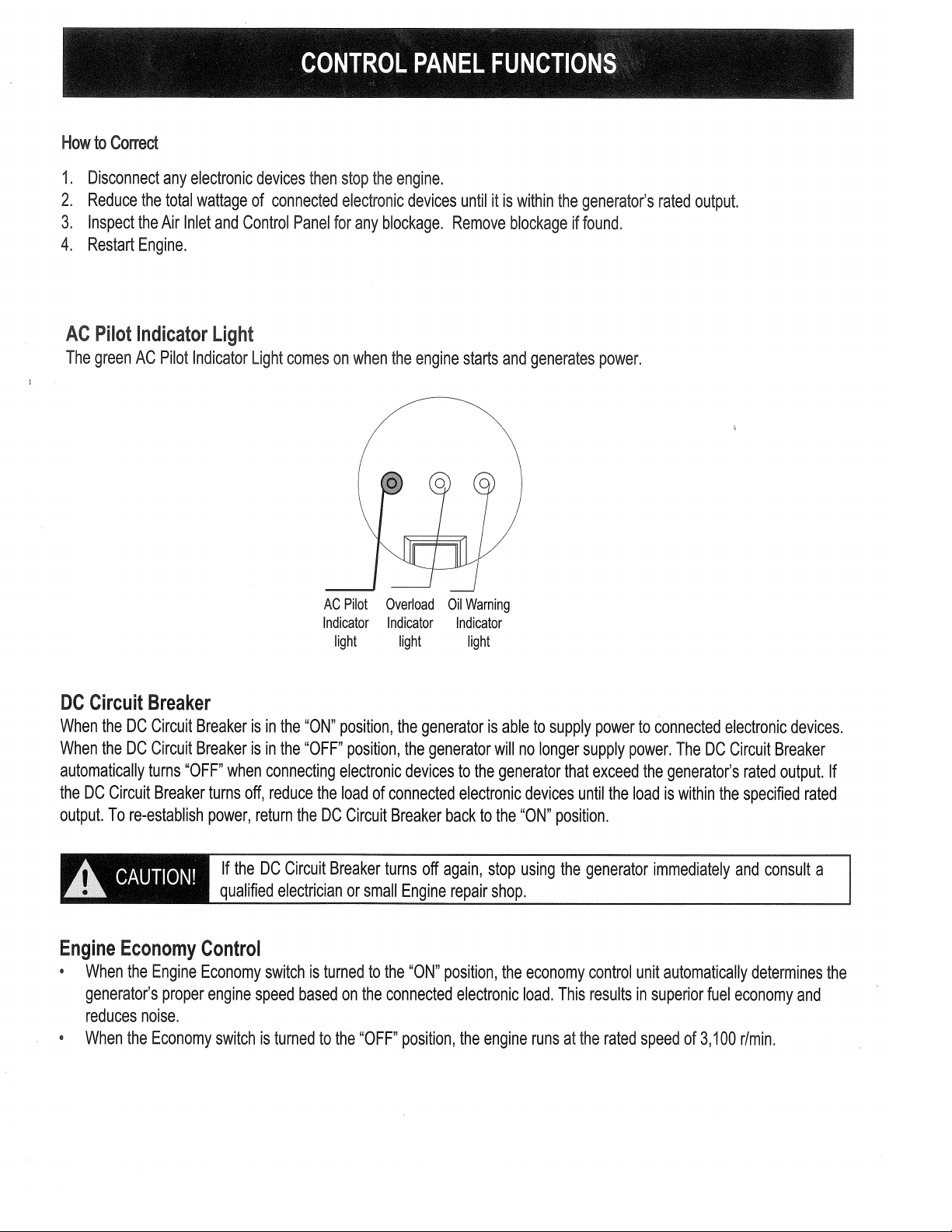

CONTROL PANEL FUNCTIONS
WARNING!
WARNING!
Never connect generators that are different models.
Generator must be properly grounded to prevent electrocution.
• Only connect this generator to another PMG4000iSR Standard Generator.
• Only use a parallel operation cable kit designed to work with this Generator
The generator’s ground terminal must always be used to connect the generator
to a driven ground rod. Connect the ground terminal to the driven ground rod
with a 12 AWG (American Wire Gage) copper wire. The wire connects to the
terminal between the lock washer and nut. Tighten the nut securely to ensure
good connection. Grounding the generator protects you from electric shock
that results from a build up of static electricity or undetected ground faults.
Turn counterclockwise to remove the fuel tank cap.
Located just above the Ground Terminal, the generator’s Parallel Outlets enable a user to run two
PMG4000iSR generator’s simultaneously. This operation requires special cables. When operating parallel
generators, the rated output is 7.0kVA and the rated current is 58.3A/120VAC. For cables and instructions
consult a PowerMax dealer for a PARALLEL OPERATION CABLE KIT.
Note: The Economy switch must be turned to the “OFF” position when using electronic devices that require
a large starting current, such as a compressor.
• Only operate generator on a level surface.
• Always connect the nut and ground terminal on the frame to an appropriate ground source.
Ground Terminal
Fuel Tank Cap
Parallel Outlets
10

11

12

13

14

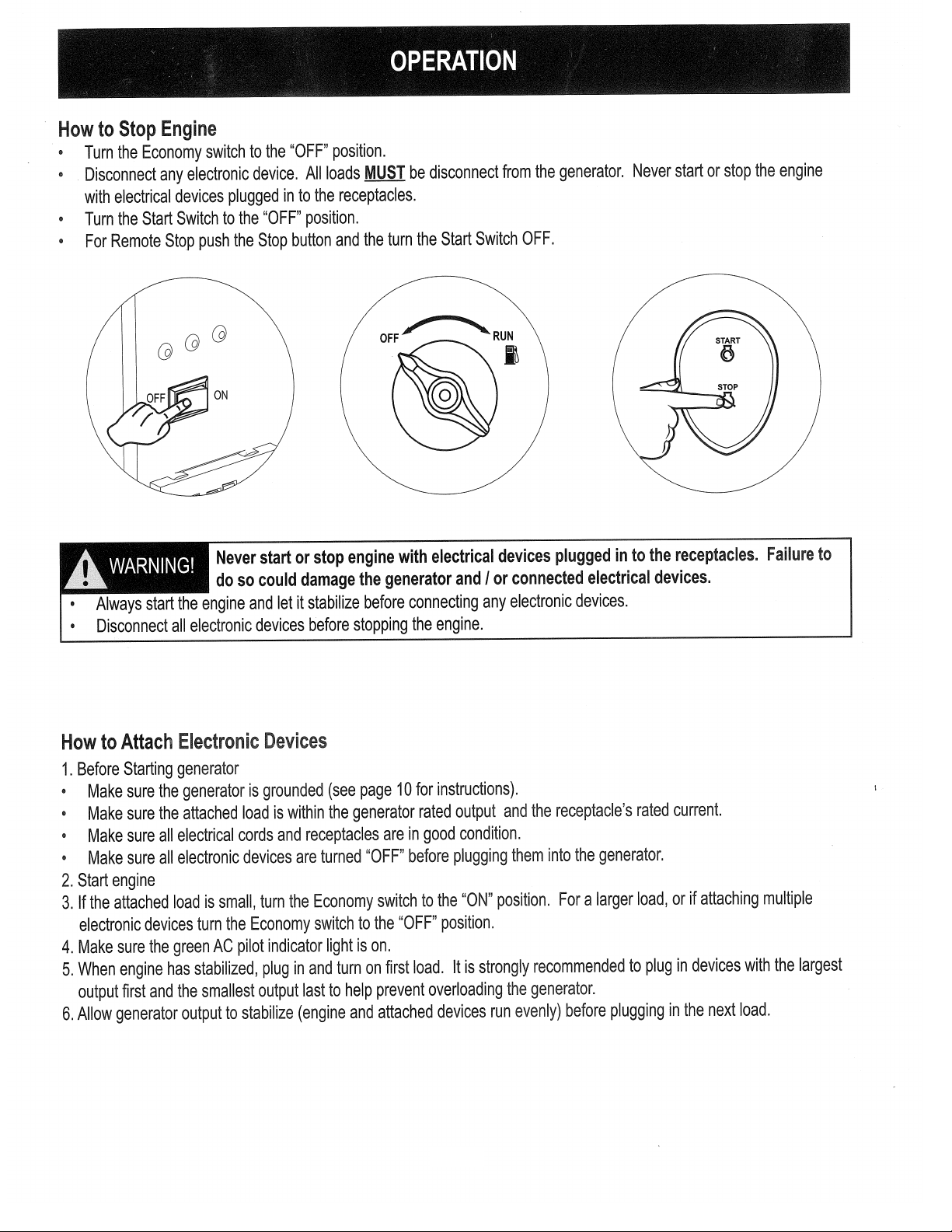

15

OPERATION
AC Parallel Operation
It is possible to connect two PMG4000iSR generators to each other, using a parallel cable kit, to increase
available power output.
• Connect PARALLEL OPERATION CABLES to two PMG4000iSR generators according to the
instructions
provided with the cable kit.
• Make sure the Economy switch is in the same position on both generators.
• All electronic devices should be turned “OFF” and disconnected from generators prior to starting
generator engines.
• Start generator engines. Make sure the green output indicator light comes on for each generator.
• When engines have stabilized, plug in electronic device to AC receptacle and turn on first load.
• Allow generator output to stabilize (engine and attached devices run evenly) before plugging in the next
load.
Limit operation time to 3 seconds for load requiring Maximum
output. For continuous operation, do not exceed tbe rated output.
Note: It is strongly recommended to plug in devices with the
largest output first and the smallest output last to help prevent
overloading the generator.
Note: Most electronic devices require power beyond its rated wattage to start. This additional power
is referred to as surge watts and usually lasts between 2-3 seconds. When an electronic device is
started, the red overload indicator may come on. This is normal. If the light stays on disconnect all
electronic devices and stop the engine. Refer to “Engine Overload Indicator Light” on page 8.
WARNING!
WARNING!
Only connect electronic devices to the generator that are in good working
order and do not exceed the rated power supply of the parallel generators or
the desired receptacle.
Never connect generators that are different models.
• A faulty appliance or power cord can create an electric shock. Do not use electronic devices that have a
damaged cord or plug.
• If an appliance begins to operate abnormally, becomes sluggish, or stalls, turn off and disconnect appliance
immediately. The appliance may have a fault or its rated load capacity exceeds the power supply of the
generator.
• To avoid damage to generator or electronic device, do not connect a load to the generator if its electrical
rating exceeds
• Only connect this generator to another PMG4000iSR generator.
• Only use a PowerMax approved parallel operation cable kit to connect generators.
• Do not run generators in parallel operation in excess of 30 minutes.
• The parallel cable must be removed if operating only one generator.
• Never disconnect or remove the parallel operation cable while generator is still running.
16

17

MAINTENANCE
18
Regular maintenance will extend the life of this generator and improve its performance. The warranty does
not cover items that result from operator negligence, misuse, or abuse. To receive full value from the warranty,
operator must maintain the generator as instructed in this manual, including proper storage.
WARNING!
WARNING!
WARNING!
Before inspecting or servicing this machine, make sure the engine is off and no parts are
moving. Disconnect the spark plug wire and move it away from the spark plug.
If you are unsure of how to perform a maintenance task, have the unit serviced by a
PowerMax dealer
Only use specified DUCAR replacement parts.
Maintenance Schedule
Pre-Operation Steps
Before starting the engine, perform the following pre-operation steps:
• Check the level of the engine oil and the fuel tank level. Check for any leakage.
• Check fuel hose for cracks or damage. Replace if necessary.
• Make sure the air filter is clean.
• Remove any debris that has collected on the generator and around the muffler and controls.
Use a vacuum cleaner to pick up loose debris. If dirt is caked on, use a soft bristle brush.
• Inspect the work area for hazards.
After Each Use
Follow the following procedure after each use:
• Shut off engine.
• Store unit in a clean and dry area.

19
