Congratulations on your purchase of a Power-Pole
MICRO®shallow water anchor. This all-electric wonder
is the first of its kind. The MICRO is a super-compact
powerhouse that was built to give you the ultimate
shallow water fishing experience. With Power-Pole’s
signature strong hold, the MICRO gives you a smooth
stop on the spot in less than 7 seconds flat. Whether
you’re anchored in sand, rock or muck, it’s swift, it’s silent,
it’s secure. And, yes, it’s small.
As if that wasn’t enough, you’ll also have all the benefits and features of the
MICRO’s C-Monster Control System. The included wireless remote puts you in
charge, with all the speed and directional controls in the palm of your hand.
You can even call your moves from your smart phone with our free app.
This guide will help you get the most from your Power-Pole MICRO anchor.
Inside you’ll find information on safe use and proper maintenance of your
shallow water anchor. It also contains your warranty information. If you have
questions about your new MICRO anchor we’re always here to help − call our
Technical Support Team at 1+ [phone] option 2 or visit our website
at www.power-pole.com for FAQs, videos and technical support.

4 | MICRO Installation & Owner’s Guide 2018 | www.power-pole.com
A. Qty. (4) 5/16” x 3 1/2” all thread transom
mount bolts
B. Qty. (4) 5/16” fender washers
C. Qty. (4) 5/16” tall brass nuts
D. Qty. (1) butt connector
E. Qty. (1) ring terminal
F. Qty. (3) #8 x 3/4” black flat head screws
G. Qty. (1) 5/16” white thru-hull bushing (optional)
H. Qty. (1) power cord plug
I. Qty. (1) fuse holder with 15 amp fuse
J. Qty. (1) quick release clamp with bolt
K. Qty. (1) adjustment nut
L. Qty. (2) adjustable hex lock
M. Qty. (1) standard key-fob
N. Qty. (1) lanyard for key-fob
O. Qty. (1) wireless dash switch
P. Qty. (1) adhesive strip
Q. Qty. (1) 1/4” Allen key
R. Qty. (1) quick release pull cord for kayaks
S. Qty. (1) cord holder
• 1/2” Wrench or 1/2” Socket with ratchet
• Electric or battery operated drill
• 5/16” & 7/64” drill bit
• Heat gun
• Marine grade sealant
• Fine point marker
• Wire cutters
• Wire strippers
• Wire terminal crimpers
• 1/4” Allen wrench (included)
• Phillips screwdriver
Included Hardware: Installation Tools:
Congratulations on your purchase of the all-electric Power-Pole® MICRO®shallow water
anchor. It’s the first of its kind – a super-compact powerhouse that was built to give you the ultimate
shallow water fishing experience.
Please read all installation instructions carefully. The information contained here describes the
proper procedures for safely installing your Power-Pole shallow water anchor.
INSTALLATION
A
B
FG
K
L
S
R
N
MO
P
Q
J
I
H
CDE

MICRO Installation & Owner’s Guide 2018 | www.power-pole.com | 5
MOUNTING Options
IMPORTANT: In all options it is recommended that the bottom of the MICRO Driver Unit
be mounted above the water line of the boat.
Deck Mount Transom Mount
Place bracket within
3” of edge of
mounting surface Mark and drill holes with
5/16” drill bit and install
hardware as shown.
Q
A
B
C
3”
Place bottom edge of
bracket even or higher than
the boat’s water line Mark and drill holes with
5/16” drill bit and install
hardware as shown
Q
C
B
A
ADAPTER PLATE
To determine correct adapter plate go to
www.power-pole.com.Additional hardware
may be required.
TRANSOM CLAMP
To order go to www.power-pole.com
or an authorized dealer.
Additional Mounting Options
Available with purchase of accessories.
Adapter Plate Transom Clamp Micro
Bracket
Micro
Bracket

6 | MICRO Installation & Owner’s Guide 2018 | www.power-pole.com
MOUNTING Options (continued)
MICRO ANCHOR BOW MOUNT BRACKET
To order go to www.power-pole.com.or an authorized dealer.
NOTE: For mounting Micro anchor in combination with a bow mounted trolling
motor. Mounts between the trolling motor base and boat deck.
KAYAK MOUNT
NOTE: If unable to mount using the adjustable bracket provided or the available Transom Clamp,
contact JL Marine Systems, Inc. or your kayak dealer for mounting options.
Trolling Motor
Bow Mount Bracket
Micro
Bracket
Boat Deck

MICRO Installation & Owner’s Guide 2018 | www.power-pole.com | 7
Attaching / Removing Driver Unit
Attach the MICRO Driver Unit into its mount as shown.
Next, push the release clamp bolt through and thread the
adjustable nut Kon tight by turning clockwise and lock
quick release clamp into position.
Installing Quick Release Cord (for kayaks)
Lock the quick release clamp into a 90 degree position as
illustrated for quick release pull cord.
IMPORTANT: The quick release clamp handle must be
oriented as shown and the quick release
pull cord pulled towards the bow of
vessel to function properly.
Pull this way
to unlock
quick release
handle.
ATTACHING DRIVER Unit
Mark and drill a hole
with a 7/64” drill bit to
fasten the Scord holder
to vessel with Fscrew
where easily accessible
Fasten the end of Rquick release pull cord to quick release clamp handle by tying them together using a knot.
K
L
L
J
J
R
F
S

8 | MICRO Installation & Owner’s Guide 2018 | www.power-pole.com
1. Plug the male plug connector Hinto the MICRO Driver Unit and route wires through the boat
to power source. IMPORTANT: Power cord must be disconnected
when the anchor is not in use or
while charging 12 volt DC battery.
MICRO Driver Unit
Female plug connection
–Fuse Holder
–Power Cord End
Connecting the MICRO Driver Unit to Power Source
Using a 12 volt DC battery
2. Use the (1) heat shrink butt connector Dto connect the red wire to the red fuse holder wire and crimp.
ATTACHING POWER Source
3. Use the (1) heat shrink ring terminal connector Eto connect to the black wire and crimp.
4. Connect the red fuse holder ring terminal to the main battery cut-off switch and
the black ring terminal to the negative post on the cranking battery. The LED light
on the top of the MICRO Driver Unit will begin flashing green.
NOTE: If 12 volt battery is not available, the Micro Driver Unit can also be powered by the Micro
Battery Pak, sold seperately.
NOTE: Dust cover
must be in
place while
power cord is
disconnected.
H
H
D
E
I

MICRO Installation & Owner’s Guide 2018 | www.power-pole.com | 9
2. Use the (1) heat shrink butt connector Dto connect the red wire to the red fuse holder wire and crimp.
MICRO Driver Unit
The MICRO Driver comes programed as a single unit. For
proper performance do not program a single unit as port or
starboard. If you have a single unit proceed to the Owners
Guide for calibration instructions prior to using the unit.
Programming Dual MICRO Driver Units
1. With both MICRO Driver Unit locations identified,
begin with the starboard side unit. Press and hold the
“Program” button for 6 seconds until the LED turns red.
2. Press the UP button to set as the starboard side unit.
The LED will flash red one time indicating that the
programming has been completed successfully. Press
and release the program button to save and exit. The LED will flash red one time.
3. On the port side, repeat Step 1 to enter programming mode. Press the DOWN button to set as the
port side unit. The LED will flash red twice indicating that the programming has been completed
successfully. Press and release the program button to save and exit. The LED will flash red twice.
Programming Dual MICRO Driver Units to a Single Wireless Controller
When installing dual units, you can program a single Dash Switch and/or Key-Fob remote to control
both driver units by following the steps below.
1. Determine which unit is paired with the controller by pressing the UP or DOWN button.
2. Press and hold the Program/Pair button on the other unit for three seconds until the LED turns green.
3. Press and hold the UP or DOWN button on the controller until both units respond.
Installing the Dash Switch
NOTE: You should make sure your Dash Switch is paired with your
single or multiple driver units before installation.
Mark and drill a hole with 7/64” drill bit to fasten switch using the
(2) screws Fsupplied (do not over tighten). Or you may choose to use
adhesive strip Palso supplied.
PROGRAMMING The MICRO
LED Programming Light
UP
Program/Pair
DOWN
Anchor Force
Battery Level
F
F

10 | MICRO Installation & Owner’s Guide 2018 | www.power-pole.com
Here you will find information on all of the functions, safe use, and proper maintenance
of your MICRO®shallow water anchor. If you have questions, contact our Technical Team @
1+[phone] option 2 or visit our website at www.power-pole.com.
OPERATION

MICRO Installation & Owner’s Guide 2018 | www.power-pole.com | 11
Figure 2
OPERATING
the Power-Pole
MICRO®Anchor
Top Side Controls (FIG. 1)
• The UP and DOWN buttons on top of the
MICRO Driver Unit can be used to retract and
deploy your Power-Pole MICRO anchor.
• While pressing the ANCHOR FORCE button, also press
the UP or DOWN to increase or decrease the anchor force
NOTE:Anchoring force does not relate to stopping power.
• Check battery level by pressing the BATTERY LEVEL button.
Orange LED lights appear above indicator bars to show
levels of battery charge. Each bar represents 20% of charge.
Calibrating Your MICRO Driver Unit
For proper operation your MICRO Driver Unit must be calibrated to your spike. The Driver
Unit will read the length and surface smoothness of your spike and calibrate the distance and
pressure required for proper anchoring force.
IMPORTANT: The Micro Driver Unit must have 21” inches between it and the ground for
accurate calibration
Calibration Instructions (FIG. 2)
1. Insert the spike into the MICRO Driver Unit.
2. Press the ANCHOR FORCE and BATTERY LEVEL buttons on the top of the
unit at the same time. The driver unit will automatically start the calibration
process.
3. The unit will cycle the spike up and down for 30 to 60 seconds.
NOTE: Do not touch the driver unit or spike during the calibration process.
4. Once the calibration is complete the programming LED will return
to flashing green. Your MICRO Driver Unit is now ready for use.
21” of
clearance is
required
to calibrate
Figure 1
LED Programming Light
UP
Program/Pair
DOWN
Anchor Force
Battery Level

12 | MICRO Installation & Owner’s Guide 2018 | www.power-pole.com
Dash Switch (FIG. 3)
STANDARD MODE
To raise or lower your Power-Pole MICRO anchor, press and hold
either the UP or DOWN button on the Dash Switch. The anchor will
only continue to move as long as you press the button.
AUTO MODE (Dash Switch & Standard Key Fob remote control)
Double tapping (pressing and releasing 2 times within 1 second)
either the UP or the DOWN button on the key fob or dash switch
will cause the anchor to retract or deploy automatically. The anchor
will continue to move in said direction until it either retracts completely (Auto Up) or senses a solid
bottom surface (Auto Down).
SPEED CONTROL
The Dash Switch has 3 speed settings (slow, medium, or fast). Pressing and releasing the
“Speed Control” button will toggle through the 3 settings. The LED lights on the switch will flash
corresponding to either a slow, medium, or fast setting.
MULTIPLE ANCHORS
With multiple Power-Pole anchors equipped with the C-Monster Control System, the Dash Switch
can be used to toggle between independent or simultaneous control of the anchors. Depressing
and releasing the “Directional Control” button will toggle through the multiple anchors. The LED
will flash between left, right, or on both to indicate the current control settings.
SLEEP MODE
Press both UP and DOWN buttons for 3 seconds, LED lights will flash indicating the switch is
now in Sleep Mode. To reactive, press both buttons again for 3 seconds until LED lights flash.
Standard Key Fob Remote Control (FIG. 4)
STANDARD MODE
To raise or lower the Power-Pole MICRO anchor, press and hold either the UP or
DOWN button on the key fob. The anchor will only continue to move so long as
you press the button.
AUTO MODE (Standard Key Fob & Dash Switch remote control)
Works the same as the Dash Switch Auto Mode description above.
WAVE MODE
In addition to Anchoring Force control, your MICRO Driver Unit can be put into Wave Mode.
While the spike is in the fully deployed position, press any DOWN button control to enter Wave
Mode. In Wave Mode the MICRO Driver Unit will continue to absorb waves and re-drive the
spike up to 20 times. If further wave absorption is required, press the DOWN button again to
reactivate Wave Mode.
Speed Control
Toggle between
multiple anchors
Figure 3
Figure 4

MICRO Installation & Owner’s Guide 2018 | www.power-pole.com | 13
The C-Monster App is available for free in Google Play. The C-Monster app will allow you to
do the following:
• Configure settings for custom operation. Take full control of everything from
deployment speed to independent or synchronized control of multiple anchors. Not to
mention Auto Up/Auto Down and bottom sensing.
• Troubleshoot with AMP streaming instant diagnosis.
The information is sent directly to the Power-Pole Technical Support Team so we can instantly
see what’s happening and you can count on little or no down time.
• Check signal strength of all your remotes with RSSI evaluation. This allows you to
instantly see if your signal is weak or if any other devices are disrupting your signal.
• Update software. You will receive automatic prompts to update your C-Monster software,
if a newer version is available.
• Quick product registration. Now you can easily register your Power-Pole anchors and
accessories directly through the app.
• Theft recovery. Once you register your Power-Pole anchor with the C-Monster App, if it’s
ever stolen we can help law enforcement track and recover it.
C-MONSTER
Smart Phone App
DOWNLOAD
THE C-MONSTER APP @

14 | MICRO Installation & Owner’s Guide 2018 | www.power-pole.com
• Every 3 months inspect all electrical connections to ensure that they are secure and
add dielectric grease every 6 months to prevent corrosion.
• Prior to each use, inspect all hardware for proper tightness.
• The MICRO Driver Unit needs to be flushed out with water after each use. (FIG. 5)
• Power cord must be disconnected when the anchor is not in use or while charging
12 Volt DC battery.
NOTE: Dust cover must be in place while power cord is disconnected.
• The MICRO Driver Unit has a quick release clamp for easy removal.
(See attaching and removing section in the Installation Manual.)
MAINTENANCE
and storage
+
Figure 5

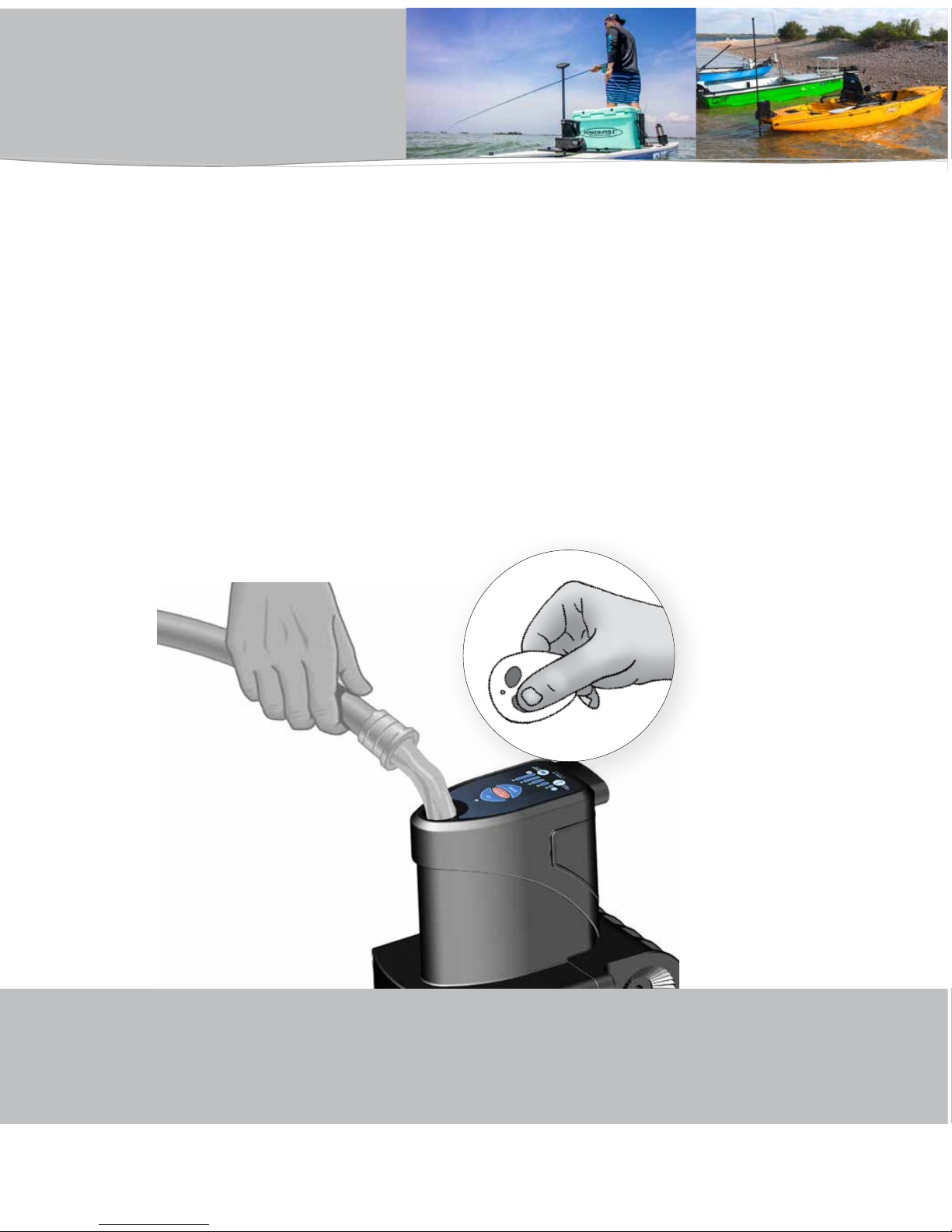

With the spike removed, double tap the Key Fob or Dash Switch DOWN button to run the unit a full 30
seconds while simultaneously flushing with low flow water. Repeat as needed to clean all debris from spike
pocket mechanical parts.

MICRO Installation & Owner’s Guide 2018 | www.power-pole.com | 15
Q: What is the biggest boat recommended for the MICRO shallow water anchor?
A: The MICRO works best on boats 1,500 pounds or less this includes people and gear.
Q: Why is the Power-Pole spike the best?
A: Power-Pole 3/4” spikes feature a comfort grip handle and have a 1/4-20 threaded
insert on the top for adding flags, lights or cameras. Power-Pole spikes are available
in two strengths: 1) Our Ultra-lite Spike is strong, yet lightweight. It is made of a
composite material and features HollowCore technology for a secure hold of vessels
up to 1500 lbs. 2) Our Heavy-duty Spike is super tough and super strong. It has a
solid core that will securely hold larger vessels. All Power-Pole spikes are tested for
strength and durability.
Q: If vessel is above the weight limit recommendation will this void the
manufacture warranty?
A: No, but this will affect the holding power.
Q: How many wireless controllers can I program to my MICRO anchor?
A: Up to ten (10) wireless controllers can be programmed to operate your single or dual
MICRO anchor.
Q: How do I program a new wireless controller to my existing MICRO
anchor?
A: 1. Press and hold the “PRGM/PAIR” button on top of the MICRO Driver Unit, press
and hold for 3 seconds, until the LED turns solid green.
2. Press and hold either the UP or DOWN button on the wireless controller you are
pairing until the unit responds.
Q: How do I adjust the speed on my included wireless key-fob?
A: The included wireless Key-Fob comes out of the box set to the 100% speed setting.
This can be adjusted by using the C-Monster App.
Q: Can I use a Non Power-Pole Spike with my MICRO anchor?
A: Yes, your Power-Pole Micro will accommodate any 3/4” spike.
Q: What type of 12 volt battery can be used with the MICRO Driver Unit?
A: Any 12 Volt DC battery can be used with the MICRO anchor.
Q: Is the Micro compatible with C-Monster 2.0
A: No, the Micro is only compatible with C-Monster 1.0 controllers (as shown in this guide).
FAQ
Frequently Asked
Questions

Figure 6 Figure 7
Need help? Contact our Technical Support Team at 813.689.9932 option 2
TROUBLE
Shooting Guide
INSTALLATION of New Dash Switch Battery
1. Ensure the surrounding area is as dry as possible to avoid moisture intrusion.
2. Remove the (2) #8 x 3/4” flat head screws from the top of Dash Switch.
3. Use a small slotted screwdriver to remove the Dash Switch cover plate. (FIG. 6)
4. Remove the rubber switch membrane and the board from the Dash Switch base.
5. Remove the battery from the holder on the back of the board and replace with any CR2032 3V
Lithium Coin Battery.
6. Place the board and rubber switch membrane back into the Dash Switch base and ensure that
the rubber switch membrane is seated properly prior to installing the cover plate (FIG. 7)
SYMPTOM RECOMMENDATION
Slipping / noise when anchored Reduce anchor force and retry.
Spike does not retract Reduce the anchor force setting by one level
from the MICRO Driver Unit.
NOTE: If stuck down the force setting may
be too high.
Excessive slop / wobble when stowed
or deployed
Call our Technical Support Team at
1 + [phone] option 2
Driver is making a grinding
noise while running
Flush spike pocket with water to remove any
dirt that could be causing the grinding noise
(FIG. 5)
16 | MICRO Installation & Owner’s Guide | www.power-pole.com

MICRO Installation & Owner’s Guide 2018 | www.power-pole.com | 17
PRECAUTIONS
NOTE: DO NOT use the Power-Pole MICRO as your primary anchorage. Never leave
your boat unattended while anchored solely with the Power-Pole shallow water anchor.
• Prior to use, read this instruction manual carefully. Become familiar with the controls
and how to operate your Power-Pole shallow water MICRO anchor properly.
• Do not allow children to operate or tamper with the Power-Pole MICRO anchor without
adult supervision.
• Do not modify the unit in any way.
• Use only genuine Power-Pole MICRO anchor accessories.
• Always disconnect the 12 Volt power source from the anchor before servicing.
• Do not use your Power-Pole MICRO anchor as a form of assistance when entering or
exiting the vessel.
• During situations with high wind or rough seas, your Power-Pole MICRO anchor may
release holding pressure in order to protect your vessel’s transom.
• If any debris gets caught around your anchor’s spike, disconnect the 12 Volt power
source prior to removal.
MICRO Optional Accessories
Additional Power Cord
Transom Clamp Bracket
Adjustable Mounting Bracket
Micro Battery Pak
with Charger

18 | MICRO Installation & Owner’s Guide 2018 | www.power-pole.com
WARRANTY
Two (2) Year Limited Warranty
Power-Pole®MICRO shallow water anchor
Conditions of this Warranty
A Power-Pole MICRO™ shallow water anchor manufactured by JL Marine systems Inc. is warranted against defects in material and
workmanship in the MICRO Driver Unit, adjustable mounting bracket stern bracket, and electrical system, to the original end consumer
from the original purchase date, according to the following stipulations:
1. Power-Pole MICRO shallow water anchor warranties are activated upon receipt by JL Marine Systems, Inc. of the completed warranty
card, postdated within (10) days of the original purchase date or by registering your Power-Pole on our website. Please retain your sales
receipt as proof of purchase.
2. Install Genuine Power-Pole Merchandise ONLY. This warranty is void if any non-authorized parts are used or installed.
3. This warranty is void if the Power-Pole MICRO shallow water anchor is used commercially, structurally altered or subject to stress
beyond the physical limits of the manufactured material.
4. This warranty does not cover abrasion or abnormal abuse, nor does it cover the Power-Pole MICRO shallow water anchor for anything
other than its intended use.
5. JL Marine Systems, Inc. reserves the right to change products and designs without incurring any obligations to incorporate such
changes in already completed products, or those in the hands of dealers or consumers. Products repaired or replaced under this
warranty may or may not have these changes.
Shipping (Only applies to packages shipped within the Continental U.S.)
1. Parts which prove defective within (90) days from the date of purchase, JL Marine Systems, Inc. will pay for the replacement product
shipping and handling fees to and from the JL Marine Systems, Inc. manufacturing plant or some other place which JL Marine Systems,
Inc. might designate.
2. Parts which prove defective after (90) days but before (12) months from the date of purchase will also be repaired or replaced free
ofcharge, but there may be a shipping charge to JL Marine Systems, Inc. manufacturing plant or some other place which JL Marine
Systems, Inc. might designate.
3. Parts which prove defective after (12) months will also be repaired or replaced free of charge, but there may be a shipping and handling
charge to and from the JL Marine Systems, Inc. manufacturing plant or some other place which JL Marine Systems, Inc. might designate.
Parts
1. The MICRO Driver Unit and Adjustable Mounting Bracket which proves defective within (24) months from date of purchase will
be repaired or replaced free of charge. Unit damage due to incorrect power supply, submersion or excessive exposure to water may
void this warranty.
2. A Dash Switch or Key-Fob remote control which proves defective before (24) months, will be repaired or replaced free of charge. In
the case of replacement, parts of same (or equivalent) model will be used.
3. This warranty does not cover water damage in any way.
THE WARRANTY CONTAINED HEREIN IS THE EXCLUSIVE WARRANTY MADE BY JL Marine Systems, Inc. AND THERE ARE NO OTHER
WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING A WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE OR OF MERCHANTABILITY
MADE WITH RESPECT TO SUCH ANCHORS. JL MARINE SYSTEMS, INC. IS NOT LIABLE FOR ANY INJURY OR MISHAPS SUSTAINED IN
THE USE OF THIS PRODUCT. THE USER OF THIS PRODUCT ACKNOWLEDGES ASSUMED RISKS AND WAIVES ANY AND ALL CLAIMS
AGAINST JL Marine Systems, Inc. AND ANY OF IT’S AGENTS.
This warranty applies under conditions of normal use. The warranty does not cover: 1) defects caused by improper assembly or disassembly;
2) defects occurring after purchase due to product modification, intentional damage, accident, misuse, abuse, negligence or exposure
to corrosive elements; 3) cosmetic damage and 4) labor or assembly costs. Except as provided herein, JL Marine Systems, Inc. makes no
express warranties, and any implied warranty, including without limitation any implied warranty of merchantability or fitness for a particular
purpose, is limited in its duration to the duration of the written limited warranty set forth herein. Except as provided herein, JL Marine Systems,
Inc. shall have no liability or responsibility to the purchaser or any other person or entity with respect to any liability, loss or damage caused
or alleged to be caused directly or indirectly by use of the product, including, but not limited to, any incidental or consequential damages.
Some states do not allow limitation on how long an implied warranty lasts or the exclusion of limitation of incidental or consequential
damages, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights. You may also have other
rights which vary from state to state.

MICRO Installation & Owner’s Guide 2018 | www.power-pole.com | 19
General Statement (for all devices)
Warning: Changes or modifications to this device not expressly approved by JL Marine Systems, Inc. could void the user’s
authority to operate the equipment.
FCC Specific Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
deteremined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
FCC Part 15.19 Warning Statement – (Required for all Part 15 devices) THIS DEVICE COMPLIES WITH PART 15
OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT
CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
FCC/ISED RF Exposure
ENGLISH: This equipment complies with radiation exposure limits set forth for an uncontrolled environment. This equipment is in
direct contact with the body of the user under normal operating conditions. The transmitter must not be co-located or operating in
conjuction with any other antenna or transmitter.
FRENCH: Cet équipment est conforme aux limites d’exposition aux radiations dans un environment non controle. Cet équipment
est en contact direct avec le corps de l’utilisateur dans des conditions de fonctionnement normales. Cet émetteur ne doit pas être
co-localisées ou opérant en conjunction avec tout autre antenne ou transmetteur.
ENGLISH: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must not accept any interference, including interference
that may cause undesired operation of the device.
FRENCH: Le présent est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de license. L’exploitation
est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
FCC
Statements

Need help? Contact our Technical Support Team at
813.689.9932 option 2
©2018 all rights reserved. Power-Pole Shallow Water Anchor U.S. Patent No. 9,187,152 B2
CAUTION:
Do not use the Power-Pole shallow water anchor as your primary anchorage.
Never leave your boat unattended while anchored solely with the Power-Pole shallow water anchor.
Need help? Contact our Technical Support Team at
1 + 813.689.9932 option 2
Micro-install-owner-internat-012018
9010 Palm River Road, Tampa, Florida 33619
Phone [phone] Fax [phone]
www.power-pole.com
