Power Shot HOTWASH HW2015 User manual

HW2015
HOT WATER
CLEANER
INSTRUCTION MANUAL

GB - CONTENTS Pag.
Preparation 3
Description of symbols 4
Introduction 5
General warnings for installation and use 5
Intended use 8
Preliminary operations 8
Use 10
Advise on using detergents 11
Maintenance 11
Periods of inactivity 13
Scrapping 13
Trouble-shooting 14

English
- 3 -
ORIGINAL INSTRUCTIONS
The text has been carefully checked, however any misprints should be notified to the manufacturer.
The manufacturer also reserves the right to alter and update this publication without prior notice for the sake of
product improvement.
All reproductions of this manual, in whole or in part, are forbidden without the manufacturer's authorization.

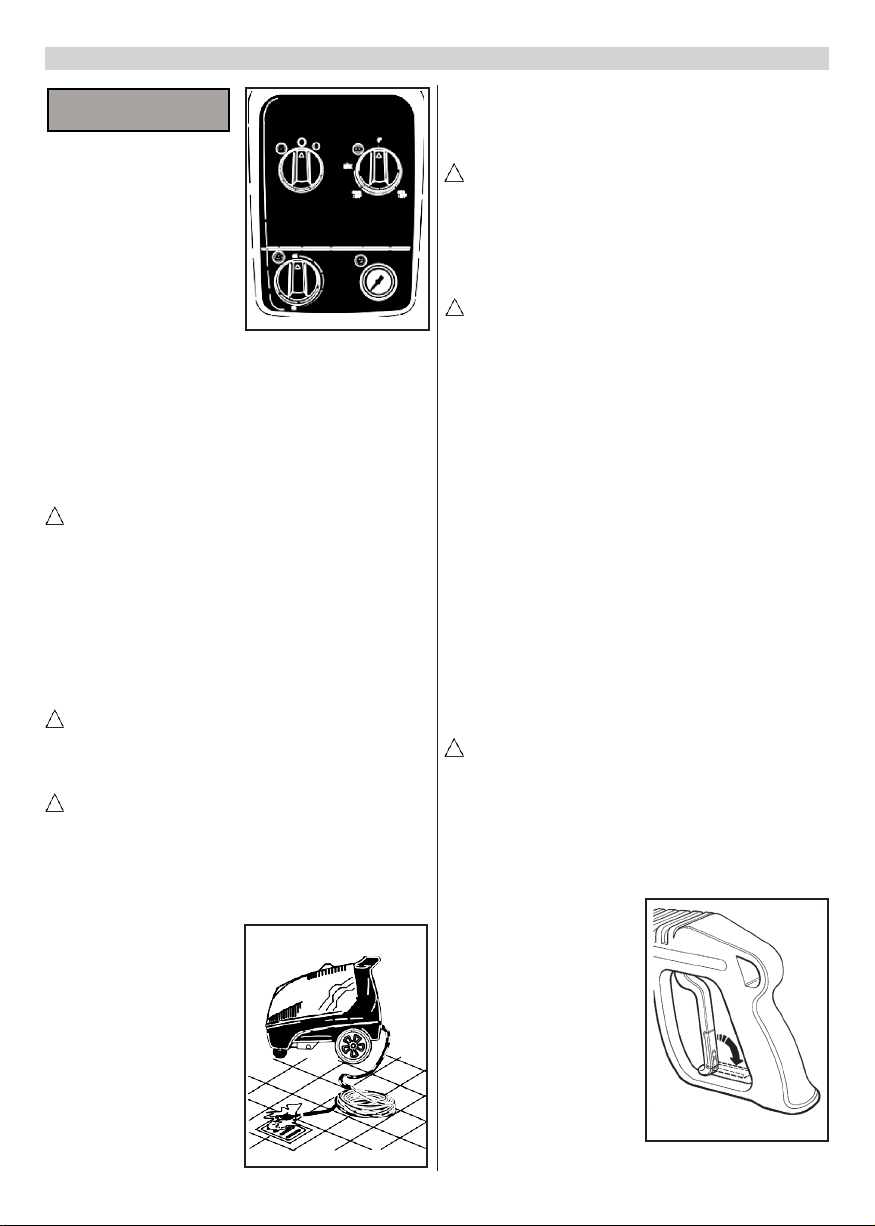

Fitting the lance. Fitting the lance.
B
C
A
Water circuit connection.
Electrical connection.
30 mA
Congratulations! We wish to thank you
for buying this cleaner. You have shown that you do not accept compromises: you want the best.
We have prepared this manual to enable to fully appreciate the qualities and high performance that this cleaner can offer you.
Please read it completely before using the machine.
The CE mark on your cleaner shows that it has been constructed in compliance with the European Standards on safety.
We can also offer you a wide range of cleaning machines such as:
VACUUM CLEANERS, FLOOR CLEANERS, FLOOR SWEEPERS and a complete range of ACCESSORIES, CHEMICALS
and DETERGENTS suitable for cleaning all kinds of surfaces.
Ask your Dealer for the complete catalogue of our products.
PREPARING THE CLEANER
Continue reading this manual without connecting the cleaner to the power mains and the water supply.

English
- 4 -
DESCRIPTION OF SYMBOLS ON THE CLEANER

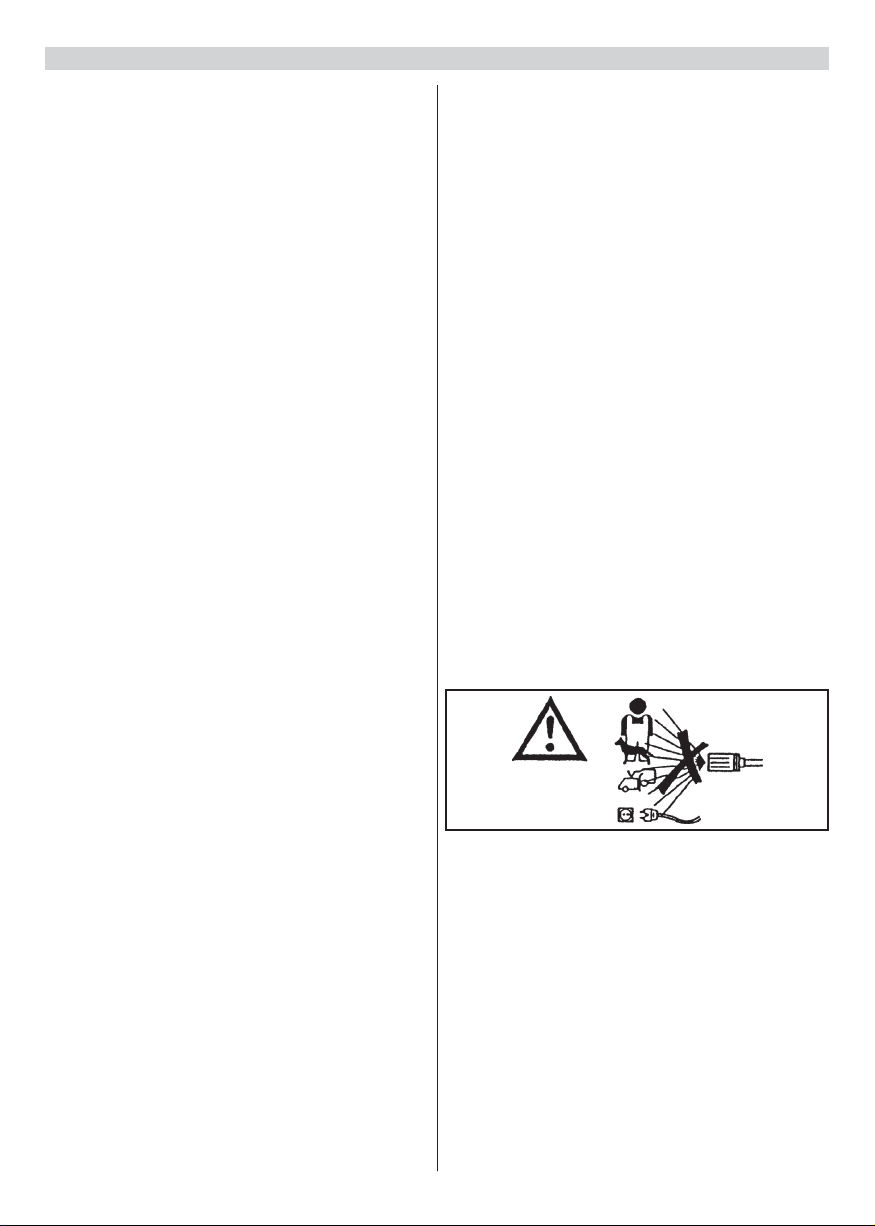

DO NOT DIRECT THE JET
AGAINST PEOPLE, ANI-
MALS, POWER SOCKETS
OR THE MACHINE IT SELF.
ATTENTION: RISK OF BUR-
NS.
ATTENTION: RISK OF
ELECTRIC SHOCK.
EARTH.
WATER INPUT.
WATER OUTPUT.
SWITCHING OF THE PUMP
MOTOR.
LIGHTING THE BURNER.
ADJUSTING THE WATER
TEMPERATURE.
FUEL (DIESEL).
CHEMICHALS
(DETERGENT).
ANTI-SCALE PRODUCT.

English
- 5 -
PREFACE
CLASSIFICATION
Danger
Identifies an imminent risk which could lead to serious or fatal
injury.
Warning
Identifies a risk situation which could lead to serious injury.
Information
Identifies a risk situation which could lead to minor injury or
damage to things.
Warning
You must read this manual before installing, starting up and
using the high pressure washer.
This manual is an integral part of the product.
Read the warnings and instructions contained in the manual
carefully as they provide important information on USER SA-
FETY and MAINTENANCE, paying particular attention to the
general safety regulations.
KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE
REFERENCE.
Warning
Those operating and servicing the high pressure washer must
be aware of the contents of this manual.
The user must observe the conditions of use of the applian-
ce prescribed by the Rules, and particularly he must respect
the following classification:
As for the protection against electric shock, the H.P.cleaner
belongs to CLASS I.
The H.P. cleaner is factory set and all its safety devices are
sealed. It is forbidden to alter their adjustment values.
In the Hot water cleaner the water is heated by a burner feed
with Diesel fuel.
The H.P. cleaner must be always used on a firm and flat
ground, furthermore it must not be moved while it is working or
connected to the electric supply.
Failure to observe this prescription may cause danger for the
user.
The H.P. cleaner must not be used in the presence of corrosive
or potentially explosive atmospheres. (vapours or gas)
Warning
- The electric connection must be performed
by qualified technicians who are able to
work in observance of the governing rules
(in compliance with the provisions of the IEC
60364-1 standard) and of the manufacturer’s
instructions.
A wrong electric connection may cause
damage to persons, animals or things, and
the manufacturer cannot be considered
responsible for these.
- The H.P. cleaners with power lower than 3
kW are equipped with a plug for connection
to the electric supply.
In this case please check if the electric
power system and the electric sockets are
compatible with the max. power of the ap-
pliance indicated on the plate. (kW). In case
of doubt, please apply to qualified personnel.
If the socket and the plug of the machine are
not compatible, have the plug replaced with
a suitable type by qualified personnel.
- Before connecting the machine make sure
that the data indicated on the plate corre-
spond to those of the electric supply.
- Do not use extensions to power the high
pressure washer.
If you use an extension, the plug and socket
must be watertight. Unsuitable extensions
may be dangerous.
- The electric safety of this machine maybe
assured only when it is properly connected to
an efficient grounding system in accordance
with the governing laws for electric safety. (In
compliance with the provisions of the IEC
60364-1 standard)
CLASSIFICATION OF RISKS:
!
!
!
!
!
GENERAL SAFETY RULES FOR
THE USE OF HIGH PRESSURE
CLEANERS

English
- 6 -
- It is necessary to check this essential safety
requisite. In case of doubt, ask for accurate
control of the power system by qualified
personnel.
The manufacturer may not be considered
responsible for damages occurred because
of the lack of the grounding system.
- The H.P. cleaner must be connected to the
electric supply by means of an omnipolar
switch with opening contacts of at least 3
mm. This switch must have electric features
which are consistent with the appliance.
(This requisite does not apply to H.P. cle-
aners with plug and electric power lower
than 3 kW).
It is recommended that the electric supply
to this machine should include a residual
current device that will interrupt the supply
if the leakage current to earth exceeds 30
mA for 30 ms or a device that will prove the
earth circuit.
- The appliance is disconnected from the
electric supply only by pulling out the plug or
switching off the omnipolar switch.
- Failure to respect the above absolves the
manufacturer of all liability and represents
negligent use of the product.
The water cleaner is considered as a fixed
device.
- Water cleaners with the “Total Stop” device
should be considered as off when the omni-
polar switch is in the “O” position or the plug
is unplugged from the socket.
- The high pressure washer is not intended
for use by children, adolescents or persons
with reduced physical, sensory or mental
capabilities, under the influence of alcohol
or lacking experience and knowledge.
Operators must be made aware of the
instructions for using the appliance by a
person responsible for their safety.
Children must be supervised to ensure they
do not play with the high pressure washer.
- Use only original accessories that can allow
safe working of the appliance.
- The flexible hose connecting the lance to
the H.P. cleaner must not be damaged.
In case of damage, replace it immediately.
- Hoses, connections and fittings for high
pressure systems are very important to
guarantee the safety of the H.P. cleaner.
Use only original spare parts which have the
manufacturer’s approval.
- Do not use the H.P. cleaner when persons
or animals are in its of action field.
- High pressure jets may be dangerous if not
properly used.
The jet must never be directed at persons
or animals, electric appliances or at the
appliance itself.
- The high pressure water jet causes a re-
action power on the lance. Hold the lance
grip vigorously.
- The use of the H.P. cleaner must be con-
sidered according to the kind of washing
which must be performed.
Protect yourself against the ejection of solid
materials or corrosive substances by means
of adequate protective clothing.
- The use of the H.P. cleaner must be con-

English
- 7 -
sidered according to the place where the
washing is performed (for example: food
plants, pharmaceutical plants, etc.)
Pertinent rules and safety conditions must
be followed.
- Do not direct water jets at your own or other
people’s body in order to clean clothes or
shoes.
- While working it is forbidden, to stop the trig-
ger (lever) of the lance in delivery position.
- In the hot water H.P. cleaners a Diesel fuel
burner is used for water heating. The use
of other fuels is dangerous.
- Before starting any cleaning or maintenan-
ce operation, disconnect the machine from
the electric and water supply networks.
- Periodically, at least once a year, have the
safety devices checked by one of our service
centres.
- The machine is for outdoor use. If the ap-
pliance is to be used in an enclosed space
(not advisable), install a flue gas extraction
system and guarantee adequate ventilation.
- The hot water cleaner must be supervised
while it is working.
- Do not clog the openings or the ventilation
grilles and the heat and smoke extraction
systems in the hot water cleaners.
- Do not use the machine if the supply cable
is damaged.
For the replacement of the damaged cable
apply exclusively to one of our technical
service centres.
The supply cable of this appliance must not
be replaced by the user.
- The electric power cable must never be
under mechanical tension and must be pro-
tected against accidental crushing.
- The use of any electric appliance requires
the respect of some basic rules:
• Do not touch the appliance with wet or
damp hands or feet.
• Do not use the appliance bare-footed or
with unsuitable clothing.
• Do not pull the supply cable or the applian-
ce itself in order to disconnect the plug from
the electric supply.
(For water cleaners rated at less than 3 kW
fitted with plug).
- In case of damage or malfunction, switch
off the appliance (disconnecting it from the
water main and from the electricity mainvia
the omnipolar switch or by unplugging the
plug in the case of water cleaners rated at
less than 3 kW) without tampering with it.
As for the protection against electric shock,
the H.P.cleaner belongs to CLASS I.
Apply to one of our technical service
centres.
Failure to observe the above warning
frees the manufacturer from all respon-
sibility and constitutes negligent use of
the product.

English
- 8 -
This appliance is intended exclusively for cleaning machines,
vehicles, buildings and general surfaces suitable for treatment
with a high pressure jet of detergent solution between 25 and
250 bar (360 - 3600 PSI).
This appliance has been designed for use with the detergents
supplied or recommended by the manufacturer. The use of
other detergents or chemicals may influence the safety of the
appliance.
This appliance must be used only for the purpose for which it
was specifically designed.
All other uses are to be considered incorrect and therefore
unreasonable.
Examples of unreasonable use:
- Washing surfaces not suitable for cleaning with a high
pressure jet.
- Washing people, animals, electric equipment or the machi-
ne itself.
- Using unsuitable detergents or chemicals.
- Blocking the trigger (lever) of the lance in delivery posi-
tion.
The manufacturer cannot be held responsible for any damage
due to improper, incorrect or unreasonable use.
All high pressure washers are constructed in compliance with
current safety standards and regulations.
Warning
When buying your cleaner, ensure that it has an identifica-
tion plate. If there is no plate, inform the manufacturer and/
or the dealer immediately. Machines without a plate must
not be used and the manufacturer declines all responsibi-
lity for them. Products without a plate must be considered
anonymous and potentially dangerous.
FILLING THE FUEL TANK
Fill the tank with fuel for Diesel
motors (fig. 1).
Warning
Do not use different fuel from that indicated on the iden-
tification plate.
Check the fuel level from time to time while the cleaner
is operating.
Attempting to use the cleaner without fuel may cause
damage to the fuel pump.
FILLING THE DETERGENT
TANK
UNPACKING
After unpacking, ensure that the cleaner is undamaged.
If in doubt, do not use the machine.
Contact your dealer.
Packaging (bags, boxes, nails, etc) is potentially dangerous and
should be kept out of reach of children. It should be disposed of
or retained in respect of national environmentallegislation.
FITTING THE SEPARATE PARTS OF THE MACHINE
All the fundamental parts and safety devices of the machine are
assembled by the manufacturer.
For reasons of packing and transport, some secondary cleaner
parts are supplied separately.
The user must fit these parts as explained in the instructions
supplied in each assembly kit.
DATA PLATE:
The data plate bearing the main technical characteristics of your
cleaner is located on the trolley and is always visible.
Warning
From the range of recommen-
ded products, choose the one
most suited to the washing job
to be done (fig. 2) and dilute
it with water according to the
instructions on the pack.
Fill the detergent tank with the
diluted product (fig. 3).
Ask your dealer for the cata-
logue of the detergents that
can be used depending on
the type of washing job to be
done and the type of surface
to be treated.
After using a detergent, the
detergent intake circuit must
be flushed out with clean
water.
PRELIMINARY OPERATIONS
INTENDED USE
!
!
FIG. 2
!
Diesel
FIG. 1
Chemical
FIG. 3

English
- 9 -

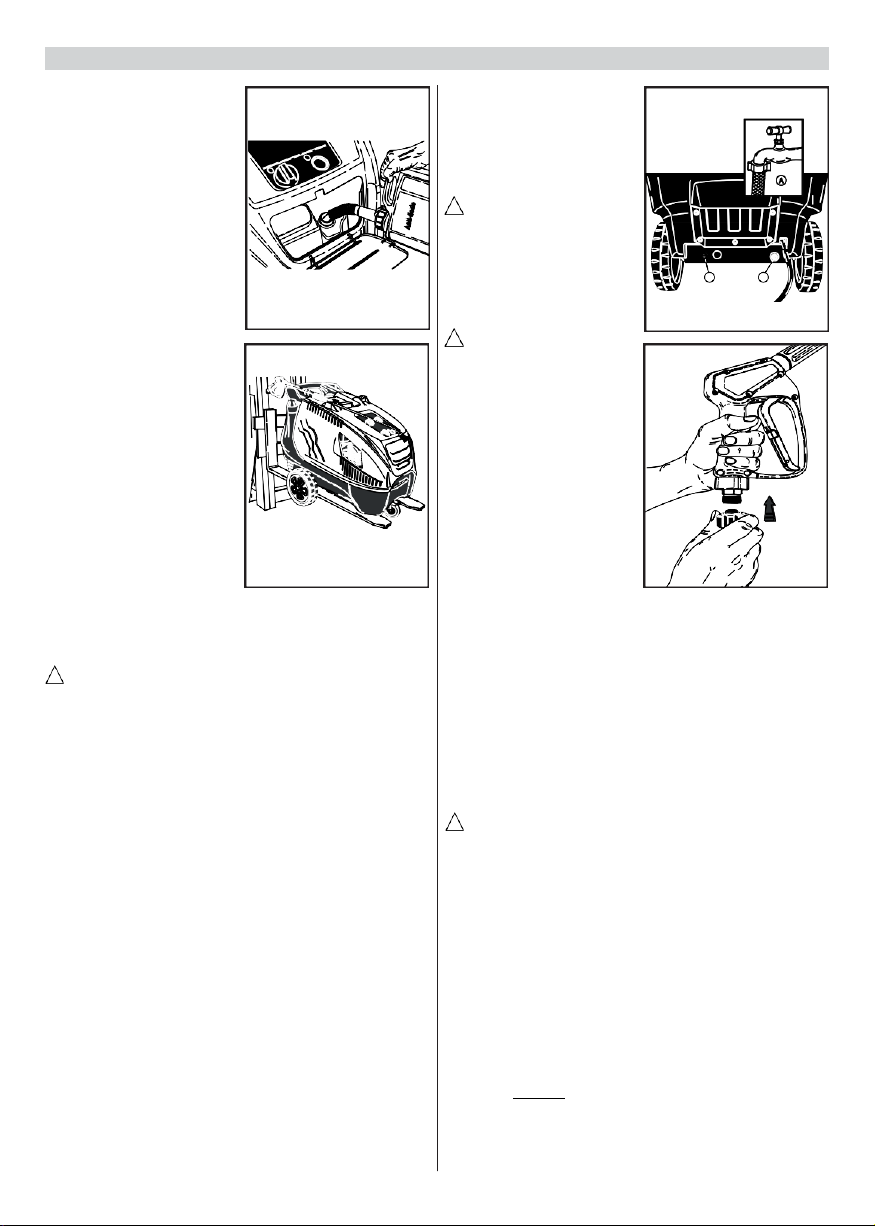

FILLING THE WATER SOF-
TENER TANK.
(if available)
Fill the tank with water sof-
tener solution.
Use only products recom-
mended by the manufac-
turer and/or dealer. Follow
the instructions given on the
packaging meticulously. (Do
not disperse water softener in
the environment).
TRANSPORTING
To move the machine, di-
sconnect it from the mains
electricity and water supplies,
release the parking brake on
the side of the machine and
push it by the handle.
LIFTING WITH A FORKLIFT
TRUCK
To lift the cleaner with a forklift
truck insert the forks in the
slots provided. (fig. 5).
Maximum temperature of
feeding water 50°C (122°F).
Connect the high pressure
hose to the cleaner (fig. 6C)
and to the lance (fig. 7).
Danger
The cleaner must operate
with clean water. Dirty or
sandy water, corrosive che-
micals and solvents can
cause severe damage to
the cleaner.
Danger
Never suck up liquids contai-
ning solvents or acids in the
pure state, for example petrol,
paint solvents or diesel. The
spray mist from the lance is
highly inflammable, explosive
and poisonous.
Failure to respect the above
absolves the manufacturer
of all liability and repre-
sents negligent use of the
product.
COMMAND AND CONTROL DEVICES
Warning
Before connecting the machine to the water supply and to the
power mains, it is essential to know the function of the cleaner's
command and control devices.
SAFETY DEVICES
The safety devices protect the user and the appliance. They
must not be tampered with or used for other than their desi-
gnated purpose.
Safety valve: protects the high pressure hydraulic circuit in
the event of a by-pass valve malfunction or if the hydraulic
circuit is blocked.
The safety valve is calibrated by the Manufacturer andsealed.
Operations involving the safety valve must be performed by a
technical service centre only.
Safety device on lance handgrip: Prevents the trigger on the
handgrip from being operated accidentally.
Thermal cutout: stops the high pressure washer if the electric
motor overheats.
WATER CIRCUIT CONNECTION
Connect the feed hose to the mains (fig. 6A) and to the hosetail
on the cleaner (fig. 6B).
Check that the pressure and quantity of the water supplied by
the mains are sufficient for the cleaner to work properly: 2 to 8
BAR (29 to 116 PSI).
ELECTRICAL CONNECTION
Connection of the cleaner to the mains must be carried out
be skilled technicians able to ensure that all regulations in
force are complied with use in respect of current standards
and legislation.
Ensure that the mains voltage available is the same as the vol-
tage at which the cleaner is supposed to work; this is indicated
on the identification plate.
Danger
- The electric cable must be protected from accidental crushing.
- Do not use the machine if the supply cable is damaged.
- The use of any electric appliance requires the respect of
some basic rules:
• Do not touch the appliance with wet or damp hands or feet.
• Do not use the appliance bare-footed or with unsuitable
clothing.
• Do not pull the supply cable or the appliance itself in order to
disconnect the plug from the electric supply.
(For water cleaners rated at less than 3 kW fitted with plug).
As for the protection against electric shock, the H.P.cleaner
belongs to CLASS I.
Failure to observe the above warning frees the manufac-
turer from all responsibility and constitutes negligent use
of the product.
!
!
FIG. 7
FIG. 4
!
!
A
C
B
FIG. 6
FIG. 5

English
- 10 -
FIG. 8
CONTROL PANEL
A - On/off switch
B - Temperature regulator
C - Detergent control tap (if
available).
D - Pressure gauge.
STARTING THE CLEANER
1) Turn on the water supply tap (fig. 6A).
2) Connect the water cleaner to the mains electricity supply via
the omnipolar switch or by plugging the plug into the socket.
3) Start the cleaner by turning the selector switch to pos. 1
(fig. 8A).
Warning
The high pressure water jet generates a reaction force in the
lance. Keep a firm grip on the lance handle.
4) Press the trigger on the gun and begin washing.
5) To use the cleaner with hot water, turn the temperature regu-
lator (fig. 8B) to the recommended washing values.
For some models turn the ignition switch (fig. 8A) on to the
hot water position before effecting the operations described
in this point.
Warning
In water cleaners with the “Total Stop” system, the motor starts
and stops when the lever on the lance handle is actioned or
released.
Danger
Do not block the handle lever in the delivery position.
IMPORTANT!
To eliminate any impurities
or air bubbles from the wa-
ter circuit we advise starting
the cleaner for the first time
without the lance and letting
the water run out for a few
seconds.
Impurities could block the
nozzle and cause malfun-
ction (fig. 9).
USING THE ACCESSORIES.
The high pressure washer has a nozzle with a flat angle jet for
cleaning large surfaces.
Warning
Aim the jet from a certain distance to avoid damage caused by
the high pressure.
ROTARY HEAD (optional accessory)
The high pressure washer can be fitted with a head with rotary
nozzle to clean the most stubborn dirt.
Danger:
Aim the jet from a certain distance to avoid damage caused by
the high pressure.
Do not aim the jet at people, animals or electrical sockets.
STOPPING THE CLEANER
1) Switch off the burner by turning the pressure regulator to
pos. "0" (fig. 8B).
2) Let the cleaner run with cold water only for at least 30 seconds
to cool down the boiler.
3) Stop the cleaner by turning the selector switch to pos. "0"
(fig. 8A).
4) Discharge the pressure from the H.P. hose by pressing the
trigger on the gun.
5) Disconnect the water cleaner from the mains electricity
supply via the omnipolar switch or by unplugging the plug from
the socket.
6) Turn off the water supply tap (fig. 6A).
Warning
- If the water cleaner is left, even temporarily, turn it off by using
the omnipolar switch or by unplugging the plug from the socket.
- Water cleaners with the
"Total Stop” device should
be considered as off when
the omnipolar switch is in
the “O” position or the plug
is unplugged from the sock-
et.
- When the water cleaner is not
used, close the safety device
on the handle. (fig. 10)
- Dry use of the water cleaner
causes serious damage to
pump gaskets.
B
A
USING
THE CLEANER
FIG. 10
!
!
!
!
!
!
FIG. 9
D
C

English
- 11 -
ADVICE ON USING DETERGENTS
USE OF THE DOUBLE LAN-
CE. (fig.11) (if available).
The double lance allows the
operator to select a low or high
pressure jet. The pressure is
selected with the gun in pos.
1. High pressure: pos. 2. Low
pressure.
REGULATING PRESSURE
AND USING STEAM.
This chapter concerns only
those models provided with
the “pressure regulating” de-
vice. The pressure regulator,
fig. 12, allows the operator to
adjust the working pressure.
When knob C is turned in
an anti-clockwise direction
(B) (minimum), the working
pressure is reduced.
USING STEAM.
Use the steam nozzle (supplied as an accessory).
Turn the thermostat knob “B” (fig. 8) to steam position to obtain
an increase in the temperature of the water at delivery.
At work temperatures higher than 95°C (203°F), the work
pressure must be < 32 bar (460 PSI).
Danger
During use with boiling water, "Steam Phase", keep away
from the openings for fumes discharge (risk of burning).
When you have finished using the "Steam Phase", turn the
thermostat knob "B" to position "0" (fig. 8) and let the ma-
chine cool down for about 3minutes with the gunturned on.
Warning
This cleaner has been designed for use with the detergents
supplied or recommended by the manufacturer.
The use of other detergents or chemicals may influence the
safety of the cleaner.
1) For environmental compatibility, we recommend a reaso-
nable use of detergents, according to the instructions on the
pack.
2) From the range of recommended products, choose the
one most suited to the washing job to be done and dilute it
with water according to the instructions on the pack or in the
catalogue of the detergents most suited for the type of hot or
cold water cleaner.
3) Ask your dealer for the detergents catalogue.
OPERATING PHASES FOR CORRECT CLEANING WITH
DETERGENTS.
1) Prepare the solution of detergent at the concentration
most suitable for the type of dirt and the surface that is to be
washed.
2) Start the cleaner, turn on the detergent tap, and spray the dirty
surface with the diluted product, working from bottom to top.
Let it react for a few minutes.
3) Rinse the whole surface well from top to bottom with hot or
cold water at high pressure.
4) After use with detergent, rinse the high pressure water circuit
by operating the pump for one minute with the detergent tap
completely closed.
Danger
For maintenance of the boiler, high pressure pump, the electrical
parts and all parts with a safety function, you must apply to our
Technical service centre.
The manufacturer is not liable in case of tampering, changes, in-
correct repairs or maintenance carried out on the machine by a
third person not provided with the manufacturer’s authorization.
All documents pertaining to the repair and planned service
interventions, as well as any certificates concerning the device
installation according to the laws in force (in compliance with the
provisions of the IEC 60364-1 standard) must be kept carefully
by the user, together with the Instructions Manual.
Periodically, at least once a year, have the safety devices and
the rated values checked at one of our technical service centres.
Particularly, as for the hot water high pressure cleaner, which is
factory set, the exhaust system must be checked.
The rating done by the manufacturer determines a production of
exhaust gases with a CO content lower than 0,04% and a smoke
content corresponding to a smoke point nr.2 Shell-Bacharach
according to the laws in force.
Danger
Disconnect the water cleaner from the mains electricity supply
via the omnipolar switch or by unplugging the plug from the
socket and close the water supply tap (see chapters on connec-
ting to the electricity and water mains) before carrying out any
maintenance jobs. Once maintenance has been completed,
ensure that the closing panels have been correctly reassembled
and anchored with the screws provided before reconnecting the
cleaner to the mains.
Failure to do so may cause a risk of electric shock.
ONLY THE OPERATIONS AUTHORIZED IN THIS IN-
STRUCTIONS MANUAL MAY BE CARRIED OUT BY THE
USER.
ALL OTHER OPERATIONS ARE FORBIDDEN.
MAINTENANCE
!
!
!
FIG. 11
!
FIG. 12

English
- 12 -
PRECAUTIONS AGAINST FROST
The cleaner must not be exposed to frost.
If the cleaner is left in premises where it is exposed to frost,
when work is over or for storage, antifreeze must be used to
prevent serious damage to the hydraulic circuit.

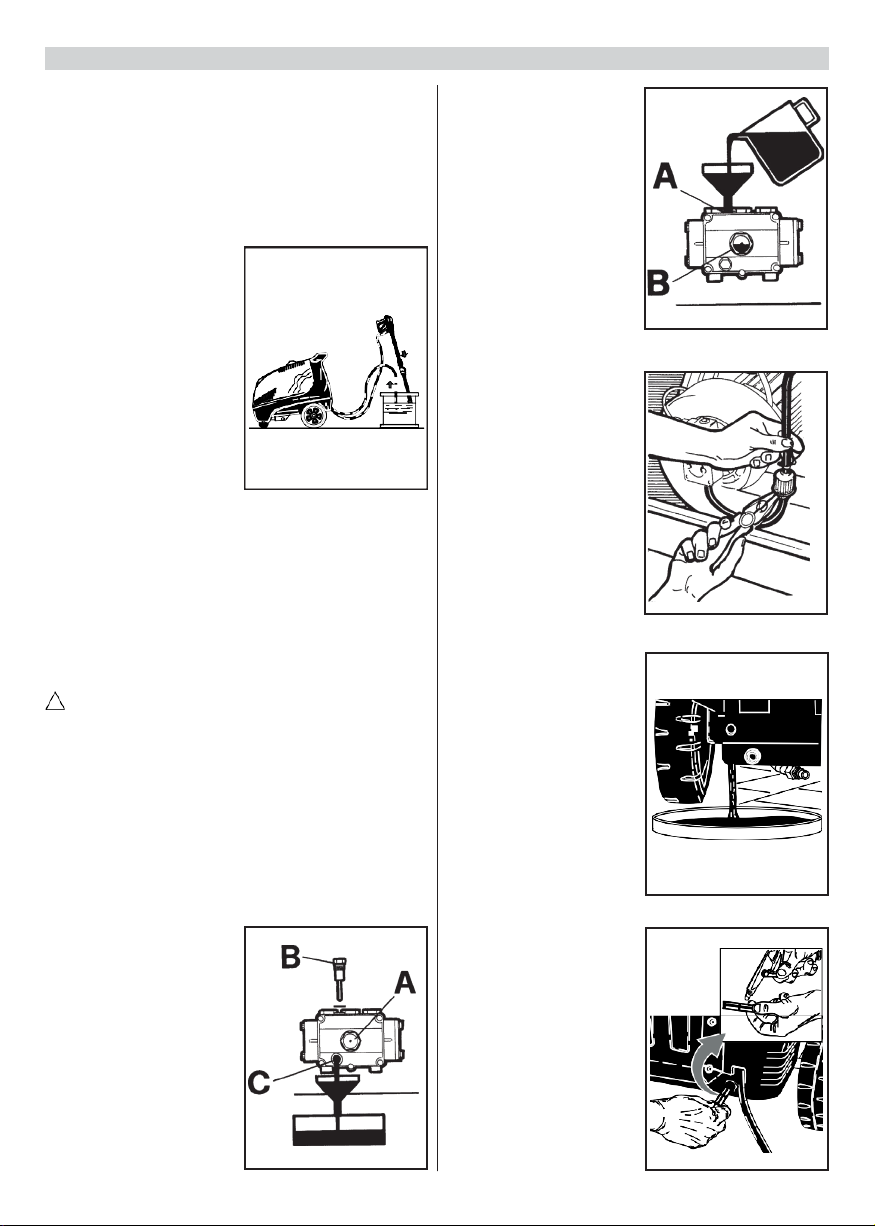

OPERATIONS FOR USING
ANTIFREEZE (fig. 13).
1) Turn off the water supply
(tap), disconnect the hose
and run the cleaner until it is
completely empty.
2) Stop the water cleaner with
the ON/OFF switch in the “O”
position.
3) Prepare a container with the
solution of antifreeze.
4) Immerse the tube in the
container with the anti-freeze
solution.
5) Start the water cleaner with the ON/OFF switch in the “I”
position.
6) Start the cleaner and let it run until antifreeze comes out
through the lance.
7) Suck up antifreeze with the detergent intake system too.
8) Disconnect the water cleaner from the mains electricity
supply via the omnipolar switch or by unplugging the plug from
the socket.
9) For high pressure cleaners provided with water tank, the
detergent solution prepared as described in the point 3, must
be poured directly into the tank.
Warning
Anti-freeze may cause environmental pollution. Always follow
the instructions given on the pack. (Dispose of carefully.)
CHECKING PUMP OIL LE-
VEL AND OIL CHANGE
From time to time check the
oil level in the high pressure
pump by means of the sight
glass (fig. 14A) or the dipstick
(fig. 14B).
If the oil has a milky appearan-
ce, call the technical service
centre immediately.
Change the oil after the first
50 hours' work and subse-
quently every 500 hours or
once a year.
Proceed as follows:
1) Unscrew the drain cap
situated under the pump (fig.
14C).
2) Unscrew the cap with the
dipstick (fig. 14).
3) Let all the oil drain off into
a container and deliver it to an
authorized oil collection and
disposal centre.
4) Replace the drain screw
and pour fresh oil in through
the filling cap on top (fig.
15A) until it reaches the level
indicated on the sight glass
(fig. 15B).
For water cleaners without
oil drain bung, contact our
technical service centre for
replacement.
Use only SAE 15W 40 oil.
CLEANING THE FUEL FIL-
TER AND TANK.
Remove and replace the in-
line fuel filter (fig. 16).
Change it from time to time.
Empty the fuel tank.
Open the drain cap (fig. 17) (if
available) and let any impuri-
ties drain out into a container.
Flush out the tank with clean
fuel and close the drain cap.
CLEANING THE WATER
FILTER
Clean the water intake filter
regularly and free it from any
impurities (fig. 18).
FIG.14
FIG.15
FIG.16
!
FIG.17
FIG.18
FIG.13

English
- 13 -
PERIODS OF INACTIVITY
SCRAPPING
CHANGING THE NOZZLE
The high pressure nozzle fitted on the lance must be chan-
ged from time to time, as this component is subject to
normal wear during use. Wear may generally be detected
by a drop in the working pressure of the cleaner. To replace
it, consult your supplier and/or dealer for instructions.
TABLE OF ROUTINE MAINTENANCE TO BE PER-
FORMED BY THE USER
DESCALING
Descaling must be carried out from time to time because the
scale present in the water partially deposits inside the hydraulic
circuit and the coil which with time becomes clogged.
Apply to our technical service centre to have the machine
descaled from time to time; this will save you money and
increase the efficiency of the cleaner.
TABLE OF EXTRAORDINARY MAINTENANCE TO
BE PERFORMED BY THE TECHNICAL SERVICE
CENTRE
Description of operations:
Check power cable - pipes - highpressure
connectors
Ist oil change in H.P. pump
Subsequent changes in H.P. pump
Change and clean fuel filters
Clean fuel tank
Clean water filter
Each use
After 50 hours
Every 500 hours
Every 100 hours
Every 100 hours
Every 50 hours
Description of operations:
Boiler:
Clean Coil
Descale coil
Clean fuel pump
Change fuel nozzle
Regulade electrodes
Change electrodes
Change seals on H.P. pump
Change lanze nozzle
Calibrate and check the safety devices
Every 200 hours
Every 300 hours
Every 200 hours
Every 200 hours
Every 200 hours
Every 500 hours
Every 500 hours
Every 200 hours
Once a year
If the machine is to remain inactive for a long period, disconnect the supply sources, drain the tank(s) of all the operating fluids
and protect any parts that could be damaged by the accumulation of dust.
Grease the parts that could be damaged by drying out, such as the supply hoses. When bringing back into use, ensure that
there are no cracks or cuts in the water supply hoses.
Oil and chemical products must be disposed of according to current legislation.
If you no longer wish to use the water cleaner, you should render it unusable by removing the power cable.
You should also make sure that all potentially hazardous parts of the appliance are made safe, particularly for children who could
play with the unused water cleaner.
This product is classified as WEEE type special waste and is covered by the requisites of the new environmental protection
regulations. It must be disposed of separately from ordinary waste in compliance with current legislation and standards.
Do not use parts dismantled for scrap as spare parts.
IMPORTANT:
These intervals refer to normal working conditions. For heavy duty use decrease the interval for each job.
For maintenance and/or repairs, use only original spare parts which offer the greatest characteristics of quality and
reliability. Failure to use original spare parts absolves the manufacturer from all liability and transfers it to the person
carrying out the operation.

English
- 14 -
FAULTS CAUSES REMEDIES
TROUBLE-SHOOTING
Before carrying out any operations, disconnect the water cleaner from the mains electricity supply via the omni-
polar switch or by unplugging the plug from the socket.
When the switch is turned the cleaner
does not start.
No jet or leakage from high pressure
water circuit. After 30 seconds, the
water cleaner stops. (DS Vers.).
The pump functions but does not reach
rated pressure.
When the lance is open, the pressure
drops and rises.
In by-pass or total stop phase, the water
cleaner shuts down. (ST-DS Vers.).
After the by-pass phase, the water
cleaner shuts down (ST Vers.).
When the temperature regulator is brou-
ght to the required position, the boiler
does not come on.
Water not enough.
Faulty electric connection.
Thermal protection has tripped.
Water supply filter clogged.
Faulty connection to the mains water
supply.
Mains water supply tap closed.
Leakage from high pressure circuit.
Water supply filter clogged.
Faulty connection to the mains water
supply.
Pressure regulation valve is set at
minimum.
Lance nozzle worn.
Valves dirty or worn.
Detergent tap open.
Pressure adjustment devices on lance
open (if present).
Nozzle clogged or deformed.
Inadequate water supply.
Detergent tap open.
Micro-leaks of water from the high pres-
sure circuit.
The water cleaner has been by-pass
phase at least 3 minutes.
No diesel.
Motor rotation direction incorrect on
three-phase models.
Temperature regulator position.
Filters clogged.
Boiler element coated with scale.
Check the mains voltage.
Reset (if it trips again, apply to the tech-
nical service centre).
Clean.
Check.
Open.
Contact Service Centre.
Clean.
Check.
Regulate it.
Contact Service Centre.
Contact Service Centre.
Close.
Close.
Clean or contact Service Centre.
Check.
Close.
Contact Service Centre.
Restart by rotating the main switch “A”
(fig. 8) into the “O” position and subse-
quently into the “I” position.
Check the level of diesel in the tank and
make sure the fuel supply circuit is free
of water.
Contact Service Centre.
Check.
Clean or replace.
Contact Service Centre.

English
- 15 -
IMPORTANT:
For maintenance and/or repairs, use only original spare parts which offer the greatest characteristics of quality and
reliability. Failure to use original spare parts frees the manufacturer from allresponsibility.
FAULTS CAUSES REMEDIES
Excessive smoke from exhaust. Incorrect combustion.
Fuel contaminated with impurities or
Clean or replace diesel filters.
Contact Service Centre.
Empty the tank and clean thoroughly.
water.
Clean diesel filters.
Inadequate detergent suction. Tap closed.
No detergent.
Open.
Fill the detergent tank.
Element or tube clogged. Contact Service Centre.
Water leakage from head.
Gaskets worn.
Contact Service Centre.
Water in the oil.
Excessive humidity in atmosphere.
Replace oil.
N.B. To reset the indicators, rotate the main switch “A” (fig. 8) to the “O” position and then to the “I” position.

Warranty
As part of an on-going commitment to excellence
in product support, Powerblast offers a compre-
hensive product warranty program.
Registered warranty period for the HW2015:
Machine: 12 Months
Stainless Steel Boiler Coil: 3 Years
Accessories: 3 Months
Warranty covers failure caused by manufactur-
ing and material defects in the product, during
the warranty period specified. The warranty pe-
riod begins when the product is purchased by
the end user. Warranty is not transferrable and is
only claimable by the original purchaser.
Warranty does not cover parts that are subject to
wear and tear from usage.
Warranty covers failure of a product caused by
defective materials and/or manufacturing for the
period given and the usage specified by Power-
blast.
The warranty period begins when the product
is purchased by the end user. Warranty is not
transferrable and is only claimable by the origi-
nal purchaser.
Warranty also does not cover failure caused by
the untimely replacement or service of the above
wearing parts. Evidence must be provided that
the product has been maintained and serviced
suitably for a claim to be considered under war-
ranty.
Failure caused by incorrect operation of the
product, lack of proper care and maintenance of
the product, external damage, external circum-
stances such as contaminated fuel or poor water
supply, modifications to the product, attempted
repair/ service by a party other than an Approved
Service Agent, is not covered under warranty.
Warranty does not cover pre delivery service and
adjustment, or failure that may occur as a result
of lack of/ incorrect pre delivery service and ad-
justment.
Warranty does not cover any incidental, indirect
or consequential loss, damage or expense that
may result from any defect, failure or malfunction
of a product.
Should any issue be found to be a combination
of a warranty failure and a non-warranty issue,
the repair cost component to rectify and repair
the non-warranty failure is the customers' full re-
sponsibility.
The decision that an issue with a product quali-
fies as a warranty claim is made at the sole juris-
diction of Powerblast.
No costs incurred will be considered under war-
ranty if repairs are carried out by a party other
than a Powerblast Approved Service Agent, un-
less with prior consent in writing from Power-
blast.
It is the responsibility of the purchaser to deliver
a product under warranty to the nearest relevant
service agent or product reseller. Warranty does
not cover call outs, mileage and freight costs.
If a product is repaired under warranty, parts and
labour required for the repair will be supplied
at no charge. Warranty assessment and repair
will be scheduled and executed according to
the normal work flow at the service location and
depending on the availability of suitable replace-
ment parts.
This warranty policy is an additional benefit and
does not affect the legal rights of any end user,
reseller or service agent.

Note - Notes

Note - Notes

Technical data
•Model
Mod.
H 2015
•Power supply
~
v
Hz
3
400 / 415
50
•Absorbed power kW
W
8,1
8100
•Pressure bar
30 ÷ 200
psi 420÷3000
•Flow rate l/h
650÷900
gph
170 ÷ 340
•Fuel consumption
kg/h 7,5
gph
•
Thermal capacity
kW
2,0
90
•Water out-put
temperature
°C
°F
30 ÷ 140
86 ÷ 2284
•Fuel tank l
gal
25
6,6
•Detergent tank l
gal
22
5,8
•Discaling tank l
gal
2,3
0,6
•High pressure hose m
ft
10
32,8
•Power cable m
ft
5,5
18
•Lance thrust - Vibr.
N 69
m/s23,1
•Noise Lp dB (A) 88
Lw dB (A)
103
(kp. 2dB)
•Weight kg
lb
109
240
•Dimensions cm
in
110 x 75 x 90
43,3 x 29,5 x 35,5

POWER
PREMIUM PRODUCTS
Congratulations on your new POWERSHOT product.
We are proud to have you as our customer and
will strive to provide you with the best service and
reliability in the industry. This product is backed by
our extensive service network. To locate your nearest
distributor call 1800 812 223, or email us at
[e-mail].
Cod. PLDC40456 - 12/2017
