Power Shot PS3611ES User manual

INSTRUCTION MANUAL
IMPORTANT: Please ensure that the person who is to use this equipment
carefully reads and understands these instructions before operating.
PS3611ES

2.
Introduction............................................................................... 3
Environmental protection.................................................................3
Scope of product.................................................................................3
Description of symbols.......................................................................3
Specifications.........................................................................................3
Safety rules..........................................................................................4
Hazard symbols and meanings...............................................................4
Unpacking............................................................................................6
Carton contents.................................................................................... 6
Assembly............................................................................................7
Attaching the handle...............................................................................7
Checking the engine oil............................................................................7
Filling the fuel tank.................................................................................8
Connecting hose and water supply to pump..........................................8
Cleaning & applying chemicals..............................................................9
Pressure washer rinsing.........................................................................13
Cleaning horizontal surfaces....................................................................13
Cleaning vertical surfaces........................................................................13
Removing paint...................................................................................13

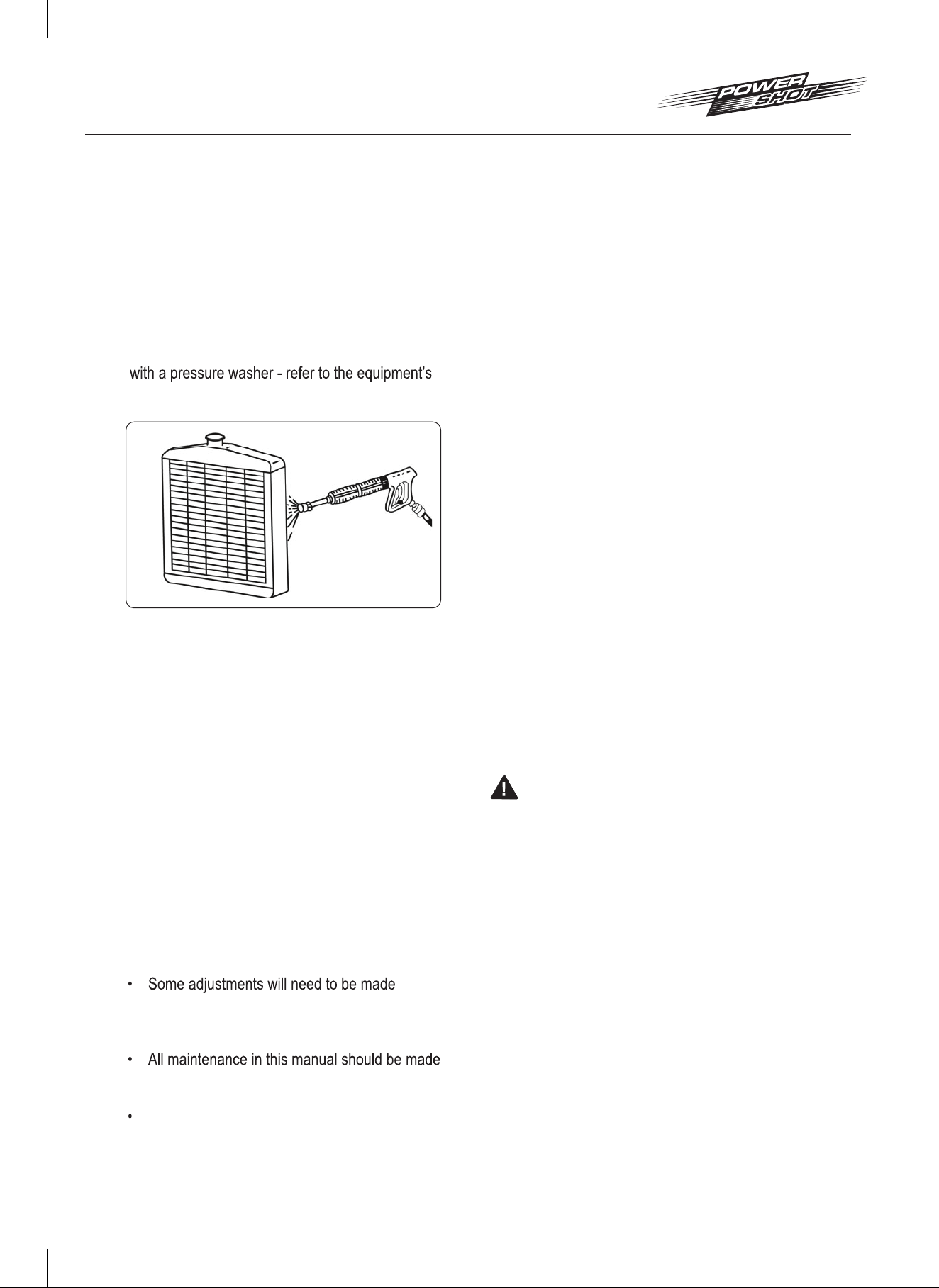

Cleaning radiator fins...........................................................................14
General maintenance..............................................................................14

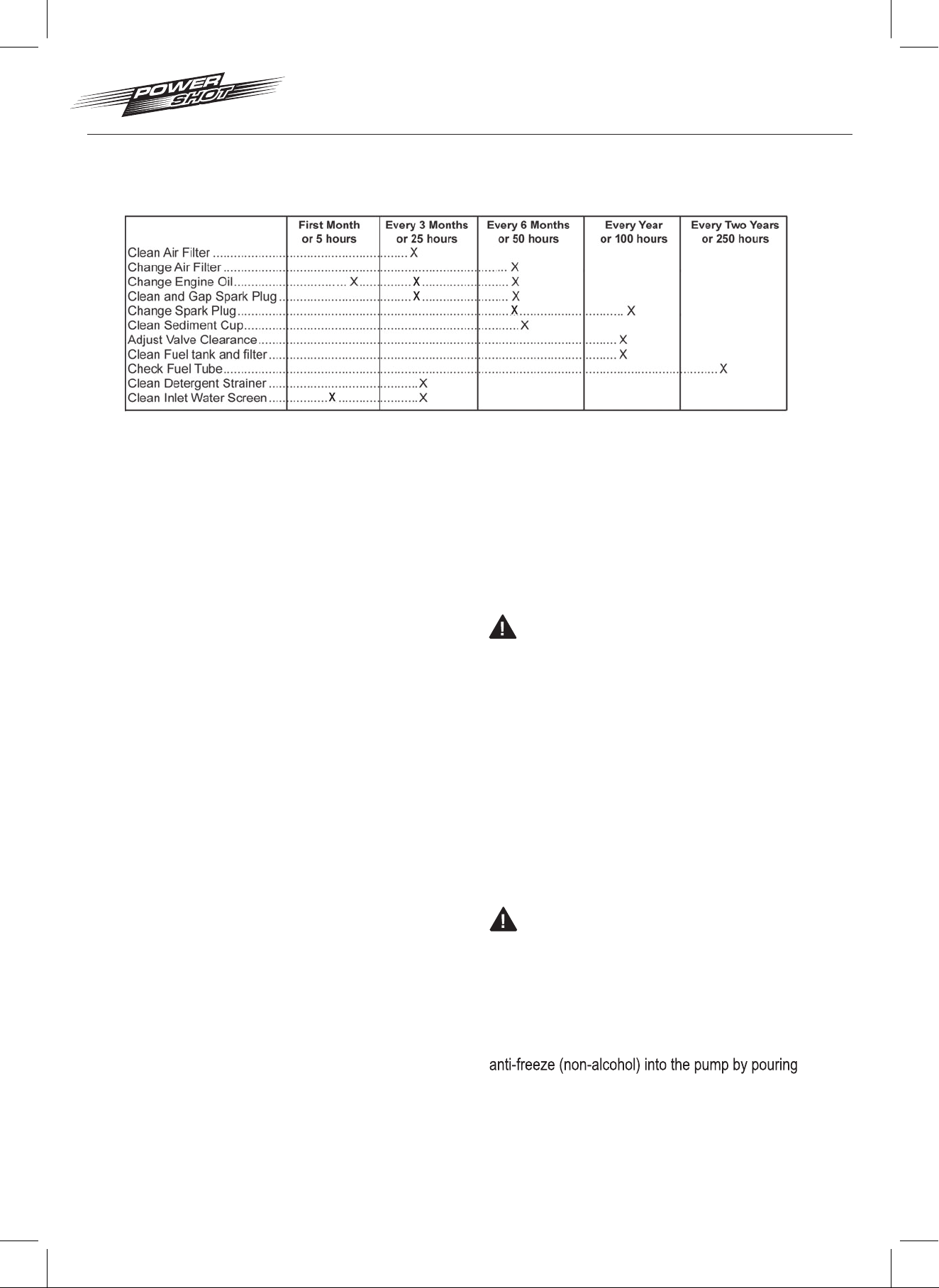

Service chart.......................................................................................17
Storage..............................................................................................17
Protecting the pump............................................................................17
Troubleshooting................................................................................18
Warranty...........................................................................................21
Changing the engine oil.............................................................................7
Starting the machine.............................................................................10
CONTENTS
Inlet water supply requirements.................................................................9
Operating checklist..................................................................................10
Stopping the machine..............................................................................11
Nozzle installation selection.....................................................................11

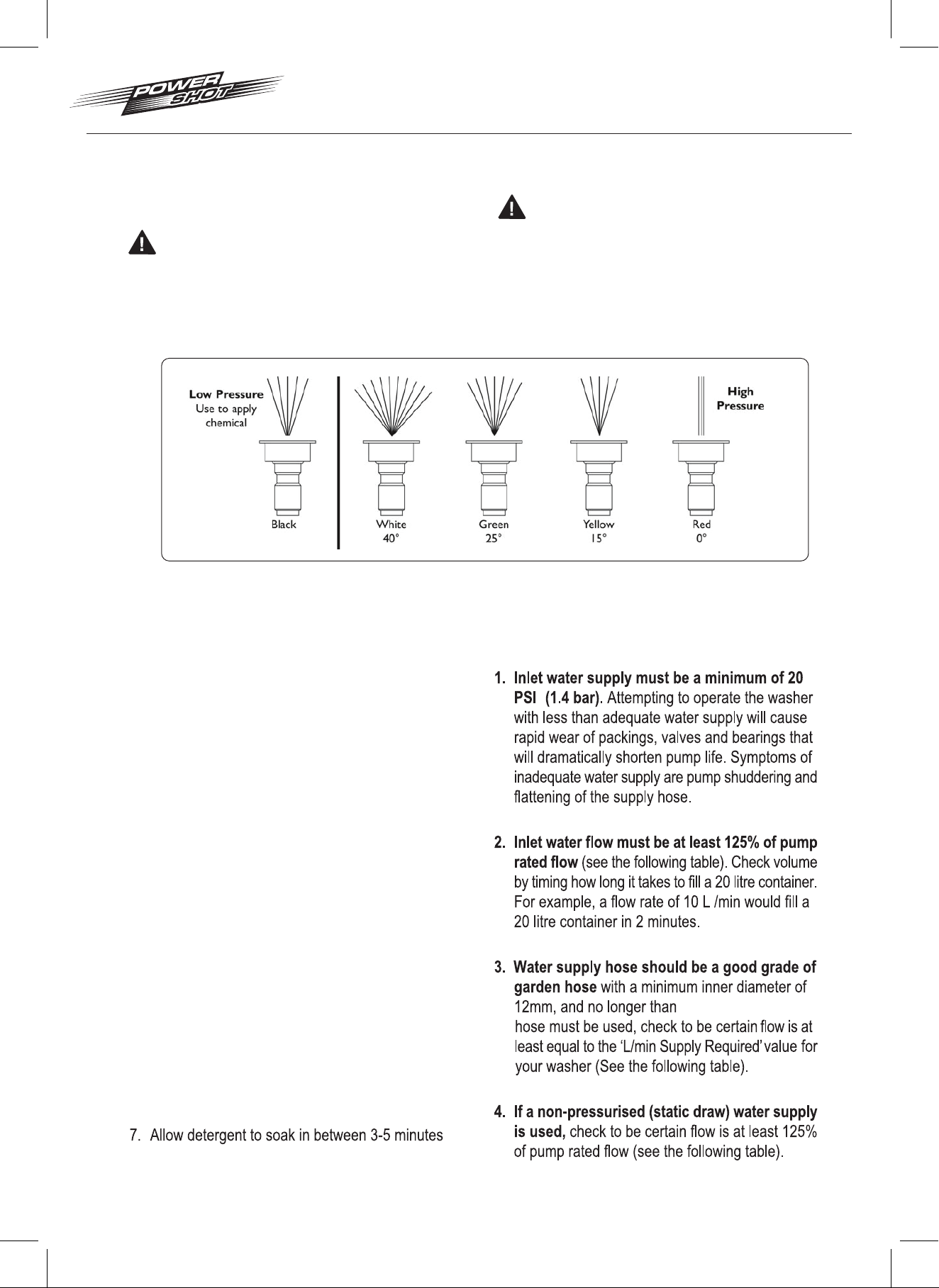

Selecting the proper nozzle.....................................................................12
PS3611ES

3.
Read this manual carefully and become familiar
with your Pressure Washer. Know the applications,
the limitations and any hazards involved.
Every effort has been made to ensure that
information in this manual is accurate and current.
However we reserve the right to change, alter or
otherwise improve the product and this document
at any time without prior notice.
SPECIFICATIONS
INTRODUCTION
Thankyou for purchasing this POWERSHOT High
Pressure Cleaner. Whether you purchased this
machine to produce income or simply wanted one
of the best pressure cleaners on the market today,
we truly appreciate your business.
CAUTION:
Carefully read through this entire Instruction Manual
before using your new POWERSHOT Pressure Washer.
Take special care to heed the Cautions and Warnings.
Your Pressure Washer has many features that will
make your job faster and easier. Safety, performance
and dependability have been given top priority in the
development of this tool, making it easy to maintain
and operate.
IMPORTANT:
This machine is shipped without engine oil.
Please ensure you fill the machine with oil as
per the instructions on page 7 before use.
ENVIRONMENTAL PROTECTION
Recycle unwanted materials instead of disposing of
them as waste. All tools, hoses and packaging
should be sorted, taken to the local recycling centre
and disposed of in an environmentally safe way.
SCOPE OF PRODUCT
This product is suited for home and domestic
cleaning jobs around the house and garden, like
decks, driveways and vehicles.
DESCRIPTION OF SYMBOLS
The rating plate on your tool may show symbols.
These represent important information about the
product or instructions on its use.
Wear hearing protection.
Wear eye protection.
Wear breathing protection.
Conforms to relevant standards
for electromagnetic compatibility.
Pressure: 3600 PSI (max.)
Flow Rate: 11L/min (max.)
Engine: Powerdyne 8HP
Electric Start
Fuel Tank Capacity: 3.6L
Displacement: 223cc
Fuel Type: Unleaded petrol
Engine Oil Type: SAE30 4 Stroke
Detergent: Use detergent approved
for waterblasters
Water Supply Temp: Not to exceed 40oC
Operation Noise Level: 70dBA
Net Weight: 50kg
Z1085
PS3611ES

4.
DANGER! Running engine gives off
carbon monoxide, an odourless,
colourless, poison gas.
Some chemicals or detergents may be
harmful if inhaled or ingested, causing
severe nausea, fainting or poisoning.
Breathing carbon monoxide will cause
nausea, fainting or death.
Pressure Washer ONLY outdoors.
chance that vapours may be inhaled.
certain the mask will provide the necessary
protection against inhaling harmful vapours.
WARNING! Spray contact with electrical
wiring can result in electrocution.
wiring or fatal electric shock may result.
WARNING! Use of pressure washer can
create puddles and slippery surfaces.
High pressure spray could cause you to
fall if you are too close to the cleaning
surface.
cleaning surface.
and drainage to reduce the possibility of a fall
due to slippery surfaces.
pressure washer from a ladder, scaffolding or
any other relatively unstable location.
using high pressure spray to avoid injury if gun
recoils.
Hazard Symbols
and Meanings
SAFETY RULES
This is the safety alert symbol. It is used
to alert you to potential personal injury
hazards. Obey all safety messages that
follow this symbol to avoid possible injury
or death.
The safety alert symbol ( ) is used with a signal
word (DANGER, CAUTION, WARNING), a pictorial
and / or a safety message to alert you to hazards.
DANGER indicates a hazard which, if not avoided,
will result in serious injury or even death.
WARNING indicates a hazard which, if not
avoided, could result in serious injury or death.
CAUTION indicates a hazard hich, if not avoided,
might result in minor or moderate injury. CAUTION
when used without the alert symbol, indicates a
situation that could result in equipment damage.
Follow safety messages to avoid or reduce the risk
of injury or death.
WARNING: The engine exhaust from
this product contains chemicals
known to cause cancer, birth defects
or other reproductive harm.
HAZARD SYMBOLS & MEANINGS
PS3611ES

5.
WARNING! Fuel and its vapors are
extremely flammable and explosive.
Fire or explosion can cause severe
burns or death.
WHEN ADDING FUEL
5 minutes before removing gas cap.
expansion.
lights, heat, and other ignition sources.
WHEN OPERATING EQUIPMENT
causes fuel to spill.
WHEN TRANSPORTING OR REPAIRING
EQUIPMENT
fuel shutoff valve OFF.
WHEN STORING FUEL OR EQUIPMENT WITH
FUEL IN TANK
clothes dryers or other appliances that have a
pilot light or other ignition source because they
can ignite fuel vapours.
WARNING! The high pressure stream of
water that this equipment produces can
pierce skin and its underlying tissues,
leading to serious injury and possible
amputation.
animals or plants.
pressure washer.
Replace it with an equivalent rated hose.
and spray gun while system is pressurised.
WARNING! Starter and other rotating
parts can entangle hands, hair, clothing,
or accessories.
that may be caught in the starter or other rotating
parts.
WARNING! High pressure spray can
cause paint chips or other particles to
become airborne.
use.
WARNING! Unintentional sparking can
result in fire or electric shock.
WHEN ADJUSTING OR MAKING
REPAIRS TO YOUR PRESSURE WASHER
place wire where it cannot contact spark plug.
WARNING! Running engines produce
heat and hot exhaust gases.
Temperature of muffler and nearby
areas can reach or exceed 65°C.
Fire or severe burns can occur.
come in contact with hot muffler.
PS3611ES

6.
CAUTION: Excessively high or low
operating speeds increase risk of injury
and damage to pressure washer.
pressure.
deterioration, such as chafed or spongy hose,
loose or missing clamps, or damaged tank or
cap. Correct all defects before operating
pressure washer.
UNPACKING
Due to modern mass production techniques, it is
unlikely that your pressure washer is faulty or that a
part is missing. If you find anything wrong, do not
operate the tool until the parts have been replaced or
the fault has been rectified. Failure to do
so could result in serious personal injury.
IMPORTANT: Read entire operating manual before
you attempt to assemble or operate your new
pressure washer.
Removing unit from Carton
Remove high pressure hose, handle, and parts
included with pressure washer.
Slice two corners from end of carton from top to
bottom so it can be folded down flat, remove all
packing material.
Remove pressure washer from carton.
CARTON CONTENTS
Main Unit
High Pressure Hose
Spray Gun
Nozzle Extension with Quick Connect Fitting
Handle
Wheel / Axle Kit
Parts Bag with fittings
Parts Bag includes the following:
Owner’s Manual
CAUTION: Pressure washers produce
high pressure spray which increases
the risk of injury and damage to unit.
machine is running.
trigger lock or trigger guard in place and in
working order.
accessories are correctly attached.
CAUTION: High pressure spray may
damage fragile items including glass.
spray mode.
CAUTION: Improper treatment of
pressure washer can damage it and
shorten its life.
parts, or without protective housing or covers.
machine.
pressure washer in cold weather,
check all parts of the equipment to be sure ice
has not formed there.
pressure hose. Use handle provided on unit.
5 x multi-coloured Quick Connect Spray Tips
PS3611ES

7.
ASSEMBLY
To prepare your pressure washer for operation, you
will need to perform the following:
1. Attach handle to main unit frame
2. Attach axle / wheels
3. Add oil to engine
4. Add fuel to fuel tank
5. Connect high pressure hose to spray gun & pump
6. Connect water supply to pump
7. Connect nozzle extension to spray gun
8. Select and install desired quick connect spray tip.
ATTACHING THE HANDLE
1. Place handle assembly onto handle supports
connected to main unit frame. Fasten handle to
main unit using fasteners provided in parts bag.
NOTE: It may be necessary to move the handle
supports from side to side in order to align the
handle so it will slide inside the handle supports.
2. Fit axle to main unit and attach wheels using lock
nuts provided in the parts bag.
3. Insert multi-coloured spray tips in spaces
provided in handle.

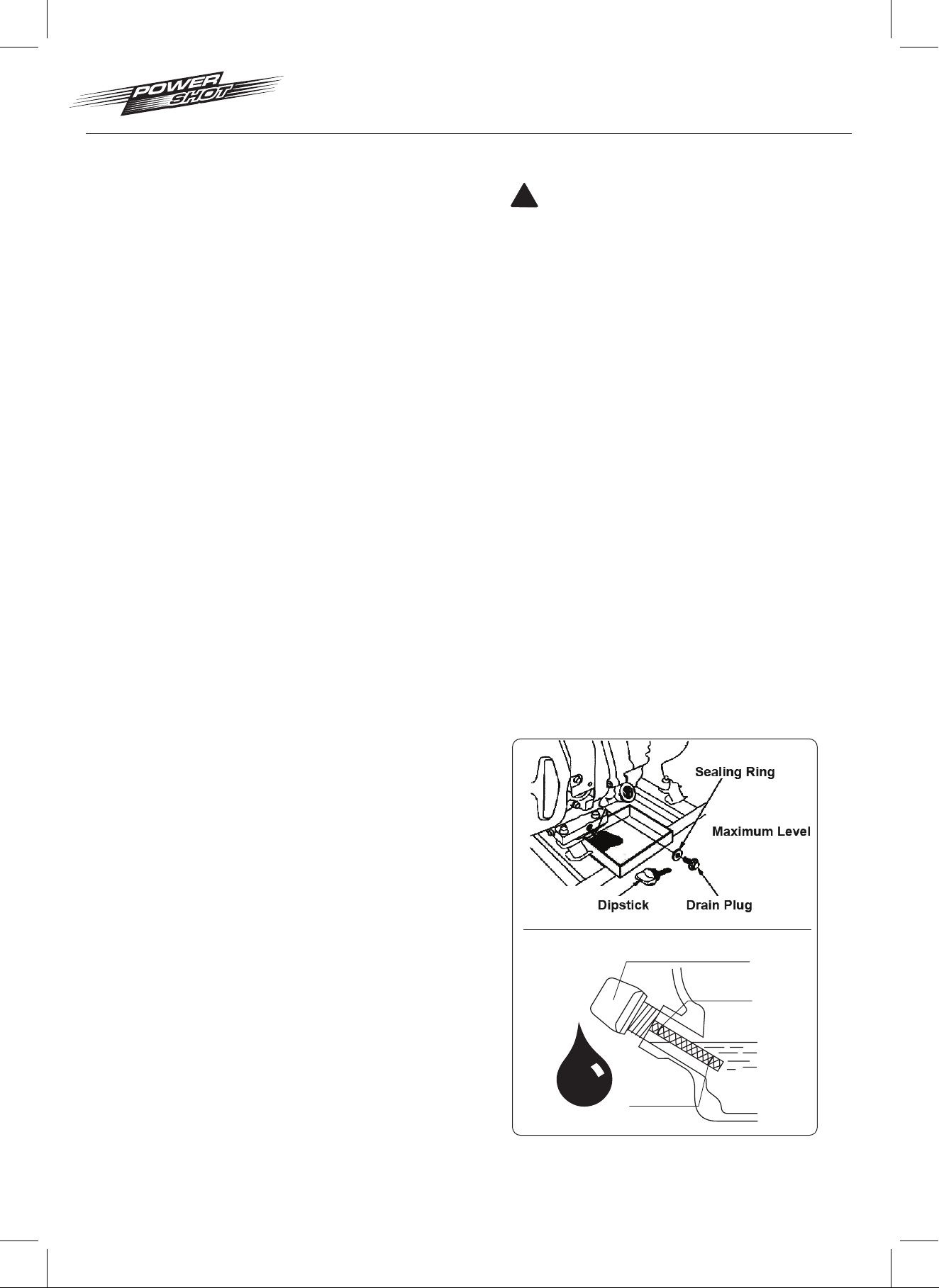

CHECKING THE ENGINE OIL:
IMPOR TANT: All washers are shipped without
engine oil. USE A QUALITY SAE30 GRADE OIL.
1. Place unit on a level surface
2. Remove oil filler cap / dipstick and wipe it clean.
3. Insert oil filler cap / dipstick into filler neck, but DO
NOT screw it in.
4. Remove dipstick. Proper oil level is at mid-point of
dipstick. Add oil if necessary to bring oil level to
top of sump threads.
5. Install and tighten cap.
NOTE: Check oil often during engine break-in.
Damage to equipment resulting from failure to follow
this instruction will void warranty.
CHANGING THE ENGINE OIL:
!CAUTION: Any attempt to crank or start the
engine before it has been properly filled with
the recommended oil will result in equipment
failure.
Drain the oil when the engine is warm, warm oil
drains quickly and completely.
1. Place a suitable container below the engine to
catch the used oil, then remove the oil cap/
dipstick, oil drain plug and sealing washer.
2. Allow the used oil to drain completely, then
reinstall the oil drain plug and a new sealing
washer, and tighten the oil drain plug securely.
3. With the engine in a level position, fill with the
recommended oil (SAE30) to the upper level
mark.
4. Install the oil filler cap/dipstick and tighten.
5. Dispose of used oil at a proper collection centre.
Oil filler cap (oil gauge)
Lower level
Upper level
1.
PS3611ES

8.
FILLING THE FUEL TANK
CAUTION: Risk of fire. Handle fuel
carefully.
Do not add fuel when product is operating. Stop
engine and allow engine to cool for 5 minutes before
refueling. Hot surfaces can cause burns and ignite
spilled fuel. Do not touch muffler.
Fill fuel tank outdoors away from flames and open
sparks.
Do not smoke when filling fuel tank.
Do not overfill fuel tank. (There should be no fuel
in filler neck.)
Avoid spilling fuel. Wipe clean after refueling.
Move from refueling area before starting.
Prevent fires by keeping engine clean of
accumulation, grease, trash and debris.
3.
Inlet
Screen
2.
Connect high
pressure hose here
CONNECTING HOSE & WATER
SUPPLY TO PUMP
1. Uncoil high pressure hose and attach the end of
the hose to base of spray gun (Fig. 2).
Pull coupler locking ring back and push into male
hose fitting. Release coupler locking ring and
check connection.
2. Similarly, attach other end of high pressure hose
to high pressure outlet on pump.
3. Before connecting garden hose to water inlet,
inspect inlet screen (Fig. 3). Clean screen if it
contains debris, replace if damaged. DO NOT
RUN WATERBLASTER IF SCREEN IS
DAMAGED.
4. Run water through garden hose for 30 seconds
to clean out any debris. Turn off water.
IMPORTANT: DO NOT siphon standing water for
the water supply. Use ONLY cold water (less than
40°C).
5. Connect garden hose (not to exceed 10 metres
in length) to water inlet (Fig. 3).
IMPORTANT: Do not permit
dirt or other foreign matter
to enter the fuel system.
This will cause hard
starting, poor performance
and engine damage. Always
use clean fuel storage
containers and funnels.
petrol. Do not use stale
petrol or petrol that has
been stored for a long
time. Stale petrol does not vaporise properly,
causing hard starts. Use of petrol stabilizer is highly
recommended . Use of leaded petrol or gasohol is
NOT recommended.
IMPORTANT: To avoid pump damage, you must
assemble the nozzle extension to the spray gun
and attach all hoses before you start the engine.
PS3611ES

9.
IMPORTANT: Use soaps designed specifically for
pressure washers. Household detergents could
damage the pump.
To apply detergent follow these steps:
1. Review spray tip use.
2. Prepare detergent solution as required by
manufacturer.
3. Place chemical injection siphon/filter into
detergent container.
4. Make sure black spray tip is installed.
NOTE: Detergent cannot be applied with the high
pressure spray tips (White, Green, Yellow, or Red).
5. Make sure garden hose is connected to water
inlet. Check that high pressure hose is
connected to spraygun and pump; start engine.
6. Apply detergent to a dry surface, starting at
lower portion of area to be washed and work
upward, using long, even, overlapping strokes.
DO NOT allow detergent to dry on (prevents
streaking).
before washing and rinsing. Reapply as needed
to prevent surface from drying.
CAUTION! You must attach all hoses before
you start the engine. Starting the engine with-
out all the hoses connected and without the
water turned ON will damage the pump. Damage
to equipment resulting from failure to follow this
this instruction will void warranty.
CAUTION! Keep the chemical injection
tube from coming in contact with the hot
muffler. When inserting the filter into a detergent
solution bottle, route the tube so as to keep it from
inadvertently contacting the hot muffler.
CLEANING & APPLYING CHEMICALS
5.
10m. If a longer supply
INLET WATER SUPPLY
REQUIREMENTS
PS3611ES

10 .
OPERATING CHECKLIST
STARTING THE MACHINE
PS3611ES
machine, with the unit attached to a water pressure
main. Let the water flow from the wand until air is
purged from the system.
4. Connect hose and turn on water.
5. Squeeze and hold trigger.
6. Push the START button. Machine will take approx-
imately 5 seconds to auto start.
7. Keep trigger held down on the gun. If machine
does not start on first attempt do not release
trigger as machine will automatically try to restart.
8.

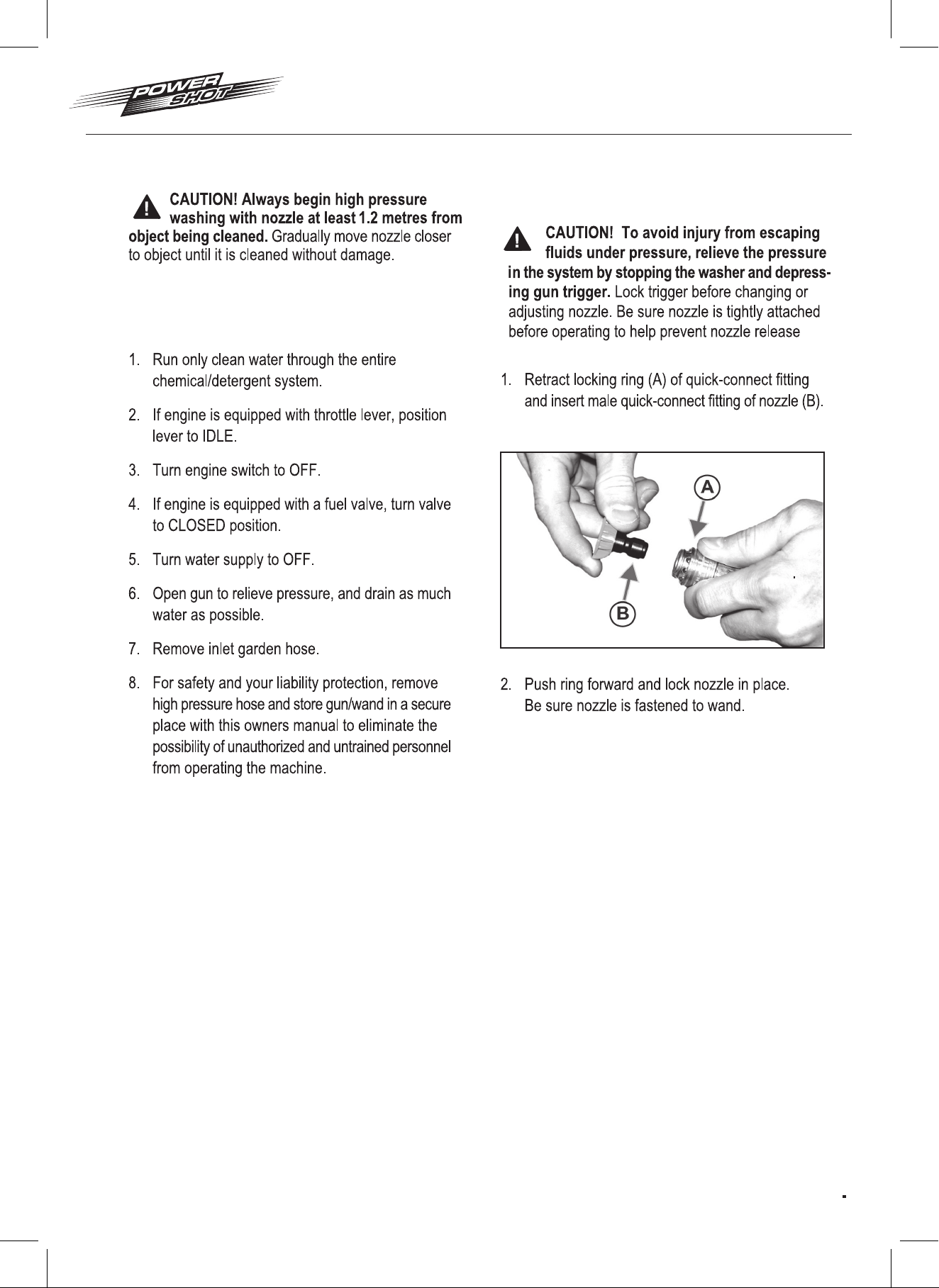

STOPPING THE MACHINE
NOZZLE INSTALLATION SELECTION
4.
11.
PS3611ES

SELECTING THE PROPER NOZZLE
Pressure and volume are partially determined by
the size of the orifice in the nozzle. Standard
numbers are on the nozzles to indicate spray
pattern and orifice size.
0° NOZZLE - Red
This nozzle is a blasting
nozzle, delivering a
concentrated stream of
water.
IMPORTANT: Take care to
avoid gouging wood or
damaging fragile surfaces.
Recommended uses are as follows:
aluminum and steel.
40° NOZZLE - White
This nozzle is a general
purpose nozzle with a
wide angle spray pattern.
It is recommended for
rinsing and light cleaning.
Recommended uses:
T
25° NOZZLE - Green
This flushing nozzle produces
a brush effect with a wider
spray pattern and less
concentrated spray pressure
than a 5° nozzle.
Recommended uses:
DETERGENT
INJECTOR NOZZLE
- Black (Brass)
This nozzle must be used
with and is included in the
detergent injector kit.
This nozzle will allow a soft spray to soak on a
surface with a liquid detergent.
For applying cleaning solution.
Recommended uses:
houses
15° NOZZLE - Yellow
This nozzle provides a
chiseling effect suitable for
surface preparation. Spray at
a 45° angle to the surface.
Recommended uses:
12 .
PS3611ES

13 .
PRESSURE WASHER RINSING
After you have applied detergent, scour the surface
and rinse it clean as follows:
1. Apply safety latch to spray gun.
2. Remove black chemical spray tip from nozzle
extension.
3. Select and install desired high pressure spray tip
following instructions in ‘Selecting the Proper
Nozzle’.
4. Apply high pressure spray to small area and
check surface for damage. If no damage is found,
you can assume it is okay to continue cleaning.
5. Start at top of area to be rinsed, working down
with same overlapping strokes as you used for
cleaning.
C
1.
7.
7.
LEANING HORIZONTAL SURFACES
Move nozzle wand from side to side. Direct spray
at an angle to force debris ahead and away from the
cleared area (Fig. 6).
6.
2. Depending on the material to be removed and
nozzle pressure, hold nozzle end 20 to 25cm
from the surface and use slow overlapping ,
strokes.
3. If debris is easy to remove, move nozzle back to
cover more area for faster cleaning.
CLEANING VERTICAL SURFACES
IMPORTANT: Remember that the pressure washer
can deliver a high pressure spray that can break
glass and gouge soft wood and other materials.
When cleaning building interiors or exteriors without
detergents, work from top to bottom. This will help
eliminate streaks. In interiors, start with the ceiling
first, then the walls and the floor last.
CAUTION! Clean around windows
carefully.
and puttied, the high pressure spray could
break the glass.
CAUTION: Never spray directly overhead.
Always spray ahead to avoid dripping or
falling debris.
REMOVING PAINT
IMPORTANT: Remember that high pressure spray
can gouge soft woods and other materials, as well
as loosen grout.
1. Direct spray at a 45° angle about 10 to 30cm
from surface.
2. Spray in a back and forth motion, try to get
beneath the loose and bubbled paint.
3. Do not be concerned with the paint that remains.
It should be sufficiently bonded so as not to
cause repainting problems.
CAUTION! Never allow the pump to run
for more than a 2 minute period without
opening the gun. This will cause pump
damage due to excessive water temperature
and void the warranty. A thermal relief valve
has been added to the pump to reduce the
possibility of overheating, however,
malfunction of this device does not constitute
pump warranty for damage caused by
overheating.
PS3611ES

14 .
4. Some remaining paint may curl up at the edges.
These edges should be scraped with a steel
brush or scraper just before painting.
1. Use clean water without detergent.
IMPORTANT: Spray straight into the radiator to
prevent bending fins.
2. If possible, direct spray in the direction opposite
to normal air flow through the radiator.
8.
Before Each Use:
1. Check engine oil level.
2. Check water inlet screen / filter for damage.
3. Check high pressure hose for leaks and damage.
4. Check detergent siphoning tube and filter for
damage.
6. Check spray gun, nozzle extension, and spray
tips for leaks.
7. Rinse out garden hose to flush out debris.
Check and Clean Inlet Screen / Filter
Examine the screen on the water inlet. Clean it if the
screen is clogged or replace it if screen is damaged.
Check High Pressure Hose
The high pressure hose can develop leaks from
wear, kinking, or abuse. Inspect the hose each time
before using it. Check for cuts, leaks, abrasions or
bulging of cover, damage or movement of couplings.
If any of these conditions exist, replace the hose
immediately.
WARNING! The high pressure stream of
water that this equipment produces can
pierce skin and its underlying tissues, leading to
serious injury and possible amputation. NEVER
repair high pressure hose. Replace it. Replacement
hose rating MUST exceed maximum pressure rating
of unit.
Check Detergent Siphoning Tube
Examine the filter on the detergent tube and clean if
clogged. The tube should fit tightly on the barbed
fitting. Examine the tube for leaks or tears. Replace
the filter or tube if either is damaged.
IMPORTANT: Simply shutting OFF engine will not
release pressure in the system. When the engine
has shut down, squeeze the trigger on the spray gun
to relieve the pressure in the hose.
CLEANING RADIATOR FINS
IMPORTANT: Some engine and radiator
manufacturers may not permit cleaning radiators
Operating Manual.
GENERAL MAINTENANCE
The pressure washer warranty does not cover
items that have been subjected to operator abuse
or negligence. To receive full value from the
warranty, the operator must maintain the pressure
washer as instructed in this manual.
periodically to properly maintain your pressure
washer
at least once each season.
pressure at the value marked on the tyre or
within 15 and 40 psi.
If equipped with inflatable tyres, keep the air
PS3611ES

15 .
Check Gun and Nozzle Extension
Examine the hose connection to the spray gun and
make sure it is secure. Test the trigger by pressing
it and making sure it springs back into place when
you release it. Put the safety latch in the on position
and test the trigger. You should not be able to press
the trigger.
To correct the problem, immediately clean the spray
tips using the tools included with your pressure
washer and follow these instructions:
1. Shut off engine and turn off water supply.
2. Remove spray tip from end of nozzle extension.

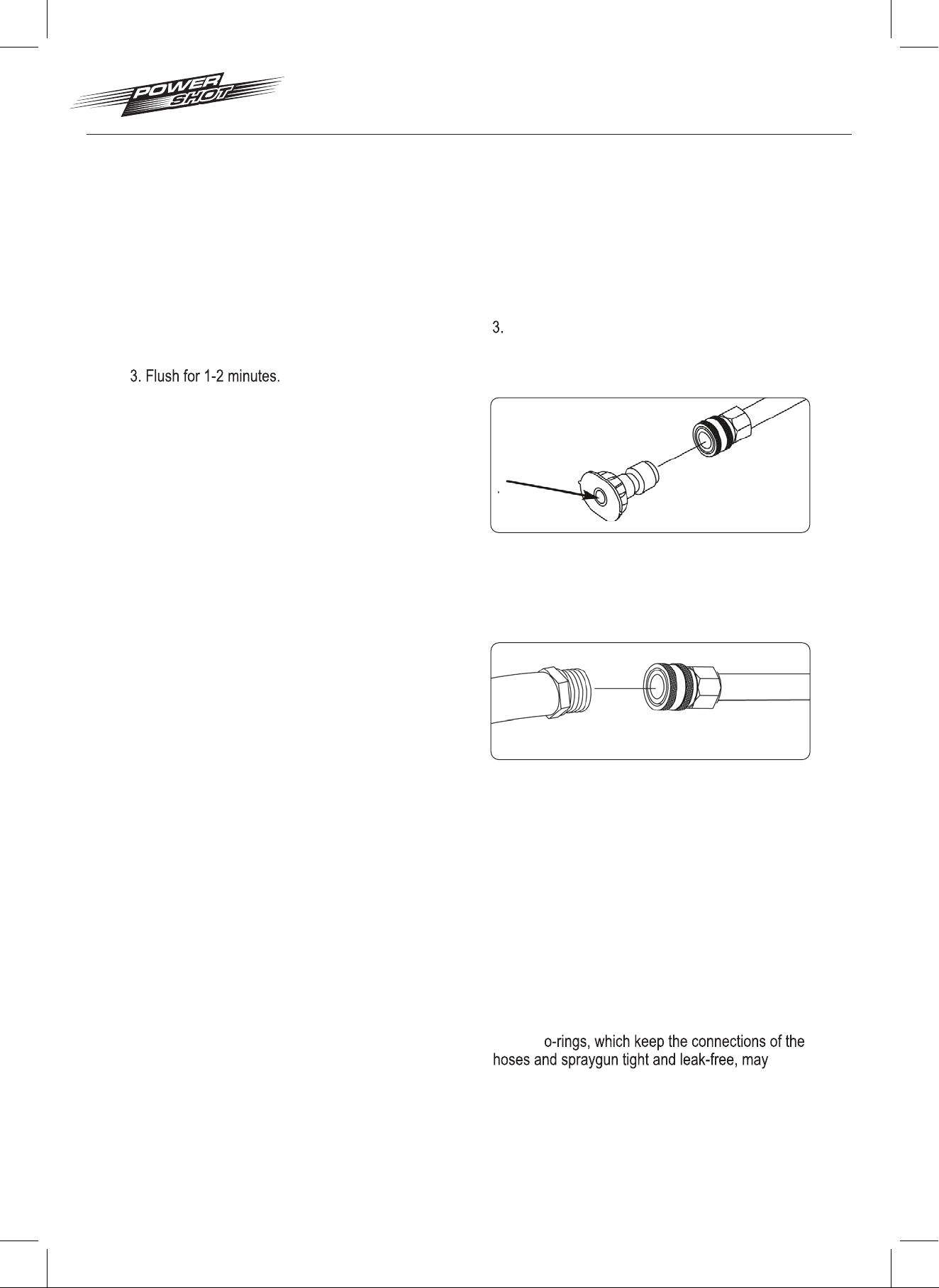

Use wire included in kit (or a small paper clip) to
free any foreign material clogging or restricting
spray tip (Fig. 9).
5. Using a garden hose, remove additional debris
by back flushing water through nozzle extension
(Fig.10). Back flush between 30 to 60 seconds.
Purge Pump of Air and Contaminants
To remove air from the pump, follow these steps:
1. Set up pressure washer as described earlier in this
booklet. Connect water supply and turn water on.
2. Pull trigger on spray gun and hold.
3. When water supply is steady and constant, engage
safety latch.
To remove contaminants from the pump, follow
these steps:
1. Set up pressure washer as described earlier in this
booklet. Connect water supply and turn water on.
2. Start engine according to instructions in earlier in
this booklet.
3. Remove nozzle extension from spray gun.
4. Squeeze trigger on spray gun and hold.
5. When water supply is steady and constant, engage
safety latch and reattach nozzle extension.
6. Reinstall spray tip into nozzle extension.
7. Reconnect nozzle extension to spray gun.
8. Reconnect water supply, turn on water and start
engine.
9. Test pressure washer by operating with each
Quick Connect spray tip.
10.
Cleaning Detergent Siphoning Tube
If you used the detergent siphoning tube, you must
flush it with clean water before stopping the engine.
1. Place chemical injection siphon/filter in a bucket
full of clean water.
2. Attach black low pressure spray tip.
4. Shut off engine.
O-Ring Maintenance
Through the normal operation of your pressure
washer,
become worn or damaged.
9.
Use wire here to
remove debris
Nozzle Maintenance
A pulsing sensation felt while squeezing the spray gun
trigger may be caused by excessive pump pressure.
The principal cause of excessive pump pressure is a
spray tip clogged or restricted with foreign materials,
such as dirt, etc.
PS3611ES

16 .
Oil Change Periods
The oil in the pump should be changed after the
first two hours of use. Following this, an oil change
should be performed when the oil becomes
discoloured or every 50 hours of use, whichever
event occurs first.
CAUTION! Do not exceed the
manufacturer's maximum pressure by
increasing the unloader adjustment range.
(This will void pump warranty)
!
KEEP OUT OF REACH OF
CHILDREN. DON'T POLLUTE.
CONSERVE RESOURCES.
RETURN USED OIL TO
COLLECTION CENTRES.
CAUTION! Avoid prolonged or repeated
skin contact with used motor oil. Used
motor oil has been shown to cause skin
cancer in certain laboratory animals.
Thoroughly wash exposed areas with soap
and water.
!
!CAUTION! The maximum engine RPM has
been set at the factory. TAMPERING WITH
ENGINE GOVERNOR WILL VOID WARRANTY
NOTE: Performing an oil change will be easier if
the machine has been run and the pump is still
warm.
Pressure Adjustment
Pump pressure may be adjusted by turning the
unloader adjustment knob.
Pump failure is most commonly due to lack of care
in operation and poor or no maintenance rather
than manufacturing defects. Issues caused by
operator error and/or lack of correct maintenance
will not be considered under warranty.
To remove a worn or damaged o-ring; use a small
flathead screwdriver to get underneath the o-ring
and pry it off.
Check Pump Oil Level
The oil level should come to the dot in the middle of
the sight glass (AA).
CC
AA
BB
How To Change Pump Oil
1.
2. Place a container under pump oil drain plug (CC).
3. Remove pump oil drain plug.
4. After oil is drained, replace pump oil drain plug.
Tighten securely.
5. SAE 15W-40 oil.
If there is a problem with the pump contact us at
www.euroquip.co.nz
11.
PS3611ES

17.
SERVICE CHART
1. Perform engine oil change after first 5 hours of use
and then at recommended intervals. Change
engine oil every 25 hours when used under heavy
load or in high ambient temperatures.
2. Service more frequently when used in dusty areas.
3. Air filter element may require replacement earlier
in dusty areas. A dirty air filter reduces engine
performance.
4. Unit should be serviced by authorised dealer
unless owner has proper tools and is mechanically
proficient and experienced in the repair of
waterblasters
PROTECTING THE PUMP
To protect the pump from damage caused by
mineral deposits or freezing, use PumpSaver to
treat pump. This prevents freeze damage and
lubricates pistons and seals.
NOTE: PumpSaver is available as an optional
accessory.
CAUTION! You must protect your unit
from freezing temperatures. Failure to do
so will permanently damage your pump and
render your unit inoperable. Freeze damage
is not covered under warranty.
To use PumpSaver, make sure the pressure
washer is turned off and disconnected from supply
water. Read and follow all instructions and
warnings given on the PumpSaver container.
NOTE: PumpSaver will drip from pump after
treatment and will stain wood and concrete.
CAUTION! Read and follow all cautions
and warnings on the PumpSaver label.
Always wear eye protection when using
PumpSaver.
NOTE: If PumpSaver is not available, draw RV
the solution into a 1 metre of garden hose
connected to inlet adapter and pulling recoil handle
twice.
STORAGE
Water shouldn’t remain in unit for long periods of
time. Sediments or minerals can deposit on pump
parts and ‘freeze’ pump action.
If you do not plan to use the pressure washer for
more than 30 days, follow this procedure:
1. Flush detergent siphoning tube by placing filter
into a pail of clean water while running pressure
washer in low pressure mode. Flush for one to
two minutes.
2. Shut off engine and let it cool, then remove high
pressure and garden hoses. Disconnect spark
plug wire from spark plug.
3. Empty pump of liquids by pulling engine recoil
handle about 6 times. This should remove most
liquid in pump.
4. Use pump saver to prevent corrosion build up
and freezing of pump.
5. Store unit in a clean, dry area.
PS3611ES

18 .
TROUBLESHOOTING
NOTE: Most problems with pressure washers are
not a malfunction of the pump or motor!! ALWAYS
trouble shoot from water source and/or nozzle
towards the pump and motor. Example: Check
water supply and nozzle if pressure fluctuates, unit
is noisy or does not reach full pressure.
Follow these trouble shooting rules closely
With proper care and use of the pressure washer,
the unit should remain free of problems. Most
problems are caused by careless or improper use
of equipment. Operation of the unit without
sufficient inlet water supply will result in damage to
seals and other components. Another common
cause of damage is running unit for long periods
with spray gun trigger in its "Closed" position.
The latter can result in high water temperatures,
resulting in damage to seals and other components.
Cavitation
If the water pressure falls below a certain point
(called vapor pressure) the water will begin to boil
even though the temperatures are below normal
boiling point. Tiny bubbles of vapor will then form in
the boiling water. If the vapor bubbles are carried
away to a higher pressure area in the system the
vapor will condense again and leave a cavity in the
midst of the flow. The surrounding water will then
rush in to fill these cavities. Extremely high local
pressures are then created (up to 100,000 PSI).
Such high pressures may result in erosion,
turbulence, noise, vibration, and excess wear and
tear on the pump.
The pump inlet, where the pistons pull the water in,
is very susceptible to cavitation problems.
Anything that obstructs the flow of water into the
pump can result in cavitation such as:
Some Pressure Washer Problems
Some of the problems that might occur in a high
pressure system are as follows:
When a problem arises don't remove the pump
immediately and start replacing parts. First check
the following possible causes of the problem:
water supply is adequate.
damaged.
necessary.
water temperature should not exceed 40° C.
detergent hose is submerged and not drawing
air into the system. If detergent is not being
used, the chemical injector valve should be
turned off.
properly adjusted.
and is not blocked.
inlet (such as too many valves, or too many
bends).
To prevent cavitation, pump inlets must be carefully
maintained to avoid restrictions to flow.
PS3611ES

19 .
Troubleshooting Tips
Problems with Detergent
Problems with use of detergent are often caused by
incorrect procedures of operator. Problems
encountered that involve the use of cleaning agents
can often be attributed to one or more of the
following:
1. Hose is not fully submerged in solution: If the
tube isn’t fully immersed, the unit will be picking
up air.
2. Failure to flush the detergent system out with
clean water following previous use.
3. Wrong type of detergent: Only soaps designed
specifically for pressure washers should be
used. Household detergents could damage the
pressure washer.
Engine will not start or stops while operating:
Engine switch not in ‘ON’ position: Turn switch ‘ON’
Pressure built up in hose: Squeeze trigger while starting
Engine is overloaded:
Nozzle partially blocked: Clean Nozzle
tnemtsujdaerusserppmupecudeR:erusserpevissecxE
Pressure increases when gun is locked:
evlavssapybehtnaelC:gnikcolbevlavssapyB
3. Damage to the pump can result from
a) Inadequate water supply,
b) Vacuum lift too high, or
c) Excessive water temperature.
4. Check the pump crankcase for correct oil level
and for oil contamination. If oil appears milky,
water has entered the oil and the piston seals
should be replaced.
1. If the pump is running but produces no flow, try
priming the pump.
a) To prime the pump, keep suction at a
minimum and keep the discharge line open.
b) Open and close the spray gun trigger
repeatedly to aid the priming process.
2. A chattering noise usually indicates a restricted
water supply or air leaks.
a) Check for kinks or leaks in the hoses
b) Look for a plugged or damaged inlet water filter
c) If the filter has been damaged, sediment may
have entered the pump. The sediment will be
lodged in the inlet valve(s) and must be
removed.
p
PS3611ES

20.
Engine is running but pump won’t build maximum pressure or has irregular pressure:
tecuafnepO:desolctecuaF
Unit has been stored in freezing temperature: Thaw out unit completely
Inadequate water supply: Provide a minimum of 12L/min at 20 PSI
Water inlet screen clogged: Clean screen
esohnedragnethgiartS:esohnedragnikniK
Wand nozzle worn or damaged: Replace nozzle
Air in pump: litnudevomerdnaw&neponughtiwnuR desaelersiretawfomaertsydaets
Unloader not set correctly Adjust unloader to correct position
Suction or discharge valves clogged Clean or replace the suction or discharge valves
or worn out:
Bypass valve not operating effectively: Clean the bypass valve
No intake of chemicals:
Injection tube not securely inserted: Push firmly into injector into unit
ebutecalpeR:tilpsrodekcarcebuT
elzzonerusserpwolothctiwS:elzzongnorW
Trigger will not move:
Gun safety lock engaged: Release safety lock
Water in crankcase:
yltneuqerferomlioegnahC:ytidimuhhgiH
slaeslioehtegnahC:slaesnroW
Noisy operation:
sgniraebehtegnahC:sgniraebnroW
Air mixed with water: snoitcirtserrofseniltelnikcehC gnizisreporpro/dna
Rough / pulsating, operating with pressure drop:
Inlet restriction: ,skaelria,segappotsrofmetsyskcehC pmupotgnibmulptelnidezisyltcerroc
noitareporeporprofredaolnukcehC:redaolnU
Air mix in water: rodnasnoitcirtserrofseniltelnikcehC gnizisreporp
High crankcase temperatures:
liodednemmoceresU:lio
foedarggnorW
Improper amount of oil in crankcase: Adjust oil to proper amount
(black)
PS3611ES
