POWER2SA P2SA 8K EU User manual

USER MANUAL
󾙓󾙔
Power2SA Super Hybrid Inverter 8-10kW

HISTORY
VERSION ISSUED COMMENTS
1.0 21-Dec.-22 First release
1.1 16-May-23 Update Chapter 4 Electrical Connection. Change CT connection from Pin 5,6
to Pin 9,10.
1.2 8-June-23 Change the cover and switch time from 1 second to 5 seconds.

WARNING
CAUTION
DANGER
NOTICE
NOTE
Conventions
The following safety instructions and general information are used within this user manual.
Indicates an imminently hazardous situation which, if not correctly
followed, will result in serious injury or death.
Indicates a potentially hazardous situation which, if not correctly
followed, will result in serious injury or death.
Indicates a potentially hazardous situation which, if not correctly
followed, could result in moderate or minor injury.
Indicates a potentially hazardous situation which, if not correctly
followed, could result in equipment failure to run, or property
damage.
Call attention to important information, best practices and tips:
supplement additional safety instructions for your better use of the
Three phase hybrid inverter to reduce the waste of you resource.
Power2SA Inverter User Manual 3
Preface
About This Manual
This manual describes the installation, connection, APP setting, commissioning and maintenance etc.
of Power2SA inverter. Please first read the manual and related documents carefully before using the
product and store it in a place where installation, operation and maintenance personnel can reach it at
any time. The illustrations in this user manual are for reference only. This user manual is subject to
change without prior notice. (Specific please in kind prevail.)
Target Group
Power2SA inverters must be installed by professional electrical engineers who have obtained
relevant qualifications.
Scope
This manual is applicable to following inverters:
P2SA 8K EU
P2SA 10K EU

4 Power2SA Inverter User Manual
CONTENTS
Preface
1. Safety
2. Product Introduction
3. Installation
4. Electrical Connection
5. System Operation
About This Manual
Target Group
Scope
Conventions
1.1 Symbols Used
1.2 Safety Precaution
2.1 Overview
2.2 Product Appearance
3.1 Packing List
3.2 Selecting the Mounting Location
3.3 Mounting

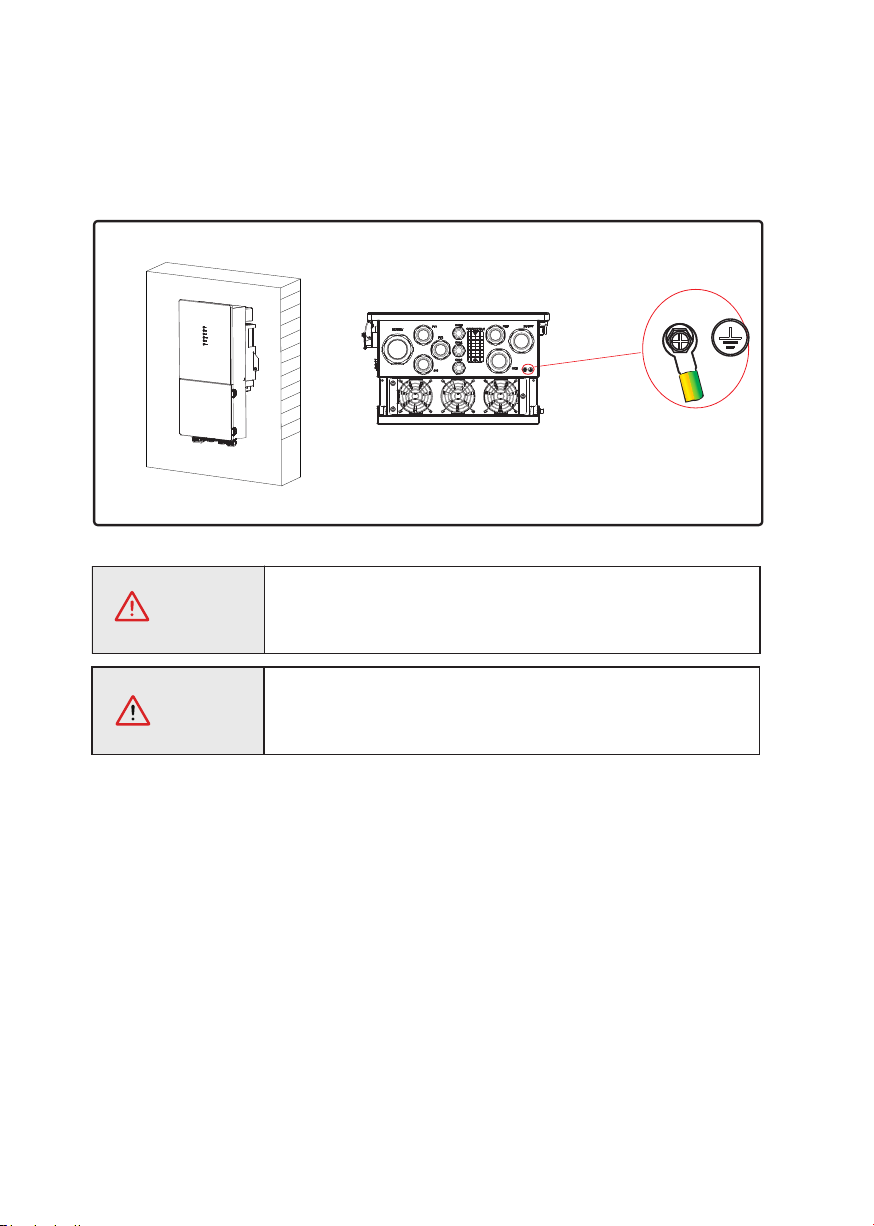

4.1 Grounding
4.2 Meter/CT Connection
4.3 Communication Connection
5.1 Inverter Working Mode
5.2 Startup/Shutdown Procedure

6. Commissioning
7. User Interface
8. Maintenance
9. Technical Specifications
6.1 Inspection
6.2 Commissioning Procedure
7.1 LED
7.2 App Setting Guide
8.1 Routine Maintenance
8.2 Inverter Troubleshooting
Power2SA Inverter User Manual 5

Safety
1. Safety
Before using the inverter, please read all instructions and cautionary markings on the unit and in this
manual. Put this manual to a place where you can take it easily.
Our Power2SA inverter strictly conforms to related safety rules in design and test. Please follow the
local laws and regulations during installation, operation and maintenance. Incorrect operation may cause
injury or death to the operator or a third party, and damage to the inverter and other properties belonging
to the operator or a third party.
1.1 Symbols Used
6 Power2SA Inverter User Manual
Danger of high voltage and electric shock!
Only qualified personnel may perform work on the inverter.
Grounding terminal
Safety Symbol Description
Residual voltage exists after the inverter is powered off. It takes
5 minutes for system to discharge to a safe voltage.
Danger of hot surface
Product should not be disposed as household waste.
5 mins
Environmental Protection Use Period
Refer to the operating instructions

Safety
Power2SA Inverter User Manual 7
1.2 Safety Precaution
Installation, maintenance and connection of inverters must be performed by qualified personnel, in
compliance with local electrical standards, wiring rules and requirements of local power authorities and/
or companies.
The temperature of some parts of the inverter may exceed 60℃ during operation. Do not touch the
inverter during operation to avoid being burnt.
Ensure children are kept away from inverters.
Don’t open the front cover of the inverter. Apart from performing work at the wiring terminal (as
instructed in this manual), touching or changing components without authorization may cause injury
to people, damage to inverters and annulment of the warranty.
Static electricity may damage electronic components.Appropriate methods must be adopted to prevent
such damage to the inverter; otherwise the inverter may be damaged and the warranty annulled.
Ensure the output voltage of the proposed PV array is lower than the maximum rated input voltage of
the inverter; otherwise the inverter may be damaged and the warranty annulled.
When exposed to sunlight, the PV array generates dangerous high DC voltage. Please operate according
to our instructions, or it will result in danger to life.
PV modules should have an IEC61730 classArating.
If the equipment is used in a manner not specified by the manufacturer, the protection provided by the
equipment may be impaired.
Completely isolate the inverter before maintaining. Completely isolate the inverter should: switch off
the PV switch, disconnect the PV terminal, disconnect the battery terminal, and disconnect the AC
terminal.
Prohibit inserting or pulling the AC and DC terminals when the inverter is running.
In Australia, the inverter internal switching does not maintain the neutral neutral continuity. And neutral
integrity must be addressed by external connection arrangements.
Don’t connect Three phase hybrid inverter in the following ways:
BACKUP Port should not be connected to grid;
The single PV panel string should not be connected to two or more inverters.
After the inverter is powered off, the remaining electricity and heat may still cause electric shock and body
burns. Do not touch parts of inverter for 10 minutes after disconnection from the power sources.

Monitoring
Device
Cloud
PVArray
P2SA Inverter
Sensor
Grid
P2SA Inverter Application System
Battery
Product Introduction
2. Product Introduction
2.1 Overview
Power2SA Inverter
The Power2SA inverter is a high-quality inverter which can convert solar energy to AC energy and store
energy into battery. Typically, a Power2SA inverter system consists of PV array, ESS inverter, battery,
loads and electricity sensor.
The energy generated by inverter can be preferentially supplied to its self-consumption, stored in the battery
for future use or fed into public grid.
Normal Load
8 Power2SA Inverter User Manual
BACKUP
Smart
Load
On-Grid
Inverter
Generator
or
or

The External View of Power2SA Inverter
2.2 Product Appearance
LED Details
Width(mm) Depth(mm)
420 800 240
LED Indicators PV BAT GRID BACKUP COM ALARM
Product Introduction
Height(mm)
Power2SA Inverter User Manual 9
420.0
800.0
240.0

Product Introduction
10 Power2SA Inverter User Manual
1. Battery Connect Terminals
2. PV Input Terminals
3. COM1/2/3 Ports (RS485, BMS,
DRM, CT, DRY, RSD, PARA)
4. COM Port (GPRS/WIFI/LAN)
5. GRID Output Terminal
6. Grounding Terminal
7. BACKUP Terminal
8. GEN Terminal
The Bottom View of Power2SA inverter
346
5
8
12
7
1. PV Switch
2. Toggle Latch ( for opening/closing
the junction box cover)
3. ON/OFF Button
4. Handle Areas
(right) (left)
The Side Views of Power2SA Inverter
4
1
2
2
3

After unpacking, please check the following packing list carefully for any damage or missing parts. If
any damage or missing parts occurs, contact the supplier for help.
Number Quantity Description
3.1 Packing List
3. Installation
Installation
Power2SA Inverter User Manual 11
1 2 3 4 5 6 7 8 9
1 2 3 4
1 2 3 4 1 2 3 4
A B C D E F
G H I J
A 1 Inverter
B 1 Mounting bracket
C 1 File package
D 1 Meter (Optional)
E 1 CT
F 3 M6 Expansion screws
G 1 M6 Security screw
H
1 GPRS/WIFI/LAN module (Optional)
I
1 9-Pin terminal
J
3 4-Pin terminal
or or

3.2 Selecting the Mounting Location
3.2.1 Installation Environment Requirements
Installation
12 Power2SA Inverter User Manual
a. With an IP65 protection rating, the inverter can be mounted indoors or outdoors.
b. The
mounting location must be inaccessible to unrelated personnel since the enclosure and heat sinks
are extremely hot during operation.
c. Do not install the inverter in areas containing highly flammable materials or gases.
d. To ensure optimum operation and long service life, the ambient temperature must be below 50℃.
e. The inverter must be mounted in a well-ventilated environment to ensure good heat dissipation.
f. To ensure long service life, the inverter must not be exposed to direct solar irradiation, rain,
or snow. It is recommended that the inverter be mounted in a sheltered place.
g. The carrier where the inverter is mounted must be fire-proof. Do not mount the inverter on flammable
building materials.
h. Do not install the inverter in a rest area since it will cause noise during operation.
i. The installation height should be reasonable, and please make sure it is easy to operate and view the display.
j. Product label and warning symbols shall be clear to read after installation.
k. Please avoid direct sunlight, rain exposure, snow cover.
No direct sunlight No rain exposure No snow cover
Snow cover
Direct sunlight Rain exposure

3.2.2 Mounting Requirements
Mount the inverter vertically or tilted backward by max 15°. The device can not be installed
with a wrong mode and the connection area must point downward.
3.2.3 Installation Space Requirements
To ensure the inverter is normal and easy to operate, there are requirements on available spaces of the
inverter, e.g. to keep enough clearance. Refer to the following figures.
Above: 500mm
Below: 500mm
Front: 1000mm
Left side: 350mm
Right side: 350mm
Installation along the same line for multiple inverter
350mm 350mm
Installation
Power2SA Inverter User Manual 13
Upright Lean back ≤15° Horizontal
≤15°
Upside-down
≥350
≥500
≥350
≥500
≥1000

Before mounting the inverter, you have to prepare
expansion screws and a security screw.
Step 1. Install the mounting bracket
Step 2. Install the inverter on the mounting bracket. Then lock the inverter using the security
screw. Refer to Figure e, Figure f.
Before drilling the hole on the wall, ensure no damage on the electric wire
and/or water pipe inside the wall.
DANGER
To prevent potential damages and injuries from inverter falling down,
please hang the inverter on the bracket, do not loosen grip unless confirm
that the inverter is well-mounted.
CAUTION
3.3 Mounting
1. Use a level ruler to mark the position of the 3 holes on
the wall. Refer to Figure a. And drill 3 holes, 16mm in
diameter and 55mm in deep. Refer to Figure b.
2.
Knock the expansion screw kit into the hole together
with a hammer. Refer to Figure c.
Note: Do not remove the nut unit in this step.
3. After tightening 2-3 buckles, the expansion bolts are
tight and not loose, and then unscrew the bolts, spring
washer, gasket. Refer to Figure c.
4. Install and fix the mounting bracket on the wall.
Refer to Figure d.
Unit: mm
Installation
14 Power2SA Inverter User Manual
666
14
16
16 14
246.6
333
110.6 57 60
∅16
552
Drill the holes.
Mark the holes position
on the wall.
Set bracket horizontally.
Install the expansion tubes.
(M63 suites)
A B C D
Expansion screw group
C & D
Ø16mm; Depth: 55mm
A & B
M6
2.5N·m
c
e
b
a
df
Install the inverter.
Note: two or three persons are recommended to install the inverter.
M6 Security screw;
2.5 N·m

Electrical Connection
Ensure that the inverter and all cables to be installed have been completely
powered off during the whole process of installation and connection.
Otherwise, fatal injury could be caused by the high voltage.
DANGER
4. Electrical Connection
This chapter shows the detailed connections of Power2SA inverter. The following illustration only uses the
hybrid inverter as an example.
P2SA inverter system connection diagram:
Non-parallel connection mode
Single phase (220V/230V/240Vac) connection diagram
Note：
BMS communication connection is only for lithium battery.
Meter is optional.
③
①
②
CT/Meter communication connection
BMS communication connection
DRY communication connection
RSD DRM
PARA
RS485
DRY CT/
METER BMS
Grid
COM
L
N
PE
+ -
PVArray
Critical Load
Lithium battery/
lead-acid battery
Flow from grid
to inverter
DRY
1 2 3 4 5 6 7 8 9
Pin1 2
Pin Function
Pin1 Generator Control
Pin2 Generator Control ②③
DRY
Breaker
25
24 2
1
5 6 24 25
4
3
Normal Load
CT
or
Meter
Smart
Load
On-Grid
Inverter
Generator
or
or
N GEN L N GRID L N BACKUP L
①
Power2SA Inverter User Manual 15

16 Power2SA Inverter User Manual
Electrical Connection
Single phase parallel connection mode-Scheme A (N=2)
①
Parallel communication connection
②
CT/Meter communication connection
③
BMS communication connection
*These communication cables can be connected
to any inverter, but they must be inserted into the
same inverter and we call this inverter No. 1 inverter.
COM
L
N
PE
Breaker
RSD DRM
PARA
RS485
DRY CT/
METER BMS
N GEN L N GRID L N BACKUP L
RSD DRM
PARA
RS485
DRY CT/
METER BMS
N GEN L N GRID L N BACKUP L
PV Array
②
L
N
PE
Grid
No.1 Inverter
No.2 Inverter
PV Array
Normal Load
①
①
+ -
+ -
CT/
METER
PARA
BMS
1 2 3 4
①
Turn this switch
to “ON”.
RS485
②
Turn this switch
to “ON”.
Pin Function
1
2
3
4
GND_S
PARA_SYNC
CAN_L
CAN_H
CT/
METER
PARA
BMS
1 2 3 4
RS485
①
③
Critical Load
12 3 4
12 3 4
Lithium battery/
lead-acid battery
Smart Load/
Generator/
On-Gird Inverter
Pin7 8
Flow from grid
to inverter
③

Electrical Connection
Power2SA Inverter User Manual 17
Note:
1. BMS communication connection is only for lithium battery.
2. It is necessary to turn the matched resistance switch of No. 1 inverter and No. 2 inverter to “ON” in
parallel connection mode.
3. With parallel connection mode, it is necessary to connect APP to one of inverters and then go to
Console > Other Setting page to enable Parallel mode on APP.
4. About breakers:
DC breaker on BATTERY side: 300A/80V
AC breaker on GEN side ≥ 60A/250V
AC breaker on Grid side ≥ 70A/250V
AC breaker on Backup side ≥ 70A/250V
Ensure that the inverter and all cables to be installed have been completely
powered off during the whole process of installation and connection.
Otherwise, fatal injury could be caused by the high voltage.
DANGER

Electrical Connection
18 Power2SA Inverter User Manual
Single phase parallel connection mode-Scheme B (N>2)
①
Parallel communication connection
②
CT/Meter communication connection
③
BMS communication connection
*These communication cables can be connected
to any inverter, but they must be inserted into the
same inverter and we call this inverter No. 1 inverter.
COM
L
N
PE
Breaker
RSD DRM
PARA
RS485
DRY CT/
METER BMS
N GEN L N GRID L N BACKUP L
RSD DRM
PARA
RS485
DRY CT/
METER BMS
N GEN L N GRID L N BACKUP L
RSD DRM
PARA
RS485
DRY CT/
METER BMS
N GEN L N GRID L N BACKUP L
25 24 6 5
N
L
PE
②③
Turn this switch
to “ON”.
CT/
METER
PARA
BMS
1 2 3 4
RS485
①
Grid
PV Array
No.1 Inverter
No.N Inverter (N>2)
PV Array
①
①
+ -
+ -
CT/
METER
PARA
BMS
1 2 3 4
①
Turn this switch
to “ON”.
RS485
③
Lithium battery/
lead-acid battery
12 3 4
12 3 4
Pin Function
1
2
3
4
GND_S
PARA_SYNC
CAN_L
CAN_H
PV Array
No.2 Inverter
+ -
12 3 4
①
Pin3 4
12 11 10 9
Critical Load
Normal Load
Smart Load/
Generator/
On-Gird Inverter
Flow from grid
to inverter
②

Electrical Connection
Power2SA Inverter User Manual 19
Note:
1. BMS communication connection is only for lithium battery.
2. It is necessary to additionally purchase suitable CT and meter according to the specific requirements in
parallel connection mode-Scheme B.
3. It is necessary to turn the matched resistance switch of No. 1 inverter and No. N inverter to “ON” in
parallel connection mode.
4. With parallel connection mode, it is necessary to connect APP to one of inverters and then go to
Console > Other Setting page to enable Parallel mode on APP.
5. About breakers:
DC breaker on BATTERY side: 300A/80V
AC breaker on GEN side ≥ 60A/250V
AC breaker on Grid side ≥ 70A/250V
AC breaker on Backup side ≥ 70A/250V
Ensure that the inverter and all cables to be installed have been completely
powered off during the whole process of installation and connection.
Otherwise, fatal injury could be caused by the high voltage.
DANGER

Electrical Connection
20 Power2SA Inverter User Manual
A protective earth (PE) terminal is equipped at the side of the inverter. Please be sure to connect this
PE terminal to the PE bar for reliable grounding. AWG 2 or 4 yellow green lines are recommended.
CAUTION If the positive pole or negative pole of the PV array is required to
be grounded, then the inverter output (to AC grid) must be isolated
by transformers in accordance with IEC62109-1, -2 standards.
The inverter must be grounded; otherwise, there may be electric shock
risk.
WARNING
Grounding
Terminal
The bottom view
4.1 Grounding
