Powerline PPA-13X User manual

&
Assembly Instructions
O W N E R ’ S M A N U A L v. 052009
by
by
®
®
PPA-13X
PPA-13
VERSION 0904

Important Safety Instructions
2
Before beginning any tness program, you should obtain a complete physical examination from your physician.
Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise.
Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement.
Antes de comenzar cualquier programma de ejercicios, deberias tener un examen sico con su doctor.
When using exercise equipment, you
should always take basic precautions,
including the following:
m Read all instructions before using the PPA-13X.
These instructions are written to ensure your safety
and to protect the unit.
m Do not allow children on or near the equipment.
m Use the equipment only for its intended purpose
as described in this guide. Do not use accessory
attachments that are not recommended by the
manufacturer. Such attachments might cause
injuries.
m Wear proper exercise clothing and shoes for your
workout, no loose clothing.
m Use care when getting on or off the unit.
m Do not overexert yourself or work to exhaustion.
m If you feel any pain or abnormal symptoms, stop
your workout immediately and consult your
physician.
m Never operate unit when it has been dropped or
damaged. Return the equipment to a service
center for examination and repair.
m Never drop or insert objects into any opening in
the equipment.
m Always check the unit before each use. Make sure
that all fasteners are secure and in good working
condition.
m Do not use the equipment outdoors or near water.
Personal Safety During Assembly
m It is strongly recommended that a qualied dealer
assemble the equipment.
Assistance is required.
m Before beginning assembly, please take the time
to read the instructions thoroughly.
m Read each step in the assembly instructions and
follow the steps in sequence. Do not skip ahead.
If you skip ahead, you may learn later that you
have to disassemble components and that you
may have damaged the equipment.
m Assemble and operate the PPA-13X on a solid, level
surface. Locate the unit a few feet from the walls
or furniture to provide easy access.
The PPA-13X is designed for your enjoyment. By
following these precautions and using common sense,
you will have many safe and pleasurable hours of health-
ful exercise with your Powerline PPA-13X.
After assembly, you should check all functions to
ensure correct operation. If you experience problems,
rst recheck the assembly instructions to locate any
possible errors made during assembly. If you are unable
to correct the problem, call the dealer from whom you
purchased the machine or call 1-800-556-3113 for the
dealer nearest you.
Obtaining Service
Please use this Owner’s Manual to make sure that all
parts have been included in your shipment. When
ordering parts, you must use the part number and
description from this Owner’s Manual. Use only
Powerline replacement parts when servicing this
unit. Failure to do so will void your warranty and could
result in personal injury.
For information about product operation or service,
check out the ofcial Powerline website at
www.bodysolid.com/home/Powerline-Fitness or contact
an authorized Powerline dealer or a Powerline
factory-authorized service company or contact Powerline
customer service at one of the following:
Toll Free: 1-800-556-3113
Phone: [phone]
Fax: [phone]
Hours: M-F 8:30-5:00 CST
E-Mail: [email protected]
Or write to: Body-Solid, Inc.
Service Department
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Retain this Owner’s Manual for future
reference. Part numbers are required when
ordering replacement parts.

3
B e f o r e Y o u B e g i n
Thank you for purchasing the PPA-13X. This gym is part of the Powerline series of quality strength training
machines, which let you target specic muscle groups to achieve better muscle tone and overall body
conditioning. To maximize your use of the equipment please study this Owner’s Manual thoroughly.
Unpacking the Equipment
The PPA-13X is carefully tested and inspected before
shipment. We have shipped the unit in several pieces
that require assembly. Ask for assistance during the
assembly process. Carefully unpack the boxes and lay
the pieces on the oor near the area where you plan to
use the equipment.
Be careful to assemble all components in the
sequence presented in this guide.
If any items are missing, contact the dealer from whom
you purchased the unit or call 1-800-556-3113 for the
dealer nearest you.
Powerline continually seeks ways to improve the performance, specications and product manuals in order to ensure that only
superior products are released from our factories. Please take the time to carefully read through this manual thoroughly. Instructions
contained in this document are not intended to cover all details or variations possible with Powerline equipment, or to cover every
contingency that may be met in conjunction with installation, operation, maintenance or troubleshooting of the equipment. Even
though we have prepared this manual with extreme care, neither the publisher nor the author can accept responsibility for any errors
in, or omission from, the information given. Should additional information be required, or should situations arise that are not covered
by this manual, the matter should be directed to your local Powerline representative, or the Service Department at Body-Solid Inc. in
Forest Park, Illinois.
Any Questions?
Call [phone]

Preparations
4
CAUTION: To set up this unit, you will need assistance. Do not attempt assembly by yourself.
You must review and follow the instructions in this Owner’s Manual. If you do not assemble and use the PPA-13X
according to these guidelines, you could void the Powerline warranty.
Required Tools
The basic tools that you must obtain before assembling
the PPA-13X include but are not limited to:
m Standard Wrench Set
m Metric Wrench Set
m Adjustable Wrench
Installation Requirements
Follow these installation requirements when assembling
the PPA-13X:
Set up the PPA-13X on a solid, at surface. A smooth, at
surface under the machine helps keep it level. A
level machine has fewer malfunctions.
Provide ample space around the machine. Open
space around the machine allows for easier access.
Insert all bolts in the same direction. For aesthetic
purposes, insert all bolts in the same direction unless
specied (in text or illustrations) to do otherwise.
Leave room for adjustments. Tighten fasteners such as
bolts, nuts, and screws so the unit is stable, but leave
room for adjustments. Do not fully tighten fasteners
until instructed in the assembly steps to do so.
Fill out and mail the warranty card.
Be careful to assemble components in the sequence
presented in this guide.
NOTE: With so many assembled parts, proper
alignment and adjustment is critical. While
tightening the nuts and bolts, be sure to leave
room for adjustments.
CAUTION: Obtain assistance! Do not attempt to
assemble the PPA-13X by yourself.
Review the Installation Requirements
before proceeding with the following
steps.

5
Assembly Instructions
Assembly of the PPA-13X takes professional installers about 1 hour to complete. If this is the rst time you have
assembled this type of equipment, plan on signicantly more time.
Professional installers are highly recommended!
However, if you acquire the appropriate tools, obtain assistance, and follow the assembly steps sequentially,
the process will take time, but is fairly easy.
Assembly Tips
Read all “Notes” on each page before beginning each
step.
While you may be able to assemble the PPA-13X using
the illustrations only, important safety notes and other
tips are included in the text.
Some pieces may have extra holes that you will not use.
Use only those holes indicated in the instructions and
illustrations.
NOTE: To nd out the length of a particular bolt,
measure its shank (the long, narrow part
beneath the head). Refer to the following
diagram:
Do not fully tighten bolts until instructed to do so.
Note: After assembly, you should check all functions
to ensure correct operation. If you experience
 problems,rstrechecktheassemblyinstructions
to locate any possible errors made during assembly.
If you are unable to correct the problem, call the
dealer from whom you purchased the machine or
call 1-800-556-3113 for the dealer nearest you.
IMPORTANT!
Before you begin you should look at the quick reference
guide that shows all hardware parts (in actual size) along
with the corresponding key numbers on the assembly
instructions.

6
STEP
1
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Some components may be pre-installed.
A. Secure Plate (B) and Center Arm Frame (A) together as shown by using:
Two A1 (M10x70 hex head bolt)
Two B1 (M10 nylon lock nut)
B. Slide Plastic Cover (D2) onto Center Arm Frame (A).
Insert End Caps (D5) into Center Arm Frame (A).
C. Connect Pulleys (D4) to Plate (B) by using:
Two A3 (M10x40 hex head bolt)
Two C2 (M10 washer)
Two B1 (M10 nylon lock nut)
D. Slide Foam Roller (D1) onto Left Arm (C) and slide the remaining Foam Roller (D1) onto Right
Arm (D).
Insert both End Caps (D5) into Left Arm (C) and both End Caps (D5) into Right Arm (D).
E. Insert Left Arm (C) and Right Arm (D) onto the shafts of Center Arm Frame (A) as shown.
F. Insert Left Arm (C) and Right Arm (D) onto the shafts on Center Arn Frame (A) as shown and
secure using:
Two A5 (M10x16 hex head bolt) (pre-installed)
Two C2 (M10 washer) (pre-installed)
G. Attach Pad (G) by using:
Two A4 (M8x65 hex head bolt)
Two C3 (M8 spring washer)
Two C1 (M8 washer)
H. Insert Pulley (D4) into Pulley Holder (E) using:
One A2 (M10x50 hex head bolt)
One B1 (M10 nylon lock nut)
I. Secure Pulley Holder (E) using:
Two A1 (M10x70 hex head bolt)
Two B1 (M10 nylon lock nut)
J. Insert both End Caps (D6) into Pulley Holder (E) as shown. (pre-installed)
K. Insert Pulley (D4) into Pulley Holder with Hook (F) and secure using:
One A2 (M10x50 hex head bolt)
One B1 (M10 nylon lock nut)
NOTE: Pulley Holder with Hook (F) will be completely assembled in the next step.

PPA-13
PAGE 2
D
D1
D5
G
B1
B1
D4
A2A1
D5
D1
C
D5
A3
C2 D4 B1
B
B1
A3
C2 D4
D5
A
D5
D2
B1
E
A4
C3
C1
B1
D5
D4
A2
B1
F
D6
C2
C2
A1
A1
A5
A5
7
STEP
1
Above shows Step 1 assembled and completed.
PPA-13
VERSION 0904
PPA-13
PAGE 2
D
D1
D5
G
B1
B1
D4
A2A1
D5
D1
C
D5
A3
C2 D4 B1
B
B1
A3
C2 D4
D5
A
D5
D2
B1
E
A4
C3
C1
B1
D5
D4
A2
B1
F
D6
A5
C2
A5
C2
A1
A1
PPA-13
PAGE 2
D
D1
D5
G
B1
B1
D4
A2A1
D5
D1
C
D5
A3
C2 D4 B1
B
B1
A3
C2 D4
D5
A
D5
D2
B1
E
A4
C3
C1
B1
D5
D4
A2
B1
F
D6
A5
C2
A5
C2
A1
A1

8
STEP
2
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware in this step unless otherwise noted.

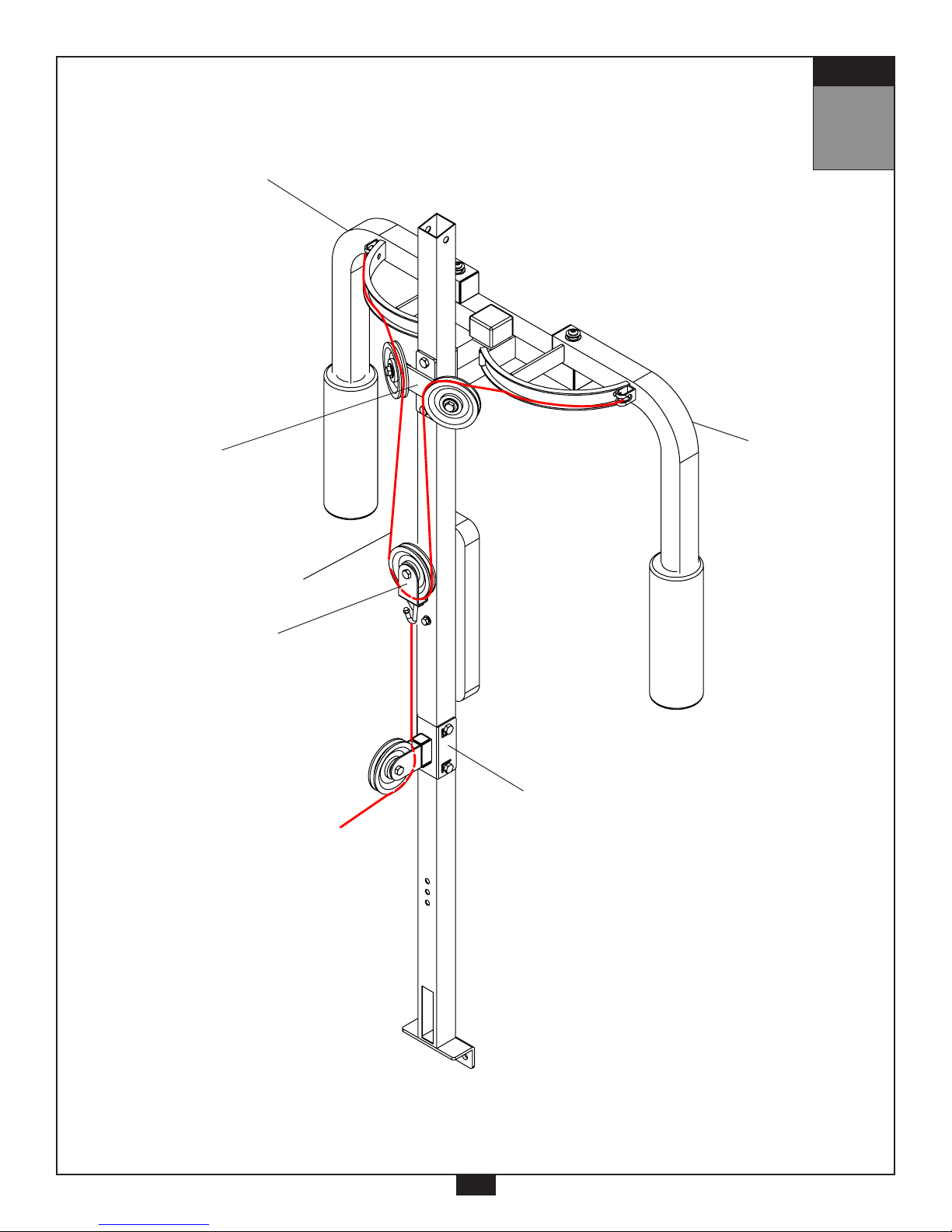

A. Attach Cable (D3) to Right Arm (D) by sliding it into position.
B. Bring Cable (D3) around the Pulley on Pulley Plate (B) then down towards
Pulley Holder with Hook (F) as shown.
C. Wrap Cable (D3) around Pulley Holder with Hook (F) then bring it back up to
Pulley Plate (B).
D. Terminate Cable (D3) onto Left Arm (C) by sliding it into position.

9
STEP
2
PAGE 3
PPA-13
D3
D
B
F
E
C

10
H a r d w a r e L i s t
Part numbers are required when ordering parts.
Part# Qty Description
A 1 Center Arm Frame
B 1 Plate
C 1 Left Arm
D 1 Right Arm
E 1 Pulley Holder
F 1 Pulley Holder with Hook
G 1 Pad (911-5001)
A1 4 Hex Head Bolt M10x70
A2 2 Hex Head Bolt M10x50
A3 2 Hex Head Bolt M10x40
A4 2 Hex Head Bolt M8x65
A5 2 Hex Head Bolt M10x16
B1 8 Nylon Nut M10
C1 2 Washer M8 (ID)
C2 4 Washer M10 (ID)
C3 2 Spring Washer M8
D1 2 Foam Roller (9161-011)
D2 1 Plastic Cover 2”x2” (9310-020)
D3 1 Cable 1980mm
D4 4 Pulley Wheel (9213-001A)
D5 6 End Cap 2”x2” (9211-005)
D6 2 End Cap 1”x1” (9211-001)

45 11
H a r d w a r e (To Scale)
4567
H a r d w a r e (To Scale)
4567
H a r d w a r e (To Scale)
4567
H a r d w a r e (To Scale)
4567
H a r d w a r e (To Scale)
4567
H a r d w a r e (To Scale)
(A1) M10 x 70mm Hex Head Bolt QTY. 4
(A2) M10 x 50mm Hex Head Bolt QTY. 2
(A3) M10 x 40mm Hex Head Bolt QTY. 2
1 0
HARDWARE
(Actual Size Shown)
1 0
HARDWARE
(Actual Size Shown)
(A4) M8 x 65mm Hex Head Bolt QTY. 2
4571
H a r d w a r e (To Scale)
(C1) M8 Washer QTY. 2
4570
H a r d w a r e (To Scale)
(B1) M10 Nylon Nut QTY. 8
1 0
HARDWARE
(Actual Size Shown)
(C3) M8 Spring Washer QTY. 2
4569
H a r d w a r e (To Scale)
(C2) M10 Washer QTY. 2

45 12
EXPLODED VIEW
DIAGRAM
PPA-13X
PPA-13
PAGE 2
D
D1
D5
G
B1
B1
D4
A2A1
D5
D1
C
D5
A3
C2 D4 B1
B
B1
A3
C2 D4
D5
A
D5
D2
B1
E
A4
C3
C1
B1
D5
D4
A2
B1
F
D6
C2
C2
A1
A1
A5
A5
PPA-13
PAGE 2
D
D1
D5
G
B1
B1
D4
A2A1
D5
D1
C
D5
A3
C2 D4 B1
B
B1
A3
C2 D4
D5
A
D5
D2
B1
E
A4
C3
C1
B1
D5
D4
A2
B1
F
D6
A5
C2
A5
C2
A1
A1
PPA-13
PAGE 2
D
D1
D5
G
B1
B1
D4
A2A1
D5
D1
C
D5
A3
C2 D4 B1
B
B1
A3
C2 D4
D5
A
D5
D2
B1
E
A4
C3
C1
B1
D5
D4
A2
B1
F
D6
A5
C2
A5
C2
A1
A1

13
Notes

1900 S. Des Plaines Ave.
Forest Park, Il 60130
1 [phone]
Hours: M-F 8:30 - 5:00
www.bodysolid.com
c
Copyright 2009. Body-Solid. All rights reserved. Body-Solid reserves the right to change design and specications when we feel it will improve the product.
Body-Solid machines maintain several patented and patent pending features and designs. All rights reserved on all design patents and utility patents.
