Powernail 445 User manual

POWERNAIL
®
CO.
Read this manual before you use this Powernailer®. Follow all safety warnings and
instructions. If you are uncertain about the operation of the nailer, call us directly
at 1-800-323-1653 for assistance or contact the closest Powernail Dealer for help.
Please retain this information for future reference.
WARNING
445 Power Roller
REV 2019.04.18
Powernail
®
Model 445 with Power Roller
OPERATION AND MAINTENANCE MANUAL
MANUAL DE OPERACION Y DE MANTENIMIENTO
MANUEL D’INSTRUCTIONS ET D’ENTRETIEN

The Powernail Model 445 Power Roller mallet
actuated pneumatic nailer is designed to bring
Powernail quality to a pneumatic nailer. 445 Series
nailers can install 3/4″ to 5/8″ (19 mm to 16 mm)
tongue and groove hardwood fl ooring using 16 gauge
L-cleats in lengths of 1-1/2”, 1-3/4” and 2”. The 445
Power Roller can adjust to diff erent thicknesses of
fl ooring without the need of pads or shims. The Power
Roller delivers speed, comfort and accuracy while
gliding on 5 precision bearings.
INTRODUCTION
2
INDEX
LIMITED WARRANTY
POWERNAIL® Company, Inc. warrants to its customer, and to the fi rst end-use purchaser of POWERNAIL
fl ooring nailers purchased from an authorized POWERNAIL distributor, that each serialized manufactured nailer
by POWERNAIL®, for a period of 12 months from the date of purchase, and with respect to the nailer body
(specifi cally Models 200, 445, and 50P), for a period of 10 years from date of purchase, (“warranty period”); shall
be free of defects in materials and workmanship and will meet POWERNAIL’s specifi cations in eff ect at the time of
Product shipment. POWERNAIL will repair or replace, at its option, any Powernailer® that does not conform to this
warranty. Claims must be made no later than fi fteen (15) days after the end of the warranty period. POWERNAIL
will perform all repair or replacements itself or through its authorized contractors. POWERNAIL is not responsible
for shipping, labor or other direct or indirect costs. Damage caused by abuse, misuse, unusual or excessive wear is
excluded. Repair or modifi cation of the Products by unauthorized parties will void this warranty. The customer is
responsible for returning Products to POWERNAIL for verifi cation of nonconformance. Warranties for Products
not manufactured by POWERNAIL are limited to warranties provided to POWERNAIL by the manufacturer of
such product that are assignable to customer.
THESE WARRANTIES AND REMEDIES ARE EXCLUSIVE OF ALL OTHERS, EXPRESS OR IMPLIED. THE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PURPOSE ARE EXPRESSLY EXCLUDED.
IN NO EVENT SHALL POWERNAIL’S LIABILITY FOR A WARRANTY CLAIM EXCEED THE PRICE PAID
TO POWERNAIL FOR THE NONCONFORMING PRODUCT, REGARDLESS OF THE FORM OR BASIS OF
THE CLAIM OR CAUSE OF ACTION.
Index..................................... 2
Warranty............................... 2
Safety Instructions................ 3
Powernail Company Info...... 3
Operating Instructions.......... 4-8
Parts & Service.................... 5-8
Drive Blade........................... 5-6
Seal Replacement................. 6-8
Safety Labels........................ 9
Parts List.............................. 10-11
Seal Locations Diagram....... 12
Schematic ........................... 13
Depth Chart.......................... 14
Troubleshooting Chart......... 15
Accessory Products.............. 16

3
SAFETY INSTRUCTIONS
Always use approved SAFETY GLASSES and EAR PROTECTION when operating this Nailer. The
operator and others in the work area should always wear approved FRONT and SIDE eye protection
when operating this Nailer. Eye protection will help guard against fl ying nails and debris, which could
cause severe eye injury.
EYE AND EAR PROTECTION should be used to prevent hearing damage when there are high noise
levels in the work area.
ALWAYS use ear plugs with a noise reduction rated at 29 db or highter at a construction site.
Nailer noise ratings are at LPA-1sd=90.6,
LWA-1sd=99.3 and LPA-1s,1m=86.3.
Nailer vibration rating: m/s2=3.05.
Always DISCONNECT THE AIR SUPPLY before making any adjustments, repairing, clearing jams or when the
Nailer is not in use. Do not use on scaff olding or ladders and disconnect nailer from air supply when transporting
between installation areas.
Never attach the female end of a quick disconnect to the Nailer. This will trap air inside the Nailer and permit it to
be discharged. Only the unrestricted male connection should be attached to the Nailer.
Nailer requires an air source that can continuously deliver 80 to 110 psi at 3-1/2 cubic feet of air per minute for
operation.
Normal air pressure should not exceed 120 psi or damage to the Nailer and seals may occur. Excess air pressure
can cause the Nailer to explode.
To prevent fi re or explosion, use only regulated compressed air—do not use bottled gases of any kind (no oxygen
or combustible gasses) to power this Nailer.
Nailer is intended for use installing wood fl ooring and is not to be used for purposes not specifi ed in the operations
manual.
Do not use any nails other than Powernail Powercleats Nails which are specifi cally designed for use in any
Powernailer. Powercleats Nails are available in various lengths. Contact your Powernail Dealer for Powercleats
Nails.
Use only Powernail replacement parts in the repair or maintenance of this nailer. Parts or repair services are
available from the manufacturer or from agents authorised by the manufacturer. Repairs should be carried out
only by trained service personel in the fi eld of fastener driving tools who will observe proper safety controls while
performing maintenace. Service personel should be qualifi ed to to asses the safe working condition of fastener
driving tools.
Never place any part of the body in the discharge path of the Nailer when air is connected to the Nailer. Always
make sure Nailer is empty of cleats before connecting air hose so as to prevent any accidental discharge from
occurring.
Never leave the Nailer unattended while it is connected to an air supply.
Whenever air is connected to the Nailer, keep body parts away from the nail discharge path.
Disconnect the air line before making adjustments or repairs on the Nailer. Only connect air to an
unloaded Nailer so as to prevent accidental discharge.
POWERNAIL COMPANY, INC.
1300 Rose Road, Lake Zurich, IL 60047 US
Phone: [phone] OR 847-847-3000
www.powernail.com

4
Read these instructions carefully before you use the Nailer.
1. Loosen 2 hex screws.
2. Raise or lower the FLEX to your wood sample.
3. Match the triangle & 9mm roller to the nail pocket.
4. Tighten 2 hex screws.
5. Test wood sample with new adjustment.
Hex Allen Wrench
FLEX
Adjustment Lever
Figure 1.
FLEX Power Roller Foot Adjustment:
Wood varies from one manufacturer to the next. The
diff erent wood profi les may be due to height and
length of the fl ooring tongue and whether or not there
is a nail pocket.
To use the Powernail Flex Power Roller, adjust the nailer
FLEX foot to a sample of your fl ooring (Figure 1).
When the nailer foot is adjusted to your fl ooring, simply
place the nailer on the fl oor and pull nailer back so the
triangle & 9mm roller catch the edge of the fl oor above
the tongue. Tap the plunger with the rubber-capped
mallet-end to let the Nailer drive and set the nail at the
correct 45 degree angle.
To Load the 445 FLEX Power Roller:
Place up to one stick (100) of Powercleats® (16 gauge)
nails, 2" , 1-3/4" , or 1-1/2" long into the nail channel
feed slot. Pull back the spring loaded nail pusher over
the nails until it contacts the last nail and slowly release
the nail pusher.
To Unload
To remove nails from the nail channel, pull the two
round knobs on the nail pusher together. This will clear
it from the nail path. Then turn the nailer over so the
nails slide out of the channel.
First, loosen the two hex bolts under the FLEX foot with
the Allen Wrench supplied with the nailer. (Figure. 1.)
Next, set the nailer on a sample of your fl ooring.
Use the adjustment lever at the back of the nailer foot to
raise or lower the nailer to the wood.
Match the Adapter Foot triangle & 9mm roller so that it
is pointing into the 90° angle created
by the tongue and the top of the wood (see Figure 2).
For wood with a nail pocket, line up the triangle & 9mm
roller at the top of the nail pocket.
When the adjustment lever is in the correct position
for your wood sample, tighten the two hex bolts to
lock the FLEX foot into place.
Always check your adjustment with a sample to
ensure the nail is driving into the nail pocket.
OPERATION
Adjust FLEX lever so the triangle & 9mm roller is above the fl ooring tongue
Figure 2.

5
WARNING: It is not necessary to hit the Nailer hard to
activate it. Never hit the Nailer with excessive force or
with the metal end of the mallet, this will damage the
Nailer.
Before each use check all screws to be sure they are
tight. Shock and vibration can loosen screws. Do not
over tighten any screw.
AIR SUPPLY:
The air must be clean and dry. Dirty and/or wet air
will damage the Nailer. A combination fi lter-regulator-
lubricator is required for proper Nailer performance
and should be placed close to the Nailer per
manufacturer’s recommendations.
The air source must continuously deliver 80 to 110
psi (but not over 120 psi) at 3-1/2 cubic feet of air per
minute to operate the Nailer. Connect a clean air hose
and air regulator to the Nailer.
Check for air supply leaks that waste air and starve the
Nailer of air thereby reducing its performance.
LUBRICATION:
If you do not use an in line lubricator, you must
lubricate the Nailer manually. The frequency of
lubrication is dependent upon the duty cycle of the
Nailer. Continuous duty requires more frequent oiling
than intermittent duty.
At least every eight (8) hours place two to four drops of
Pneumatic Light Air Tool Oil into the disconnected air
line male connector attached to the Nailer.
WARNING: Detergent oil is not recommended and
may damage the seals.
WARNING: Do not over lubricate the Nailer, excess
oil mist or drops will be vented with spent air when
over lubricated. Excess oil could stain the wood
fl ooring, walls or furnishings. Dry fi re the Nailer,
without nails, to purge excess oil, before you begin to
nail down fl ooring. We will not be responsible for oil
stains. Before storing the Nailer, lubricate and cycle
the Nailer in insure internal parts are oil protected
from corrosion.
PARTS & SERVICE:
When ordering parts include the part number,
part description, Powernailer model and serial
number. Be sure to state the quantity of the
part(s) required. Contact your Powernail Dealer
for the necessary parts or visit our parts store
www.store.powernail.com
WARNING: Never work on the Nailer if the air
line is attached. Always disconnect the air line
from the Nailer fi rst.
NAILER DISASSEMBLY:
TO REPLACE RUBBER BUMPER (#24):
1. Disconnect the air supply
2. Remove the four (4) cap screws holding the
Adapter Foot, Foot and Nail Channel assembly to
the main Body (see illustration).
3. Pull the Rubber Bumper out of the cylinder
bore. Replace the old Bumper if it shows signs of
wear or it is split.
4. Reverse these steps to reassemble the Nailer.
Be sure to align the Driving Blade with the slot in
the Nail Channel Assembly while you reassemble
the Nailer.
NEVER FIRE THE NAILER WITHOUT THE
RUBBER BUMPER INSTALLED, IT WILL
SEVERELY DAMAGE THE NAILER.
CHANGING A DRIVE BLADE (#15):
1. Disconnect the air supply.
2. Remove the four socket head cap screws
holding the Adapter Foot, Foot and Nail Channel
Assembly to the body.
3. Remove the Rubber Bumper.
OPERATION, continued...

6
4. Pull the Driving Blade with pliers until the
Piston is fully extended outward towards the
bottom of the cylinder.
5. Use a 15/16” box wrench (Part #: 09-445-29768) to
unscrew the Driving Blade Jam Nut and remove it.
Hold the Piston from turning while unscrewing
the Jam Nut by holding the piston hex with a
1-1/8” box wrench (Part #: 09-445-29768).
6. Push out the 1/4” diameter blade retaining
Dowel Pin and remove the broken Driving Blade
stub.
7. Install a new Driving Blade in the slot and
replace the Dowel Pin. Screw on the retaining
Jam Nut using the same tools. If the Jam
Nut becomes worn and loose after frequent
removals, it should be replaced.
8. Check the fi t, there should be some sideways
movement between the Driving Blade and the
Jam Nut assembly. This is desirable and helps
the blade to align itself with the mating parts.
9. Reassemble the components. Be sure
to align the Driving Blade with the slot in the
Adapter Foot Assembly.
SEAL REPLACEMENT:
There are 7 seals that may require replacement.
We recommend that you have your
POWERNAIL Dealer replace the Seals.
SEAL KIT:
You may choose to buy a Seal Replacement
Kit and replace the seals yourself. It is good
practice to replace all seals at one time
regardless if only one seal needs replacement.
SEAL DESCRIPTION & NUMBER:
1. Rubber Seat (#18)
2. Plunger Seal Set (#10)
3. Piston U-Cup Lip Seal (#21)
4. Return Cylinder U-Cup Lip Seal (#17)
5. Piston Rod U-Cup Lip Seal (#12)
6. Plunger Wiper Seal (#4)
7. Return Cylinder O-Ring Gasket (#11)
To change Seals follow these procedures. Be
sure the air line is disconnected from the Nailer
fi rst before making any repairs.
Consult the illustration for the name and location
of the following component parts.
SEAL REPLACEMENT REQUIRES REMOVAL
OF THE DRIVING BLADE ASSEMBLY:
1. Disconnect the air supply.
2. Remove Rubber Plunger Cap (#7).
3. Unscrew & remove Body Cap (#2).
4. Unscrew the three #10-32 cap screws holding
the Plunger (#9) to the Return Cylinder (#16).
5. Pull the Plunger up and out of the Nailer Body
(#1) cavity.
6. Remove the Return Cylinder O-Ring Gasket
(#11) located on the top of the Return Cylinder
under the Plunger.
7. Turn the Nailer over and remove the four cap
screws (#43), that fasten the Adapter Foot and
Nail Channel Assembly to the Nailer Body and
lift the Assembly off the Body.
8. Remove the Rubber Bumper (#24).
9. Pull the Driving Blade Assembly out of the
Nailer Body by pulling on the Driving Blade.
10. Hold the Piston Rod (#13) with an 11/16
socket over its hex end opposite the Piston.
Do not use pliers or a vise anywhere on the
metal parts, they can damage the sealing
surfaces.
11. Use box wrenches to remove the 5/8-18 Jam
Nut (#22). Remove the Dowel Pin (#14) and Driving
Blade (#15).
12. Unscrew the Piston from the Piston Rod using
box wrenches and separate the Piston, Piston
Rod and Return Cylinder.
TO REPLACE THE SEALS:
Rubber Seat (#18):
1. Remove the Cylinder Sleeve (#23). The
Cylinder Sleeve should slide out of the Nailer
Body when you pull out the Driving Blade
Assembly.
2. Remove the metal Support Ring (#19) and
Rubber Seat from inside the Nailer body. Note
that the chamfer on the inside of the Rubber
OPERATION, continued...

7
Seat faces the BOTTOM of the Nailer, do not
reverse the direction of the chamfer when you
replace the Rubber Seat.
3. Replace the Rubber Seat, Support Ring and
Cylinder Sleeve. Be sure to re install the steel
Cylinder Sleeve with the chamfered inside
edge facing the BOTTOM of the Nailer
Plunger Seal Set (#10):
1. Remove the Tefl on® Seal and its O-Ring
expander from the groove using a bent paper
clip or pick. Be sure not to scratch the inside
walls of the seal groove with the wire hook.
2. Clean out the seal groove. Place a new
O-Ring into the seal groove by stretching it
over the Plunger body. Make sure the O-Ring
is not twisted in the groove. Place a new
Tefl on° Seal Ring into the seal groove over the
O-Ring.
3. Carefully push the Tefl on®Seal Ring over
the edge of the Plunger with your thumbs and
into the groove. Do this as quickly as possible
to reduce stretching of the Tefl on®Seal Ring.
DO NOT OVER STRETCH THE TEFLON®
SEAL RING! Be sure the Tefl on® Seal Ring
is centered all around the seal groove and not
twisted.
4. Wipe off the Seal surface with a clean rag
and lubricate it generously with Pneumatic
Light Air Tool Oil lubricant.
Piston U-Cup Lip Seal (#21):
1. Remove the old Piston U-Cup Lip Seal from
the Piston using a bent paper clip or pick, being
careful not to scratch the inside walls of the
seal groove or the edge of the Piston with the
wire hook.
2. Clean out the seal groove. Place a new
U-Cup Lip Seal into the groove. Make sure the
lips is not twisted in the groove and the lips
face the top of the Nailer See the sketch below.
3. Carefully wipe off the U-Cup Lip Seal surface
with a clean rag and lubricate it generously with
Pneumatic Light Air Tool Oil lubricant.
Return Cylinder U-Cup Lip Seal (#17):
1. Use a bent paper clip or pick to remove the
old U-Cup Lip Seal from the internal seal groove
inside the Return Cylinder. Be careful not to
scratch the inside walls of the seal groove with
the wire hook.
2. Clean out the seal groove. Place a new U-Cup
Lip Seal into the groove, be sure it is not twisted
in the groove. Be sure the lips are facing the
inside of the Return Cylinder as shown in the
schematic (page 10-11, 13).
WARNING: The U-Cup Lip Seals #12 and #17
look alike, but they are diff erent, DO NOT mix
them up.
3. Carefully wipe off the Lip Seal surface with
a clean rag and lubricate it generously with
Pneumatic Light Air Tool Oil lubricant.
Piston Rod U-Cup Lip Seal (#12):
1. Remove the old U-Cup Lip Seal from the seal
groove with a bent paper clip or pick using care
not to scratch the inside walls of the seal groove
with the wire hook.
2. Clean out the seal groove and install a new
U-Cup Lip Seal. Be sure the Lips are facing the
right direction and are not twisted in the groove.
See the sketch below.
WARNING: The Lip Seals #12 and #17 look
alike, but they are diff erent, DO NOT mix them
up.
3. Carefully wipe off the seal surface with a clean
rag and lubricate it generously with Pneumatic
Light Air Tool Oil lubricant.
Plunger Wiper Metal Cap O-Ring (#4):
1. Use a bent paper clip to pick out the felt Wiper
Seal out of its groove in the Body Cap (#2).
2. Clean out the groove and insert the new
O-Ring (#4) in to the groove in the metal body
cap (#2).
OPERATION, continued...

8
Return Cylinder O-Ring Gasket (#11):
1. Place a new O-Ring Gasket in the groove
on top of the Return Cylinder when you
reassemble the Driving Blade Assembly.
2. Wipe off the O-Ring Gasket seal surface
and lubricate it generously with Pneumatic
Light Air Tool Oil lubricant.
REASSEMBLING THE NAILER:
1. Be sure the Rubber Seat, Support Ring
and Cylinder are installed in the Body and
are facing the correct way.
2. All seal surfaces must be clean and
lubricated generously with Pneumatic Light
Air Tool Oil lubricant.
Replace any part that shows signs of wear.
3. Use care when installing the seals
into their respective cavities. Be sure the
Seals are contained in their groove and do
not come out as the parts slide together.
Generous cavity lead in chamfers have been
provided to help Seal installation.
4. Carefully insert the Piston Rod into the
return Cylinder and screw the Piston onto
the rod. Be sure the Piston is facing the
correct way, ears up, hex down.
5. Assemble the Driving Blade, Dowel Pin
and Jam Nut on to the Piston Rod.
6. Insert the Driving Blade Assembly up into
the bottom of the Nailer Body Cylinder.
7. Be sure there is a new O-Ring Gasket in
the top groove of the Return Cylinder.
8. Insert the Plunger into the top cavity of the
Body. Line up the holes and install the three
Plunger retaining screws. It is important
that the three #10-32 screws are tight or air
leakage will occur. Our recommendation is
to use 1-2 drops of blue Loctite® or similar
on the 3 screws.
10. Install the Body Cap and Plunger
Rubber Cap.
11. Turn the Nailer upside down. Install the
Rubber Bumper, Nail Channel Assembly and
Adapter Foot. Be sure to align up the Driving
Blade with the slot in the Foot before the Nailer is
closed up.
12. NEVER FIRE THE NAILER WITHOUT
THE RUBBER BUMPER INSTALLED, IT WILL
DAMAGE THE NAILER.
TO CLEAR A NAIL JAM:
1. It helps to tap the Driving Blade back to the
retracted position before trying to remove a
jammed nail. A spare Driving Blade works best for
this.
2. Try to pull the jammed nail out of the gate with
a pair of long nose pliers. If this does not work
remove the four (4) cap screws holding the Foot,
Gate and Nail Channel Assembly together.
3. Separate the Foot and gate with a screw driver
just enough to clear out the jammed nail.
4. Put thread locking compound on all screws and
reassemble the components.
OPERATION, continued...
For Step-by-Step Videos and Instructions,
Visit our Web Site at: www.Powernail.com

9
CAUTION:
Lubricate
Nailer with
2-4 drops of
Industrial Light
Oil for every
8 hours of use.
↑
R
E
L
O
A
D
Nailer is activated by striking the plunger. Do not work on
scaff olding, ladders, elevated or uneven surfaces where the
nailer could fall and self-activate. Do not leave air attached to
the Nailer when moving from one install location to another.
Refi ll the nail channel with a
clip of Powercleats when empty.
Pull the Nail-Pusher assembly
to the back of the channel when
cleats are reloaded.
Caution:
To
Prevent
Accidental
Discharge
Never
Attach
Air Hose
To
Loaded
Nailer
NAILER SAFETY DECALS
• Read and understand the tool labels and
manuals before operating. • Operators and
others in work area MUST wear EYE and EAR
protection. • Use safety glasses with side
shields. •NEVER point tool at yourself or
others in the work area. •Only connect air to
an unloaded tool and always keep tool
pointed in a safe direction. •Disconnect air
when clearing jams, servicing or when tool is
not in use. •Use only clean, dry, regulated air
not exceed 110 psi. •Never use oxygen or
other bottled gasses-explosion may occur.
Warning!

MODELS 445 POWER ROLLER PARTS LIST
ITEM PART NO. DESCRIPTION QTY REQ TU SEAL AVAIL
1 09-44529701 BODY 1 F
2 09-4453150 CAP (LOW PROFILE) 1 S
3 09-50P3202 1/4-20 X 5/8” S.H.C.S. W/PATCH (COVER) 4 S
4 09-44529729 PLUNGER WIPER METAL CAP O-RING 1 TU SEAL S, A-5
509-44529759 3/8” NPT 45° STREET ELBOW 1 S
6 09-4455418 1/4" AIR FITTING 3/8" NPT 1 S
7 09-44529722 RUBBER CAP 1 TU S, A-25
8 09-44529832 #10-32 X 3/4” S.H.C.S. W/PATCH (PLUNGER) 3 S, A-11
9 09-50P3014 PLUNGER (LOW PROFILE) 1 S, A-11
10 09-44529725 PLUNGER SEAL SET 1 TU SEAL S, A-5, A-11
11 09-44529731 RETURN CYLINDER O-RING GASKET 1 TU SEAL S, A-5, A-11
12 09-2003028 PISTON ROD U-CUP SEAL 1 TU SEAL S, A-5, A-11
13 09-44529710 PISTON ROD 1 S, A-11
14 09-44529740 1/4” X 1/2” DOWEL PIN (DRV. BLADE) 1 TU S, A-11, A-25
15 09-44529718 DRIVING BLADE 1 TU S, A-11, A-25
16 09-44529830 RETURN CYLINDER 1 S, A-11
17 09-2003027 RETURN CYLINDER U-CUP SEAL 1 TU SEAL S, A-5, A-11
18 09-44529723 RUBBER SEAT 1 TU SEAL S, A-5, A-11
19 09-44529721 SUPPORT RING 1 S
20 09-44529711 PISTON 1 S, A-11
21 09-2003026 PISTON U-CUP SEAL 1 TU SEAL S, A-5, A-11
22 09-44529748 5/8-18 JAM NUT (DRV. BLADE) 1 TU S, A-11, A-25
23 09-44529715 CYLINDER SLEEVE 1 S
24 09-44529724 RUBBER BUMPER 1 TU S, A-11, A-25
25XL 09-50P3201 HANDLE, X-LONG 1 S
25L 09-50P3200 HANDLE, LONG 1 S
26 09-50P3202 1/4-20 X 5/8” S.H.C.S. W/PATCH (HANDLE BASE) 4 S
27L 09-44529817 NAIL CHANNEL, LONG 1 A-8
27S 09-44529818 NAIL CHANNEL, SHORT 1 A-9
28 09-44529821 GATE 1 TU S, A-8, A-9
29 09-44529820 GATE PLATE 1 TU S, A-8, A-9
30 09-44529706 FOOT 1 S, A-8, A-9
31 09-44529750 #8-32 X 1-1/2” F.H.C.S. (SPACER) 2 S, A-8, A-9
32 09-44529756 1/4” X 1” SPACER (CHANNEL) 2 S, A-8, A-9
33 09-44529751 #8-32 LOCKNUT (SPACER) 2 S, A-8, A-9
34 09-44529754 #10-32 X 1/2” S.H.C.S. W/PATCH (FOOT) 4 S, A-8, A-9
35 09-44529836 #10-32 X 3/8” S.H.C.S. (GATE) 2 TU S, A-8, A-9
36 09-44529741 1/8” X 5/8” ROLL PIN (GATE) 2 S, A-8, A-9
37 09-44529822 #10-32 X 3/4” S.H.C.S. W/PATCH (GATE) 4 TU S, A-8, A-9
38 09-44529735 NAIL PUSHER 1 S, A-8, A-9, A-10
39 09-44529745 #10-32 X 1-1/4” S.H.C.S. (KNOB) 1 S, A-8, A-9, A-10
40 09-44529735.2 NAIL PUSHER KNOB 1 S, A-8, A-9, A-10
41 09-44529734 NAIL PUSHER SPRING 1 S, A-8, A-9, A-10
42 09-44529734.1 SPOOL (FOR NAIL PUSHER SPRING) 2 S, A-8, A-9, A-10
43 09-44529747 1/4-20 X 1-1/4” S.H.C.S. (FOOT) 4 S
44 09-44529758 1/4” SPLIT RING LOCK WASHER (FOOT) 4 S, A-8, A-9
10

KEY: S=Sold Separately, A= Sold as part of assembly, TU=Tune-up Kit, F=Factory replacement only
For this parts list and other Powernailer schematics, please visit the
Powernail Parts Store at http://www.powernail.com
Model 445 Power Roller Assemblies, Kits and Accessories
ITEM # PART NO. DESCRIPTION QTY REQ TU AVAIL
60 09-4453110 ROLLER ADAPTER FOOT (445X) 1 S, A-3
61 09-50P3101 TRI-GLIDE TRIANGLE (PLASTIC) 1 S, A-1, A-2, A-3
62 09-50P3102 1/4"-20 X 3/4" F.H.C.S. 1 S, A-3
63 09-50P3077 #10-32 X 1/2" B.H.C.S. 2 S, A-3
64 09-50P3104 9MM BEARING W/ MOLDED COVER 1 S, A-1, A-2, A-3
65 09-50P3103 AXEL PIN 1 S, A-3
66 09-44529334 FLEX FOOT BRACKET 1 S, A-3
67 09-50P3073 FLEX FOOT CAM PLATE 1 S, A-3
68 09-50P3072 FLEX FOOT CAM 1 S, A-3
69 09-50P3079 BELLEVILLE DISC SPRING 1 S, A-3
70 09-50P3078 1/4 SH DIA X .50" SH. BOLT (W/PATCH) 1 S, A-3
71 09-44529875 ROLLER FLEX FOOT (445) 1 S, A-3
72 09-50P3076 WASHER .281 IDX.62 ODX.051" T 2 S, A-3
73 09-50P3075 1/4-28 X 1-1/4" S.H.C.S. 2 S, A-3
74 09-50P3097 LARGE ROLLER BEARING WITH MOLDED COVER 4 S, A-2, A-3
75 09-50P3084 ROLLER 10MM SH DIA X 16MM SH BOLT 4 S, A-3
09-44529801 HEX WRENCH 3/16 (FLEX FOOT) 1 A-3, A-24
09-44529802 HEX WRENCH 5/32 1 A-24
ITEM # PART NO. DESCRIPTION QTY REQ
A-1 09-50P3105A 9MM BEARING W/ MOLDED COVER & TRIANGLE (SET) 1
A-2 09-50P3106A
COMPLETE ROLLER SET W/TRIANGLE (4 LRG ROLLERS + 1 9MM ROLLER +
TRIANGLE (PLASTIC)) 1
A-3 06-99604 445 POWER ROLLER CONVERSION KIT 1
A-4 09-44529757A 6 OZ. INDUSTRIAL LIGHT AIR TOOL OIL 1
A-5 09-2003058A SEAL KIT (1 EACH OF ALL SEALS) 1
A-8 09-44529761A LONG NAIL (200) CHANNEL ASSEMBLY 1
A-9 09-44529762A SHORT NAIL (100) CHANNEL ASSEMBLY 1
A-10 09-44529763A NAIL PUSHER ASSEMBLY 1
A-11 09-44529764ALP DRV. BLADE ASSEMBLY W/RUBBER SEAT (W/ LOW PROFILE PLUNGER) 1
A-15 09-44529768 BOX WRENCH - 2 ENDS: 15/16" & 1-1/8" (2 REQ) 2
A-24 09-AW445 ALLEN WRENCH SET 1
A-25 09-445TUKIT MODEL 445 XLL, XLS, LL, LS, SL, SS TUNE UP KIT 1
09-50P3107 TRI-GLIDE TRIANGLE (ALUMINIUM) 1
MODELS 445 POWER ROLLER PARTS LIST
11

12
#11
#10
#4
#12
#17
#21
#18
SEAL PLACEMENT

27S 27L
28
1
12
13
15 8
9
7
14
16
18
19
20
10
11
17
21
3
42
25XL 25L
26
42
41
39
40
31
38
6
32
33
5
37
29
36
30
34
63
22
23
24
60
61
64
65
62
43 44
66
67
68
69
70
75
74
73
72
71
35
13
FLEX Power Roller Conversion Parts.
#60-75
For Step-by-Step Videos and Instructions,
Visit our Web Site at: www.Powernail.com
SCHEMATIC - 445 POWER ROLLER
Seal Kit
(1 Each Of All Seals)
Tune-up Kit
Part #: 09-2003058A
Schematic #'s: 4, 10, 11, 12, 17, 18, 21
Part #: 09-445TUKIT
Schematic #'s: 4, 7, 10, 11, 12, 14, 15, 17, 18, 21,
22, 24, 28, 29, 35 (x2), 37 (x4)
Kits Available - For use on all Model 445 Tongue & Groove Powernailers (Not 445SN)

14
1-3/4”16 GAUGE POWERCLEATS®
2”16 GAUGE POWERCLEATS®
1-1/2”16 GAUGE POWERCLEATS®
16 GAUGE 16 GAUGE
16 GAUGE 16 GAUGE
16 GAUGE
16 GAUGE
16 GAUGE16 GAUGE
16 GAUGE16 GAUGE16 GAUGE16 GAUGE16 GAUGE
1-3/16”
1-3/16” 1-1/8” 1-1/16” 1”
13/16”
7/8”
This chart will assist you in determining the proper length of Powercleats to use for various thicknesses of fl ooring. Approximate vertical penetration of the Powercleat under the hardwood fl oor is shown for each application. This is only a guide. Results should be tested in the fi eld before proceeding.
©Powernail Company 2012
POWERCLEATS LENGTH DETERMINATION CHART
Nail Penetration for 3/4" and 5/8" Underlayment

PROBLEM POSSIBLE CAUSE SOLUTION
1
Driving blade
does not
retract
1. Zero or Low air pressure Check air supply for 80 psi minimum to 110 psi
maximum
2. Lack of lubrication Manually lubricate through male air inlet fitting
3. Excessive dirt inside nailer Disassemble and clean
4. Bent or burred driving blade Replace driving blade (#15)
5. Seals worn out Replace all seals (Seal Kit)
6. U-Cup Lip Seals installed upside down Replace all seals (Seal Kit)
2Driving blade
retracts slowly
1. Low air pressure Turn up air pressure to 80-110 psi max
2. Bent or burred driving blade Replace driving blade (#15)
3. Air supply restricted by small orifice Use 1/4" minimum diameter air fittings
4. U-Cup Lip Seals installed upside down Replace all seals (Seal Kit)
5. Excessive dirt inside nailer Disassemble, clean and lubricate
3Nail is not
countersunk
1. Low air pressure Turn up air pressure to 80-110 psi max
2. Broken Driving Blade Replace Driving Blade (#15)
3. Nail hit hard surface Move from obstruction
4. Piston U-Cup Lip Seal installed upside down Replace all seals (Seal Kit)
5. Driving blade jam nut came loose Retighten or replace jam nut (#22)
6. Worn out gate Replace gate. (#28)
4 Nailer leaks air
1. Air supply fittings loose Tighten all air line fitting connections
2. Excess air pressure blew out seals Check air supply for 110 psi maximum—replace all
seals
3. Plunger screws loose Tighten 3 plunger screws (#8)
4. Cracked or damaged body Replace body (#1)
5. Seals worn out Replace all seals (Seal Kit)
6. Seals need to be seated Dry fire Nailer
5
Bottom of
nailer cracked
off
1. Operated without rubber bumper installed Replace damaged parts
2. Excessive air pressure used Replace damaged parts
6Nails jam in
nailer
1. Not using 16 gauge Powercleats nails Use 16 gauge Powercleats nails only
2. Continued use after a short hit Clear nail immediately after short hit
3. Nail pusher damaged or spring broken Replace nail pusher assembly (#A-10)
4. Nail channel lose Tighten nail channel retaining screws (#34,#43)
5. Bent nail stuck in nail guide Disassemble and clear out bent nail
6. Hit another set nail or hard object Move from obstruction
7. Nail gate worn out Replace nail gate (#28)
7
Plunger locked
up—won't
move or fire
2. Lack of lubrication Manually lubricate through male air inlet fitting
15
POWERNAILER MODEL 445 TROUBLE SHOOTING CHART

16

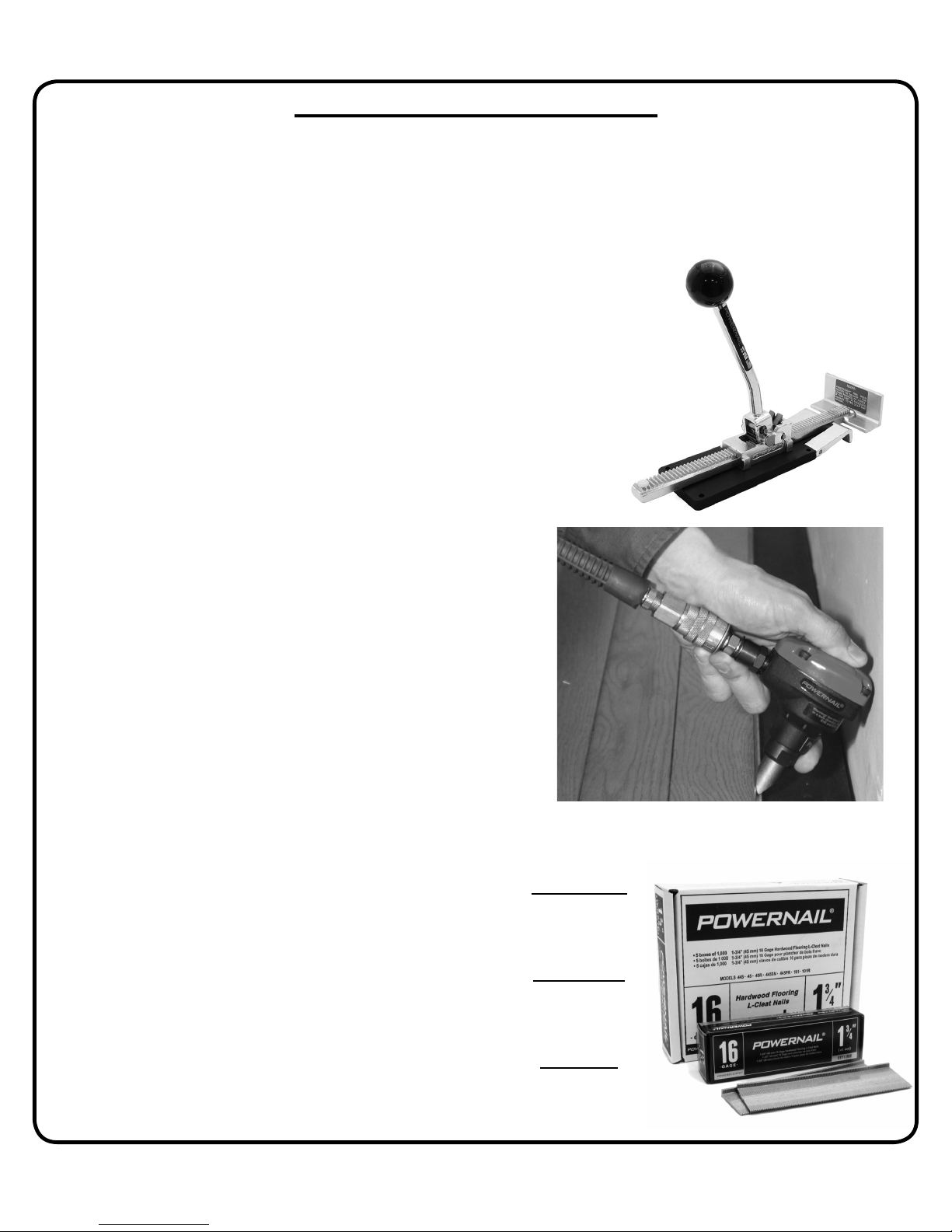

• Dealer Locator
• Rental Locator
• Parts Store
• Product Information
The PowerPalm™
"The PowerPalm is the industries best solution to blind nailing
close to the wall. Saves both, time and money!"
Pressure activated...simply press down, and let the tool do the
work. The Power Palm will allow blind nailing closer to the
wall and reduce the amount of face nailing. "Blind nail, top
nail...tight spots and corners, the PowerPalm gets them all!"
Featuring 360 degree swivel tip for fi tting awkward or tight
spaces. Magnetic cleat holder keeps nail in position. Uses both
16 gauge and 18 gauge Powercleats–Use the same fastener
throughout your install! Part number: PALM001
Powerjack® Model 500
Truly a Tinker's TOOL, the POWERJACK Model 500 is
designed to push or pull fl ooring strips into place and hold
them tightly. The PowerJack Model 500 self adjusts from
5/16” to 3/4" thickness fl ooring. It can be used to either push
or pull wood fl ooring strips into place and ratchets tightly
for hands free operation. The base of the PowerJack 500
has mounting holes for mid-fl oor use. Simply screw nail the
PowerJack 500 to your sub fl oor -in front of your fl ooring
strips -and ratchet the fl ooring strips tight. Also great for under
cabinet and kick plate installation. Part number: PJ500
Powerjack
Model 500
• Repair Tech Videos
• Cool Tools Cleat Calculator
• Cleat Depth Chart
• Training Schools
Closest you
can get to
the wall!
Pneumatic PowerPalm™
Visit www.Powernail.com
Featured Accessory Products
1½” 5 Pack
(5 x 1,000 Cleats)
Part #: L150165
1¾” 5 Pack
(5 x 1,000 Cleats)
Part #: L175165
2” 5 Pack
(5 x 1,000 Cleats)
Part #: L200165
16 Gauge Powercleats™
16 GA. Powercleats are designed for the hardwood fl ooring
industry and are FHA and VA approved. Powercleats nails are
superior-quality nails designed to ensure trouble-free nailer
operation and optimum construction results.
Powercleats nails are made from high-quality steel so they
do not bend while being driven into hard fl ooring materials.
They are made with a well-formed set of barbs along each
nail, providing the ultimate holding power. The design aids
in driving them into hard fl ooring materials, which helps to
eliminate split tongues in fl oorboards.
For use on 1/2″- 3/4" Tongue & Groove
