PowerPac PPF52 User manual

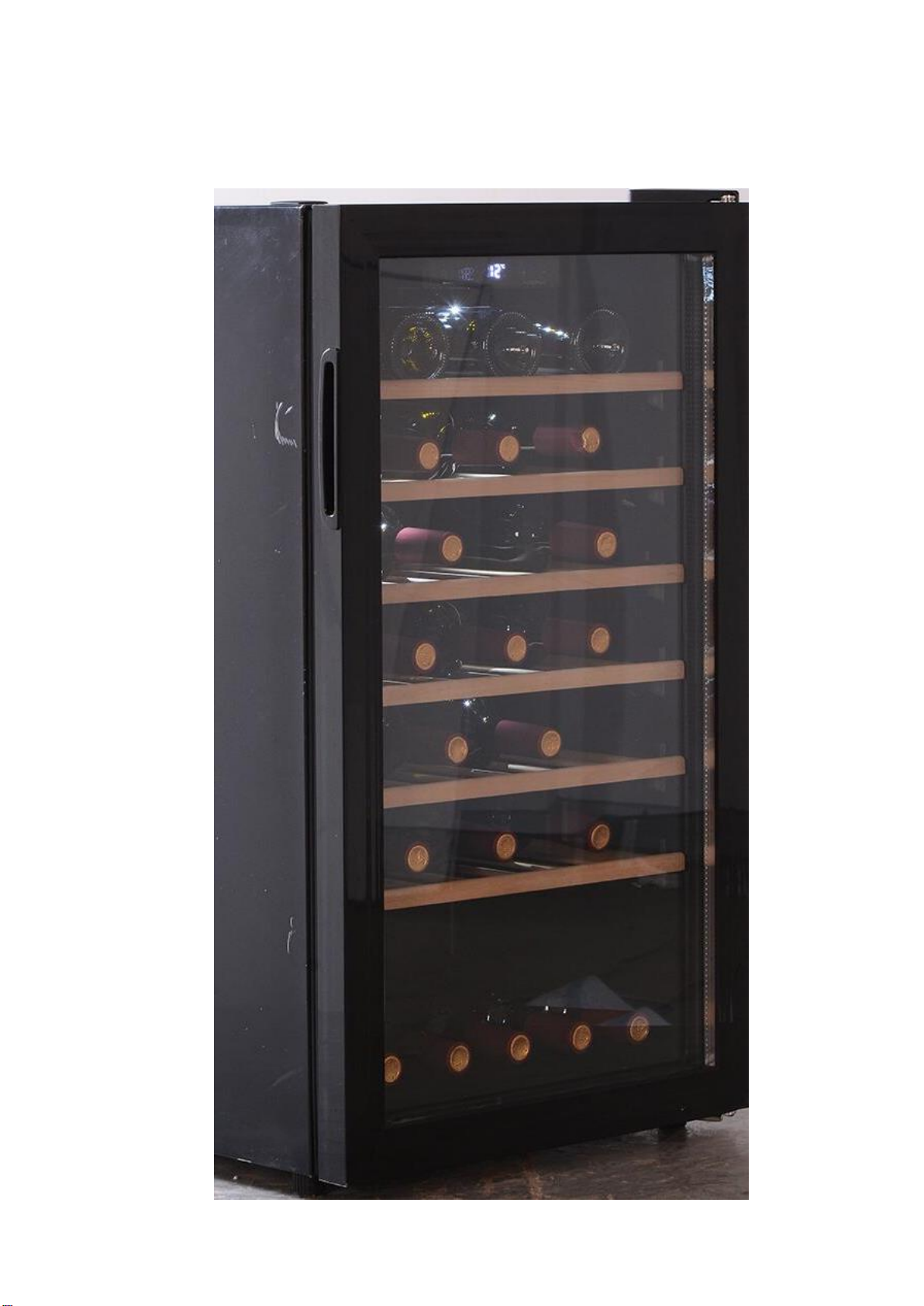

WINE CHILLER (52 bottles)
PPF52
d

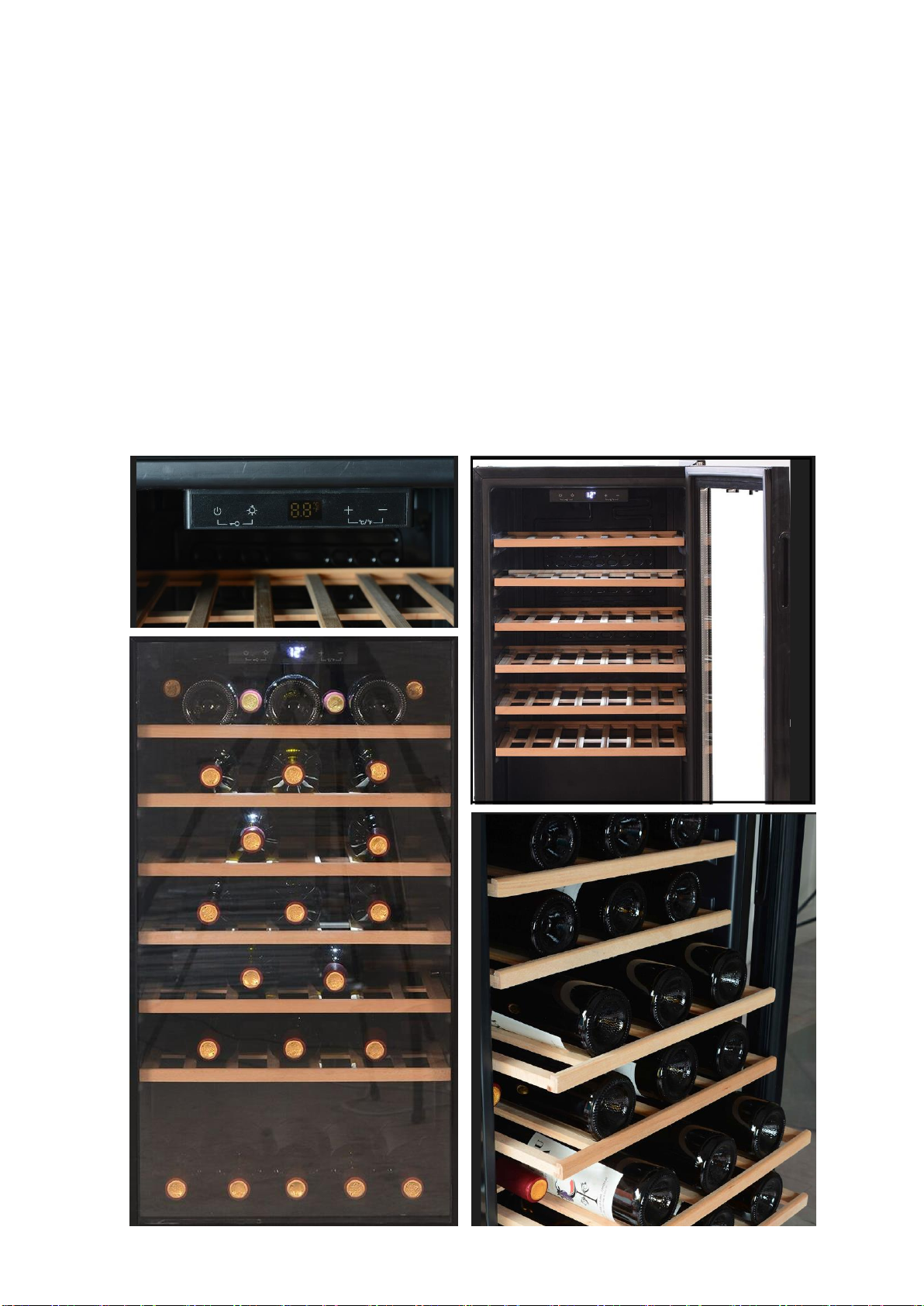

Parts & Description s
LIST OF COMPONENTS
1.
Control Panel
2.
Door Hinge
3.
Handle
4.
Glass Door
5.
Wooden Shelf
6.
Foot
②
③
④
⑤
⑥
⑥

To change the temperature settings:
1. Press & hold the Child-Lock Button
(both buttons at the same time) for 5 seconds.
2. Use button to raise and button to lower the temperature.
3. Sets the new temperature when no other button is pressed after 5 seconds.
①Control Panel
②
Door
Hinge
Handle③
Glass Door④
Wooden Shelf ⑤
Foot ⑥
⑥Foot

Warnings s
ATTENTION :
Read this booklet carefully as it contains important instructions for a safe installation,
use and maintenance.
Important instructions to be kept for future reference.
The following basic precautions should always be followed when using electrical
appliances:
1. Read all instructions before using the appliance.
The Appliance
2. This appliance must be used only for the purpose it was expressly designed –
which is the exclusive storage of wine. It is NOT suitable for freezing foodstuffs or
other perishables. Any use NOT complying with the instructions contained in the
manual is considered inappropriate and dangerous. The manufacturer is NOT
responsible for possible damages caused by the inappropriate and/or
unreasonable use.
3. The appliance comes fully assembled. DO NOT disassemble the appliance. The
installation of the appliance will be made in accordance with the indications of the
manufacturer. A wrong procedure may cause damages to persons, animals or
objects, for which the manufacturer cannot be considered responsible.
4. Before use, check the integrity of the appliance and power cable. DO NOT operate
the appliance when its Compressor is damaged. In case you are not sure, contact
a qualified person. If the power cable is damaged, it must be replaced by the
manufacturer or its service agent, or a qualified technician in order to avoid a shock
hazard.
5. Before powering the appliance make sure the rating (voltage and frequency)
corresponding to the grid and the socket is suitable for the plug of the appliance,
and that the wall socket is properly grounded. This appliance is fitted with an earth
wire for extra safety.
6. Avoid the use of adapters and/or extension cables; if their use is absolutely
necessary, use only materials in compliance with the current safety regulations
and according to the electrical parameters of the adapters.
7. The appliance must NOT be switched on using external timers and/or other remote
control appliances which are not specified in this manual.
8. Only use original components & accessories provided by the manufacturer. Any
non-original component or accessory NOT recommended by the manufacturer
(including those made by other manufacturers or by the same manufacturer but
for other models) may cause injuries to persons or damage to the appliance.

9. The packing materials (plastic bags, expanded polystyrene, etc.) must be kept out
of the reach of children or disabled persons since they represent potential sources
of danger.
Location
10. During transportation of this appliance, it should NOT be subjected to an
inclination of greater than 45 to the horizontal, so as to prevent damage to the
compressor and refrigeration system of the appliance.
11. This appliance is NOT suitable to be used or stored near heat sources (open flame,
ovens, heaters, stoves, etc.) and/or in an explosive environment (in the presence
of flammable substances such as gas, vapour, mist or dust, in atmospheric
conditions when, after ignition, the combustion is spread in the air). Items
containing these substances should never be placed in the appliance, and never
be used to clean the appliance in order to avert the risk of fire or explosion.
12. The appliance should NOT be placed on a surface, or in the vicinity of, objects
which can be damaged by heat, such as carpets or plastics. Never use the
appliance near curtains or textiles. DO NOT locate multiple portable socket outlets
or power supplies at the bottom or rear of the appliance. During operation, as heat
is transferred away from the appliance, the surface that the appliance is placed
upon as well the surface immediately above or adjacent to it may become hot.
There should be at least 10 cm of free space from the back, left & right sides and
at least 20 cm from the top to allow adequate air circulation to cool the compressor.
Never put things on top of the appliance. If the appliance is operated on wooden
furniture, use a protective pad to prevent damage to delicate finishes.
13. DO NOT touch the back and bottom of the appliance while it is operating to prevent
scalding, as the regions become hot as the appliance operates.
14. Avoid placing the power cable on abrasive or sharp surfaces or in positions where
it can be damaged easily. Avoid placing heavy objects on the cable. The cable
must NOT be placed under carpets, or covered with throw rugs, runners or similar.
Arrange the cable away from the high traffic area, and where it will NOT be tripped
over. DO NOT pull or carry the appliance by the cable.
15. DO NOT use or store the appliance outdoors. Store and use the appliance only
indoors, or in any case, protected from weathering such as rain, direct radiation of
the sun and dust.
Operation
16. If you are using the appliance for the first time, you should:
a. Clean the exterior of the appliance and the removable accessories contained
within with a solution of liquid detergent and water. Clean the interior of the
appliance with a solution of sodium bicarbonate dissolved in lukewarm water.
DO NOT use metal scouring pads.

b. Place the appliance upright on a horizontal, stable, dry and heat-resistant
surface for at least 4 hours before switching on the appliance. Damage to the
appliance may occur if it is placed on an incline or decline.
c. (First use)
Switch the appliance ON
Plug the power cable into the wall socket and switch the appliance
on.
Press the Power Button.
Set the Temperature below 20C (68 F). To do so, press & hold the
Child-Lock Button (both buttons at the same time) for
5 seconds.
(optional: Press & hold the Temperatures Scale Button
(both buttons at the same time) for 5 seconds to switch the temperature
scale between Celsius and Fahrenheit.)
Press the Temperature Increase Button. Each press of this
button raises the temperature by 1 C (in Celsius mode) or 1 F (in
Fahrenheit mode) incrementally. Sets the new temperature when no
other button is pressed after 5 seconds.
Press the Temperature Decrease Button. Each press of this
button lowers the temperature by 1 C (in Celsius mode) or 1 F (in
Fahrenheit mode) incrementally. Sets the new temperature when no
other button is pressed after 5 seconds.
Check that the Indicator Light (by pressing the Light Button),
Compressor and Ventilation Fan are all working smoothly.
(henceforth “switching the appliance on” is intended to include the steps
above)
After half an hour, the temperature inside the appliance should already be
cool, and gradually getting colder. Let the Compressor operate for a period
of 4 hours before placing bottles into the appliance.
To change the temperature settings
Press and hold for 5 seconds, press or to
raise or lower the temperature, respectively. Each press of these
buttons raises or lowers the temperature by 1 C (in Celsius mode) or 1 F
(in Fahrenheit mode) incrementally. Sets the new temperature when no
other button is pressed after 5 seconds.

Make sure to remove any label or protective sheet which may prevent its
proper functioning.
DO NOT:
cover the appliance during functioning;
insert objects or body parts inside the protection cover of the appliance;
adjust the temperature from a higher value to a lower one (or vice versa) without
first gradually adjusting its value in stages over several hours;
put oversized bottles or large number of bottles into the appliance at the same
time;
place or use any electrical appliances inside the appliance unless
recommended by the manufacturer;
use electrical devices (e.g. hairdryers, heaters, radiators, fans, etc. to melt ice),
mechanical devices (sharp knives, ice-picks, etc. to scrape ice), a direct flame
or by any other means to remove ice from the interior surfaces) when defrosting;
tamper with the refrigerant circuit in any way as this could damage the appliance
or release the refrigerant gas into the immediate surroundings. This refrigerant
gas (R600a - chemical name: isobutane) is currently the refrigerant gas of
choice in domestic and small commercial refrigerators due to its low
environmental impact and excellent thermodynamic performance. However, it
is a hydrocarbon and is flammable;
move the appliance by the door handle.
17. During operation, DO NOT touch the appliance with wet body parts, and it is
recommended to have between you and the standing surface, an isolating element
(for example, wearing shoes with rubber soles).
18. DO NOT soak the appliance in water or other liquids, wash it under the tap, or let
any liquid flow into the internal casing of the appliance to prevent electric shock.
In case of flooding, etc. where water has entered the appliance, switch the
appliance off immediately.
19. Switch off the appliance and unplug the power cable from the wall socket if
it is NOT used for a long period, before storing, cleaning or performing any
maintenance operation. (henceforth “switching the appliance off” is intended to
include the steps above)
20. Plug and unplug the power cable firmly holding it with dry hands. DO NOT pull it,
tug it or use it to drag the appliance to which is connected. Make sure at least 5
minutes have elapsed before switching the appliance back on in order to
protect the compressor and the refrigeration system. However, DO NOT
switch the appliance on and off unnecessarily or frequently.
21. In case of malfunction or anomaly during the functioning, switch the appliance off
immediately and check the cause of the anomaly, if possible, with the support of a
qualified person.
22. If smoke is observed coming out of the appliance, switch the appliance off
immediately.

23. This appliance is NOT intended for commercial use but to be used in households
and similar applications, such as:
Staff kitchen areas in shops, offices & other working environments;
By clients in hotels, motels, dormitories & other residential environments;
Bed and breakfast type environments.
24. This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved. Children shall
NOT play with the appliance. Cleaning and user maintenance shall NOT be made
by children unless they are older than 8 and supervised. Keep the appliance and
its cable out of reach of children less than 8 years old.
25. Save these instructions.

How to Install s
1. Before and during installation, DO NOT subject this appliance to an inclination of
greater than 45 to the horizontal, so as to prevent damage to the compressor and
refrigeration system of the appliance.
2. Clean the exterior of the appliance and the removable accessories contained
within with a solution of liquid detergent and water. Clean the interior of the
appliance with a solution of sodium bicarbonate dissolved in lukewarm water.
Ensure that the appliance is completely dry before use and standing at an upright
position for at least 2 hours before switching on the appliance. This will reduce the
possibility of malfunction of the cooling system which may have been incurred
during transportation.
3. This appliance should be installed in an environment free from explosive &
flammable substances, away from direct sunlight and sources of heat (stove,
heater, radiator, etc.) on a horizontal, stable and heat-resistant surface. Adjust the
front feet to keep the appliance level. Direct sunlight may affect the acrylic coating;
heat sources may increase electrical consumption and wear out the motor.
Ambient temperature below 5 C and above 32 C will hinder the performance of
the appliance.
4. This appliance is deigned to be free-standing, and should NOT be recessed or
built-in.
5. The appliance shall NOT be placed on a surface, or in the vicinity of, objects which
can be damaged by heat such as wood, carpets or plastics. If the appliance is
operated on wooden furniture, use a protective pad to prevent damage to delicate
finishes.
6. Place the appliance at a proper distance from objects or surrounding walls making
sure that its functioning will NOT cause accidental damages. There should be at
least 10 cm of free space from the back, left & right sides and at least 20 cm from
the top to allow adequate air circulation to cool the compressor. Never put things
on top of the appliance.
7. Before powering the appliance make sure the rating (voltage and frequency)
corresponding to the grid and the socket is suitable for the plug of the appliance,
the wall socket is properly grounded and the power cable is undamaged. DO NOT
power the appliance using adapters and/or extension cables, external timers
and/or other remote control appliances.
8. Before switching on the appliance for the first time or re-starting the appliance after
a long period of being turned off, DO NOT place bottles inside the appliance. For
the first few hours after switching on the appliance, the actual temperature inside
the compartment and the temperature indicated on the Display might be different.
Once the Compressor has run continuously for a few hours, this discrepancy will
resolve itself. During this period of time, you should try NOT to open the door
frequently nor place bottles inside the appliance.

9. The shelves are arranged in factory mode that results in the most efficient use of
energy for the refrigerating appliances. To prevent damaging the door gasket,
make sure the door is fully opened when pulling shelves out of the rail
compartment. The shelves are fully adjustable to suit various wine bottle shapes
and sizes.
10. Pull the shelves out approximately 1/3 before putting, and removing, bottles. The
shelves are designed with an emergency stop to prevent them being removed too
far when loaded.
11. If you need to switch the appliance off, make sure at least 5 minutes had elapsed
before switching the appliance back on in order to protect the compressor and the
refrigeration system.
Bottles

Reversing the Door
To reverse the door from opening from left outwards to right outwards, perform the
following steps:
① ② ③ ④ ⑤
12. Close the Glass Door.
13. (Right) Remove the ② Door Hinge Cover, unscrew the ③ Flange Screws and
remove the ④ Top Door Hinge.
14. Remove the ① Door Hinge Hole Cap on the left, and install it on the right.
15. Remove the Glass Door.
16. Remove the ⑤ two Sieve Caps at the top and bottom left of the Door, and install
them on the right.
⑨⑧⑦⑥⑤
Glass Door

17. (Right) Remove the ⑥ Short Adjustable Feet, unscrew the ⑦ Flange Screws and
remove the ⑧ Bottom Door Hinge.
18. Remove the ⑨ High Adjustable Feet on the left, and install it on the right.
② ③ ④ ① ⑤
⑦ ⑥ ⑧ ⑨ ⑤
19. (Left) Install the ⑧ Bottom Door Hinge, screw the ⑦ Flange Screws and install the
⑥ Short Adjustable Feet.
20. Install the Glass Door.
21. (Left) Install the ④ Top Door Hinge, screw the ③ Flange Screws and install the
② Door Hinge Cover.
Glass Door

How to use s
1. The Control Panel is located at the top of the interior and can be used to adjust
the temperature of the compartment and the lamp installed within the compartment.
a
POWER
Press the button for 5 seconds to
switch the appliance OFF.
Press this button for 5 seconds to
switch the appliance ON again.
b
LIGHT
Turns the inner light ON or OFF.
c
CHILD-LOCK
The appliance automatically works in
Child-Lock mode.
To unlock, press and hold both buttons
for 5 seconds. Any operation, such as
changing the temperature should be
preceeded by this action first.
d
TEMPERATURE
SCALE
Press and hold both buttons to switch
the temperature scale between Celsius
and Fahrenheit.
e
TEMPERATURE
INCREASE
Press and hold the Child-Lock Button
for 5 seconds.
Each press of this button raises the
temperature by 1C (in Celsius mode)
or 1 F (in Fahrenheit mode)
incrementally. Sets the new
temperature when no other button is
pressed after 5 seconds.
f
TEMPERATURE
DECREASE
Press and hold the Child-Lock Button
for 5 seconds.
Each press of this button lowers the
temperature by 1C (in Celsius mode)
or 1 F (in Fahrenheit mode)
incrementally. Sets the new
temperature when no other button is
pressed after 5 seconds.
Control Panel

2. Storing your wines
The chart below indicates the ideal storage temperatures for different types of wine:
Type of wine
Temperature
(C)
Temperature
(F)
Red wine
15 –18
58 –65
White wine
9 –14
48 –79
Sparkling wines /
champagne
5 –8
41 –47
Exposure to light, vibrations or fluctuations in temperature and humidity can all
cause wine to spoil. However, temperature stability is the most important factor
when it comes to storing wine.
When properly stored, wines not only maintain their quality but many will actually
improve in aroma, flavour and complexity as they mature.
Wines kept at a higher temperature will age faster. Wine that is exposed to
temperatures that are greater than 18 C (64 C) will suffer from poorer flavour and
aroma. Wines kept at too low a temperature can result in the development of
harmful deposits. A humidity of 60%~70% is ideal for keeping corks from shrinking.
After a bottle of wine has been opened, the wine comes into contact with air. So it
is best to store the remainder of the bottle upright, to minimise the surface area of
the wine that is coming into contact with the air. The wine will remain in a drinkable
condition for two days for delicate whites or three days for rich reds, as long as the
bottle has been resealed. You should make sure that the seal is firm by checking
the stopper. Special stoppers that keep wine sparkling and Champagne bubbling
for one or two days after opening, can be bought at most good wine shops.
When stored correctly, white wines can keep well for up to two years. Full bodied
reds will age well for ten years and dessert wines will age well for up to twenty
years.
When you buy a bottle of wine, you should transfer it to a suitable storage location
immediately (if you are not going to store it in your wine chiller).
Cheaper bottles of wine will not age as well as more expensive ones.
To make the most of the bouquet and taste of your wine, never fill more than half
a glass at a time. It will also help if the shape of your wine glass is appropriate for
your wine. The size and shape of your wine glass’s bowl will determine the
intensity and complexity of the bouquet. The stem should be long enough to allow
you to avoid hand contact with the bowl of the glass and should be tulip-shaped
or tapered at the top.

3. The appliance is ideally suited to store 0.75 litre Bordeaux style wine bottles. The
maximum storage number is based on this bottle. As many bottles may differ in
size and dimensions, the actual number of bottles you are able to store may vary.
Make sure that these bottles DO NOT prevent the door from shutting properly.
4. When loading several bottles of wine at once, it will take longer for the appliance
to cool the individual bottles.
5. DO NOT place or use any electrical appliances inside the appliance unless
recommended by the manufacturer.
6. If the appliance is to be moved from one location to another, switch it off, unplug
the power cable from the wall socket, remove all contents from the cooling
compartment, and tape the doors shut.
7. If the appliance is to be left empty for a long period of time (more than 3 weeks),
switch it off, unplug the power cable from the wall socket, remove all contents from
the cooling compartment, clean, dry and leave the door open to prevent mould
from developing within the appliance.
How to clean s
1. Switch off the appliance and unplug the power cable from the wall socket before
cleaning or conducting maintenance.
2. Open the door of the appliance and remove all contents from the cooling
compartment.
3. Wait until the interior of the appliance has completely warmed up, and the
compressor cooled down, before cleaning or performing any maintenance
operation.
4. Wash the inside with a damp warm cloth soaked in lukewarm water and baking
soda solution. The solution should be about 2 tablespoons of baking soda to a
quart of water. DO NOT use abrasive scouring pads or powders.
5. DO NOT soak the appliance in water or other liquids, wash it under the tap, or let
any liquid flow into the internal casing of the appliance to prevent electric shock.
6. Wipe the exterior of the appliance using a soft, damp cloth or sponge moistened
with mild liquid detergent. DO NOT use abrasive scouring pads or powders.
7. Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.
Rubbing some talcum powder on the gasket of the Door may help prolong its life.
8. Remove dust and grime from the Condenser to keep it in good working order.
9. Dust or anything else blocking the vent may hinder the cooling efficiency of the
appliance. Vacuum the vent if necessary.
10. After cleaning, dry every surface using a soft cloth before restarting the appliance.

Problem Solving s
The appliance does
not work
The plug of the appliance is not inserted into the power
socket.
Insert the plug into the grounded power socket and switch it
on.
The circuit breaker tripped or the fuse is blown.
Check the household circuit breaker for any tripped wires.
Call for a qualified electrician.
The Temperature was set at too high a temperature.
Set the temperature below 18 C (65 F).
The appliance is
not cold enough
or
The Compressor
turns on & off
frequently.
Check to see whether the temperature was set at below 18
C (68 F).
Set the temperature below 18 C (65 F). Allow several hours
for the temperature to stabilise. External environment may
require a colder temperature setting.
A large number of bottles had suddenly been added into the
appliance.
The Door was not closed properly or was opened too often.
The Door gasket does not seal properly.
Send to the authorised repair centre.
The appliance was not placed with clearances around it at 5
inches.
There should be at least 5 inches of free space from the
back, left & right sides and from the top of the door to allow
adequate air circulation to cool the compressor.
The appliance has recently been disconnected for a period
of time.
It may take up to 4 hours for the cooling compartment to
reach the Set Temperature.

The appliance is
too cold
Check to see whether the temperature was set at too low.
Turn the control to a warmer setting and allow several hours
for the temperature to stabilise.
Moisture forms on
inside walls
Door is slightly open, kept open for too long or opened too
frequently.
Open the door less often and for a shorter duration each
time.
The Door gasket does not seal properly.
Send to the authorised repair centre.
Moisture forms on
outside walls
Door is slightly open, causing cold air from inside the
appliance to meet warm moist air from outside.
The appliance
vibrates
excessively
The appliance may not be level.
Check whether the appliance is placed on a horizontal and
stable surface / Adjust the Front Feet of the appliance.
The appliance is touching the wall.
Move the appliance away from the wall.
If continued vibrations occur, switch off the appliance and
unplug the power cable holding it firmly with dry hands.
Contact Customer Service Dept. for further assistance.
The appliance
makes a lot of loud
noises
The rattling and gurgling sounds may have come from the
flow of refrigerant inside the appliance.
This is normal.
Contraction of the interior walls may result in ‘popping’ or
‘crackling’ noises.
This is normal.
The appliance may not be level.
Check whether the appliance is placed on a horizontal and
stable surface / Adjust the Front Feet of the appliance.

The Door will not
close properly
The appliance may not be level. Check whether the
appliance is placed on a horizontal and stable surface.
The Door gasket is dirty or worn out. Clean the Door gasket
or replace the Door gasket at the authorised repair centre.
The Light Bulb fails
Switch off the appliance and unplug the power cable holding
it firmly with dry hands. Ensure that the light bulb is screwed
securely in the bulb holder. Plug the power cable and switch
the appliance on (make sure at least 5 minutes had elapsed
before switching the appliance back on in order to protect
the compressor and the refrigeration system).
If the bulb still fails, replace it.

ENVIRONMENTAL TIP s
This appliance, along with all other electronic appliances, should, when it is no longer
capable of functioning, be disposed with the least possible environmental damage
according to the local regulations in your area. In most cases you can discard the
appliance at your local recycling centre.
DISPOSAL: DO NOT dispose this appliance as unsorted municipal waste. Collection
of such waste separately for special treatment is necessary.
Risk of child or animal entrapment
Before you discard this appliance, please remove all doors and leave the shelves
inside so that children or animals may NOT easily get trapped inside.
SPECIFICATION s
MODEL
PPF52
BOTTLES
52
REFRIGERANT
R600a
PRODUCT DIMENSION
w 490 x d 575 x h 867 mm
WEIGHT
35 kg
VOLTAGE
220 –240V ~50 –60Hz
POWER
70W
WARRANTY s

Warranty Conditions
1. This warranty provides against defective materials and manufacturing faults
throughout for two years from the date of purchase of the appliance. The warranty
on the Compressor is 10 years subject to the same conditions as above.
2. This warranty also does not cover normal wear and tear, replacement of
consumable materials and accessories, and the cost of maintenance of the
appliance.
3. This warranty does not cover the repair or replacement of part/s damaged by
misuse, accidents, negligence, alterations, or modifications in any way, or repairs
done by any repair organisation without the prior consent of PowerPac Electrical
Pte Ltd.
4. Repair and service are to be performed at: 5 Changi South Lane #03-01 Singapore
486045. A transport fee will be charged for personal doorstep service.
5. The original purchaser of the appliance must furnish proof of purchase to our
Service Centre with the email or number as registered during submission of
warranty when this appliance is sent for repair/service. Failure to do so may delay
the receipt of said repair/service by the customer.
6. Under no circumstances whatsoever shall the serial number be erased, defaced
or altered by the customer and/or his representatives, or the dealer and/or his
agents. Failure to ensure this shall invalidate the warranty.
7. This warranty is deemed to be void if the defect is cause by the attack of household
pests, fire, lightning, natural disasters, pollution, abnormal voltage or the usage of
generators.
8. This warranty is valid in Singapore only.
9. This warranty will be honoured subject to the customer’s registration of the
warranty inclusive of original invoice or valid purchase receipt. Failure to present
these documents will result in denial of service. However, if the customer still
requests that the defective appliance be repaired, PowerPac Electrical Pte Ltd
may, at its discretion, repair the appliance but impose a labour charge, as well as
the costs of the replacement parts, to be borne solely by the customer.
10. Please refer to the attached picture for the location of
one of our appliance’s serial number, as an example.
Please complete the on-line registration warranty form available on our website. There
is no further requirement to send us any hard copy as part of our efforts to save the
environment.
